Notice Sven HB-AC-120 - page 1
1 / 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Memory Card Reader
Brand Sven
Model HB-AC-120
Supported Card Types SD, SDHC, SDXC, microSD, MMC, RS-MMC
Interface USB 2.0 (backward compatible with USB 1.1)
Transfer Speed Up to 480 Mbps
Operating Systems Windows, macOS, Linux
Dimensions (approx.) 8.0 x 3.0 x 1.0 cm
Weight 50 g
Power Source USB bus-powered (no external power)
Material Plastic
Color Black
LED Indicator Yes (power/activity)
Hot-Swap Support Yes
Plug and Play Yes (no driver required)
Maintenance Clean with a soft, dry cloth; avoid liquids
Safety Keep away from moisture and extreme temperatures
Spare Parts Availability Not available separately
Repairability Not user-serviceable; contact support
Certifications CE, RoHS
Package Contents Memory card reader, user manual
Warranty 1 year

Frequently Asked Questions - HB-AC-120 Sven

Which memory cards are compatible with the Sven HB-AC-120?
The reader supports SD, SDHC, SDXC, microSD, MMC, and RS-MMC cards.
Does the Sven HB-AC-120 require any drivers?
No, it is plug-and-play on Windows, macOS, and Linux. Drivers are not needed.
What is the maximum card capacity supported?
It supports cards up to 2 TB (SDXC standard).
Can I use this card reader with a smartphone?
Yes, if your smartphone supports USB On-The-Go (OTG), you can connect the reader via an OTG adapter.
Why is my memory card not detected?
Ensure the card is fully inserted, try a different USB port, and check if the card is formatted correctly (FAT32/exFAT). Also, verify the card works in another device.
What is the transfer speed of this card reader?
The reader uses USB 2.0 with a maximum transfer speed of 480 Mbps. Actual speed may vary based on the card and system.
Is the reader compatible with USB 3.0 ports?
Yes, it is backward compatible with USB 3.0 and USB 1.1 ports.
How do I clean the Sven HB-AC-120?
Use a soft, dry cloth to wipe the exterior. Avoid using liquids or abrasive cleaners.
What should I do if the LED indicator does not light up?
Check the USB connection and try a different USB port. If the LED still does not light, the reader may be faulty.
Can I use multiple cards at the same time?
No, the reader only supports one card at a time. Insert one card into the appropriate slot.

User questions about HB-AC-120 Sven

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Memory card reader in PDF format for free! Find your manual HB-AC-120 - Sven and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HB-AC-120 by Sven.

USER MANUAL HB-AC-120 Sven

Thank you for purchasing SVEN PC card reader!

USAGE

Sven HB-AC-120 external card reader is designed for reading/writing memory cards. It can also be used as a USB hub.

SAFETY PRECAUSIONS

  • Do not disconnect the device while reading/writing a memory card to avoid data loss.
  • Insert a memory card into the slot according to the table below. Use one memory card at a time only!

PACKAGE CONTENTS

  • Card reader – 1 pc
  • PC connection cable – 1 pc
  • User's manual — 1 pc
  • Warranty card — 1 pc

SPECIAL FEATURES

  • Compatible with USB connectors supporting Plug & Play technology
  • Supports most modern memory cards: MS, SD/MMC, XD/SM, CF/MD etc.

SYSTEM REQUIREMENTS

• Available USB 1.1 or 2.0 port.
- OS Windows 2000/XP/Vista/7 or up.

DESCRIPTION

① SD slot
② CF slot
③ SM/XD slot
④ MS slot
⑤ USB hub connection LEDs
⑥ Reading/writing LED
⑦ DC power source connection jack
⑧ Mini USB port
⑨ USB hub ports

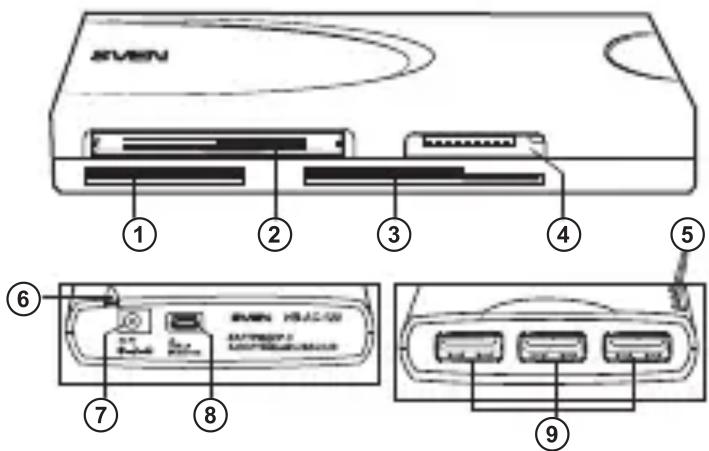

SVEN ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Fig. 1. Card reader construction (front, left, right views)

OPERATION MODE LED

  • If the device is connected to a USB port and the memory card is inserted into the slot correctly, LED ⑥ will light up.
  • During reading/writing LED ⑥ flashes.
  • If you connect your equipment to USB hub ports ⑨, connection LEDs ⑤ will light up.

TROUBLE SHOOTING

- If the device does not operate after its connection to a USB port, make sure the memory card is inserted into the slot correctly (see table).

SlotMemory cards supported
SM SlotMS SlotCF SlotSD SlotSM/XD, etc.MS, MS-DUO, MS Pro, MS PRO-Duo, MS MagicGate, MS Pro MagicGate, MS-Duo MagicGate, MS Pro-DUO MagicGate, etc.CF I/II, CF Ultra II, CF Extreme III, MD, Magicstor, etc.SD, miniSD, MMC-I, MMC-II, MMC4.0, MMC Dual Voltage, RS-MMC, RS-MMC Dual Voltage, RS-MMC 4.0, etc.

Card Reader with

3-port USB Hub

SVEN®

YOU WANT - WE CAN

Модель: HB-AC-120

Produced under the control of Oy Sven Scandinavia

Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310.

Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland.
