Product Type	Canister Vacuum Cleaner
Brand	Fakir
Model	Jaws
Dimensions (L x W x H)	40 x 30 x 25 cm
Weight	5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Suction Power	300 Air Watts
Dust Bag Capacity	3 L
Filtration System	HEPA 13 Filter
Noise Level	75 dB(A)
Cord Length	8 m
Cleaning Radius	10 m
Accessories Included	Crevice tool, dusting brush, upholstery tool, floor nozzle
Bag Type	Fakir Type 1 disposable dust bag
Motor Protection	Overheat protection
Hose Length	1.5 m
Telescopic Tube	Yes, stainless steel
Park Position	Yes, storage hook
Warranty	2 years

Frequently Asked Questions - Jaws FAKIR

How do I change the dust bag in my Fakir Jaws vacuum cleaner?

To change the dust bag, first unplug the vacuum. Press the bag compartment release button to open the cover. Remove the full bag by pulling the cardboard collar. Insert a new Fakir Type 1 bag until it clicks into place. Close the cover securely.

What should I do if the suction power decreases?

Check if the dust bag is full and replace if necessary. Also inspect the filters (HEPA and motor protection) for clogs; clean or replace them. Ensure the hose and nozzle are not blocked. If the problem persists, consult the troubleshooting section of the manual.

How often should I clean or replace the HEPA filter?

For optimal performance, clean the HEPA filter every 3 months by tapping it gently or rinsing with water (allow 24 hours to dry). Replace the HEPA filter every 6 to 12 months, depending on usage.

Can I use my Fakir Jaws vacuum on hardwood floors?

Yes, the vacuum comes with a combined floor nozzle that is safe for hardwood floors. For best results, use the brush setting or an optional parquet brush to avoid scratches.

Why does my vacuum cleaner overheat and shut off?

Overheating can occur if the dust bag is full, filters are clogged, or the hose is blocked. Unplug the vacuum, let it cool for at least 30 minutes, then check and resolve the cause. The vacuum has overheat protection that automatically shuts it off.

How do I clean the hose if it's blocked?

Disconnect the hose from the vacuum and accessories. Use a long, flexible object like a broom handle to gently push out the blockage. Alternatively, run water through the hose if possible and let it dry completely before reattaching.

What type of dust bag does the Fakir Jaws use?

The Fakir Jaws uses a specific disposable dust bag, type Fakir Type 1. These bags are available from Fakir authorized dealers or online. Do not use generic bags as they may not fit properly.

How do I rewind the power cord?

To rewind the power cord, hold the plug and press the cord rewind button located on the vacuum body. Guide the cord as it retracts to prevent tangling.

My vacuum makes a strange noise. What could be the cause?

Unusual noises may indicate a blockage, a full dust bag, or debris caught in the brush roll or hose. Check for blockages and clean the filters. If the noise persists, contact Fakir customer service.

Where can I find replacement parts for my Fakir Jaws?

Replacement parts such as bags, filters, hoses, and nozzles are available from Fakir authorized service centers or online retailers. You can also contact Fakir customer support for assistance.

USER MANUAL Jaws FAKIR

Pressure Steam Cleaner

Fakir air fryer with attached hose and base (no visible text or symbols)

Genel....3

Simple line drawing of an open box with an upward arrow inside, no text or symbols present.

UYARI!

Labeled diagram of a hair dryer with numbered parts for identification

Line drawing of a hand pouring liquid into a pair of steam iron on a table (no text or symbols)

Line drawing of hands holding a ruler and a sheet of paper (no text or symbols)

Front Clip

BAS BAS BAS

Simple line drawing of a mechanical clamp or bracket with a handle, mounted on a flat base (no text or symbols)

Cam Silici

Simple line drawing of a tool or scraper with a handle and base (no text or symbols)

Illustration of three different types of hair accessories or tools, including a cylindrical tube, a circular cap, and a bulb-like object (no text or symbols present)

Line drawing of a hand holding a tool inside a circular component (no text or symbols)

Line drawing of a medical device with tubing and a central circular component (no text or symbols)

Line drawing of a hand holding a car seatbelt (no text or symbols)

Line drawing of a woman using a steam iron to clean air (no text or symbols)

Muhafaza ve Bakım

Simple line drawing of a rectangular object with internal horizontal lines, accompanied by four icons below (hair, star, circle, document) — no text or symbols present.

Illustration of a hand holding a rectangular object, possibly a tool or device, with no visible text or symbols.

Cihazınızı;

Information about the operating instructions....17

Liability....17

Safety is important 17

Notices in the operating instructions....17

Important Safeguards....18

CE Declaration of Conformity....18

Usage Area....18

Unauthorized Use 18

Safety Instructions....18

Assembly....21

Technical Specifications....21

Unpacking and First Use....21

Product Description....22

Usage....23

Accessories....23

After Use....27

Storage and Maintenance ....27

Troubleshooting 28

Waste Disposal....29

Dispatch....29

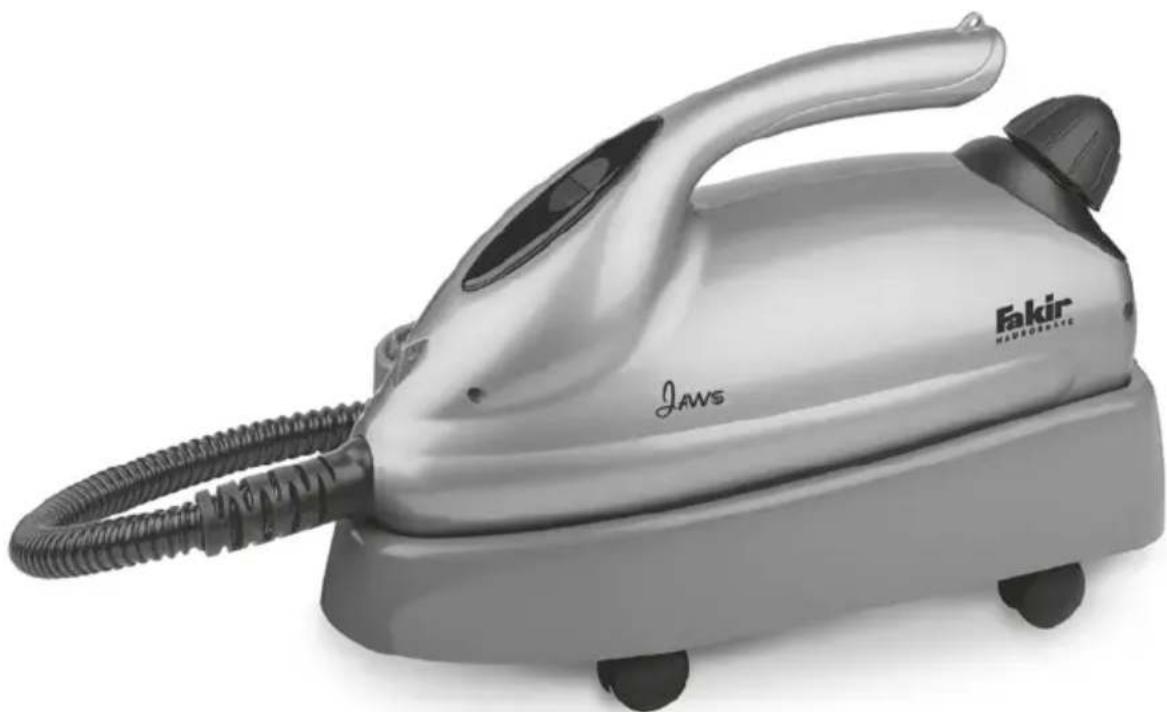

Thank you for purchasing Fakir Jaws Pressure Steam Cleaner. It was developed and manufactured to work reliably for many years.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. will accept no

liability for damages resulting from failure to comply with the operating instructions and cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Safety is important For yours and others safety please read the instructions

before using the appliance. Please keep this instruction in a safe place for the further use. If you pass the appliance on, pass on the instructions too. Remove all packaging, but keep it until you are satisfied that the appliance is working.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives. 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive”. The appliance bears the CE mark on the rating plate.

Usage Area This product designed for just household use. It is not suitable for Business and industry type. Otherwise it will be accepted as “out of warranty conditions” by our authorized services.

Unauthorized Use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury: This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

Children should be supervised to ensure that they do not play with the appliance. Home appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an appliance. Keep packaging films away from children - danger of suffocation!

Safety Instructions 1. Use the system only for its intended use.

1. Do not use outdoors.
2. Do not leave the appliance unattended when plugged in. Always unplug the power cord from the electrical outlet when not in use and before servicing.
3. Do not allow the appliance to be used by children. Close attention is necessary when used by or near children, pets or plants.
4. Use only as described in this manual.
5. Use only manufacturer's recommended accessories.

6. Do not operate the appliance with a damaged plug or cord, or if the unit has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance on your own. Incorrect re-assembly or repair can cause a risk of electrical shock or injury to persons when the appliance is used.

7. To protect against a risk of electric shock, do not immerse the steam mop into water or any other liquids.

8. Do not handle plug or steam mop with wet hands or operate appliance without shoes.

9. Do not pull or carry by power cord, use power cord as handle, close a door on the power cord, or pull it around sharp edges or corners. Keep it away from heated surfaces.

10. Do not unplug by pulling on power cord. To unplug, grasp the plug not the power cord. Do not use extension cords or outlets with inadequate current carrying capacity.

11. Do not put any objects into openings. Do not use with any opening blocked.

12. Do not put hands or feet under the steam mop. Unit gets very hot.

13. Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam sensitive materials.

14. Do not add cleaning solutions, scented perfumes, oils or any other chemicals to the water used in this appliance as this may damage the unit or make it unsafe for use. If you live in a hard water area, we recommend using distilled water in your steam mop.

15. When in use, NEVER turn the appliance over or on its side.

16. Never direct steam towards people, animals or plants.

17. Never leave the steam mop in one spot on any surface for any period of time when micro-fiber pocket is attached.

18. Carefully remove the microfiber pocket immediately after you have unplugged and allowed the appliance to cool.

19. When cleaning the steam mop, unplug the power cord from the electrical outlet and clean with a dry or damp cloth. Do not pour water or use alcohol, benzene or paint thinner on the unit.

20. Extreme caution should be exercised when using this appliance to clean stairs. Never use steam mop without microfiber pocket attached.

21. Store steam mop indoors in a cool, dry place.

22. To avoid circuit overload, do not operate another appliance on the same socket (circuit) as the steam cleaner.

23. If an extension cord is absolutely necessary, an extension cord rated a minimum of 2.5mm2 cord and 4m in length should be used. Cords rated for less amperage may overheat. Care should be taken to arrange cord so that it can not be pulled or tripped over.

24. Do not leave the appliance unattended when the system is connected to a power supply/electrical outlet.
25. Do not store unit with damp or wet microfiber cleaning pocket attached. Never leave the steam mop in one spot on any surface for any period of time with a damp or wet microfiber cleaning pocket attached as this will damage your floors.
26. Always unplug and allow the appliance to cool before removing or changing mop heads.
27. When the appliance is plugged in, pressured steam occurs inside the steam tank. In the meantime, do not open safety filler cap. Steam can sputter and cause burns.
28. If the water finishes while using, first unplug the appliance, press the trigger to discharge the steam then open the safety filling tap carefully. Use the given funnel to fill the water. If it is lost, get a new one form Fakir authorized services.
29. After filling the appliance with water, close the safety filling tap by turning it. Do not over-tighten the cover to avoid damage to this seal as it is sealing gasket on the cover.
30. While using your device, boiling steam tank heater will sound when engaged, it is usual. Boiling sound stops when the heater circuit deactivated.
31. Safety filling tap let the pressure decreased in the tank against excessive pressure in the tank for any reason. If this condition repeats, strictly refer to Fakir authorized services.
32. Discharge the water and refill the water tank in each usage.
33. There may be a slight odor at the first use, this is normal.
34. Microfiber cleaning pads, brushes are consumables, can be provided from Fakir authorized servicews if needed.
35. While cleaning the textiles, never use concentrator, always prefer the special bonnet accessories.

WARNING:

Steam cleaner is designed to clean hard floor surfaces and to create a hygienic environment. It is not recommend to use it on wooden floors which are sensitive to water (passes water inside). Long term use on a fixed point of polished surfaces, may let the surface lose its brightness. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

Technical Specifications

Voltage : 220–240 V AC 50 Hz

Power : 2000 W

Insulation class : I

Water tank capacity : 1,2 lt

Steam boiler material : Stainless steel

Steam Pressure : 5.5 bar

Duration : approx. 60 min.

Usage life : 10 years

Unpacking and First use

Unpack the device and check the content of the packaging for completeness. Should you note any damage incurred during transit, please contact your dealer immediately.

Simple line drawing of an open box with a black upward arrow indicating upward motion (no text or symbols)

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

Product Description

1. Ready Light (Green)
2. Power On Light (Red)
3. Handle
   4.Flexible Hose
   5.Hand Grip
   6.Steam Trigger
4. Safety Filler Cap
   8.Concentrator
   9.Floor Brush
5. Extension Tubes (x2)
6. Window Squeegee
7. Detail Brush (x2)
8. Shoulder Strap
   14.Funnel
   15.Power Cord
9. Trigger Lock
10. Wheel rear fixer
11. Trolley
12. Trigger holder
13. Wheel front fixer

14. Wheel
    22.Floor noozle

15. Microfiber cleaning pad for floor nozzle

16. Microfiber cleaning pad for carpet brush

Labeled diagram of a hair dryer with numbered parts for identification

1-Put the appliance on to the flat floor before plug in. Turn the safety filling tap to open it and place the special funnel to the water filling tube as seen on the picture below. Start to fill the water with pressing the funnel softly. When the water capacity becomes full, water comes from the overflow hole. Then stop filling the water, take the funnel slowly. The water inside the funnel will be filled to the tank. Turn the safety filling tap counterwise to close it. Never fill much water more than its capacity.

NOTICE!

Do not over-tighten the cover to avoid damage of the gasket as it is immerpeable.

NOTICE!

When refilling during the cleaning or before cleaning the water tank of the appliance make sure the device is unplugged.

ATTENTION!

Do not fill the water to the appliance under the tap, use the funnel given or a measuring cup.

Line drawing of a hand pouring liquid into a vintage iron iron on a table (no text or symbols)

2-After filling the water, choose a suitable accessory according to the place you clean and plug in. Red light will be on. It shows the water tank starts to warm up. Steam will be ready approx. in 10 min. and green light will be on. Appliance is ready to use. In use, the red light will come into effect from time to time. In this case, you can continue to clean.

KİLIT DUĞMESİ

3-Wide range of accessories are given for cleaning. They are used with extension tubes or directly with hand grip due to the usage area. All accessories connect each other with a locking system. Press locking button and pull to take off.

ATTENTION!

Be careful to avoid fingers stuck while connecting extension tubes or window squeegee.

NOTICE!

Small amount of water can be given off at the beginning of the cleaning, it is usual.

Hand Grip

STEAM REGULATION KNOB LOCKING KNOB TRIGGER HANG GRIP

All accessories work with hand grip. When the appliance is ready to use, it gives steam with pressing steam trigger and if not pressed steam flow stops. If it is used long time, it can become warm, it is usual.

Steam Setting

X30V MIN

This appliance generates steam under high pressure; sometimes this pressure can be too high for the place that will be cleaned. For instance, when you clean the window with squeegee, it is required less steam. In this situation, steam output can be arranged with the red steam regulation knob on the hand grip.

NOTICE!

While using the appliance, hose and hand grip can become a little bit warm, this is usual.

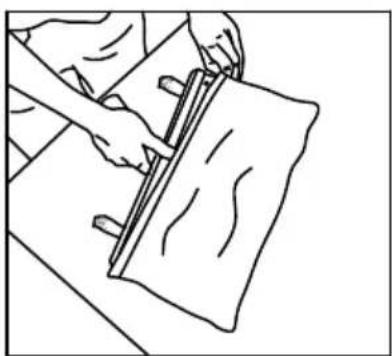

Floor nozzle and Microfiber cleaning pad

It is used for floor cleaning. Attach the microfiber cleaning pad to the floor nozzle and fasten through the rear side of the nozzle as seen on the picture below. Two side of cleaning pad can be used while cleaning. Never use any kind of soap within cleaning process.

Line drawing of hands using a tool to cut or spread materials on a surface (no text or symbols)

WARNING!

Wash the microfiber cleaning pads with warm water and let them dry before first usage.

Carpet brush and Microfiber cleaning pad

Tighten the microfiber cleaning pad to the latches on the side of the carpet brush. Microfiber cleaning cloth keeps dirt due to high suction power and provides you great convenience during cleaning.

Front Clip

PRESS PRESS PRESS

Simple line drawing of a mechanical clamp or bracket on a flat surface (no text or symbols)

Window Squeegee

It is used for cleaning window, ceramic and marble surfaces. Press the trigger and pull the rubber edge from top to bottom.

Simple line drawing of a tool or scraper with a handle and blade (no text or symbols)

Be more careful while cleaning the cold windows. Hot steam can be caused cracking. When steam comes more, it is required to reduce the steam setting.

Concentrator and Brush

Illustration of three electronic devices with no visible text or symbols

Brushes are generally used for hard floors, sink, bathroom, inside of oven, car and etc. They are used to solve the dirt with the help of hot steam that comes out in a big pressure. Then clean with a dry cloth or flowing water.

Brushes can be deformed due to hot steam and friction while using and they are not used anymore. They can be supplied from Fakir authorized services as a consumables.

Trolley and Shoulder strap

Line drawing of a hand holding a tool over a curved mechanical component (no text or symbols)

Jaws steam cleaner can be used with its trolle yor shoulder strap. First attach the wheels to the trolley as seen on below picture and place the front side that the hose is here then the rear side of the appliance. It is more convenient to use trolley while cleaning especially floors. In some cases, the device will be more practical to hang on your shoulder. In these cases, place the given strap hooks to its place on the appliance.

Line drawing of a medical device with attached tubing (no text or symbols)

Line drawing of a hand holding a car seatbelt (no text or symbols)

Line drawing of a woman using a steam iron to clean air (no text or symbols)

Storage and Maintenance

Simple line drawing of a rectangular object with four symbols below (hair, star, circle, document) — no text or labels present.

Illustration of a hand using scissors to cut or mark a rectangular object (no text or symbols)

Jaws steam cleaner is used in places below;

-Floor (ceramic, laminant, marble, stone, garage and basement floors etc)

-Baby room, nursery, baby chair, toys, baby utensils (baby bottle, plate etc.)

-Kitchen (sink and taps, inside and outsides of refrigerator, oven, microwaves, dustbin, cooker, tray, aspirator)

-Bathroom (bath tube, armature, shower doors, tiles / wall-floor, shower rails, toilet)

-Car (wheel covers, wheels, floor mats, engine)

-Window, furniture, sports equipment, barbecue area, barbecue, jewelry, jacuzzi / blinds, ornaments ant to remove wall paper.

Refilling water while using:

Do not open safety filling tap while using as the appliance is too hot and there is a pressure inside the tank, steam can be sprayed out.

First pres the trigger to discharge the whole steam inside the tank and unplug the appliance. Wait for 15 minutes to cool down the appliance then open the safety filling tap slowly and carefully, now water can be added as explained before.

Sometimes rinsing the tank with water helps to eliminate the deposits that may have accumulated. To do this, the steam tank after filling with water, shake it a few times and drain the water by turning the device upside down. If very hard water is used, the steam tank will sometimes need to be cleaned with lime cleaners still available on the market depending on frequency of use. If your tap water is very calcareous, use soft drinking water.

Dry or damp cloth to clean the external parts of the device

Keeping your microfiber cleaning pad as good as new.

1. We recommend washing your microfiber pads separately from other fabrics to avoid picking up lint. Only use liquid detergent. (no powder detergent) Don't use any fabric softeners or bleach.

2. If there are loose threads on the pocket carefully cut the thread with scissors. Don't pull on them or cut at the base.

Troubleshooting

Problems	Possible Reasons	Solutions
Excessive water comes at first usage.	Condensed water inside hose and accessories may be discharged.Too much water can be filled.The appliance is used without any accesory	Continue to steam, the steam will return to normal.Drain the excess water in a bucket by pressing the steam trigger. Next in use, use the funnel.Use a suitable accesory.
Steam comes from side of the safety filling tap.	Gasket of safety filling tap can be ruptured.Safety filling tap was not closed properly.Thermostat can be defective.	Use spare safety filling tap gasket.Unplug the appliance, close the safety filling tap properly after the unit cools down.Refer to Fakir authorized service.
Product lamp does not light up when plugged in	Thermal fuse has tripped.	Refer to Fakir authorized service.
When the product is plugged, the fuse blows.	Other products may be running on the same line.The product may short circuit.	Unplugged other products.Refer to Fakir authorized service.
If steam or water leakage from the body of the product.	It can be filled with excessive water or water drops during filling.There is a problem in connections.	Ürünü fişten çekiniz fazla suyun akması için bekleyiniz.Refer to Fakir authorized service.
Not enough steam	Steam regulation button can be at lower.Defective trigger or steam regulation button	Increase the steam with using steam regulation button.Refer to Fakir authorized service.
Deformation of accessories and brushes.	Use of bad and difficult conditions.Product can not be plugged properly.	Accessories and brushes are consumables. To replace them refer Fakir authorized service.Check the plug of the appliance and electric connection.
Product does not work or hear.	Defective water tank or thermostat	Refer to Fakir authorized service.

Waste Disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them. For advice on recycling, refer to your local authority or your dealer.

This appliance fulfills the requirements of the 2002/96/EC WEEE regulations.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by Eksen Makina Sanayi ve Ticaret A.Ş. Gebze Organize Sanayi Bölgesi No:602 41480 Gebze, Kocaeli –TURKEY Tel: [phone] Fax: [phone]

CE RoHS COMPLIANT RECY YESELE NOVA CEYKO
