USER MANUAL EGO-G25DCR CANDY

Puisance	100%	80%	60%	40%	20%	0%
Display	P100'	P80'	P60'	P40'	P20'	P00'

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≅	P-80 ≅	P-60 ≅	P-40 ≅	P-20 ≅	P-00 ≅

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select combination function and the screen shows “ ≈ ”.
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select combination mode and the screen shows "Co-1" or "Co-2".
6. Press START button to confirm.
7. Turn DIGITAL DIAL to set the cooking time "15:00".
8. Press START button.

Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven.

Retain this manual for future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

SPECIFICATIONS 2

BEFORE YOU CALL FOR SERVICE 2

INSTALLATION 2

GROUNDING INSTRUCTIONS 3

RADIO INTERFERENCE 3

IMPORTANT SAFETY INSTRUCTIONS 3

MICROWAVE COOKING PRINCIPLES 6

UTENSILSGUIDE 6

PART NAMES 7

CONTROL PANEL 8

HOW TO SET THE OVEN CONTROLS 9

Clock 9
Microwave cooking 9
Quick Start 10
Grill cooking 10
Combination cooking 10
Weight Defrost 10
Jet Defrost 11
Auto Cook 11
Child Lock 11

CLEANING AND CARE 12

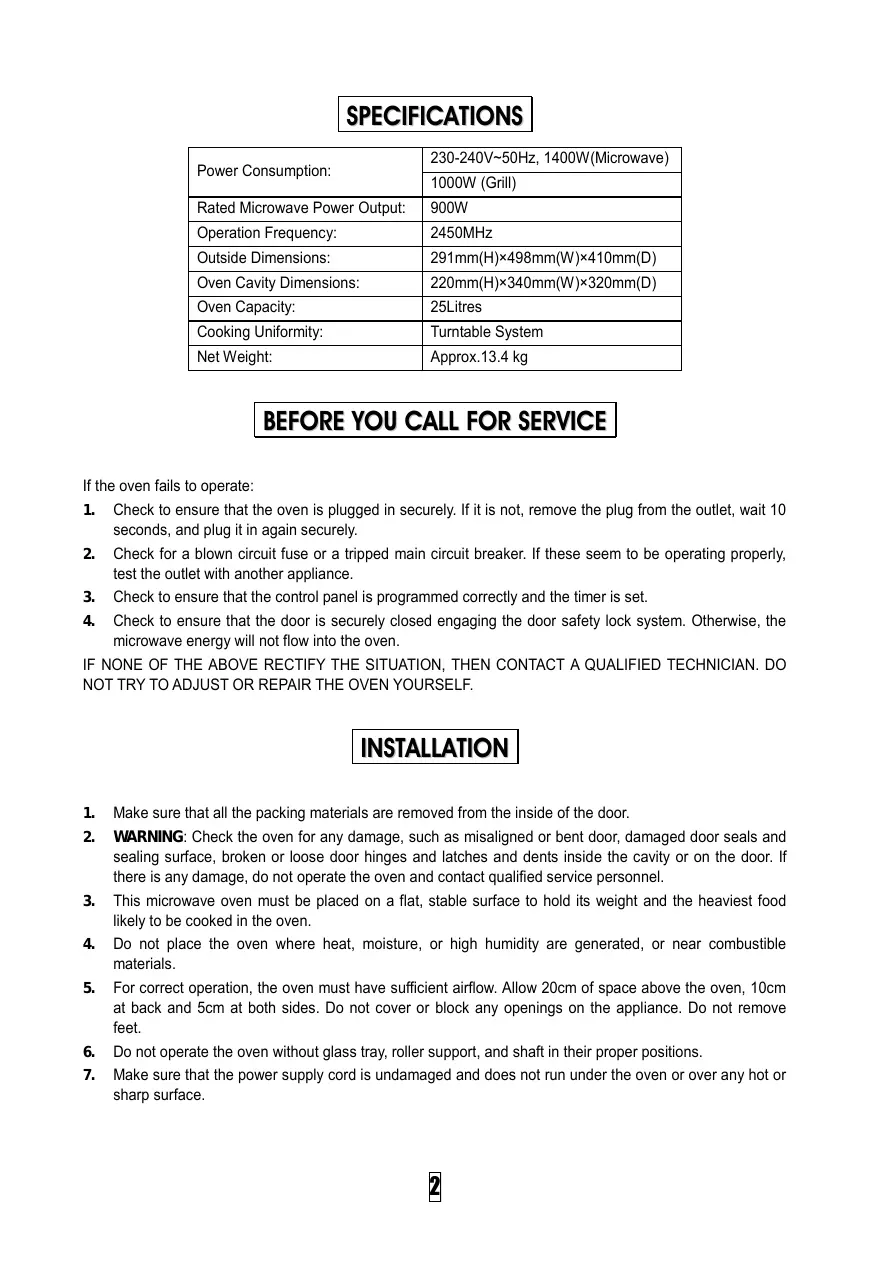

SPECIFICATIONS

Power Consumption:	230-240V~50Hz, 1400W(Microwave)
	1000W (Grill)
Rated Microwave Power Output:	900W
Operation Frequency:	2450MHz
Outside Dimensions:	291mm(H)×498mm(W)×410mm(D)
Oven Cavity Dimensions:	220mm(H)×340mm(W)×320mm(D)
Oven Capacity:	25Litres
Cooking Uniformity:	Turntable System
Net Weight:	Approx.13.4 kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.

8. The socket must be readily accessible so that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed

for industrial or laboratory use.

1. Do not operate the oven when empty.
2. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
3. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

4. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

5. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
10. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose for domestic purpose.
11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The microwave oven is only used in freestanding.
14. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid .
15. The accessible surface may be hot during operation.
16. The microwave oven shall not be placed in a cabinet.

17. The door or the outer surface may get hot when the appliance is operating.

18. The temperature of accessible surfaces may be high when the appliance is operating.

19. The appliance shall be placed against a wall.
20. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
21. Children being supervised not to play with appliance.
22. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
23. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
24. The microwave oven is for household use only and not for commercial use.
25. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
26. Please secure the turn table before you move the appliance to avoid damages.
27. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
28. The microwave oven is intended for defrosting, cooking and steaming of food only.
29. Use gloves if you remove any heated food.
30. Caution! Steam will escape, when opening lids or wrapping foil.
31. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
32. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave	Grill	Combination*
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Container	No	Yes	No

Combination: applicable for both "microwave+ grill"

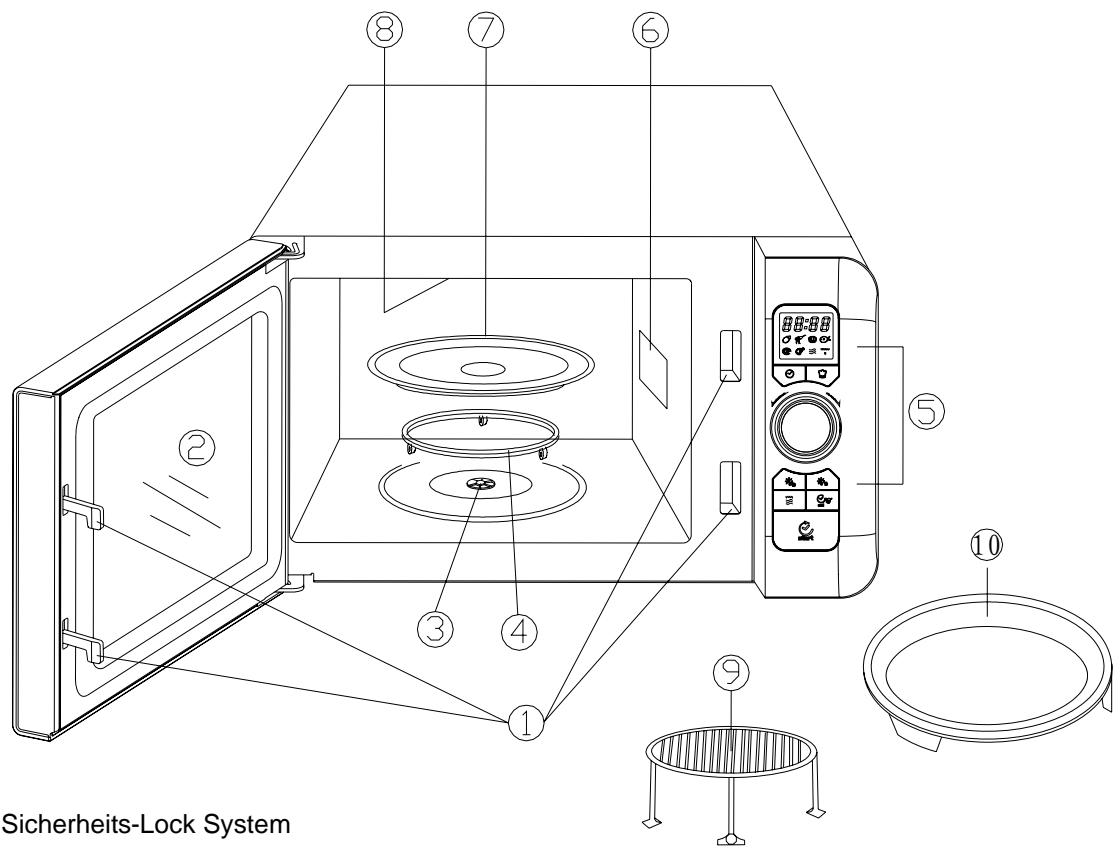

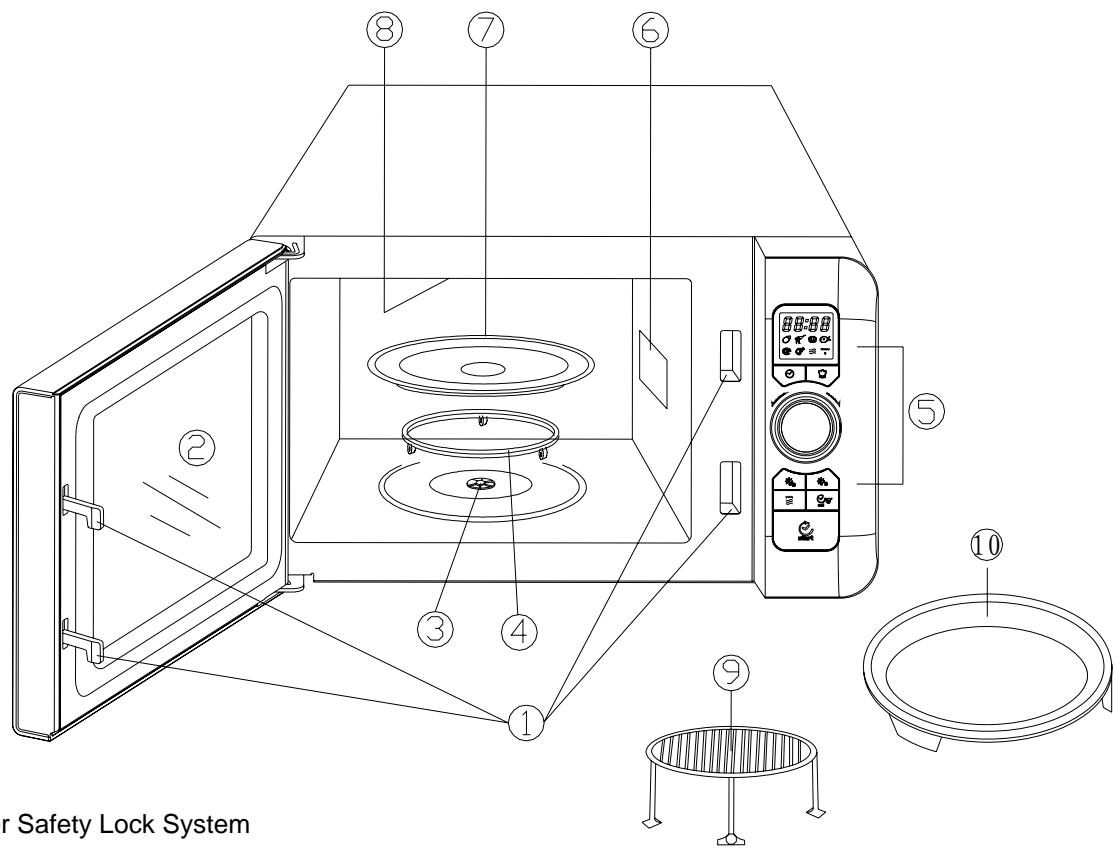

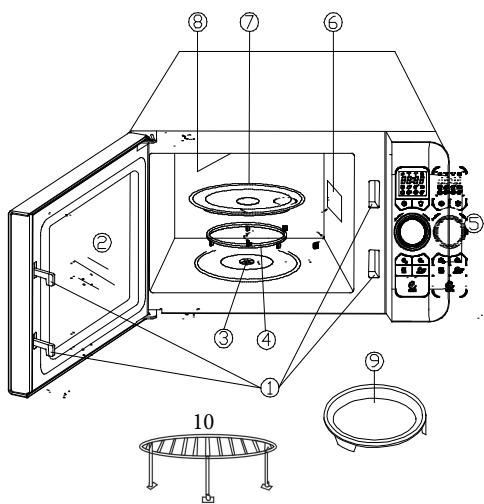

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Shaft
4. Turntable Support
5. Control Panel
6. Wave Guide

(Pleases do not remove the mica plate covering the wave guide))

1. Glass Tray
2. Grill Heater
3. Metal Rack
4. TRAY

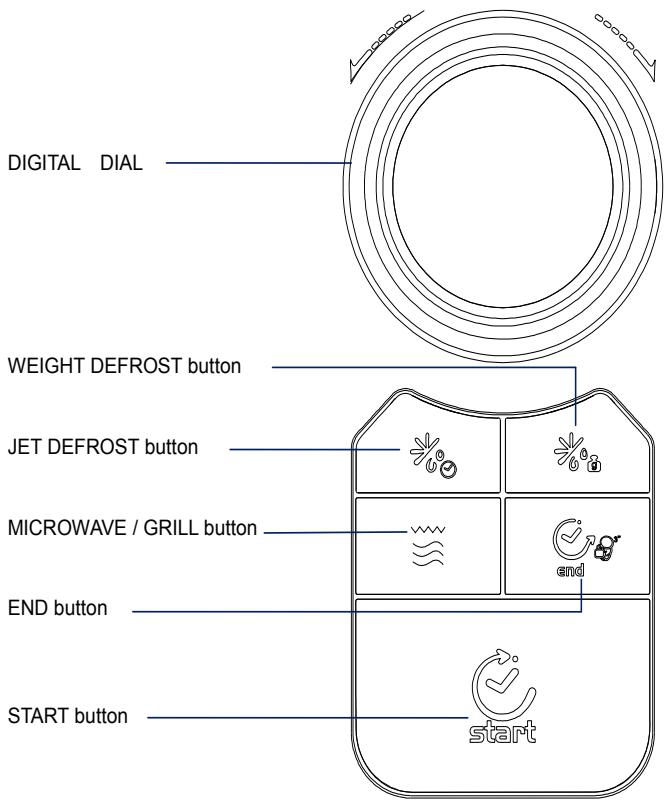

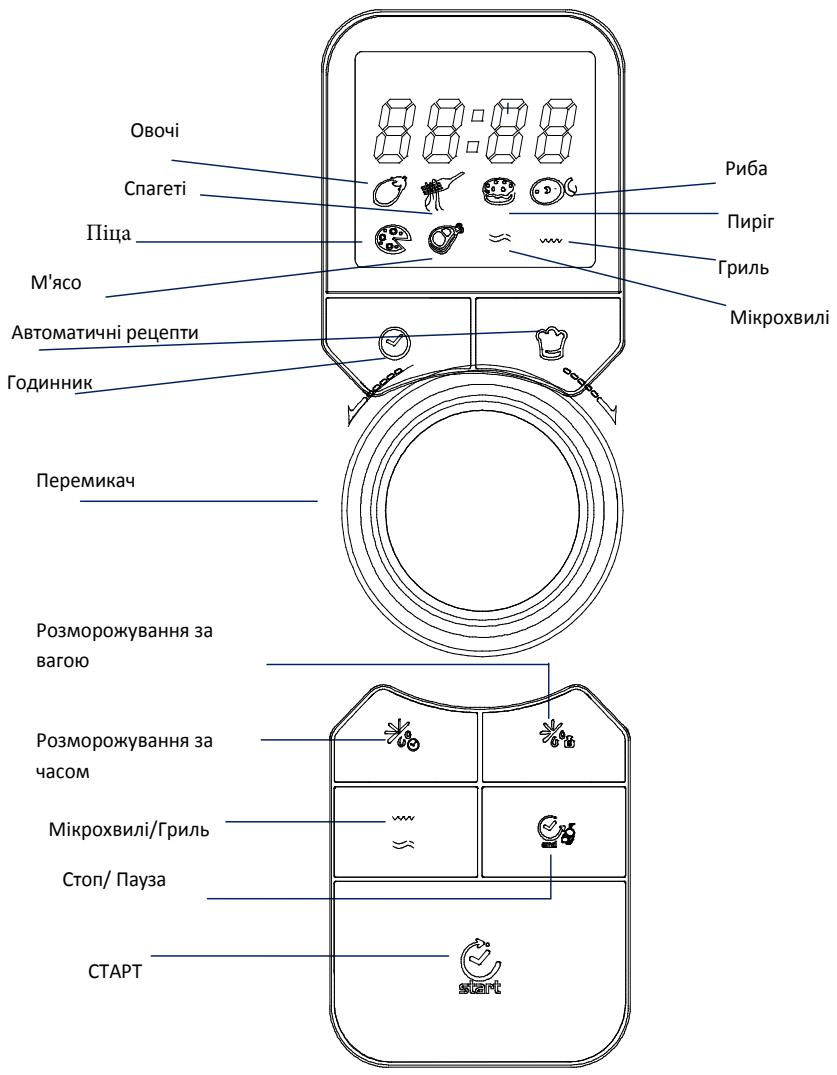

CONTROL PANEL

HOW TO SET THE OVEN CONTROLS

• After plugging in the oven or waiting for 60 seconds without operation in standby mode, the system enter into lock mode, you can't operate it until pressing START button.
• When setting a program, you can get the oven return to the standby mode after pressing END button or waiting for 30 seconds.
• During cooking, you can pause the program by pressing END button once, and then press START button to resume or press END button again to cancel it.
• After finishing a cooking program, the system will remind you once for every 2 minutes until you press any button or open the oven door.

Clock

Suppose you want to set the oven clock time to 8:30.

1. Press CLOCK button.
2. Turn DIGITAL DIAL to indicate the digital clock in 24 or 12 hours cycle.
3. Press START button to confirm.
4. Turn DIGITAL DIAL to indicate the hour digit "8".
5. Press START button to confirm.
6. Turn DIGITAL DIAL to indicate the minute digits until the screen shows "8:30".
7. Press START button to confirm.

NOTE: During cooking, you can press CLOCK button to view the clock time.

Microwave cooking

The longest cooking time is 95 minutes. There are six kinds of power level from P-00 to P100. Suppose you want to cook for 5 minute at 60% power level.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select microwave function and the screen shows “ ≧ ” .
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select the power level until the screen shows P-60.

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≈	P-80 ≈	P-60 ≈	P-40 ≈	P-20 ≈	P-00 ≈

1. Press START button to confirm.
2. Turn DIGITAL DIAL to set the cooking time "5:00".
3. Press START button.

NOTE: During cooking, you can press MICROWAVE / GRILL button to check the cooking power.

Quick Start

Use this feature to program the oven to microwave food at 100% power conveniently. The maximum cooking time is 10 minutes.

In standby mode, place food into the oven and close the door, press START button continually to set the cooking time, and the oven will start working automatically. During cooking, you can increase the cooking time by pressing START button.

Grill cooking

The longest cooking time is 95 minutes. Suppose you want to grill food for 10 minute.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select grill function and the screen shows “ 三 ”
4. Press START button to confirm.
5. Turn DIGITAL DIAL to set the cooking time "10:00".
6. Press START button.

Combination cooking

The longest cooking time is 95 minutes. There are two kinds of combination cooking mode.

Suppose you want to cook for 15 minute at combination mode.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select combination function and the screen shows “ ”
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select combination mode and the screen shows "Co-1" or "Co-2".
6. Press START button to confirm.
7. Turn DIGITAL DIAL to set the cooking time "15:00".
8. Press START button.

Weight Defrost

The oven allows the defrosting of meat, poultry, and seafood. The time and the defrosting power are adjusted automatically once the weight is programmed. The range weight of frozen foods varies between 100g and 1800g.

Suppose you want to defrost shrimp.

1. Place shrimp into the oven and close the door.
2. Press WEIGHT DEFROST button.
3. Turn DIGITAL DIAL to select the weight of food.
4. Press START button.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

Jet Defrost

The longest defrosting time is 95 minutes.

Suppose you want to defrost meat food.

1. Place meat into the oven and close the door.
2. Press JET DEFROST button.
3. Turn DIGITAL DIAL to set the defrosting time.
4. Press START button.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

Auto Cook

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. Steps:

1. Place food into the oven and close the door.
2. Press AUTO COOK button.
3. Turn DIGITAL DIAL to select the code of menu.
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select the weight of food.
6. Press START button.

Auto menus:

Code	Menus	Cooking mode
A-1	Vegetable	microwave
A-2	Spaghetti	microwave
A-3	Pastry	microwave
A-4	Fish	microwave
A-5	Pizza	microwave+grill
A-6	Filet Meat	microwave+grill

Child Lock

Use to prevent unsupervised operation of the oven by little children.

To set the CHILD LOCK: Press and hold the END button for 3 seconds, a beep sounds and the oven can't be operated.

To cancel the CHILD LOCK: Press and hold the END button for 3 seconds, a beep sounds and the oven can be operated.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.
13. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon, because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

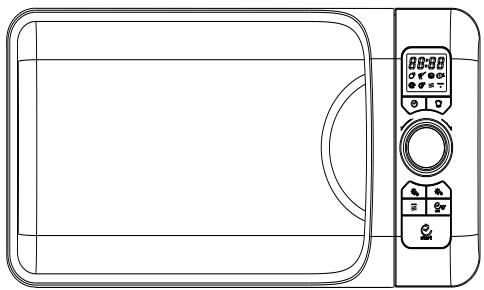

CANDY

MODELO: EGO-G25DCW

EGO-G25DCO

EGO-G25DCG

EGO-G25DCS

EGO-G25DCCH

IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALACION

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≅	P-80 ≅	P-60 ≅	P-40 ≅	P-20 ≅	P-00 ≅

1. Reinigen Tur-und Dichtfläche des Ofens.
2. Richten Sie die Empfangsantenne des Radios oder Fermseher.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Combination: applicable for both "microwave+ grill"

TEILEBEZEICHNUNGEN

NOTE: During cooking, you can press CLOCK button to view the clock time.

Microwave cooking

The longest cooking time is 95 minutes. There are six kinds of power level from P-00 to P100. Suppose you want to cook for 5 minute at 60% power level.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select microwave function and the screen shows “ ≌ ” .
4. Press START button to confirm.
5. Turn DIGITAL DIAL to select the power level until the screen shows P-60.

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≈	P-80 ≈	P-60 ≈	P-40 ≈	P-20 ≈	P-00 ≈

1. Press START button to confirm.
2. Turn DIGITAL DIAL to set the cooking time "5:00".
3. Press START button.

NOTE: During cooking, you can press MICROWAVE / GRILL button to check the cooking power.

Quick Start

Use this feature to program the oven to microwave food at 100% power conveniently. The maximum cooking time is 10 minutes.

In standby mode, place food into the oven and close the door, press START button continually to set the cooking time, and the oven will start working automatically. During cooking, you can increase the cooking time by pressing START button.

Grill cooking

The longest cooking time is 95 minutes. Suppose you want to grill food for 10 minute.

1. Place food into the oven and close the door.
2. Press MICROWAVE / GRILL button.
3. Turn DIGITAL DIAL to select grill function and the screen shows “ 三 ”
4. Press START button to confirm.
5. Turn DIGITAL DIAL to set the cooking time "10:00".
6. Press START button.

Combination cooking

The longest cooking time is 95 minutes. There are two kinds of combination cooking mode.

Suppose you want to cook for 15 minute at combination mode.

microunderol excessive :

POWER	100%	80%	60%	40%	20%	0%
DISPLAY	P100 ≈	P-80 ≈	P-60 ≈	P-40 ≈	P-20 ≈	P-00 ≈

I KJIACC 3aunHTbI OT IopaxeHHN TOKOM

BEPEXKHO XPAHNTE 3TV INHCTPYKlIIO

3TO yCTpoiCTBO OTBeueaET COBpeMeHHbIM Tpe6OBAHnM IpaBnI 6e3oPiacHOCTN. TaKke IOBOIM IO BAIIeRO CBeJeHNy, YTO 3TO n3dJIne cepTnΦnIupOBaHO corgIaCHO Tpe6OBAHnM 6e3oPiacHOCTN opraHOM IO cepTnΦnKaIIN IpOMbIJIeHHo IpoIyKIIIN TocuJapCTBeHHbIM KOMITeTOM YKpaIHbI IIO BOIIpocam TexHnueCKOro peYIpOpBaHnI N IOTpe6NTeJIbCKoI IPOIHTKNI TocuJapCTBeHHa CNCTema cepTnΦnKaIIN

YkpCEIIPO

ПЕДОCTОPOЖHOCTИ ПOTИВ BO3MOЖHOrO BO3ДЕИCTBЯ МИКРОВЛНOBОДHEPГИN

(a) HeIb3a nbIATb6a 3aynCTnTb neYb npi OTKpbIToJ DBepue, TAK KAc npi 3TOM MOxET BvIeJIaTb6c ONaChA MKNpOBONHOBAR 3Heprna. HeIb3a Iomatb INI HApU5aTb PpeOxpaHITeNbHyO 6blOKIpOBky (3aueJIky neu).
(b) He yctanabnBaIte MeJdy nepeJHneI naHeIbIy neu I nDbepeI HnUeI, YTO MOrIIO 6bl IcnaKaTb IOBepXHOCTb yPiOTHeHnI He OCTaBnIte Ha HeOCTaTKI NICTAUX BeIeCTB.
(c) ПЕДУПЕЖДЕНЕ:Еспдеверца Илп ee ynpOTнене NOВрждени,пech Heьзя ВКЮчатdo Тх пор,пoka ee He OTpeMOHTИpyet cneцалICT.

DOnOJIHeHne

EcnI He coedepekaTb neCb B uHCTOte, ee NOBepxHOCTb 6yJeT nOpTtbcra, a 3TO yMehbWNT cPoK cnJX6bl MOnKeT co3daBaTb ONaCHOCTb npn pa60Te.

XapakTepeNCTnKu

1.Ha neu yctaHOBlen KopoTkn shhyp, yTO6bI yMeHbWNTb ONaCHOCTb 3anyTBiBaHnJa DInHHOrO shHpya, n yTO6bHa He Ro He HactynaJIN.
2. Ecnn nCnONb3yeTcra DnHHbI shHpy nnu yDnHnHTeJIb:

1)HomHaJIbHbIe 3JIeKTpOTeXHnUeCKne xapaKTePcNtKN, yKa3aHNbI He Na UHype Nn Ha yJINInHTEJe, DOJIxKbI bItb He MeHbIe XapaKTePcNtKN, yKa3aHHbIX dIpy Neu.
2)YdHnHTeJIb DoJKeH 6bIb 3- npOBoHbIM, C 3a3eMJIeHHbIM npOBoDM.
3)ДиHHьшнур HNYKHO npONoKntb TAK, YTO6bI OH He CBNCaN HaD CTOnKOH NnIN HAd CTJOM, rDe erO MOKeT nOTaHyTb pe6eHOK, INI rDe erO MoXHo CnyuAHH 3aUeHNTb.

NOCYDA

PPEyPPEXDEHNE

OnachOCTb TpaBMbl

Onacho camocToTeIbHo
IpoBOOHTb OcCnyKMBAHne IINn
peMOHT, KOTOpB bIKluoyaet
ydaJIeHne NOKpbTIn,
3aUIIaUIOero OT
BO3dECTBm MINKPOBOHNOBOM
3HEprn. 3TO DOJIoKe H cDeIaNb
CneUmaJIInCT.

CMOTPnTe HNCTpyKUHIO «MaTePnAJIbI, KOtOpBIE MOxHO
NCIOJIb3OBA Tb B MmKpOBoJHOBoI Neu, I KOTOpBIE HeJIb3a
NOMeUaTb B MmKpOBoJHOBUyI neu>. CyuEcTByET
HEMeTaJInuCeKaI Nocya, KOTopyI He6e3oJaCHO NODBeprAtb
BO3JeIcTBnIO MmKpOBoJH. EcIn ecTb COMHeHnI, MOxHO
ONpOboBa Tb Nocdy, npOBeJa CLeDyUOJne IpOceJypbl.

OnpoboBaHne nocydbi:

1. HanonHnTe PnpdHa3NaeHHbI dIy MmKpOBoHN KOHTeHep 1 CTaKaHOM (250 mI) XoJIoHou BoIbI, a B Hee yCTaHOBtne NocSyD, KOTopyU XOTnE OOnpOboBaTb.
   2.HarpeBaIe Ha MaKcImaJIbHOm MoUHOCr1 MmHyTy.
2. Octopoxho Kocnhtecb nocydIe. Ecnn pucta nocya Tennar, He IcnoJIb3yIte ee dI pynproTOBneHn B MmKpOBoNHOBOI neu.
   4.He npeBbIaIe BpeMeH HArpeBa 1 MInHyTbI.

MaTePnaIbI, KOToPbIe MOxHcNcNoJIb3OBAtB MmKpOBoNHOBOI Neu

3ameyaHnO nocyde

PykoBoDCTBO no 3KcnIyatauN

1. Hacroika yacob

" "START" "noTBePdIte MoUHocb.3aTeM c nOMoUbpoyKoRTkn" yCTaHOBtpeBpem

nprirotobneneo 0:05do95:00.Eue pa3 naKmTe " START" ,TTo6bHaayatb npoueeC nprirotobnenei.

Пгимер: TTo6bI BKNIOHTb Nech Ha 80% MoUHOCn Ha 20 MInHy, BbINONHtCneDyUOuNe DeiCTBna.

1)HaxMMte OoIN pa3 "MICROWAVE".PnI 3TOM Ha nCInee noBHTcR naNNCb "P100".
2) Haxmte "MICROWAVE" "eue pa3 nIIN NOBepHnte pyKoTky " " u yctaHObnte ypoBeHb MOUHOCTH B 80%.
3) YTO6bI NOITBEPDNTb, HAKMNTe " START ", N Ha DNcPiee NoRBYTCs 3NaHeHne "P80".
4)Поворотом руковский" "установite В装配а - на доспee Долхно повгься заиме "20:00".
5)HaKMMITE " START" -npn 3OM HaHETcN nprirotOBneHHe.

IpnmueaHn. 3mehne BpeMeHn npiroTOBHeHn npocxOHT no-pa3Homy B pa3bIX dnaanaohax dnttehHOCTn npiroTOBHeHn:

0-1MHN :5cekyHd
1-5MHN :10cekyHd
5-10 MIn :30 cekynd
10-30 MmH : 1MnHyTa
30-95 MNH :5 MNHyT

Мошност b %	Диаспел e
100	P 100
80	P 80
60	P 60
40	P 40
20	P 20
0	P 00

UCIOBIA TAPAHINHOTO OBCJYKUBAHN

Cpok rapaHTnN - 12 MecaIeB OT daTbI npOdaJN.

Bo BpemraIpaHTnHOro IepnoJa IIO6OpeMOHT MoKeT 6bITb BbIIOnHeN ToIbKO KBaJIInΦuINPOBaHHbIM CIIeuaJIInCTOM cepBnCHOrO ΒeHTpa.

Ipeep naalom peMOHTa pnp6op nAO OTKIOUHTb OT 3eKTPoCtN, cH8 IpeOxpaHTBbIyBTHYB HYP IIITAHN I3 PO3ETKN. HeippoDeccnOHaJIbHOE BMeATeJIbCTBO I pEmOHT aIIAPATA OIIACHB, OHN MOVT bIb3IBaTb BIEaTJIeHNc 3eKTPuYeCKIM TOKOM I KOPOTKoe 3aMbKaHHe; cIeIOBaTeJIbHO, He IIbTAIEcYcTpaHNT bHEcIPaBHOCT camOCTOReTbHO. OctabBe 3Ty pa60Ty cIeuaJIaNTam NII pIepCTABnTEJIaM cepBnCHORo CEHTPa. EcnB Pabote aIIapata Bo3HKnIc KaKe-TO He3NaHTeJIbHe Ip6ObMeB, IIPOBepbTe C IOMOnIbO cIeJIOxH INCTpyKcN, IIN CNOCoBHb By npAtpBcR c HmN Camn. Bn3NT cIeuaJIaNTa I3 ABTOPi3OBaHORO cEPBnCHORO IEHTP aIOJKeH 6bItb OIIaueHbIM BamH, ecN 6yDet yCTaHOBJNe, YTO pnp6Op He pAbotA Tepe3 HeIOJO6aIoJe eN HneB6pKHOe MCIOJIb3OBAHHe. XpaHnte IHCTpyKcNIO TAKIM O6pAmO, YTO6bI OHa BCERda IOYpkov B cUYan Heo6xoDImocTt; ecN 6yDete ppeJaBaTb pnp6Op dpyROMy IINu, IpeJaTe TAKKe I INCTpyKcNIO.

UCIOBIA:

CeptnΦnkaT

TapaHTnI YeCTBNTeJIbHa ToJIbKO IIpN HAIINuII DeIcTBNTeJIbHOrO TapaHTnIHorO CePTnΦnkata.

TapaHTnHbI cepTuΦNkAT He JeIcTBNTeH IIpN HAIINuB H EM OIN6OK, IcIIpaBHeH NII HECOTBTCTBNI.

B CepTnΦnKaTe IOnJXnbl 6bIb T3aONJIHeHb IYHKtB:Ha3BaHne I3JIeJIIM, MoIeJIb, cepINHbI HOpErp I3JIeJIIM, JaTa IIpoJaXn, IIOIIINcB IIPOaBua, IpeaTb TOPROB oprAHI3aUIM. IIpN OTCyTCTBnI DaTb IIpoJaXn, cPOK rapaHTnI ABToMaTHueckn y6bnpaETCn I3 DaTb I3rTOBLeHn yCTPoICTBa.

TpaHcnpToPOBKa u xpaHeHne

Hn KaKHe IeΦeKtBu 3IeJIIN, BbI3BaHHBe He3a6oTIIINBOI TpaHCIOpTIpOBKO IN XpaHeHNEM N3IeJIIN, He IIOJIeKaT 6ecIIaTHOMy rapaHTNIHOMy peMOHTy;

UcTaHOBKa n 3KcIIyataaia

BecnIaTHbI rapaHTnHbI peMOHT He IPOBOINTCs,ecnI DeΦeKT N3JeJIy Bb3BaH:

HeIIpaBnIbHbIM IIOIKIIIOUeHHeM 3IeJIINK K NcTOOHky eIeKToP-, BOIO- Ira3OChA6KeHne, a TaKHe HeCOOTBeTCTBHe IIapAmTePoB BByIiEuyKa3aHHbIX INcTOOHKnOB IIapaMeTpam, KOToPbe IIpeJbYBJIIOCTc O6JIaTeJIbHbIMI

TocyapCTBHeHbIMn CTaHApTaMn INHcTpKuNeI NO 3KcIIpyaTuIN.

EkIyataHn H3eHn, IIOKIIOueHHbIX K cTeN 220B 6e3 3a3eHnHnA a TaKx eIOKIIIOueHHbIX K nCTOHNky BOIOcHa6KeHnE 6e3 OTJeBHO KpaH IOJaH BObIX K 3JIOH IOBIAETC syIeCTBeHHbIM HApUHeHem

HCTpyKcIINIO KcIIyataUNIMoKet 6bITb OCHOBAHnEM IJIa CHrTNA I3JeNc rapaHTNHO 06CnyKBAHHJ.

IcnoBHaHne Ipu6opae He B COOTBeTCTBnC HNCTpyKUne, a TaKxe He npaBnIbHOJ 3KcIIyatauNe, YTO BB3bBAIO IOYBaJIeHHe MEXaHueceKnX INpyrNX BUNOB DeΦeKTOB;

IcIOJIb3OBAHHe I3JeIIa He B COOTBeTCTBmC eTo IIpIaMbIM Ha3HaueHHe IIN He B IOMaIHHX ycIOBnX.

IpiHapuHHeHHPiOM6pOBaHNHa IIO ppyHM IIpUHNHaM, KOTOpbIe He 3aBnCt OT 3aBOJa-IPoN3BOJntTeJI

He6peXHocTb IIpI XpaHeHH, 3KcIIpyaTuHm I TpaHCIOptNtPOBKe BlaJeJIbIeM, TOpROBoI NII TpaHCIOPTHOI opraHHaIeH.

B cIyae IIOtepr rapaHTnHOro TaIOHa NIIu YeKa, BlaJeIeIu 36aBJIeTcra IIpaBa Ha 6ecIIaTHoe cepBnCHoe o6cIyKINBaHne

B C Lyuae IIOKIIoueHn TExHNKn He cepTnΦIuNpOBaHHbIM cepBcHbIM ΚeHTpOM, I3JeIne cHImaetc N3 rapaHTm.

PemOHr

BecnIaTHbI rapaHTnHbI peMOHT He IPOBOJNTcA, ecn N3JeJIe:

CJIeIbI IOCTOPOHHe BMeIIaTeIbCTBa IIN peMOHTa He yIOJIHOMOeHHbIMN IINIaM;

IMeet He caHKUHOHPOBaHHbIe 0nPMoN I3MeHeHNa KOHcTpyKuIN NII HnPiPmJIeMbIe KOMIIIEKToIiue;

IMeetIOBpeKJHeHnBAHbIe HeJIpeCKa3YeMbIM RAJIeHnMn IJeCTBnMn CTNXn;

IMeetIOBpeKJdHHe, Bb3BaHHbIe, NcIOJIb3OBaHHem HeCTaHJapTHbIX MaTePnaJIoB IyCTpoiCTB;

IMeet IOBpeKdEHHy, BbI3BaHHbIe IIOHaHHeM B cepeINHy IN3JeINr IIOCTOpOHHX IIpeIMeTOB, XINBOTHbIX NII HaceKOMbIX;

He nmeet cepnHoro Homepy nn ero HeBO3MOxHO yCTaHOBNTb;

IMeet HeKOMIIeKTHoCTb IocJIe erO IIpoJaXn;

IMeet mExaHnueckne IOBpeKdEHHa(CTeKJIaHHbIe HIIaTKnOBbIe N3JeNIA);

TapaHTnHa He pacIIOpcTpaHЯETcHa paCXOHNbIe MaTePnaJIbI aKCeCCcyapbl.

OTBeTCTBeHHOCTb

Φnma He Hecet OTBeTCTBHeHcOt3a y6bITKN IIpyueHeHHbIe Bam IIN OKpykaIOIM B CBA3N C HECOOTBeTCTBHeHHbIM NIOJIb3OBAHmE IIpy6opa.

BBeHHe N3JIeNn B KcIpyaTuaHIO n Iopap6OTky ceTe eIeKToPo-, BOIO- n Ra3OCha6KeHne dIa COBMeCTMOCtN c N3JIeNmE He YBaIeTcra 30HOJ OTBeTCTBeHHoCTN ΦHpMbI NΦHpMoH He OIIaYHbAeTc.

BcIyue Bo3HKnHOBeHHJIIO6bIX IIpo6JIe C BaIIIM IIpH6OpOM, IpeE Te KAK Bb3bBaTb MaCTepa, IIPOBepbTe IIpaBnIBHoCTb yCTaHOBKN I yHKIIIOHNIOBAHIN B COOTBeTCTBN C INCTpyKIIe. OIIaTy Bb3OBA MaCTepa Bi 6yJeTe IIPOBOINTB 3a CBOJ Cuet, ecN N3dJIne 6blIO B pa6OeM COCTOAHIN NII 6blIO HeIIpaBnIBHO yCTaHOBJIeHO, IINI HeIIpaBnIBHO IcIOJIb3OBAIOcJ.

3a KauecTBO rapaHTHnHOpeMOHTA OTBeCTBHeHOCt b HeceT 6cbIyKbAIOJIaOp aOprHaHI3aIIa (cIyK6a cepBaCa).IOIOJIHNTEJIbHYU INHΦOPMAIIO OTHOCITEJIbHO IPOIyKlIM MAPKIN CANDY BBI MOKETE IIOJYUHTb HA CAITe

WWW.CANDY.UA

3A TEJIΦOHOM TOPRJEN JINHIN

044 220 12 89

MikpoxBnIbOBA IIu IIOCTaUaETbc3 TaKHM IIpuJaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI

CKJIaHHN cTOLHK 1

Kijbue o6epTOBOrO cToJIHKa 1

B 360pi

Ihctpykui3 ekciyataaui 1

1）Be3neuHa cnCTema 6JIOkyBaHHa DBeepnT
2)OrJIAIOBE BIKOHue
3) BaJI o6epTOBOrO cToJIHka
4) Kijbte o6eptoBOrO cToJIHKa B 36opi
5）IaHeJIb KepyBaHHa
6) XBnIbObiD
7) CKJIaHHI cTOJIHK
8)
9)MetaJIeBnIIIOH
10) Penuitka

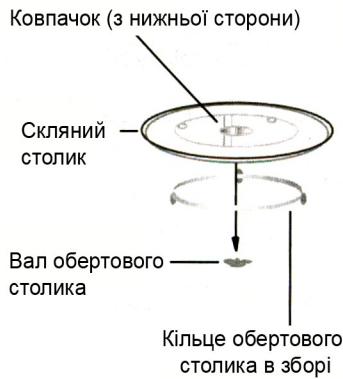

YcTaHOBJeHHo6epTOBOrO cToJInKa

a. HikoiH He IpepeBepTaIe CkJHnCToJIHK. CKJHn CToJIHK HIKOIH He IOBHeH 6yTH 3aTHcHtHM.
b. IIi qu pIHHOTyBaHH iKi IIOtpi6HO 3aBxHn BHKOPHCTOBYBaTH pa3OM cKJIHN CToJInK i KIIbIe O6ePTOBORO CToJInKa B 36Opi.
c. 3aBxJIN KJIaIITb 6yIb-ky Ixy Ta IocyI 3 IjKeIO Ha cKJIaHHN CTOJHK.
d. JKIO CKJIaHHN CTJINK a6o KJIbIe O6epTOBORO cTOLHKA B 36OpI TpIcHe a6o IIOJaMaεTbcJ, 3BepHITbcJ IO HAIbJIHKUoro Do Bac aTOPH3OBaHOrO IpIMBOrO cepBicHOrO ΙeHTpy.

YctaHOBJeHHIeHiHaIOBepXHIO CTiIKN

BnIMt BcN akyBaJIbHi MaTepiAJI Na pHJaIaIJa. IpeBipte Nii ha 6B-jaKIOIOKOJKeHNHa, taKi KBM'atTHIN abo 3IaAmai IBepr. H bCtAnOBIIIOHe IOIOKOJKeHny MIKpOXBJIbOBy IIu.

Kamepa:BnHmItb 6yIb-kya 3axhCHy pIiBky,kyu Bn 3aHJETe Ha noBepxHi Kamepi MkPOxBHbOBoI nei. He 3himai Te 3axHcne CBITIO-KOPnUHebe NOKPHTT MiCA,II IO npHKpRiPiJeNo Kamepn Nei I dA 3axHcy MaHTeroHa.

YcTaHOBJeHHa

1. Bn6epitb NOBePXHIO pIBH,Je IocTaTHbO BiJKTHOIPOCTOpTy IINBNUcKHNx Ta/a 60 BNIUcKHNX OTBOPiB.

(3) BLOKYBaHHN BnYcKHNx a6o/ Ta BnYcKHNx OTbOpiB MOKe IIIN3BeCTH IOIIOIIKOJKeHH NJIeHi.
(4)PozmicitiiMHKOMORA dIJI BII TeneiBIOpa.IIaHcPo0thN HeCiMooTH BHHKNHyTHpeIEKIODN BTeJeb3HHOMHY a6O paoI npHoiM.
2. YbIMKHTb BHJky B cTahdapTHy DomaIIHIO pO3eTKy IpekoHaItec, IO n HpaIry Ta aCToTa taki cami, kI h npIpyra Ta aCToTa Ha npIHKy 3 HOMIHbHMH xapaKeprhCThKMam

YBAIa:He po3miiuytePiHaBepXhboIO
uactTHIOO KXYHOHOI IIHTN a6o HAI IIHMM
ek3OTepMiyHHMn IIpHCTPOHM. KaIIIO IIH 3HXoDHTbc8
61bA a6H aIKepeJLO TnelIA, BOHA Moe 6yTH
noIIKOJkeHa i rapaHTIg 6yde anyIbObaHa.

MihimaJIbHHI pIOMeKoK mIK IIuYIO Ta 6bIy-bKHO CMiKHOO CTiHOO IOBHeH BSY kMIHyM 3 IIOHa (7.5 cm). OJINh 6bK MaC 6bTH BIXpHTN.

(1) 3aJIHHTe He MeHII HIX 12 IIOHmIB (30 cm) BILbHOTo IpoCTOpy NaI BePxHbO IO NaHeJIHO NeHi.
(2) He 3Himaiite HixkN 3 HnKhb0r60ky nei.

IocTyHnIOBepxHnMoKe 6yTHrnapuOIOIvac pobostnei.

IHCTPYKII3 EKCJIYATALII

ДяЗAOBJEHnBaIINX BHMOR y pIHHOTyBaHHi B II MIKPOXBJIbOBiI IeCi BHKOPHCTOByeTbcI HaIcyaHcIIIE eIeKtPOHNe KepyBaHNJ DIA HAcTPOHOBHaNII npaMeTpIb.

1.YctaHOBJIeHHrroIHHHNKa

KoiMikpOxBnIbOBy\Pi\PiJIkJIIOHDo pO3eTKH,HaDHCJIpeBHCBIHTbcra（0:00）Ta IIPOJyHaE 3ByKObH CNHnA.

1) HATNCHiB KHOIIKy «CLOCK»ДЯ Bn6opy 12-rodHHoro a6o 24-roHNHoro peKHMy. 24H
2)Повернів NOВОРТНИ PERΥЛЯТОР «»ДΙΑ ВСТАНБЛЕNHЯЧACYВΤΟДHAx，ПΟМс 6уTH B MEXKAX 0--23 (24-гODИHП N pexHM) a60 0--12 (12-гODИHП N pexHM). 9:00
3) HATnCHTb KHOIky «START» Ta iHNKaTOp XBHJINH 6yJe mepexTIH. 9:00

4)Поверпгв « 》ДЯ ВСТАНОВЛЕнHAуСУВ XBXHJIINHAX,ИIO Ma€ 6yTH BMeJax 0--59.
5)HaTnCHiBt KhoIKNy «START»ДЯЗавершени Встановлени Сау.

2.MikpoXBJIbOBe IIpHrToYBaHHa

HaTCHiTB KHOIIky «MICROWAVE» DekiIbKa pa3iB IJI Bn6Opy 6aKaHoi yHKii.

JIYBCTAHOBJIeHHHeo6xIHHO Yacy 15:00.

7. P03M0p0jxvBaHHa 3a BaRo1o

1)HaTHcHITb《DEFROST BY WEIGHT》OdINH pa3.

160pyacyp03MOpOxyBaHHnpoJyKtIB.

MaKCHMaJIbHHn Yac yCTaHOBJIeHHcTaHOBHTb 95 XB.

3)HaTnCHiTB《START》IJIaIOuATKy pO3MOPOJyBAHHA.

9. PekHM aBtOMaTHUHOrO IIpHrOTyBaHHa

1) HATNCHiTb AUTO COOK
