FDX-500S - AV Extender Smart-AVI - Free user manual and instructions

Product Type	DVI-D and Stereo Audio Extender over Fiber Optic Cable
Brand	Smart-AVI
Model	FDX-500S
Category	AV Extender
Video Input Interface (TX)	1 x DVI-D 29-pin female
Video Output Interface (RX)	1 x DVI-D 29-pin female
Maximum Video Resolution	1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)
Audio Input/Output	3.5 mm Stereo Audio (TX and RX)
Audio Frequency Response	20 Hz - 20 kHz
Maximum Extension Distance	1,500 ft (approx. 457 m) over Multimode Fiber
Fiber Type	Multimode
Fiber Connector Type	FC
Optical Wavelength	1310 nm / 1550 nm (dual wavelength)
Data Rate	5 Gbps (2.5 Gbps per wavelength)
Power Supply	External 100-240 VAC / 5VDC4A @ 20W
Dimensions (W x H x D)	5 in x 1 in x 3.75 in
Weight	1 lb
Operating Temperature	32-131°F (0-55°C)
Storage Temperature	-4-185°F (-20-85°C)
Humidity	Up to 95%
RS-232 Data Rate	Up to 115,000 bps
Casing	Compact Metal
Compatibility	All Operating Systems and Major KVM Switches
Special Features	Immune to EMI, Secure fiber optic, DDC learning, Zero pixel loss
What's in the Box	1 x FDX-500TX Transmitter, 1 x FDX-500RX Receiver, 2 x Power Supplies (PS5VDC4A)

Frequently Asked Questions - FDX-500S Smart-AVI

What is the maximum distance the FDX-500S can extend DVI-D and audio?

The FDX-500S can extend DVI-D video and stereo audio up to 1,500 feet (approximately 457 meters) over multimode fiber optic cable, providing top signal quality at maximum extension.

Is the FDX-500S compatible with all operating systems?

Yes, the FDX-500S is compatible with all operating systems and all major KVM switches, making it a versatile solution for various computing environments.

What type of fiber optic cable is required?

The FDX-500S requires a multimode fiber optic cable with FC-type connectors for both the transmitter and receiver units. The dual wavelength optical technology operates at 1310 nm and 1550 nm.

Can I use this extender for KVM applications?

Absolutely. The FDX-500S is designed for KVM extension where exceptional signal quality is crucial. It supports DVI-D video and stereo audio, and is compatible with major KVM switches.

What video resolutions are supported?

The FDX-500S supports DVI-D video resolutions up to 1920 x 1200 at 60Hz and 1280 x 1024 at 75Hz, delivering superior image quality at all resolutions.

Does the extender support audio?

Yes, the FDX-500S supports stereo audio via 3.5 mm jacks. The audio frequency response is 20 Hz to 20 kHz, with a nominal level of 0-1.0 V and 600 ohm impedance.

What are the benefits of using fiber optic over copper?

Fiber optic cables are immune to electromagnetic interference, can transmit over very long distances with no signal loss, are more secure (cannot be easily tapped), and are relatively inexpensive and small enough to route through tight spaces.

How do I install the FDX-500S?

Installation is straightforward: turn off all devices, connect the DVI and audio cables to the computer and transmitter (TX), connect the display and speakers to the receiver (RX), connect TX and RX with a multimode fiber optic cable, power on both units, then power on the computer, display, and speakers.

What is the power requirement?

The FDX-500S uses an external power supply (100-240 VAC to 5VDC4A) with a power consumption of 20 watts. Two power supplies are included, one for the transmitter and one for the receiver.

What is included in the box?

The package includes: 1 x FDX-500TX Transmitter, 1 x FDX-500RX Receiver, and 2 x Power Supplies (PS5VDC4A). DVI and audio cables are not included.

USER MANUAL FDX-500S Smart-AVI

Exterior view of a black Smart-LAM device with VGA port and ports (no visible text or symbols on body)

DVI-D and Stereo Audio Extender up to 1,500 feet over Fiber Optic Cable

Introduction

The FDX-500 is a perfect solution for extending the video and audio output of a computer in a remote location. It extends DVI-D and Stereo Audio to a remote location up to 1,500 feet away. The FDX-500 is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference. The FDX-500 is also very secure because it's fiber optic signals cannot be easily tapped.

Features

• Top Signal Quality at Maximum Extension Over Multimode Fiber (1,500 ft.)
  • Superior Image Quality at all Resolutions
  • DVI-D Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
  • Supports Stereo Audio
• Fiber Plug Type FC
  • Compatible With all Operating Systems
  • Compatible With all Major KVM Switches
• Compact Metal Casing
  • DDC from internal table for most display models
  • DDC learning from display
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction

Applications

• Corporate or Educational Presentations
• Financial (Remote Servers/User Control)
- Call Centers
• Industrial (Long-Range Workstation Isolation)
• Information Terminals/Kiosks
• Airport Installations (Air Traffic Control/Passenger Information)
• KVM Extension where Exceptional Quality of Signal is Crucial
• Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
- Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence)

Why Fiber Optic?

SmartAVI has created a full line of fiber optic extender products, understanding that this technology is superior to traditional cabling.

Fiber optic cables are:

• capable of transmitting over very long distances with no signal loss.
• immune to electromagnetic interference. In situations where there is considerable interference, fiber optic cabling is the only solution.
• much more secure because they cannot be easily tapped. For this reason, military and law enforcement agencies use fiber optic cables for the transmission of sensitive data.
  • relatively inexpensive and small enough to be routed through small spaces.

FDX-500TX Front

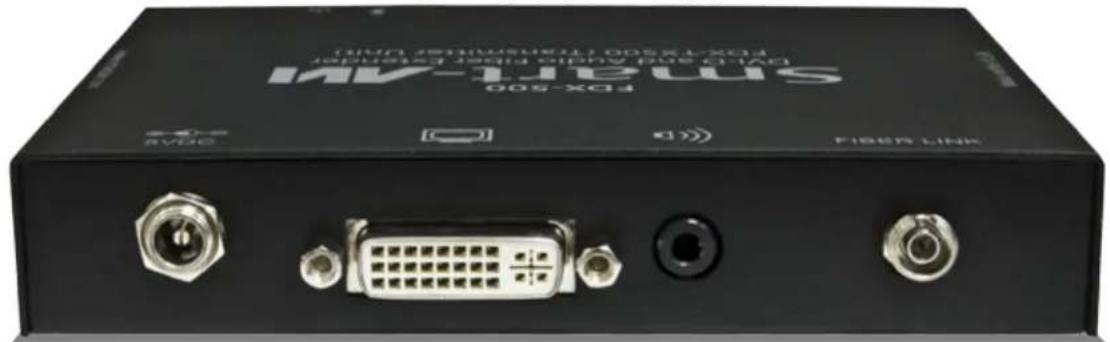

FDX-500TX Rear

FDX-500RX Front

FDX-500RX Rear

What's in the Box?

PART NO. QTY DESCRIPTION
FDX-TX500 1 F	DX-500	Transmitter Unit - DVI-D and Stereo Audio Extender over Fiber Optic Cable
FDX-RX500 1 F	DX-500	Receiver Unit - DVI-D and Stereo Audio Extender over Fiber Optic Cable
Power Supply 2	PS5VD	C4A

Technical Specifications

VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC Internal
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
AUDIO
Frequency Response	20 Hz to 20 KHz
Impedance	600 ohm
Nominal Level	0-1.0 V
Common Mode	Rejection at 60dB
Input Interface (TX) (1) 3.5 mm Stereo Audio
Output Interface (RX) (1) 3.5 mm Stereo Audio
OTHER
Power	External 100-240 VAC/5VDC4A @20W
Dimensions	5 in W x 1 in H x 3.75 in D
Weight	1 lb.
Approvals	UL, CE, ROHS Compliant
Operating Temp.	32-131°F (0-55 °C)
Storage Temp.	-4-185 °F (-20-85 °C)
Humidity	Up to 95%
RS-232 Data up to 115,000 bps

Product - Installation Diagram

3D illustration of a desktop computer tower connected to a small black device via a blue cable (no text or symbols visible)

COMPUTER

FDX-500TX

up to 1,500 ft over Fiber

Installation

1. Turn off the computer, display, and speakers.
2. Connect the DVI extension cable and audio cable (not included) to the computer and to the ports on the FDX-500-TX.
3. Connect the display to the DVI connector on the FDX-500-RX.
4. Connect speakers to the audio connector on the FDX-500-RX.
5. Connect the FDX-500-TX to the FDX-500-RX with a multimode fiber-optic cable (see opposite page).
6. Connect the power cord and power on the FDX-500TX and the FDX-500-RX.
7. Power on the computer, display and speakers.

Fiber-Optic Cable Specifications

OPTICAL
Fiber Type Single, multi mode
Connector Type FC Type
Wavelength 1310 nm/1550 nm (Dual wavelength)
Data Rate 5 Gbps (2.5 Gbps per single wavelength)
Transmission Power -5 dB Min.
Receiver Sensitivity -21 dB Max
Distance 500 m Max.

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.
