Product Type	Circular Saw
Brand	HiKOKI
Model	C9U2
Voltage	220 V ~
Power Input	2000 W
No-Load Speed	5000 / min
Blade Diameter	235 mm
Cutting Depth at 90°	0 – 86 mm
Cutting Depth at 45°	Max 65 mm
Bevel Capacity	0° – 45°
Weight (without cord)	6.8 kg
Arbor Hole Size Options	15.9 mm or 30 mm (via washer)
Standard Accessories	Hex. bar wrench, guide, wing-bolt, side handle, dust collector
Optional Accessories	Washer (A) for 16 mm or 30 mm hole
Application	Cutting various types of wood
Safety Features	Lower guard, lock lever, riving knife, insulated gripping surfaces
Dust Extraction	Compatible with vacuum cleaner via dust collector

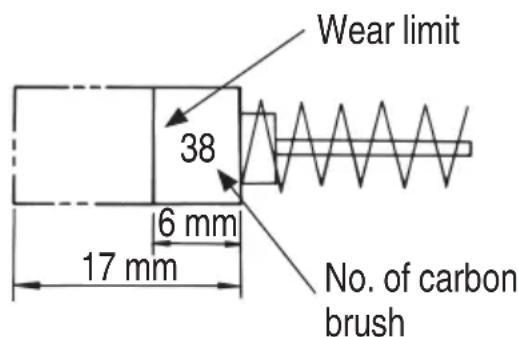

Carbon Brush Replacement	Yes, consumable part with specified wear limit
Power Source	Corded mains
Maintenance	Blade inspection, screw tightening, carbon brush check, perpendicularity adjustment

Frequently Asked Questions - C9U2 HiKOKI

How do I change the saw blade on the HiKOKI C9U2?

Ensure the switch is OFF and unplugged. Set cutting depth to maximum, depress the lock lever to lock the spindle, and remove the hexagonal-socket bolt with the hex bar wrench. While holding the lower guard lever to retract the guard, remove the blade. For mounting, clean the spindle, fit the correct washer (A) with the projected center matching the blade hole, and tighten the bolt firmly. Always verify the blade rotation arrow matches the saw cover arrow.

How do I adjust the cutting depth?

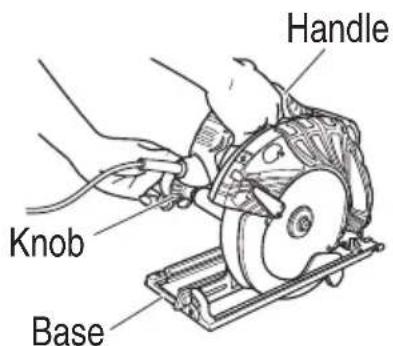

Hold the handle with one hand and loosen the knob with the other. Move the base to the desired position to set the cutting depth (0-86 mm at 90°), then retighten the knob securely.

How do I adjust the bevel angle?

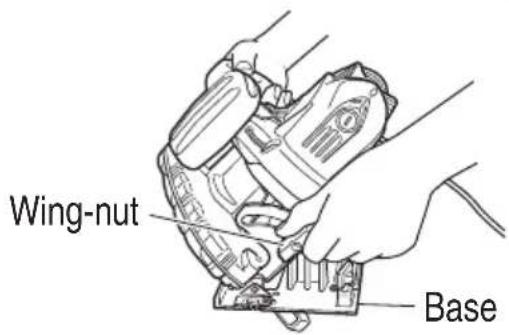

Loosen the wing-nut on the incline gauge and the wing-bolt on the base. Tilt the saw to the desired angle (0° to 45°). After adjustment, firmly retighten both the wing-nut and wing-bolt.

What safety features does the C9U2 have?

Key safety features include a lower guard that automatically covers the blade, a lock lever to prevent accidental startup, a riving knife to reduce kickback, and insulated gripping surfaces for protection when cutting near live wires. Always read the manual for full safety warnings.

How do I reduce the risk of kickback?

Maintain a firm grip with both hands, position your body to the side of the blade, support large panels, use sharp blades, and keep the riving knife properly adjusted. Never remove the saw from the cut while the blade is moving. If binding occurs, release the trigger and wait for the blade to stop before action.

How do I adjust the riving knife?

Loosen the hexagonal-socket bolt clamping the riving knife. Adjust so the distance between the riving knife and blade rim is not more than 3 mm, and the blade rim does not extend more than 3 mm beyond the lowest edge of the riving knife. Then retighten the bolt securely.

Can I use a dust collector with this saw?

Yes, attach the suction hose from a vacuum cleaner to the dust collector, which is fastened to the main unit with M4 and M5 screws. When attaching, change the lever to the short type to avoid interfering with the lower guard operation.

What are the recommended maintenance procedures?

Regularly inspect the saw blade for dullness or damage, check all mounting screws for tightness, replace carbon brushes when worn to the wear limit, and adjust the base to maintain 90° perpendicularity with the blade. Have the tool serviced by an authorized HiKOKI center.

What accessories are included in the box?

The package includes the main unit, hex bar wrench, guide, wing-bolt, side handle, and dust collector. Optional accessories include washer (A) for blades with 16 mm or 30 mm arbor holes.

What materials can this saw cut?

The primary application is cutting various types of wood. It is not designed for cutting metal or masonry. Always ensure the material is free of nails or foreign objects to avoid blade damage.

USER MANUAL C9U2 HiKOKI

Technical line drawing of a mechanical device with circular frame (no text or symbols)

保留备用

Keep for future reference

使用说明书

Handling instructions

中文

目次

电动工具通用安全警告 2

所有圆锯的安全说明....4

对各种圆锯的进一步安全说明……5

带摆动式内护罩的圆锯的安全说明……5

带分料刀的各种圆锯的附加安全

说明....6

使用电圆锯时应注意事项……6

符号....7

规格....7

标准附件....7

选购附件（分开销售） 7

用途....8

作业之前....8

使用前调整电圆锯....8

锯割步骤....10

锯片的装卸....11

维护和检查....11

维修零部件一览表....13

电动工具通用安全警告

警告！

阅读所有警告和所有说明。

中文
项目号 代码号 使用数 备注

1 673-002 1 HK1212
2 303-789 1
3 303-790 1
4 303-797 2 M6 × 14
5 998-887 1
6 620-3VV 1	6203VVCMPS2L
7 325-353 1
8 303-805 1
9 303-804 1
10 992-013 2 M5 × 14
11 326-802 1
12-1 303-809 1 235MM-D15.9
	HOLE-NT20
12-2 303-810 1 235MM-D30
	HOLE-NT20
13 325-354 1
14——1
15 324-669 1
16 324-139 1
17 302-464 1
18 304-043 1 M4 × 10
19 302-423 1
20 324-662 1 M8 × 15.5
21 305-691 4 M4 × 14
22 937-623 2
23 340-660Q 1 220V – 230V, “22”
24 325-352 1
25 360-759E 1 220V – 230V
26 303-793 1
27 949-884 1 D8 × 50
28 325-350 1
29 961-729 1
30 949-794 1 M6 × 20
31 325-356 1
32 325-355 1
33 600-0VV 1	6000VVCMPS2L
34 960-251 2 D5 × 65
35 620-2VV 1	6202VVCMPS2L
36 303-792 1
37 324-660 1
38 676-531 1 P-7
39 303-801 1
40 324-658 1 M8
41 949-433 1 M8
42 301-806 1 M6 × 15
43 947-859 1

项目号 代码号 使用数 备注

44 302-469 1 M6 × 6
45 325-360 1 “.40, 41, 46-50,
	54, 55, 79”
46 317-333 1 M4 × 6
47 324-659 1
48 302-457 1 M8 × 30
49 308-481 1
50 308-482 1 D6 × 24
51 303-806 1
52 324-664 1 M8 × 10
53 303-800 1 M8
54 949-425 1 M6
55A 328-932 1 M6 × 20
56 301-653 5 D4 × 20
57———1
58 325-358 1
59 325-359 1
60 303-796 3 M5 × 40
61 938-477 2 M5 × 8
62 983-362 2
63 999-038 2
64 961-781 2
65 325-362 1 “61, 62”
66 938-307 1
67 958-049 1 D8.2
68 500455Z 1
69 325-357 1
70 305-720 1 D4 × 12
71 980-063 1
72 946-362 1
73 325-351 1
74 980-063 1
75 930-039 1
76 984-750 2 D4 × 16
77 937-631 1
79 308-480 1 D6 × 17
501	303-888 1
502	872-422 1 6MM
503	303-338 1
505	303-811 1
506	949-340 2 M6 × 16

CONTENTS

GENERAL POWER TOOL SAFETY WARNINGS ....15

SAFETY INSTRUCTIONS FOR ALL SAWS 17

FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS 18

SAFETY INSTRUCTIONS FOR SAWS WITH INNER PENDULUM GUARD 19

ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS WITH RIVING KNIFE ....20

PRECAUTIONS ON USING CIRCULAR SAW 20

SYMBOL....20

SPECIFICATIONS....21

STANDARD ACCESSORIES ....21

OPTIONAL ACCESSORIES (sold separately)....21

APPLICATIONS....21

MOUNTING AND DISMOUNTING THE SAW BLADE ....24

MAINTENANCE AND INSPECTION 25

SERVICE PARTS LIST 27

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.

Never modify the plug in any way.

English

Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

CAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

SAFETY INSTRUCTIONS FOR ALL SAWS

DANGER

a) Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing.

If both hands are holding the saw, they cannot be cut by the blade.

b) Do not reach underneath the workpiece.

The guard cannot protect you from the blade below the workpiece.

English

c) Adjust the cutting depth to the thickness of the workpiece.

Less than a full tooth of the blade teeth should be visible below the workpiece.

d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform.

It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.

Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.

f) When ripping always use a rip fence or straight edge guide.

This improves the accuracy of cut and reduces the chance of blade binding.

g) Always use blades with correct size and shape (diamond versus round) of arbour holes.

Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

h) Never use damaged or incorrect blade washers or bolt.

The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS

Causes and operator prevention of kickback:

— kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
— when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
— if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.

Position your body either side of the blade, but not in line with the blade.

Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.

Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.

Investigate and take corrective actions to eliminate the cause of blade binding.

c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material.

If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

d) Support large panels to minimize the risk of blade pinching and kickback.

Large panels tend to sag under their own weight.

Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

e) Do not use dull or damaged blades.

Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.

f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut.

If blade adjustment shifts while cutting, it may cause binding and kickback.

g) Use extra caution when making a “plunge cut” into existing walls or other blind areas.

The protruding blade may cut objects that can cause kickback.

SAFETY INSTRUCTIONS FOR SAWS WITH INNER PENDULUM GUARD

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position.

If saw is accidentally dropped, lower guard may be bent.

Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depth of cut.

b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use.

Lower guard may operate sluggishly due to damaged parts, gummy deposits, or build-up of debris.

c) Lower guard should be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”. Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released.

For all other sawing, the lower guard should operate automatically.

d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path.

Be aware of the time it takes for the blade to stop after switch is released.

ADDITIONAL SAFETY INSTRUCTIONS FOR ALL SAWS WITH RIVING KNIFE

a) Use the appropriate riving knife for the blade being used.

For the riving knife to work, it must be thicker than the body of the blade but thinner than the tooth set of the blade.

b) Adjust the riving knife as described in this instruction manual.

Incorrect spacing, positioning and alignment can make the riving knife ineffective in preventing kickback.

c) Always use the riving knife except when plunge cutting.

Riving knife must be replaced after plunge cutting. Riving knife causes interference during plunge cutting and can create kickback.

d) For the riving knife to work, it must be engaged in the workpiece.

The riving knife is ineffective in preventing kickback during short cuts.

e) Do not operate the saw if riving knife is bent.

Even a light interference can slow the closing rate of a guard.

PRECAUTIONS ON USING CIRCULAR SAW

1. Do not use saw blades which are deformed or cracked.

2. Do not use saw blades made of high speed steel.

3. Do not use saw blades which do not comply with the characteristics specified in these instructions.

4. Do not stop the saw blades by lateral pressure on the disc.

5. Always keep the saw blades sharp.

6. Ensure that the lower guard moves smoothly and freely.

7. Never use the circular saw with its lower guard fixed in the open position.

8. Ensure that the retraction mechanism of the guard system operates correctly.

9. The saw blades body must be thinner than the riving knife and the width of cut, or kerf (with teeth set) must be greater than the thickness of the riving knife.

10. Never operate the circular saw with the saw blade turned upward or to the side.

11. Ensure that the material is free of foreign matters such as nails.

12. The riving knife should always be used except when plunging in the middle of the workpiece.

13. For models C9U2, the saw blades should be 235 mm.

14. Disconnect the plug from the receptacle before carrying out any adjustment, servicing or maintenance.

SYMBOL

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

To reduce the risk of injury, user must read instruction manual.

SPECIFICATIONS

Voltage 220 V		~
Cutting Depth	90° 0 – 86 mm
	45° Max. 65 mm
Power Input 2000 W
No-Load Speed 5000 / min
Weight (without cord) 6.8 kg

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed in the below.

Hex. bar wrench 1
Guide			1
Wing-bolt			1
Side handle			1
Dust collector			1

OPTIONAL ACCESSORIES (sold separately)

○ Washer (A) ......for 16 mm (Hole dia. of saw blade)

......for 30 mm (Hole dia. of saw blade)

APPLICATIONS

Cutting various types of wood.

PRIOR TO OPERATION

1. Power source

Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

English

2. Power switch

Ensure that the power switch is in the OFF position. If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

3. Extension cord

When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.

4. Prepare a wooden workbench (Fig. 1)

Since the saw blade will extend beyond the lower surface of the lumber, place the lumber on a workbench when cutting. If a square block is utilized as a workbench, select level ground to ensure it is properly stabilized. An unstable workbench will result in hazardous operation.

5. When using the side handle (Fig. 2)

Securely attach the side handle to the base with the two fl at head screws (M6 × 16) when using the side handle.

Fig. 1

Fig. 2

CAUTION

To avoid possible accident, always ensure that the portion of lumber remaining after cutting is securely anchored or held in position.

ADJUSTING THE SAW PRIOR TO USE

1. Adjusting the cutting depth

As shown in Fig. 3, hold the handle with one hand while loosening the knob with the other.

The cutting depth can be adjusted by moving the base to the desired position. In such manner adjust the cutting depth and then securely retighten the knob.

2. Adjusting the riving knife

Loosen the hexagonal - socket bolt used to clamp the riving knife, adjust the riving knife so that the distance between the riving knife and the rim of the blade is not more than 3 mm, and the rim of the blade does not extend more than 3 mm beyond the lowest edge of the riving knife (Fig. 4) and securely retighten the bolt. Max.

Fig. 3

Fig. 4

3. Adjusting the angle of inclination

As shown in Fig. 5, Fig. 6 by loosening the wing-nut on the incline gauge and the wing-bolt on the base, the saw blade may be inclined to a maximum angle of 45^ in relation to the base. After having completed the adjustment, reconfi rm that the wing-nut and the wing-bolt are firmly tightened.

4. Regulating the guide (Fig. 7)

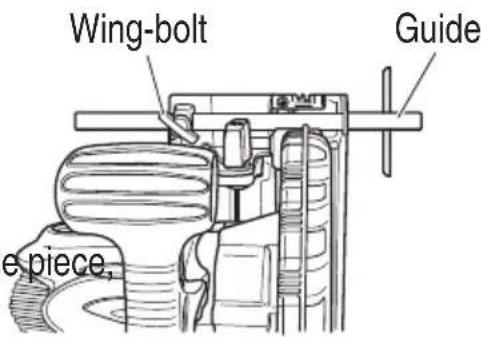

The cutting position can be regulated by moving the guide to the left or right after loosening its wingbolt. The guide may be mounted on either the right or left side of the tool.

5. Adjusting the guide piece

On the circular saw, it is possible to make fi ne adjustment of the fi xing position of the guide piece, where the saw blade and the premarked line are to be aligned.

When the saw is shipped from the factory, the linear portion of a front scale on the guide piece is aligned with the central position of the saw blade (Fig. 8).

Loosen the fixed M4 screw on the guide piece, should the fixing position be wrong, and make necessary adjustment of the position.

6. Using the dust collector

To use the vacuum cleaner to gather up saw dust, attach the suction hose to the dust collector which is attached to the main unit by M4 and M5 screws. When attaching the dust collector always be sure to change the lever to the short type at this same time (Fig. 9).

CAUTION

Continuing to use the lever that was attached to the main unit prior to shipping from the factory will cause it to bind on the dust collector and will interfere with the lower guard operation.

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

CUTTING PROCEDURES

1. Place the base on the material, then align the premarked line and the sawblade with the guide piece front scale section at the front of the base (Fig. 8 on page 23).

When the base is not slanted, use the large cutout as the guide (Fig. 8 on page 23 and Fig. 10 at right).

If the base is slanted (45 degrees), use the small front scale as the guide (Fig. 8 on page 23 and Fig. 11 at right).

1. Ensure that the switch is turned to the ON position before the saw blade comes in contact with the lumber. The switch is turned ON when the trigger is squeezed; and OFF when the trigger is released.
2. Moving the saw straight at a constant speed will produce optimum cutting.

CAUTION

Prior to cutting operation, make sure the material you are going to cut. If the material to be cut is expected to generate harmful / toxic dusts, make sure the dust bag or appropriate dust extraction system is connected with dust outlet tightly. Front scale a 45° incline

Wear the dust mask additionally, if available.

Fig. 10

Fig. 11

Before starting to saw, ensure that the saw blade has reached full speed revolution.
Should the saw blade be stopped or made an abnormal noise during operation, turn off the switch immediately.
○ Always take care in preventing the power cord from coming near the revolving saw blade.
○ Using the circular saw with the saw blade facing upwards or sideways is very hazardous. Such uncommon applications should be avoided.
○ When cutting materials, always wear protective glasses.
When fi nished with a job, pull out the plug from the receptacle.

MOUNTING AND DISMOUNTING THE SAW BLADE

CAUTION

To avoid serious accident, ensure the switch is in the OFF position, and the power source is disconnected.

1. Dismounting the saw blade

(1) Set the cutting volume at maximum, and place the Circular Saw as shown in Fig. 12.
(2) Depress the lock lever, lock the spindle, and remove the hexagonal-socket bolt with the Hex. bar wrench.
(3) While holding the lower guard lever to keep the lower guard fully retracted into the saw cover, remove the saw blade.

1. Mounting the Saw Blade

(1) Thoroughly remove any sawdust which has accumulated on the spindle, bolt and washers.
(2) As shown in Fig. 13, the side of Washer (A) with a projected center the same diameter as the inner diameter of the saw blade and the concave side of Washer (B) must be fitted to the saw blade sides.

* Washer (A) is supplied for 2 types of saw blades with the hole diameters of 16 mm and 30 mm. (When buying the Circular Saw, one type of washer (A) is supplied.) In case the hole diameter of your saw blade does not correspond to that of washer (A), please contact the shop where you purchased the Circular Saw.

(3) To assure proper rotation direction of the saw blade, the arrow direction on the saw blade must coincide with the arrow direction on the saw cover.
(4) Using the fingers, tighten the hexagonal-socket bolt retaining the saw blade as much as possible. Then depress the lock lever, lock the spindle, and thoroughly tighten the bolt.

CAUTION

After having attached the saw blade, reconfirm that the lock lever is firmly secured in the prescribed position.

MAINTENANCE AND INSPECTION

1. Inspecting the saw blade

Since use of a dull saw blade will degrade efficiency and cause possible motor malfunction, sharpen or replace the saw blade as soon as abrasion is noted.

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

Fig. 12

Fig. 13

English

3. Inspecting the carbon brushes (Fig. 14)

The motor employs carbon brushes which are consumable parts. Since an excessively worn carbon brush can result in motor trouble, replace the carbon brushes with new ones having the same carbon brush No. shown in the figure when it becomes worn to or near the “wear limit”. In addition, always keep carbon brushes clean and ensue that they slide freely within the brush holders.

Fig. 14

CAUTION

When replacing the new carbon brushes, always use genuine Hitachi carbon brushes with the number specified in the drawing.

4. Replacing carbon brushes

Disassemble the brush caps with a slotted-head screwdriver. The carbon brushes can then be easily removed.

5. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

6. Adjusting the base and saw blade to maintain perpendicularity

The angle between the base and the saw blade has been adjusted to 90^ , however should this perpendicularity be lost for some reason, adjust in the following manner:

(1) Turn the base face up (Fig. 15) and loosen the wing-nut and wing-bolt (Fig. 5, 6 on page 24).

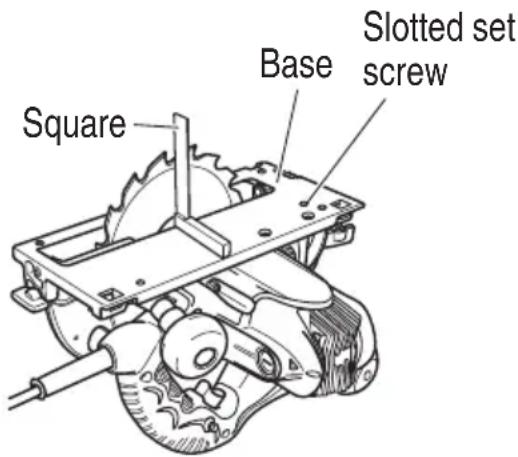

(2) Apply a square to the base and the saw blade and turning the slotted set screw with a slotted-head screwdriver, shift the position of the base to produce the desired right angle.

7. Service parts list

CAUTION

Fig. 15

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance.

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

SERVICE PARTS LIST

English

Item No.	Code No.	No. Used	Remarks
1	673-002	1 HK1212
2	303-789	1
3	303-790	1
4	303-797	2 M6 × 14
5	998-887	1
6	620-3VV	1 6203VVCMPS2L
7	325-353	1
8	303-805	1
9	303-804	1
10	992-013	2 M5 × 14
11	326-802	1
12-1	303-809	1 235MM-D15.9
			HOLE-NT20
12-2	303-810	1 235MM-D30
			HOLE-NT20
13	325-354	1
14———	1
15	324-669	1
16	324-139	1
17	302-464	1
18	304-043	1 M4 × 10
19	302-423	1
20	324-662	1 M8 × 15.5
21	305-691	4 M4 × 14
22	937-623	2
23	340-660Q	1 220V - 230V, “22”
24	325-352	1
25	360-759E	1 220V - 230V
26	303-793	1
27	949-884	1 D8 × 50
28	325-350	1
29	961-729	1
30	949-794	1 M6 × 20
31	325-356	1
32	325-355	1
33	600-0VV	1	6000VVCMPS2L
34	960-251	2 D5 × 65
35	620-2VV	1	6202VVCMPS2L
36	303-792	1
37	324-660	1
38	676-531	1 P-7
39	303-801	1
40	324-658	1 M8
41	949-433	1 M8
42	301-806	1 M6 × 15
43	947-859	1

Item No.	Code No.	No. Used	Remarks
44	302-469	1 M6 × 6
45	325-360	1 “.40, 41, 46-50, 54, 55, 79”
46	317-333	1 M4 × 6
47	324-659	1
48	302-457	1 M8 × 30
49	308-481	1
50	308-482	1 D6 × 24
51	303-806	1
52	324-664	1 M8 × 10
53	303-800	1 M8
54	949-425	1 M6
55A	328-932	1 M6 × 20
56	301-653	5 D4 × 20
57———	1
58	325-358	1
59	325-359	1
60	303-796	3 M5 × 40
61	938-477	2 M5 × 8
62	983-362	2
63	999-038	2
64	961-781	2
65	325-362	1 “61, 62”
66	938-307	1
67	958-049	1 D8.2
68	500455Z	1
69	325-357	1
70	305-720	1 D4 × 12
71	980-063	1
72	946-362	1
73	325-351	1
74	980-063	1
75	930-039	1
76	984-750	2 D4 × 16
77	937-631	1
79	308-480	1 D6 × 17
501	303-888	1
502	872-422	1 6MM
503	303-338	1
505	303-811	1
506	949-340	2 M6 × 16

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

Line drawing of a quill pen in an inkwell (no text or symbols)

服务中心

日立工机商业（中国）有限公司
