USER MANUAL HWD 1500 HAIER

Front Load Clothes Washer & Dryer Combo

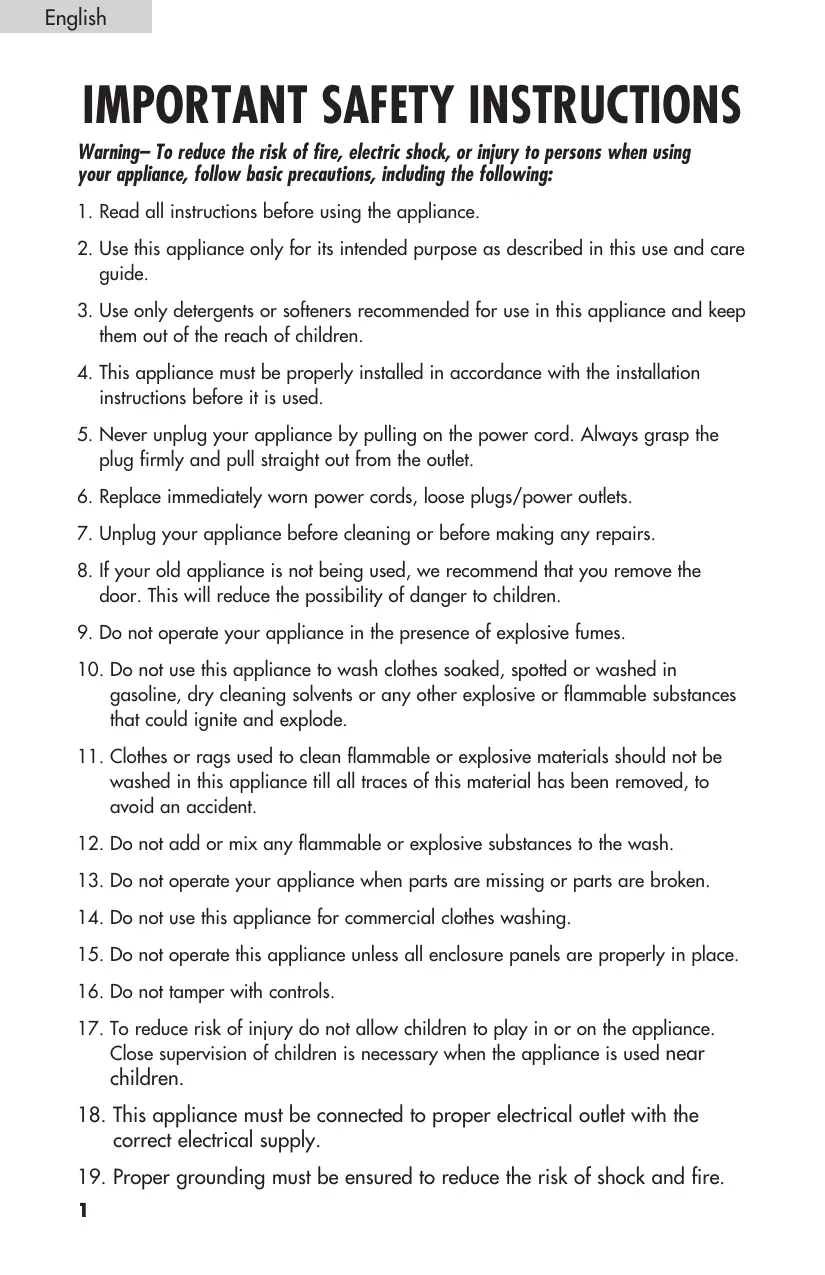

IMPORTANT SAFETY INSTRUCTIONS

Warning- To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this use and care guide.
3. Use only detergents or softeners recommended for use in this appliance and keep them out of the reach of children.
4. This appliance must be properly installed in accordance with the installation instructions before it is used.
5. Never unplug your appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets.
7. Unplug your appliance before cleaning or before making any repairs.
8. If your old appliance is not being used, we recommend that you remove the door. This will reduce the possibility of danger to children.
9. Do not operate your appliance in the presence of explosive fumes.
10. Do not use this appliance to wash clothes soaked, spotted or washed in gasoline, dry cleaning solvents or any other explosive or flammable substances that could ignite and explode.
11. Clothes or rags used to clean flammable or explosive materials should not be washed in this appliance till all traces of this material has been removed, to avoid an accident.
12. Do not add or mix any flammable or explosive substances to the wash.
13. Do not operate your appliance when parts are missing or parts are broken.
14. Do not use this appliance for commercial clothes washing.
15. Do not operate this appliance unless all enclosure panels are properly in place.
16. Do not tamper with controls.
17. To reduce risk of injury do not allow children to play in or on the appliance. Close supervision of children is necessary when the appliance is used near children.
18. This appliance must be connected to proper electrical outlet with the correct electrical supply.
19. Proper grounding must be ensured to reduce the risk of shock and fire.

DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded.

1. Hydrogen gas may be produced if the water heater has not been used in more than 2 weeks. This could be explosive under certain circumstances. If this is the case, before using this appliance turn on all the hot faucets and let the hot water run for a few minutes. This will let the trapped hydrogen escape. During this process do not turn on an electric appliance, smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen gas is flammable and can explode.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
3. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-repair instructions that you understand and have skills to carry out.
4. Do not use heat dry for articles containing foam rubber or similarly textured rubber-like materials.
5. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

SAVE THESE INSTRUCTIONS

Note: These units have a self-locking device. Please wait for 3 minutes after you stop the machine before opening the door.

DANGER

Risk of child entrapment. Before you throw away your old appliance, take off the door so that children may not easily get trapped inside.

Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your washer and dryer combo.

Remember to record the model and serial number. They are on a label in back of the unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

ELECTRICAL CONNECTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounded plug. The plug must be inserted into an outlet that is properly installed and grounded.

• Improper use of the plug can result in a risk of electric shock.
• Consult a qualified electrician or service person if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Wiring Requirements:

• This appliance must be plugged into at least 15 AMP 120 VOLT, 60 HZ GROUNDED OUTLET.

Note: Where a standard two-prong outlet is encountered, it is the personal responsibility and obligation of the consumer to have it replaced with a properly grounded three-prong outlet.

Extension Cords:

We do not recommend that you use an extension cord.

Power Interruptions

Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored re-plug power cord to AC outlet. If outage is for a prolonged period, clean washer before using it again. For details see "other functions" - "Power-Off memory function" Page 18.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS 1

ELECTRICAL CONNECTING 4

Grounding Instructions 4

PARTS AND FEATURES 6

Front 6

Back 7

INSTALLATION INSTRUCTIONS 8

Tools and Materials Required 8

Unpacking Your Washer 9

INSTALLATION 11

Power Supply 12

Unit Dimensions 12

OPERATIONAL INSTRUCTIONS 13

Control Panel 13

OPERATIONAL SELECTION 15

PROGRAM SELECTION 16

Loading 17

Proper Use of Dispenser 17

WASHING METHODS 18

ADDITIONAL INFORMATION 18

Normal Operating Sounds. 19

CARE AND CLEANING GUIDE 20

Cleaning and Maintenance 20

Moving and Vacationing 21

Storage of Your Appliance in Cold Environment 21

WARNING CODES 22

TROUBLESHOOTING 23

TECHNICAL SPECIFICATION 25

WARRANTY 26

PARTS AND FEATURES

Front

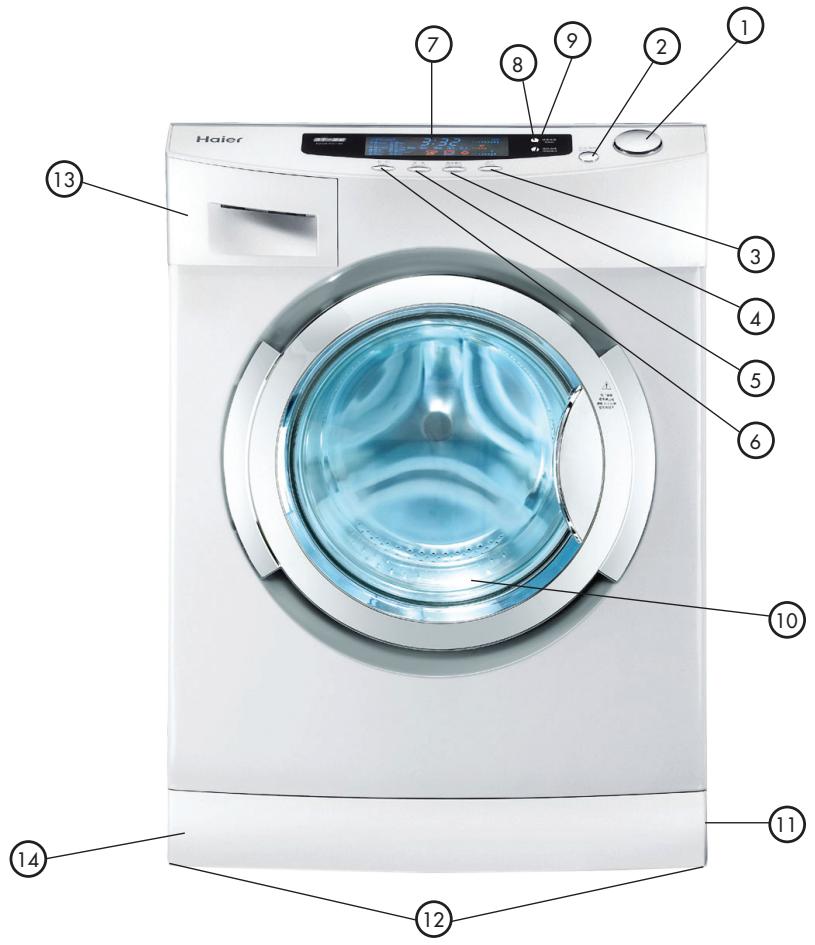

1. Cycle Selector Dial
2. Start/Pause Button
3. Dry Cycle Selector Button
4. Extra Rinse Selection Button
5. Prewash Function Button
6. Delay Button

7. Remaining Time Display

8. Spin Speed Selection Button

9. Temperature Selection Button
10. See Through Glass Window Door
11. Button Trap (not shown)
12. Front Adjustable Legs (not shown)
13. Detergent/Softener Dispenser
14. Removable Cover

PARTS AND FEATURES

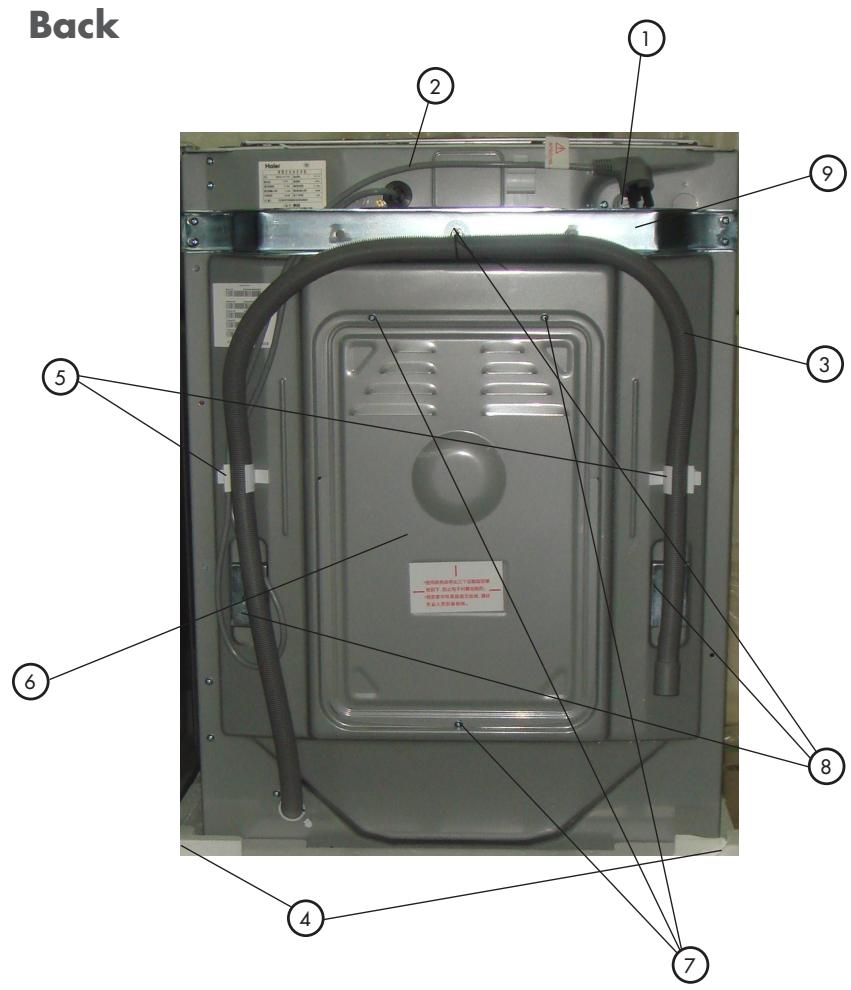

1. Water Inlets (Hot/Cold)
2. Power Supply (120V/60Hz, 15 Amps)
3. Drain Hose

4. Rear Adjustable Leveling Legs (not shown)

5. Drainage Hose Clips (3)

6. Back Plate
7. Back Plate Screws (3)
8. Transportation Bolts (3)
9. Metal Bracket

INSTALLATION INSTRUCTIONS

Warning - Risk of Fire

• Washer/Dryer Combo installation must be performed by a qualified installer.
• Install the Combo according to the manufacturer's instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions

Tools and Materials Required

You will need to have the following tools to help you in the installation of your washer:

• Scissors
• Tape Measure
• Standard Screwdriver
  Gloves
• Pliers
• Level
  Wrench

Accessories Supplied Quantity

1.Hot & Cold Water Inlet Hoses 2
2. Pressure Regulator 2 (Attached to Hot & Cold Water Inlet Hoses)
3. Flat Water Inlet Hose Washers 4 (Installed in each end of water inlet hoses)
4.Use & Care Guide (Not Shown) 1
5. Plastic Plugs to cover transportation bolt holes
6. Drain hose support bracket 1

Unpacking Your Appliance

• Remove all packing materials including transportation bolts.
• Inspect and remove any remains of packing, tape or printed materials before using the washer.
• Transportation Bolts must be removed before using the machine. Once removed, save them so when moving you can reinstall to protect the machine from damage during shipping.
• Water inlet hoses and other accessories are packed and placed in the drum.

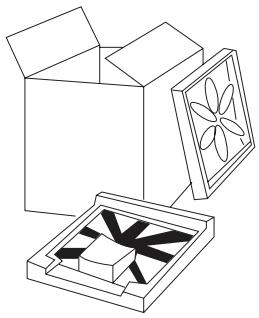

• As shown in figure1, remove all the packing materials (including the foam base).

Upon opening of the package, water drops may be seen on the plastic bag and the porthole. This is a normal phenomenon resulting from water tests in the factory. Water tests are conducted to check for leakage.

Fig. 1

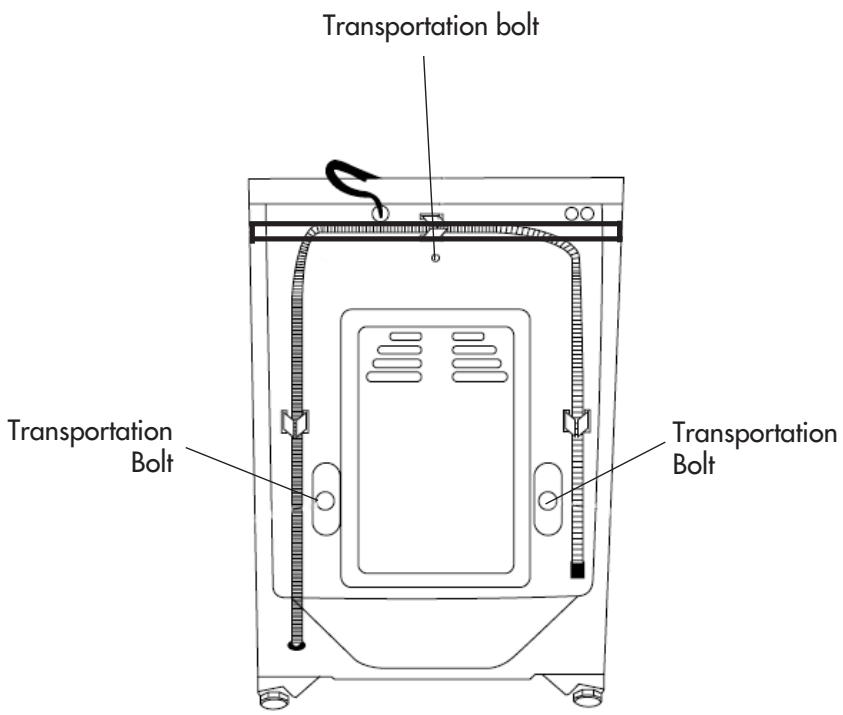

• Remove three transportation bolts as shown in figure 2A. The bolts protect the appliance from shock during transportation. The steps below should be followed before using the appliance:

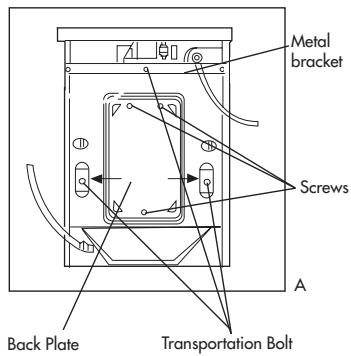

• Remove the back plate of the washing machine. To remove this you must remove three screws holding the panel.

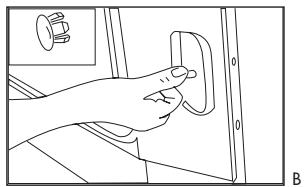

• Now you could remove the transportation bolts. While removing the three bolts from the rear of the washing machine, remove the rubber hoses which are behind the transportation bolts inside the unit at the same time. Remove themetal bracket and save in a safe place for later use.
• Reinstall the back plate.
• Fill the holes left by the bolts with plastic plugs. (Attention: The bolts and rubber hose should be kept in a safe place for later use.) (Fig. 2B)

Fig. 2

• Leveling the washing machine: There are adjustable feet under the bottom of the washing machine. Before use, the washing machine should be adjusted, as shown in figure 3, so that it is level.

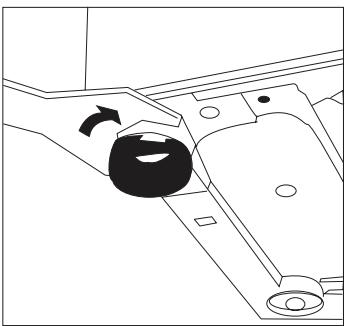

• Leveling legs can be adjusted by turning them counterclockwise to raise your washer or clockwise to lower your washer.

Fig. 3

INSTALLATION

Connection of water inlet hose and washing machine

(use new hose sets, old hose sets should not be reused)

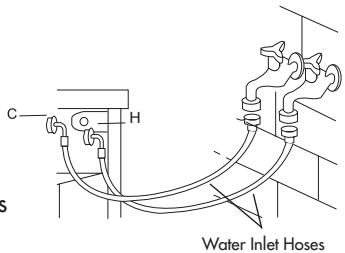

• Connect the straight coupling of the inlet hose to the water tap and make sure to tighten it.
• Connect the elbow coupling of the inlet hose to the pressure regulator and make sure to tighten it.

Note: Please be sure that the COLD inlet hose is connected with the valve for cold water (marked with "C").
- Please be sure that the HOT inlet hose is connected with the valve for hot water (marked with "H").

Note: A flat rubber washer must be present inside each end of the inlet hoses.

Over tightening may cause damage to the valve.

Water Drainage Hose

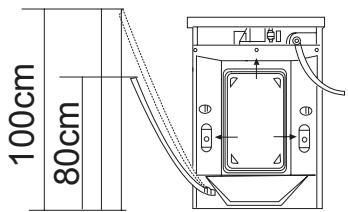

• The height of the pipe for the water drainage hose should be between 2^6^ to 3^3^ . The water drain hose must be securely placed on the clip on the back of the washing machine.
• Use the water drainage support (bracket) supplied as an accessory for proper installation. If the water drain hose needs to be extended, it should not be extended more than 8'2'' . (Longer extension will result in concurrent water inflow and outflow.) The diameter of the extension hose should be the same as the original hose.

Caution: Water drainage hose must not be immersed in water. The original and extension hoses should be tightly connected.

Power Supply

• Unit should be connected to a regular 120V 60Hz 15A grounded outlet. Make sure local city codes are followed.

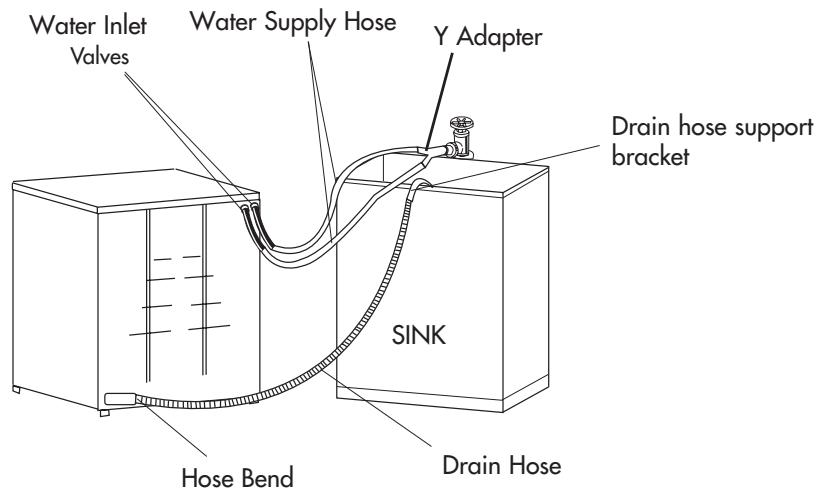

Y Adapter Connection

Note: "Y Adapter" shown in below figure is only for illustration. It is not provided in the box as an accessory. If you need to utilize this type of hookup, you can purchase a "Y Adapter" from your nearest hardware store.

Unit Dimensions

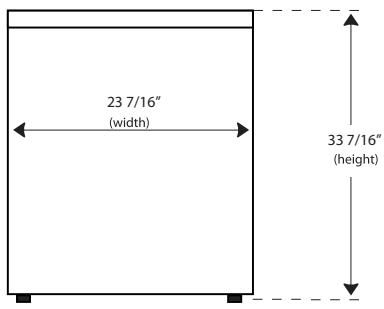

FRONT VIEW

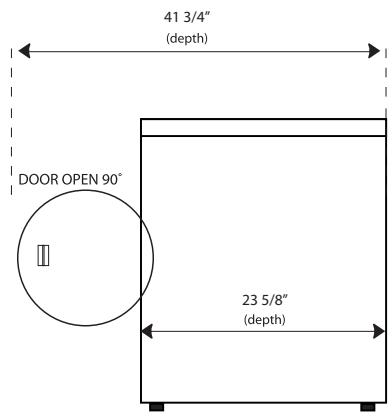

SIDE VIEW

OPERATIONAL INSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

1. Cycle Selector

To set a desired wash program, turning the knob will light the cycle selected on the control panel. Wash cycles are: Cotton, Synthetic, Wool, Silk, Quick & Sport. Once selected you could press the "Start/Pause" button to start operation.

2. Start/Pause Button

After a cycle, options, spin speed, temperature and dry cycle is selected, press this button to begin wash. During a wash cycle, press this button to pause operation. Press again to resume operation. If dry cycle is selected, the wash load will go into drying program after the wash is done.

3. Spin Speed Selection

By pressing this button, the required spinning speed can be selected. You could choose from Max; High; Medium; Low to No Spin.

The maximum speed will vary when a different program is selected.

4. Temperature Button

Press button to select wash/rinse temperature. Selection choice is hot/cold; warm/warm; warm/cold; cold/cold. The wash/rinse temperature will vary when a different program is selected.

5. Drying Button

To start the dry cycle immediately after the wash cycle, press this button. An indicator will light up showing its activation. When the unit goes in the dry mode the light will flash. To cancel the program press the Start/Pause button before the cycle is complete. Pressing Drying button again will cancel the dry program and turn off the light.

NOTE: Drying cycle is not available in all wash cycles.

6. Extra Rinse Button

Press this button to add an additional rinse cycle to your wash load. A light on the display screen will alert you that the option has been activated. Before the wash cycle goes in the softening mode an additional rinse cycle will be added.

7. Prewash

Press this button to activate the Pre-Wash cycle. The indicator light will light up. Once the wash cycle starts it will first go in the Pre-wash mode and then in the regular wash cycle. During this time the Pre-Wash display light will blink and water will inflow in the 1st compartment of the detergent dispenser. At the end of the cycle the display light will turn off.

8. Delay Start

To select, press the "Delay" function button. The wash cycle will begin at a later time of your choosing. The cycle start will be delayed by 1 hour each time you press the button, to a maximum of 24 hours. After the display shows 24:00, pressing the button one more time will make the display show 00:00. Now you can cancel the delay function without powering off the combo. When selected, the delay icon will light up and will only shut off when the cycle commences. The display shows delay time in hours. Once the selected delay time is reached the machine will START.

9. LCD Display

Shows wash cycle chosen, dry cycle chosen, remaining wash/dry or delay time, spin speed and temperature selection. Indicator light showing delay, prewash, extra rinse of drying will also be displayed. Door lock and child lock functions will be lit when activated.

10. Detergent Distributor

If prewash cycle is chosen, add detergent in the 1st compartment.

Regular washing detergent is to be filled in the 2nd compartment.

Fabric softner if used should be filled in compartment 3

11. Door Light

A lock light will illuminate when the door is locked.

12. Child Lock Indicators

When child lock is activated this indicator will light up. Once the combo is running, press "Delay" and "Start/Pause" at the same time for 3 seconds. This will activate the feature. The LCD display will show "Safe On". Now the selected cycles cannot accidentally be changed by anyone. To cancel press the "Delay" and the "Start/Pause" again for 3 seconds.

OPERATIONAL SELECTION

Power Supply	·120V/60Hz/15Ams.
Water Supply	·Turn on the tap and ensure the water flow. Caution: Before starting the washing machine turn on the water faucet to ensure that the water faucet and the water inlet hose are connected and do not leak.
Detergent Selection	·The washing result depends on the quality of the detergent except the function performances of the washing machine. There are many brands of detergent in the market. For the best washing result, we suggest you use the detergent that produced less suds for the auto drum washing machines. ·Read detergent manufacturers instructions for the correct detergent and amount to use. Attention: Put only enough detergent for one load of laundry into dispenser at a time.
Laundry Treatment	·Sort out clothes according to type and extent of dirt. There are three types of clothes: cotton, synthetic and woolen (silk) fabrics. ·Separate white clothes from colors. ·Remove all objects from pockets that may cause damage to the machine, such as keys and coins. ·Repair damaged clothing, loose buttons or damaged zippers before washing. ·Bed sheets and table cloths should be loosely loaded and not folded. ·This washing machine is for household use and designed to mechanically wash clothes.

Type	Cottons	Synthetic	Wool/Silk	Blending	Dry
Max Load	13.2 lbs	6.6 lbs	3.3 lbs	6.6 lbs	6.6 lbs

PROGRAM SELECTION

Program Name	Option	Suitable Condition	Load (Ibs) below	Program Time
cotton	wash	cotton clothes washing	13.22	2:37
	wash+dry	cotton clothes washing	6.6	4:37
synthetic	wash	synthetic clothes washing	6.6	1:16
	wash+dry	synthetic clothes washing	6.6	2:16
wool	wash	wool clothes washing	3.3	1:00
silk	wash	silk clothes washing	3.3	0:59
quick	wash	for not very dirty clothes	6.6	0:32
sport	wash	for sports clothes	6.6	1:42
rinse	/	/	/	0:26
spin	/	/	/	0:09
AUTO Dry	dry	cotton or synthetic	6.6	2:30
60 min Dry	dry	cotton or synthetic	6.6	1:00
Touch Up	dry	/		0:30
Power off	/

Loading

• Load each item loosely.
• Seperate the white and colored clothes. Separate heavy clothes from light clothes.
• Carefully check all pockets and cuffs for small items. They can easily slide into the tub and damage the tub.
• Pre-treat all stains and heavily soiled areas for best results.
• Do not overload your washer.
• Close the door properly after loading clothes.

Proper Use of Dispenser

The detergent/softener dispenser is located on the upper left corner of the washer. Open the dispenser by pulling it out. You will see that there are three compartments.

1. Prewashing Detergent
2. Detergent
3. Softening Agent

Proper Use of Fabric Softener:

• Pour liquid fabric softener into compartment as recommended by the manufacturer.
• Do not exceed the level in the compartment to avoid overflow.

Warning: • Never pour fabric softener directly onto clothes because it will stain your clothes or you may get spots on your clothes.
- Do not use powder form of softener into dispenser, or it will clog up the dispenser. This dispenser is only designed for liquid form.

Proper Use of Detergent:

When pre-wash cycle is selected do not use liquid detergent.

Low-Sudsing detergent is recommended for front load style washers. This type of detergent prevents damage to your washing machine, which may be caused by excess amount of suds entering the condensing compartment.

Note: You can use less or more detergent depending on the size of the load, water type in your area whether it is soft or hard and whether the clothes are heavily soiled or lightly soiled. Besides the performance of the washing machine, the quality of the detergent also effects the washing result. Do not use liquid detergent in compartments 1 and 2.

WASHING METHODS

Using Your Washer

Turning the "Cycle Selector" dial will allow you to select a wash cycle. The selected cycle will be illuminated on the control panel. The spin speed and the wash/rinse temperature are preset for each of the cycles. Now you could select the "Drying" program and press the "Start/Pause" button to start the wash.

If after selecting the cycle you want to change the spin speed and the wash/rinse temperature you could manually change the settings by pressing the "Speed" and "Temperature" buttons. You could also select other options such as "Prewash" and "Extra Rinse" at this time. An icon will be lit on the control panel showing your selections.

There are 3 drying selections. Auto dry, Time Dry (60 min) or Touch up can be selected before starting the wash. Touch up cycle is chosen to remove wrinkles that are set in clothes that have been in the closet for a long time. This is a 30 minute dry cycle.

After all your selections are chosen either press "Start/Pause" button to start the cycle or press "delay" button to start the wash at a later time. Each press of this feature will delay the start of the wash in 1 hour time increments.

NOTE: To allow clothes to tumble in the dry cycle, the drum should only be half full.

ADDITIONAL INFORMATION

WARNING: To reduce the risk of fire, do not dry items containing foam rubber or similarly textured rubber-like materials.

Tips

• Adding the softener agent can help the laundry to get rid of the static electricity and make the clothes feel soft and easy to iron.

Energy and Water Saving During Wash Process

1. Collect clothes for one full wash load.
2. Do not overload the washing machine.
3. Prewash heavily soiled clothes.
4. Choose Quick cycle for lightly soiled clothes.
5. Choose a proper spin speed.
6. Do not use more detergent than required.
7. Softening agent makes clothes feel softer and easier to iron.

Other Functions

Power-off memory function:

This machine has a power-off memory function. In case of abrupt power failure or if the power must be cut off during a program cycle, the present settings will be saved, and operation will resume when the power is switched on again.

Normal Operating Sounds

The following sounds are normally heard during the operation of the washer:

• Tumbling sounds: This is normal as the heavy wet clothes in the washer are continuously being tossed around.
  Air rushing noise: This happens when the washer tub spins at a very high RPM.
• Wash and rinse cycles going on and off will also make clicking sounds.

CARE AND CLEANING GUIDE

Warning: Always unplug your appliance to avoid electric shock before cleaning. Ignoring this warning may result in death or injury. Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage.

Cleaning and Maintenance

Use a damp or sudsy cloth for cleaning control panel.

• To avoid any kind of damage to cabinet finish, wipe appliance cabinet as needed. If you spill liquid/powdered softener, bleach or detergent on the cabinet, wipe cabinet immediately because it can damage the finish.
• Do not use any abrasive, harsh chemicals, ammonia, chlorine bleach, concentrated detergent, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your appliance.
• Remove pins or other sharp objects from clothes to prevent scratching interior parts.
• The Detergent Dispenser Compartment has a removable insert. Over time, this compartment may accumulate dried detergent, dirt and debris. You must remove the insert, then rinse in a sink or remove debris with a soft brush.

Cleaning the Filter (once every month)

This filter is used to trap buttons, coins, or other loose objects that may be forgotten in pockets of clothing.

Push out the bottom cover with one hand as shown in Fig. 1. Remove the filter by turning counterclockwise as shown in Fig. 2. Flush clean with running water. Replace the filter by turning clockwise and remount the cover shown in Fig. 3.

Note: It is recommend to use a shallow pan or place a towel below the filter when cleaning as there will be water being dispensed.

Caution: Attention must be paid to ensure that the filter is replaced correctly to avoid possible leakage.

Fig1

Fig2

Fig 3

Moving & Vacationing

• Turn off water supply faucets and disconnect hoses. Drain water from all hoses. This will prevent from damaging due to water leakage if the hoses accidentally get ruptured or they become loose.
• Unplug the electrical cord from the wall outlet.
• Dry inner wash tub. If moving washer, disconnect drain hose.
• Turn the leveling legs clockwise all the way in.
• To prevent mold or mildew, leave door open so moisture inside machine can evaporate.
• Reinstall the transportation bolts and the rubber hoses in the back to prevent internal parts from shaking when appliance is moved to another location.
• If the machine is to be moved to a distant location, replace the transportation bolts and the rubber hoses which were removed during installation as shown below.

Remove the back cover.

Replace the rubber hoses.

Insert the bolts.

Tighten the bolt with a wrench.

Replace the back cover.

Storage of Your Appliance in Cold Environment

• This appliance must be stored at room temperature.
• If you just got delivery of this appliance when outside temperature is below freezing, do not operate until this appliance has warmed to room temperature.
• Do not install or operate this appliance in the area where room temperature is below freezing.

WARNING CODES

Warning code	Problem	Reason	Action to take	Solution
Err1	Door Lock	Can not lock the door after 20s	Warning and stop running	Need Service
Err2	Pump	The water can not drain the set water level within 4 minutes	Warning and stop running	Clear the pump
				Need Service
Err5	Water supply	The water level can not reach the setting water level within 8 minutes	Warning and stop running	Check if the water pressure is low or stops supplying
				Need Service
Err6	The temperature of air vent	Within 30 minutes of dry phase there is 5 minutes in which the temperature is not increasing	Warning and stop running	Need Service
Err7	Motor	The feedback signal does not change in 8 minutes during the motor runs	Warning and stop running	Need Service
Err8	Water supply	The water is above the warning level	Warning and stop running	Need Service
Err9	The dry temperature sensor	Dryer sensor circuit problem	Warning and stop running	Need Service
Err10	Water level sensor	Water level sensor circuit problem	Warning and stop running	Need Service
Err12	Water level is abnormal in the drying process	The water is above the setting water level during the drying process	Warning and stop running	Check if the water outlet of the drainage and adjust it and restart the machine
Err13	Unlock the door	The door is open	Warning and stop running	Close the door
Err14	Spin lopsidedly	Unbalance	Spin low speed and cancel drying	Disperse the clothing evenly in the tube

TROUBLESHOOTING

Washer does not operate:

• Check if unit is plugged in. The plug may have come loose.
• Check if the electrical wall outlet is of proper voltage.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the unit is in "Off" or "Pause" mode.
• Check if the washer is overloaded: load may need to be re-balanced and clothes may need to be redistributed.
• Check if the door is open. You may have to close the door properly.

Problems with water:

• Not enough water coming out: Water faucet may need to be turned on fully. Water hoses may be tangled up or wrinkled up. Straighten up hoses.
• Water temperature is incorrect: Check your water heater temperature. Hot water needs to be at a temperature at least 120^ - 140^ ( 49^ - 60^) . Check to make sure the inlet hoses are properly connected. (e.g. hot to hot & cold to cold)
• Water leaks: This is due to not properly installing drain hose or fill hoses. Your home drain may be clogged or having constant water pressure. You may need to tighten hoses; check the plumbing or call a plumber.
• Water will not drain: This is due to not installing your drain hose properly. You may need to connect the drain hose properly. Check the position of the drain hose. In order to drain properly, make sure that top of drain outlet is less than 2^6^ above the floor.

Washer is making noise:

• Washer may need to be reinstalled. (Check washer installation section.)
• Washer load may need to be re-balanced, as the load may be uneven.
• Coins, loose change, buttons or other heavy objects could make noise (read Operating Guide - Normal Operating Sounds).
• Squealing Sound: Due to overloaded wash tub.
• Vibration Noise: Due to not leveling washer properly on the floor and uneven distribution of clothes in the tub.

Problems with clothes:

• Clothes are too wrinkled: This is due to improper sorting, overloading and washing in too hot water repeatedly. Avoid overloading and resort your load. Do not mix heavy clothes such as work clothes with light clothes such as blouses, light shirts and delicate items. You may need to wash in warm or cold water.

• Soap residue: Detergent may not be dissolving in water. Check water temperature. Use less detergent.

• Spots or stains on your clothes: This is due to incorrect use of fabric softener. You may need to read proper instructions on the detergent container and follow proper directions for using the softener.

• Clothes are grayed or yellowed: This is due to not pouring enough detergent for large loads. You may have to add more detergent to the load.
• Clothes are ripped & have holes/excessive wear & tear: This is due to sharp objects such as pins and belt buckles left in pockets. You will need to remove small loose sharp objects. Fasten belts, zippers, metal snaps etc.

Dryer does not operate:

• Check if unit is unplugged. The plug may have come loose.
• Check if the circuit breaker needs to be reset or if the fuse needs to be replaced.
• Check if the dry cycle is chosen.
• Check if the door is open.

Dryer is working but not drying the clothes:

• Unit may be over loaded. The dryer drum should only be half full during the dry cycle. This is to allow clothes to tumble.
• Check if button trap is clean and dust free.
• Dryer load needs to be resorted. Heavy clothes may need to be separated from regular clothes.
• Bulky clothes may require repositioning.
• If clothes dry unevenly, clothes in the dryer may need to be resorted.

Dryer making noise when drying:

• Coins, loose change, buttons and other heavy objects could make noise.
• Unit may need to be leveled evenly. Read Operating Guide-Normal Operating Sounds.

Static:

• Caused by over drying. Adjust for shorter drying time.
• Mix with synthetic fabric. Sort and separate different fabrics.
• Use a fabric softener.

TECHNICAL SPECIFICATION

HWD1500
Power Supply	120VAC 60Hz
Max working current(A)	12
Water pressure(PSI)	0.05~1MPa
Washing power(W)	350
Spinning power(W)	500
Spinning speed(RPM)	1000
Size (High,Depth,Width)	33-7/16" x 23-5/8" x 23-7/16"
Weight (lbs)	Net: 194 Gross: 209
Wash Capacity (IEC)	1.8 cu. ft.

LIMITED WARRANTY

In Home Service

Full ONE Year Warranty

For 12 months from the date of original retail purchase, Haier will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship.

Limited Warranty

After one year from the original retail purchase date, Haier will provide a part at no cost, as indicated below, to replace said part as a result of a defect in materials or workmanship. Haier is solely responsible for the cost of the part. All other costs such as labor, trip charge, etc are the responsibility of the owner.

Second through Fifth Year

Haier will provide the cabinet assembly should the cabinet rust through.

Second through Tenth Year

Haier will provide the inner stainless steel wash tub.

NOTE: This warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service representative before warranty repairs are rendered.

Exceptions: Commercial or Rental Use Warranty

90 days labor from date of original purchase
90 days parts from date of original purchase
No other warranty applies

For Warranty Service

Contact your nearest authorized service center. All service must be performed by a Haier authorized service center. For the name and telephone number of the nearest authorized service center please call 1-877-337-3639.

Before calling please have available the following information:

Model number and serial number of your appliance. The name and address of the dealer you purchased the unit from and the date of purchase. A clear description of the problem. A proof of purchase (sales receipt).

This warranty covers appliances within the continental United States, Puerto Rico and Canada. What is

not covered by this warranty:

Replacement or repair of household fuses, circuit breakers, wiring or plumbing.

A product whose original serial number has been removed or altered.

Any service charges not specifically identified as normal such as normal service area or hours.

Damage to clothing.

Damage incurred in shipping.

Damage caused by improper installation or maintenance.

Damage from misuse, abuse accident, fire, flood, or acts of nature.

Damage from service other than an authorized Haier dealer or service center.

Damage from incorrect electrical current, voltage or supply.

Damage resulting from any product modification, alteration or adjustment not authorized by Haier.

Adjustment of consumer operated controls as identified in the owners manual.

Hoses, knobs, lint trays and all attachments, accessories and disposable parts.

Labor, service transportation, and shipping charges for the removal and replacement of defective parts beyond the initial 12-month period.

Damage from other than normal household use.

Any transportation and shipping charges.

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTYES, EXPIRESSED OR, INCLUDING THE WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies.

This warranty does not cover incidental or consequential damages, so the above limitations may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state.

Haier America

New York, NY 10018

INSTRUCTIONS DE MESURE DE SECURITE IMPORTANTES

SAFETY INSTRUCTIONS 1

RACCORDEMENTS ELECTRIQUES 4

Raccordement adaptateur Y

If you have a problem with this product, please contact the "Haier Customer

Satisfaction Center" at 1-877-337-3639.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT
