Product Type	Desktop Computer
Brand	Acer
Model	ASPIRE MC-605-024
Processor	Compatible with standard processors (model dependent)
RAM	Expandable (model dependent)
Hard Drive	Capacity varies by model
Optical Drive	CD/DVD drive (model dependent)
USB Ports	USB 2.0 and/or USB 3.0 (model dependent)
PS/2 Ports	PS/2 keyboard and mouse
Serial Port	1 serial port
Parallel Port	1 parallel port
Ethernet Port	RJ-45
Audio Ports	Microphone input, headphone/speaker output, stereo audio input
Video Ports	VGA, DVI, HDMI (model dependent)
Power Supply	AC power, grounded plug, selectable voltage
Operating Temperature	5°C to 35°C
Operating Humidity	20% to 80% (non-condensing)
Certifications	FCC, CE, ENERGY STAR, NMB-003 (Canada)
Power Consumption	Sleep mode saves over 80% energy
Maintenance	Unplug before cleaning, use a soft damp cloth
Safety	Do not open the device, have repairs done by a qualified technician
Disposal	Recycle according to WEEE regulations

Frequently Asked Questions - ASPIRE MC-605-024 ACER

What to do if the computer does not start?

First check the power indicator. If it is off, make sure the power cord is connected and the voltage selector is correct. If it is on, remove any non-system diskette and press Ctrl+Alt+Del to restart.

Nothing appears on the screen, how to respond?

The monitor may be in sleep mode. Press a key on the keyboard or move the mouse. If that does not work, restart the computer. If the problem persists, contact technical support.

The printer does not work, what to check?

Make sure the printer is powered on and properly connected. Check that the cable is securely connected to the computer's parallel port and the printer. Refer to the printer documentation for further instructions.

How to resolve a no sound problem?

Check the Volume icon in the taskbar: if it is muted, click to disable mute. If headphones or external speakers are connected, the internal speakers are automatically disabled.

What to do if the system does not read a CD or DVD?

Check that the disc is clean, not scratched, and inserted correctly. Try with another working disc. If the problem persists, the drive may be defective; contact a technician.

Unable to write data to the hard drive or CD-R/RW?

Check that the media is not write-protected. Make sure you are using the correct disc type (e.g., CD-R for writing). If the hard drive is full, free up space.

How to clean the computer and its peripherals?

Turn off the computer and unplug the power cord. Use a soft cloth slightly dampened with water to wipe the exterior. Do not use liquids or sprays. For the optical mouse, refer to its documentation.

Can I upgrade the Acer Aspire MC-605-024 system?

Yes, you can add memory, replace the hard drive, change the optical drive, or install expansion cards (PCI). Refer to the manual for procedures and check compatibility with your Acer dealer.

What to do if a problem persists after basic checks?

If the troubleshooting tips in the manual do not resolve the problem, contact a qualified technician or Acer technical support via the website www.acer.com.

Where to find technical support for this computer?

You can contact your local dealer or distributor. Visit www.acer.com to locate authorized service centers in your area.

USER MANUAL ASPIRE MC-605-024 ACER

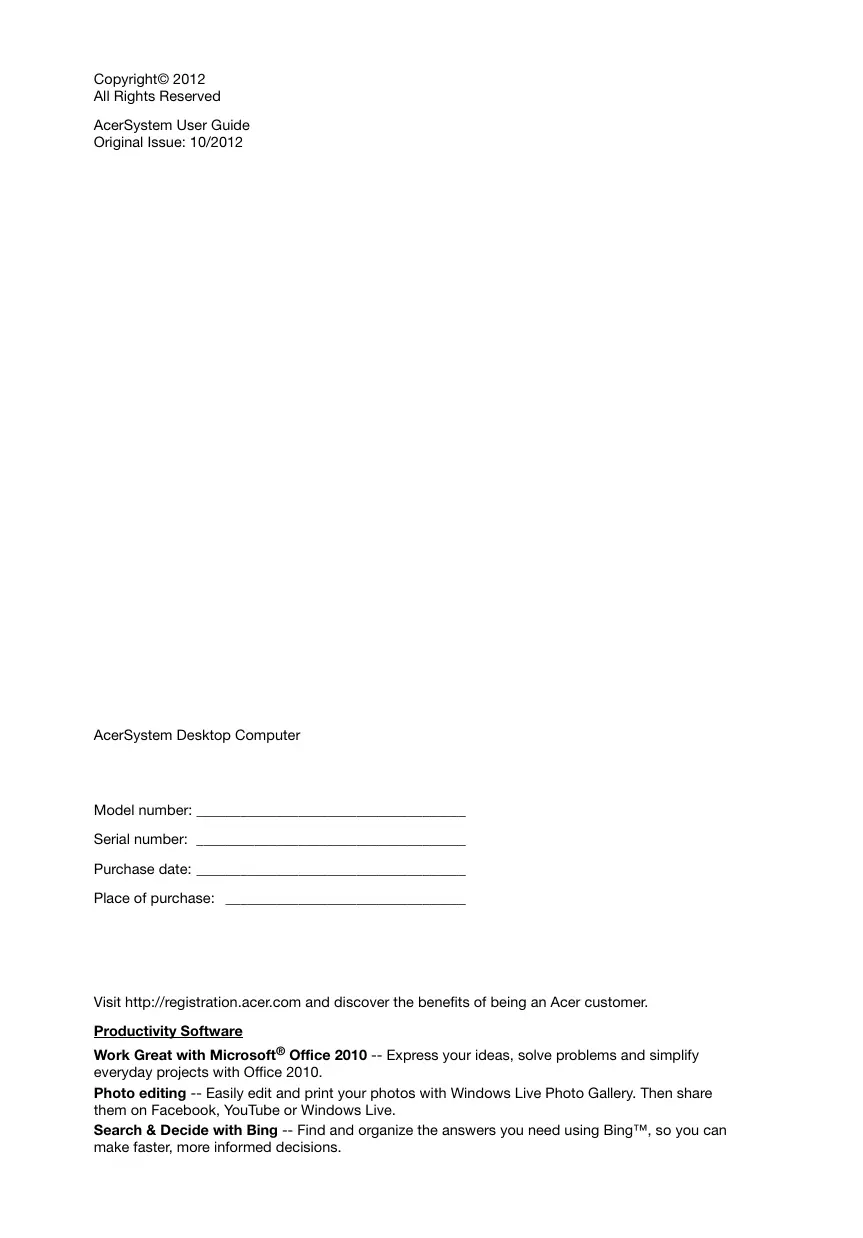

AcerSystem Desktop Computer

Model number:

Serial number:

Purchase date:

Place of purchase:

Visit http://registration.acer.com and discover the benefits of being an Acer customer.

Productivity Software

Work Great with Microsoft® Office 2010 -- Express your ideas, solve problems and simplify everyday projects with Office 2010.

Photo editing -- Easily edit and print your photos with Windows Live Photo Gallery. Then share them on Facebook, YouTube or Windows Live.

Search & Decide with Bing -- Find and organize the answers you need using Bing™, so you can make faster, more informed decisions.

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

CAUTION: Plug as Disconnecting Device

Observe the following guidelines when connecting and disconnecting power to the power supply unit:

Install the power supply unit before connecting the power cord to the AC power outlet.

Unplug the power cord before removing the power supply unit from the computer.

If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

CAUTION: Accessibility

Ensure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warnings

• Do not use this product near water.
• Do not place this product on an unstable cart, stand, or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.

• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, HDD, Optical drive, and even exposure risk from lithium battery pack.

Safe listening

Follow these instructions, suggested by hearing experts, to protect your hearing.

Gradually increase the volume until you can hear it clearly and comfortably and without distortion. After setting the volume level, do not increase it after your ears adjust. - Limit the amount of time listening to music at high volume. - Avoid turning up the volume to block out noisy surroundings. - Turn the volume down if you can't hear people speaking near you.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's power supply is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power supply plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

• Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

The power cord or plug is damaged, cut or frayed. Liquid was spilled into the product. The product was exposed to rain or water. The product has been dropped or the case has been damaged. - The product exhibits a distinct change in performance, indicating a need for service. - The product does not operate normally after following the operating instructions.

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Disposal instructions

Do not throw this electronic device into the trash when discarding.

To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit

http://www.acer-group.com/public/Sustainability/sustainability01.htm

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display: Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org.

ENERGY STAR

ENERGY STAR

Acer's ENERGY STAR qualified products save your money by reducing energy cost and protecting the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark.

What is ENERGY STAR?

Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Acer is committed to offer products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through higher energy efficiency, the more we reduce greenhouse gases and the risks of climate change. More information refers to http://www.energystar.gov.

Note: The statement above is applicable only to Acer system with an ENERGY STAR sticker.

Acer ENERGY STAR qualified products:

• Produce less heat and reduce cooling loads, and warmer climates.
• The display is configured to go into sleep mode after less than 10 minutes of user inactivity. The computer is configured to go into sleep mode after less than 30 minutes of user inactivity.
• Wake the computer from sleep mode by pushing keyboard or moving mouse. Computers will save more than 80% energy at "sleep" mode.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

Numbness, or a burning or tingling sensation. - Aching, soreness or tenderness. - Pain, swelling or throbbing. - Stiffness or tightness. Coldness or weakness.

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

• Refrain from staying too long in one fixed posture.
• Avoid slouching forward and/or leaning backward.
• Stand up and walk around regularly to remove the strain on your leg muscles. Take short rests to relax your neck and shoulders.
• Avoid tensing your muscles or shrugging your shoulders. Install the external display, keyboard and mouse properly and within comfortable reach.
• If you view your monitor more than your documents, place the display at the center of your desk to minimize neck strain.

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

Rest your eyes frequently. - Give your eyes regular breaks by looking away from the monitor and focusing on a distant point. - Blink frequently to keep your eyes from drying out.

Display

• Keep your display clean.
• Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
• Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.
• Eliminate glare and reflections by:
• Placing your display in such a way that the side faces the window or any light source.
• Minimizing room light by using drapes, shades or blinds. Using a task light. Changing the display's viewing angle. Using a glare-reduction filter.
• Using a display visor, such as a piece of cardboard extended from the display's top front edge.
• Avoid adjusting your display to an awkward viewing angle.
• Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

Take short breaks regularly and often. Perform some stretching exercises. - Breathe fresh air as often as possible. Exercise regularly and maintain a healthy body.

Warning! We do not recommend using the computer on a couch or bed. If this is unavoidable, work for only short periods, take breaks regularly, and do some stretching exercises.

Information for your safety and comfort iii

Safety instructions iii

Additional safety information v

Disposal instructions vi

Tips and information for comfortable use vii

System tour 1

Environment 2

Setting up your computer 3

Necessary to know before setup 3

Selecting a location 3

Opening the package 3

Connecting peripherals 4

Starting your computer 4

Shutting down your computer 4

System upgrade (selected models only) 4

Opening the computer 5

Setting up new components 5

Frequently asked questions 6

Taking care of your computer 8

Important tips 8

Cleaning and servicing 8

To clean your computer and keyboard 8

To clean your pointing device 9

To clean your monitor 9

When to contact a service technician 9

Asking for technical assistance 9

Regulations and safety notices 10

FCC notice 10

Modem notices 12

Laser compliance statement 14

Digital audio output statement 14

Radio device regulatory notice 14

Canada - Low-power license-exempt radio

communication devices (RSS-210) 14

Federal Communications Commission 17

System tour

Your computer consists of the following:

Icon	Description	Icon	Description
	Power button		Floppy drive Selected models only)
	Microphone jack (selected models only)		Optical drive (selected models only)
	Speaker or headphone jack (selected models only)		Media card reader (selected models only)
	USB port (selected models only)		IEEE 1394/FireWire jack (selected models only)
	Copy button (selected models only)		Backup button (selected models only)
	Media navigation interface (selected models only)		Removable hard drivecarriers (selected models only)
	RCA jack (selected models only)	SPDIF	S/PDIF port (selected models only)
	PS/2 keyboard connector (selected models only)		PS/2 mouse connector (selected models only)
	VGA port (selected models only)		Serial port (selected models only)
	Printer connector (selected models only)		USB port (selected models only)
	Microphone-in jack (selected models only)		RJ-45 Ethernet connector (selected models only)
	Line-in jack (selected models only)		Line-out / Speaker-out jack (selected models only)
HDMI	HDMI port (selected models only)		ESATA port (selected models only)
	Recovery button Selected models only)		Network / hard disk drive indicators Selected models only)
USB 3.0	USB 3.0 ports (Selected models only)	K	Kensington lock slot (Selected models only)
DP	Display port (selected models only) The Display port adapter is available on "DP1" only.		DC-in jack (selected models only)
DVI	DVI port (selected models only)

Note: The specifications listed above are for reference only. The exact configuration of your PC depends on the model purchased.

The table below indicates the functions of the audio jacks on the rear panel (selected models only):

Color/use	Headphone	Stereo	Quadraphonic	5.1 CH
Blue			Rear	Rear
Green		Headphone	Front	Front
Pink	Mic-in	Mic-in	Mic-in	Center/woofer

Environment

Temperature:

• Operating: 5°C to 35°C. Non-operating: -20°C to 65°C.
• Humidity (non-condensing):
• Operating: 20% to 80%. Non-operating: 20% to 80%.

Setting up your computer

The AcerSystem is a versatile and powerful system, supporting a mainstream performance CPU. The computer uses a state-of-the-art bus architecture, which improves system efficiency and helps the system support varied multimedia and software applications.

Your AcerSystem has standard I/O (input/output) interfaces such as a parallel port, PS/2 keyboard and mouse ports, USB ports, and stereo microphone, line-in and line-out jacks (configuration may vary by models). The system can accommodate extra peripheral equipment through these I/O ports.

Your system can also support an optional high-speed fax/data modem or an additional LAN (local area network) card.

Necessary to know before setup

Selecting a location

Selecting the optimum location for your computer:

• Do not place the system too close to other electrical equipment.
• Do not place the system in high-traffic areas or where the power cord or other cords may be stepped on.
• Avoid placing the system in any location that is excessively dusty or damp.

CAUTION: Please use the foot stand when placing your PC in the upright position.

Opening the package

Open the package carefully and keep all packing materials for later use.

Ensure that all items are present and in good condition. If any of the following items are missing or appear damaged, contact your dealer immediately:

AcerSystem - Mouse (PS/2 or USB) Keyboard (PS/2 or USB)

• Wireless keyboard with pointing function Remote control

Note: Mouse, keyboard, wireless keyboard or remote control configuration may vary by selected models

• User's Guide and Starter poster Other user documentation and third-party software.

Connecting peripherals

After everything is connected, plug the power cord into the system and insert the other end into a power outlet.

Note: Don't connect the system power cord before connecting all peripherals to the system.

Starting your computer

After connecting all the peripheral equipment, start your computer according to the steps below:

1 Turn on all peripheral equipment, such as the monitor, printer, fax, speakers, etc. 2 Turn on the system. Once the startup process is complete, you can begin to use your computer.

Shutting down your computer

In the event of a system crash, press and hold the power button on the front of the system for four seconds. After the system has shut down, turn off all peripheral devices.

System upgrade (selected models only)

You can expand your AcerSystem system quickly and easily by adding components. You can also upgrade the components of your AcerSystem system.

Opening the computer

Before removing any panels or covers, please make sure to shut off the computer and unplug the power cord from the outlet.

• Remove the screws on the chassis.
• Slide the panel off.

Setting up new components

You can only use components compatible with AcerSystem computers. Before you choose new components, please ask your authorized Acer dealer whether the part will operate within your AcerSystem system.

In order to ensure proper setup and installation, please refer to the instructions provided with your new components.

Probable upgrades are:

• Upgrade to high-capacity HDD
• Expand high-level memory
• Upgrade from a CD-ROM drive to CD-RW, DVD-ROM, DVD/CD-RW combo or DVD writer (selected models only). Install additional interface cards in empty PCI slots, e.g., PCI fax/modem card (selected models only).

Frequently asked questions

The following questions are possible situations that may arise during the use of your computer and each is followed by easy answers and solutions to the situation.

Q: I pressed the power switch but the system did not boot up.

A: Check the LED located above the power switch.

If the LED is not lit, no power is being applied to the system. Do any of the following:

• Check if the voltage selector switch located on the rear panel of the computer is set to the correct voltage.
• Check if you plugged the power cable properly into an electrical outlet.
• If you are using a power strip or AVR, make sure that it is plugged in and turned on.

If the LED is lit, check the following:

• Is a non-bootable (non-system) diskette in the floppy drive? If yes, remove or replace it with a system diskette and press Ctrl + Alt + Del to restart your computer.
• The operating system files may be damaged or missing. Insert the start-up disk you created during Windows setup into the floppy drive and press Ctrl + Alt + Del to restart your computer. This will automatically diagnose your system and make necessary fixes. However, if the diagnostic utility still reports a problem, then you may have to perform the recovery process to restore your system to its original default factory settings.

Note: For more information about recovering your system, refer to the RCD instruction sheet.

Q: Nothing appears on the screen.

A: Your computer's power management function automatically blanks the screen to save power. Just press any key to turn the display back on.

If pressing a key does not work, you can restart your computer. If restarting your computer does not work, contact your dealer or the technical support center for assistance.

Q: The printer does not work.

A: Do the following:

• Make sure that the printer is connected to a power outlet and that it is turned on.
• Make sure that the printer cable is connected securely to the system's parallel port and the corresponding port on the printer.
• For additional information concerning the printer, refer to the printer's documentation.

Q: No sound comes out from the computer.

A: Check the following:

• The volume may be muted. Look for the Volume icon on the taskbar. If it is crossed-out, click on the icon and deselect the Mute option. You can also press the volume control/mute knob on your USB keyboard to toggle from mute to sound on.
• If headphones, earphones, or external speakers are connected to the line-out jack of your computer, the internal or built-in speakers are automatically turned off.

Q: System cannot read diskette, hard disk, CD or DVD information.

A: Check the following:

Make sure that you are using the correct type of disk. Make sure the CD or DVD is inserted into the drive correctly. - Check if the CD or DVD is clean and not scratched. - Check your drive by using a good (i.e., undamaged) disk. If your drive cannot read the information on the good disc there may be a problem with the drive. Contact your dealer or technical support center for assistance.

Q: System cannot write data on the hard disk or writeable/re-writeable disk.

A: Check the following:

Make sure the diskette or hard disk is not write-protected. Make sure that you are using the correct type of disk or diskette.

Taking care of your computer

Please read the important instructions listed in this section. Following these instructions will help you maximize the durability of your computer.

Important tips

• Do not expose the computer to direct sunlight. Do not place it near sources of heat, such as a radiator.
• Do not expose the computer to temperatures below 0°C (32°F), or above 35°C (95°F).
• Do not subject the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill liquid on the computer.
• Do not subject the computer to heavy shock or vibration.
• Do not expose the computer to dust and dirt.
• Never place the system on uneven surfaces.
• Do not step on the power cord or place heavy objects on top of it. Carefully route the power cord and any cables away from personal traffic.
• When unplugging the power cord, do not pull on the cord itself but pull on the plug.
• The total ampere rating of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Cleaning and servicing

To clean your computer and keyboard

1. Turn off the computer and unplug the power cord. 2. Use a soft cloth moistened with water and gently wipe the exterior of the computer and the keyboard. Do not use liquid or aerosol cleaners.

To clean your pointing device

To clean an optical mouse

For users of an optical mouse, refer to the documentation that came with your mouse for maintenance instructions.

To clean your monitor

Make sure that you keep your screen clean. For cleaning instructions, refer to the documentation that came with your monitor.

When to contact a service technician

If you dropped and damaged the computer. If liquid has been spilled into the computer. If the computer is not operating normally. If a computer problem persists even after you have checked and applied the troubleshooting tips discussed in the "Frequently asked questions" section on page 6. If your problem is not listed in the "Frequently asked questions" section on page 6. If you want to replace or upgrade any of your computer's internal components.

Asking for technical assistance

For technical assistance, contact your local dealer or distributor. You may also access the Web site (http://www.acer.com) for information on how and where to contact the service centers available in your area.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. - Increase the separation between the device and receiver. - Connect the device into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. In compliance with FCC regulations, use shielded cables to connect to other computing devices. A dual-link cable is recommended for DVI output.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity for EU countries

Hereby, Acer, declares that this PC series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Compliant with Russian / Ukraine regulatory certification

ME61

UA.TR.002

Modem notices

Notice for USA

This equipment complies with Part 68 of the FCC rules. Located on the modem is a label that contains, among other information, the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. Upon request, you must provide this information to your telephone company.

If your telephone equipment causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But, if advance notice is not practical, you will be notified as soon as possible. You will also be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If this equipment should fail to operate properly, disconnect the equipment from the phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue use and contact your dealer or vendor.

Caution: To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord.

TBR 21

This equipment has been approved [Council Decision 98/482/EC - "TBR 21"] for single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Notice for Australia

For safety reasons, only connect headsets with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified.

Notice for New Zealand

1 The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has accepted that the item complies with minimum conditions for connection to its network. It indicates no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it provides no assurance that any item will work correctly in all respects with another item of Telepermitted equipment of a different make or model, nor does it imply that any product is compatible with all of Telecom's network services. 2 This equipment is not capable, under all operating conditions, of correct operation at the higher speeds for which it is designed. Telecom will accept no responsibility should difficulties arise in such circumstances. 3 Some parameters required for compliance with Telecom's Telepermit requirements are dependent on the equipment (PC) associated with this device. The associated equipment shall be set to operate within the following limits for compliance with Telecom's Specifications:

a There shall be no more than 10 call attempts to the same number within any 30 minute period for any single manual call initiation, and b The equipment shall go on-hook for a period of not less than 30 seconds between the end of one attempt and the beginning of the next call attempt.

4 Some parameters required for compliance with Telecom's Telepermit requirements are dependent on the equipment (PC) associated with this device. In order to operate within the limits for compliance with Telecom's specifications, the associated equipment shall be set to ensure that automatic calls to different numbers are spaced such that there is not less than 5 seconds between the end of one call attempt and the beginning of another. 5 This equipment shall not be set up to make automatic calls to Telecom's 111 Emergency Service. 6 This device is equipped with pulse dialing while the Telecom standard is DTMF tone dialing. There is no guarantee that Telecom lines will always continue to support pulse dialing. 7 Use of pulse dialing, when this equipment is connected to the same line as other equipment, may give rise to bell tinkle or noise and may also cause a false answer condition. Should such problems occur, the user should NOT contact the Telecom Fault Service. 8 This equipment may not provide for the effective hand-over of a call to another device connected to the same line. 9 Under power failure conditions this appliance may not operate. Please ensure that a separate telephone, not dependent on local power, is available for emergency use.

Laser compliance statement

The CD or DVD drive used with this computer is a laser product.

The CD or DVD drive's classification label (shown below) is located on the drive.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE

TO BEAM.

Digital audio output statement

The optical connector contains no laser or light emitting diode (LED) more than Class I.

Radio device regulatory notice

Note: The following regulatory information applies only to models with wireless LAN and/or Bluetooth.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints of the country of use. For further information, please contact the local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implement.htm for the latest country list.

Canada — Low-power license-exempt radio communication devices (RSS-210)

a) Common information

Operation is subject to the following two conditions:

1. 1. This device may not cause interference, and
2. 2. This device must accept any interference, including interference that may cause undesired operation of the device.

b) Operation in the 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors; outdoor installation is subject to licensing.

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Remark: All images are for reference purposes only.

Actual configuration may vary.

AcerSystem

Federal Communications Commission 15

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

EN55022, AS/NZS CISPR22, Class B - EN55024 - EN55013 (Applicable to product built with TV tuner module) - EN55020 (Applicable to product built with TV tuner module) - EN61000-3-2 Class D - EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

This Class B digital apparatus complies with Canadian ICES-003.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product: Personal Computer

Trade Name: Acer

Model Number: AcerSystem

SKU Number: XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 16

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D . EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1 - EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 16

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

EN301 489-1 - EN301 489-3 (Applicable to non-Bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 16

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-- (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1 - EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

• Remove the panel by sliding it to the right.

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

. EN55022, AS/NZS CISPR22, Class B - EN55024 - EN55013 (Applicable to product built with TV tuner module) - EN55020 (Applicable to product built with TV tuner module) - EN61000-3-2 Class D - EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Opening the computer 6

Setting up new components 6

Frequently asked questions 7

Federal Communications Commission 16

LASER PRODUCT CLASS 1

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1 - EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

KLASSE 1 LASERPRODUKT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Digital Audio Statement

The optical drive contains no laser or lamp (LED) beyond Class I.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

System Overview

The computer's front panel has the following components:

Installation of computer

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product: Personal Computer

Trade Name: Acer

Model Number: AcerSystem

SKU Number: XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 15

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

User's Guide

AS003

Information for Your Safety and Comfort

Do not throw this electronic device into the trash when discarding it. To minimize pollution and ensure the greatest protection of the global environment, please recycle it. For more information on the regulations for the disposal of waste electrical and electronic equipment (Waste from Electrical and Electronics Equipment, WEEE), please visit http://www.acer-group.com/public/Sustainability/sustainability01.htm and http://www.acer-group.com/public/Sustainability/sustainability04.htm

Mercury-containing warning

Tips for comfortable use

Users who spend long hours at a computer may experience occasional eyestrain and headaches. Users also risk physical injury if they sit at a computer for many hours. Prolonged work, poor posture, improper organization of the work area, stress, unsuitable working conditions, personal health conditions, and other factors significantly increase the risk of physical injury.

Improper work at a computer may lead to carpal tunnel syndrome, tendonitis, tenosynovitis, or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck, or back:

• Numbness, burning, or tingling.
• Aching, soreness, or weakness.
• Pain, swelling, or throbbing. Stiffness or tightness. Coldness or weakness.

If you have these symptoms, or other frequent or persistent discomfort or pain while using a computer, consult a doctor immediately and inform your company's health and safety department.

The following section provides tips for making your computer work more comfortable.

Set the monitor, keyboard and mouse at a comfortable distance and height. Use the following tips:

Do not sit in one position for a long time. Do not lean low over the desk and do not lean far back

in the chair.

• Periodically stand up and walk around to relieve tension in the leg muscles.
• Take short breaks to relax the neck and shoulders. Do not tense your muscles or raise your shoulders high. Position the display, keyboard and mouse at the workplace so that they are easy to reach. If you look at the monitor more often than at documents, place the display in the center of the desk so that your head turns as little as possible.

Eye care

If you look at the monitor for a long time, wear incorrectly fitted glasses or contact lenses, use a desk with a glossy surface, poorly adjust the screen sharpness, use a small font or low contrast display, your eyes will get tired quickly. The following sections provide tips on how to reduce excessive eye strain.

Eyes

• Give your eyes frequent rest.
• Periodically look away from the monitor and look at a distant object.
• Blink often to keep your eyes from drying out.

Display

• Keep the display in a vertical position. Your head should be above the top edge of the display so that when viewing images and reading the display, your eyes look slightly downward. Adjust the brightness and/or contrast of the display so that the text is easy to read and the graphics are displayed clearly.
• Change the flicker and reflection:
• Install the display so that its side edge is turned toward the light source window.
• Reduce the light in the room, using curtains, blinds, or dimmers. Turn on lighting at the workplace.
• Adjust the viewing angle of the display.
• Use an anti-glare filter.
• Install a sun visor on the top edge of the display, for example, a cardboard strip.

Do not look at the display from an uncomfortable position.

Do not look for a long time at bright light sources, such as open windows.

Developing proper work habits

Develop the following habits for working at the computer, which will allow you to get less tired and work more productively:

- Take short frequent breaks during work. - Do some stretching exercises. Whenever possible, go out into the fresh air. - Regularly do physical exercise to strengthen your body.

Warning! Do not use the computer while lying down or in bed. If this cannot be avoided, then work only for short periods, often taking breaks and doing stretching exercises.

Information for your safety and work comfort iii

Safety rules iii

Safety instructions for comfortable work

Getting to know the system 1

Intended use 3

Computer setup 3

What you need to know before installation 3

Choosing a location 3

Unpacking 4

Connecting peripheral devices 4

Starting the computer 4

Shutting down the computer 5

Updating the system (only in certain models) 5

Opening the computer 5

Configuring new components 5

Frequently asked questions 6

Working with your computer 8

Important recommendations 8

Maintenance instructions 8

Cleaning the computer and keyboard 8

Cleaning the pointing device 9

Cleaning the monitor 9

When to contact a specialist

service department 9

Summary of technical support 9

Rules and safety notes 10

Note from the Federal Communications Commission 10

Modem notice 11

Declaration of conformity for laser equipment 12

Declaration of digital audio output 12

Regulatory notice regarding radio devices 12

Compliant, free from interference

Radio communication devices (RSS-210) 13

Federal Communications Commission 16

Note: The technical specifications listed above are provided for reference only. The actual configuration of your PC depends on the model you purchased.

Getting to know your system

Your computer consists of the following elements:

3начok	Описанne	3начok	Описанne
	Кнобka "Питунице"		Диасковд Гибких Диасков(TолъкВ орpeденихMOdeях)
	Гнебу мінкофona(TолъкВ орpeденихMOdeях)		Привов опточеских Диасков(TолъкВ орpeденихMOdeях)
	Гнебу пійсьоченьяДиHamikovи илінayшников(TолъкВ орpeденихMOdeях)		Устюство счтываника Kapт памгті (ТолъкВ орpeденихMOdeях)
	Разьем USB(TOLъкВ орpeденихMOdeях)		Гнебу IEEE 1394/FireWire(TOLъкВ орpeденихMOdeях)
	Кнобka "Корирobаиме"(TOLъкВ орpeденихMOdeях)		Кнобka "Архиеворовanie"(TOLъкВ орpeденихMOdeях)
	Иntерфейс habиrationноMedиаустюствам(TOLъкВ oрpeденихMOdeях)		Карmaны дд сьeMHыхЖecETКИx ДИСКOB(TOLъкВ oрpeденихMOdeях)
	Гнебу RCA(TOLъкВ oрpeденихMOdeях)	SPDIF	Разьем S/PDIF(TOLъкВ oрpeденихMOdeях)
	Рazьем ддпождупчесниКлавиатурь PS/2(TOLъкВ oрpeденихMOdeях)		Разьем дд подклоченьяМыши PS/2(TOLъкВ oрpeденихMOdeях)
	Разьем VGA(TOLъкВ oрpeденихMOdeях)		Посnéдователовий пот(TOLъкВ oрpeденихMOdeях)
	Рazьем ддпождучесниРриntера(TOLъкВ oрpeденихMOdeях)		Разьем USB(TOLъкВ oрpeденихMOdeях)
	Геоздо микрочино вхова (ТолъкВ орегенных моделях)		Разьем Ethernet RJ-45 (ТолъкВ орегенных моделях)
	Геоздо линецно вхова (ТолъкВ орегенных моделях)		Геоздо линецно вхда/ Выхая на диhamик (ТолъкВ орегенных моделях)
HDMI	Разьем HDMI (ТолъкВ орегенных моделях)		Разьем ESATA (ТолъкВ орегенных моделях)
	Коньka "Воссановлене" (ТолъкВ орегенных моделях)		Инданаюпь Сеть / жестуй диск (ТолъкВ орегенных моделях)
USB 3.0	Разьемbl USB 3.0 (ТолъкВ орегенных моделяи)		Замок тира Kensington (ТолъкВ орегенных моделяx)
DP	Разьем ди检лесу (Толък орегенных моделяи) Адамтер DisplayPort ectь Толък на "DP1".		Разьем д借贷 поданочини ритань постоганого тoka (Толък орегенных моделяи)
DVI	Разьем DVI (д�� орегенных моделяe)

Note: The technical specifications listed above are provided for reference only. The actual configuration of your PC depends on the model you purchased.

The table below shows the function of the audio jacks on the rear panel (for certain models only):

Do not place the system too close to other electrical equipment. Do not install the system in areas with high intensity of vibration or where dust or cables may be stepped on. Do not install the system in areas with high humidity.

Frequently asked questions

Below are described situations and questions that may arise when working with the computer. All these questions are given exhaustive answers, or solutions to problems that may occur in your situation are provided.

Q: I turned on the power, but the system does not boot. A: Check the power indicator located above the power switch.

If the power indicator is not lit, this means that the system is not receiving power. Perform the following:

• Make sure that the power supply switch, located on the rear panel of the computer, is set to the correct position.
• Make sure that the power cable is connected to the electrical outlet properly. If a power strip is used, make sure it is connected and turned on.

Check the following:

Check that the diskette in the disk drive is not a system (boot) disk. If it is, remove it (or replace it with a system disk) and press Ctrl+Alt+Del to restart the computer. - System files may be damaged or missing. Insert the boot diskette created during Windows setup and press Ctrl+Alt+Del to restart the computer. After this, the system diagnostics will run automatically and make necessary repairs. If diagnostics reports errors, you may need to run the recovery procedure to restore the system to its original factory settings.

S: No image on the screen. C: The power management function automatically turns off the screen to save energy. To restore the image, simply press any key.

If pressing any key does not help, restart the computer. If restarting the computer does not help, contact the dealer from whom you purchased the computer or the technical support service.

S: The printer does not work. C: Perform the following:

• Make sure the printer is connected to the power outlet and turned on.
• Make sure the printer cable is securely connected to the parallel port of the system and to the corresponding printer port.
• For detailed information about the printer, refer to the printer documentation.

S: The computer does not produce sound.

C: Perform the following:

The sound may be muted. Find the volume icon on the taskbar. If it has a cross, click on it and cancel the Mute command. Also, the sound can be turned on/off by pressing the volume control/mute button on the USB keyboard. If headphones or external speakers are connected to the audio output jack of the computer, the internal or built-in speakers automatically turn off.

S: The system cannot read data from the diskette, hard disk, CD, or DVD. C: Perform the following:

Clean the optical disc.

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Notice on the digital audio output interface

The optical interface does not contain lasers or light-emitting diodes (LEDs) whose characteristics do not meet the requirements for Class I devices.

Regulatory notice for radio devices

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B . EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1 - EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

AcerSystem

Instrukcja Obslugi

AS003

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 16

Aby oczyscic monitor

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B . EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-- EN60950-1 - EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

(Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

Mercury content

Cleaning the monitor 9

Federal Communications Commission 15

Cleaning the monitor

CLASS 1 LASER PRODUCT CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product: Personal Computer

Trade Name: Acer

Model Number: AcerSystem

SKU Number: XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 15

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related products.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 17

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B . EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D . EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

EN60950-1 - EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

(Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogeneous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related products.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(b) EMC

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Federal Communications Commission 16

The above equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

System expansion

The computer will be provided with the following:

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D . EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

(Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment.

• The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

EN301 489-1 - EN301 489-3 (Applicable to non-Bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 15

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Copyright © 2012 All Rights Reserved.

All rights reserved.

AcerSystem User's Guide

For safe and comfortable use of this product

Safety precautions

For details on the WEEE (Waste from Electrical and Electronics Equipment) regulation, please refer to http://www.acer-group.com/public/Sustainability/sustainability01.htm

Please refer to http://www.acer-group.com/public/Sustainability/sustainability04.htm.

Mercury notice

Federal Communications Commission 15

System Ria

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a~z, A~Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue to comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm http://www.acer-group.com/public/Sustainability/sustainability04.htm

vi

Federal Communications Commission 18

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

- (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

. EN301 489-1 - EN301 489-3 (Applicable to non-Bluetooth wireless keyboard mouse set).

EN301489-17

Article 3.2 Spectrum Usages

• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

V12A3

AcerSystem

User's Guide

AS003

Safety and Comfort Information

Important Safety Instructions

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Digital Audio Output Statement

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

. EN55022, AS/NZS CISPR22, Class B - EN55024 - EN55013 (Applicable to product built with TV tuner module) - EN55020 (Applicable to product built with TV tuner module) - EN61000-3-2 Class D - EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

- (Applicable to product with pan-European single terminal connection

to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by

weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-Bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

Federal Communications Commission 13

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Digital Audio Output Declaration

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

. EN55022, AS/NZS CISPR22, Class B - EN55024 - EN55013 (Applicable to product built with TV tuner module) - EN55020 (Applicable to product built with TV tuner module) - EN61000-3-2 Class D - EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related products.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

Mercury information

Federal Communications Commission 17

CLASS 1 LASER PRODUCT

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Digital audio output statement

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

• (Applicable to product with pan-European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.1(b) EMC
• EN301 489-1
• EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set). EN301489-17
• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel:[phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

ENERGY STAR

ENERGY STAR acer Acer Acer acer ENERGY STAR acer ENERGY STAR acer?

ENERGY STAR 15000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

NANJING: 10000000000000000000000000000000000000000000000000000000000000000000000000000

ENERGY STAR acer:

• 10 30 Jannnnnnae nnne nnnnne nee "

ENERGY STAR uRzLJyIyIY ENERGY STAR UuRzLJyIyIyIY

nnaa a naa nnaa

y

1 2

3

3 3 3 4 4 4 mssnnssu (wunnuuun) 4 4 5

6

8

8 8 8 9 9 9 9

nuaunuususnnnnaaannn 10

FCC 10 11 12 12 13 nna 一 m (RSS-210) 13 Federal Communications Commission 16

#

日

JANAH	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOYS	JOYBOYS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOOHOO	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOOHOO	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOHS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOOHOO	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOOHOO	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS	JOYBOHS	JOYBOBS
	JOYBOYS JOYBOBS	JOYBOBS	JOYBOBS
	JOYBOYS JOYBOBS	JOYBOBS	JOYBOBS
	JOYBOYS JOYBOBS	JOYBOBS	JOYBOBS
	JOYBOYS JOYBOBS	JOYBOBS	JOYBOBS
	JOYBOYS JOYBOBS	JOYBOBS	JOYBOBS
lanan	lanan	lanan	lanan
USB 3.0	w00 USB 3.0 (lawntunwunrtn)	K	### Kensington (lawntunwunrtn)
DP	w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w00 w10" DP1" rwn"		w00 DC-in (lawntunwunrtn)
DVI	w00 DVI (###)

NNTJH: 17777777777777777777777777777777777777777

77777777777777777777777777777777777777777777

读/ntələzən	wɪŋ	aɪtəgəlɪŋ	fəʊlɪdʒəʊ 4 ɪnʌnɪŋ	5.1 CH
ɪn'təlɪzɪŋ (ɪ)			ɪn'tɪnɪŋ	ɪn'tɪnɪŋ
ɪn'tər (ɪ)	wɪŋ	fəɪtɪnɪŋ	fɪnɪŋ	fɪnɪŋ
ɪn'tɪn(ɪ)	fəɪtɪnɪŋ	fɪtɪnɪŋ	fɪtɪnɪŋ	fɪtɪnɪŋ
ɪn'tɪn(ɪ)	fəɪtɪnɪŋ	fɪtɪnɪŋ	fɪtɪnɪŋ	fɪtɪnɪŋ

2

H

5C 35C yuzu yuoyu: -20°C 65°C

nauu (naunuiuiuul)

20% 80% - 20% 的 80%

T

AcerSystem 1uusuuuusuuuusuuu uuaaunununununun un, uauuuuuuuc CPU uununununun unwauuauuauuununununun uuuuuuuuuuuuuuuuuuu

AcerSystem 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Hannanr rssyuyu yunnyuunnunynwnnnnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

i

nnaanana

nnaeannnnnneennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

yunnuuynnueunnuuwwuannnnu Wu nndnnnsssssssssssssssssssssssssssssssssss

2017年江苏：江苏省苏州市吴江区PC

nannan

Wnnoo noonnnnne nnnnne nnne nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee nee neee

AcerSystem PS/2 USB - uWuW (PS/2 w USB) W -

Acer yu 157y uyn PC 2000 1999/5/EC

y

ME61

UA.TR.002

Jnnnnae

TBR 21

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name:

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D . EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

• EN60950-1
• EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• . The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

EN301 489-1 - EN301 489-3 (Applicable to non-Bluetooth wireless keyboard mouse set).

EN301489-17

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2011.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147

Office 2010

Facebook 5

. Windows Live , YouTube ,

Bing

a. = +

http://www.acer-group.com/public/Sustainability/sustainability01.htm

http://www.acer-group.com/public/Sustainability/sustainability04.htm

www.lamprecycle.org

ENERGY STAR

ENERGY STAR

ENERGY STAR

http://www.energystar.gov

ENERGY STAR

ENERGY STAR Acer

10 10 10

J 1

a 1

a aal 1

.

yjia jaiy

a aal g j /g 0j 1/2

jglalalalalalalalalalalalalal

cuiiui

aalagai j gaaolj j jn aalil aanl aalil y aalil y j bla j dla j daa j

aill llll bai. aiiaai

1. 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

clll llll j/ j 1

diS 1

Therefore, m = 3/11

A

Therefore, the area of triangle ACD equals the area of triangle COD plus the area of triangle BDO minus the area of triangle BOC.

Therefore, the area of triangle OBC equals the area of triangle ABC plus the area of triangle BOC.

1

Therefore, the set {1,2,3}

0

Federal Communications Commission

Press Ctrl + Alt + Del to restart

Ctrl + Alt + Del in Windows

.DVD

aDVD

DVD 1

J

35J 32)

(95)

1

Quadrilateral AOBC is a square.

2

ii. = ( x 1,y 1) , = ( x 2,y 2)

1

（1）：j（2）

jgdi11 jgdisuall:aldo

. Canadian ICES-003 8 品 _ 一 a

(.Directive 1999/5/EC)

/

ME61

UA.TR.002

gall

4.5.2.10 2020 all 100

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 FCC 10 9 8 6 5 4 3 2 1 0

j 100000000000000000000000000000000000000000000000000000000000

26 (AWG) 124

TBR 21

This equipment is designed to be connected to the Public Switched Telephone Network (PSTN) in accordance with the requirements of the European Telecommunications Standards Institute (ETSI) standard [EC -TBR 21/98/482].

Telecom 45231011111111111111111111111111111111111111 1

Jg 2

（w）jTelecomaiai gill bglal ylll 3 gai gill aill glbi jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn jn j

30 10 10 10 10 10 10

30 30

(1) jieell Telecom 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

. Telecom 111 y jll aiaa i aiaaii aiaaa

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

8

J 1

J 1

1

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi,

New Taipei City 221, Taiwan

CE

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail: [e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product:

Personal Computer

Trade Name

Acer

Model Number:

AcerSystem

SKU Number:

XXX-xxx ("x" = 0~9, a ~ z, A ~ Z or Blank)

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
• EN55013 (Applicable to product built with TV tuner module)
• EN55020 (Applicable to product built with TV tuner module)
• EN61000-3-2 Class D
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

. EN60950-1 - EN60065 (Applicable to product built with TV tuner module)

Council Decision 98/482/EC (CTR21):

-. (Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

• The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead	0.1%	Polybrominated Biphenyls (PBB's)	0.1%
Mercury	0.1%	Polybrominated Diphenyl Ethers (PBDE's)	0.1%
Hexavalent Chromium	0.1%	Cadmium	0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

Article 3.1(a) Health and Safety

• Article 3.2 Spectrum Usages
• EN300 440-2 (Applicable to non-Bluetooth wireless keyboard mouse set).
• EN300 328
• EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2012.

RU Jan/Sr. Manager

Regulation Center, Acer Inc.

Mar. 13, 2012

Date

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product:	Personal Computer
Trade Name:	Acer
Model Number:	AcerSystem
SKU Number:	XXX-xxx, ("x" = 0~9, a ~ z, A ~ Z or Blank)
Name of Responsible Party:	Acer America Corporation
Address of Responsible Party:	333 West San Carlos St. San Jose, CA 95110 U. S. A.
Contact Person:	Acer Representative
Phone No.:	254-298-4000
Fax No.:	254-298-4147
