Product Type	Residual Current Circuit Breaker (RCCB)
Brand	Hager
Model	WGCC1SNB
Rated Current	40 A
Rated Voltage	230 V AC
Frequency	50/60 Hz
Number of Poles	2
Rated Short-Circuit Capacity	10 kA
Rated Residual Current (IΔn)	30 mA
Dimensions (H x W x D)	85 mm x 36 mm x 70 mm
Weight	0.15 kg
Mounting	DIN rail
Ambient Temperature Range	-25 °C to +55 °C
Degree of Protection	IP20
Standards	IEC/EN 61008, IEC/EN 61009
Functions	Overcurrent and earth leakage protection
Test Button	Monthly functional test
Cleaning	Use a dry cloth, do not use liquids
Safety Precautions	Disconnect power before maintenance; risk of electric shock
Spare Parts	Not available; replace entire unit
Repairability	Non-repairable (replace if faulty)

Frequently Asked Questions - WGCC1SNB HAGER

What is the rated current of the Hager WGCC1SNB?

The rated current is 40 A. This indicates the maximum continuous current the device can handle without tripping under normal conditions.

Does the WGCC1SNB provide overcurrent protection?

Yes, it offers both overcurrent protection and earth leakage protection. It acts as a combined RCCB/MCB, safeguarding against overloads, short circuits, and ground faults.

How often should the test button be pressed?

The test button should be pressed monthly to verify the device's functionality. If it does not trip when pressed, the device is faulty and must be replaced immediately.

What is the maximum voltage rating?

The maximum rated voltage is 230 V AC. It is designed for single-phase residential or commercial applications.

What is the breaking capacity?

The rated short-circuit breaking capacity is 10 kA. This means it can safely interrupt fault currents up to 10,000 A without damage.

What are the dimensions of the WGCC1SNB?

The dimensions are 85 mm high, 36 mm wide, and 70 mm deep. It is a modular device designed to fit standard DIN rail enclosures.

How is the device installed?

It is mounted on a DIN rail (35 mm) in a distribution board. Ensure the power is off before installation. Connect the line and neutral conductors as per the marking.

Is the WGCC1SNB suitable for outdoor use?

No, it has an IP20 rating, meaning it is protected against solid objects larger than 12 mm but not against water. It should be installed indoors in a dry location.

What should I do if the device trips frequently?

Frequent tripping may indicate a faulty appliance or wiring issue. Disconnect all loads and reset. If it stays on, reconnect loads one by one to identify the problem. If it continues to trip without load, replace the device.

Does the Hager WGCC1SNB come with a warranty?

Yes, Hager typically offers a 2-year warranty against manufacturing defects. Keep the purchase receipt for warranty claims. The device is non-repairable; if defective, it must be replaced.

USER MANUAL WGCC1SNB HAGER

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Multiple frames for 2gang to 5gang combinations of flush-mounted devices. Different versions for horizontal and vertical installation.

Hager Muse: The frames are compatible with most flush-mounted devices of the design with centre plates (Width x Height) = 65 x 52 mm.

In case of centre plates 52 x 52 mm, the accomodation ring must be used.

Not compatible with centre plates 52 x 65 mm.

Correct use

• For flush-mounted installation with standard connectable wall boxes.
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Hager Muse:

Dimensions (Width x Height)

• 2gang horizontal 172 x 86 mm
• 3gang horizontal 258 x 86 mm
• 4gang horizontal 344 x 86 mm
• 5gang horizontal 430 x 86 mm

Hager Inspire:

Dimensions (Width x Height)

• 2gang horizontal 172 x 86 mm
• 3gang horizontal 258 x 86 mm
• 4gang horizontal 344 x 86 mm
• 5gang horizontal 430 x 86 mm
• 2gang vertical 86 x 172 mm
• 3gang vertical 86 x 258 mm

Information for electricians Installation and electrical connection

Preparing the devices for installation

■ Remove frame at every single device to be combined (see installation manual of the respective device).

Hager Inspire:

■ Furthermore, remove cover plate at every single device (see installation manual of the respective device).

Installing the devices into the wall boxes

(for example with "3gang frame (horizontal)")

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

• Arrange the devices horizontally or vertically in the desired order depending on frame type. Example here: horizontal.
  ■ Wire each device of the combination according to its wiring diagram (see installation manual of the respective device).

1

Technical diagram of three electrical wall-mounted components with screw connections and internal wiring (no text or labels)

■ After wiring, fix the devices with the screws into the wall boxes (1).

Connecting the devices for multiple combinations

(for example with "3gang frame (horizontal)")

The devices are connected via the supplied connection bridges (2). On the outside corners of its supporting plate each device has corresponding holes for fixing the bridges.

- Align one bridge per connection and clip the bridges one after the other in the supporting plates of the devices (2).

Assembling the covers

(for example with "3gang frame (horizontal)")

Hager Muse (3A):

In case of switches, fix the rockers onto each device.

In case of devices with centre plate 52 x 52 mm, place the accomodation ring onto the device (3A).
■ Then snap the multi-gang frame onto the device combination.

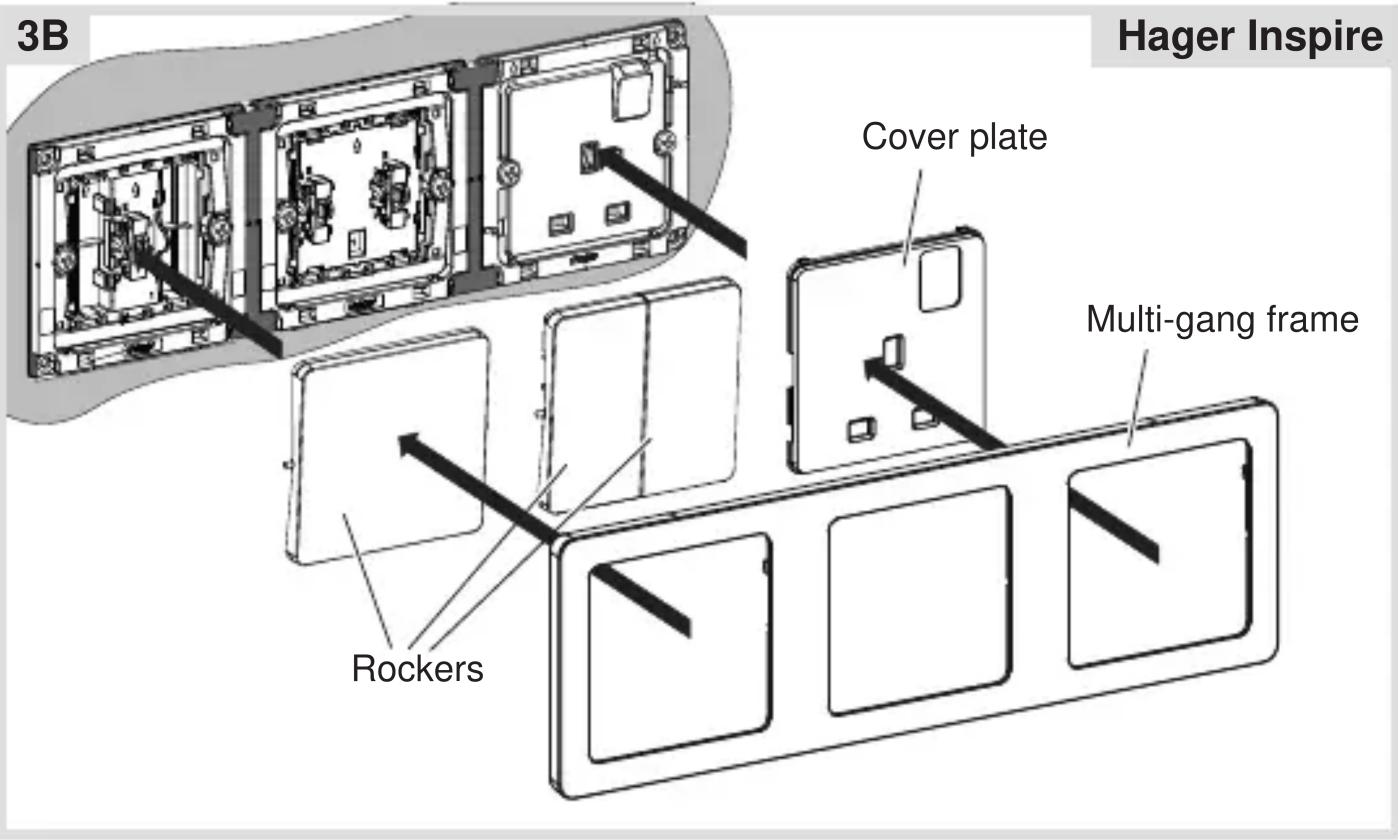

Hager Inspire (3B):

• Fix the rockers and cover plates onto each device.
  ■ Then snap the multi-gang frame onto the device combination.
