Brand	Hager
Model	FD00A5
Product Type	Flush-mounted distribution enclosure
Width	150 mm
Height	Approximately 182 mm (FD00A4) or 193 mm (FD00A3)
Depth	Standard depth for flush mounting
IP Rating	IP41
Material	Plastic (likely polycarbonate)
Color	White or light grey
Cable Entry	Knockouts for M25, M32, M40 cable glands
Compatible Accessories	FD00F1, FD00F2 (mounting brackets or spare parts)
Mounting Type	Flush (recessed) installation
Operating Temperature	-25°C to 60°C
Standards	EN 62208, EN 50532
Installation	Wall cutout, secure using built-in fixing points
Maintenance	Clean with dry cloth, no solvents
Safety	Disconnect power before installation or maintenance
Repairability	Replaceable components (glands, covers) available

Frequently Asked Questions - FD00A5 HAGER

What is the Hager FD00A5 distribution enclosure used for?

The Hager FD00A5 is a flush-mounted distribution enclosure designed for housing electrical installations, such as circuit breakers and wiring, in residential or commercial buildings.

What are the dimensions of the FD00A5?

The FD00A5 has a width of 150 mm. Height and depth vary by the specific series it replaces: it is part of the FU...BN, CN, DN, LN, RN series.

What IP rating does the FD00A5 have?

The FD00A5 has an IP41 rating, providing protection against solid objects larger than 1 mm and dripping water, suitable for indoor use.

What cable gland sizes are compatible with the FD00A5?

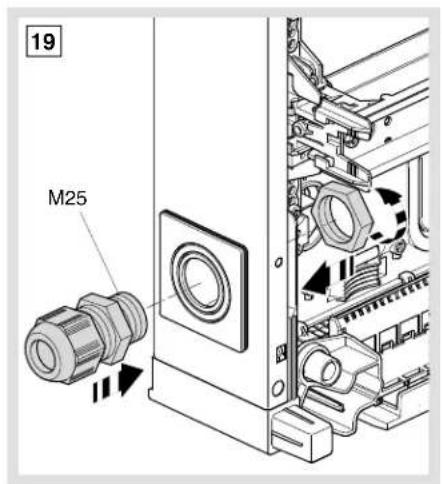

The FD00A5 includes knockouts for M25, M32, and M40 cable glands, as indicated in the manual.

What accessories are available for the FD00A5?

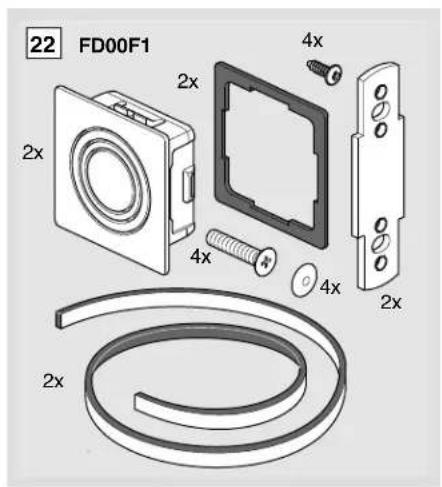

Accessories include the FD00F1 and FD00F2 mounting brackets or spare parts, as well as knockouts for FD00P4, FD00P5, FD00P6 plates.

Can the FD00A5 be installed in a wall?

Yes, it is designed for flush mounting in a wall cutout. The manual provides detailed installation steps, including marking and securing.

How do I clean the FD00A5 enclosure?

Use a dry, soft cloth to clean the exterior. Avoid using solvents, abrasive cleaners, or water to prevent damage.

Is the FD00A5 suitable for outdoor use?

With an IP41 rating, it is not recommended for outdoor use unless additional protection from rain and direct sunlight is provided.

What safety precautions should I take when installing the FD00A5?

Always disconnect power before installation. Follow the wiring diagrams in the manual and ensure proper grounding.

Where can I find a replacement cover for the FD00A5?

Replacement covers and parts can be ordered through Hager distributors. Refer to the spare parts list in the manual (models FD00F1, FD00F2).

USER MANUAL FD00A5 HAGER

01 02

FD00A3→FD...N (193 mm)

FU00A4→FU...AN, GN, MN... (182 mm)

FU00A5→FU...BN, CN, DN, LN, RN... (150 mm)

Technical line drawing of a rectangular electronic component or panel with mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a multi-tiered mechanical or electrical enclosure unit (no text or symbols)

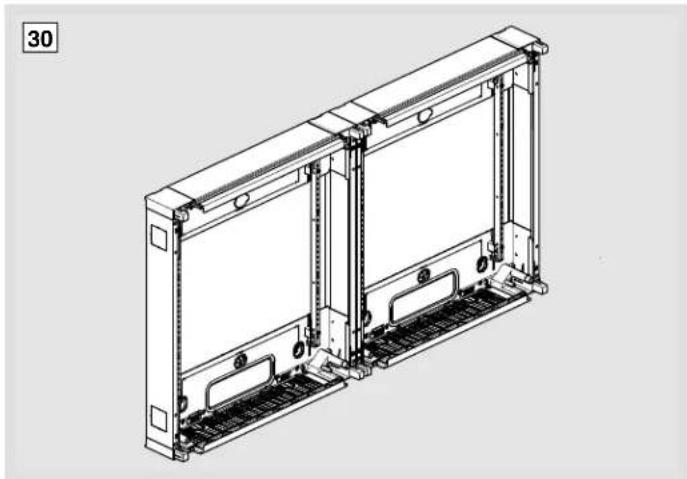

Technical line drawing of a dual-panel server rack unit with mounting brackets and connectors (no text or symbols)

Technical line drawing of an electrical enclosure assembly with wiring and components (no text or symbols)

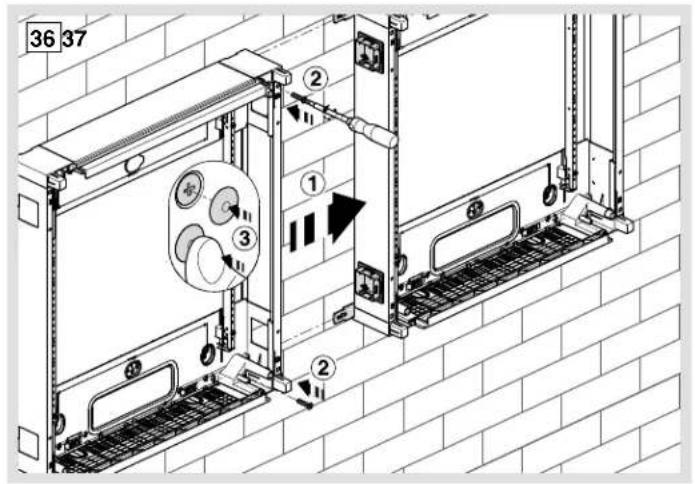

Technical diagram showing mechanical assembly with screwdriver and tool, no visible text or symbols

Technical line drawing of a mechanical assembly with an inset showing a magnified view of a component (no text or symbols present)

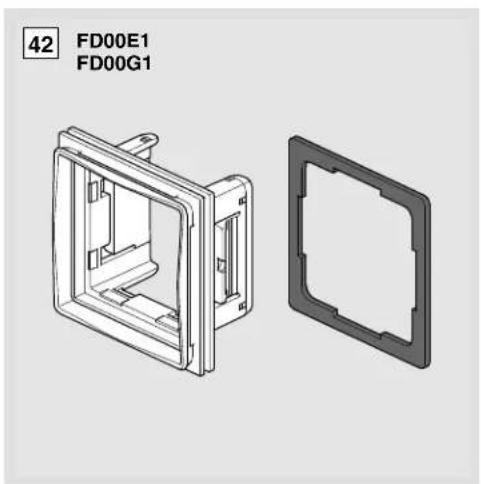

Technical illustration of a mechanical component with two views: front view (FD00E1, FD00G1) and side view (no text or symbols on the components themselves)

Technical diagram showing a device component with an arrow pointing to a circular component, no text or symbols present.

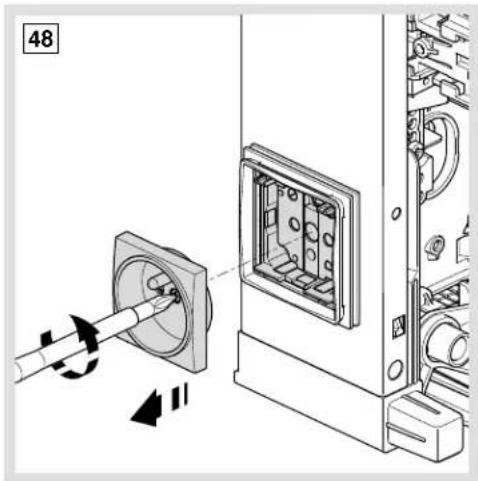

Technical diagram showing a mechanical assembly with a component inserted into a housing, indicated by arrows and numbered 48 (no text or symbols present)
