Product Type	Hand pressure sprayer
Brand	Fieldmann
Model	FZO 8060
Nominal Volume (capacity)	5 L (max fill); gross capacity 6.25 L
Max Working Pressure	2.5 bar
Optimum Operating Pressure	approx. 1.5 bar
Safety Valve Opening Pressure	2.6–3.0 bar
Flow Rate	210 ml/min (average)
Spray Tube Length	approx. 500 mm
Container Dimensions	∅ 75 × 335 mm
Weight (empty)	approx. 1.15 kg
Weight (full, 5 L water)	approx. 7.69 kg
Total Residual Volume	30 ml
Operating Temperature Range	0–40°C
Nozzle Opening Diameter	1.2 mm
Filter Type & Size	Suction strainer, 0.9 × 0.9 mm mesh
Materials	Plastic container, rubber seals, synthetic hoses
Power Source	Manual pumping, no electricity/battery
Intended Use	Gardening: spraying water, insecticides, fungicides, liquid fertilisers (not solvents or oil)
Safety Features	Safety valve for overpressure release
Maintenance	Clean after each use; flush with water; store dry; lubricate piston O-ring if needed
Spare Parts Availability	O-rings, suction hose, nozzle; use only manufacturer-recommended parts
Repairability	Repairs only by manufacturer or qualified service agent
Warranty	24 months from date of purchase (statutory warranty)

Frequently Asked Questions - FZO 8060 Fieldmann

What liquids can I use in the Fieldmann FZO 8060 sprayer?

You can use water, insecticides, fungicides, disinfectants, and water-soluble fertilisers that are approved for use in your country. Never use solvents, oil, or corrosive substances.

How do I release pressure before opening the container?

Pull the safety valve (3) upwards until you hear the pressure escaping. Always release residual pressure before opening to avoid injury.

What is the maximum fill level?

The nominal volume is 5 L, but the gross capacity is 6.25 L. Do not fill above the nominal volume to allow for pressurisation.

How do I clean a clogged nozzle?

Unscrew the nozzle and clean it under running water. If still clogged, push a needle through the opening. Never blow into the nozzle with your mouth.

What should I do if the pump handle is too heavy?

Apply lubricant to the piston O-ring. If the pressure is too high, stop pumping and check the safety valve. Excessive pressure can damage the sprayer.

Can I use this sprayer for weedkillers?

Only if the weedkiller is approved by the BBA and is water-soluble. Always follow the chemical manufacturer's instructions and wear protective gear.

How do I store the sprayer after winter?

Release all pressure, clean thoroughly, and allow to dry completely. Store in a dry, dust-free place. Freezing temperatures can damage the sprayer.

Why does the sprayer spray air instead of liquid?

The suction hose inside the container may have come loose. Remove the hose cap and tighten the connection. Check for kinks or blockages.

What protective equipment should I wear?

Wear eye protection (goggles or face shield), waterproof clothing, gloves, and respiratory protection. Protect your skin and lungs from chemicals.

How long is the warranty?

The statutory warranty is 24 months from the date of purchase. Keep your receipt and warranty card for service claims.

USER MANUAL FZO 8060 Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

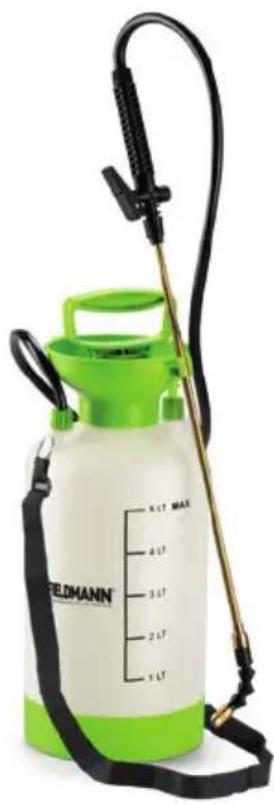

Green and white spray sprayer with attached black straps and a scale bar (no visible text or symbols on the device itself)

FZO 8060

English 5-18
Čeština 19-32
Slovenčina 33-46
Magyarul 47-60
Polski 61-74

1

2

3

Hand pressure sprayer

USER'S MANUAL

Thank you for purchasing this Hand pressure sprayer FIELDMANN. Before you start using it, please carefully read this user's manual and save it for possible future use.

TABLE OF CONTENTS

1. GENERAL SAFETY INSTRUCTIONS ......6
2. SYMBOLS....7
3. SAFETY INSTRUCTIONS....10
4. PRODUCT DESCRIPTION AND SPECIFICATIONS....11
5. OPERATIONS....12
6. TROUBLESHOOTING....14
7. CLEANING AND CARE....15
8. TECHNICAL DATA....16
9. WARRANTY 17
10. DISPOSAL....18

1. GENERAL SAFETY INSTRUCTIONS

WARNING!

Carefully read the instruction manual before use.

Important safety warnings

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

2. SYMBOLS

Read the instruction manual.

Warning symbol - Stay alert and observe general hazards.

Volume container approx. 6.25 litres or 11 Pints. Not possible to fill the whole volume.

Max. filled capacity: Approx. 5 litres or 8.8 pints.

Protect the container from solar radiation!

Not for use with readily fl ammable liquids!

Do not spray on people!

Spray on plants only!

Fill the device only with liquids at temperatures of 0–40 °C.

Wear respiratory protection.

Wear waterproof clothing with a resistance against the spray medium covering unprotected parts of your body.

CE stands for "Conformity Européenne" which means "Conformity with EU directives". With the CE marking the manufacturer confi rms that this product corresponds to the applicable European directives.

Permissible operating pressure: Approx. 2.5 bar.

Not for use with corrosive substances!

Do not spray on electrical devices, electrical cables or wires.

Do not spray on animals!

Do not use the product for drinks!

Wear eye protection (safety goggles or face shield).

Wear protective gloves.

Wear waterproof footwear with a resistance against the spray medium.

3. SAFETY INSTRUCTIONS

Keep all the safety advice and instructions in a safe place for future reference

⚠️ WARNINGS!

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or Instruction by a person responsible for their safety. Children must never be allowed to play with the device.

If the device is damage, do not repair! Never use the damage product!

Do not use the device while tired, ill or under influence of alcohol or other drug or medicaments.

There is a risk of injury to the skin resulting from contact with the spray product. Always wear suitable eye protection (goggles or face shield), protective clothing, gloves and breathing protection when in use.

Do not carry out any repairs or modifications to the pressure sprayer.

Do not eat, smoke or drink when in use.

Wash your hands and face after each spraying session.

Secure the product against falling, overturn, vibration, extremely high or low temperatures, direct sunlight and impacts during transportation to avoid damages and spillage.

* Always read and observe the Information provided by the chemical manufacturer when working with or mixing spray solutions.

Release the residual pressure in the container by pulling the safety valve upwards before you open the container (Fig. 3).

* Never use the device in strong wind condition and in headwind direction. There is a risk of Injury to the skin resulting from contact with the spray product.

Please keep mixing and filling inside the sprayer container to avoid contamination of the environment, especially with plant protection products, fertilisers, disinfectants or cleaning agents.

* Never spray on people, animals, electrical devices and lines, into the wind, or into bodies of water.

Do not attempt to remove congestions by blowing into parts of the product with your mouth.

Do not attempt to repair or modify the product in any way. Clean and maintain the product as described within this Instruction manual. Only use spare parts and accessories recommended by the manufacturer. Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons. Failure to do so may result in hazard.

* Observe the legal requirements of your country for accident prevention and have the product examined externally by a competent professional every 2 years and subject it to an internal Inspection every 5 years.

* Check the product regularly each year after wind by using of clean water. Check product before each use.

Do not use the sprayer when any leakages, uneven spray jet.

Intended use

The product is used for spraying liquids in the home, garden and greenhouses. The liquids include water, insecticides and fungicides for plants, disinfectants and water-soluble fertilisers that are allowed to be used in your country. Only the use of liquid manure, weedkillers and pesticides (PSM) approved by the BBA (Federal Biological Research Centre for Agriculture and Forestry) is allowed. At the time of product manufacture, these approved PSMs are not known to have any harmful effect on the materials used. The insecticides, fungicides and fertilisers for plants may only be sprayed in the concentrations given in the Instructions from the sprayed medium manufacturer. The spraying of solvents or solvent-containing liquids or oil is a particular example of Improper use of the product. This product is intended for private use only.

4. PRODUCT DESCRIPTION AND SPECIFICATIONS

Package included:

Pressure sprayer
Spray tube
Carrying strap
User manual

Product Features

1 Pump handle
2 Pump
3 Safety valve
4 Base
5 Container
6 Carrying strap
7 Spray nozzle
8 Spray tube
9 Union nut (Suction hose)
10 Union nut (sprayer handle)
11 Spray tube handle
12 Suction hose
13 Trigger

Preparations for different condition of use

Condition Needs
Using with insecticides and fungicides for plants, disinfectants and water-soluble fertilisers.
If water only

5. OPERATIONS

BRINGING INTO USE (UNPACKING AND ASSEMBLY)

* Unpack all parts and lay them on a flat surface, check and make sure all the delivery parts are complete and free of any damage.
* Attaching the spray tube (see Fig. 1). Turn the union nut (10) anticlockwise to release it from the handle (11). Push the spray tube (6) into the handle (11) as far as it will go. Tighten the union nut (10) by fuming it clockwise.

WARNING!

Examine the product before each use, ensure it is free damages, congestions and all parts work as intended. Rubber parts such as the hoses or O-rings must not show any cracks or appear porous. Pay particular attention to the safety devices. Ensure all connections are fitted tightly. Examine the product before first use after winter.

Check that the appliance is functioning properly! Check the pressure sprayer before each use to ensure that it is free of visible damage and is functioning safely. To do this, carry out the following tests and inspections:

* Check the container (5), the suction hose (12) and the carry strap (6) for visible damage.
* Check that the hose connections are fitted tightly.
* Check that the pipe connections are fitted tightly.
* Pump the pressure sprayer. Pull the safety valve (3) up to the stop. You must be able to hear the pressure escaping.

CAUTION:

Do not use the product if any visible damage or loss of functionality.

FILLING THE PRESSURE SPRAYER CONTAINER (FIG. 2)

WARNING!

Do not exceed the nominal volume!

Ensure the liquid to be sprayed is compatible with the product.

Ensure that the use of the pesticide, liquid fertiliser or cleaning agent is permitted in your country.

* Ensure the operation ground is flat and rigid. Avoid spillage during operation. Avoid contamination of the environment.
* Press the pump handle (1) downwards and turn it anticlockwise.
Note: Before you open the container, pull the safety valve (3) upwards to release any residual pressure still present in the container (5).
Draw the pump (2) out of the container (5).
Now fill the container.
Note: Fill the container (5) with only the amount of liquid that you actually need for that particular spraying session (not more than 61).
Place the pump (2) back into the container (5) and turn the pump handle (1) clockwise as far as it will go.

BUILDING UP THE OPERATING PRESSURE

Move the pump handle (1) up and down until the pressure sprayer has been pumped up to a pressure not exceeding the maximum permissible operating pressure.
* Note: if the pressure of the air in the container reaches to the maximum, the pressure is automatically released through the safety valve (3).
* Press the pump handle (1) downwards into the recesses.

Note: Make sure the handle is secured by the recesses before carrying or transport in order to prevent loss of fuel, damage or injury.

SPRAYING

WARNING!

Take into account of wind, rain and other climate and environmental conditions to avoid of uncontrolled or unintended liquid distribution.

• Hang the pressure sprayer over your shoulder by the carrying strap (6).
  Note: Ensure that the pressure sprayer is always kept upright.
  Hold the spray tube firmly by the handle (11) and direct the adjustable spray nozzle (7) e.g. at a plant.
  * Press the trigger (13) to start spraying.
  Release the trigger (13) to stop spraying.

Note: When the pressure in the container (5) is no longer sufficient to spray, pump the container (5) to increase the pressure.

When finish of spraying, pull the safety valve (3) upwards as far as it will go to release the residual pressure in the container (5) (See Fig. 3).

6. TROUBLESHOOTING

Follow below solutions to solve the problem encountered, or contact the retailer or manufacturer.

Problems Causes Solutions
Leakage or poor spraying occurs The	seal-ring loose or is damaged. Nozzle strainer or suction strainer is blocked. Nozzle is blocked.	Re-tighten up or replace. Clean. Clean or repair.
Pump handle is too heavy to operate	Piston O-ring insufficiently lubricated. Too high pressure in the container.	Apply lubricant to piston O-ring Stop pressurizing. Check the relief valve for jamming. Repair it if necessary.
Pump handle is too light to operate P	Piston O-ring wears off or comes off. Water-proof washer comes off.	Replace the piston O-ring. Repair.
Spray air instead of water The suction	hose inside the container comes off.	Remove the hose cap and take out the suction hose to tighten.
No spray jet or uneven spray jet Clogged. Have the suction hose and nozzle check and cleaned.

7. CLEANING AND CARE

WARNING!

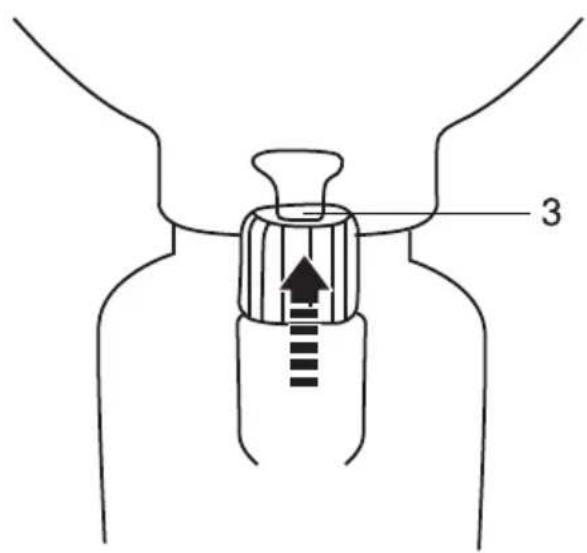

Always release residual pressure before cleaning (See Fig. 3). Protect yourself with suitable personal protective equipment (PPE) from hazardous substances, as you wold while spraying. Take precautions to avoid environmental contamination from hazardous substances.

WARNING!

If the nozzle (7) seems to be blocked, do not try to blow it free with your mouth.

Clean the pressure sprayer after each use!

1. Cleaning of the pressure sprayer

* Unscrew the spray nozzle (7).
- Clean the spray nozzle (7) under running water.
If the spray nozzle (7) is clogged, clean it by pushing a needle through it.
Flush through the pressure sprayer, pipes and tubes with water.
- Clean the surfaces of the product with a moist cloth.

2. Cleaning of the suction hose (12)

* Loosen the union nut of the suction hose (9) on the container (5).
* Pull the suction hose (12) out of the container (5).
* Clean the suction hose (12) under running water.
After cleaning, insert the suction hose (12) back in its opening on the container (5).
* Tighten the union nut (9) hand-tight.

3. Clean the pump (2) and container (5)

Remove the pump unit (2) and flush it under running water.
Rinse the spray container (5) with water. Turn it upside down to empty it completely.

STORAGE

Release any residual pressure still present in the container (5) after use. To do this, pull the safety valve button (3) upwards until you can no longer hear the hiss of escaping air.
Thoroughly clean the device and allow it to dry before you put it away for the winter. This will avoid frost damage.
Clean the pressure sprayer before storing it away.
Remove any leftover spray product from the container (5) and the pipes.
Store the pressure sprayer in a dry, dust-free place.

1. TECHNICAL DATA

Max. Working pressure: 2.5 bar
Optimum operating pressure: approx. 1.5 bar
Safety valve: 2.6 to 3.0 bar
Nominal volume: 5L
Gross Weight (empty): approx. 1.15 kg
Gross Weight (full with 5L): 7.69 kg
Gross capacity: approx. 6.25 L
Operating temperature: 0 to 40°C
Length of spray tube: approx. 500 mm
Total residual volume: 30 ml
Pressure valve operation range: 1.4 ±0.2 bar (min. opening pressure)
Average flow rate (ml/min.):	210
Container size:	∅ 75 × 335 mm
Filter type and size:	0.9 × 0.9 mm
Nozzle:	opening diameter ∅ 1.2 mm

9. WARRANTY

A statutory warranty applies for tills product.

Damages caused by wrong treatment or operation, by false placement or storage, improper connection or installation, as well as force or other external influences are not covered by this warranty. We recommend careful reading of the operating instructions as It contains important information.

Note:

1. In case this product does not function correctly, please firstly check if there are other reasons, e.g. for electrical appliances interruption of the power supply, or generally incorrect handling are the cause.
2. Please note that, where possible, the following documents or rather information should be provided together with your faulty product:
3. Purchase receipt
4. Model description / Type / Brand
5. Describe the fault and problem as detailed as possible

In the case of a claim for guarantee or defects, please contact the seller.

10. DISPOSAL

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information. Disposal in other countries outside the European Union. Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulfi is all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

User manual in the original language.

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fastcr.cz

Fast Plus, spol. s r. o.

Na Pántoch 18

SK 831 06 Bratislava

Slovenská republika

Tel.: [phone]

Fax: [phone]

[e-mail]

www.fastplus.sk

Jótállási jegy

Green and white spray sprayer with black straps and a scale, no visible text or symbols on the device itself.

FIELDMANN®

Home & Garden Performance
