Product Type	Hand Blender (Immersion Blender)
Model Number	SB-250SS (also SB-250WH)
Rated Power	250 W
Rated Voltage	220-240 V ~ 50 Hz
No-Load Speed	≤ 15,000 RPM
Continuous Working Time	≤ 30 seconds
Rest Time Between Cycles	≥ 1 minute
Speed Settings	Normal speed button and Turbo speed button
Main Functions	Blending, mixing, pureeing (for liquids, sauces, baby food, batters, shakes)
Maximum Ingredient Temperature	60 °C (let hot ingredients cool before blending)
Blending Stick Material	Metal (stainless steel likely)
Motor Unit Material	Plastic housing
Blade Material	Stainless steel (very sharp)
Blade Guard	Yes, to be fully immersed in ingredients
Cleaning Method	Wipe motor unit with damp cloth; beaker and blending stick dishwasher safe (or warm soapy water). Do not immerse motor unit.
Safety Features	Unplug before assembly/disassembly/cleaning; do not use if cord or plug damaged; children supervision; avoid touching blades; overload protection via max 30s operation.
Intended Use	Household only
Included Accessories	Blender bar (blending stick), beaker, motor unit, possibly whisk (from notice not explicit, but typical). Based on manual: blending stick, motor unit, beaker.
Certifications	CE compliant (typical)
Dimensions (approx.)	Length: ~40 cm, Beaker height: ~15 cm (estimated)

Frequently Asked Questions - SB-250SS Vivax

What is the maximum continuous operation time for the Vivax SB-250SS hand blender?

The blender should not be used continuously for more than 30 seconds. After each use, allow a rest period of at least 1 minute before next use.

Can I blend hot liquids with this hand blender?

Yes, but let hot ingredients cool down to a maximum of 60°C before blending to avoid damage and splattering.

How do I clean the motor unit?

Never immerse the motor unit in water or rinse it under the tap. Only wipe it with a damp cloth. The blending stick and beaker can be washed in the dishwasher or with warm soapy water.

What are the two speed buttons for?

The Normal speed button is for regular blending. The Turbo speed button provides higher speed for tougher ingredients. Press and hold to activate.

Is the hand blender suitable for making baby food?

Yes, it is designed for pureeing cooked ingredients such as for baby food. Blend for about 25 seconds in quantities of 50-200 ml.

What should I do if the blades get stuck?

First unplug the appliance, then remove the ingredients blocking the blades. Never try to free blades while plugged in.

Can I use the blender for crushing ice?

The manual does not recommend crushing ice. It is intended for blending soft ingredients, fruits, vegetables, and liquids. Overloading may damage the appliance.

What is the voltage requirement?

The blender operates on 220-240V ~ 50Hz. Always check that your outlet matches this before use.

Are the blades removable for cleaning?

The blender bar (with blades) is detachable from the motor unit but the blades themselves are not removable. Clean the bar carefully due to sharp blades.

What is the warranty period for Vivax SB-250SS?

The warranty details are provided in the manual with a warranty card. Typically, Vivax offers a 2-year warranty for small appliances. Contact the dealer or authorized service center.

USER MANUAL SB-250SS Vivax

Two white electric kitchen utensils with control knobs and a metal stand, shown against a plain background (no text or symbols visible)

Specifikacije

Model	SB-250WH/SB-250SS	Brzina rotacije	≤q 15000R/M
Voltaža	220V~240V	Izolacija
Frekvencija	50Hz	Ocijenjeno vrijeme rada bez prekida	≤q 30S
Snaga	250W	Vremenski prekid rada	≥q 1 min

A. Tipka za normalnu brzinu B. Tipka za turbo brzinu

C. Kućište D. Odvojivi nastavak

Upozorenje

• Prije nego što uključite uređaj u struju provjerite voltažu strujnog napajanja
• Uređaj nemojte koristiti ukoliko su oštećeni kabel, utičnica ili drugi dijelovi uređaja
• Ukoliko je strujni kabel oštećen, molimo uređaj odnijeti na popravak u vaš ovlašteni servisni centar kako biste izbjegli mogućnost ozljeđivanja
  Uređaj prije rastavljanja, čišćenja i sastavljanja ne smije biti uključen u struju!
• Dio s motorom ne uranjajte u vodu niti ga ne čistite pod tekućom vodom. Za čišćenje motora koristite vlažnu tkaninu.
• Uredaj ne ostavljajte bez nadzora.

• Ovaj uređaj je namijenjen isključivo za kućnu upotrebu.

• Ovaj uređaj nije predviđen da njime rukuju osobe (i djeca) sa smanjenim tjelesnim, osjetilnim ili umnim sposobnostima ili pomanjkanjem iskustva i znanja, osim ako ih nije podučila ili ih ne nadzire osoba zadužena za njihovu sigurnost.

• Djecu treba nadzirati kako se ne bi igrali s uređajem
• Ne dodirujte oštrice ukoliko je uredaj uključen u struju s obzirom da su vrlo oštre!
• Ukoliko se oštrice zablokiraju, prvo uređaj isključite iz struje, uklonite sve prepreke koje su zablokirale oštrice.
• Ne preopterećujte uređaj uranjanjem u preveliku količinu hrane te ne koristite uređaj dulje od 30 sekundi bez prekida.

Pripreme za upotrebu

Illustration of a laboratory glassware setup with a funnel and drop, no text or symbols present

Illustration of a hand holding a cylindrical object in a glass with a curved arrow indicating rotation (no text or symbols)

SB-250SS:

Diagram of a hand tool pressing down on a container, with an arrow indicating downward motion (no text or symbols)

Line drawing of a laboratory apparatus with rotating components and a beaker (no text or symbols)

Two white electric kitchen utensils with black and gray handles, one with a handle and the other with a stand (no text or symbols visible)

Kujdes

Illustration of a laboratory glassware setup with a funnel and drop, no text or symbols present

Illustration of a hand holding a cylindrical object in a glass with a curved arrow indicating rotation (no text or symbols)

SB-250SS:

Line drawing of a hand tool above a container with an arrow indicating direction (no text or symbols)

Line drawing of a laboratory apparatus with rotating components and a beaker (no text or symbols)

Read these instructions for use carefully before you use the appliance and save them for future reference

Two white electric kitchen utensils with black and gray handles, one with a handle and the other with a metallic stand (no text or symbols visible)

Technology parameter

Model No	SB-250WH/SB-250SS	Rotation speed	≤q 15000R/M
Rated Voltage	220V~240V	Insulation
Rated Frequency	50Hz	Rated continuous working time
Rated Power	250W	Rated intermission time

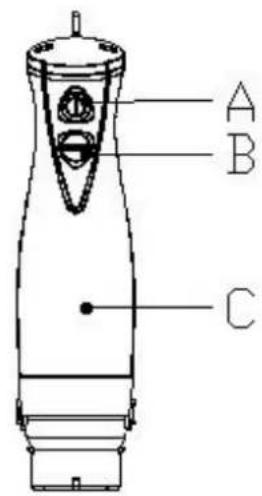

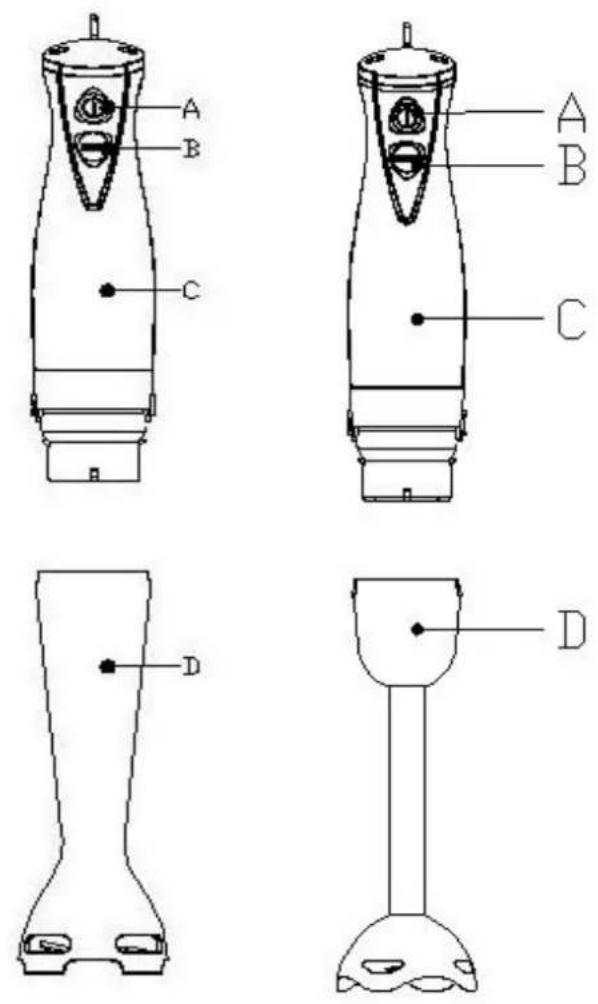

A. Normal speed button

B. Turbo speed button

C. Motor unit

D. Blending stick

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the mains cord, the plug or other parts are damaged.
• If the mains cord is damaged, you must have it replaced by manufacture, or the service centre authorized by the dealer, or similarly qualified person in order to avoid a hazard.
  ● Always unplug the appliance from the mains before you assemble, disassemble, clean or make adjustments to any of the accessories.

• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.
  ● Never let the appliance run unattended.
  ● This appliance is intended for household use only.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.
  ● Never touch the blades when the appliance is plugged in. The blades are very sharp.

• If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
• Do not overload the appliance by putting in too much food and do not operate continuously for more than 30 seconds.

Prepare for use

● Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.
- Let hot ingredients cool down before you process them (max. temperature 60°C).
● Cut large ingredients into pieces of approximately 2 cm before you process them.
● Always place the motor unit on a level surface.

Using the appliance

Hand blender

SB-250WH:

Illustration of a laboratory glassware setup with a funnel and drop, no text or symbols present

Illustration of a laboratory brush in a beaker with a rotating arm (no text or symbols)

SB-250SS:

Diagram of a hairdryer with an arrow indicating downward motion, no text or symbols present

Line drawing of a laboratory brush tool in a beaker with motion arrows indicating rotation (no text or symbols)

The hand blender is intended for :

• blending luqids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
• mixing soft ingredients, e.g.

• pureeing cooked ingredients, e.g. for making baby food.

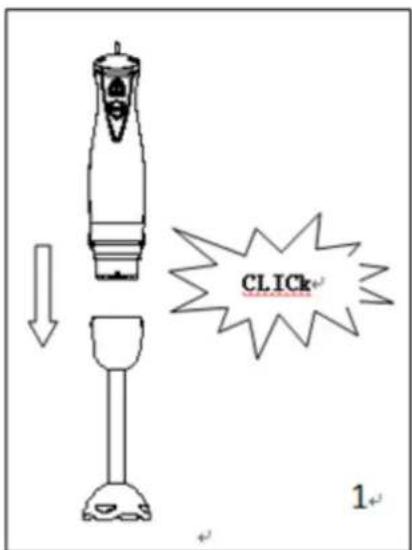

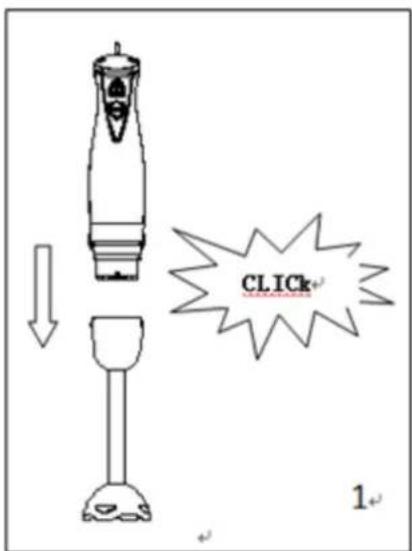

• Attach the blender bar to the motor unit (Fig.2., fig..1 for SB-250SS).

• Put the ingredients in the beaker.
• Immerse the blade guard completely in the ingredients(Fig.3, fig..2 for SB-250SS).
• Pressing the normal or turbo speed button to switch on the appliance(Fig.4, fig.3 for HB-250SS).
• Move the appliance slowly up and down and in circles to blend the ingredient.

Attention: The blades are very sharp! So be very careful when handling the blade unit.

Care and cleaning

Do not immerse the motor unit and the whisk coupling unit in water.

● Unplug the appliance before cleaning.
● Dissemble all the parts.
- Do not immerse the motor unit into water.
● Wipe the motor unit with a moist doth..
● Clean the beaker, in the dishwasher or in warm water with some washing-up liquid.
● Dry and store them for future use.

Blending quantities and preparation times

Ingredients	Blending quantity	Time
Fruitsvegetables	50-100g	25 seconds
Baby food, soups & sauces	50-200ml	25 seconds
Batters	50-250ml	25 seconds
Shakes & mixed drinks	50-500ml	25 seconds
