Product Type	Deep Fryer
Model	FF-1802
Brand	Vivax
Oil Capacity	2.5 liters (between MIN and MAX marks)
Temperature Range	150°C - 190°C (preset steps: 150°, 170°, 190°C)
Thermostat	Variable, with pilot lights (power and temperature)
Power Supply	220V AC
Filter System	Permanent, replaceable after approximately 60 uses
Viewing Window	Yes, with anti-convection coating (smear with oil)
Basket	Removable, metal, with insulated handle
Cord Storage	Yes, rear cable holder
Safety Features	Thermal safety device, automatic cutout, cord storage, child safety warnings
Cleaning	Remove basket, wipe interior with damp cloth and mild detergent; no abrasives
Usage	Household use only
Included Accessories	Fry basket, lid, filter, handle, cord with storage
Weight	Approximately 3.5 kg
Dimensions (approx.)	35 x 25 x 30 cm

Frequently Asked Questions - FF-1802 Vivax

What is the maximum oil capacity of the Vivax FF-1802?

The maximum oil capacity is 2.5 liters, as indicated by the MAX mark on the inner pot. Always keep oil level between MIN and MAX marks.

How do I safely open the lid during or after frying?

Press the specially designed lid-open button to release the lid automatically. This allows steam to escape safely and prevents scalding.

How often should I replace the filter?

The permanent filter should be replaced after approximately 60 frying sessions. Refer to figure 7 in the manual for replacement instructions.

What temperature settings are available?

The thermostat offers three preset temperatures: 150°C, 170°C, and 190°C. Choose based on the food you are frying (see reference menu).

Can I use the fryer without oil?

No. Using the fryer without oil or fat will severely damage the appliance. Always fill with oil to the proper level.

How do I prevent condensation on the viewing window?

Smear the inner face of the viewing window with a little oil before use. This prevents condensation and allows you to monitor the cooking process.

What should I do if the power cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the fryer until repaired.

How do I store the power cord?

Wrap the cord around the rear cable holder located on the back of the fryer. This keeps it tidy and out of reach of children.

Is the deep fryer safe to use around children?

Children should be supervised to ensure they do not play with the appliance. Keep the fryer and cord away from children to prevent burns or accidents.

What type of oil is recommended?

Use good quality vegetable oil or all-purpose shortening for deep frying. Butter, margarine, olive oil, or animal fat are not recommended due to lower smoking temperatures.

USER MANUAL FF-1802 Vivax

White kitchen grater with digital display and control buttons (no visible text or symbols)

Upute za uporabu

Ovaj uređaj je namijenjen isključivo za kućnu uporabu.

Line drawing of a child reaching toward an open device with a cable, no text or symbols present

DRŽITE PODALJE DJECE

UPOZORENJE

PAD FRITEZE SA RADNE POVRŠINE MOŽE REZULTIRATI OZBILJNIM OPEKLINAMA. NE DOPUŠTAJTE DA STRUJNI KABEL VISI PREKO RUBA RADNE POVRŠINE NA MJESTU NA KOJEM GA MOGU POVUČI DJECA ILI SE O NJEGA SPOTAKNUTI.

NE KORISTITE SA PRODUŽNIM KABELOM

SIGURNOSNE UPUTE

Technical line drawing of a mechanical component with a magnifying glass and a circular housing, accompanied by a checkmark symbol (no text or labels present)

SL. 1

Line drawing of a toaster with a hand pressing down on the front pan (no text or symbols)

SL. 2

Line drawing of a submarine hull with a cross symbol above it, partially submerged in water (no text or labels)

SL. 3

NAPOMENE

SL. 4

TIPKA ZA OTVARANJE POKLOPCA

Line drawing of a hand pressing down on a small electronic device (no text or symbols)

SL. 5

Line drawing of two identical devices with arrows indicating a process or operation (no text or symbols present)

SL. 6

FILTAR

Poklopac je opremljen permanentnim filtrom koji sakuplja kapljice ulja iz pare dok prolazi kroz filtar. Filtar bi trebalo zamijeniti (SL. 7) nakon 60 uporaba friteze (otprilike).

POHRANA STRUJNOG KABELA

Na stražnjoj strani friteze se nalazi držač za pohranu strujnog kabela. Kada se friteza ne koristi kabel se može jednostavno omotati oko držača. (SL. 8).

SL. 7

SL. 8

PROZORČIĆ

White kitchen grater with digital display and control buttons (no visible text or symbols)

Line drawing of a child reaching toward a device with a switch, no text or symbols present

DRŽITE DALJE OD DECE

UPOZORENJE

PAD FRITEZE SA RADNE POVRŠINE MOŽE REZULTIRATI OZBILJNIM OPEKOTINAMA. NE DOPUŠTAJTE DA STRUJNI KABL VISI PREKO RUBA RADNE POVRŠINE NA MESTU NA KOJEM GAMOGU POVUĆI DECA ILI SE O NJEGA SPOTAKNUTI.

NE KORISTITE SA PRODUŽNIM KABLOM

SIGURNOSNE UPUTSTVO

Technical line drawing of a mechanical component with a magnifying glass and a circular housing, accompanied by a checkmark symbol (no text or labels present)

SL. 1

Line drawing of a toaster with a hand pressing down on the front pan (no text or symbols)

SL. 2

Line drawing of a submarine hull with a cross symbol above it, partially submerged in water (no text or labels)

SL. 3

NAPOMENE

SL. 4

TIPKA ZA OTVARANJE POKLOPCA

Line drawing of a hand pressing down on a small electronic device (no text or symbols)

SL. 5

Line drawing showing two steps of a device being placed on top, with no text or symbols present.

SL. 6

FILTER

Poklopac je opremljen permanentnim filterom koji sakuplja kapljice ulja iz pare dok prolazi kroz filter. Filter bi trebalo zameniti (SL. 7) nakon 60 upotreba friteze (otprilike).

ČUVANJE STRUJNOG KABLA

Na zadnjoj strani friteze se nalazi držač za čuvanje strujnog kabla. Kada se friteza ne koristi kabl se može jednostavno obmotati oko držača. (SL. 8).

White kitchen toaster with digital display and control buttons (no visible text or symbols)

Line drawing of a child interacting with a medical device on a table, no text or symbols present

Technical line drawing of a mechanical component with a magnifying glass and a circular housing, no text or symbols present.

СЛ. 1

Line drawing of a toaster with a hand pressing down on the door (no text or symbols)

СЛ. 2

Line drawing of a mechanical device with a cross symbol above it, no text or labels present

СЛ. 3

ЗАБЕЛЕШКИ

СЛ. 4

КОПЧЕ ЗА ОТВОРАЊЕ НА КАПАКОТ

Line drawing of a hand using a water heater to press or install a component (no text or symbols)

Line drawing showing two steps of a device operation: one with a handle and arrow, the other with a screen and button (no text or symbols)

СЛ. 6 СЛ. 5

ФИЛТЕР

White kitchen grater with digital display and control buttons (no visible text or symbols)

Line drawing of a child reaching toward a device with a coiled cable, no text or symbols present

MBAJENI MË LARG FËMIJËVE

PARALAJMËRIM

RRÉZIMI I FRITEZÉS NGA SIPÉRFAQIA F. PUNÉS MUND TÊ REZULTOJÊ ME DJEGIE TÊ RÉNDÊ. MOS LEJONI QÊ KORDONI I RRYMÉS TÊ VARRET MBI SKAJET F. SIPÉRFAQES PUNUESE TÊ CILÊN DO TÊ MUND TÊ TÊRIJEQIN FÊMIJÊT OSE MUND TÊ RRÉZOHEN.

MOS E PËRDORNI ME KORDON VAZHDUES

UDHËZIME SIGURIE

FIG. 4

SUSTA PËR HAPJE TË KAPAKUT

Line drawing of a hand using a water heater to press down a surface (no text or symbols)

FIG. 5

Line drawing of a device being assembled into a container, showing internal components and motion arrows (no text or symbols)

FIG. 6

FILTRI

FIG. 8

DRITARJA

White kitchen grater with digital display and control buttons (no visible text or symbols)

Instruction Manual

This product is for household use only Please read all instructions before use

DO NOT DRAPE CORD!

Line drawing of a child reaching for a device with a cable, connected to an open case (no text or symbols)

KEEP AWAY FROM CHILDREN!

WARNING

SERIOUS HOT-OIL BURNS MAY RESULT FROM THE DEEP FRYER BEING PULLED OFF OF A COUNTERTOP. DO NOT ALLOW THE CORD TO HANG OVER THE EDGE OF THE COUNTER WHERE IT MAY BE GRABBED BY CHILDREN OR BECOME INTAAGLED WITH THE USER.

DO NOT USE WITH AN EXTENSION CORD

SAFETY GUIDENCE

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surface .Use handles or knobs.

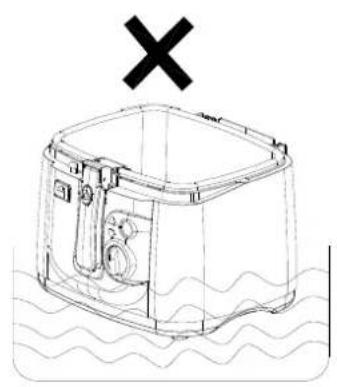

3. To protect against electric shock do not immerse cord, plug and fryer in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow cooling before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug, should the appliance malfunction, or if it has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessories is not recommended by the appliance manufacturer as it may cause injuries.

8. Do not use the appliance outdoors.

9. Do not let cord hang over edge of a table, or touch hot surface.

10. Do not place on or near a hot gas, electric burner, or in a heated oven.

11. Extreme caution must be taken when moving an appliance containing hot oil or other hot liquid.

12. Do not use appliance for other use.

This appliance complies with CE –Directives for EMC is engineered to the latest safety technical

requirements.

Subject to technical changes without notice.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE!

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.

NOTE

Plug cord into a 220 Volt AC outlet.

Before using fryer for the first time, wash the pot and basket thoroughly with warm, soapy water, carefully dry aluminum pot to maintain the good aesthetic appearance.

Do not use fryer without oil or fat. Fryer will be severely damaged if heated dry.

This fryer has a thermal safety device. In case of thermostat failure, the electrical circuit has an automatic cutout, thus preventing overheating.

Should the fryer leak, please contact the company from which you purchased the fryer.

To ensure safe operation, excessive food or utensils must not be inserted into the fryer.

PARTS

1. BUTTON
2. BASKET HANDLE
3. FRY BASKET
4. HOUSING
5. REFERENCE MENU
6. LID -OPEN BUTTON

7. VIEWING WINDOW

8. FILTER SYSTEM

9. POWER LIGHT

10. TEMPERATURE LIGHT

11. ON/OFF SWITCH
12. VARIABLE THERMOSTAT
13. REAR CABLE HOLDER
14. AC CORD

BASKET HANDLE

The BASKET HANDLE allows you to raise/lower the basket when the fryer lid is closed (FIG.4) Move handle up: basket up.

Push handle knob down: basket down.

FIG. 4

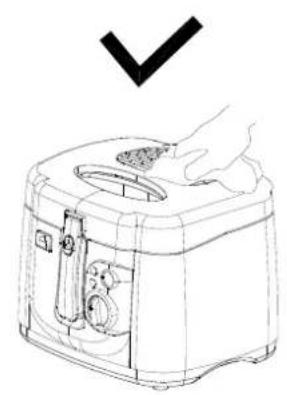

LID-OPEN BUTTON

The special designed LID-OPEN BUTTON helps you open the lid much more easily and safely. Push the button, and fry lid will release automatically. Thus steam will escape from the deep fryer when fried to avoid scalding the fingers (FIG.5)

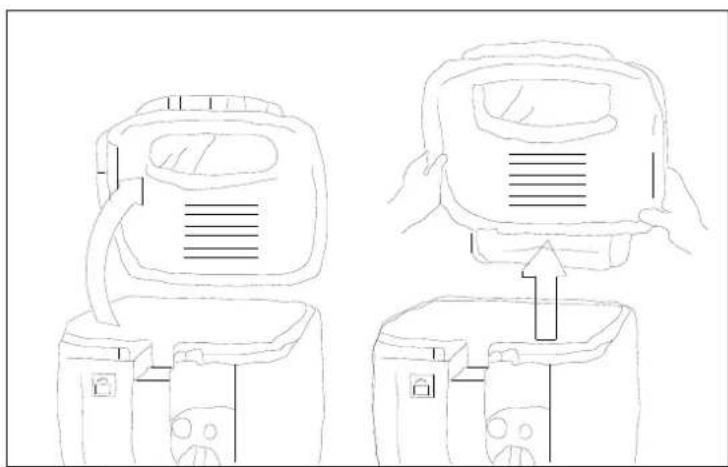

TO REMOVE THE LID

To remove the lid, lift the lid to a vertical position and pull it upwards. (FIG.6)

Line drawing of a hand using a water heater to press or install a component (no text or symbols)

FIG. 5

Line drawing showing two steps of a device being placed on top, with no text or symbols present.

FIG. 6

FILTER SYSTEM

The lid is fitted with a permanent filter system, which collects drops of oil from the steam as it passes through the filter. The filter should be replaced (FIG.7) after being used for 60 times(around 60 times).

CORD STORAGE

There is a cord storage compartment in the base. When not in use, the cable can be easily put around the holder. (FIG.8).

FIG. 7 FIG. 8

VIEWING WINDOW

Smear the inner face of the viewing window with the oil to prevent condensation forming and to enable cooking process to be checked.

THERMOSTAT AND PILOT LIGHT

The thermostat is calibrated in steps marked, 150^ , 170^ , and 190^ , which offers you the best temperature to suit the food to be fried.

TEMPERATURE LIGHT will light automatically while the temperature keeps rising and go out when the set temperature is reached.

POWER LIGHT it will light automatically when the appliance is plugged.

REFERENCE MENU

The frying time given in this chart is only for reference.

FOOD TYPE	TEMPERATURE (°C)	TIME (minutes)
mushrooms	150°C	3-5
crumbed chicken	170°C	12-14
whole shrimp	170°C	2-4
fish cakes	170°C	3-5
fillets	170°C	5
onions	190°C	2-4
french fries	170°C	8-10
potato chips	190°C	2-4

DEEP FRYER USAGE

1. Remove the basket with the handle from the bracket.
2. Pour between 2-2.5 litres of oil into the fryer. The level of oil must be between the MAX and MIN level marked on the surface of the pot. (FIG.9)
   . Use only good quality vegetable oil or all purpose shortening for deep frying. Butter, margarine, olive oil or animal fat is not recommended due to its lower smoking temperatures.

FIG. 9

1. Smear the viewing window with a little oil.

2. Plug in the mains and set thermostat to the required temperature (see the reference menu) The temperature light will go out when the set temperature is reached.

3. Add food (as dry as possible) into the basket first.

. Do not overload basket.

. Place food of uniform size into the basket so that cook evenly.

. Be sure to dry all food before frying.

1. Place the basket back into the fryer. Remove the handle and close the lid. Turn the BASKET knob down to have basket and food immersed in the oil.

. Do not add water or wet stuff to the cooking oil, even small amounts of water will cause oil to spatter.

1. After cooking, lift the basket out of the oil to drain. Push the LID-RELEASE BUTTON to open the lid.

HINTS

1. Use only metal kitchen utensils with insulated handles in hot oil.
2. As is carefulness should be taken when frying, especially when children are near by.
3. Taking into account the food type select the temperature for frying. As a general guide, food that has been pre-cooked in some way need a higher temperature and less cooking time than those raw food.

MAINTENANCE AND CLEANING

1. The power supply must be cut before cleaning.
2. Empty the condensation tray.
3. Cool the oil completely. Oil or fat retains its temperature for a long time after use. Do not attempt to move or carry the fryer while it is still hot.
4. Oil can be reused several times. Get the maximum use from your fryer by always having it ready for use. One way of doing this is to keep the cooled and strained oils inside ready for the next frying session with the lid acting as a dust cover.
5. Oil should be filtered after use each. time.
6. After draining the oil, the fryer should be wiped out with absorbent paper then with damp cloth and a little detergent and finally cleaned with a dry cloth.
   . The interior of the fryer has a plain aluminum surface. To avoid damage, no abrasives or sharp instruments should be used.
7. The exterior can be cleaned with damp, not to use abrasives or scouring pads.
8. The basket can be washed in warm soapy water.
9. Remove the used filter and replace with a new one after approximately 60 frying sessions.

WARNING:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the appliance.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

4. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
