PST 650 PE - Jigsaw BOSCH - Free user manual and instructions

Input power	500 W
Output power	300 W
Maximum stroke speed	3,100 strokes/min
Pendulum movement	4 adjustable positions
Wood cutting depth	65 mm
Aluminum cutting depth	10 mm
Steel cutting depth	4 mm
Base tilt	45° left and right
Tool-free blade change	SDS system
Chip blower	Yes, switchable on/off
Vacuum connector	Yes
Typical weighted vibrations	5 m/s²
Weight	1.6 kg
Dimensions (L x W x H)	102 x 338 x 292 mm
Included accessories	Blade T 144 D, storage case

Frequently Asked Questions - PST 650 PE BOSCH

How do I change the blade of the BOSCH PST 650 PE?

The PST 650 PE is equipped with the SDS system (quick change) which allows the blade to be replaced without tools. First, unplug the machine, press the release button, remove the old blade, then insert the new one until it clicks into place. Ensure the blade is securely locked before restarting.

What are the maximum cutting depths of the PST 650 PE?

The PST 650 PE jigsaw can cut up to 65 mm in wood, up to 10 mm in aluminum, and up to 4 mm in steel. These values are maximums not to be exceeded to preserve the blade and the motor.

What is the purpose of the pendulum motion and how do I adjust it?

The pendulum motion increases the cutting speed in soft materials like wood. The PST 650 PE offers 4 adjustment positions via a lever accessible even while the machine is running. Use position 0 (without pendulum) for hard materials or finishing cuts, and positions 1 to 3 for faster cuts in wood and plastics.

How do I make a bevel cut with the PST 650 PE?

The base of the PST 650 PE can tilt up to 45 degrees on each side. Loosen the base locking lever, tilt it to the desired angle using the engraved scale, then tighten firmly before cutting.

Can a vacuum cleaner be connected to the PST 650 PE?

Yes, the machine is equipped with an integrated vacuum connector. Connect a compatible vacuum cleaner to the designated outlet. The PST 650 PE also features a chip blower that you can activate or deactivate to clear the cutting line.

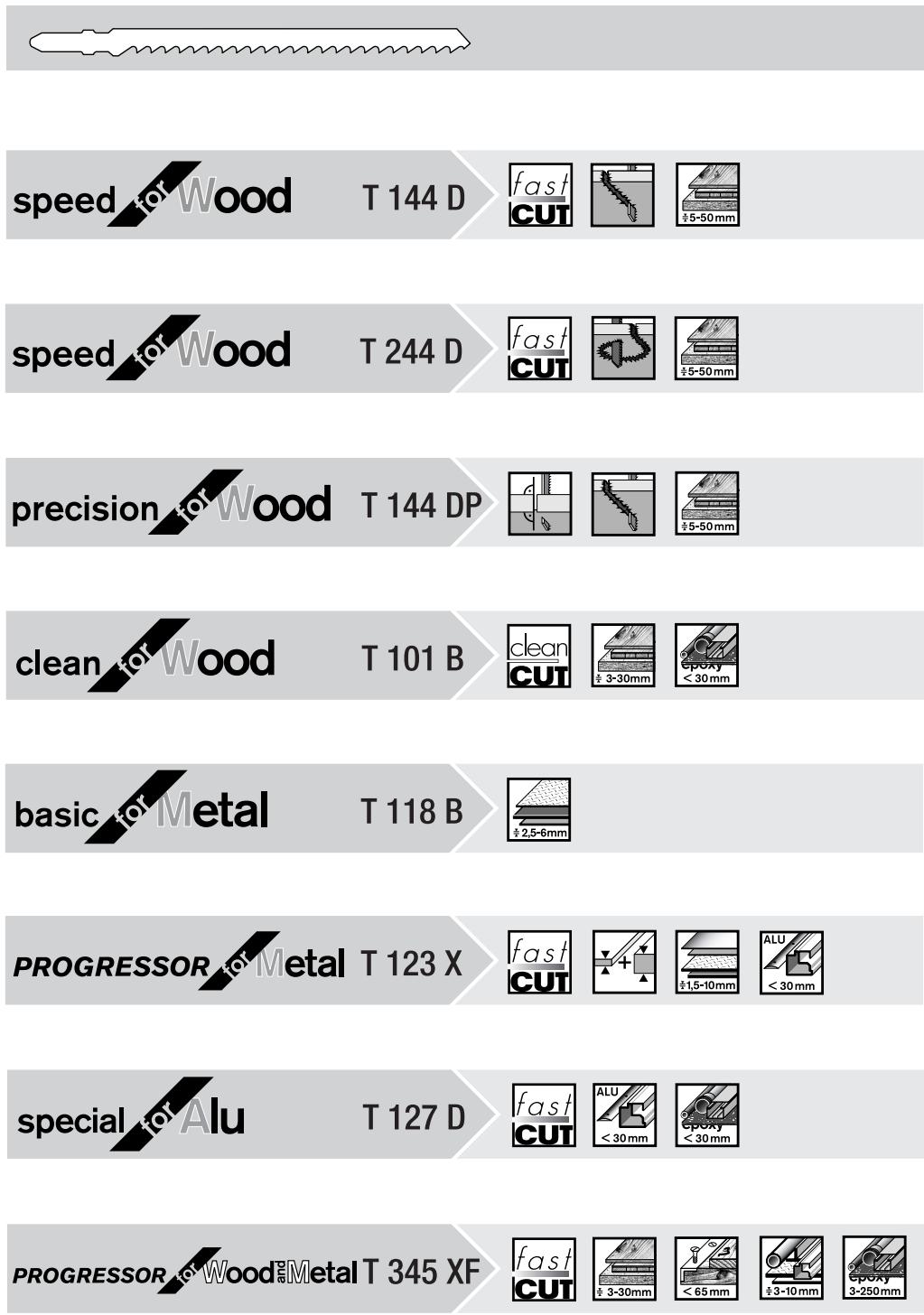

Which blade should I choose according to the material to be cut?

Choose the blade suitable for the material:

• Wood: wide-tooth blade (e.g., T 144 D provided)
• Laminates and panels: fine-tooth blade
• Aluminum: special non-ferrous metal blade
• Steel: bi-metal HSS blade

All compatible blades are inserted via the SDS system without tools.

The blade frequently breaks, what are the causes?

Blade breakage generally has several causes:

• Inappropriate blade for the material
• Too fast forced feed
• Pendulum motion too high for a hard material
• Worn or improperly locked blade in the SDS system

Reduce feed pressure, check the locking, and adjust the pendulum setting to the material being worked on.

Is the cutting speed variable on the PST 650 PE?

The PST 650 PE reaches a maximum speed of 3,100 strokes per minute. The speed depends on the pressure applied to the trigger: a gradual pressure allows for a smooth start and control adapted to the material being cut.

How do I achieve an interior (plunge) cut?

For a plunge cut in a soft material like wood, tilt the saw by pressing the tip of the base on the surface. Start the machine, then gradually tilt it until the blade fully penetrates the material. This technique is not recommended for hard materials or beyond 30 mm thickness.

The machine heats up during prolonged use, is this normal?

A slight heating is normal during long cuts. Avoid operating the machine continuously in hard materials. If the motor slows down significantly or if the heat becomes excessive, stop the machine and let it cool for a few minutes before resuming.

What materials can be worked with the BOSCH PST 650 PE?

The PST 650 PE is designed to cut wood, chipboard, laminates, parquet, a wide range of plastics, as well as aluminum and steel with the appropriate blades.

How do I maintain the BOSCH PST 650 PE?

After each use, remove chips around the blade guide and base using a dry brush or compressed air. Regularly check the condition of the blade and replace it as soon as it shows signs of wear. The motor requires no internal lubrication.

USER MANUAL PST 650 PE BOSCH

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

B 15

C PST 650 PE PST 750 PE 16 17 18

D 5 PST 850 PE

E PST 650 PE PST 750 PE 19 20 21 17

Technical illustration of a sewing machine needle cutting through a wooden surface, with no visible text or symbols

Mechanical assembly diagram showing a sewing machine with clamping mechanism and labeled part (22), no readable text or symbols beyond labels

H ① ②

Gerätekennwerte

Two identical oval-shaped objects with striped patterns, no text or symbols visible

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Mauka i.v. Mige

Product Specifications

Jigsaw		PST 650 PE	PST 750 PE	PST 850 PE
Order number		0 603 381 7..	0 603 382 7..	0 603 383 7..
Rated input power	[W]	470	600	620
Output power	[W]	280	360	370
Stroke rate at no load	[per min]	500–3100	500–3100	500–3100
Stroke	[mm]	23	23	23
Stroke rate selection		●	●	●
Pendelum action		●	●	●
Maximum cutting depth
in wood	[mm]	68	75	85
in aluminium	[mm]	15	18	18
in non-alloyed steel	[mm]	4	6	8
Bevel cuts (left/right)	[°]	0–45	0–45	0–45
Weight without mains cable approx.	[kg]	1.9	2.4	2.4
Protection class		/ II	/ II	/ II

Please observe the order number of your machine. The trade names of the individual machines may vary.

Noise/Vibration Information

Measured values determined according to EN 50 144.

The A-weighted sound pressure levels of the machines are typically:

PST 650 PE 82 dB(A)

PST 750 PE/PST 850 PE 84 dB(A)

The noise level when working can exceed 85 dB(A).

Wear ear protection!

PST 650 PE: The typically weighted acceleration is 5 m/s^2 .

PST 750 PE/PST 850 PE: The typical hand-arm vibration is below 2.5 m/s ^4 .

Intended Use

The machine is intended for making separating cuts and cutouts in wood, plastic, metal, ceramic plates and rubber while resting firmly on the workpiece. It is suitable for straight and curved cuts with bevel angles to 45^ . The saw blade recommendations are to be observed.

Product Elements

1 Stroke rate selection thumbwheel
2 On/off switch
3 Locking button for on/off switch
4 Blow-out opening/Vacuum hose*
5 Clamping lever for base plate (PST 850 PE)
6 Base plate
7 Lever for pendulum stroke adjustment
8 Switch for sawdust blowing device (PST 750 PE/PST 850 PE)
9 SDS lever for saw blade release
10 Guide roller
11 Saw blade*
12 Contact protector
13 Dust cover for vacuuming
14 Stroke rod
15 Splintering protector*
16 Cutting angle scale
17 Screw
18 Protractor**
19 Threaded hole
20 Front cut-out
21 Retainer
22 Parallel Guide/Circle Cutter*
* Optional accessories
** Commercially available (not included in the delivered items)
Not all the accessories illustrated or described are included in standard delivery.

For Your Safety

Working safely with this machine is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed.

In addition, the general safety notes in the enclosed booklet must be observed.

Before using for the first time, ask for a practical demonstration.

If the cable is damaged or cut through while working, do not touch the cable but immediately pull the mains plug. Never use the machine with a damaged cable.
■ Connect machines that are used in the open via a residual current device (RCD) with an actuating current of 30 mA maximum. Do not operate the machine in rain or moisture.
■ Wear safety glasses.
■ Working with material containing asbestos is not permitted.
■ Always direct the cable to the rear away from the machine.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
■ Apply the machine to the workpiece only when switched on.
■ When working, never place a hand or fingers in front of the saw blade.
■ The cutting path must be free of obstacles both above and below.
■ When sawing, the complete surface of the base plate 6 must be in secure contact.
■ For the working of smaller or thin workpieces, use a stable foundation or a saw table (accessory).
■ Use only sharp, flawless saw blades. Replace immediately cracked, bent or dull saw blades.
■ When the cut is completed, switch off the machine and then pull the saw blade out of the cut only after it has come to a standstill (danger of kick-back).
■ Always switch the machine off and wait until it has come to a standstill before placing it down.
■ After switching off, do not brake the saw blade to a stop by applying side pressure.
■ Never allow children to use the machine.
- Bosch is able to ensure flawless functioning of the machine only if the original accessories intended for it are used.

A Inserting/Changing the Saw Blade

■ Before any work on the machine itself, pull the mains plug.
■ For inserting or changing the saw blade 11, the wearing of protective gloves is recommended.

① Inserting the Saw Blade

Insert the saw blade (teeth in the cutting direction) into the stroke rod 14 until it latches. The SDS clamping lever 9 springs to the rear and locks the saw blade.

Take care when inserting the saw blade that the rear edge of the saw blade rests in the groove of the guide roller 10.

② Ejecting the Saw Blade

To eject the saw blade, turn the SDS lever 9 to the front in the insertion position. The saw blade is released and ejected.

Dust/Chip Vacuuming

■ Dust produced while working can be detrimental to health, inflammable or explosive. Suitable protection measures are required.
Examples: Some dusts are considered to be carcinogenic. Use suitable dust/chip extraction and wear a dust protection mask.
■ Light metal dust can burn or explode. Always keep the work place clean since material mixtures are especially dangerous.

Cover Guard

When using a vacuum cleaner, always mount the dust cover 13 and slide it completely downward.

Attaching: Insert the cover guard from above into the guide and slide downward until it latches.

Removing: Take hold of the cover guard on the sides and pull off in the upward direction.

Connection for a Vacuum Cleaner

(Accessory pages)

Connect the vacuuming hose (19 mm dia., accessory) directly to the blow-out opening 4.

The vacuum cleaner must be suitable for the material to be worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

Putting into Operation

Ensure that the mains voltage is correct!

The voltage of the power source must agree with the value given on the nameplate of the machine. Machines designated for 230 V can also be operated with 220 V.

Switching On/Off

To switch on the machine, press the on/off switch 2.

Lock the depressed on/off switch 2 by pressing the lock-on button 3.

To switch off the machine, release the on/off switch 2 or push and then release it.

Continuously Variable Stroke Rate Adjustment

Light application of pressure on the on/off switch 2 results in a low stroke rate. Increasing pressure results in a higher stroke rate.

Stroke Rate Preselection

The required stroke rate can be preselected (also during operation) using the thumbwheel 1.

The required stroke rate is dependent on the material and the working conditions and can be determined by a practical trial.

Sawdust Blower (PST 750 PE/PST 850 PE)

With the air stream of the sawdust blowing device 8, the cutting line can be kept free of dust.

Blower effect switched on:

For working with wood, plastic and other materials that produce large amounts of dust.

Blower effect switched off:

For working with metals and when cooling or lubricating agents are used.

Pendelum Action Setting

The pendulum action that is adjustable in four steps makes possible the optimum adaptation of cutting speed and performance as well as cutting pattern to the material being worked.

The pendulum action can be set with the adjustment lever 7 (also when the machine is running).

Step 0: No pendulum action

Step I: Small pendulum action

Step II: Medium pendulum action

Step III: Large pendulum action

It is recommended that:

• The finer and cleaner the cut edge should be, the smaller the pendulum action step selected should be or the pendulum action switched off.
• The pendulum action be switched off for working with thin materials such as sheet metal, for example.
• The small pendulum action step be used in hard materials such as steel, for example.
• In soft materials and for cuts in the direction of the grain, the maximum pendulum action be used.

The optimal setting can be determined in practice.

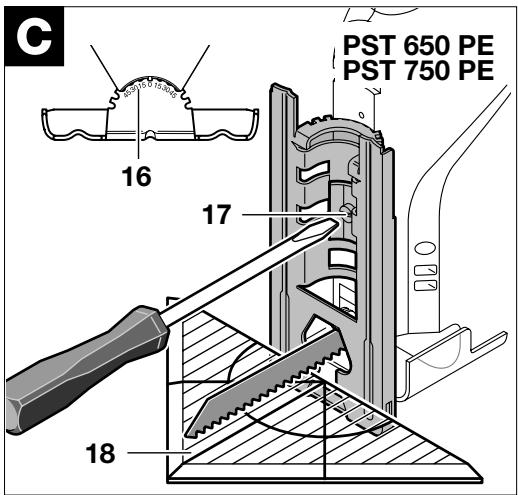

C/D Adjusting the Cutting Angle

PST 650 PE/PST 750 PE

Loosen the screw 17 and slide the base plate 6 forward somewhat in the direction of the saw blade. The base plate can be swung to both sides by 45°.

Any cutting angle can be set exactly with a protractor 18.

For the setting of precise bevel angles, the base plate has a scale 16 with detent points in 15^ steps. Slide the rotated base plate in the direction of the blow-out opening until it latches.

After adjusting, retighten the screw 17.

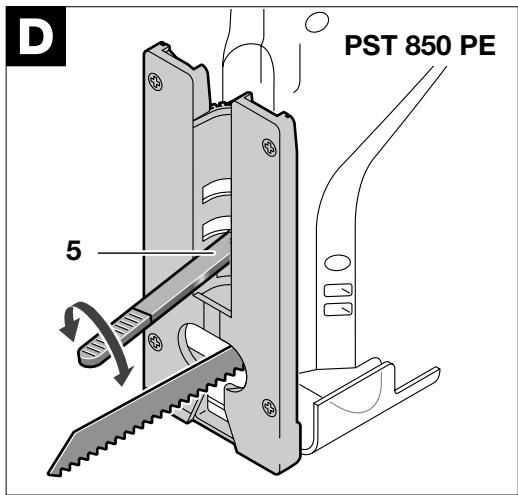

PST 850 PE

Swing the clamping lever 5 out of the base plate 6 and loosen the base plate by turning the clamping lever anti-clockwise.

Then slide the base plate 6 somewhat in the direction of the saw blade. The base plate can be swung to both sides by 45^ .

Any cutting angle can be set exactly with a protractor 18.

For the setting of precise bevel angles, the base plate has a scale 16 with detent points in 15^ steps. Slide the rotated base plate in the direction of the blow-out opening until it latches.

Retighten the clamping lever 5 by turning clockwise and swing back into the base plate. Take care that the clamping lever is completely sunk into the base plate 6.

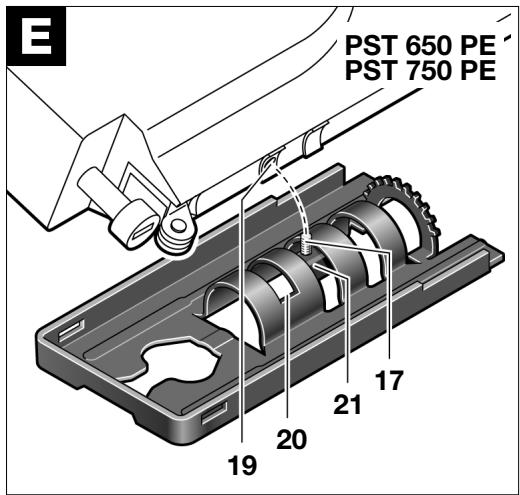

D/E Offsetting the Foot Plate

For sawing close to edges, the foot plate can be offset to the rear.

• With the base plate repositioned, the cutting angle cannot be changed.
• The circle cutter/parallel guide 22 as well as the splintering protector 15 cannot be used.

PST 650 PE/PST 750 PE

Unscrew the screw 17 completely. Lift off the base plate and reposition so that the screw 17 with the retainer 21 fits in the front cut-out 20 of the base plate and can be screwed into the threaded hole 19.

Before tightening the screw 17, press the base plate to the rear until it latches.

PST 850 PE

Swing the clamping lever 5 out of the base plate 6 and loosen the base plate by turning the clamping lever anti-clockwise.

Slide the base plate 6 to the stop in the direction of the blow-out opening.

Retighten the clamping lever 5 by turning clockwise and swing back into the base plate. Take care that the clamping lever is completely sunk into the base plate 6.

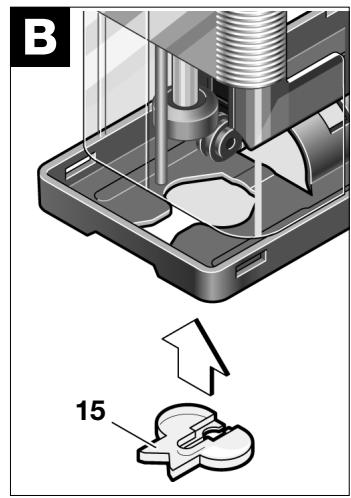

B Splintering Protector

To prevent the splintering of the surface when sawing wood, insert the splintering protector into the base plate 6 from below.

The splintering protector can be used only with certain types of saw blades.

Tips

After working for a long period with a low stroke rate, allow the machine to cool by running for approx. 3 minutes without a saw blade and at maximum stroke rate.

For narrow curves, use a thin saw blade.

When sawing metal or similar material, apply a cooling or lubricating agent along the cutting line.

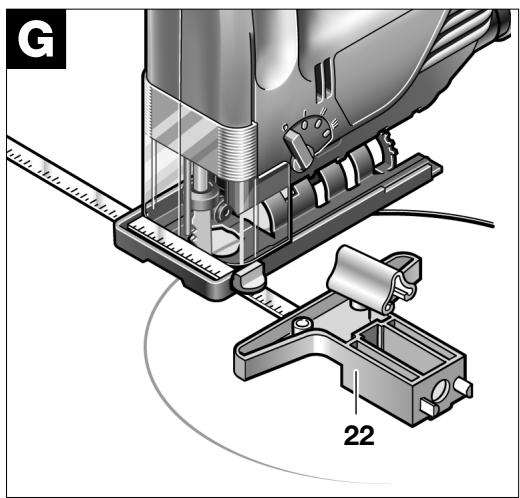

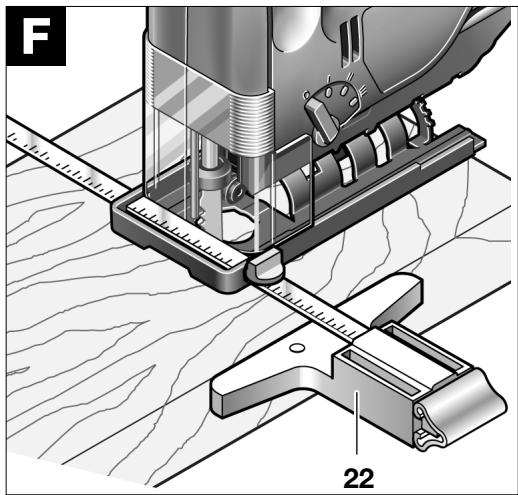

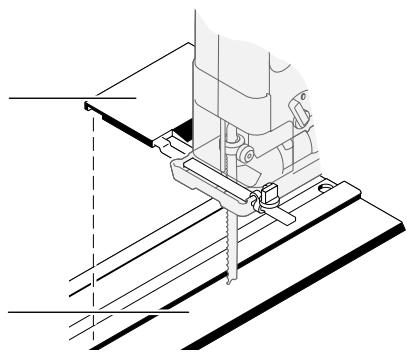

F /G Parallel Guide/Circle Cutter (Accessory)

Maximum material thickness: 30 mm

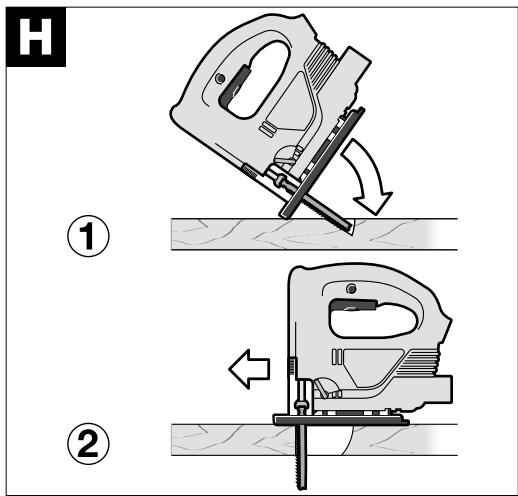

H Plunge Sawing

Plunge cutting may be used only on soft materials such as wood, aerated concrete, gypsum plaster boards, etc.!

Use only short saw blades.

Place the front edge of the base plate on the workpiece and switch on. Press the machine firmly against the workpiece and plunge the saw blade slowly into the workpiece.

As soon as the complete surface of the base plate rests on the work piece, continue to saw along the cutting line.

Maintenance and Cleaning

■ Before any work on the machine itself, pull the mains plug.
■ For safe and efficient working, always keep the machine and the ventilation slots clean.

To avoid malfunctions, do not work with materials that produce large amounts of dust from below or overhead. Clean the saw blade holder regularly, for example, by lightly tapping the machine on a flat surface.

In extreme working conditions, conductive dust can accumulate in the interior of the machine when working with metal. The protective insulation of the machine can be degraded. The use of a stationary extraction system is recommended in such cases as well as the frequent blowing out of the ventilation slots and the installation of a residual current circuit breaker (RCD).

Lubricate the guide roller 10 from time to time with a drop of oil and check for wear. If it is worn, it must be replaced.

WARNING

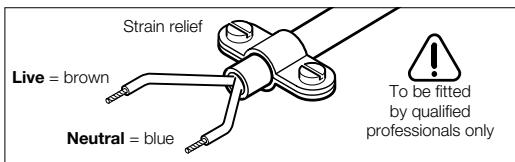

Important instructions for connecting a new 3-pin plug to the 2-wire cable.

The wires in the cable are coloured according to the following code:

Strain relief Live = brown Neutral = blue To be fitted by qualified professionals only

Do not connect the blue or brown wire to the earth terminal of the plug.

Important: If the plug on the cable of this machine must be replaced, dispose of the old plug to prevent misuse.

If the machine should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools.

For all correspondence and spare parts orders, always include the 10-digit order number of the machine.

Environmental Protection

Recycle raw materials instead of disposing as waste.

The machine, accessories and packaging should be submitted for environment-friendly recycling.

These instructions are printed on recycled paper manufactured without chlorine.

The plastic components are labelled for categorised recycling.

CE Declaration of Conformity

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents:

EN 50 144 according to the provisions of the directives 89/336/EEC, 98/37/EC.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. dawala

i.v. Mige

Specification subject to alteration without notice

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

Two identical oval-shaped objects with striped patterns, no text or symbols visible

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. d### i.v. m#ge

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. deuena

i.v. Mige

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. dawala

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Mauca

Two identical oval-shaped objects with striped patterns, no text or symbols visible

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Mauka i.v. Mige

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Mauka i.v. Mige

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Mauca

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. dawick

i.v. Mige

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. dawaka

PST 750 PE/PST 850 PE:

Tipik el/kol titreşimi 2,5 m/s² ‘den düşük.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

© Kundenberater:....01 80/3 33 57 99

Österreich

ABE Service GmbH

Service and Customer Advice

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

© Service .....+44 (0) 18 95/83 87 82

© Advice line. . . . . . . . . . . . . +44 (0) 18 95/83 87 91

Fax .....[phone]

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

© Service .....+ 353 (0)1/414 9400

Fax....[phone]

Australia

Robert Bosch Australia L.t.d.

RBAU/SBT2

1555 Centre Road

P.O. Box 66 Clayton

3168 Clayton/Victoria

📞 +61 (0)1/800 804 777

Fax ..... [phone]

www.bosch.com.au

E-Mail: [e-mail]

New Zealand

Robert Bosch Limited

14-16 Constellation Drive

Mairangi Bay

Auckland

New Zealand

📞 +64 (0)9/47 86 158

Fax ..... [phone]

Service Après-Vente

www.bosch-pt.com

France

Robert Bosch France S.A.

Service Après-vente Outillage

① +351 21/8 50 00 00

Fax .....[phone]

Brasil

Robert Bosch Ltda.

Caixa postal 1195

13065-900 Campinas

① 0800/70 45446

E-Mail: [e-mail]

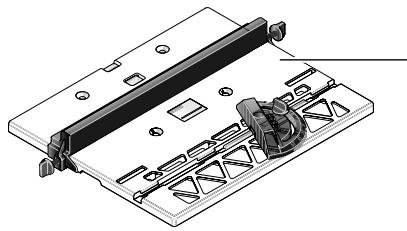

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

2 607 001 201
2 607 001 069
2 602 317 031
(1,4 m)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

MT 300 WP
0 603 037 103
2 600 306 005

Line drawing of a cylindrical device connected to a rectangular electronic device (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

PST 650 PE: 2 605 438 429
PST 750 PE/
PST 850 PE: 2 605 438 430
2 607 010 079
(5x)

1 609 390 474

PAS 10-20
PAS 850

Line drawing of a manual pusher with base mount (no text or symbols)

2 600 793 009 (3 m)
1 610 793 002 (5 m)

1 609 200 933

PAS 11-25 F
PAS 11-25
PAS 12-50 F

2 607 000 748

PAS 12-27 F
PAS 12-27
PAS 11-21

Chlor

BOSCH

Robert Bosch GmbH

Printed in Switzerland – Imprimé en Suisse
