MS2006 - Hand blender VOX - Free user manual and instructions

Product Type	Hand Blender
Model	MS2006
Brand	VOX
Power	200 W
Voltage	220-240 V ~ 50/60 Hz
Speeds	2 speeds + turbo
Cord Length	1.5 m
Blender Shaft Material	Stainless steel
Beaker Capacity	500 ml (included)
Dimensions (L x W x H)	20 x 6 x 6 cm (without beaker)
Weight	0.8 kg
Housing Material	Plastic (BPA-free)
Functions	Blending, pureeing, chopping, whisking (with whisk attachment)
Accessories Included	Blending shaft, whisk attachment, 500 ml beaker
Dishwasher Safe Parts	Beaker, shaft, whisk (detachable)
Safety Features	Overheat protection, automatic shut-off, non-slip handle
Spare Parts Availability	Yes, through authorized service centers
Warranty	2 years

Frequently Asked Questions - MS2006 VOX

How do I clean the hand blender shaft?

Detach the shaft from the motor unit and rinse under running water. For thorough cleaning, use warm soapy water and a non-abrasive sponge. The shaft and beaker are dishwasher safe.

Can I blend hot liquids?

It is not recommended to blend boiling liquids directly. Let them cool to below 80°C to avoid damage to the blender and risk of splashing. Always use the beaker provided.

What is the maximum capacity for blending?

Do not fill the beaker beyond the 500 ml mark. For thicker mixtures, reduce the quantity to ensure proper blending and avoid overflow.

How do I use the turbo function?

Press and hold the turbo button located on the handle while operating at speed 2. This provides maximum power for short bursts, ideal for crushing ice or hard ingredients.

Can I grind coffee beans with this blender?

This hand blender is not designed for dry grinding. Use it only for blending, pureeing, and whisking. For coffee beans, consider a dedicated coffee grinder.

The motor stopped suddenly. What should I do?

This may be due to overheat protection. Unplug the appliance and let it cool for 15-20 minutes before using again. If the problem persists, contact customer service.

How do I attach the whisk?

Insert the whisk attachment into the motor unit until it clicks into place. Ensure it is properly aligned with the two slots. The whisk is suitable for whipping cream, eggs, and light batters.

Is the blender suitable for making smoothies?

Yes, the VOX MS2006 hand blender is perfect for smoothies. Use the beaker and blend your favorite fruits and liquids until smooth. For frozen fruits, use the turbo function.

What is the warranty period?

The VOX MS2006 comes with a 2-year warranty covering manufacturing defects. Keep your purchase receipt and register the product on our website for warranty service.

Can I use the blender continuously for more than 1 minute?

It is recommended to operate the blender for no longer than 1 minute continuously, then let it rest for 1 minute before resuming. This prevents overheating.

USER MANUAL MS2006 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MS-2006

OPERATING INSTRUCTIONS HAND BLENDER UPUTSTVO ZA UPOTREBU RUČNI BLENDER MANUAL DE USUARIO BATIDORA DE MANO MANUAL DO USUÁRIO VARINHA MÁGICA ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΜΠΛΕΝΤΕΡ ΧΕΙΡΟΣ NAVODILA ZA UPORABO ROČNI MEŠALNIK UPUTE ZA UPORABU RUČNI BLENDER UPUTSTVO ZA UPOTREBU RUČNI BLENDER ΥΠΑΤСТВА ЗА РАКУВАЊЕ РАЧЕН БЛЕНДЕР MANUALI I PERDORUESIT BLENDER DORE

INSTRUCTION MANUAL

HAND BLENDER

Model: MS-2006

1. FOREWORD

Thank you for choosing our VOX Hand blender products. This product is one of our new products researched and developed independently.

Characterized by simplicity generosity, easy operation, functional maturation and easy cleaning, this product is a good helper of a household kitchen. And it is suitable for blending, cutting and mixing a variety of food.

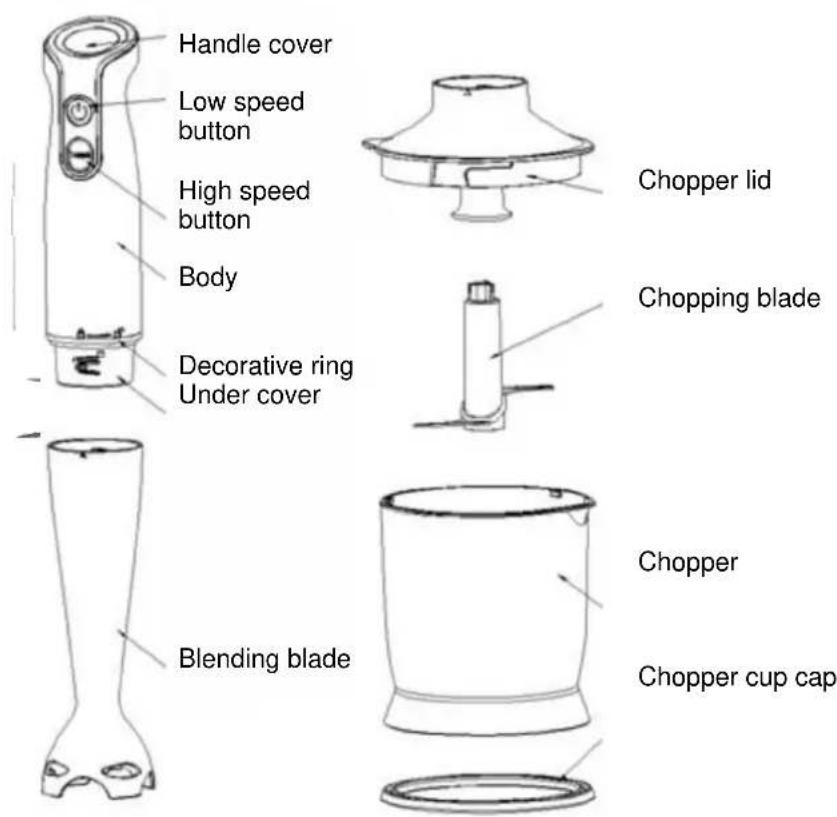

2. SPARE PARTS AND INSTALLATION DRAWING

3. MAIN FEATURES

1) More functional accessories. Depending on the type, it can match blending rod, chopper, egg white, beaker, etc.

2) In accordance with the type you choose, the device speed is selectable and adjustable. Therefore it is convenient to processing various types of food material.
3) Turn-lock clasp separation structure designed in the main unit and each functional accessories. It is convenient to use any combination of different accessories

4. USER INSTRUCTIONS

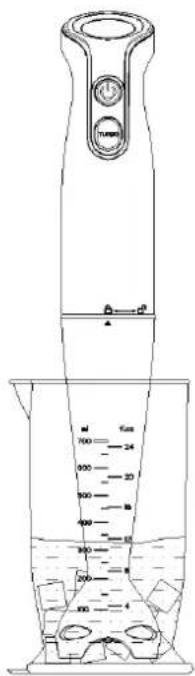

1) How to use the blending blade

It is especially suitable for processing dip, sauce, soup, mayonnaise, baby or aged people food and mixed drinks, milk shake, etc.

① Install the blending blade turn-lock clasp on the main unit

② Cut the food into cubes not larger than 15 mm^3 , then put them into beaker and add some cold boiled water, or drinking water, milk, water, milk, etc.


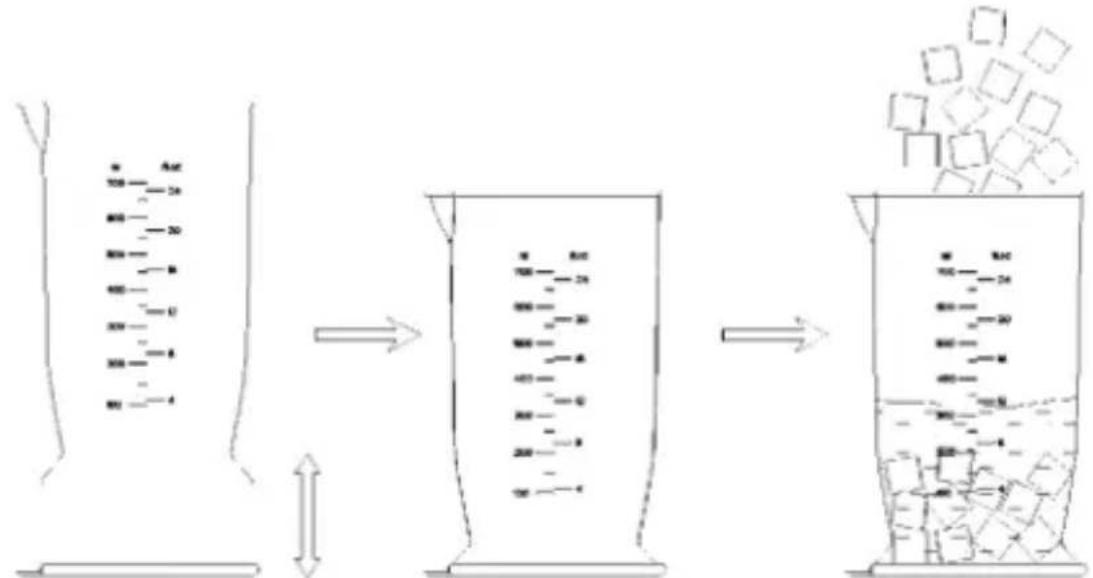

beaker and cup mat
place the cup mat under the beaker
add food
and water into beaker

③ plug the power cord into a power socket

Simple line drawing of a cable inserted into a square socket (no text or symbols)

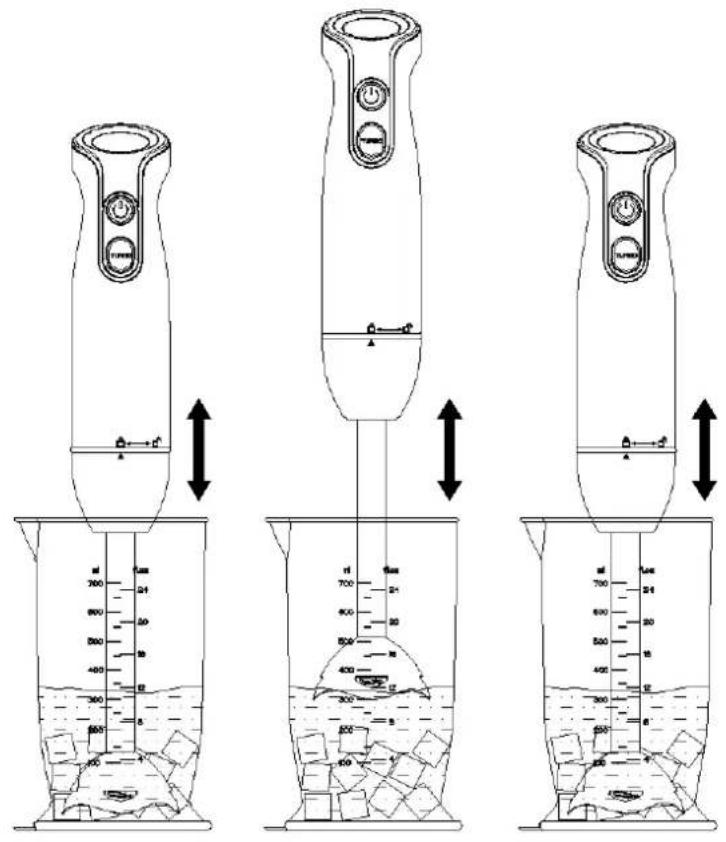

④Put the blending blade into the beaker

⑤The product will continue to work by pressing on the high or low speed button. In order to

blend the food well and quickly, please use your one hand to hold the beaker and other hand to hold the main unit doing up and down reciprocating movement. If you want to stop this product, just press on the switch button.

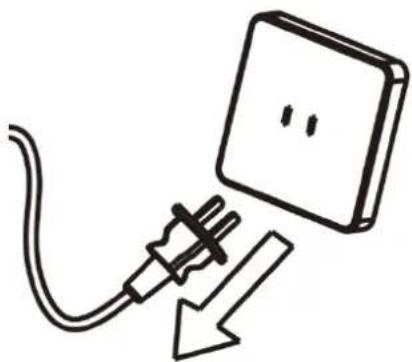

⑥ Pull the plug out of the power socket after working.

Simple line drawing of an electrical plug connected to a wall socket (no text or symbols)

Attention :

√ The accessories continuous working time should be less than 1 minute. After working 1

minute, they need to rest for 1 minute.

√ Respect 1 minute operating and 1 minute rest per a cycle. After continuously working

5 cycles, it must rest for 30 minutes to cool the motor.

- In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without immersing into liquids.

2) How to use the chopper

This accessory is especially suitable for chopping meat, ginger, garlic, and making carrot granule, chili sauce, etc.

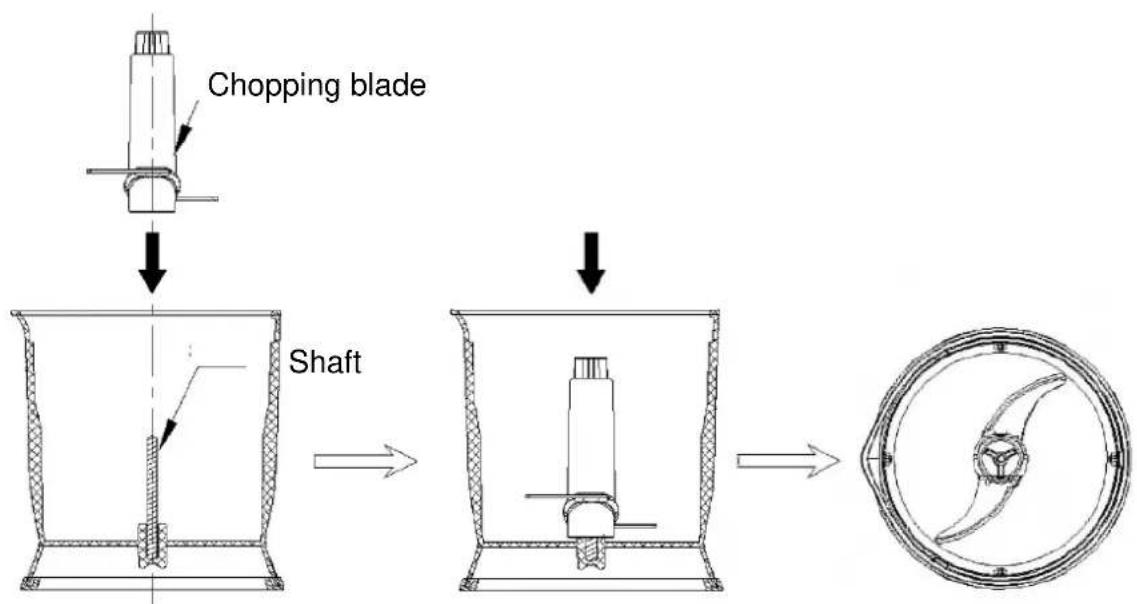

① Set the chopping blade into the chopper shaft

② Cut the food material into appropriate shape and size. For example: cut meat into

2cm*2cm* 6cm size; cut onion into 4-6 disc, etc. Put the ready food into chopper and lock the chopper lid.

Meat cut into strip-type


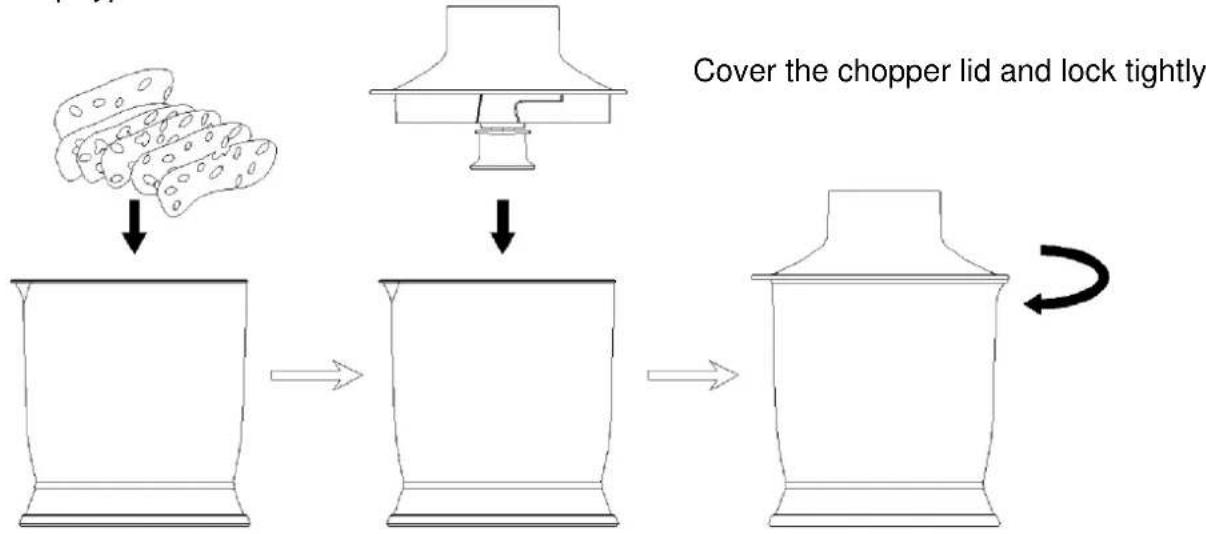

③ Let the main unit turn-lock clasp to the chopper lid, and then plug in and press the switch button. Once the food material chopped to your expected effect, just release the switch button, and the product will stop working. Finally, you should unplug the power cord firstly and then pour out the processed food.

Attention:

● Maximum capacity cannot exceed 200 grams per time when chopping meat.
● The continuous operating time should less than 10 seconds when meat chopping.
After working one time, they need to rest for 2 minutes.

- Respect 10 seconds operating and 2 minute rest per a cycle. After continuous work of 3 cycles, it must rest for 30 minutes for motor cooling.

Some operation tips:

• High speed button should be used when meat chopping, especially the turbo function, as it only takes about 10 second and the meat foam tastes better. Overtime processing will destroy the meat fibers and is of no good taste.
• The low speed button use is recommended when chopping carrots, ginger, garlic and pepper particles. Turning to the low speed to operating around 15 seconds makes better effect.

• The best food material for meat processing: Lean beef without tendon, lean pork without pigskin and bone. The proportion of fat meat should not exceed one fifth of the whole piece of chopping meat, otherwise it affects the chopping effect.

• REFERENCE TABLE FOR FOOD PROCESSING SIZE AND CAPACITUY

Food material	Processing size	Maximum processing capacity of chopper	Maximum processing capacity of beaker	Processing time (seconds)	Speed button choosing
beef	2cm×2cm×6cm	200g	/	8-10	high speed button
carrot	cut into 4 pieces	300g	200g+300g (food+water)	30-40	low speed button
garlic	Peeling disc	100g	/	20-30	low speed button
onion	cut into 8-16 disc	300g	/	5-10	low speed button
apple	cut into 4-8 disc	500g	200g+300g (food+water)	30-40	low speed button
egg white	/	/	egg white of 3-4 eggs	60	high speed button

6. IMPORTANT SAFEGUARDS

1) In order to avoid a risk of electric shock or fire, please do not use power supply except for AC 220V-240V.
2) Please exclusive use a socket with more than 6A specification. If share use the socket with other electrical appliances, the socket circuit part may produce abnormal heat and catsh fire.
3) Please do not use the ironmongery hard things to scrape the product.

4) You must pull out the power cord plug after using to avoid the risk of electric shock, electric leakage fire disaster.

5) The product will automatically stop working when overheats. Please unplug the power cord plug.

6) Please disconnect the machine's power supply connection before dis-assembly and assembly and cleaning or when not in use.

7) Please do not put overheating (over 60 degree centigrade) and overmuch food material into cup in order to avoid liquid spills, overflow, and resulting in personal injury.

8) The use of attachments not recommended or sold by manufacturer may cause personal injury.

9) Ensure all parts are installed in place and locked tight during the operation.

10) This product continuous working time should be less than 1 minute. After working 1 minute,

they need to rest for 1 minute. Respect 1 minute operating and 1 minute rest per a cycle.

After continuous operating of 5 cycles, it must rest for 30 minutes to cool the motor.

11) The beaker, chopper, food processing cup, etc. are not microwave proof.

7. WARNING

1) In addition to the professional repair technicians, other person please do not dis-assembly, repair and refit the product, as it will give rise to on fire, electric leakage and abnormal operation.

2) Please place this product out of reach of children.

3) Please do not use wet hand to pull or plug the power cord in order to avoid electric shock and court-circuit.

4) Please do not wet or immerse the main unit in order to avoid electric shock and court-circuit.

5) For indoor household only, please do not use for commercial purposes.

8. CLEANING AND MAINTENANCE

1) You should unplug the power cord plug before cleaning.
2) Do not touch the sharp blade.
3) Please use dry dishcloth to wipe the product body. It is strictly prohibited to let the main unit rinse with water or immerse into water.
4) Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.
5) Please use soft dry cloth to wipe the dirt on the power cord.
6) The cleaning requirements of each functional accessories.

CleaningAccessories	scrubbing	Rinsing Immersion cleaning	Dishwasher	Remark
Blending blade √ √ × ×					Do not immerse into water
Chopper lid √ × × ×					Do not immerse into water
Chopper √ √ √ √
Chopping blade	×	√	√	√

9. COMMON PROBLEM ANALYSIS

phenomenon	Reasons	Handling method
The motor running, but the blade doesn’t work	1) The functional accessories does not lock well with the main unit2). The blade is entangled by food material and stuck	1) Lock them well2) Pull the plug out, and then take out the food material and cut them into small pieces
The product suddenly stops 1). Too long time in use, 1) Working time should
working during processing and	the motor is overheated and damaged2). The plugs loose or power failure	strictly according to the instruction manual2) Excluding this problem after checking
Abnormal vibration or excessive noise	1) The functional accessories does not lock well with the main unit2) Too much food material has been put in	1) Lock them well2) Pull the plug out, and then take out the excess food material, and choose low speed operating
The product does not work after plugging in the power cord and pressing the on-off key	1) Power failure or power socket in the closed state or plug loose2) Electronic board damage or motor damage	1) Excluding this problem after checking2) Have a repair service

Remark:

If still unable to troubleshooting after the above phenomenon analysis, please contact our maintenance personal or the dealer. Non-professional personnel are forbidden to disassembly.

UPUTSTVO ZA UPOTREBU

RUČNI BLENDER

Model: MS-2006

1. PREDGOVOR

Hvala Vam što ste izabrali naš VOX Ručni blender. Ovaj uređaj je jedan od naših najnovijih proizvoda, koji se svakodnevno pojavljuju i razvijaju sve više na tržištu.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na dugme za sporiji ili brži rad.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall socket (no text or symbols)

Pažnja :

√ Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

√ Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nako uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

√ Da biste se uverili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tečnost.

2) Kako da koristite čoper

Ovaj dodatak je posebno pogodan za seckanje mesa, dumbira, belog luka, pravljenje smese od šargarepe, čili sosa, itd.

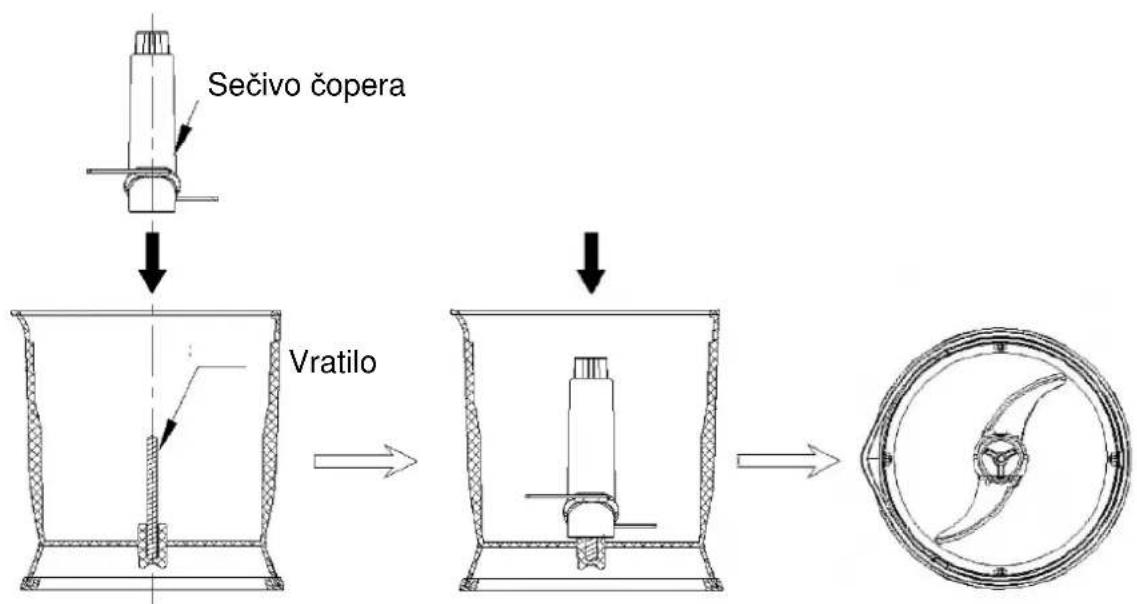

① Postavite sečivo na vratilo u posudi

② Isecite hranu na delove odgovarajućeg oblika i veličine. Na primer: isecite meso na kockice veličine 2cm*2cm* 6cm; luk isecite na 4-6 režnjeva, itd. Stavite spremljenu hranu u čoper i zaključajte poklopac čopera.

Isecite meso na trake

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple line drawing of an electrical outlet plug connected to a cable with a downward arrow indicating power or current (no text or symbols)

Atención:

MANUAL DE INSTRUÇÕES

VARINHA MÁGICA

Model:MS-2006

1. INTRODUÇÃO

Simple line drawing of a cable inserted into a square socket (no text or symbols)

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Atenção :

Atenção:

Simple line drawing of a cable inserted into a square socket (no text or symbols)

Simple line drawing of an electrical outlet connected to a plug, with a downward arrow indicating power or current flow (no text or symbols)

Προσοχή:

Προσοχή:

Simple line drawing of a plug inserted into a socket (no text or symbols)

Vstavite palico za blendiranje v vrč

Aparat bo obratoval s pritiskom na gumb za visoko ali na gumb za nizko hitrost. Da bi se hrana dobro mešala, z eno roko držite vrč, z drugo pa glavno enoto mešalnika ter premikajte

mešalnik gor in dol med blendiranjem. Če želite ustaviti aparat, preprosto pritisnite stikalo.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Pozor:

• Čas neprekinjenega delovanja aparata ne sme presegati ene minute. Po eni minuti neprekinjenega delovanja mora slediti premor v dolžini ene minute.
• Upoštevajte pravilo o 1-minutnih obratovalnih ciklih. Po petih zaporednih ciklih, aparat mora počivati 30 minut, da bi se ohladil motor.
  Da bi nastavek za blendiranje ohranil svojo učinkovitost, ne sprožajte obratovanja

mešalnika preden palico za blendiranje ne vstavite v tekočino.

③ Vstavite pogonsko enoto v nastavek na pokrovu sekljalnika in jo zaklenite z obratom, nato pa

Pozor:

Simple line drawing of a cable inserted into a square socket (no text or symbols)

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na gumb za sporiji ili brži rad.

Da biste dobro i brzo izblendirali hranu, molimo vas da jednom rukom držite posudu, a drugom uređaj koji treba da pokrećete usklađenim pokretima gore dole. Ukoliko želite da zaustavite rad uređaja, dovoljno je da pritisnete gumb za uključivanje/isključivanje uređaja.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall socket (no text or symbols)

Pažnja :

√ Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

√ Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nakon uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

√ Da biste se uvjerili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tekućinu.

2) Kako da koristite čoper

Pažnja:

• Maksimalna količina ne smije preći više od 200 grama prilikom jedne obrade kada sjeckate meso.
• Neprestan rad uređaja treba da bude kraći od 10 sekundi kada sjeckate meso. Nakon jedne obrade potrebno je 2 minuta za odmaranje uređaja.
• Obrada od 10 sekundi i 2 minuta odmora smatra se jednim ciklusom. Nakon 3 uzastopna ciklusa, potrebna je pauza od 30 minuta da bi se motor ohladio.

▼ Isijecite hranu na komade ne veće od 15 mm ^3 , zatim ih stavite u posudu s mjerama i dodajte malo hladne prokuvane vode, pijaće vode, mlijeka, itd.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na dugme za sporiji ili brži rad.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall socket (no text or symbols)

Pažnja :

√ Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

√ Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nakon uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

√ Da biste se uvjerili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tečnost.

2) Kako da koristite čoper

Pažnja:

• Maksimalna količina ne smije preći više od 200 grama prilikom jedne obrade kada sjeckate meso.
• Neprestan rad uređaja treba da bude kraći od 10 sekundi kada sjeckate meso. Nakon jedne obrade potrebno je 2 minuta za odmaranje uređaja.
• Obrada od 10 sekundi i 2 minuta odmora smatra se jednim ciklusom. Nakon 3 uzastopna ciklusa, potrebna je pauza od 30 minuta da bi se motor ohladio.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Внимание :

Внимание:

Simple line drawing of a plug inserted into a socket (no text or symbols)

Line drawing of a laboratory setup with a beaker and a vertical tube, showing liquid levels and a submerged object (no text or symbols)
