MS6010 - Hand blender VOX - Free user manual and instructions

Product Type	Hand Blender
Brand	VOX
Model	MS6010
Power	600 W
Speed Settings	2 speeds + turbo boost
Blending Shaft Material	Stainless steel
Attachments Included	Blending shaft, whisk, chopper bowl
Dimensions (L x W x H)	7 x 7 x 38 cm
Weight	0.85 kg
Cord Length	1.2 m
Blending Capacity	Up to 1 liter
Dishwasher Safe Parts	Yes (blending shaft and attachments)
Non-Slip Handle	Yes, ergonomic rubberized grip
Safety Features	Overheat protection, safety lock on attachment
Cleaning	Detachable shaft for easy cleaning; wipe motor unit with damp cloth
Spare Parts Availability	Replacement blending shafts and whisks available
Repairability Index	7.5/10 (motor unit replaceable by professional)
Guarantee	2 years

Frequently Asked Questions - MS6010 VOX

Can I blend hot liquids with the VOX MS6010?

No, the hand blender is designed for cold or warm liquids up to 60°C. Blending boiling liquids can damage the seals and cause splattering.

How do I clean the blending shaft?

Detach the shaft from the motor unit and wash it in warm soapy water or the dishwasher (top rack). Dry thoroughly before reattaching.

What is the maximum immersion depth?

Do not immerse the motor unit beyond the shaft connection line. The shaft has a maximum immersion mark; never submerge the motor housing.

Can I crush ice with this blender?

The MS6010 is not designed for crushing ice. Use it for soft fruits, vegetables, and liquids. For ice, a dedicated blender is recommended.

How do I attach the whisk?

Align the whisk attachment with the coupling on the motor unit and push firmly until it clicks. Twist to lock if applicable. Refer to the manual for exact fitting.

What does the turbo function do?

The turbo boost provides maximum power for short bursts to process tough ingredients or achieve a smoother consistency. Press and hold the turbo button while blending.

Is the blender safe to use in a non-stick pan?

Yes, the stainless steel shaft is safe to use in non-stick pans, but avoid hitting the sides or bottom to prevent scratching.

How do I store the blender?

Store the motor unit with the shaft detached in a dry place. Keep the attachments in a drawer or container. Some models have a wall mount; check your accessories.

What should I do if the blender stops working?

Check the power connection and overheating protection. If it overheated, let it cool for 10 minutes before reuse. If still not working, contact VOX support.

Are replacement parts available?

Yes, VOX offers replacement blending shafts, whisks, and chopper bowls. Check the VOX website or authorized dealers for compatibility with model MS6010.

USER MANUAL MS6010 VOX

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use check that the voltage of wall outlet corresponds to the one shown on the rating plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
4. If the supply cord is damaged it must be replaced by the manufacturer or a authorized service agent or a qualified technician in order to avoid a hazard.
5. Unplug from outlet when not in use, before putting on or taking moving component, and before cleaning.
6. Do not let cord hang over edge of table or hot surface.
7. Do not immerse upper part of blender into water as this would give rise to electric shock.
8. Close supervision is necessary when your appliance is being used near children or infirm persons.
9. Avoid contacting moving parts.
10. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
11. The appliance cannot be used for chopping ice or blending hard and dry substance, otherwise the blade could be blunted.
12. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
13. The use of accessory not recommended by the manufacturer may cause injuries to persons.
14. Do not operate the appliance for other than its intended use.
15. Take care of potential injury from misuse.
16. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
17. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
18. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
19. Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
20. Children shall not play with the appliance.

21. Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

22. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

23. Do not use outdoors.
24. Save these instructions.

HOUSEHOLD USE ONLY

KNOW YOUR BLENDER

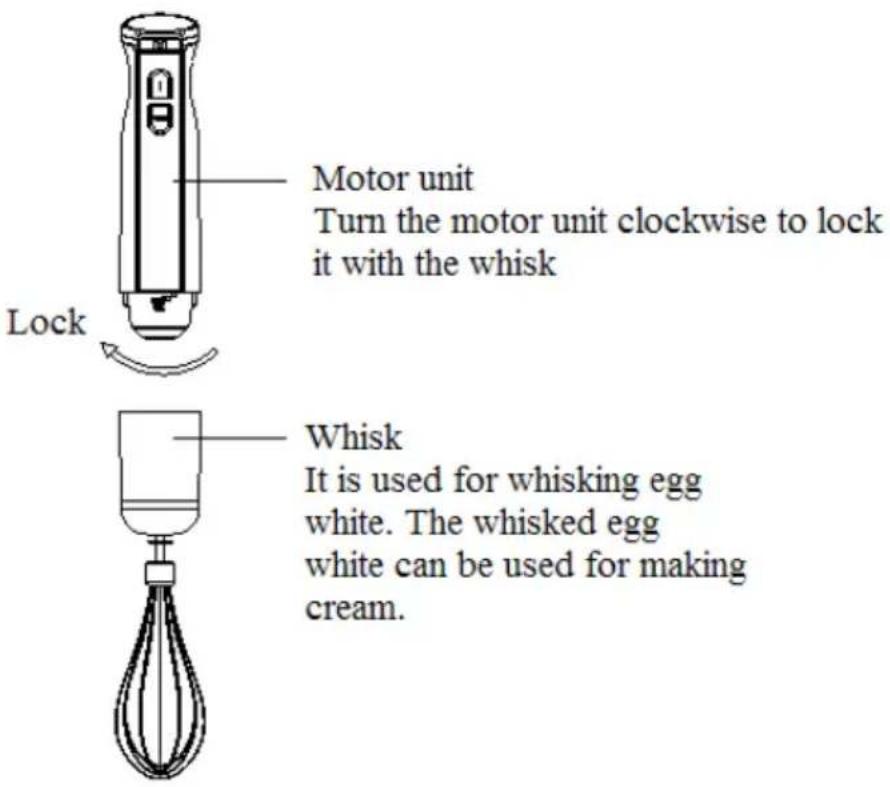

KNOW YOUR ACCESSORY-WHISK (FOR WHISKING EGG WHITE)

USING YOUR BLENDER

Before the first use, clean the blender according to the section of “quick cleaning”. The time for running unit without load can’t exceed 15s.

Important: Blades are very sharp, handle with care. Ensure that the hand-held blender is unplugged from the power outlet before assembling or removing attachments.

Operation instruction for blender

Important: Max operation duration per time cannot exceed 1 minute, and the appliance shall be cooled down to room temperature between two consecutive cycles.

1. To assemble the detachable shaft with the motor unit, turn the shaft anti-clockwise direction until tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the hand-held blender to power outlet.
3. Put the food needed to be blended into a cup.
4. Lower the hand-held blender into food. Then press and hold the low speed button to start operating. At the same time you can select desired speed setting by dialing the speed control dial, the speed will be increased gradually when you dial the speed control dial from left to right.
5. You also can start operating by pressing and hold the high speed button, the appliance will operate at the highest speed all the time. The speed will not be changed even if you dial the speed control dial.
6. To stop the hand-held blender release the low speed button or high speed button.

Operating instruction for whisk

Important: Max operation duration per time cannot exceed 1 minute, and the appliance shall be cooled down to room temperature between two consecutive cycles.

1. To assemble the whisk with the motor unit, turn the whisk anti-clockwise direction until being tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the hand-held blender to power outlet.
3. Put the egg white into the cup, generally, two egg whites are enough.
4. Lower the hand-held blender into the egg white. Then press and hold the low speed button to start operating. At the same time you can select desired speed setting by dialing the speed control dial, the speed will be increased gradually when you dial the speed control dial from left to right.
5. You also can start operating by pressing and hold the high speed button, the appliance will operate at the highest speed all the time. The speed will not change even if you dial the speed control dial.

Note: Suggest selecting the high speed button when whisking egg whtie.

1. To stop the hand-held blender by releasing the low speed button or high speed button of the motor unit.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the detachable blending rod.

Note: Do not immerse the detachable blending rod in water because the lubrication on the bearings may be washed away.

1. Wash the detachable blending rod under running water, do not use abrasive cleaner or detergents. After finishing cleaning the detachable blending rod, place it upright so that any water which may have got in can be drained out. Do not put the blending rod into dishwasher for cleaning.

2. Wash the whisk with warm soapy water. Do not immerse the whisk in water and the dishwasher for cleaning as the plastic part may be damaged.

4 Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as an electric shock may occur.

1. Dry thoroughly.

Caution: Blades are very sharp, handle with care.

Quick cleaning

Before processing food, hold the hand-held blender in the cup half filled with water and turn on for a few seconds.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

SR

UPUTSTVO ZA UPOTREBU

Ručni blender

Model: MS -6010

VAŽNA BEZBEDNOSNA UPUTSTVA

Line drawing of a vertical stand with a funnel and base (no text or symbols)

Vratilo za blendiranje

UPOZNAJTE VAŠ DODATAK-MUTILICU (ZA MUĆENJE BELANACA)

Zaključano

Technical line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Motorna jedinica

Okrenite motornu jedinicu u smeru kazaljke na satu da biste je zaključali

sa mutilicom

Simple line drawing of a pipette with a handle and whisk (no text or symbols)

Mutilica

Koristi se za mućenje belanaca.

Mućena belanca se mogu koristiti za pravljenje šlaga.

KORIŠĆENJE BLENDERA

Pre prve upotrebe, očistite blender kao što je opisano u delu "brzo čišćenje". Vreme rada praznog uređaja ne sme biti duže od 15 sekundi.

Važno: Sečiva su veoma oštra, rukujte pažljivo. Uverite se da je blender isključen iz zidne utičnice pre spajanja ili razdvajanja delova.

Uputstvo za rukovanje blenderom

Važno: Svako pojedinačno uključivanje uređaja ne bi smelo da traje duže od jednog minuta, a uređaj mora da se ohladi do nivoa sobne temperature između dva uzastopna ciklusa.

1. Za spajanje odvojivog vratila s kućištem motora, okrenite ga suprotno od smera kazaljke na satu dok se ne uklopi. Da biste ga odvojili, samo okrenite u suprotnom smeru.
2. Uključite kabl za napajanje u utičnicu.
3. Stavite hranu koja treba da se blendira u posudu.
4. Spustite blender u hranu. Zatim pritisnite i držite dugme za malu brzinu da počnete s radom. Istovremeno možete izabrati željenu brzinu podešavanjem dugmeta za kontrolu brzine, brzina će se postepeno povećavati kada pritiskate s leve na desnu stranu.
5. Možete pokrenuti uređaj i pritiskom i držanjem dugmeta za veliku brzinu, uređaj će raditi pri najvećoj brzini sve vreme. Brzina se neće promeniti i ako pritisnete dugme za kontrolu brzine.
6. Da biste zaustavili rad blendera pustite dugme za malu ili dugme za veliku brzinu.

Uputstvo za rukovanje mutilicom

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Gumb za nadzor hitrosti

Gumb za nizko hitrost

Gumb za visolo hitrost

Motorna enota

Line drawing of a vertical stand with a funnel and base, no text or symbols present

Vratilo za mešanje

SPOZNAJTE SVOJ DODATEK-MEŠALNIK (ZA STEPANJE BELJAKOV)

Motorna enota

Obrnite motorno enoto v smeri urinega kazalca, da se zaskoči z mešalnik.

Mešalnik

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Line drawing of a vertical stand with a funnel and base (no text or symbols)

Vratilo za blendiranje

UPOZNAJTE VAŠ DODATAK-MUTILICU (ZA MUĆENJE BJELANACA)

Zaključano

Technical line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Motorna jedinica

Simple line drawing of a pipette with a handle and whisk (no text or symbols)

Mutilica

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Gumb za kontrolu brzine

Gumb za malu brzinu

Gumb za veliku brzinu

Motorna jedinica

Simple line drawing of a vertical pole with a funnel and base (no text or symbols)

Vratilo za blendiranje

UPOZNAJTE VAŠ DODATAK-MIJEŠALICU (ZA MIJEŠANJE BJELANJAKA)

Zaključano

Technical line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Motorna jedinica

Simple line drawing of a pipette with a handle and whisk (no text or symbols)

Miješalica

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Simple line drawing of a vertical stand with a funnel and base (no text or symbols)

Barra mezcladora

CONOZCA ACCESORIOS DE BATIDORA (PARA BATIR LAS CLARAS DE HUEVOS)

Unidad de motor

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a vertical stand with a cylindrical top and base, no text or symbols present.

Line drawing of a handheld device with a scroll wheel and control panel (no text or symbols)

Simple line drawing of a pipette with a handle and whisk (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

MANUAL DE INSTRUÇÕES

APENAS PARA USO DOMÉSTICO

CONHEÇA O SEU LIQUIDIFICADOR DE IMERSÃO

Simple line drawing of a vertical pole with a funnel and base (no text or symbols)

Eixo para misturar

CONHEÇA O SEU ACESSÓRIO - BATEDOR (PARA CLARAS DE OVO)

Trancado

Line drawing of a handheld device with a scroll wheel and control panel (no text or symbols)

Unidade motora

Simple line drawing of a pipette with a handle and spout (no text or symbols)

Batedor

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a vertical stand with a funnel and base (no text or symbols)

Line drawing of a handheld device with a scroll wheel and control panel (no text or symbols)

Njësia motor

Simple line drawing of a laboratory pipette with a whisk (no text or symbols)

Rrahëse vezësh

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Line drawing of a vertical stand with a funnel and base (no text or symbols)

Technical line drawing of a handheld device with a scroll wheel and control panel (no text or symbols)

Моторна единица

Simple line drawing of a hand holding a small object above a whisk (no text or symbols)

Маталка

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)
