OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

LM61**

LM58**

LM34**

LS56**

CM96**

P/NO:MFL67416302(1201-REV00)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand
A-4 Not using the Desk Type stand
A-5 Tidying cables

COMMON

LANGUAGE LIST

English
Deutsch
Français
Italiano
Espanol
Portugués
Nederlandst
EALnyika

LANGUAGE

B-1 MAKING CONNECTIONS

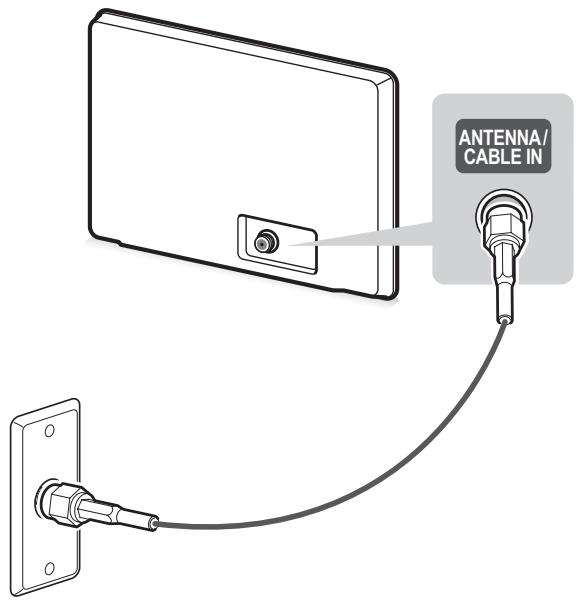

B-1 Antenna connection
B-3 Satellite dish connection
B-4 HDMI connection
B-6 DVI to HDMI connection

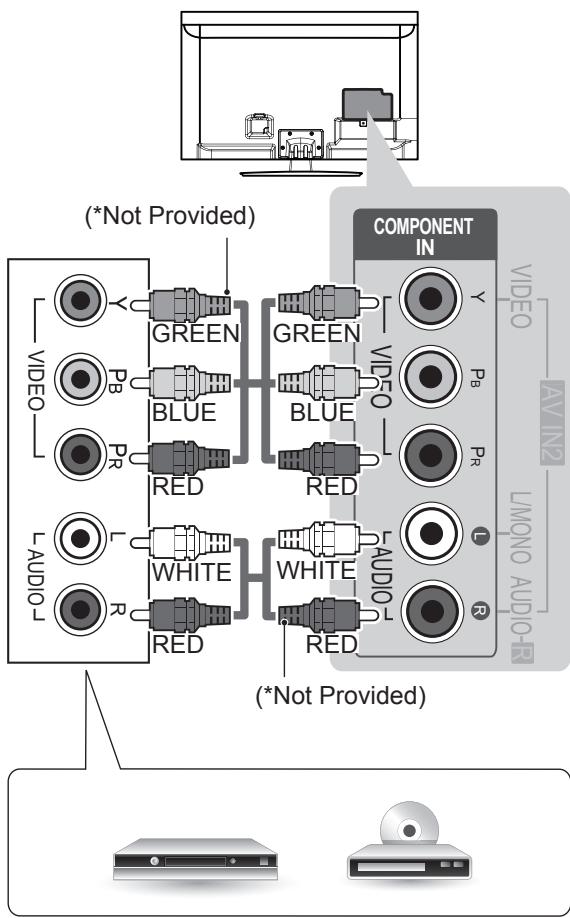

B-8 Component connection

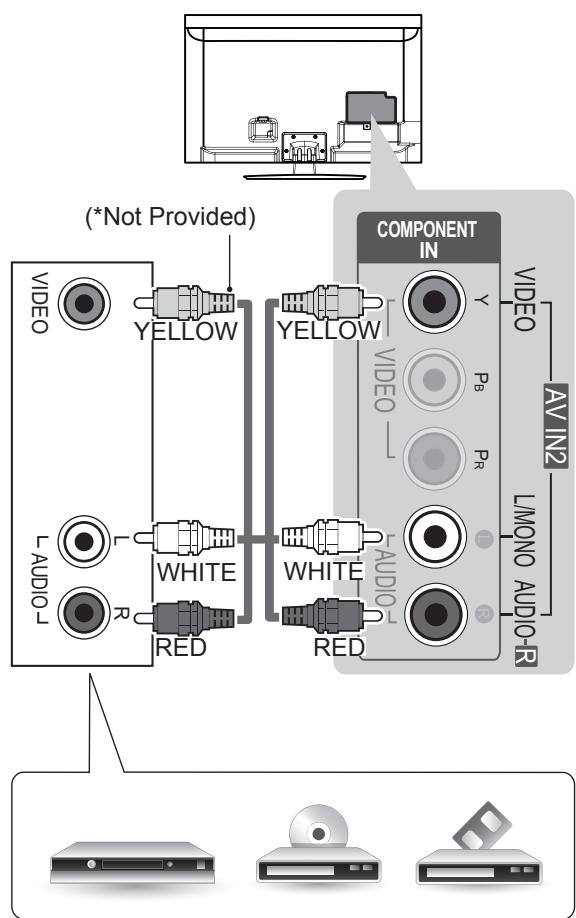

B-9 Composite connection
B-10 RGB-PC connection
B-11 Audio connection

• Digital optical audio connection

B-14 USB connection

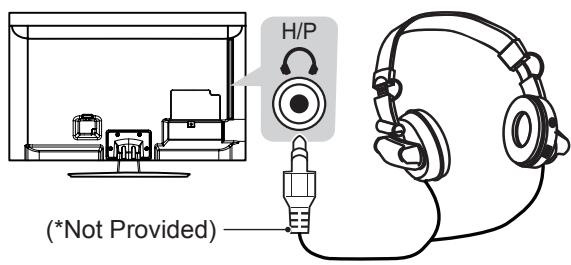

B-15 Headphone connection

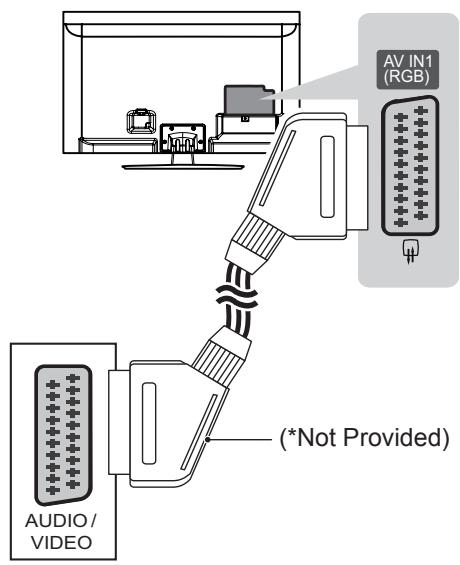

B-17 Euro Scart connection
B-19 CI module connection

B-25 SPECIFICATIONS

COMMON

SETTING UP THE TV

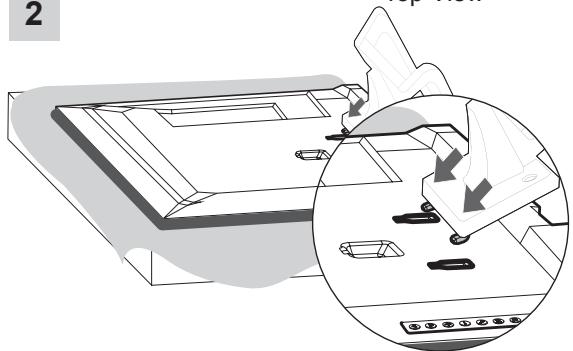

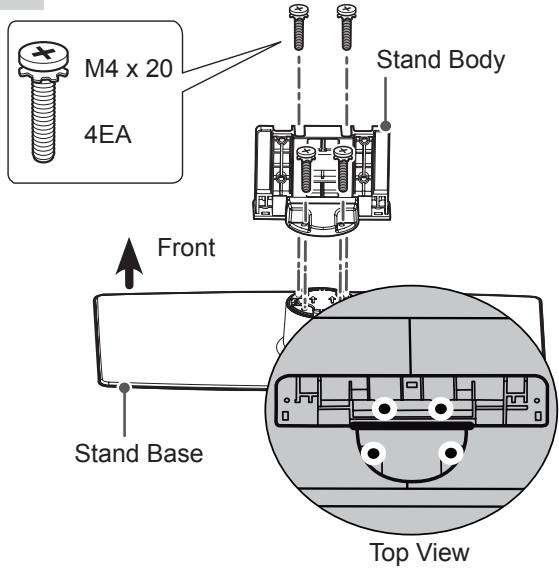

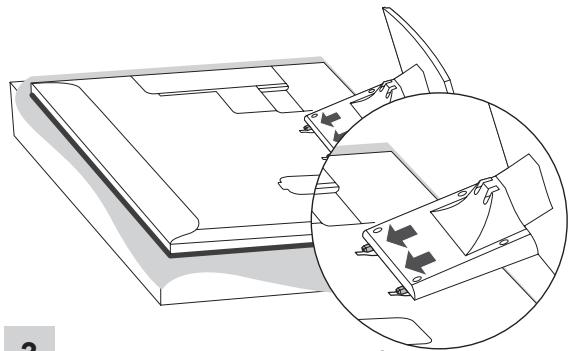

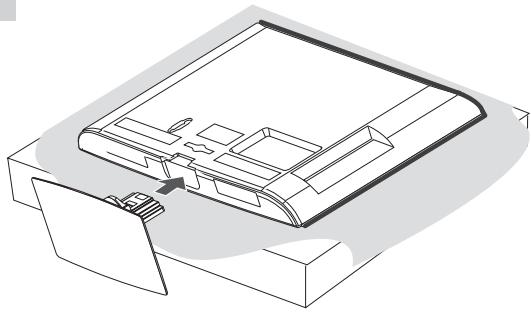

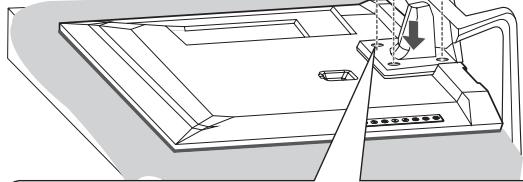

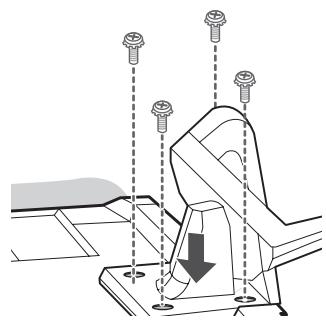

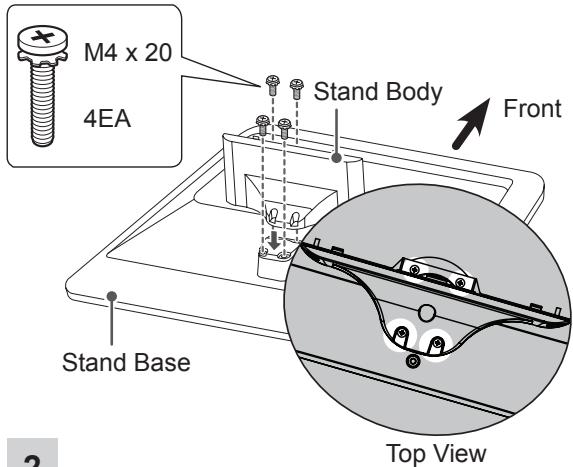

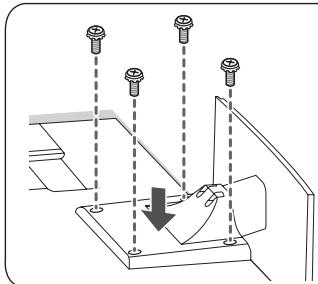

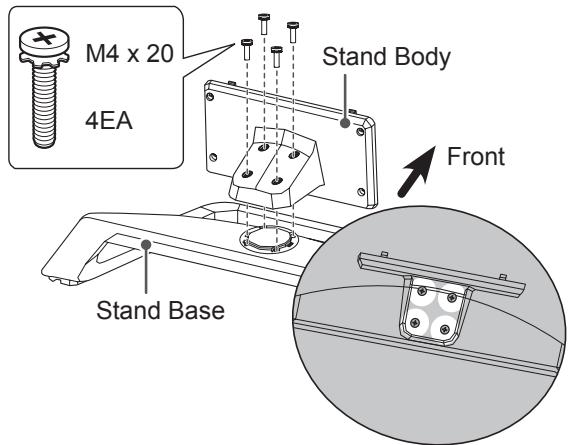

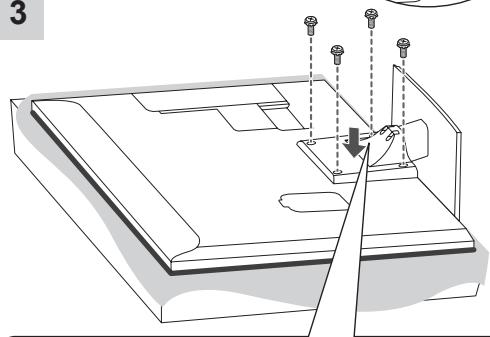

Attaching the stand

Only 42/47/55LM615*

1

Top View
2

3

3

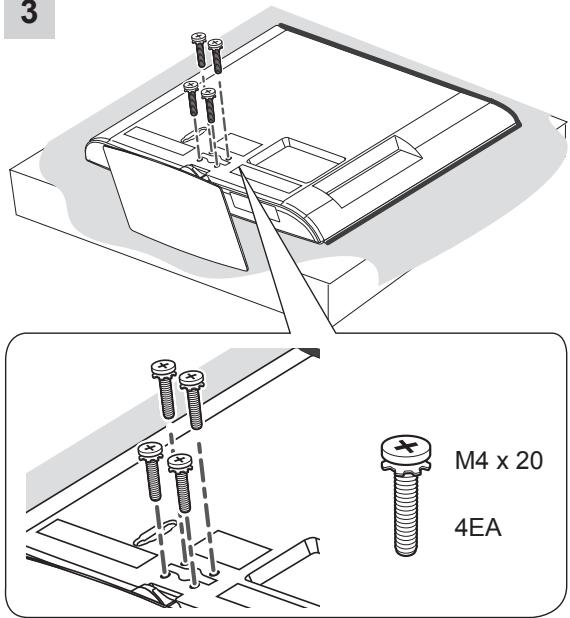

M4 x 20
4EA

Only 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*

1
2

3

M4 x 20
4EA

Only 32/37/42LM34, 47CM96

1

2

3

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

NOTE

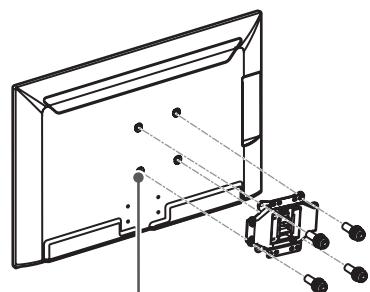

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Not using the Desk Type stand

Only 32/37/42LM34, 47CM96

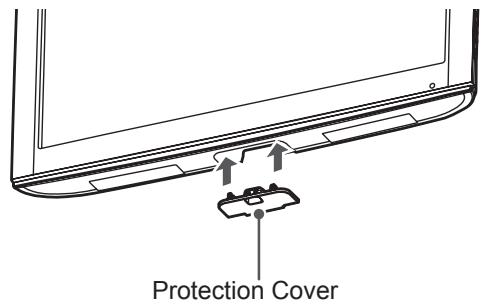

1 Push the supplied Protection cover into the opening at the bottom of the TV until clicking sound.

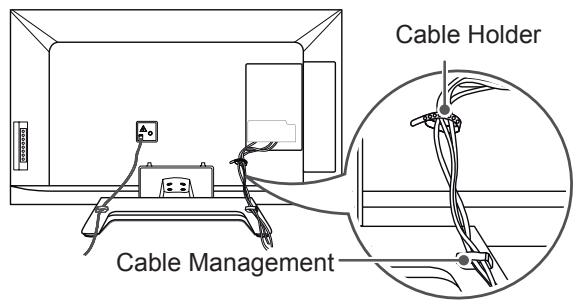

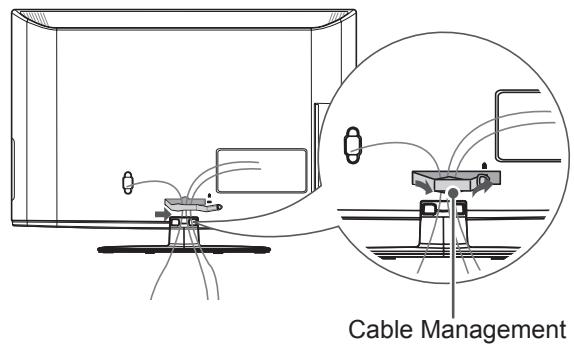

Tidying cables

Only 42/47/55LM615*

1 Gather and bind the cables with the Cable Management.
2 Fix the Cable Management firmly to the TV.

Only 32/37/42LM34, 47CM96

1 Gather and bind the cables with the Cable Management.
2 Fix the Cable Management firmly to the TV.

Only 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*

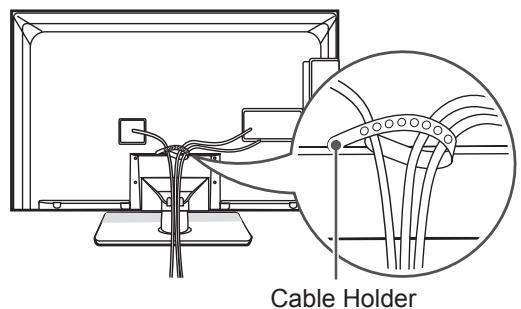

1 Gather and bind the cables with the Cable Holder.

OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 -Viewing 3D Imaging (Only 3D models)

12 INSTALLATION PROCEDURE

12 ASSEMBLING AND PREPARING

12 Unpacking
15 Separate purchase

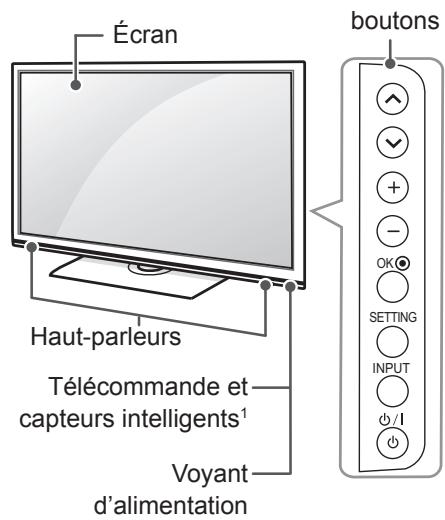

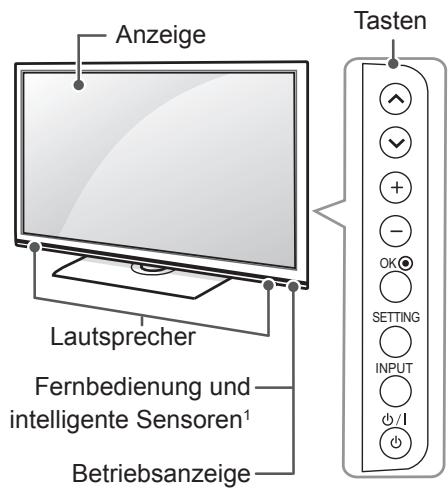

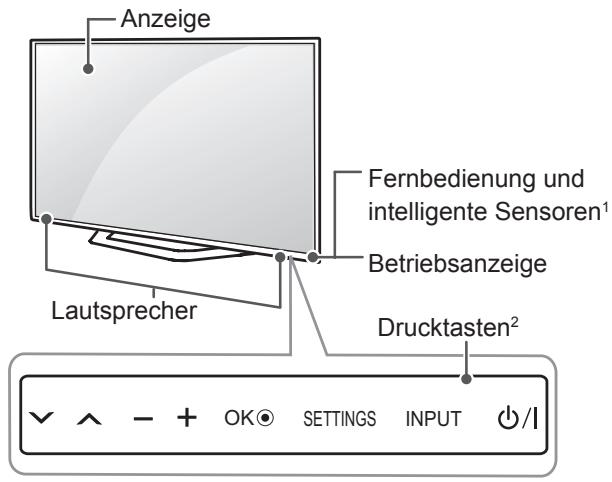

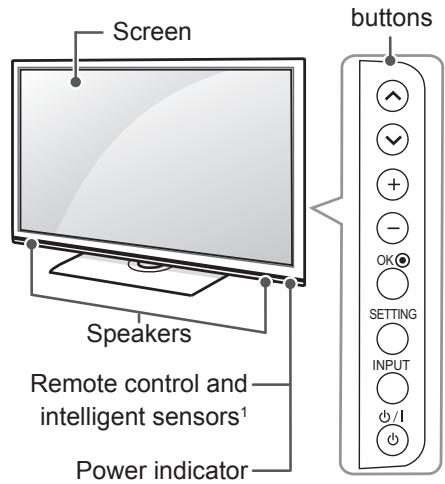

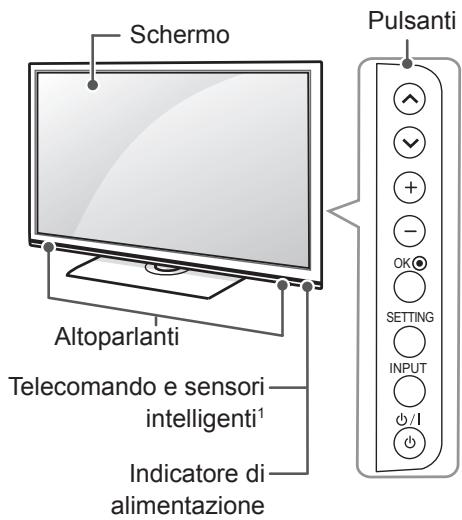

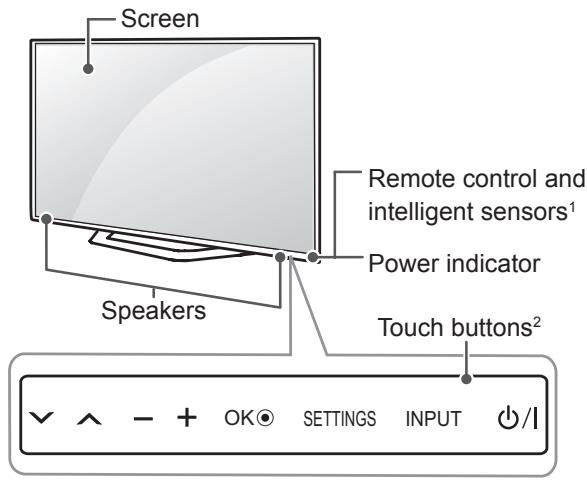

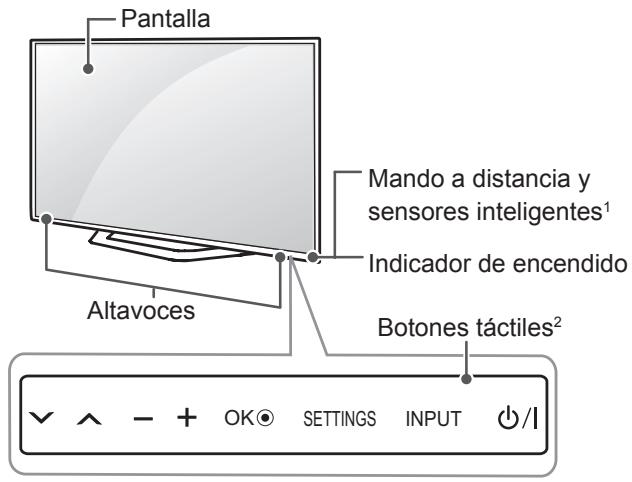

16 Parts and buttons
17 Lifting and moving the TV
17 Mounting on a table
20 Mounting on a wall

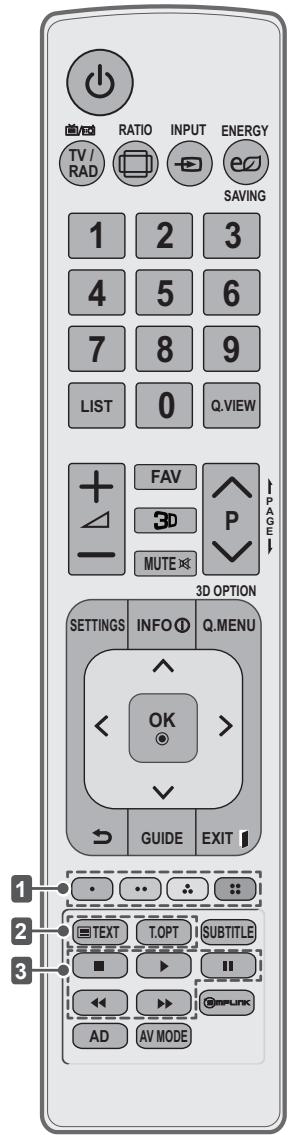

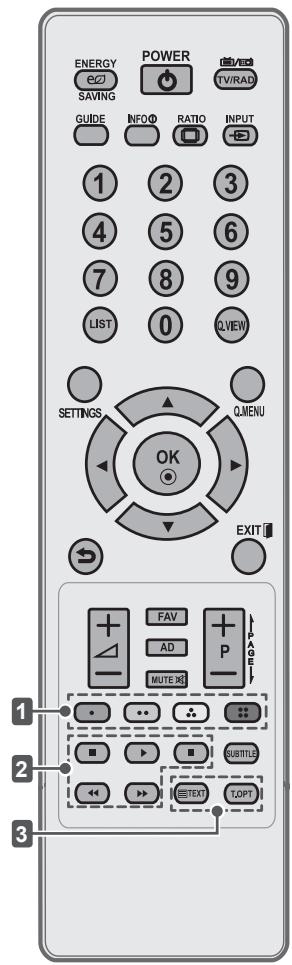

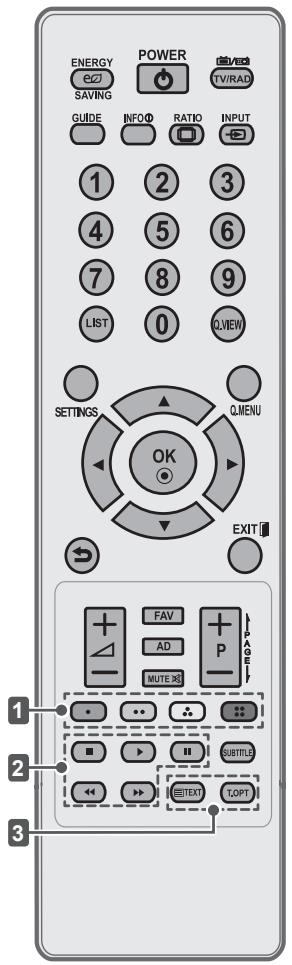

21 REMOTE CONTROL

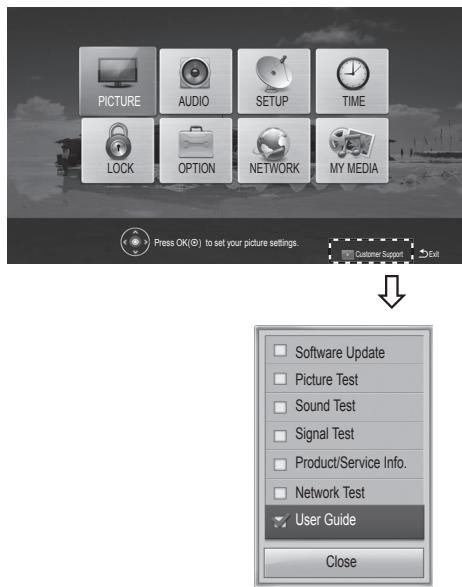

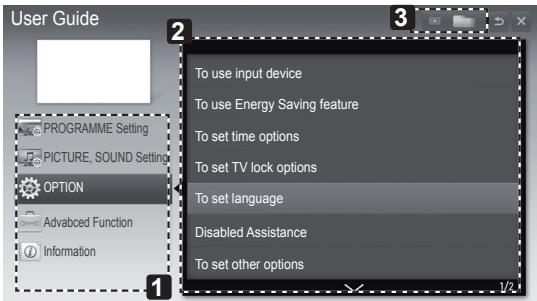

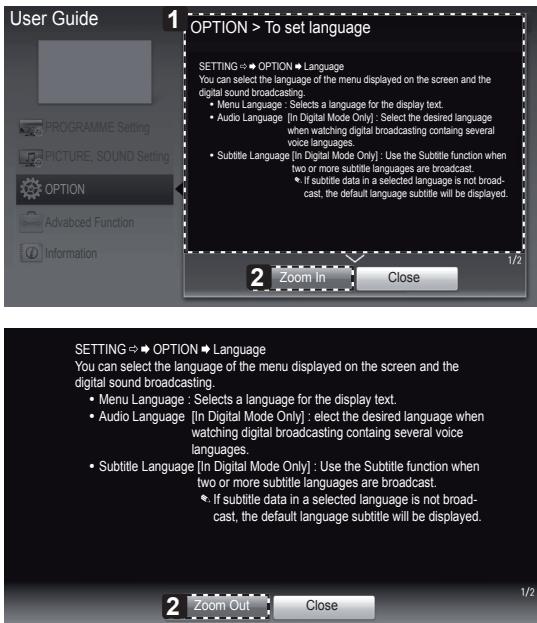

23 USING THE USER GUIDE

24 MAINTENANCE

24 Cleaning your TV

24 - Screen, frame, cabinet and stand

24 -Power cord

24 TROUBLESHOOTING

WARNING

• If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

• If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

• The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DIGITAL PLUS

PULSE

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

• Do not place the TV and remote control in the following environments:

• A location exposed to direct sunlight

• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

• Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

• Mains plug is the disconnecting device. The plug must remain readily operable.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

• Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.)

You may be electrocuted or injured.

Fix the power cable completely.

If the power cable is not fixed completely, a fire can break out.

• Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

• Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

• Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

• When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV.

It may cause fire, electric shock.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
Dispose of used batteries carefully to protect a child from eating them. In case that it eats them, take it to see a doctor immediately.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)
Do not put or store inflammable substances near the product. There is a danger of explosion or fire due careless handling of the inflammable substances.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. You may be injured or the product can be damaged.
Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.
Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.
	·Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service center for check, calibration or repair.
	·If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.
	·If you don’t intend to use the product for a long time, unplug the power cable from the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
	·Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

• Install the product where no radio wave occurs.
• There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.
• Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

• Only use the attachments / accessories specified by the manufacturer.

• When installing the antenna, consult a qualified service man. This may create a fire hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 5 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

• Only use the specified type of battery.
  This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Make sure there are no objects between the remote control and its sensor.

• Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.
Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discoloration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
When unplugging the cable, grab the plug and unplug it.If the wires inside the power cable are disconnected, this may cause fire.

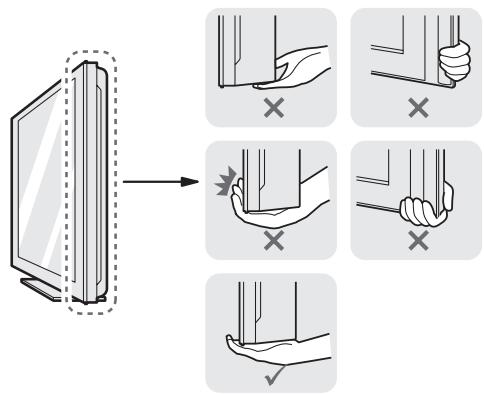

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
	·When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
	·Contact the service center once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
	·Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
	·If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
	·The panel is a high technology TFT product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
	·You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.
	·Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma). Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
·Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

Viewing 3D Imaging (Only 3D models)

WARNING

Viewing Environment

Viewing Time

• When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain.

Those that have a photosensitive seizure or chronic illness

• Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.
• Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.
• 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.
• If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
• If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.

Symptoms which require discontinuation or refraining from watching 3D contents

• Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

• When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides.

• Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.

CAUTION

Viewing Environment

Viewing Distance

• Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV.

Viewing Age

• Infants/Children

• Usage/ Viewing 3D contents for children under the age of 5 are prohibited.

• Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra attention is required for children watching 3D contents.
• Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers

• Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contents for a long time when they are tired.

Elderly

• The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance.

Cautions when using the 3D glasses

• Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
• Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
• Using modified 3D glasses may cause eye strain or image distortion.
• Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
• The 3D glasses are fragile and are easy to be scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.

You can use the TV network functions only when the network connection is made.

ASSEMBLING AND PREPARED

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damages or injuries by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^*A 10 mm

^*B 18 mm

Remote control and batteries (AAA) (See p. 21, 22)	Owner's manual
Polishing cloth (Depending on model) Use this to remove dust from the cabinet.	Cinema 3D Glasses The number of 3D glasses may differ depending on the model or country. (Only 32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42LM34**, 47CM96**)
Cable holder (Depending on model) (See p. A-5)	Power Cord
Stand Screws 8 EA, M4 x 20 (See p. A-3, A-4)	Desk-mount Screw (Only 32/37LM611*, 32/42/47LM58**, 32/37/42LM34**, 32/37/42/47LS56**) (See p. 18)
Desk-mount Cable (Only 42/47/55LM615*) (See p. 18)	Bracket Screw 2 EA, M4 x 8 (Only 42/47/55LM615*) (See p. 18)
Wall mount inner spacers 4EA (Only 32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42/47LS56**) (See p. 20)	Protection cover (Only 32/37/42LM34**, 47CM96**) (See p. A-4)
Isolator (Depending on model) (See p.14)

Stand Body / Stand Base

(Only 42/47/55LM615*)

(See p. A-3)

Stand Body / Stand Base

(Only 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*)

(See p.A-3)

Stand Body / Stand Base

(Only 32/37/42LM34, 47CM96)

(See p. A-4)

NOTE

• Antenna Isolator Installation Guide

• Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.

• You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
• Before starting, be sure that the TV antenna is connected.

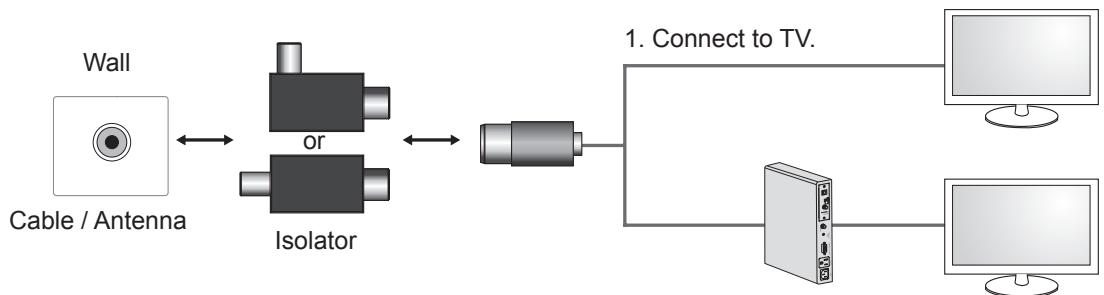

2. Connect to Set-Top box.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buying these items.

These devices only work with certain models.

AG-F2**, AG-F3**

Cinema 3D Glasses

The model name or design

may be changed depending

on the upgrade of product

functions, manufacturer's

circumstances or policies.

Compatibility	32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42LM34**, 47CM96**	32/37/42/47LS56**
AG-F2**, AG-F3** Cinema 3D Glasses	●

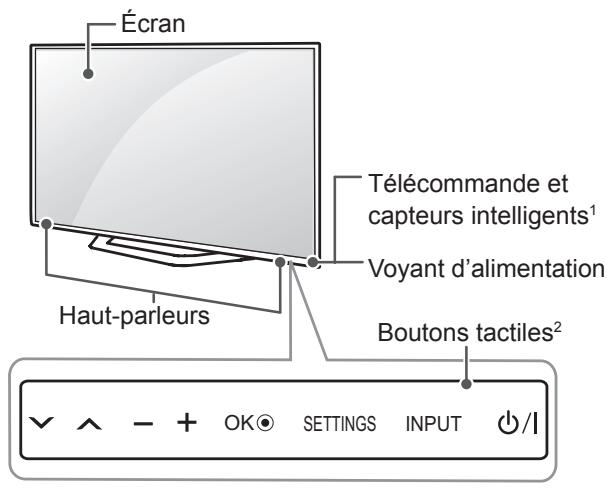

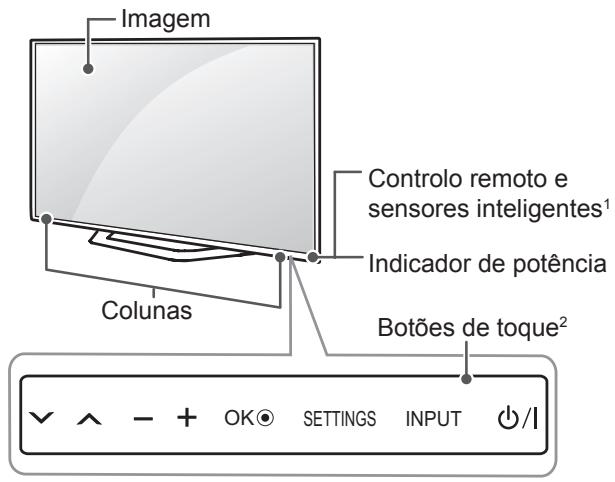

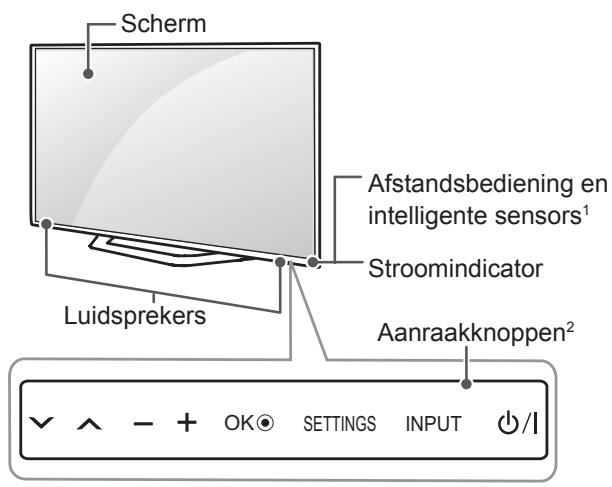

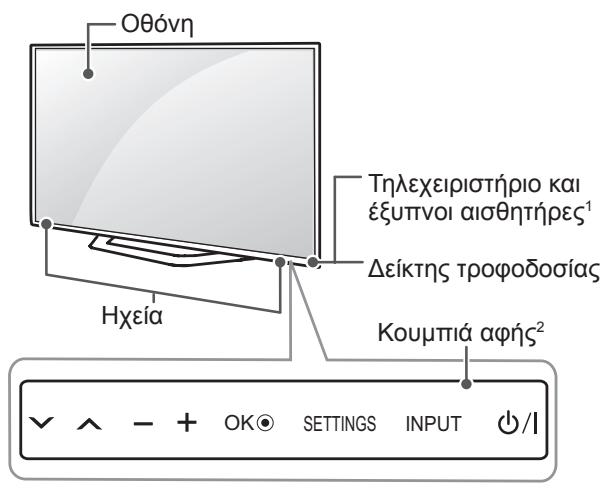

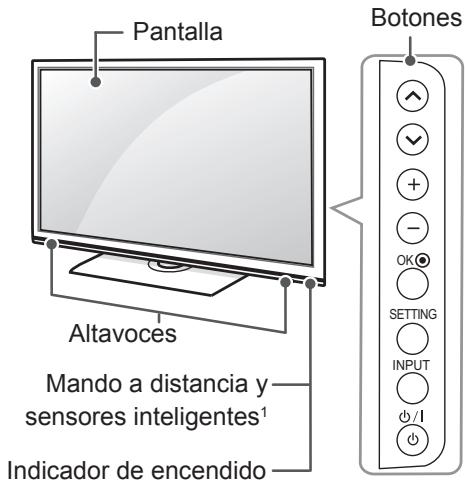

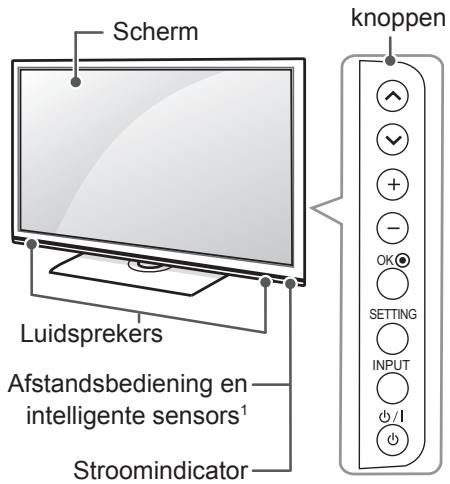

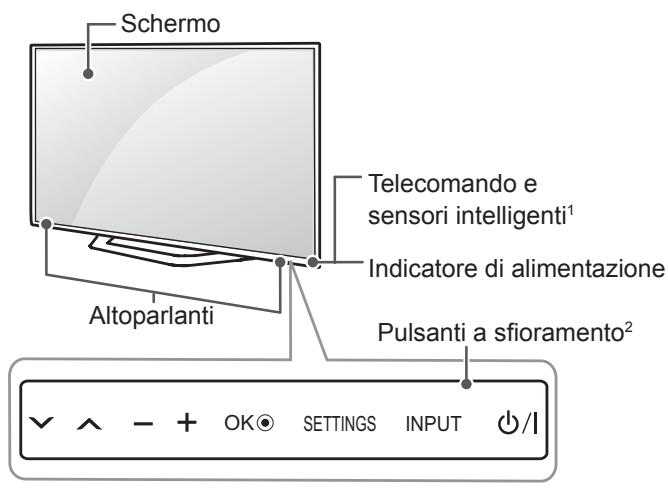

Parts and buttons

A type : 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56

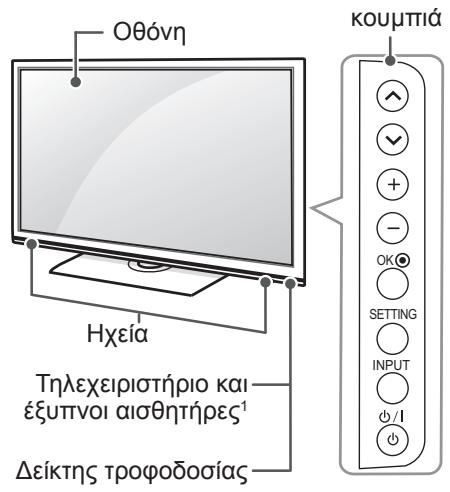

B type: 47CM96**

buttons	Description
←^	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK◎	Selects the highlighted menu option or confirms an input.
SETTINGS	Accesses the main menu, or saves your input and exits the menus.
INPUT	Changes the input source.
\ / \ I	Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 A type buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

• You can set the power indicator light to on or off by selecting OPTION in the main menus.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

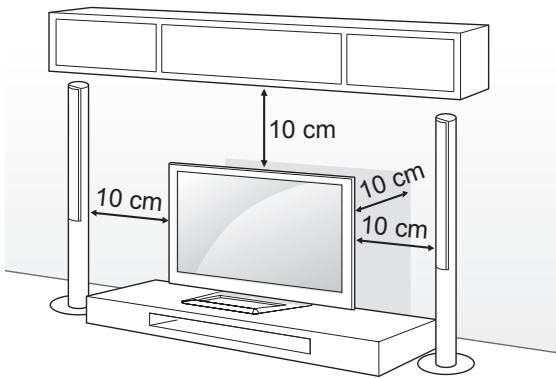

- Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

(Only 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.

(Only 42/47/55LM615*)

1 Connect the Desk-mount Cables to the Stand Base using the Bracket Screws.
2 Fix the Desk-mount Cables to a table using the Desk-mount Screws.
3 Once the TV is fixed, move the table close to the wall. Children may go in, causing injuries.

WARNING

• To prevent TV from falling over, the TV should be securely attached to the floor/ wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

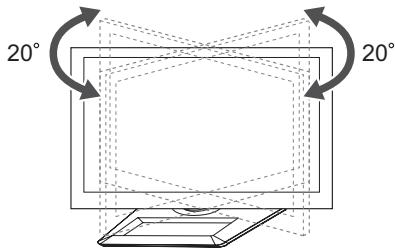

Adjusting the angle of the TV to suit view

(Only 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56, 47CM96*) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

(Only 42/47/55LM615*)

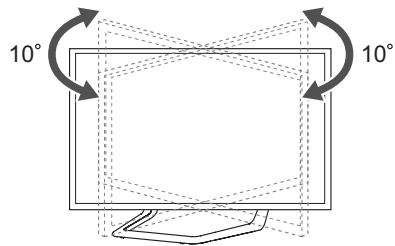

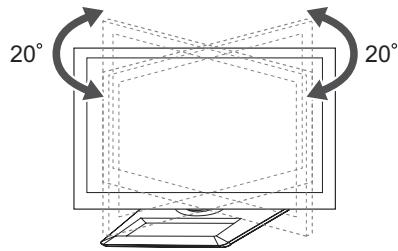

Swivel 10 degrees to the left or right and adjust the angle of the TV to suit your view.

CAUTION

• When adjusting the angle of the product, watch out for your fingers.
• Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

(Only 42/47/55LM615*)

Securing the TV to a wall

(This feature is not available for all models.)

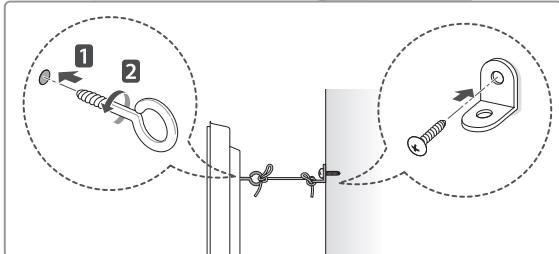

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided.

You can obtain additional accessories from your local dealer.

Using the Kensington security system

(This feature is not available for all models.)

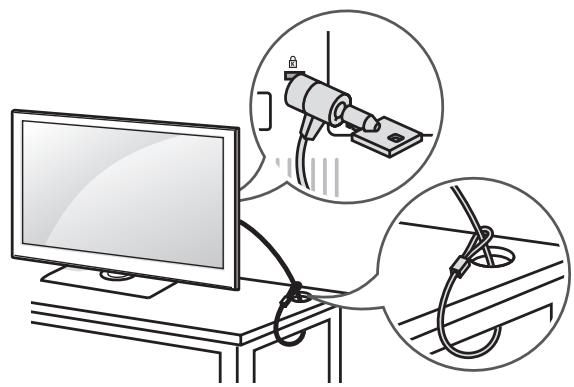

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

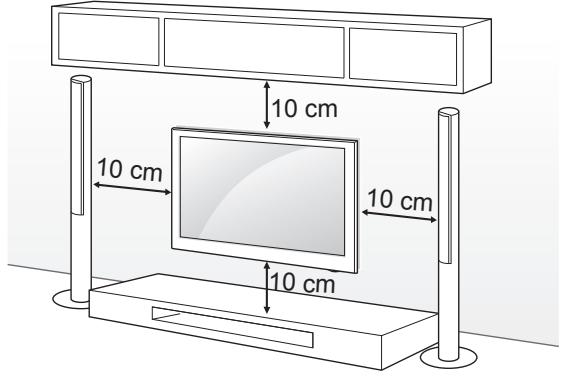

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall Mounting Bracket)

Model	32/37LM61**32LM58**32/37LM34**32/37LS56**	42/47/55LM61**42/47LM58**42LM34**42/47LS56**47CM96**
VESA (A x B)	200 x 200	400 x 400
Standard screw	M6	M6
Number of screws	4	4
Wall mount bracket	LSW200BX, LSW200BXG	LSW400BX, LSW400BXG

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.
• When attaching a third-party wall mounting bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. (Only 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42/47LS56**)

Wall Mount Inner Spacer

REMOTE CONTROL

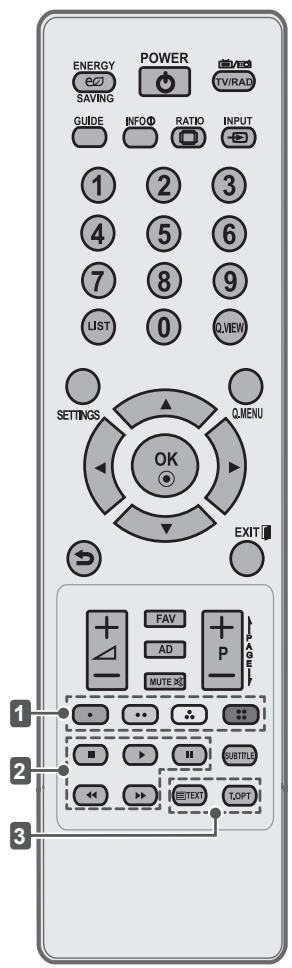

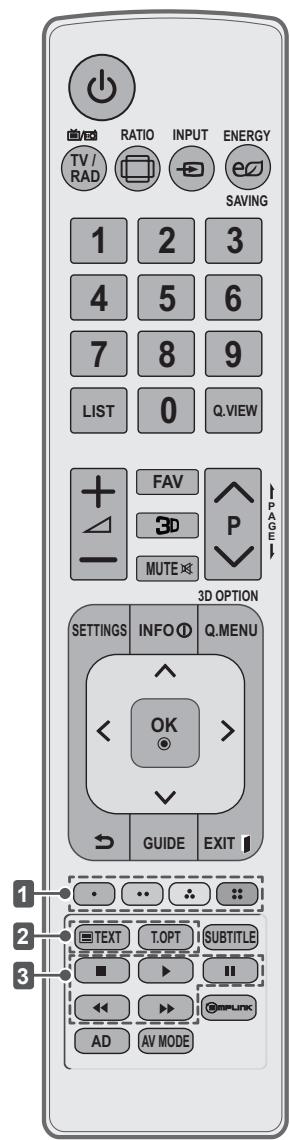

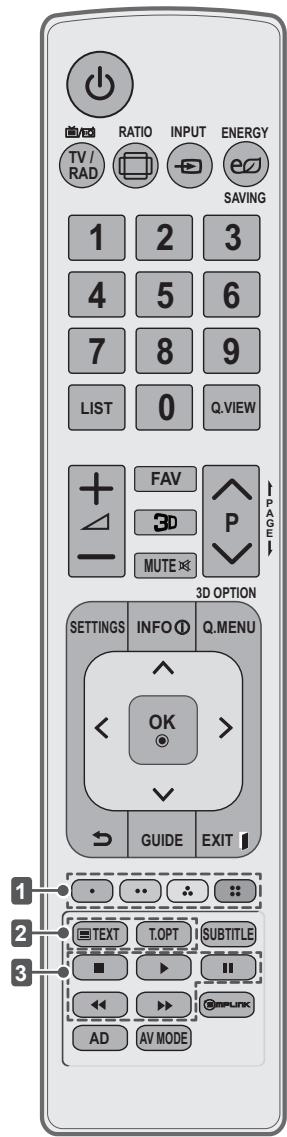

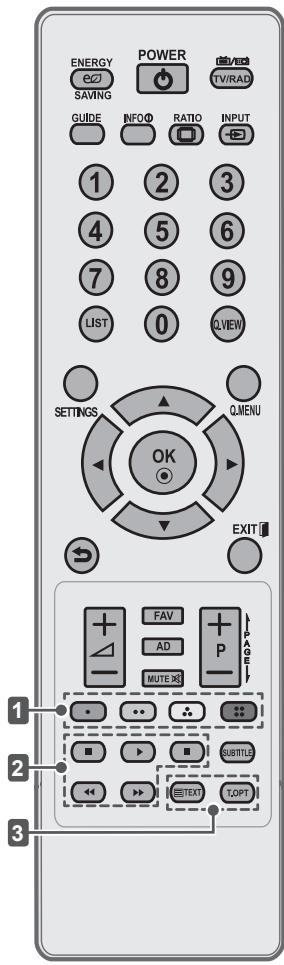

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

(Only 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

TV / RAD /	Selects Radio, TV and DTV programme.
☐RATIO	Resizes an image.
☐INPUT	Changes the input source; Turns the TV on.
eENERGY SAVING	Adjusts the brightness of the screen to reduce energy consumption.
LIST	Accesses the saved programme list.
Q.VIEW	Returns to the previously viewed programme.
FAV	Accesses your favourite programme list.
3D	Used for viewing 3D video.
PAGE	Moves to the previous or next screen.
SETTINGS	Accesses the main menus.
INFO ①	Accesses your favourite programme list.
Q.MENU	Accesses the Quick menus.
3D OPTION	Use this to view 3D video.
Navigation buttons(up/down/left/right)	Scrolls through menus or options.
OK ⑥	Moves to the previous or next screen.
→	Returns to the previous level.
GUIDE	Shows programme guide.
EXIT Ⅰ	Cleared on-screen displays and return to TV viewing.
1 Coloured buttons	These access special functions in some menus.(▶: Red,▶: Green,▲: Yellow,▼: Blue)
2 TELEXTBUTIONS	These buttons are used for teletext.
SUBTITLE	Recalls your preferred subtitle in digital mode.
3 Control buttons(■,▲,■,▲,▲)	Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
SIMPLINK	Accesses the AV devices connected to the TV;Opens the SIMPLINK menu.
AD	Switches the Audio Description on or off.
AV MODE	Selects an AV mode.

(Only 32/37/42/47LS56**)

eENERGY SAVING	Adjusts the brightness of the screen to reduce energy consumption.
TV / RAD /	Selects Radio, TV and DTV programme.
GUIDE	Shows programme guide.
INFO ①	Accesses your favourite programme list.
☐ RATIO	Resizes an image.
-INPUT	Changes the input source; Turns the TV on.
LIST	Accesses the saved programme list.
Q.VIEW	Returns to the previously viewed programme.
SETTINGS	Accesses the main menus.
Q.MENU	Accesses the Quick menus.
Navigation buttons(up/down/left/right)	Scrolls through menus or options.
OK ☎	Moves to the previous or next screen.
→	Returns to the previous level.
EXIT	Cleared on-screen displays and return to TV viewing.
FAV	Accesses your favourite programme list.
AD	Switches the Audio Description on or off.
←PAGE←	Moves to the previous or next screen.
1 Coloured buttons	These access special functions in some menus.(▶: Red,▶: Green,▶: Yellow,▶: Blue)
2 Control buttons(■,▶,■,←,→)	Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
SUBTITLE	Recalls your preferred subtitle in digital mode.
3 TELEXTBUTIONS	These buttons are used for teletext.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation buttons to scroll to User Guide and press OK.

1 Shows the description of the selected menu. You can use to move between pages.
2Zooms in or out the screen.

1 Allows to select the category you want.
2 Allows to select the item you want. You can use to move between pages.
3 Allows to browse the description of the function you want from the index.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to⊕,⊙ to⊙).
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (RGB/HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control. Reconnect the RGB/HDMI cable. Restart the PC with the TV on.

BENUTZERHANDBUCH

LED-LCD-TV / LCD-TV

7,295,673; 7,460,668; 7,515,710; 7,519,274"

ANMERKUNG ZU OPEN SOURCE-SOFTWARE

(Nur 32/37/42LM34, 47CM96)

(Siehe S. A-4)

Separat erhältlich

Option A: 32/37/42/47/55LM61**,

32/42/47LM58, 32/37/42LM34,

32/37/42/47LS56**

Option B: 47CM96**

(Nur 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

(Nur 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

Corps du support / Base du support

(uniqement 42/47/55LM615*)

(voir p. A-3)

Corps du support / Base du support

(uniqement 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*)

(voir p. A-3)

Corps du support / Base du support

(uniqement 32/37/42LM34**, 47CM96**)

(voir p. A-4)

Achat séparé

Type A: 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56

Type B : 47CM96**

(uniquement 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

(uniqement 32/37/42/47LS56**)

7,295,673; 7,460,668; 7,515,710; 7,519,274

AVVISO PER IL SOFTWARE OPEN SOURCE

(Solo 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*)

(Vedere pag, A-3)

(Solo 32/37/42LM34, 47CM96)

(Vedere pag, A-4)

NOTA

32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56

Tip B: 47CM96**

(Solo 32/37LM611, 32/42/47LM58*,

32/37/42LM34, 32/37/42/47LS56)

(Solo 32/37LM611, 32/42/47LM58*,

32/37/42LM34**, 32/37/42/47LS56**, 47CM96**

(Solo 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

(Solo 32/37/42/47LS56**)

7,295,673; 7,460,668; 7,515,710; 7,519,274

AVISO DE SOFTWARE DE CÓDIGO ABIERTO

(Solo 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*)

(Consulte la page A-3)

(Solo 32/37/42LM34, 47CM96)

(Consulte la page A-4)

Compra porSeparated

32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42LM34**, 32/37/42/47LS56**

Tip B: 47CM96**

(Solo 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

(Solo 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

(Solo 32/37/42/47LS56**)

TONYDA

7,295,673; 7,460,668; 7,515,710; 7,519,274

NOTAS SOBRE SOFTWARE DE CÓDIGO ABERTO

(Apenas 32/37LM611, 32/42/47LM58, 32/37/42/47LS56*)

(Consulte a p. A-3)

(Apenas 32/37/42LM34, 47CM96)

(Consulte a p. A-4)

32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42LM34**, 32/37/42/47LS56**

Tip B: 47CM96**

(Apenas 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

(Apenas 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

(Apenas 32/37/42/47LS56**)

s

(Alleen 32/37/42LM34, 47CM96)

(Zie pag. A-4)

Compatibility	32/37/42/47/55LM61**, 32/42/47LM58**, 32/37/42LM34**, 47CM96**	32/37/42/47LS56**
AG-F2**, AG-F3** Cinema 3D-bril	●

A-type: 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56

B-type: 47CM96**

(Aleven 32/37LM611, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56*)

(Alleen 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 47CM96)

7,295,673; 7,460,668; 7,515,710; 7,519,274

ΣHMEIΩΣH ΓIA TO ΑΟΓΙΣMIKO ANOIXTOY KΩΔΙΚA

Tia nI ynou TPO Tnyaiou Kwika TPO DIETeai aTO Tc adEieC xPngs GPL, LGPL, MPL kai aAee
adEieC xPngns avoixtou kwika, o OTIOOCTePAABAVTEAI OTO PPoiov, ETIOKEeTeITE TNI BIEUuvon http://
opensource.ige.com.
EKTOS TO VTO Nyaio Kwika, DiatiEveTai TPOCS IyN OAOI OVAPEpoevo OPoi abEiwxPnOCS, O
aTTOIHOEC EyyuHaeWv KAI OI ANUEOEIC PVEUMATIKWv DkaiomegaV.
H LG Electronics TAPEXI ETIANGS TO AVoIX TO KWika SE CD-ROM EvavTI AVTINOU TPO KAUTTEI TO KOOTG
TNG DIAVOUNS (OTIWCS TO KOATOCS TO Ueou Eyypaqns, TIV ATOOTANKAI TIV TnpaDOON) KATOTIV UTOBOANCS
aITNATOC MEOw e-mail OTN DIEUUVON [e-mail]. Autn n TPOOPaIoxueI YIA TEPIOO TPIWV
(3) ETWv ATO TNV NpeOpunvia ayopac tsou PPoiovToC.

OΔHΓIEΣ ΣXETIKA ME THN AΣΦΑΛEIA

Ipotox npoiotoinote n oukeun, iiaoate TPOOeTKa Tc oynie osetik a Te nV aoaaleia.

ПОНДОПОIHЗH

Túntoç A: 32/37/42/47/55LM61, 32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56

Túrroç B: 47CM96**

32/42/47LM58, 32/37/42LM34, 32/37/42/47LS56, 47CM96)

Pepiotpépsi TnV Tnλεραon 20 oipces apioTepa n δεξia kai πpoσaμoote Tn γωvia Tns Θovns, avaloya μe Tn Θeσn Θeaoons.

(Móvo yia Ta μovtéλa 42/47/55LM615*)

XPHESH TOY OΔHΓOY XPHES

O Oynoc xponc oac eTIPETE i va aTOKTHoTe Eukoan TPOaon OTiC AETTOpeic TAnpoopiecs Tns TnAe-opaans.

This section on MAKING CONNECTIONS mainly uses diagrams for the 32/42/47LM58** models.

Antenna connection

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.

Deutsch

Satellite dish connection

(Only satellite models)

Nederlandsls

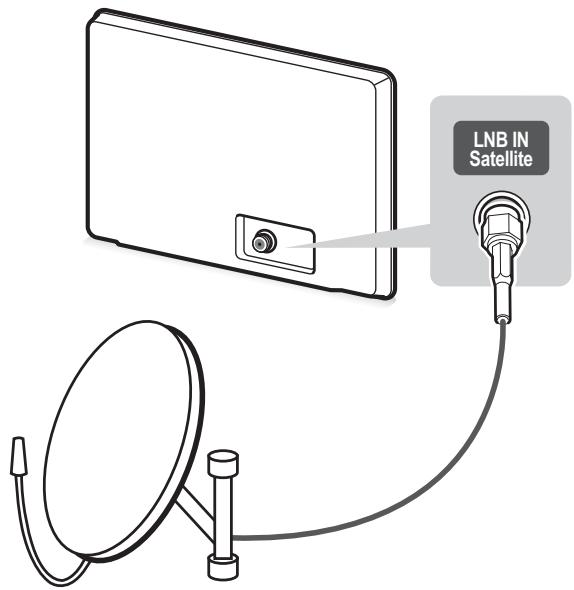

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Deutsch

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.

Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC
  Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k /88k/96k/176k/192k, DTS Not supported.)

Français

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.

NOTE

Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

Deutsch

Component connection

DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

• If cables are installed incorrectly, it could case the image to display in black and white or with distorted colour.

Deutsch

Composite connection

VCR / DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Deutsch

Transmits the video signal from PC to the TV. To transmit an audio signal, connect an audio cable.

Deutsch

Audio connection
Digital Audio System

English

You may use an optional external audio system instead of the built-in speaker.

NOTE

• If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off.

Digital optical audio connection

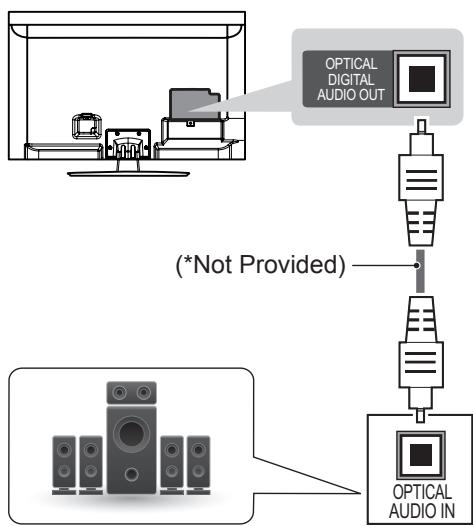

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

NOTE

• Do not look into the optical output port. Looking at the laser beam may damage your vision.
• Audio with ACP (Audio Copy Protection) function may block digital audio output.

Deutsch

Connect a USB storage device such as s USB flash memory, external hard drive or a USB memory card reader to the TV and access the My media menu to use various multimedia files.

Deutsch

Headphone connection

English

Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

NOTE

• AUDIO menu items are disabled when connecting a headphone.
• Optical Digital Audio Out is not available when connecting a headphone.
• Headphone impedance: 16 Ω
• Max audio output of headphone: 10 mW to 15 mW
• Headphone jack size: 0.35 cm

Deutsch

Euro Scart connection

English

Output Type Current input mode	AV1 (TV Out¹)
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component / RGB
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.
• When watching digital TV in 3D imaging mode, TV out signals cannot be output through the SCART cable. (Only 3D models)
• If you set the 3D mode to On while a scheduled recording is performed on digital TV, monitor out signals cannot be output through the SCART cable, and the recording cannot be performed. (Only 3D models)

Deutsch

Ausgangstyp Aktueller Eingangsmodus	AV1 (TV-Ausgang1)
Digital-TV	Digital-TV
Analog-TV, AV	Analog-TV
Component/RGB
HDMI

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Deutsch

Product specifications may be changed without prior notice due to upgrade of product functions.

MODELS		42LM615*	47LM615*	55LM615*
		42LM615S-ZE	47LM615S-ZE	55LM615S-ZE
		42LM615T-ZE	47LM615T-ZE	55LM615T-ZE
Dimensions(W x H x D)	With stand (mm)	979.0 x 670.0 x 263.0	1089.0 x 728.0 x 263.0	1263.0 x 830.0 x 331.0
	Without stand (mm)	979.0 x 594.0 x 35.5	1089.0 x 655.0 x 35.5	1263.0 x 754.0 x 35.5
Weight	With stand (kg)	14.9	17.6	25.7
	Without stand (kg)	12.7	15.4	21.9
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		100 W	120 W	150 W
MODELS		32LM611*	37LM611*
		32LM611S-ZA	37LM611S-ZA
		32LM611T-ZA	37LM611T-ZA
Dimensions(W x H x D)	With stand (mm)	746.0 x 527.0 x 204.0	856.0 x 590.0 x 204.0
	Without stand (mm)	746.0 x 462.0 x 35.5	856.0 x 524.0 x 35.5
Weight	With stand (kg)	9.7	12.4
	Without stand (kg)	8.3	10.5
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		80 W	90 W
MODELS		32LM58**	42LM58**	47LM58**
		32LM580S-ZA	42LM580S-ZA	47LM580S-ZA
		32LM580T-ZA	42LM580T-ZA	47LM580T-ZA
Dimensions(W x H x D)	With stand (mm)	746.0 x 527.0 x 204.0	979.0 x 660.0 x 269.0	1089.0 x 722.0 x 269.0
	Without stand (mm)	746.0 x 462.0 x 35.5	979.0 x 594.0 x 35.5	1089.0 x 655.0 x 35.5
Weight	With stand (kg)	9.8	15.6	18.1
	Without stand (kg)	8.5	13.1	15.6
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		80 W	100 W	120 W
MODELS		32LM34**	37LM34**	42LM34**
		32LM3400-ZA	37LM3400-ZA	42LM3400-ZA
		32LM340S-ZA	37LM340S-ZA	42LM340S-ZA
		32LM340T-ZA	37LM340T-ZA	42LM340T-ZA
Dimensions(W x H x D)	With stand (mm)	795.0 x 566.0 x 207.0	888.0 x 614.0 x 240.0	1017.0 x 695.0 x 261.0
	Without stand (mm)	795.0 x 504.0 x 73.5	888.0 x 553.0 x 74.5	1017.0 x 629.0 x 76.5
Weight	With stand (kg)	9.1	13.5	14.7
	Without stand (kg)	8.1	11.7	13.1
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		80 W	90 W	100 W
MODELS		32LS56****	37LS56**	42LS56**
		32LS5600-ZC		42LS5600-ZC
		32LS560S-ZC	37LS5600-ZC	42LS560S-ZC
		32LS560T-ZC	37LS560S-ZC	42LS560T-ZC
		32LS561T-ZA	37LS560T-ZC	42LS561T-ZA
		32LS5610-ZA		42LS5610-ZA
		32LS5620-ZD		42LS5620-ZD
Dimensions(W x H x D)	With stand (mm)	746.0 x 527.0 x 204.0	856.0 x 590.0 x 204.0	979.0 x 660.0 x 269.0
	Without stand (mm)	746.0 x 462.0 x 35.5	856.0 x 524.0 x 35.5	979.0 x 594.0 x 35.5
Weight	With stand (kg)	9.7	12.4	15.1
	Without stand (kg)	8.3	10.5	12.7
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		80 W	90 W	100 W
MODELS		47LS56**	47CM96**
		47LS5600-ZC
		47LS560S-ZC	47CM960S-ZC
		47LS560T-ZC
		47LS561T-ZA
		47LS5610-ZA
		47LS5620-ZD
Dimensions(W x H x D)	With stand (mm)	1089.0 x 720.0 x 269.0	1137.0 x 758.0 x 270.0
	Without stand (mm)	1089.0 x 655.0 x 35.5	1137.0 x 685.0 x 76.8
Weight	With stand (kg)	17.8	20.3
	Without stand (kg)	15.4	18.3
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
Power consumption		120 W	250 W

CI Module size (W x H x D)	100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating temperature		0 °C to 40 °C
	Operating humidity		Less than 80 %
	Storage temperature		-20 °C to 60 °C
	Storage humidity		Less than 85 %
	Satellite Digital TV1	Digital TV2	Digital TV	Analogue TV
Television system	DVB-T	DVB-T/T2	DVB-T	PAL/SECAM B/G/D/K, SECAM L/L’3
	DVB-C	DVB-C	DVB-C
	DVB-S/S2
Programme coverage	VHF, UHF	VHF, UHF		VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
	C-Band, Ku-Band
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

1 Only satellite models
2 Only DVB-T2 support models
3 Except for DVB-T2 support models

HDMI/DVI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.469	59.94
	31.5	60
720x576	31.25	50
1280x720	37.5	50
	44.96	59.94
	45	60
1920x1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

Component port connecting information

Component ports on the TV

Y

PB

PR

Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

Signal	Component
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O (50 Hz / 60 Hz only)

3D supported mode

Input	Signal	Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Playable 3D video format
HDMI	720p	1280x720	89.9 / 90 / 75	59.94 / 60 / 50	Frame packing (720 60p)
			45 / 37.5	60 / 50	Side by Side(half), Top & Bottom
	1080i	1920x1080	33.7 / 28.125	60 / 50	Side by Side(half), Top & Bottom
	1080p	1920x1080	53.95 / 54	23.98 / 24	Frame packing (1080 24p)
			67.5 / 56.3	60 / 50	Side by Side, Top & Bottom, Single Frame Sequential
			27	24	Side by Side(half), Top & Bottom
			33.7	30	Side by Side(half), Top &Bottom
RGB	1080p	1920x1080	66.587	59.93	Side by Side, Top & Bottom
USB	1080p	1920x1080	33.75	30	Side by Side, Top & Bottom, MPO( Photo )
DLNA	1080p	1920x1080	33.75	30	Side by Side, Top & Bottom, MPO( Photo )
	Signal				Playable 3D video format
DTV	720p, 1080i				Side by Side, Top & Bottom

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996)

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
Belgie/Luxemburg	32 15 200255	Norge	800 187 40
		Polska	801 54 54 54
Бълария	07001 5454	Portugal	808 78 54 54
Česká Rep.	810 555 810	România	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	Espana	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01803 11 54 11	Schweiz	0848 543 543
Еλλάδα	801 11 200 900	United Kingdom	0844 847 5454
Magyarország	06 40 54 54 54	Россия	8 800 200 7676
Éire	0818 27 6955	Эстония	800 9990
Italia	199600099	Уkraine	0 800 303 000
Беларүь	8 820 0071 111	Казахстан	2255
Латва	8 0003 271	Узбекмстан	800 0071 0005
Лигва	8 800 30 800	Кырshire	800 0071 0005

www.lg.com
