Brand	SIEMENS
Model	MOTION 701
Product type	Behind-the-ear (BTE) with LifeTube
Category	Digital hearing aid
Dimensions	Height approx. 12 mm, width approx. 15 mm, depth approx. 8 mm
Weight	Approx. 5 g (without battery)
Power supply	Standard battery type 312 (non-rechargeable) or rechargeable battery (Motion SX/P with contacts)
Battery life	Approx. 5 to 7 days depending on use (battery 312)
Listening programs	Up to 5 programs, selection by push button or rocker switch
Volume control	Automatic or manual via rocker switch or remote control
Wireless functions	e2e wireless 2.0 for binaural synchronization and remote control, compatible with Tek Bluetooth
Telephone function	AutoPhone with dedicated magnet, automatic switch to telephone mode
Delayed start	Delay of 6, 12 or 18 seconds configurable by the hearing care professional
Maintenance and care	Clean with dry cloth, replace LifeTube/LifeTip every 3 to 6 months, drying kit recommended
Safety	Not water-resistant, avoid extreme heat, humidity, magnetic fields >0.1 T, X-rays
Spare parts and repairability	LifeTube, LifeTip, batteries, AutoPhone magnet, remote control, charger available from your hearing care professional
General information	FCC ID: SGI-WL002BTE, IC: 267AB-WL002, CE medical and R&TTE compliance, WEEE recycling

Frequently Asked Questions - MOTION 701 SIEMENS

How to insert the battery?

Open the battery compartment completely with your fingernail. Insert a battery of the correct size (type 312 for Motion 701) with the '+' symbol facing up. Close the battery compartment. Do not force it closed.

How to turn the device on and off?

You can turn on/off via the battery compartment (closed = on, open = off) or via the push button (long press for 2 seconds). A delayed start can be activated by your hearing care professional.

What to do if the device whistles?

Reinsert the ear tip (LifeTip) until it is well positioned. Lower the volume. Clean the tip. If the whistling persists, consult your hearing care professional.

How to change the listening program?

Use the push button (press to go to the next program) or the rocker switch (up for next, down for previous). You can also use the remote control.

How to adjust the volume?

The volume is set automatically by default. For manual adjustment, your hearing care professional can activate manual mode. Then use the rocker switch (up to increase, down to decrease) or the remote control.

Can I use my phone with the device?

Yes, thanks to the AutoPhone function. Bring the handset close to the hearing aid to automatically switch to the telephone program. If the magnetic field is insufficient, use the supplied AutoPhone magnet.

How to clean the device?

Clean regularly with a soft, dry cloth. For the LifeTube, use a cleaning wire. Never put the device under water. At night, place it in a closed drying container with a drying tablet.

What accessories are available?

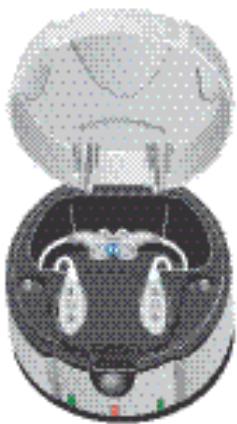

Charger for rechargeable batteries (SX/P models), Siemens Tek remote control (Bluetooth), AutoPhone magnet, cleaning kit, replacement LifeTube and LifeTip. Contact your hearing care professional.

What to do if the sound is weak or distorted?

Replace or recharge the battery. Clean the ear tip or LifeTip. Increase the volume. Check that the battery compartment is properly closed. Consult the troubleshooting guide.

How to dispose of the device at end of life?

Do not dispose of the device, batteries, or accessories with household waste. Recycle them in accordance with national regulations (WEEE directive). Return them to your hearing care professional.

USER MANUAL MOTION 701 SIEMENS

Diagram of a biological or anatomical structure with numbered parts, likely illustrating a biological or mechanical assembly.

① Tragehaken
② LifeTube
③ LifeTip
④ Wipptaster*

Technical diagram of a device with numbered components, likely illustrating a mechanical or electronic assembly.

① Tragehaken
② LifeTube
③ LifeTip
④ Wipptaster*
⑤ Programtaster*

Diagram of a curved object with numbered parts labeled ① through ⑦

Diagram of a lamp with labeled parts including a lampshade and a lamp bulb, marked with numbers ② and ③.

Close-up of a handheld device with labeled parts (no readable text or symbols)

① Tragehaken
② LifeTube
③ LifeTip
④ Wipptaster
⑤ Programmtaster

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Pixelated graphic of a computer mouse with a red X mark overlay (no text or symbols)

Pixelated illustration of a brain with a green and blue object, no text or symbols present

Abstract illustration of a curved arrow with blue motion, no text or symbols present

Pixelated illustration of a mechanical component with a blue arrow indicating direction (no text or symbols)

Diagram showing two blue arrows labeled ① and ② pointing to a curved, textured object (no text or symbols present)

Diagram showing two curved arrows labeled ① and ② pointing to a shaded region, no text or symbols present.

Abstract pixelated graphic with a blue arrow and curved shape, no text or symbols present.

Aus

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Mit Programmtaster

Ein

Pixelated illustration of a mechanical device with a blue component and a small attached part (no text or symbols visible)

Aus

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Wipptaster

Close-up of a transparent container with blue arrows pointing to a white object, no visible text or symbols.

Mit Fernbedienung

Close-up of a textured surface with blue arrows pointing to a white circular object (no text or symbols visible)

Mit Fernbedienung

Symbol of a faucet with a red diagonal line crossing it, indicating no text or numbers present.

Top-down view of a car's head and front wheel assembly (no visible text or symbols)

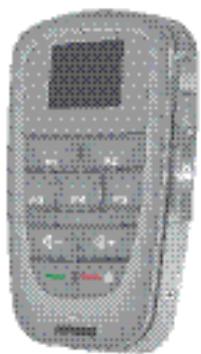

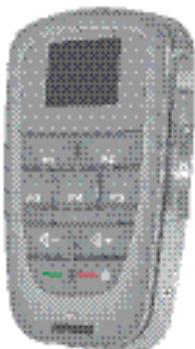

Tek Fernbedienung

Illustration of a mobile phone with control buttons and a green indicator lights (no readable text or symbols)

Fernbedienung

Simple line drawing of a trash bin with crossed lines indicating lanes (no text or symbols)

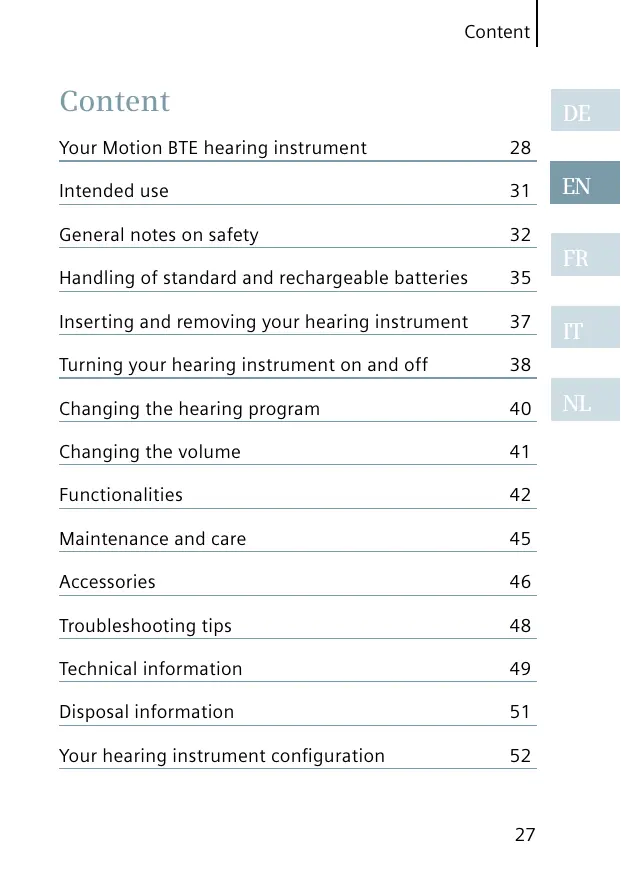

Your Motion BTE hearing instrument 28

Intended use 31

General notes on safety 32

Handling of standard and rechargeable batteries 35

Inserting and removing your hearing instrument 37

Turning your hearing instrument on and off 38

Changing the hearing program 40

Changing the volume 41

Functionalities 42

Maintenance and care 45

Accessories 46

Troubleshooting tips 48

Technical information 49

Disposal information 51

Your hearing instrument configuration 52

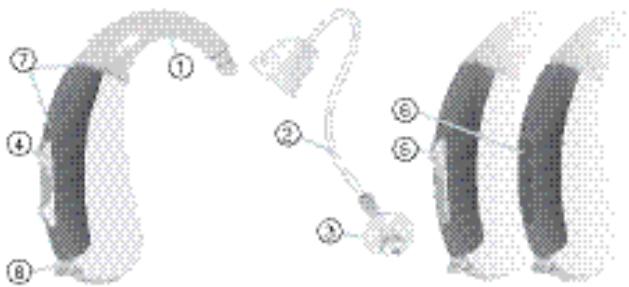

Your Motion BTE hearing instrument

Motion S

optional with LifeTube

battery type: 312

always non-rechargeable

Diagram of a biological or mechanical structure with numbered components, likely illustrating a cross-section or assembly.

① Earhook
② LifeTube
③ LifeTip
④ Rocker switch*

⑤ Push button*
⑥ Flat cover*
⑦ Microphone openings
⑧ Battery compartment

* Alternative to a rocker switch your Hearing Care Professional can fit your hearing instrument with a push button or without control (flat cover).

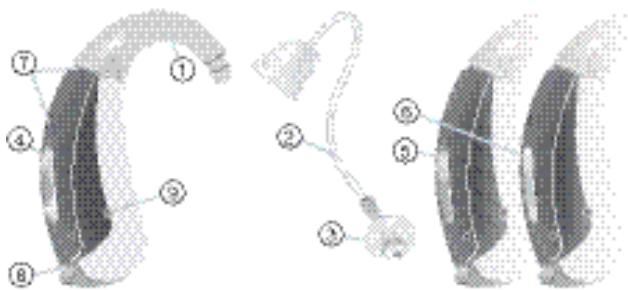

Motion SX

optional with LifeTube

battery type: 13

rechargeable or non-rechargeable

Technical diagram showing labeled parts of a device with numbered annotations

① Earhook
② LifeTube
③ LifeTip
④ Rocker switch*
⑤ Push button*

⑥ Flat cover*
⑦ Microphone openings
⑧ Battery compartment
⑨ Charging contacts

* Alternative to a rocker switch your Hearing Care Professional can fit your hearing instrument with a push button or without control (flat cover).

Motion P

optional with LifeTube

battery type: 13

rechargeable or non-rechargeable

Diagram of a curved object with numbered parts labeled ① through ⑦

Diagram of a lamp with labeled parts including a lampshade and a lamp bulb, marked with numbers ② and ③.

Illustration of a handheld device with labeled parts (no readable text or symbols)

① Earhook
② LifeTube
③ LifeTip
④ Rocker switch
⑤ Push button

⑥ Microphone openings
⑦ Battery compartment
⑧ Charging contacts
⑨ Serial number
⑩ Type of hearing instrument

Intended use

Hearing instruments are intended to improve the hearing of hearing impaired persons. Diagnosis and prescription of a hearing instrument must be performed by hearing health specialists, e.g. ENT doctors, audiologists or acousticians.

Read and follow the instructions of this user guide to avoid injuries or damage to the hearing instruments.

Symbols:
Be aware to information marked with the warning symbol WARNING, CAUTION or NOTICE!
	WARNING points out a situation that could lead to serious injuries,CAUTIONindicates a situation that could lead to minor and moderate injuries.
NOTICE	NOTICE indicates possible property damage.
[4A91]	Advice and tips on how to handle your device better.
[5F92]	Instruction. Indicates that something has to be done.
	Indicates an option that not every hearing instrument has. Ask your Hearing Care Professional to check off the relevant information.

General notes on safety

NOTICE

Your hearing instruments are sensitive to extreme heat, high humidity, strong magnetic fields (>0.1T), X-rays and mechanical stress.

Do not expose your hearing instruments to extreme temperature or high humidity.
Do not leave them in direct sunlight.
Do not wear them in the shower or when you apply make-up, perfume, aftershave, hairspray or suntan lotion.
Do not wear your hearing instruments when you are exposed to short-waves, a strong magnetic field, a high frequency field or X-rays.
Do not place your hearing instruments in a microwave oven.

WARNING

Hazard of explosion!

Do not use your hearing instruments in areas where there is a danger of explosions (e.g. mining).

WARNING

Choking hazard posed by small parts.

Keep hearing instruments, batteries and accessories out of children's reach.
If swallowed consult a physician or hospital immediately.
If infants, small children or mentally disabled persons need to wear hearing instruments ensure adequate supervision.

CAUTION

Risk of injury caused by incorrect use of Life Tip.

Always wear the LifeTube with the LifeTip.
Make sure that the LifeTip is completely attached to the LifeTip adapter.
Change the LifeTube or LifeTip when they are cracked.
Put the LifeTube with the LifeTip carefully and not too deep into the ear.
Use the LifeTube and LifeTip only in the way described in this user guide.
If the LifeTip remains in the ear, have it removed by a medical professional.

In some countries restrictions for the usage of wireless equipment exist.

▶ Refer to local authorities for further information.

NOTICE

Leaking batteries damage the hearing instruments.

▶ Turn the hearing instruments off when not in use to preserve the battery.
Remove batteries when the instruments are not in use for a prolonged period of time.

NOTICE

Batteries contain harmful substances that pollute the environment.

Do not throw used batteries into household trash.
▶ Dispose batteries according to national regulations or return them to your Hearing Care Professional.

Handling of standard and rechargeable batteries

original size

Always use the right size of batteries.
Charge the rechargeable batteries before first use.
Remove the tab on standard batteries only when you are ready to use them.
The positive (+) side of the batteries is always the smooth side.
Always keep spare batteries with you.

Low battery indicator

Your Hearing Care Professional can activate an acoustic signal to inform you when the battery is nearly empty. If you hear an acoustic signal or experience low amplification power, replace the battery.

Inserting the battery

▶ Open the battery compartment completely using your fingernail as shown in the illustration.
Insert the proper size battery. Make sure that the "+" symbol on the battery points up as shown in the picture
▶ Close the battery compartment. Do not force the door shut. If it does not close easily, check to see if the battery was inserted properly.

When the battery door is completely closed, your hearing instrument is ready for use.

Removing the battery

▶ Open the battery compartment completely.

Normally the battery drops out when the compartment is completely open.

If the battery does not come out, lightly tap the instrument or use the magnet stick available as accessory to remove the battery.

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Pixelated illustration of a red X symbol over a blue circular shape, resembling a stylized face or abstract design (no text or symbols present)

Pixelated abstract graphic with gray cloud-like shape and blue-green circular element (no text or symbols)

Pixelated illustration of a hand holding a white object with a blue arrow indicating motion (no text or symbols)

Pixelated illustration of a mechanical component with a blue arrow indicating direction (no text or symbols)

Inserting and removing your hearing instrument

For side recognition ask your Hearing Care Professional to apply colored markers in the battery compartment. If the marker in the battery compartment is in red, the hearing instrument is intended for the right ear. If the marker is in blue, the hearing instrument is for the left ear.

Inserting your hearing instrument

▶ Turn your hearing instrument off.
Hold the earmold / LifeTip between your thumb and index finger and insert it carefully into the ear canal.

You may find it helpful to pull your ear slightly upward or to the back.

Diagram showing a hand holding a small object with arrows labeled ① and ② indicating direction or flow.

Place your hearing instrument behind your ear.
▶ Turn your hearing instrument on.

Removing your hearing instrument

Hold the earmold/LifeTube between your thumb and index finger and carefully pull it out. You may find it helpful to lightly push your ear from the back.

Diagram showing two curved arrows labeled ① and ②, with a shaded region in the center (no text or symbols beyond labels)

Turning your hearing instrument on and off

▶ Ask your Hearing Care Professional to check off the relevant information.

Via battery compartment

On

▶ Close the battery compartment.

Pixelated illustration of a computer monitor with an open screen and blue scroll arrow (no text or symbols)

Off

▶ Open the battery compartment.

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Via push button

On

▶ Press the push button for 2 seconds.

Pixelated illustration of a mechanical device with a blue component and a small attached part (no text or symbols visible)

Off

▶ Press the push button for 2 seconds.

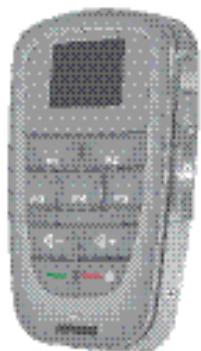

Via remote control

▶ Refer to the remote control user guide.

Power-on delay

Your hearing instrument is equipped with a "power-on delay" feature which can be activated by your Hearing Care Professional. This allows you to turn the hearing instrument on with an automatic delay of 6, 12 or 18 seconds, so that you may insert the hearing instrument into your ear without experiencing unpleasant feedback (whistling).

Changing the hearing program

▶ Ask your Hearing Care Professional to check off the relevant information.

Via push button

▶ Press the push button to switch to the next program.

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Via rocker switch

▶ Press up to switch to the next program.
▶ Press down to switch to the previous program.

Close-up of a transparent container with blue arrows pointing to internal components (no visible text or symbols)

Via remote control

▶ Refer to the remote control user guide.

Changing the volume

The volume of your hearing instruments is controlled automatically and there is no need to manually adjust it. Should you prefer manual volume control, your Hearing Care Professional can program the hearing instrument for manual adjustment.

Automatic

The volume is adjusted automatically when in use.

Rocker switch

▶ Press up to increase the volume.
▶ Press down to decrease the volume.

Close-up of a blue arrow pointing to a white object, possibly a button or component (no text or symbols visible)

Via remote control

▶ Refer to the remote control user guide.

Functionalities

Your Hearing Care Professional can activate the following functionalities.

e2e wireless

• Allows the use of a remote control.
  ■ Automatically adjusts both hearing instruments simultaneously to change the instrument settings, e.g. volume or program.

The performance of the e2e wireless function may be affected by electromagnetic interference – e.g. from a computer monitor or fluorescent lamp system.

Move away from the source of interference if you experience difficulty.

Automatic telephone program

Hold a telephone near your hearing instrument (*).
The hearing instrument automatically switches to the telephone program.
▶ Move the telephone away from your hearing instrument.
The hearing instrument switches back to the previously used program.

You can also select the telephone program manually by using the program button.
When operating the hearing instrument in telecoil mode, the wireless function may cause a pulsing noise. This is due to the pick-up of the transmission signal. When your hearing instrument is in telecoil mode please use the remote control only with a distance greater than 10 cm (4 inches).

(\*) AutoPhone magnet accessory

Not all telephones produce a magnetic field strong enough to activate the AutoPhone function. In this case, use the Siemens AutoPhone magnet, which is available as accessory, and attach it to the telephone receiver to activate the AutoPhone function.

See the AutoPhone magnet user guide for instructions on how to position the magnet.
▶ Use only the Siemens magnet. Ask your Hearing Care Professional for this accessory.

NOTICE

Magnets can disturb electrical devices and delete stored data.

Keep magnets away from computers, color monitors, television sets, floppy discs, video- and audio discs and other electronic equipment/ devices.

WARNING

Magnets may interfere with the operation of life supporting systems (e. g. pacemakers, magnetic valves).

Use a magnet only if not in doubt about the safe distance. The safe distance between pacemaker and magnet should be at least 10 cm (4 inches).

Maintenance and care

Your hearing instruments are highly sensitive systems. Proper care and handling will ensure the best possible performance.

Clean instruments regularly to prevent damage to the hearing instruments and to avoid health problems.

NOTICE

Do not put the hearing instruments in water.

Symbol of a faucet with a red diagonal line crossing it, indicating no text or numbers present.

Clean your hearing instruments with a soft, dry tissue, as necessary.
Place your hearing instruments in a "dry aid kit" with a special moisture-attracting capsule overnight.
▶ Ask your Hearing Care Professional for special care sets and further information on how to keep your hearing instruments in good condition.

For instruments with LifeTube

▶ Regulatory clean LifeTubes with a cleaning wire.
▶ Ask your Hearing Care Professional to exchange LifeTubes and LifeTips approximately every 3 to 6 months or as needed.

Accessories

Charger (Motion SX and Motion P)

Your hearing instruments work with standard or rechargeable batteries. With the easy-to-use charger you can charge the rechargeable batteries for one or two hearing instruments. After just 6 hours of charging, the charger shuts itself off and the hearing instruments are ready to run for a day.

For detailed information and instructions refer to the charger user guide or ask your Hearing Care Professional.

Top-down view of a car's head and front wheel assembly (no visible text or symbols)

Tek wireless enhancement

Your hearing instruments together with the Tek Connect remote control will allow you to connect your hearing instruments to the growing world of technology. Via a special Bluetooth connection it is possible to receive audio signals from your mobile, your television or your mp3-player.

For detailed information and instructions refer to the Tek user guide or ask your Hearing Care Professional.

Illustration of a handheld mobile phone with control panel and buttons (no visible text or symbols)

Remote control

The wireless function of your hearing instruments allows you to use a remote control to change the program and volume of your hearing instruments.

For further information about the remote control, contact your Hearing Care Professional or refer to the remote control user guide.

In the event your hearing instruments can be controlled by another person's remote control, return hearing instruments and remote control to your Hearing Care Professional.

Troubleshooting tips

Your hearing instruments are extremely reliable devices. Should a problem occur, it can usually be corrected quickly. Use these troubleshooting tips to resolve simple issues.

Problem	Possible solution
Sound is weak.	Replace / recharge empty battery.Clean earmold.Increase volume.
Hearing instrument emits whistling sounds.	Reinsert the earmold until it fits securely.Decrease volume.Clean earmold.
Sound is distorted.	Decrease volume.Replace / recharge empty battery.Clean earmold / Life Tip.
Hearing instrument emits signal tones.	Gently close battery compartment completely.Replace / recharge empty battery.
Hearing instrument does not work.	Check if the hearing instrument is turned on.Gently close battery compartment completely.Replace / recharge empty battery.Make sure battery is inserted correctly.Power-on delay is active. Wait 18 seconds and check again.

Consult your Hearing Care Professional if you encounter further problems.

Technical information

Siemens Motion 701, Motion 501, Motion 301

FCC ID: SGI-WL002BTE

IC: 267AB-WL002

Operating frequencies: F_c=3.28 MHz

N14203

This Class B digital apparatus complies with Canadian ICES-003.

Changes or modifications not expressly approved by SAT GmbH for compliance could void the users authority to operate the equipment.

FCC compliance

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.

Operation is subject to the following conditions:

■ this device may not cause harmful interference, and
■ this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Disposal information

Within the European Union, the marked equipment is covered by "Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 on waste electrical and electronical equipment."

Amended by "Directive 2003/108/EC" (WEEE).

Simple line drawing of a trash bin with no text or symbols

▶ Recycle hearing instruments, batteries and accessories according to national regulations.

With the CE marking Siemens confirms compliance with the European Directive 93/42/EEC concerning medical devices.

For the products with e2e wireless 2.0 Siemens additionally confirms compliance with the European Directive 99/5/EC (R&TTE) concerning radio and telecommunications terminal equipment.

Your hearing instrument configuration

LEFT	Hearing instrument	RIGHT
	Model
	Serial number
	Battery
☐ yes ☐ no	Power-on delay	☐ yes ☐ no
☐ yes ☐ no	Push button	☐ yes ☐ no
☐ yes ☐ no	Rocker switch	☐ yes ☐ no
	Signal tones
☐ on ☐ off	Program change	☐ on ☐ off
☐ on ☐ off	Low battery warning	☐ on ☐ off
☐ on ☐ off	Volume control limit	☐ on ☐ off
☐ on ☐ off	volume control change	☐ on ☐ off
Program	Description of the program
1
2
3
4
5
	Remote control
Model
Serial number

Sommaire

Diagram of a biological or mechanical structure with numbered components, likely illustrating a cross-section or assembly.

rechargeable ou non rechargeable

Technical diagram of a device with numbered components, likely illustrating a mechanical or electronic assembly.

rechargeable ou non rechargeable

Diagram of a curved object with numbered parts labeled 1 through 8

Diagram of a lamp with labeled parts including a lampshade and a lamp bulb, marked with numbers ② and ③.

Close-up of a mechanical component with numbered callouts (no readable text or symbols)

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Pixelated illustration of a red X-shaped object with blue circular elements, resembling a stylized globe or icon (no text or symbols)

Pixelated illustration of a blue object interacting with a gray cloud-like shape (no text or symbols)

Abstract graphic with a blue arrow and curved shape, no text or symbols present

Pixelated illustration of a person holding a blue object with a white background (no text or symbols)

Diagram showing two curved arrows labeled ① and ②, with a shaded region inside a dotted circle (no text or symbols beyond labels)

Illustration of a biological structure with numbered arrows indicating directional movement (no text or symbols)

Abstract pixelated graphic with a blue arrow and gray gradient, no text or symbols present.

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Pixelated illustration of a mechanical device with a blue handle and a small inset showing a magnified view (no text or symbols)

Par la télécommande

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Close-up of a textured surface with blue arrows pointing to specific regions (no text or symbols visible)

Par la télécommande

Symbol of a faucet with a red diagonal line crossing it, indicating no text or numbers present.

Top-down view of a car's head and front wheel assembly (no visible text or symbols)

Illustration of a mobile phone with control panel and keypad (no visible text or symbols)

Simple line drawing of a trash bin with crossed handle and no text or symbols

Diagram of a biological or mechanical structure with numbered components, likely illustrating a cross-section or assembly.

Technical diagram showing labeled parts of a mechanical or electronic component with numbered annotations

① Gancio per l'orec- chio
② LifeTube
③ LifeTip
④ Interruttore rocker*
⑤ Pulsante*

Diagram of a curved object with numbered parts labeled ① through ⑦

Diagram of a lamp with labeled parts including a lampshade and a lamp bulb, marked with numbers ② and ③.

Illustration of a handheld device with labeled parts (no readable text or symbols)

Pixelated illustration of a mechanical component with a blue arrow indicating direction (no text or symbols)

Diagram showing a hand holding a device with two blue arrows indicating rotation or movement (no text or symbols present)

Illustration of a biological structure with numbered arrows indicating directional movement (no text or symbols)

Abstract pixelated graphic with a blue arrow and gray background, no text or symbols present.

Off (Disattiva)

Close-up of a curved object with a blue arrow indicating rotation (no text or symbols visible)

Tramite pulsante

On

Pixelated grayscale image of a hand holding a small object, no visible text or symbols

Off (Disattiva)

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Close-up of a textured surface with blue arrows pointing to specific regions (no text or symbols visible)

Pixelated illustration of a faucet with a red diagonal line and water droplet symbol (no text or numbers)

Top-down view of a car's head and front wheel assembly (no visible text or symbols)

Illustration of a mobile phone with control buttons and display screen (no visible text or symbols)

Comando a distanza

Simple line drawing of a trash bin with two crossed lanes and a horizontal bar at the bottom (no text or symbols)

Diagram of a biological or mechanical structure with numbered components, likely illustrating a cross-section or assembly.

① Toonbocht
② LifeTube
③ LifeTip
④ Tuimelschakelaar*

Technical diagram showing labeled parts of a device with numbered annotations

① Toonbocht
② LifeTube
③ LifeTip
④ Tuimelschakelaar*
⑤ Drukknop*
⑥ Afdekklep*
⑦ Microfoonopeningen
⑧ Batterijcompartiment met vergrendeling
⑨ Oplaadcontactpunten

Diagram of a handheld device with numbered parts, likely illustrating a front view and internal components.

① Toonbocht
② LifeTube
③ LifeTip
④ Tuimelschakelaar
⑤ Drukknop

Illustration of a medical procedure with a hand holding a device and a blue X symbol, showing steps of care and treatment (no text or labels)

Pixelated illustration of a person holding a blue object with an arrow, no visible text or symbols

Diagram showing two curved arrows labeled ① and ②, with no readable text or symbols beyond the numbers.

Illustration of a biological structure with numbered arrows indicating directional movement (no text or symbols)

Abstract graphic with a curved arrow and blue gradient, no text or symbols present

Uit

Close-up of a curved metallic object with a blue arrow indicating rotation (no text or symbols)

Via de drukknop

Aan

Pixelated illustration of a mechanical device with a blue component and a small attached part (no text or symbols visible)

Uit

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Via de tuimelschakelaar

Close-up of a textured surface with blue arrows pointing to specific regions (no text or symbols visible)

Pixelated illustration of a faucet with a red diagonal line crossing it, symbolizing water or pollution (no text present)

Top-down view of a car's head and front wheel assembly (no visible text or symbols)

Illustration of a mobile phone with control panel and buttons (no visible text or symbols)

Afstandsbediening

Simple line drawing of a trash bin with crossed lines indicating grain or waste (no text or symbols)
