Product Type	Electric Knife
Brand	Team
Model	EM 5
Power Supply	230 V ~ 100 W
Voltage	230 V
Power Consumption	100 W
Motor Type	Electric motor with on/off switch
Blade Material	Stainless steel
Blade Sets	Two pairs (one for standard cutting, second for frozen food only on EM 5++)
Self-Sharpening	Yes, due to permanent friction during use
Safety Features	Overheat protection with required breaks; blade lock; eject button; cord damage check
Dimensions (Approx.)	30 cm (length) x 5 cm (width) x 5 cm (height)
Weight (Approx.)	0.5 kg
Cord Length (Approx.)	1.5 m
Cleaning Method	Wipe appliance with damp cloth; wash blades with warm soapy water; do not immerse
Dishwasher Safe	No
Usage	For cutting boned meat, bread; not for bones; frozen food only with special blades (EM 5++)
Continuous Usage Limit	Refer to rating label (max xx min); breaks of at least 10 min required
Plug Type	UK 13 amp plug with 13A fuse
Included Accessories	Two blade sets, protective covering
Storage	Store in dry place; blades in protective covering

Frequently Asked Questions - EM 5 TEAM

How do I attach the blades?

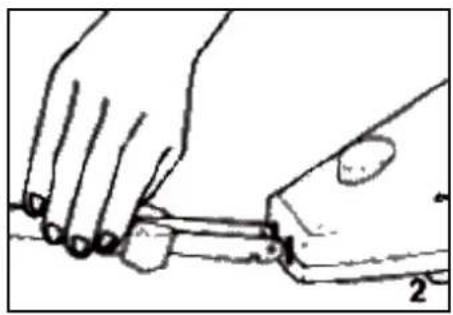

Ensure the appliance is unplugged. Hold the blades with the cutting edges facing downwards, then press the back-ends into the opening until they lock into place (Fig. 2). Avoid touching the cutting edges.

Can I cut frozen food with the Team EM 5?

The standard EM 5 model is not intended for frozen food. Only the EM 5++ model includes special blades with larger teeth for frozen food. Check your model and use the correct frozen food blades if available.

How should I clean the blades and the knife?

Unplug the knife. Clean the blades with warm soapy water; for thorough cleaning, slide them apart along the groove (Fig. 5). Wipe the appliance body with a damp cloth and dry. Never immerse or put in dishwasher.

Can I put the electric knife in the dishwasher?

No. Never immerse the appliance in water or any liquid, and do not place it in the dishwasher. Only clean by hand as described.

What should I do if the power cord is damaged?

If the cord shows any signs of damage, stop using the knife immediately. It must be replaced by a competent qualified electrician to avoid hazards.

How long can I use the knife continuously?

Check the rating label on the appliance for the maximum continuous usage time (e.g., xx min). After that, let the knife cool for at least 10 minutes before using again.

Can I cut bones with this electric knife?

No. The knife is designed only for boned meat or bread. Cutting bones can damage the blades and the motor.

Do the blades need sharpening?

No, the blades are self-sharpening due to the permanent friction between them during use. No special maintenance is required.

How do I remove the blades?

Unplug the knife, then press the eject button (Fig. 4). The blades will release and can be pulled out safely.

What voltage does the Team EM 5 require?

The appliance operates at 230 V and consumes 100 W. Ensure your mains voltage matches. In the UK, use a 13 amp plug with a 13A fuse.

USER MANUAL EM 5 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

White handheld electric shaver with handle and strap (no visible text or symbols)

Elektromesser

Electric Knife

Couteau Electrique

Electrisch Mes

Cuchillo Electrico

Faca Electrica

Coltello Elettrico

I/B Version

021002

TEAM EM 5 (++)

230 V \~ 100 W

Front cover page (first page)

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Illustration of hands using a tool to draw or mark a small object on a surface (no text or symbols)

Illustration of hands using a tool to cut or apply a piece of material (no text or symbols visible)

Hand holding a tool with a tool, no visible text or symbols

Hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Illustration of a hand holding a tool with a serrated edge, no text or symbols present

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (*).
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician (*).
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Unplug the appliance when not in use.
☐ Only use this appliance for cooking applications. It is only designed to cut row or cooked boned meat or possibly bread. If you want to cut frozen food use exclusively the special blades.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Make sure the appliance is unplugged before inserting the blades or removing and cleaning them.
☐ Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

7

Assembly page 7/22

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

WARNING: THE SENTENCES CONCERNING THE BLADES FOR DEEP FROZEN FOOD ONLY APPLY TO THE APPLIANCE TEAM EM 5++ (WITH BLADES FOR DEEP FROZEN FOOD) AND NOT TO THE TEAM EM 5.

USE

This appliance is delivered with two sets of blades. One has longer teeth has to be used only for the cutting of frozen aliments.

- Caution: Make sure that the appliance is unplugged when attaching the blades. Remove the blades from the protecting covering (cf. Fig. 1). Hold on to the blades with the thumb and forefinger in such a way that the cutting edges face downwards; then press the back-ends of the blades into the opening provided for that purpose until they lock into place (cf. Fig. 2).

- Plug in your appliance and press the on/off switch (cf. Fig. 3). Now the appliance is ready for use. Do not use a cutting motion, simply hold the knife gently in place; it will do the cutting automatically. Cutting takes place smoothly and without effort. With your electric knife you can cut as needed either vertically or on a slant.

Caution: If you want to cut frozen food, use exclusively the blade provided for that purpose (to recognize it, you only have to compare the size of the teeth because the teeth of the special blade are larger than the classic one) Do not use your knife for cutting bones. It is not meant for this purpose.

- When you have finished using your electric knife, release the button and pull out the plug. Then press the eject button. The blades can now be easily removed. (cf. Fig. 4).

CLEANING

• The blades are made of stainless steel and can therefore be cleaned easily.

- We advise you to use warn soapy water. If you want to clean the individual blades, do so by pushing the blades along the groove upwards until they can be removed from the holding pin (cf. Fig. 5). To mount, reverse the process.

• The blades need no special maintenance.

- Sharpening is not necessary as the blades are self-sharpening due to the permanent friction of the blades during use.

• After cleaning place the blades in the protective covering and store away.

• In order to clean the appliance itself use a damp cloth and dry afterwards.

• Never hold it under running water nor immerse in water or any other liquid.
