Product Type	Video Wall Trim Kit
Brand	Peerless-AV
Model	DS-LEDTK-32VX10S
Compatibility	Designed for use with Peerless-AV wall mounts and Unilumin UpanelS displays
Material	Solid and perforated steel covers
Color	Black (typical)
Mounting Surface	Flat, unobstructed vertical plywood walls (minimum 1/2" Grade BC plywood over 2"x4" wood studs)
Hardware Included	Screws (wood, socket, Phillips), nut bars, wall bracket spacers, cutting jigs, corner cover assembly, vinyl sticker, shim, hex nut, self-drilling screw, 4mm allen wrench
Maximum Load Capacity	Not specified; depends on supporting wall mount and wall structure
Dimensions (Approximate)	Fits displays up to 32" diagonal (local trim size varies per cut)
Weight (Approximate)	5-10 lbs (2.3-4.5 kg)
Tools Required	Drill, screwdriver, saw (for cutting covers), measuring tape, pencil, wrench, cutting fixture
Installation Type	Wall-mounted via brackets; covers cut to size and attached with nut bars
Safety Warnings	Indoor use only. Do not exceed load capacity. Avoid overtightening. Use assistant for lifting.
Warranty	See www.peerless-av.com/warranty
Customer Support	1-800-865-2112 (US), [phone] (Europe), [e-mail]
Intended Use	Indoor video wall installations only
Country of Origin	Not specified

Frequently Asked Questions - DS-LEDTK-32VX10S Peerless-AV

Can this trim kit be used with any video wall display?

The DS-LEDTK-32VX10S is designed for use with Peerless-AV wall mounts and specifically supports Unilumin UpanelS displays with bump-outs. For other displays, compatibility should be verified with the manufacturer.

What type of wall is required for installation?

Installation requires a flat, unobstructed vertical wall made of plywood (minimum Grade BC, 1/2" thick) over wood studs at least 2"x4". The wall must support the combined load of equipment and hardware.

What tools are needed to assemble the trim kit?

You will need a drill, screwdriver, saw, measuring tape, pencil, wrench, and the provided cutting jigs. A level is also recommended for proper alignment.

How do I cut the covers to the correct size?

Use the provided outer and inner cutting jigs (parts I and J) to mark and cut the solid or perforated covers. Clamp the jig to the side being discarded and cut along the guide. Always cut on the correct side of the cutting line.

Is this trim kit compatible with drywall?

No. The manual states the product is designed for plywood walls. Drywall alone cannot support the load. If drywall is present, it must be no thicker than 5/8" over the plywood.

What is the maximum weight capacity of this trim kit?

The maximum load capacity is not specified in the manual. It depends on the wall mount and supporting wall. Never exceed the load capacity of the mount or wall structure.

How do I attach the corner covers?

After cutting, file sharp edges, remove adhesive backing, clean the surface, and apply the corner covers using the VHB adhesive. Press firmly for four corners. Use the corner cover assembly (part E) provided.

Can I install this kit outdoors?

No. The manual explicitly states: "This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury."

Where can I find warranty information?

Warranty details are available at www.peerless-av.com/warranty. For support, call 1-800-865-2112 or email [e-mail].

What if I need the manual in a different language?

Visit the product page on notice-facile.com and request a translated version by selecting your language and providing your email. A specifically translated manual will be sent to you.

USER MANUAL DS-LEDTK-32VX10S Peerless-AV

Isometric line drawing of a rectangular panel or panel with a flat top and diagonal edge (no text or symbols)

WARNING

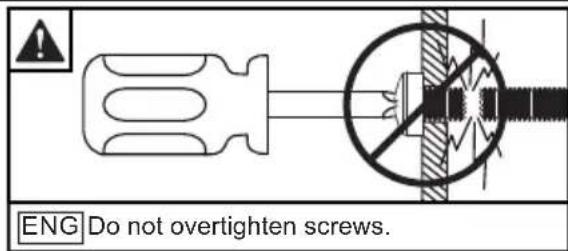

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

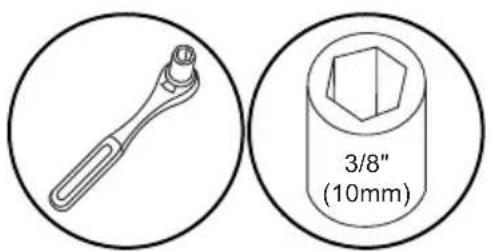

ENG Tools Needed for Assembly.

Simple line drawing of a mechanical component inside a circle (no text or symbols)

Line drawing of a screwdriver inside a circle (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Line drawing of a wrench inside a circle (no text or symbols)

Line drawing of a measuring tape inside a circle (no text or symbols)

Simple line drawing of a pencil inside a circle (no text or symbols)

Line drawing of a saw blade inside a circle (no text or symbols)

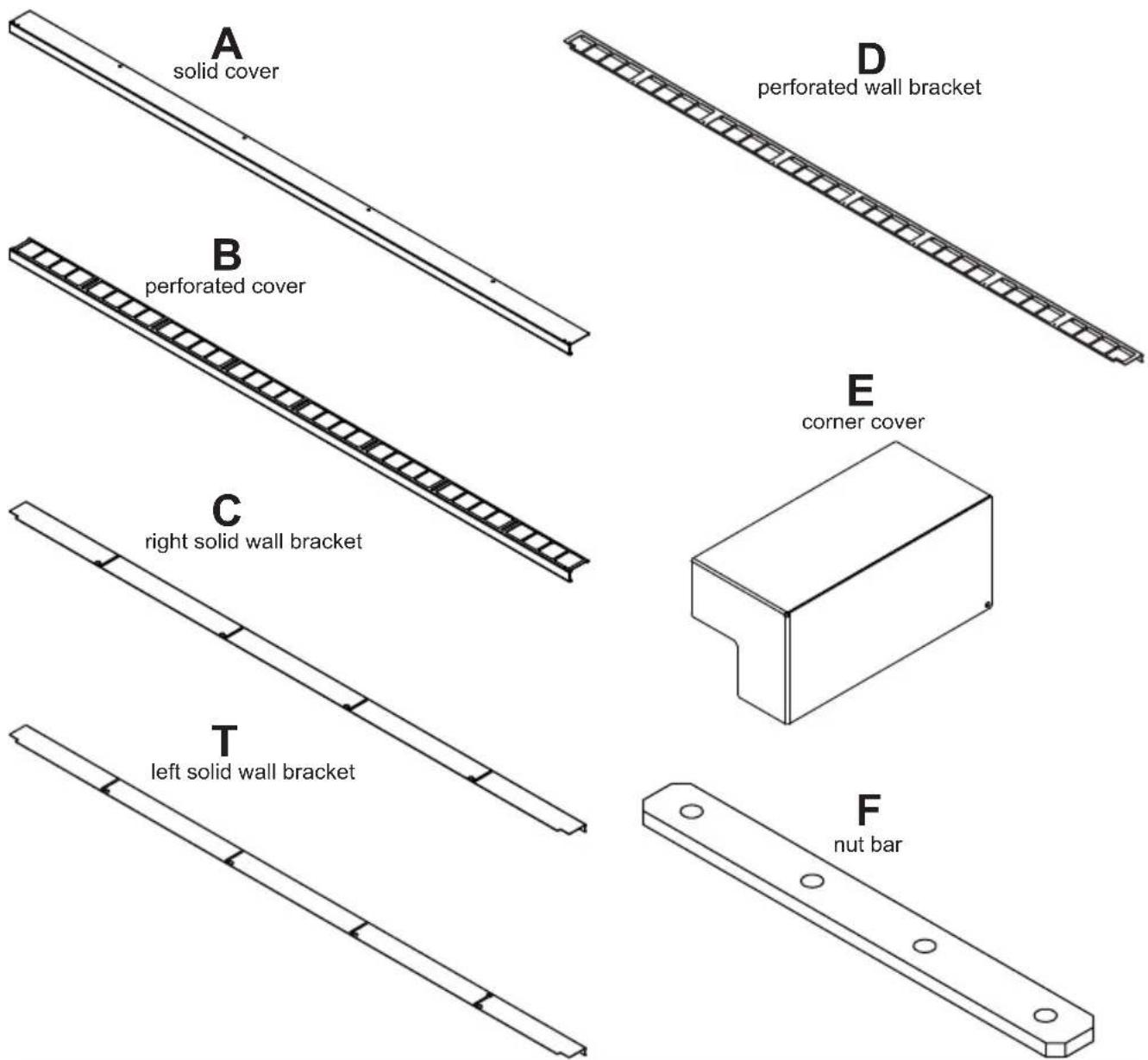

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts List
Description Part #

A solid cover -
B perforated cover -
C right solid wall bracket -
D perforated wall bracket -
E corner cover assembly 147-1876
F nut bar 147-T1881
G 1/4-20 x 0.375" socket screw 10007616
H solid wall bracket spacer 147-T1880
I outer cutting jig 147-T1882
J inner cutting jig 147-T1883
K wall plate shim 147-1891
L 1/4-20 x 25mm screw	521-0710
M #14-10 x 1.75" wood screw	521-1688
N M3 x 8mm phillips	521-0711
O 1/4-20 x 1/2" socket screw	520-1169
P vinyl sticker	580-0535
Q 1/4-20 hex nut	10010403
R #8-18 X 3/4" self drilling screw	521-0714
S 4mm allen wrench	560-9646
T left solid wall bracket	-

1

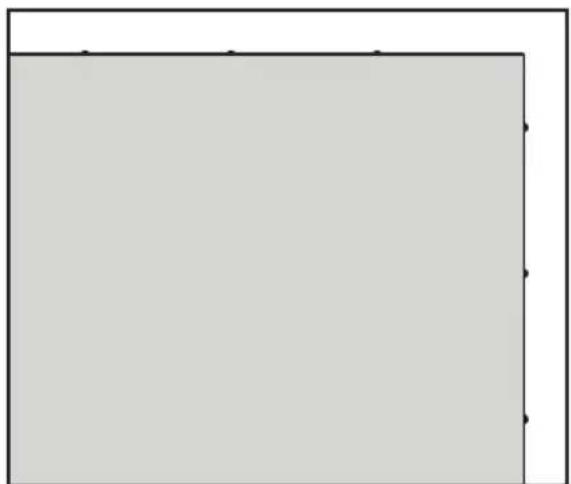

Blank gray rectangle with black border and corner markers (no text or symbols)

Standard steps for solid or perforated trim kits.

Simple gray rectangular frame with corner handles, no text or symbols present

Steps for Unilumin UpanelS sides with bump-outs.

Simple line drawing of a folded paper or document with an arrow indicating rotation (no text or symbols)

1a-1

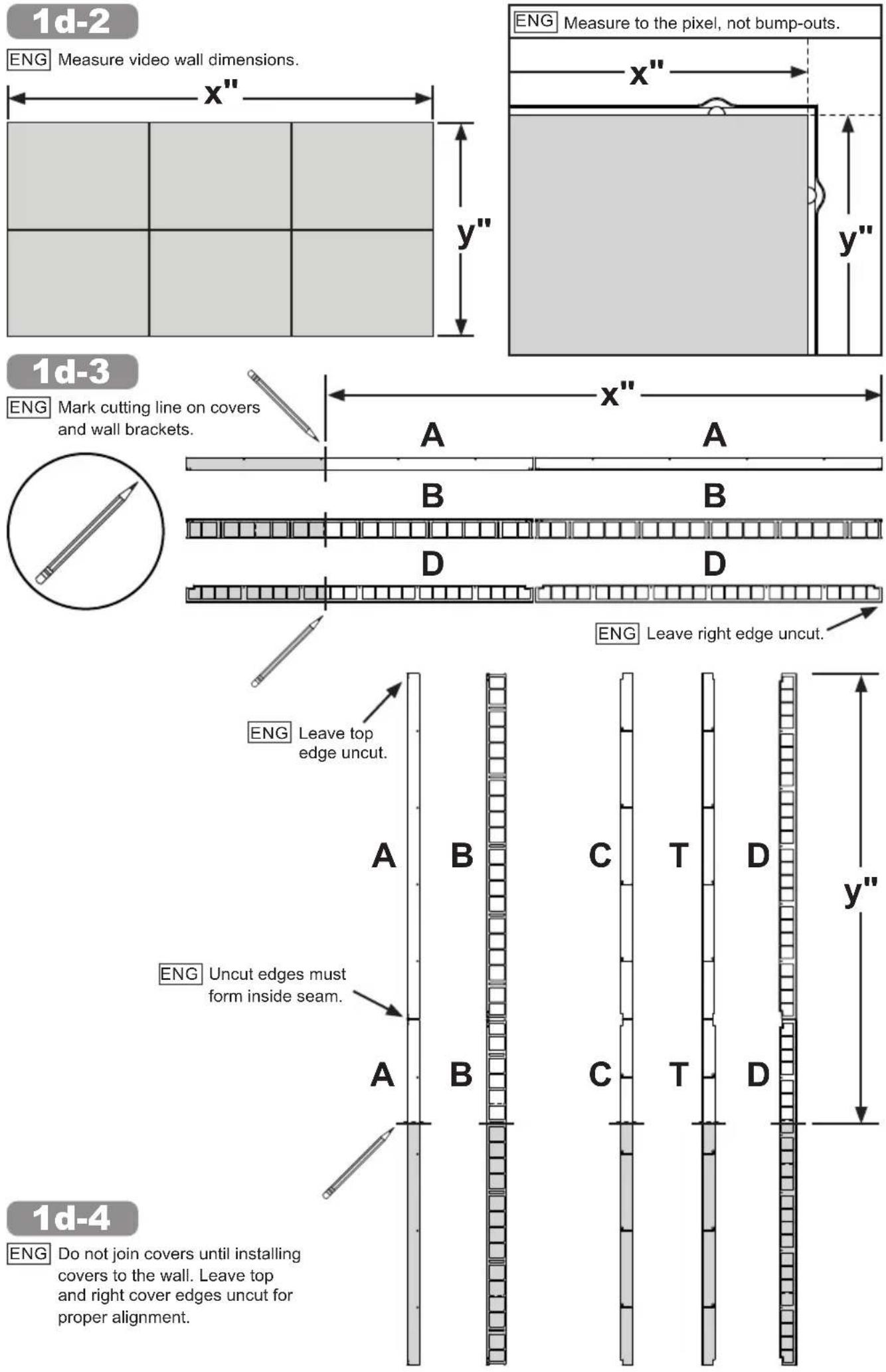

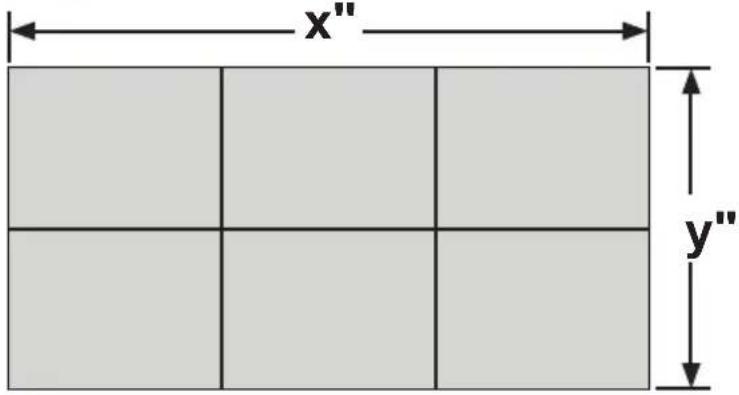

ENG Measure video wall dimensions.

Line drawing of a measuring tape inside a circle (no text or symbols)

1a-2

ENG Mark cutting line on covers and wall brackets.

Simple line drawing of a pencil inside a circle (no text or symbols)

1a-3

ENG Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment.

2a-1

ENG

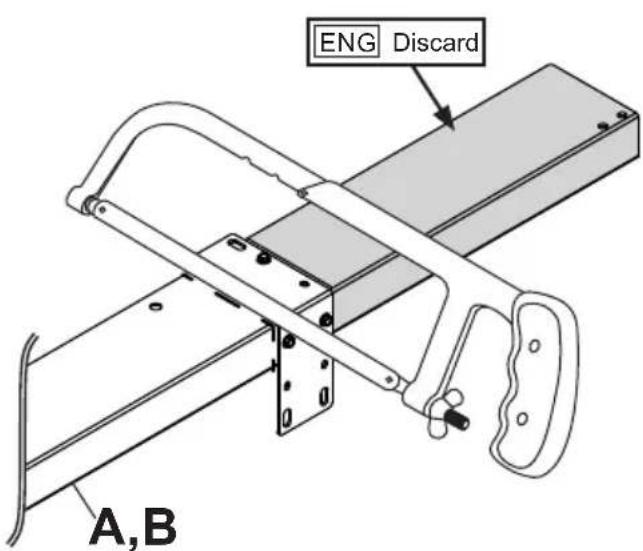

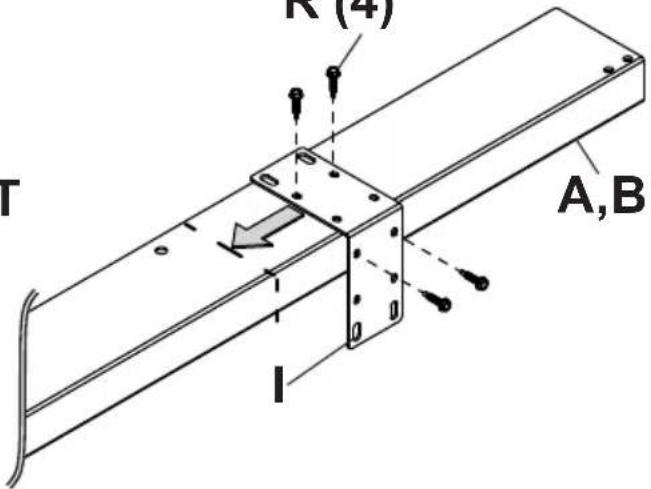

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

R (4)

2a-2

Simple line drawing of a mechanical tool or bracket inside a circle (no text or symbols)

3a

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3a-1

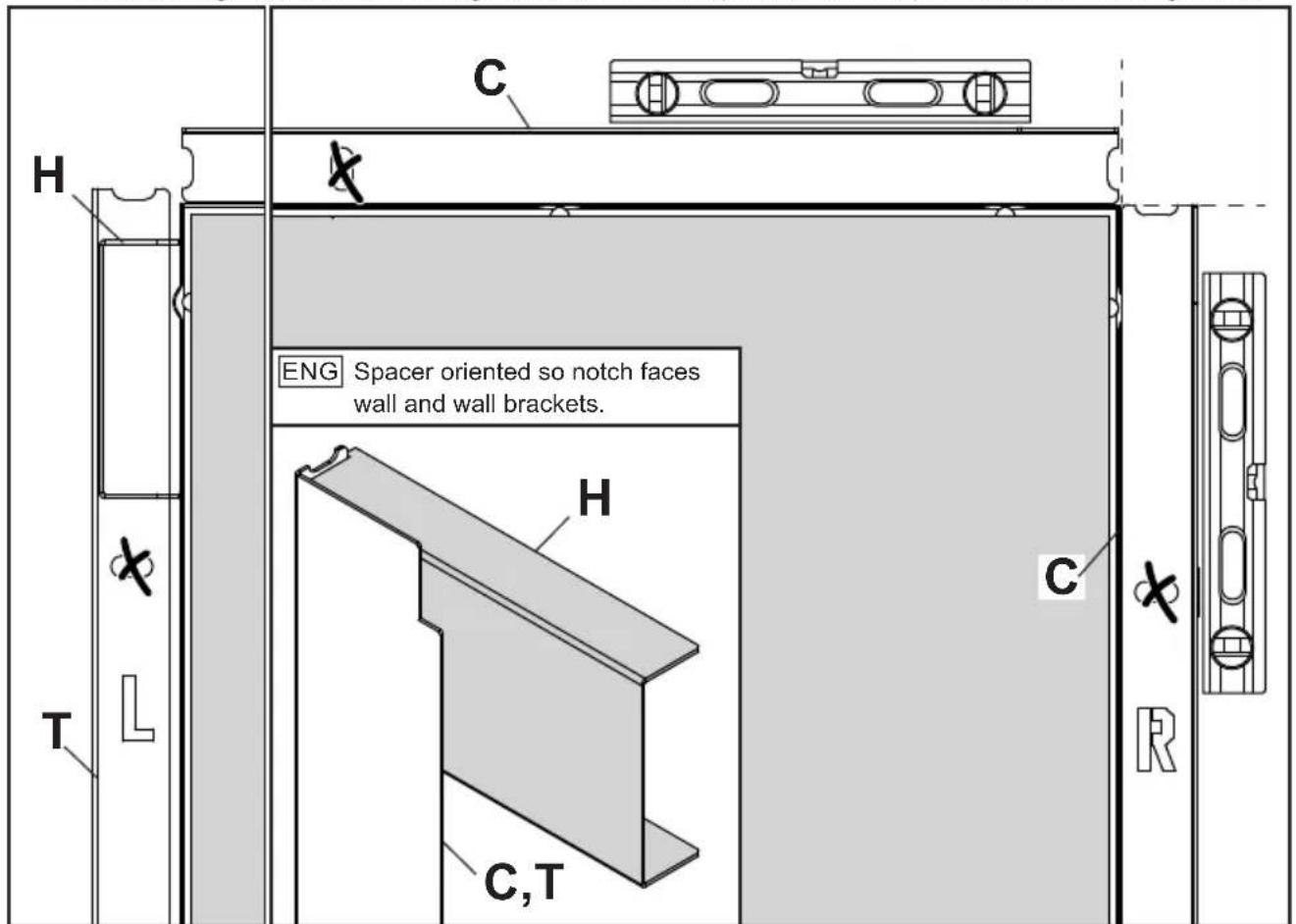

ENG Align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3a-2

Line drawing of a handheld electric tool inside a circular frame (no text or symbols)

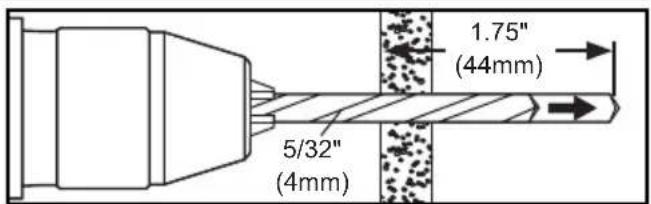

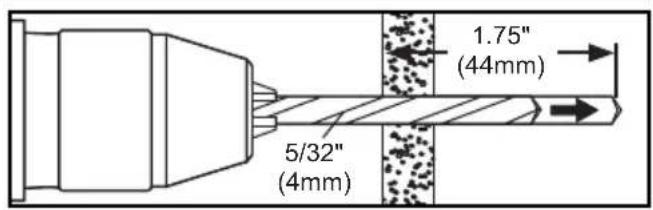

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3a-3

ENG Install using wood screws provided. Use spacer to set final position of wall bracket.

4

Follow steps for solid or perforated trim kits.

4a-1

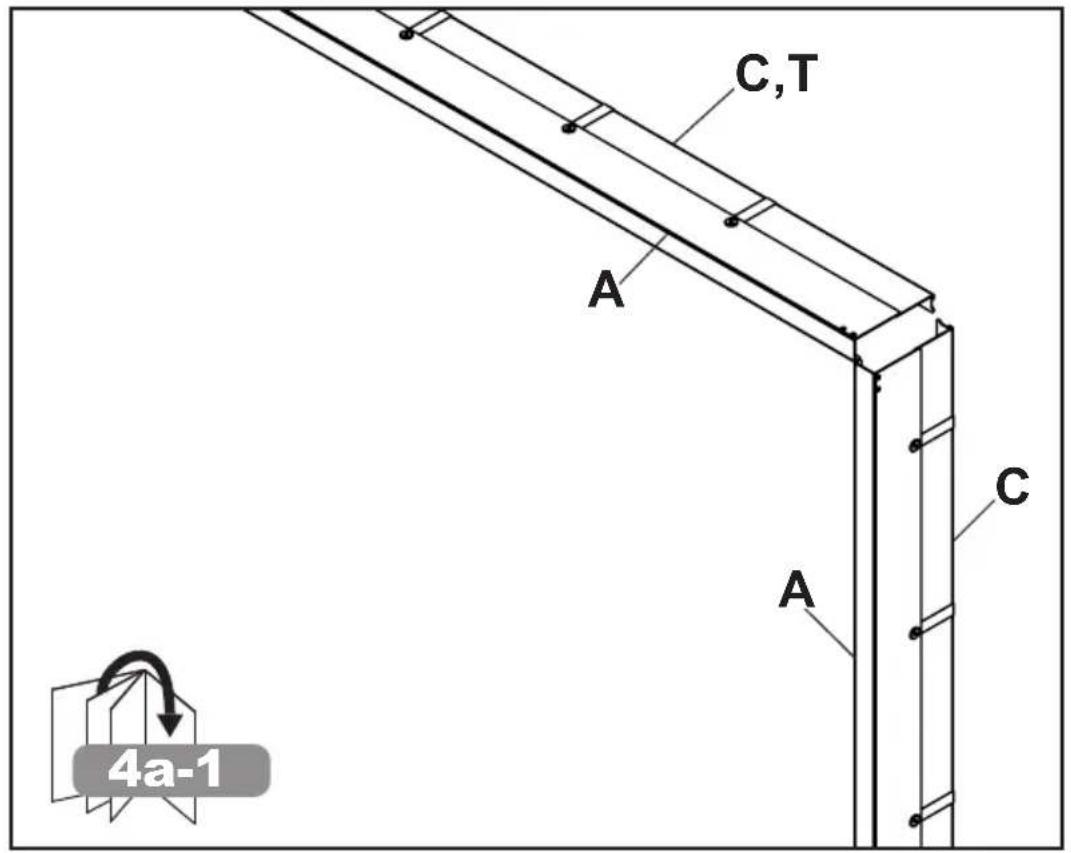

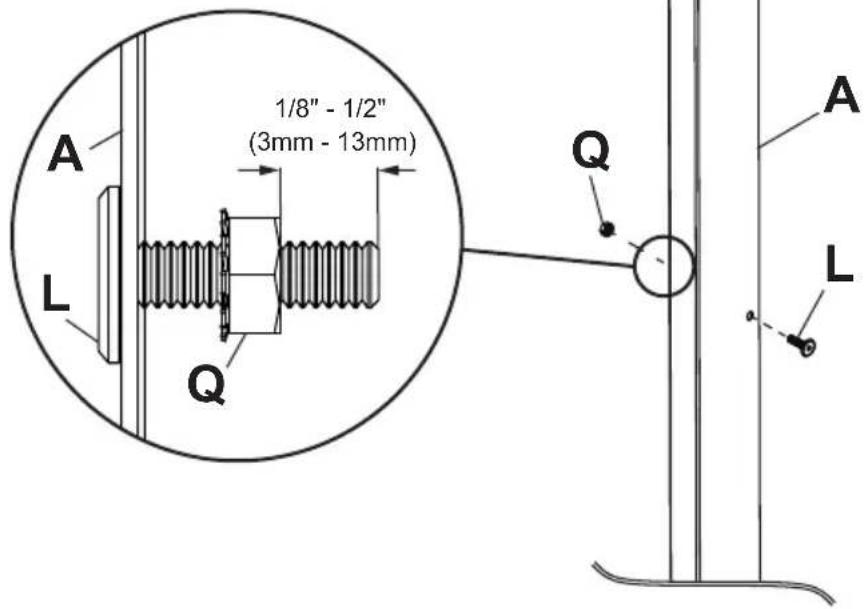

ENG Do not tighten hardware to solid cover.

4a-2

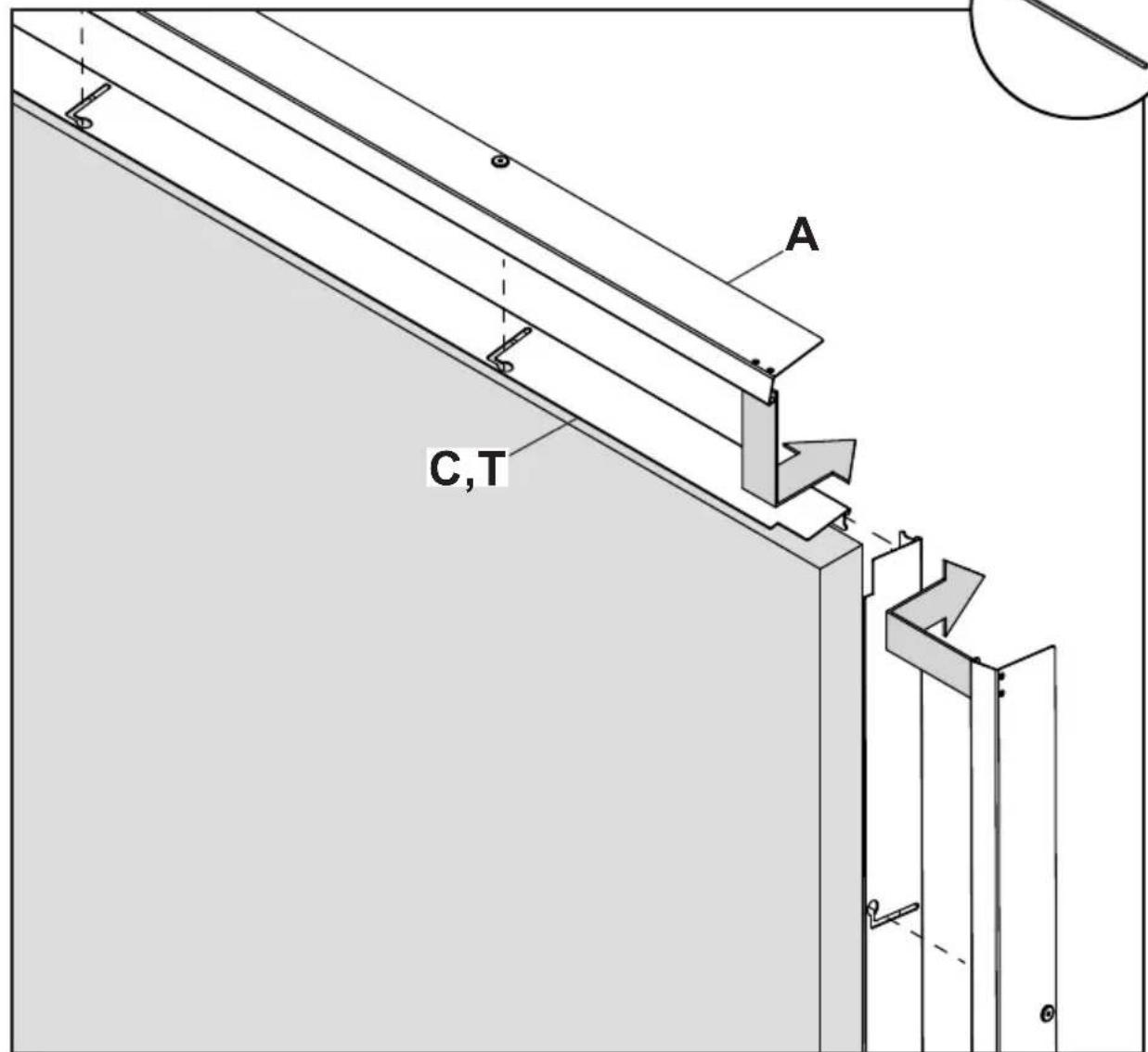

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG
Slide cover back flush with video wall. Tighten screws.

4a-5

Technical line drawing of a structural assembly with labeled component 'P' (no text or symbols beyond label)

4b-2

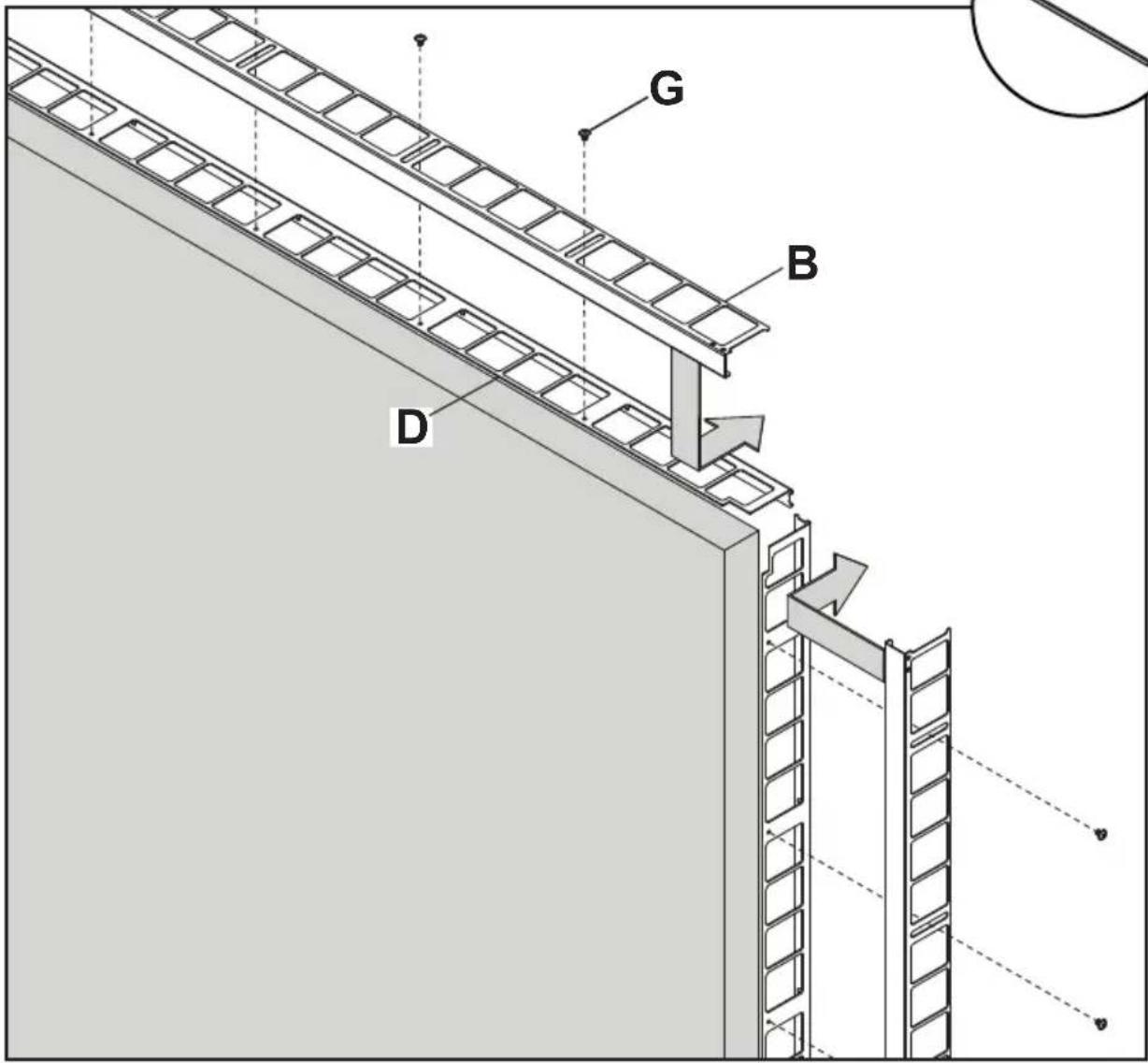

Attach covers with nut bar inside cover. Displays not shown for clarity.

Line drawing of a screwdriver inside a circle (no text or symbols)

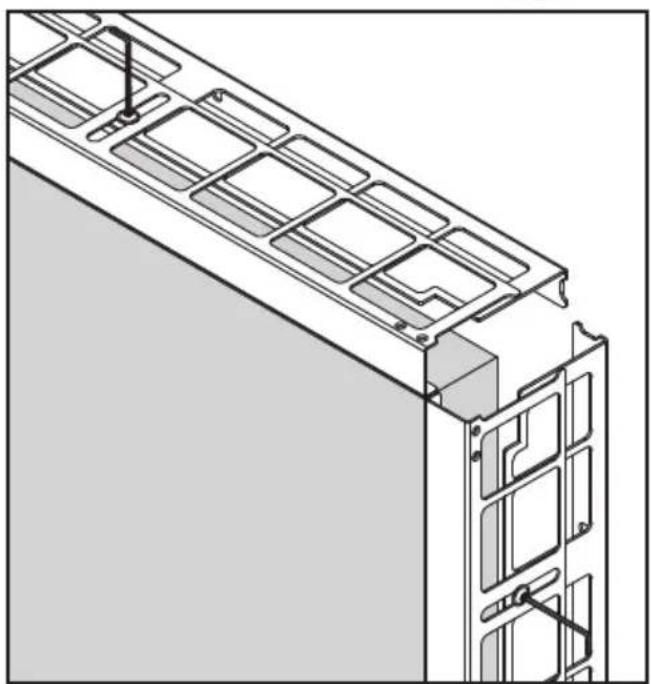

4b-3

Tighten screws.

Technical line drawing of a structural panel with grid-like cutouts and mounting brackets (no text or symbols)

4b-4

ENG

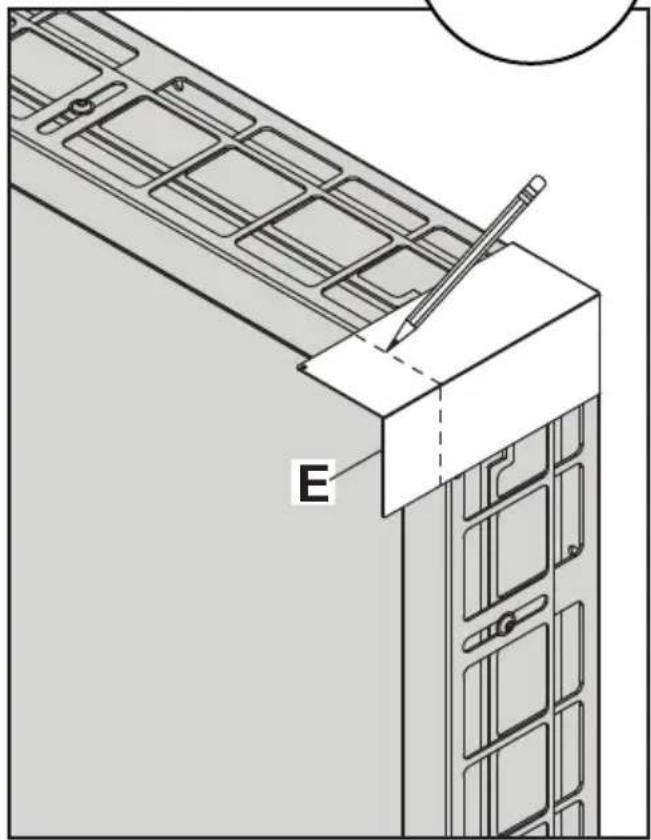

Place corner cover against wall and mark cutting line.

Simple line drawing of a mechanical component inside a circle (no text or symbols)

Architectural diagram of a building facade with window grilles and a pencil inserted, labeled 'E' (no text or symbols beyond label)

4b-5

ENG

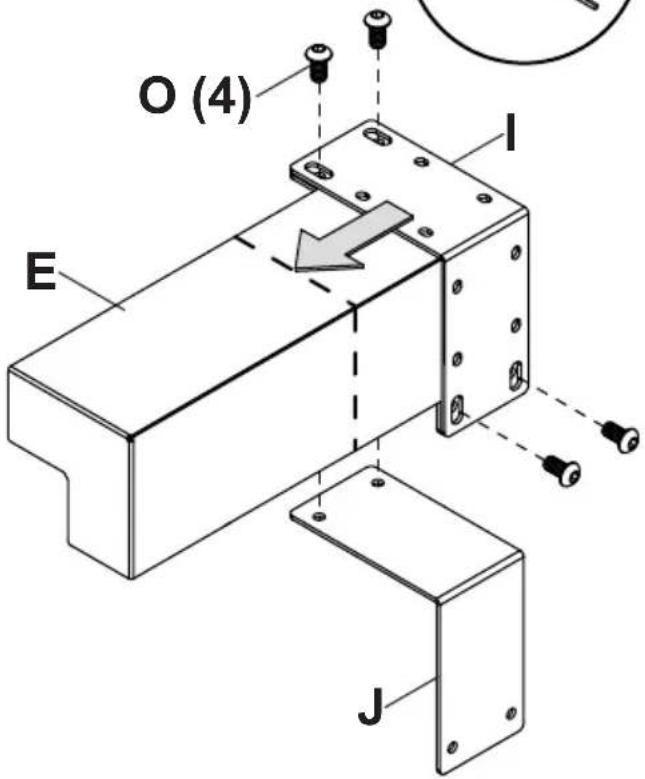

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

Cut excess corner cover off.

Simple line drawing of a mechanical handle or bracket inside a circle (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Do not clamp fixture on wrong side of cutting line.

4b-7

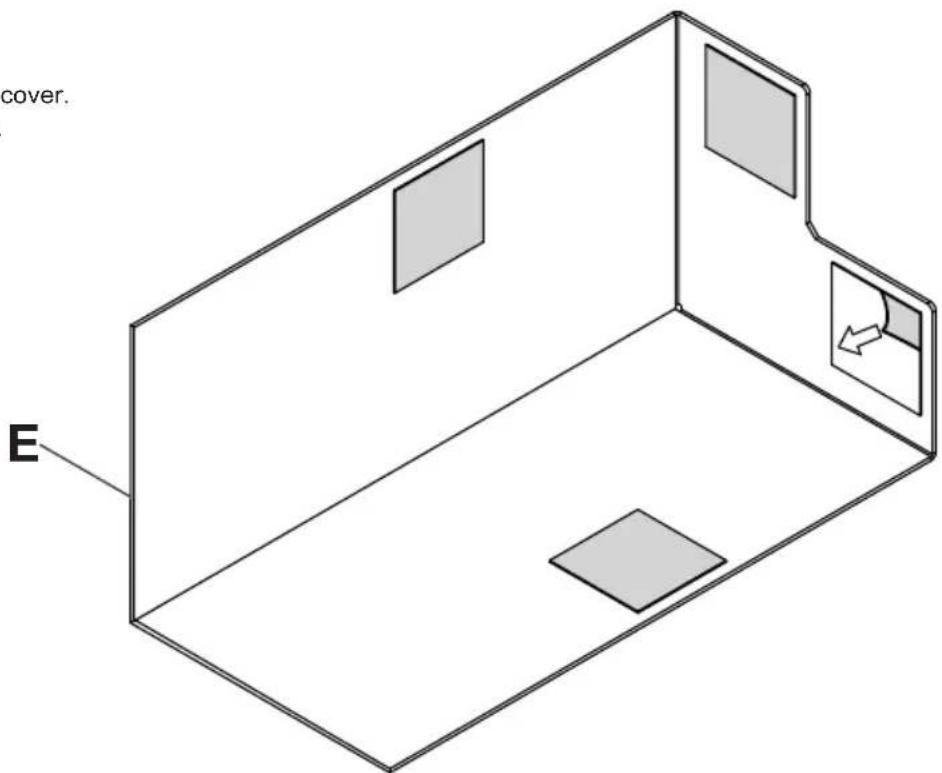

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

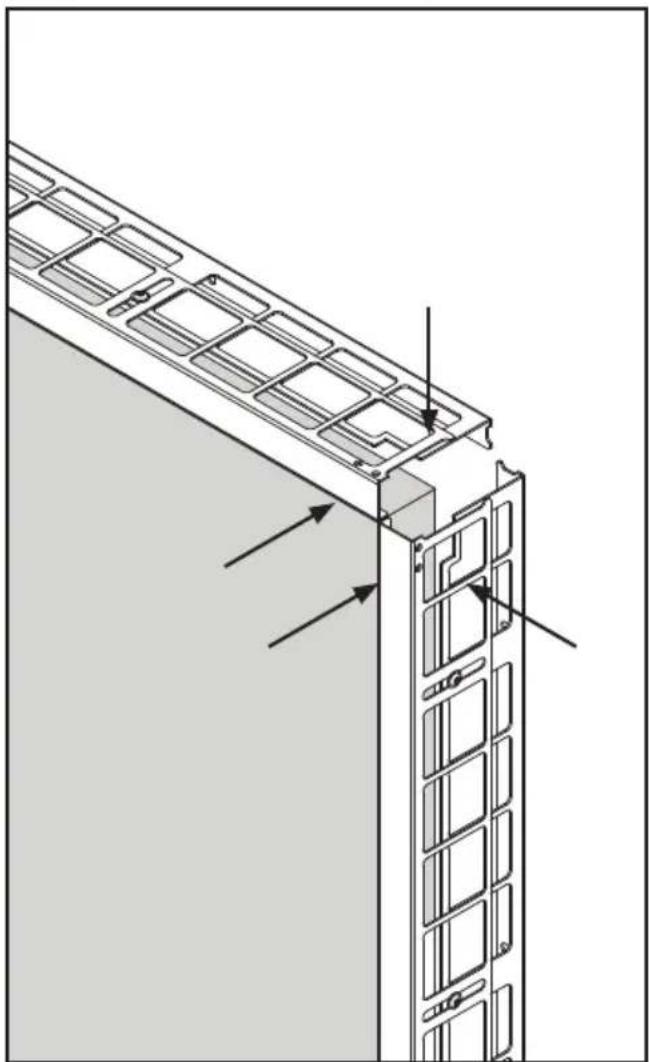

Clean surfaces before applying VHB.

Technical line drawing of a structural panel with mounting holes and directional arrows indicating assembly (no text or symbols)

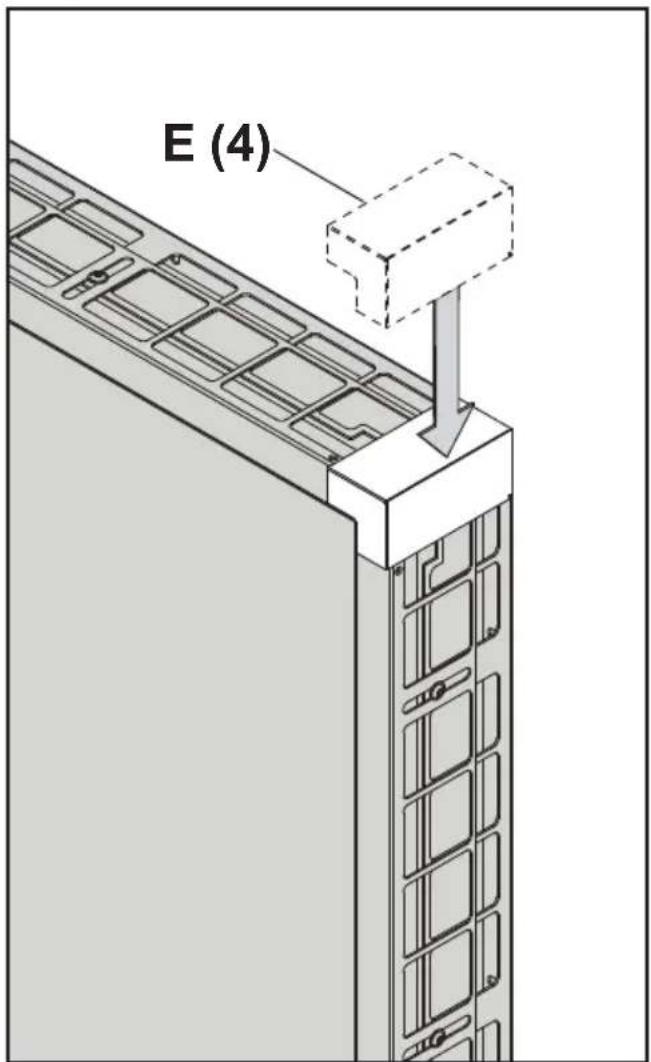

Attach four corner covers with VHB.

ENG This page intentionally left blank.

ENG This page intentionally left blank.

Alternate steps for Unilumin UpanelS sides with bump-outs

1d-1

ENG To begin installing solid trim on Unilumin UpanelS edges with bump-outs, create guiding line for the top and right side of the unit using spacer provided.

Simple line drawing of a pencil inside a circle (no text or symbols)

Simple 3D diagram of a rectangular grid with dashed boundaries and a labeled corner 'H' (no text or symbols within the grid)

2d-1

ENG

Optional: Clamp or fasten cutting fixture to side of wall bracket or cover being discarded.

2d-2

Simple line drawing of a saw blade inside a circle (no text or symbols)

3d

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

3d-1

ENG Align top and right wall brackets with display guiding lines. Mark mounting holes. For left and bottom wall brackets, align wall bracket with edge of video wall. Use spacer to set final position. Mark mounting holes.

3d-2

Line drawing of a handheld electric drill (no text or symbols)

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

3d-3

ENG Install using wood screws provided. Do not fully tighten.

ENG Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws. Repeat for left side.

4

Follow steps for solid or perforated trim kits.

4a-1

ENG Do not tighten hardware to solid cover.

4a-2

ENG Place wall plate cover over wall bracket. Slide back until flush with front of video wall.

4a-3

ENG

Attach covers with nut bar inside cover. Displays not shown for clarity.

4a-4

ENG
Slide cover back flush with video wall. Tighten screws.

Simple line drawing of a screwdriver inside a circle (no text or symbols)

Technical line drawing of a structural panel assembly with mounting brackets and a circular inset labeled 'S' (no text or symbols beyond the label)

4a-5

Technical line drawing of a structural frame with labeled component 'P' and connection points (no text or symbols beyond label)

4b-2

Attach covers with nut bar inside cover. Displays not shown for clarity.

Line drawing of a screwdriver inside a circle (no text or symbols)

4b-3

Tighten screws.

Technical line drawing of a structural panel with grid-like cutouts and mounting brackets (no text or symbols)

4b-4

ENG

Place corner cover against wall and mark cutting line.

Simple line drawing of a mechanical component inside a circle (no text or symbols)

Architectural diagram of a building facade with window grilles and a pencil inserted, labeled 'E' (no text or symbols beyond label)

4b-5

ENG

Slide corner cutting fixture into place and clamp onto side of cover being discarded.

4b-6

ENG

Cut excess corner cover off.

Simple line drawing of a mechanical tool or bracket inside a circle (no text or symbols)

Technical line drawing of two mechanical bracket assemblies with no visible text or symbols

Do not clamp fixture on wrong side of cutting line.

4b-7

File sharp edges of corner cover. Remove adhesive backing.

x4

4b-84

Clean surfaces before applying VHB.

Technical line drawing of a structural panel with internal components and directional arrows indicating movement (no text or symbols)

Attach four corner covers with VHB.
