ViewMate 180 - Monitor stand Dataflex - Free user manual and instructions

Product Type	Monitor Stand
Brand	Dataflex
Model	ViewMate 180
Color	Black
Material	Steel
Weight Capacity	15 kg (33 lbs)
VESA Compatibility	75x75 mm, 100x100 mm
Height Adjustment	Yes, gas spring
Tilt Range	-15° to +15°
Swivel Range	-180° to +180°
Rotation	360°
Cable Management	Yes, built-in clips
Mounting Type	Clamp or grommet
Clamp Thickness	Up to 75 mm
Grommet Hole Size	10-60 mm
Dimensions (Base)	600 x 600 mm
Max Height	400 mm
Weight	5 kg (11 lbs)
Warranty	5 years
Package Contents	Stand, mounting hardware, manual
Cleaning Instruction	Wipe with a soft dry cloth; avoid solvents
Safety Warning	Do not exceed weight capacity; ensure VESA plate is securely fastened
Spare Parts Availability	Contact Dataflex International BV

Frequently Asked Questions - ViewMate 180 Dataflex

How do I install the ViewMate 180 monitor stand?

Choose between clamp or grommet mounting. Place the base on the desk, attach the pole, and secure the VESA plate to your monitor. Then hook the monitor onto the stand and adjust tension as needed.

What is the weight capacity of the ViewMate 180?

The stand supports up to 15 kg (33 lbs). Exceeding this limit may cause instability or damage.

Which VESA patterns are compatible?

The ViewMate 180 is compatible with 75x75 mm and 100x100 mm VESA patterns.

How do I adjust the height of the stand?

Loosen the height adjustment knob slightly, lift or lower the monitor to the desired height, then tighten the knob. The gas spring assists movement.

Can I tilt or swivel the monitor?

Yes, the stand offers -15° to +15° tilt and -180° to +180° swivel. You can also rotate the monitor 360° for portrait mode.

How do I manage cables with this stand?

Use the built-in cable clips along the arm to route cables neatly. This helps keep your workspace organized.

What tools are needed for installation?

You will need a Phillips-head screwdriver and possibly a hex key (provided) for tightening bolts.

How do I clean the monitor stand?

Wipe the stand with a soft, dry cloth. Do not use solvents or abrasive cleaners as they may damage the finish.

What should I do if the stand feels loose?

Check all bolts and screws for tightness, especially the VESA plate mounting and the clamp/grommet attachment. Re-tighten as needed.

How can I obtain spare parts?

Contact Dataflex International BV via email at [e-mail] or visit their website for spare parts and support.

USER MANUAL ViewMate 180 Dataflex

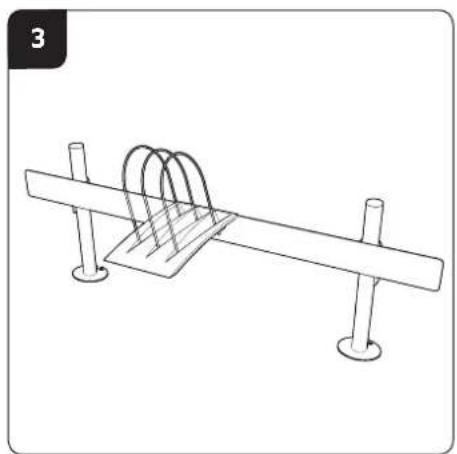

Line drawing of a simple support structure with three curved arches on a base (no text or symbols)

www.dataflex-int.com 1.0

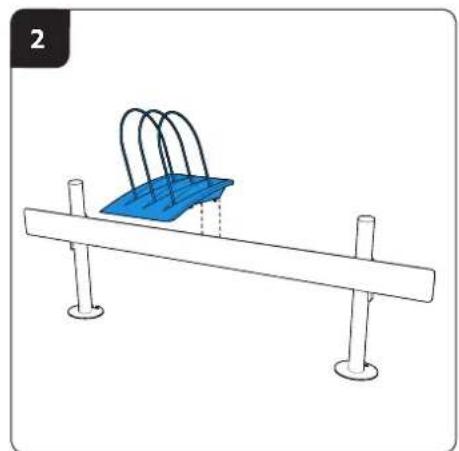

Simple line drawing of a horizontal beam supported by two vertical posts, with a blue support box and dashed lines indicating measurement or alignment (no text or symbols)

Simple line drawing of a metal structure with two vertical posts and a curved spring-like element (no text or symbols)

Dataflex International BV

P.O. Box 713

2920 CA Krimpen a/d IJssel

The Netherlands

[e-mail]

Copyright © 2013 - Dataflex International BV

www.dataflex-int.com

Dataflex International BV is certified ISO 9001:2008
