Product Type	Flat Screen Mount (Wall Mount)
Brand	Dataflex
Model	ViewMate Style 042
Product Dimensions (approx.)	200 x 200 x 100 mm (7.9 x 7.9 x 3.9 in)
Weight (approx.)	1.5 kg (3.3 lb)
Weight Capacity	Up to 15 kg (33 lb)
VESA Compatibility	75 x 75 mm and 100 x 100 mm
Screen Size Compatibility	15" to 30" (approx.)
Material	Steel and aluminum
Color	Black
Tilt Adjustment	+15° / -15° (approx.)
Swivel Adjustment	±90° (approx.)
Rotation	360° (landscape/portrait)
Cable Management	Integrated cable clips
Installation Type	Wall mount (requires drilling)
Power Supply	Not required (passive mount)
Warranty	5 years
Certifications	ISO 9001:2008 (manufacturer)
Maintenance & Cleaning	Wipe with a soft, damp cloth; avoid solvents
Safety Notes	Ensure wall can support weight; use appropriate anchors

Frequently Asked Questions - ViewMate Style 042 Dataflex

What is the maximum weight capacity of the Dataflex ViewMate Style 042 mount?

The mount supports up to 15 kg (33 lb).

What VESA patterns are compatible?

It supports 75 x 75 mm and 100 x 100 mm VESA patterns.

What screen sizes fit this mount?

Screens from 15 to 30 inches are typically compatible, depending on weight.

Does the mount allow tilt adjustment?

Yes, it offers tilt adjustment of approximately +15° / -15°.

Can I swivel the screen left and right?

Yes, the mount allows swivel up to ±90°.

Does it include cable management?

Yes, it has integrated cable clips to keep cables organized.

How do I install the mount?

Mount the wall plate to a solid wall using the supplied screws and anchors, then attach the monitor bracket and tighten all bolts securely.

What is the warranty period?

Dataflex offers a 5-year warranty on this mount.

How should I clean the mount?

Wipe it with a soft, damp cloth. Do not use abrasive cleaners or solvents.

Is the mount suitable for curved monitors?

It works with most curved monitors that are within the VESA and weight limits, but the tilt range may be limited by the curve.

USER MANUAL ViewMate Style 042 Dataflex

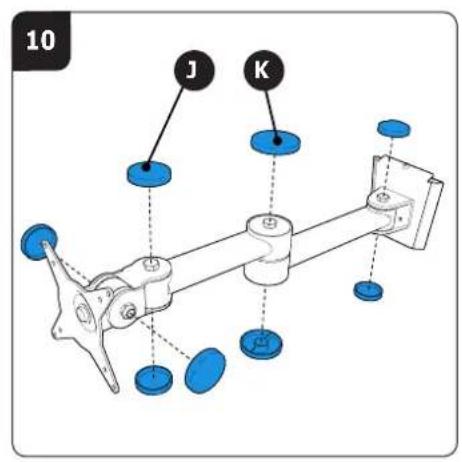

Technical line drawing of a mechanical linkage assembly (no text or symbols)

www.dataflex-int.com 1.0

3D diagram of a blue wall-mounted device with a hanging attached component (no text or symbols)

Dataflex International BV

P.O. Box 713

2920 CA Krimpen a/d IJssel

The Netherlands

[e-mail]

Copyright © 2013 - Dataflex International BV

www.dataflex-int.com

Dataflex International BV is certified ISO 9001:2008
