Product Type	Keyboard and mouse platform for flat screen monitors
Brand	Dataflex
Model	ViewMate-i
Color	Black
Material	Steel and high-impact plastic
Surface	Anti-slip, scratch-resistant
Overall Width	27 inches (68.5 cm)
Overall Depth	10 inches (25.4 cm)
Height Adjustment	2 inches (5 cm) via gas spring
Tilt Adjustment	-10° to +20°
Weight Capacity	5 kg (11 lbs)
Mouse Surface Dimensions	8.5 x 9.5 inches (21.5 x 24 cm)
Keyboard Tray Dimensions	27 x 9 inches (68.5 x 23 cm)
Mounting Option	Clamp (up to 3" desk thickness) or grommet
Cable Management	Yes, integrated cable tray
VESA Compatible	Yes, supports 75x75 and 100x100 mm
Monitor Weight Capacity (if used with)	18 kg (40 lbs)
Cleaning	Wipe with mild detergent and damp cloth
Safety Standard	TÜV, GS certified
Warranty	5 years

Frequently Asked Questions - ViewMate-i Keyboard Mouse Platform Dataflex

What is the maximum desk thickness for the clamp mount?

The clamp mount fits desks up to 3 inches (76 mm) thick.

Can the platform hold both a keyboard and mouse?

Yes, it includes a dedicated mouse surface alongside the main keyboard tray.

Is VESA mounting included?

The platform is VESA compatible for 75x75 and 100x100 mm patterns, mounting hardware may be required.

How do I adjust the tilt?

Turn the tilt adjustment knob under the platform to change the angle from -10° to +20°.

Does the platform come assembled?

Some disassembly may be required. The user manual provides step-by-step installation instructions.

What is the weight limit for the keyboard tray?

The tray supports up to 5 kg (11 lbs) evenly distributed.

How do I clean the platform?

Use a soft damp cloth with mild soap. Avoid abrasive cleaners.

Can this be used with a wall mount?

Yes, it can be attached to a wall mount using the VESA plate, but it is primarily for desk mounting.

Does it have cable management?

Yes, an integrated cable tray helps organize keyboard and mouse cables.

Is the platform adjustable in height?

Yes, it offers 2 inches (5 cm) of height adjustment via a gas spring.

USER MANUAL ViewMate-i Keyboard Mouse Platform Dataflex

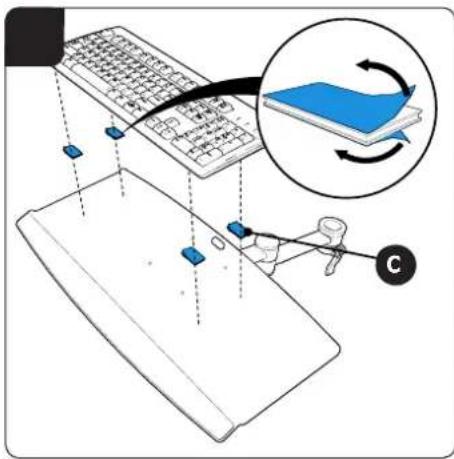

Line drawing of a rectangular object with a small inset showing a separate irregular shape (no text or symbols)

www.dataflex-int.com

1.0

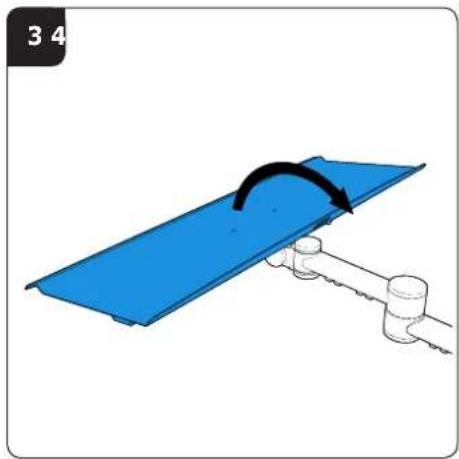

Diagram of a blue platform with a curved arrow indicating rotation, connected to a wire (no text or symbols)

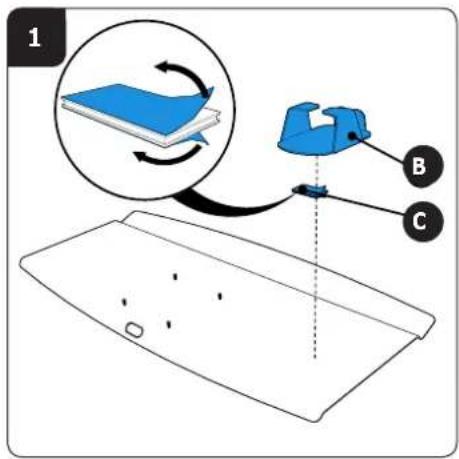

Diagram showing a blue cylindrical object being inserted into a white plastic component, with an arrow indicating the insertion direction (no text or symbols present)

Dataflex International BV

P.O. Box 713

2920 CA Krimpen a/d IJssel

The Netherlands

[e-mail]
