USER MANUAL 95-7863 Metra

Interior view of a car dashboard with digital display and three rotary controls (no visible text or symbols)

KIT FEATURES

• Double DIN head radio provision
- Textured to match factory dash

KIT COMPONENTS

A) Double DIN trim plate B) Double DIN brackets C) O.E. Replacement panel

A

Isometric line drawing of a rectangular frame with a small protrusion on the right side (no text or symbols)

B

Two identical isometric diagrams of rectangular electronic components with mounting holes (no text or symbols)

C

Simple U-shaped geometric shape with no text or symbols

WIRING & ANTENNA CONNECTIONS (Sold Separately)

WiringHarness:

• 70-1721 - Honda/Acura harness 1998-up
• 70-7863 - Element sub and AUX integration
Antenna Adapter:
• 40-hd10 - Honad/Acura antenna adapter (for Element 2005-up)

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

Two types of screwdrivers shown side by side: a pointed tool and a standard screwdriver (no text or symbols present)

Table of Contents

Dash Disassembly

— Honda Element 2003-2010....3

Kit Assembly

- Double DIN head radio provision .... 4

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

Note: Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Honda Element 2003-2010

1. Disconnect the negative battery terminal to prevent an accidental short circuit.
2. Unsnap and remove shift lever trim panel. For manual transmission models, untwist shift knob. (Figure A)
3. Unsnap and remove center dash panel. (Figure B)
4. Remove (4) Phillips screws and remove radio.

Tip: As an option, the center panel (the smaller piece around radio) is all that needs to be removed. Note, it is prone to damage--full panel removal is recommended. (Figure C)

Continued to kit assembly

(Figure A)

Line drawing of a car dashboard with three circular buttons and a digital display, showing bidirectional arrows indicating rotation (no text or symbols)

(Figure B)

Line drawing of a car dashboard with a person operating it, no text or symbols present

(Figure C)

Double DIN head radio provision

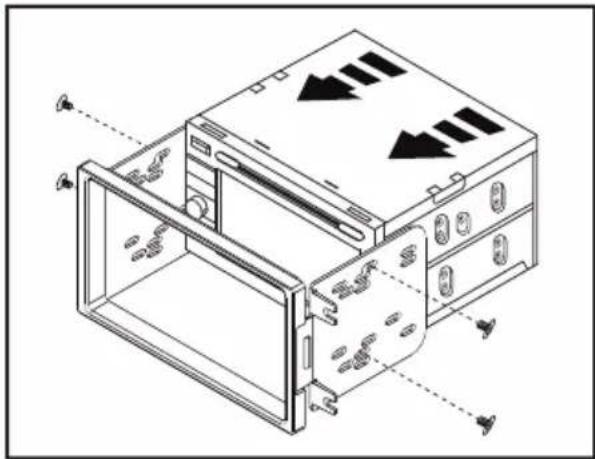

1. Attach the Double DIN brackets to the Double DIN trim plate. (Figure A)
   2 Slide the Double DIN head unit into the bracket/radio housing assembly and secure the Double DIN head unit to the assembly using the screws supplied with the radio. (Figure B)
2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
   Note: Models equipped with factory DDIN radio will require supplied O.E. Replacement panel. (Figure C)
3. Reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

(Figure A)

Technical line drawing of a computer rack unit with mounting holes and ventilation slots (no text or symbols)

(Figure B)

Simple 3D geometric shape resembling a U-shaped bracket or L-shape (no text or symbols)

(Figure C)

Notes

Notes

Notes

Honda Element 2003-2010 95-7863
