Brand	MOULINEX
Model	JU 4001
Appliance type	Juice extractor
Usage	Household only
Maximum feed tube diameter	74.5 mm
Speeds	2 (1 for soft fruits, 2 for pineapple and carrots)
Filter type	Metal filter
Safety	Safety clamp locking the lid
Cleaning	Removable parts dishwasher safe
Cleaning brush	Provided
Pitcher with froth separator	Included
Pulp container	Removable
Pusher	Included
Cord storage	Yes
Power supply	220-240 V ~ (see rating plate)
Repairability	Replaceable filter, spare parts available through after-sales service
After-sales service	Contact Moulinex or an authorized center
Warranty	Standard manufacturer (non-professional use)
Recycling	Appliance recyclable

Frequently Asked Questions - JU 4001 MOULINEX

What should I do if the appliance does not work?

Check that the plug is properly inserted and that the On/Off switch is set to I. Ensure that the lid (C) is correctly positioned and that the safety clamp (H) holds it properly.

Why does the juice flow decrease?

The filter (D) is probably clogged. Unplug the appliance and clean the feed tube (B) and the filter (D) with the provided brush.

How to clean the filter?

Clean the filter (D) using the provided brush (N), immediately after use. Do not use scouring pads, bleach, or abrasive products. Replace it at the first sign of wear.

Which fruits and vegetables are recommended?

Prefer fresh and ripe fruits and vegetables: apples, pears, oranges, grapes, pomegranates, pineapple, carrots, cucumbers, tomatoes, beets, celery. Avoid sugar cane, fruits that are too hard or fibrous.

Can the parts be washed in the dishwasher?

Yes, all removable parts (pusher, lid, filter, collector, pulp container, pitcher) can be placed in the dishwasher. The motor block should only be wiped with a damp cloth.

How to choose the speed?

Use speed 2 for pineapple and carrots; speed 1 for other fruits and vegetables. A wrong choice may cause the appliance to vibrate abnormally.

What to do in case of abnormal noise or overheating?

Check that the filter (D) is correctly positioned on the drive shaft. Let the appliance cool down and reduce the quantity of ingredients. If the problem persists, contact an authorized after-sales service.

How to assemble the appliance?

Place the juice collector (E) on the drive shaft (K), insert the filter (D) until it clicks, put the lid (C), attach the pulp container (G) at the back, then lock the safety clamp (H). Insert the pusher (A) into the tube.

Can the juice be stored?

No, all juices should be consumed immediately. Oxidation alters the taste, color, and nutritional values. Add a few drops of lemon juice to slow this process.

Where to find spare parts?

Contact an authorized Moulinex after-sales service center. The filter (D) in particular must be replaced at the first sign of wear or damage.

USER MANUAL JU 4001 MOULINEX

Line drawing of a blender with handle and control buttons (no text or symbols)

Line drawing of a kitchen blender with handle and side panel (no text or symbols)

Line drawing of a juice maker with a downward arrow indicating compression or reduction (no text or symbols)

Illustration of a glass pouring liquid into a tall cup, with a container pouring liquid from a container (no text or symbols)

Diagram of a cable or wire being connected to an electrical plug, showing mechanical components and wiring (no text or symbols)

F Pouring spout
G Pulp collector
H Safety clamp
I On/Off switch
J Speed selector (1,2)

K Drive shaft
L Motor unit
M Juice jug with foam separator
N Brush

SAFETY INSTRUCTIONS

Read these instructions carefully before using the appliance for the first time.

• Always check the sieve (D) before use.

• Never use the appliance if the cover or the sieve are damaged or if there is visible cracking or crazing or the sieve is torn. If there is any evident damage to the sieve, contact an Approved Service Centre. Handle the sieve with care (sharp edges). The sieve must be replaced as soon as there is any sign of wear or damage.

• For your safety, this appliance is compliant with applicable standards and regulations:

• Low Voltage Directive

• Electromagnetic Compatibility Directive

• Food Contact Directive

• Check that the supply voltage shown on the rating plate of the appliance matches that of your electrical system. Any connection error will invalidate the guarantee.

• This appliance is not designed for use by persons (including children) with reduced physical, sensory or mental capabilities, or by persons lacking in experience or knowledge of such appliances, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Never place or use this appliance on a hotplate or near an open flame (gas cooker).
• Do not immerse the motor unit (L) or put it under running water.
• If the supply cord is damaged, it must be replaced by the manufacturer, an approved after-sales service centre or a similarly qualified person, in order to avoid any danger.
• Always use this appliance on a flat, stable, heat-resistant work surface, away from water splashes and any sources of heat. Do not turn it over.
• Never dismantle your appliance. Apart from the usual care and cleaning, the appliance requires no maintenance on your part.

• The appliance must be unplugged:

• if there is a problem or fault during operation

• before assembly, disassembly or cleaning

• after use.

• Never pull on the supply cord to unplug the appliance.

• Only use an extension cable after checking that it is in perfect condition.

• A domestic appliance must not be used:

• if it has fallen on the floor

• if it is damaged or incomplete.

• In such cases, or for any other repair YOU MUST contact an Approved Service Centre.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Only use original accessories and components. The manufacturer cannot accept any responsibility if this is not the case.
• Switch off the appliance and disconnect from the mains before changing accessories or approaching parts that are in movement.
• Never put your fingers or any other object in the feed tube while the appliance is in operation. Always use the pusher provided for this purpose.
• Never open the cover until the sieve (D) has ceased rotating.
• Do not remove the pulp collector (G) while the appliance is in use.
  • Always unplug the appliance from the mains after use.

SAFETY SYSTEM

This appliance is fitted with a safety mechanism. To start the juice machine the cover (C) must be properly secured by the safety clamp (H). At the end of a cycle:

1. place the On/Off switch (I) to 0
2. wait until the sieve (D) stops completely before removing the cover

3. open the safety clamp (H).

4. Unpack the appliance and then place it on a flat, stable, heat-resistant work surface.

5. We recommend that you wash all the removable parts (A, C, D, E, G, M) in hot soapy water (see Cleaning and Maintenance §). Rinse and dry them carefully.
6. Ensure that all packaging has been removed before starting the appliance.

USING THE APPLIANCE

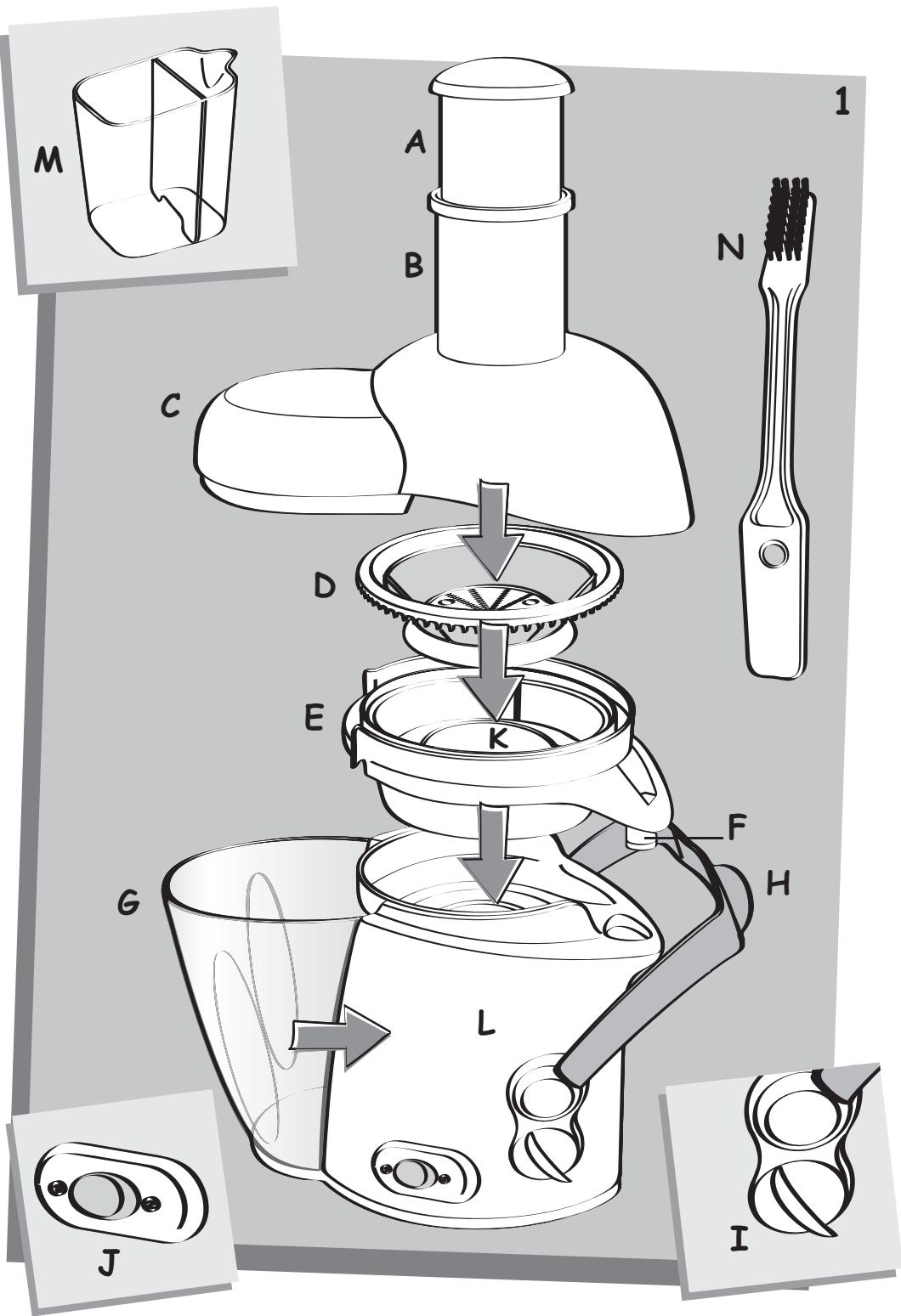

• Fit the juice collector (E) onto the drive shaft (K) (see Fig. 1).
• Place the sieve (D) in the juice collector (E). Ensure that the sieve is correctly clipped onto the drive shaft (K). You can hear an audible click (see Fig. 1).
• Fit the cover (C) on the appliance (see Fig. 1).

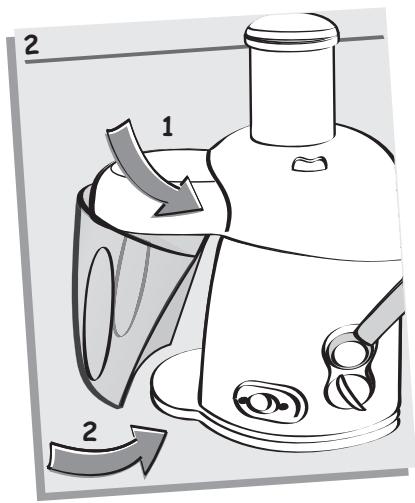

• Fit the pulp collector (G) at the rear of the appliance by clipping it into the slot (see Fig. 2).

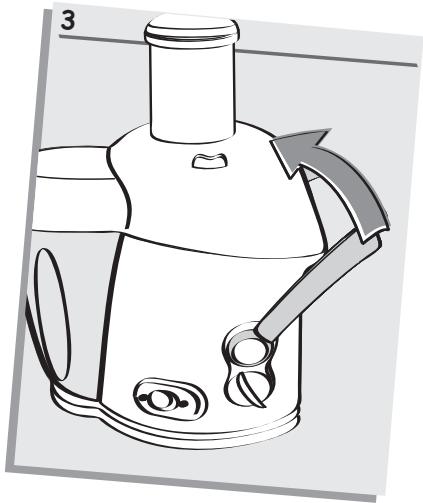

• Click the safety clamp (H) into place over the cover (C) (see Fig. 3).

• Slide the pusher (A) into the feed tube (B), aligning the groove of the pusher with the small ridge in the feed tube.

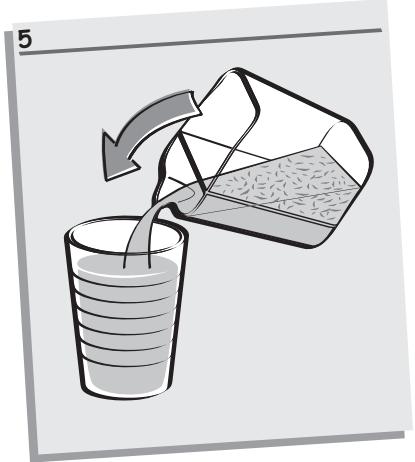

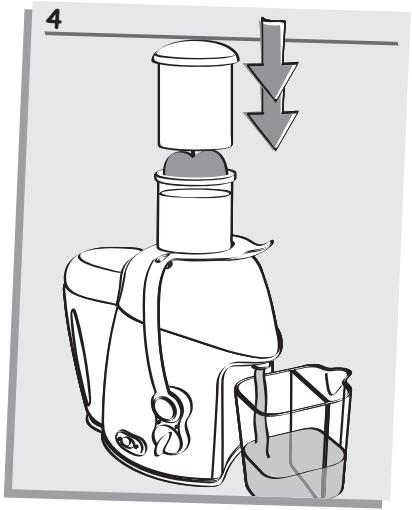

• Position the juice jug (M) under the pouring spout (F) in front of the appliance as shown on Fig. 4. The foam separator allows you to keep the froth into the juice collector when you pour the juice into a glass (see Fig. 5).

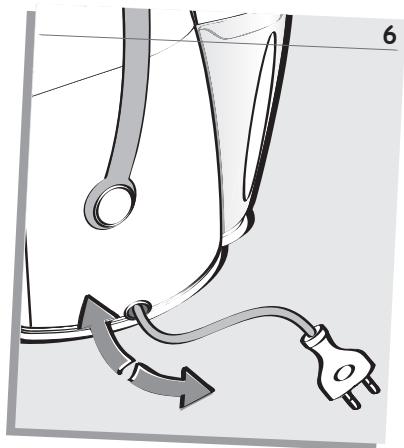

• Plug in the appliance. You can use the cord storage to adjust the length of the cord (see Fig. 6).
• Start the appliance using the On/Off switch (I).
• Select the appropriate speed (J): 2 for pineapple and carrots; 1 for all other fruits and vegetables. The quality and quantity of juice varies greatly according to the date of harvest and the particular variety of fruits or vegetables.
• Incorrect choice of speed can induce abnormal vibrations of the appliance.
• Insert the fruits or vegetables through the feed tube (B).
• The fruits and vegetables must be inserted while the motor is running.
• Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.
• When you have finished, stop the appliance, turning the On/Off switch (I) to 0 and wait until the sieve (D) has stopped completely. Open the safety clamp (H).
• When the pulp collector (G) is full, or the juice flow diminishes, empty the pulp collector and clean the sieve.

USEFUL ADVICE

• Wash the fruits carefully before removing any stones.
• You do not need to remove the skin or peel the fruits. You only need to peel fruits with thick (and bitter) skin: citrus fruits, pineapple (remove the stalk).
• Some varieties of apples, pears, tomatoes, etc. will fit into the feed tube whole (74.5 mm maximum diameter), so choose the appropriate size of fruits or vegetables.
• It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.
• The appliance should not be used for sugar cane and excessively hard or fibrous fruits.
• Choose fresh, ripe fruits and vegetables, they will yield more juice. This appliance is suitable for fruits such as apples, pears, oranges, grapes, pomegranates and pineapple; for vegetables such as carrots, cucumbers, tomatoes, beetroot and celery.
• If you juice over ripe fruit, the sieve will be blocked more quickly.
• Important: All juice must be consumed immediately. On contact with air, the juice quickly oxidizes which can change the taste, colour and, above all, the nutritional value. Apple and pear juices quickly turn brown, if required add a few drops of lemon juice to slow this discoloration.

CLEANING AND MAINTENANCE

• Unplug the appliance before cleaning.
• All removable parts (A, C, D, E, G, L, M) can be cleaned in the dishwasher.
• This appliance is easier to clean immediately after use.
• Do not use scouring pads, acetone, alcohol (spirit) or harsh abrasive cleaning products. etc. to clean the appliance.

• The sieve must be handled with care. Avoid any mishandling that may damage and alter the performance of the sieve. The sieve can be cleaned with the aid of the brush (N). Change your sieve at the first sign of wear or damage. Never use bleach or scouring pads to clean the sieve, use hot water and washing-up liquid.

• Wipe the motor unit down with a damp cloth. Dry carefully.

• Never plunge the motor unit under running water.

PROBLEM	CAUSES	SOLUTIONS
The appliance does not work.	The plug is not inserted correctly, the On/Off switch (I) is not on position I.The cover (C) is not properly secured.	Plug the appliance into a socket with the correct voltage. Turn the On/Off switch to speed I.Check that the covers (C) is properly fitted and secured by the safety clamp (H).
The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking.	The sieve (D) is not properly fitted.The quantity of food being processed is too great.	Check that the sieve (D) has been fitted properly onto the drive shaft (K).Leave the appliance to cool down and reduce the quantity of food to be processed.
Juice flow decreases.	The sieve (D) is blocked.	Switch off the appliance, clean the feed tube (B) and the sieve (D).

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

(010 677 4003 - Ireland

or consult our website – www.moulinex.co.uk

RECYCLING

Environment protection first!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a civic waste collection point.

A Stopfer

B Füllschacht

c Deckel

D Filter

E Safttrichter

F Auslauf

G Tresterbehälter

H Sicherheitsbügel

I Ein-/Aus-Schalter
