Efficient Power Care BSI-1604 - Griddle Becken - Free user manual and instructions

Product Type	Steam Iron
Model	Efficient Power Care BSI-1604
Brand	Becken
Power	2500 W
Voltage	230 V ~ 50/60 Hz
Water Tank Capacity	Approx. 300 ml
Soleplate Material	Stainless steel with steam vents
Temperature Settings	Adjustable dial for low, medium, high (synthetic, silk/wool, cotton/linen)
Steam Functions	Continuous steam, steam shot, vertical steam, spray
Anti-Drip System	Prevents water dripping at low temperatures
Anti-Scale System	Permanent resin filter; use tap water only
Self-Cleaning Function	Yes, recommended every 10-15 days
Safety Features	Automatic shut-off? Not specified; auto shut-off not mentioned; includes indicator light, cool-down before cleaning, keep out of reach of children
Power Cord Length	Approx. 2 m (estimated)
Weight	Approx. 1.5 kg (estimated)
Dimensions (HxWxD)	Not specified; typical steam iron dimensions ~14 x 12 x 30 cm
Warranty	2 years manufacturing defects (from date of purchase)
Included Accessories	Water measure

Frequently Asked Questions - Efficient Power Care BSI-1604 Becken

Can I use distilled water in this iron?

No, only tap water should be used. Distilled or demineralized water makes the anti-scale system ineffective. Do not use chemical additives or scented substances.

How do I clean the iron?

Unplug and let cool. Wipe the soleplate with a damp cloth and mild detergent. For self-cleaning, fill tank to max, set steam to 0, heat to max, then hold the cleanout button over a sink to expel impurities. Use every 10-15 days.

What do the temperature dial settings mean?

Low temperature for synthetics (silk, synthetic), medium for wool/silk, high for cotton/linen. Always start with low temperature garments to avoid scorching.

Why does water drip from the soleplate?

This can happen if the temperature is too low for steam use. Ensure the selected temperature is high enough (as marked on the dial) for steam functions. The anti-drip system should activate at low temps to prevent this.

Can I use the iron vertically?

Yes, press the steam button to produce a steam shot for vertical ironing on hung garments or curtains. Only use at high temperatures.

How do I refill the water tank?

Unplug the iron, set steam regulator to 0, open the filler cap, tilt the iron, and slowly pour water using the measure up to the MAX mark (approx. 300 ml). Close cap.

What should I do if the iron is not heating?

Check that it is plugged in and the temperature dial is set. The indicator light turns on during heating and off when ready. If still not heating, contact customer support.

Can I iron fabrics with sequins or embroidery?

Yes, but use the lowest temperature setting and iron on the reverse side to avoid damage.

How should I store the iron?

Unplug, empty the water tank, let it cool completely, wrap the cord loosely using the cord rewinder, and store in an upright position.

What is the warranty coverage?

A 2-year warranty covers manufacturing defects from the date of purchase. Unauthorized repairs or misuse voids the warranty.

USER MANUAL Efficient Power Care BSI-1604 Becken

[Instructions Manual]

[Manual de Instrucciones]

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 5
1.5. General Precautions 5

2. OPERATING INSTRUCTIONS 7

2.1. Product Description 7
2.2. Using the Product 8

3. TECHNICAL SPECIFICATIONS 10

4. POST-SALE SERVICE 11

5. ENVIRONMENTAL PROTECTION 11

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCK.DO NOT OPEN
Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply.

Always allow the unit to cool down before cleaning.

Any deposits, starch residue or stains left on the plate can be removed using a damp cloth or a non-abrasive liquid detergent.

Avoid scratching the plate with steel wool or metal objects.

The plastic parts can be cleaned with a damp cloth then wiped over with a dry cloth.

Self-Cleaning

The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10-15 days.

- Directions:

Fill the reservoir up to the maximum level indicated and set the steam regulator (3) to "0".

Set the temperature dial (8) to the maximum temperature and wait for the light (9) to turn off.

Pull the plug out of the socket and hold the iron horizontally over the sink.

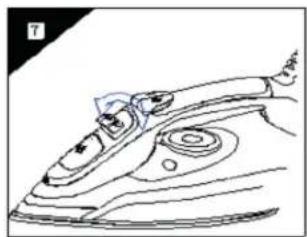

Hold the cleanout button (7) until all the boiling water, steam and impurities come out [Fig. 7].

When the soleplate has cooled down, you can clean it with a damp cloth.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

BECKEN

• Use the iron only for its intended use.
• To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
• The iron should always be turned to Off before plugging or unplugging from the outlet.
• Let the iron cool completely before storing. Loop the cord loosely around the iron when storing.
• Always disconnect the iron from the power outlet when filling with water or emptying and when not in use.
• Do not use the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron; take it to the Costumer Support Service for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended while connected or on an ironing board.
• Burns can occur from touching hot metal parts, hot water, or steam. Be careful when you turn a steam iron upside down – there may be hot water in the tank.
• If the malfunction indicator lights, the iron is not operating normally. Disconnect from the power supply and have the iron serviced by the Costumer Support Service.
• The iron must not be left unattended while it is connected to the power supply.
• The plug must be removed from the power outlet before the water tank is filled with water (for steam irons and irons with water spraying devices).
• The filler cap must not be opened during use. Instructions for the safe refilling of the water tank are given (for pressurized steam irons).
• The iron must only be used with the stand provided (for cordless irons).
• The iron is not intended for regular use (for travelling irons).
• The iron must be used and rested on a stable surface.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Keep the iron and its cord out of the reach of children less than 8 years old when it is powered on or cooling down.
• To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
• Do not let children or untrained persons use the appliance without supervision.
• Never immerse the iron, cable or plug in any liquid.
• Do not leave the hot iron on fabrics or highly inflammable surfaces.

• Do not leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.

• Never touch the appliance with wet or damp hands.

• Do not leave the appliance exposed to the weather (rain, sun, etc.).
• Do not use chemical additives, scented substances or scale removers.
• Failure to comply with the above-mentioned instructions will void the guarantee.
• When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.

2. OPERATING INSTRUCTIONS

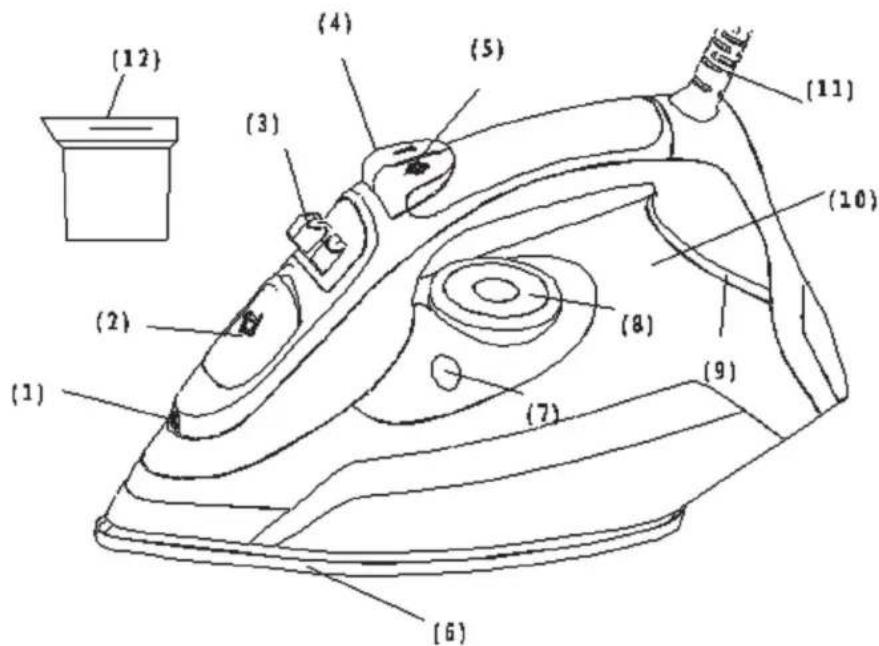

2.1. Product Description

1 Spray nozzle
2 Filler cap
3 Steam regulator
4 Spray button
5 Steam button
6 Soleplate with steam vents

7 Cleanout button
8 Temperature dial
9 Temperature indicator light
10 Water tank
11 Bushings
12 Water measure

Anti-Drip System

With the anti-drip system, you can perfectly iron even the most delicate fabrics. Always iron these fabrics at low temperatures. The plate may cool down to the point where no more steam comes out, but instead drops of boiling water that can leave marks or stains. In these cases, the anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them.

BECKEN

Anti-Scale System

A special resin filter inside the water tank softens the water and prevents scale build-up in the plate. The resin filter is permanent and does not need replacing.

Note:

Use tap water only. Distilled and/demineralized water makes the anti-scale system ineffective by altering its physical-chemical characteristics. Do not use chemical additives, scented substances or scale removers. Failure to comply with the above-mentioned instructions will void the guarantee.

2.2. Using the Product

Preparation

Sort the laundry to be ironed according to the international symbols on the garment label, or if this is missing, according to the type of fabric.

GARMENT LABEL FABRIC T	TYPE TEMPERATURE DIAL	REGULATION
	synthetic low temperature
	silk - wool medium temperature
	Cotton - linen high temperature
	Fabric not to be ironed

Start ironing the garments requiring a low temperature.

This reduces the waiting time (the iron takes less time to heat up than to cool down) and eliminates the risk of scorching the fabric.

Steam Ironing

Filling the Tank

• Check that the plug is disconnected from the socket.
• Move the steam regulator (3) to "0" [Fig. 1].
• Open the cap (2).
• Raise the tip of the iron to help the water enter the opening without overflowing.
• Slowly pour the water into the tank using the water measure (12) and taking care not to go over the maximum level (about 300 ml) indicated by “MAX” on the tank [Fig. 2].
• Close the cap (2).

Selecting the Temperature

• Place the iron in a vertical position.
• Plug it into the socket.
• Adjust the temperature dial (8) according to the international symbol on the garment label [Fig. 3]. The temperature indicator light (9) indicates that the iron is heating. Wait until the temperature indicator light turns off before ironing.

Warning:

when ironing, the temperature indicator light (9) comes on at intervals, indicating that the selected temperature is maintained. If you lower the temperature after ironing at a high temperature, do not start ironing until the temperature indicator light comes on again.

Regulating the Steam

The quantity of steam is regulated by the steam regulator (3).

Move the steam regulator to a position between minimum and maximum depending on the quantity of steam required and the temperature selected [Fig. 1].

Warning:

the iron only gives off steam continuously if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or by moving the steam regulator to "0". As indicated on the temperature dial (8), you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate.

Selecting a Shot of Steam When Ironing Vertically

Press the steam button (5) to generate a powerful shot of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again [Fig. 4].

By pressing the steam button at intervals you can also iron vertically (curtains, hung garments, etc.) [Fig. 5].

Warning:

the steam shot function can only be used at high temperatures. Stop using it when the temperature indicator light (9) comes on; then start ironing again only after the light has turned off.

Dry Ironing

To iron without steam, follow the instructions in the “Steam Ironing” section, leaving the steam regulator (3) on position “0”.

Spray Function

Make sure that there is water in the tank. Press the spray button (4) slowly (for a dense spray) or quickly (for a vaporized spray) [Fig. 6].

Warning:

for delicate fabrics, we recommend moistening the fabric beforehand using the spray button (4), or putting a damp cloth between the iron and the fabric. To avoid staining, do not use the spray on silk or synthetic fabrics.

Storage

• Disconnect the plug from the power outlet.
• Empty the tank by turning the iron upside down and gently shaking it.
• Leave the iron to cool down completely.
• Roll up the power cord with the rewinder [Fig. 8].
  • Always store the iron in a vertical position.

BECKEN

Line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Line drawing of a mechanical iron with a lever and adjustment arrow (no text or symbols)

Line drawing of a steam iron with visible internal components and base, no text or symbols present

Anatomical line drawing of a human brain with a surgical instrument inserted (no text or labels)

Line drawing of a steam iron with a valve and exhaust pipe (no text or symbols)

Line drawing of a steam iron with handle and spout (no text or symbols)

Line drawing of a steam iron with handle and spout (no text or symbols)

Advice for Good Ironing

• We recommend using the lowest temperatures with fabrics that have unusual finishes (sequins, embroidery, flush, etc.).
• If the fabric is mixed (e.g. 40% cotton, 60% synthetics), set the thermostat to the temperature of the fiber requiring the lower temperature.
• If you don't know the composition of the fabric, determine the suitable temperature by testing on a hidden corner of the garment. Start with a low temperature and increase it gradually until it reaches the ideal temperature.
• Never iron areas with traces of perspiration or other marks: the heat of the plate fixes the stains on the fabric, making them permanent.
• The size is more effective if you use a dry iron at a moderate temperature: excess heat scorches it with the risk of forming a yellow mark.
  • To avoid marking silk, woolen or shiny synthetic garments, iron them inside out.
• To avoid marking shiny velvet garments, iron in one direction (following the fiber) and do not press down on the iron.
• The more the washing machine is loaded, the more garments come out creased. This also happens when the spin drying speed is very high.
• Many fabrics are easier to iron if they are not completely dry.
• For example, silk should always be ironed damp.

3. TECHNICAL SPECIFICATIONS

230 V 50/60 Hz

2,500 W

4. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING:

Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Estimado cliente:

Line drawing of a mechanical component with motion arrows indicating rotation (no text or symbols)

Line drawing of a steam iron with a hand holding a spring, showing mechanical components and motion (no text or symbols)

Line drawing of a steam iron with steam rising (no text or symbols)

Line drawing of a garment sleeve with a zipper and collar (no text or symbols)

Line drawing of a steam iron with a downward arrow indicating motion (no text or symbols)

Line drawing of a steam iron with internal components (no text or symbols)

Line drawing of a steam iron with handle and spout (no text or symbols)

Symbol of a trash bin crossed with no signage or text (no readable text)

Caro(a) cliente,

Line drawing of a mechanical component with a curved handle and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a lever and adjustment arrow, no visible text or symbols

Line drawing of a steam iron with a button and base, no text or symbols present

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a steam iron with a valve and exhaust pipe (no text or symbols)

Line drawing of a steam iron with internal components (no text or symbols)

Line drawing of a steam iron with handle and spout (no text or symbols)

Symbol of a trash bin crossed with no waste, representing discharge or disposal (no text present)

BECKEN

Importado, produzido e distribuído por: Importado, producido y distribuido por: Imported, produced and distributed by:
