USER MANUAL BCG5031 Becken

MANUAL DE INSTRUÇÕES

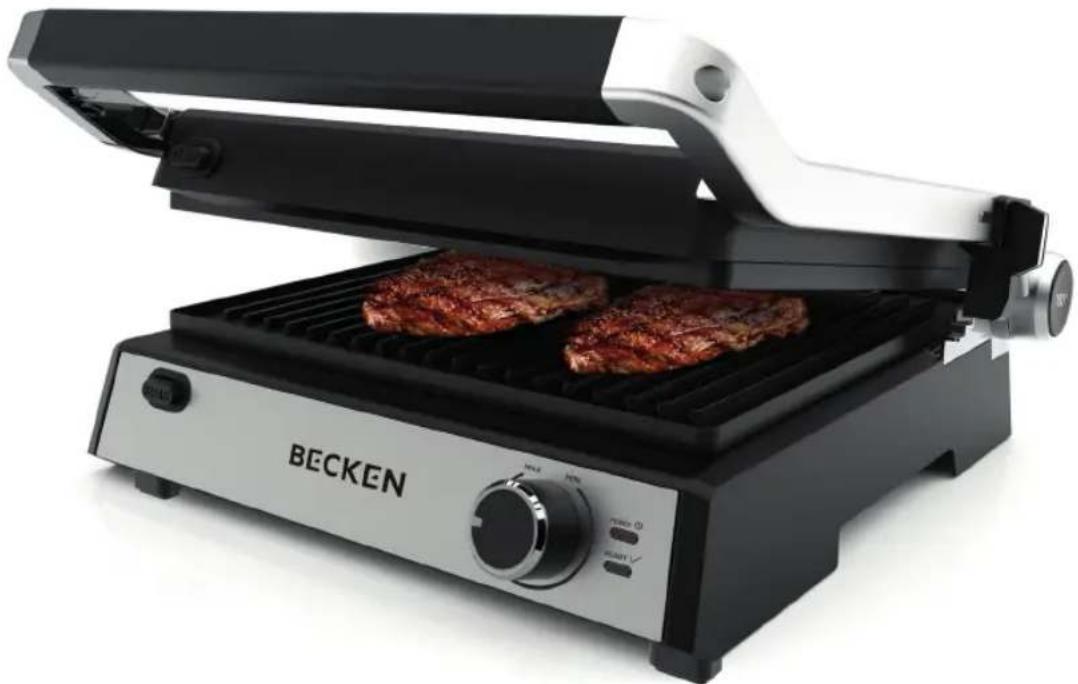

Becken grater oven with two meat cuts open, no visible text or symbols on the grates or background.

BCG5031

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

1.2. Power Cord and Other Cables 5

2. OPERATING INSTRUCTIONS

2.1. Product Description 10
2.2. Product usage 11
2.3. Maintenance 15

3. TECHNICAL SPECIFICATIONS 16

4. POST-SALE SERVICE 16

5. ENVIRONMENTAL PROTECTION 17

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket. Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• For household use only
• When using electrical appliances, always follow basic safety precautions

WARNING: To reduce the risk of fire, electric shock, or serious personal injury:

[you can trust]

• Do not touch hot surfaces. Use the handle.
• Do not immerse the power cord, plug or base in water/liquid.
• Unplug the power cord from the electrical outlet when the appliance is not in use and before cleaning it. Allow it to cool before putting on or taking off parts.
• Do not use attachments not recommended for use with this appliance by the appliance manufacturer. Attachments may become hot during use, so allow them to cool before handling.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• Use extreme caution when moving an appliance containing hot oil or other hot liquids.
• Do not leave the appliance unattended while in use.
• Do not plug or unplug the appliance into/from an electrical outlet with a wet hand.
• Take proper precautions to prevent the risk of burns, fire, or other personal or property damage, as this appliance generates heat during use.
• If the appliance falls into water, immediately unplug it from the electrical outlet. Do not touch or reach into the water.

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

• Use in a well-ventilated area. Keep at least 10-15 cm of space on all sides to allow adequate air circulation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair it yourself. Only qualified service personnel should perform any servicing; take the appliance to the Customer Support Service for inspection and repair.
• Keep the appliance and its cord out of reach of children less than 8 years.
• This appliance is not intended to be operated by means of external timer or separate remote-control system.
• This symbol ⚠ symbol IEC 60417-5041(2002-10)] means “Caution, hot surface”.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

[you can trust]

CAUTION: To reduce the risk of personal injury:

• This appliance is intended solely for indoor, non-commercial, non-industrial and household use to cook/heat food for human consumption. Do not use the appliance outdoors or for any other purpose.
• Do not allow the power cord to hang where it may be tripped over or pulled (e.g., over the edge of a table or counter), and do not allow the Cord to touch hot surfaces.
• Always wear oven mitts or heat-resistant gloves when using this appliance and use utensils.
• To disconnect from the electrical outlet, pull directly on the plug; do not pull on the power cord.
• Always use the appliance on a flat, level, stable, heat-resistant surface.

SPECIAL INSTRUCTIONS:

• A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Extension cords are available and may be used if care is exercised in their use. If an extension cord is used:
• The marked electrical rating of the extension cord must be at least as great as that of the appliance;
• The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally;

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

• The extension cord must be a grounding-type 3-wire cord.
• Save these instructions for future reference

2. OPERATING INSTRUCTIONS

2.1. Product Description

1 Handle
② Top housing
3 Handle cover plate
4 Base
5 Control knob
6 Upper plate release button
7 Grill plate
⑧ Bottom plate release button
9 Oil tray
10 Scraper/cleaning tool
11 Red light cover
12 Green light cover

[you can trust]

2.2. Product usage

BEFORE FIRST USE

• Press the Upper plate release button to remove the upper grill plate and then press the Lower plate release button to remove the lower grill plate. Clean the grill plates, the drip tray, and the scraper/cleaning tool in warm, soapy water; rinse and let dry. These parts may also be washed in a dishwasher. Never immerse the base into or expose it to water.
• Reinsert the upper and lower grill plates into their respective positions before use. See the “Insert/Change Plates” section for more instructions.
• Note: When using the grill plates for the first time, spray or apply a thin layer of cooking oil onto the non-stick surfaces of the plates with a paper towel in order to season the non-stick surface. As necessary, reapply a thin layer of cooking oil throughout the life of the plates to maintain best non-stick performance.

How to assemble

Place the appliance on a clean, flat, level, stable, heat-resistant surface with at least 10-15 cm of space on all sides to allow for adequate air circulation.

Positioning the upper housing:

1. Closed/Heatingposition: The upper housing is closed and rests on the base. Use this position when starting/heating the appliance and when grilling most foods.

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

1. Open Position: The upper housing is open. Place the appliance in this position when starting to use the grill function, and when grilling certain foods in which the upper grill plate is not appropriate, such as pizza or fish. Lift the handle until the upper housing is at about a 90° angle.
2. FlatPosition: The upper housing is open and level with the base, creating two cooking surfaces. Use the appliance in this position when grilling larger amounts of food. To flatten, pull up on the hinge Release and push the Handle down.

Insert/Change Plates

Slide the notches in the rear of the lower grill plate into the retaining hooks, then press down on the front of the plate to snap it into place. Repeat to attach the upper grill plate.

How to use

WARNING: The grill plates and metal surfaces of the upper housing and handle will become very hot during use. To avoid a burn hazard, wear oven mitts or heat-resistant gloves when using and touch only the black portion of the handle.

NOTICE: Use only heat-resistant wooden, plastic, or silicone utensils to add/remove food. Do not use a metal utensil as it may scratch the surface of the item.

NOTE: During the initial use this item may emit some light smoke. This is normal and will subside with further use.

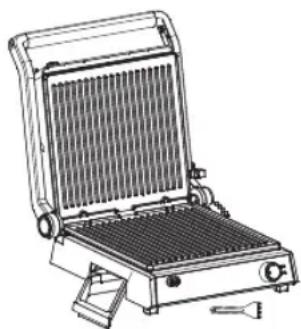

Use as a contract grill:

Use it to cook burgers, boneless or thin pieces of meat and fish and vegetables. In the “Closed” position, food will cook quickly since both sides cook at the same time.

Line drawing of a portable electric grill with grating and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Hinge release

[you can trust]

1. Put the appliance on the "Closed" position and plug the power cord into a standard electrical outlet. The power indicator will illuminate red, indicating power is on.
2. Place a drip cup below the drip spout.
3. Turn the temperature control knob to the desired setting, as listed below

Setting Temperature
min close
max 230 °C

NOTE: It may take up to seven minutes to reach the selected cooking temperature. The ready indicator will illuminate green when the appliance is ready for cooking and will alternate on and off during cooking, indicating the appliance is maintaining the selected cooking temperature.

1. Place food onto the lower grill plate and lower the upper grill plate onto the food (the "Closed" position). The upper grill plate will self-adjust to the thickness of the food. If cooking items in which the upper grill plate is not needed, such as kebabs or fish, leave the appliance in the "Open" position.

NOTE: If cooking more than one piece of food at a time, food items should be of similar thickness to ensure the upper grill plate rests evenly on the food for even cooking.

1. When cooking is completed, remove food, unplug the appliance from the electrical outlet, and allow the appliance to cool (at least 30 minutes) before moving, disassembling, or cleaning it.

CAUTION: Always unplug the appliance from the electrical outlet when cooking is complete and when the appliance is not in use.

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

Use as a press contact grill:

Use upper and lower grill plates in the “Closed” position to grill any combination of ingredients (for example, vegetables, meats, and cheeses) layered between two pieces of bread or a folded tortilla/pita.

1. Follow steps 1 through 3 in the "Use as a contact grill" section above.
2. Place food on the lower grill plate and lower the upper grill plate onto the food. The upper housing will self-adjust to the thickness of the food.

NOTE: If cooking more than one piece of food at a time, food items should be of similar thickness to ensure the upper Grill Plate rests evenly on the food for even cooking.

1. When cooking is completed, remove food, unplug the appliance from the electrical outlet and allow it to cool (about 30 minutes) before moving, disassembling or cleaning it.

CAUTION: Always unplug the appliance from the electrical outlet when cooking is complete and when the appliance is not in use.

Use as a flat grill:

Using the appliance in the “Flat” position doubles the cooking surface area and allows cooking of items with different thicknesses simultaneously, or cooking foods on different plates to avoid combining flavours. Use for cooking French toast, hash browns, open face sandwiches and kebabs.

1. Set the appliance to the "Flat" position and plug the power cord into a standard electrical outlet. The power Indicator will illuminate red, indicating power is on.
2. Use both drip cups when cooking in the Flat position.
3. Turn the temperature control knob to the desired setting.

[you can trust]

NOTE: It may take up to eight minutes to reach the selected cooking temperature. The ready indicator will illuminate green when the appliance is ready for cooking. The ready indicator will alternate on and off during cooking, indicating the appliance is heating to maintain the selected cooking temperature.

1. Place the food onto the grill plates.

2. When cooking is completed, remove the food, unplug the appliance from the electrical outlet and allow it to cool (about 30 minutes) before moving, disassembling or cleaning it.

CAUTION: Always unplug the appliance from the electrical outlet when cooking is complete and when the appliance is not in use.

2.3. Maintenance

WARNING: Always make sure the appliance is unplugged from the electrical outlet and allowed to completely cool before relocating, disassembling or cleaning it.

NOTICE: Do not use harsh or abrasive cleaners or pads to clean the appliance.

1. After completely cooling, gently remove the drip cups and discard its contents.
2. Remove any leftover food from the grill plates using the scraper/cleaning tool.
3. Clean the grill plates, drip cups, and scraper/cleaning too in warm, soapy water; rinse and let dry. These parts may also be washed in a dishwasher.

WARNING: Do not immerse the base into or expose it to water or other liquids.

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

1. Wipe the upper housing and base with a water-dampened sponge and dry with a soft cloth or paper towel.

2. Store the appliance in a cool, dry location.

3. TECHNICAL SPECIFICATIONS

Voltage Frequency Wattage
220~240 V AC 50-60	Hz 2000 W

4. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

[you can trust]

5. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Contact Grill | Parrilla de Placas | Grelhador de Placas

Estimado cliente,

Line drawing of a portable flat-screen grating device (no text or symbols)

[you can trust]

Line drawing of a grating machine with a handle and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with an upward arrow indicating motion or force (no text or symbols present)

Symbol of a trash bin crossed with no visible text or numbers

[you can trust]

Vertical gradient bar transitioning from light green to dark green (no text or symbols)

Contact Grill | Parrilla de Placas | Grelhador de Placas

ES

35

Caro(a) cliente,

[you can trust]

Line drawing of a portable flat-screen grating device (no text or symbols)

Line drawing of a portable electric grill with grating and side-mounted base (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Contact Grill | Parrilla de Placas | Grelhador de Placas

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
