Steren K-705-JABALI - Toy

K-705-JABALI - Toy Steren - Free user manual and instructions

Find the device manual for free K-705-JABALI Steren in PDF.

📄 24 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice Steren K-705-JABALI - page 14
14 / 24
View the manual : English EN Español ES
Pick your language and provide your email: we'll send you a specifically translated version.
Product TypeSolar-powered toy (Solar Wild Boar)
BrandSteren
ModelK-705-JABALI
Power SourceSolar panel (1 V DC)
Solar Panel Output1 V, 75 mA
Motor Speed10,000 rpm
Motor Voltage1.2 V
Recommended Age7 years and up (adult supervision required)
Assembly RequiredYes
Choking HazardContains small parts; not suitable for children under 3 years
Sharp Edges WarningContains functional and sharp edges; cut burrs before assembly
Operating ConditionsDirect sunlight or under a 50 W halogen bulb; not effective on cloudy days
Indoor UsePossible with 50 W halogen bulb
CleaningDo not use chemicals or corrosives; wipe with a dry cloth
StorageAvoid places with water leaks or splashing
Tools RequiredTweezers for cutting, hammer
Included Mechanical PartsSolar engine panel, pinion gear (3), red gear (1), orange gear (1), blue gear shaft (1), hexagonal shaft (2), short round shaft (1), large round shaft (2)
Safety InstructionsRead manual carefully; use under adult supervision; cut burrs before assembling
Websitewww.steren.com

Frequently Asked Questions - K-705-JABALI Steren

How does the solar wild boar work?
It uses a solar panel to convert light into electricity, which powers a motor to move the toy. Requires direct sunlight or a strong halogen bulb.
Can I use batteries as a power source?
No, this toy is designed to be powered only by solar energy. There is no battery compartment.
What age is recommended for this toy?
Recommended for children 7 years and older under adult supervision. Not suitable for under 3 years due to small parts.
Why doesn't my solar wild boar move?
Ensure it is in direct sunlight or under a 50W halogen bulb. Cloudy weather or insufficient light will prevent operation.
Is assembly required?
Yes, the toy comes as a kit that needs to be assembled following the manual. Tools like tweezers and a hammer are required.
What should I do if parts are missing or damaged?
Contact Steren customer service via their website (www.steren.com) for replacement parts.
Can I use this toy indoors?
Yes, but you need a 50W halogen bulb placed close to the solar panel. Ordinary indoor lighting is not sufficient.
How do I clean the solar panel?
Wipe gently with a dry or slightly damp cloth. Do not use chemicals or abrasive materials.
Are there any sharp edges I should be aware of?
Yes, the kit contains functional edges and sharp parts. Cut burrs before assembly and handle with care.
What does 'not suitable for cloudy days' mean?
The solar panel requires strong light to generate enough power. Cloud cover reduces light intensity, and the motor may not run.

User questions about K-705-JABALI Steren

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Toy in PDF format for free! Find your manual K-705-JABALI - Steren and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K-705-JABALI by Steren.

USER MANUAL K-705-JABALI Steren

Abstract grayscale pattern with curved shapes and diagonal lines, no text or symbols present

7

8

10 C2

11 A4

12 B8x3 A5

13

Golpee ligeramente P7 dentro de A5 P7 ×2

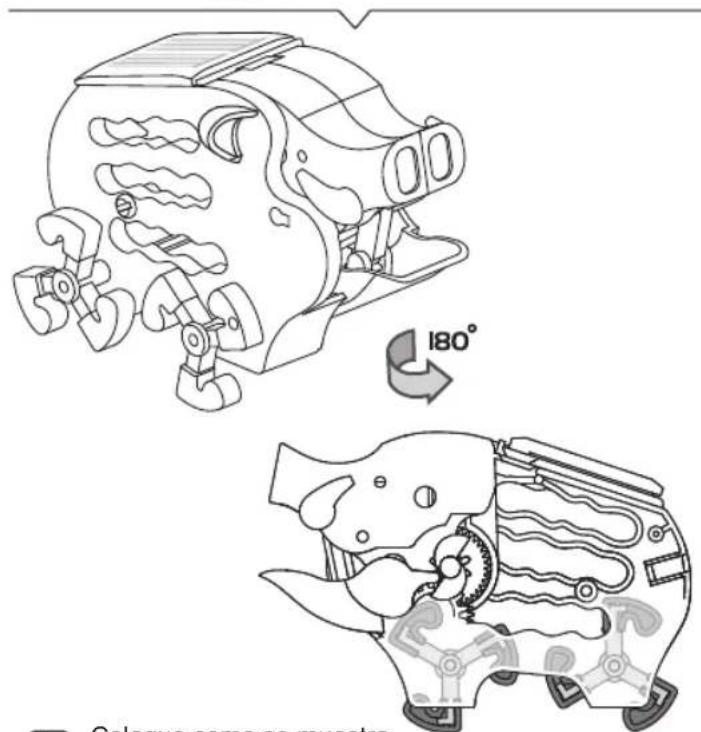

180° Colagus some se muestra

Mechanical assembly diagram showing three clamping components with arrows indicating motion direction (no text or labels)

Line drawing of a mechanical device with gears and levers (no text or symbols)

22
A8 R R A7 L A9

Technical line drawing of a mechanical assembly with gears and springs (no text or symbols)

ESPECIFICACIONES

Alimentación: 1 V--- (panel solar)

Panel Solar: 1 V --- 75mA

Motor: 10 000 rpm / 1,2 V ---

Four black-and-white social media icons: YouTube, Facebook, Twitter, and Google+ (no text or symbols beyond logos)

www.steren.com

K-705

Solar wild boar

Steren K-705-JABALI - Solar wild boar - 1

0517A

V0.0

3D cutaway illustration of a piggy bank with internal mechanical components (no text or symbols)

Instruction manual

Please read this instruction carefully to avoid any malfunction

WARNINGS

Steren K-705-JABALI - WARNINGS - 1

The use of this product is recommended for children over 7 Years under the supervision of an adult.

Not suitable for children under 3 years old, it contains small parts Which may pose choking hazards
This product is not intended to be used by persons Different capacities, unless they are supervised or Instructed by a person responsible for their safety.
Do not use chemicals or corrosives to clean it.
Do not use or store this equipment in places where leaks exist Or splashing water.
Cut burrs from parts before assembling

  1. Use it under direct sunlight.
  2. Indoors you can use it under the light of a halogen bulb of 50 W.
  3. If it is cloudy, the kit will not work.

Required tools
Steren K-705-JABALI - WARNINGS - 2
Tweezers for cutting

Steren K-705-JABALI - WARNINGS - 3
Hammer

List of mechanical parts

! The product contains functional edges and sharp edges.

P1
Solar engine panel
Simple line drawing of a handheld device with a cylindrical rod and attached cable (no text or symbols)

Steren K-705-JABALI - List of mechanical parts - 2
Do not connect the cables to the mains.

P2
3 Pinion gear (Yellow)
Steren K-705-JABALI - List of mechanical parts - 3

1
Gear (red)
Steren K-705-JABALI - List of mechanical parts - 4
Qty.Qty.Qty.

P4
Gear (orange)
Steren K-705-JABALI - List of mechanical parts - 5
Qty.
1

P5
Gear shaft (blue) Spo
Steren K-705-JABALI - List of mechanical parts - 6
Qty.
1

P6
Steren K-705-JABALI - List of mechanical parts - 7
Qty.
1

P7
Hexagonal shaft
Steren K-705-JABALI - List of mechanical parts - 8
Qty.
2

P8
Round shaft (short)
Steren K-705-JABALI - List of mechanical parts - 9
Qty.
1

P9
Round shaft (large)
Steren K-705-JABALI - List of mechanical parts - 10
Qty.
2

Plastic parts

! Cut the parts when you are going to use them. Do not cut them in advance.

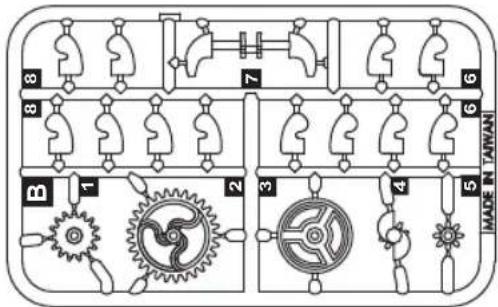

1 2 3 4 5 6 7 8 9 10 A IMATE N TAHANI

MADE IN TAIWAN

Suggestions

Cut burrs before assembling.

MADY burr burr MADY

Mechanical Assembly


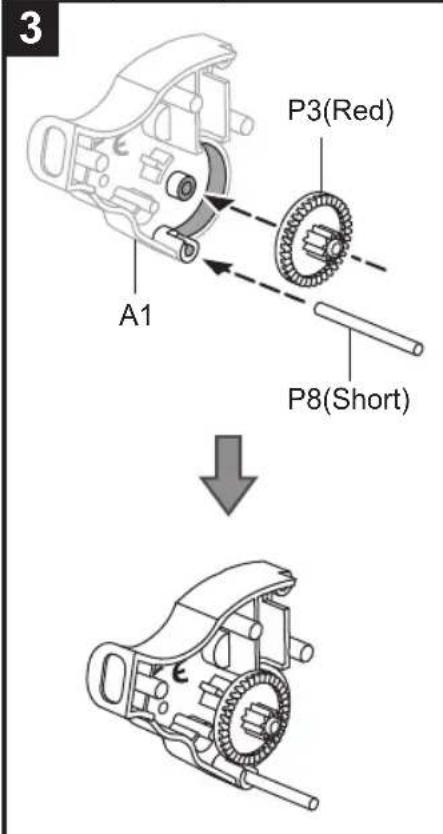

3 A1 P3(Red) P8(Short)

4 ① ② Side view ✓ Incorrect

4

5

7
Use your finger to hold the pieces (as shown below), you can help in assembly of parts.
1 2 A10 Side view

8

! Cut the burrs before of assembling
A2

Incorrect Incorrect

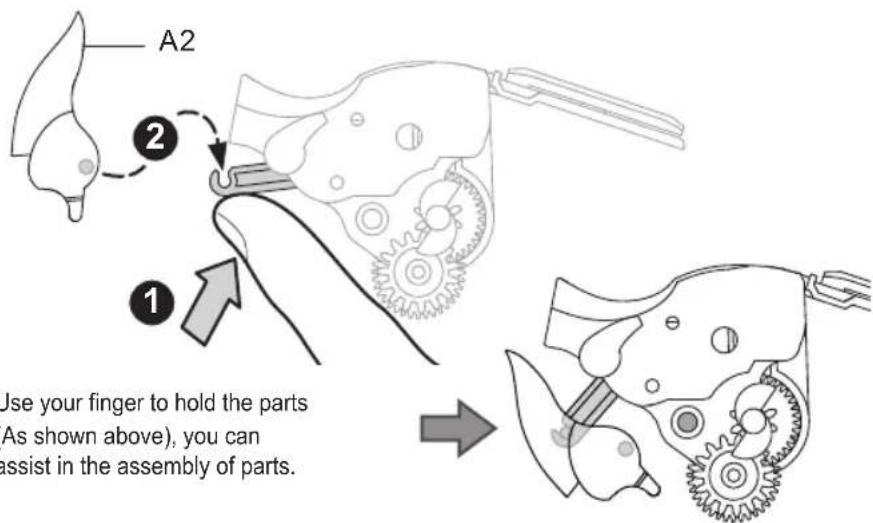

A2 ② ① Use your finger to hold the parts (As shown above), you can assist in the assembly of parts.

9
Diagram showing a vehicle's internal components before and after assembly, with no visible text or symbols.

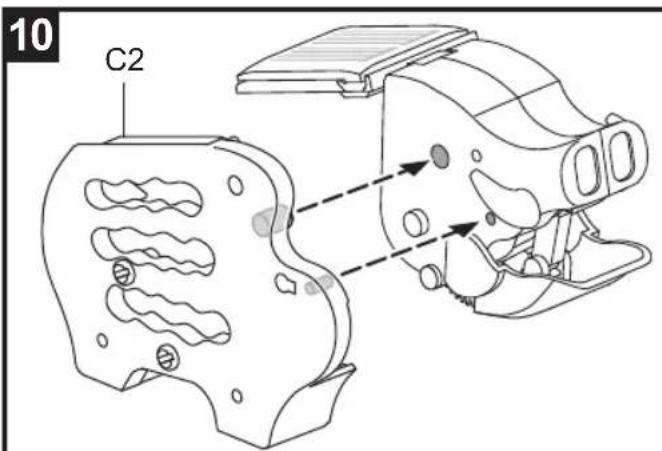

10 C2

11 A4

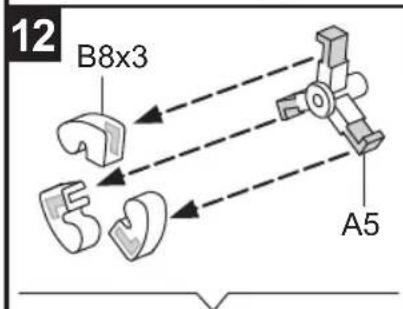

12 B8x3 A5

13

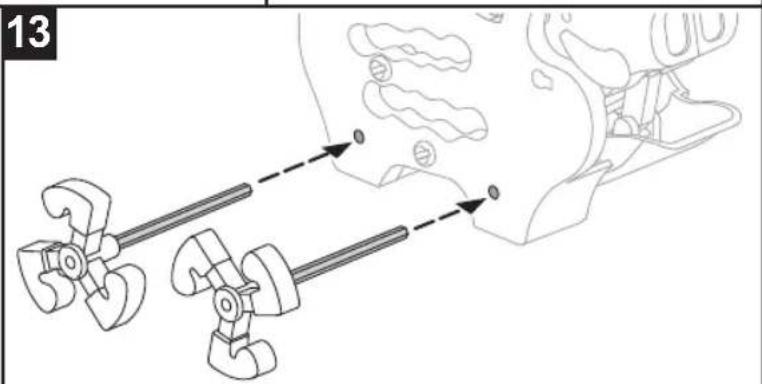

Tap P7 in from A5 P7 ×2

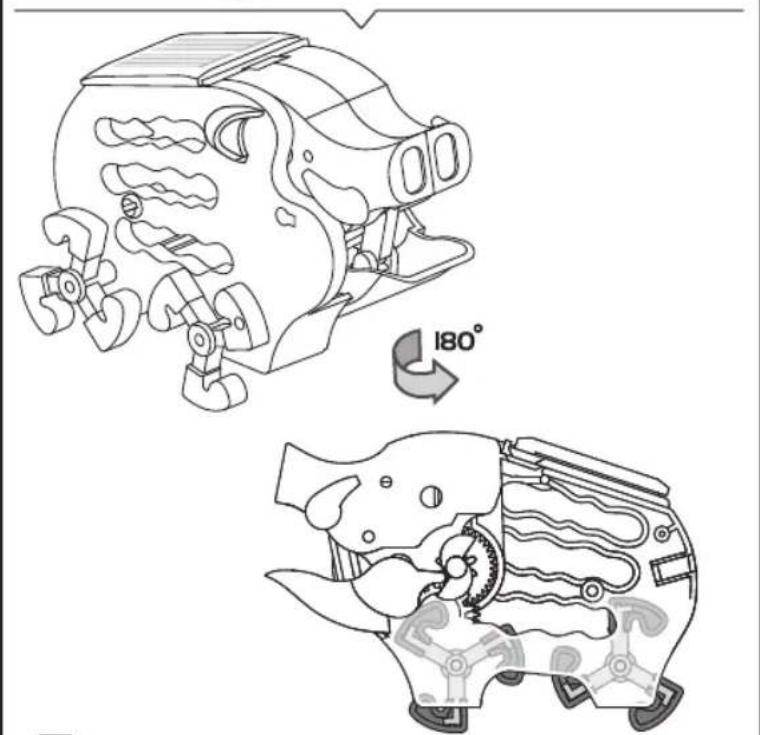

180°

The open – side – face up (as per the pic)

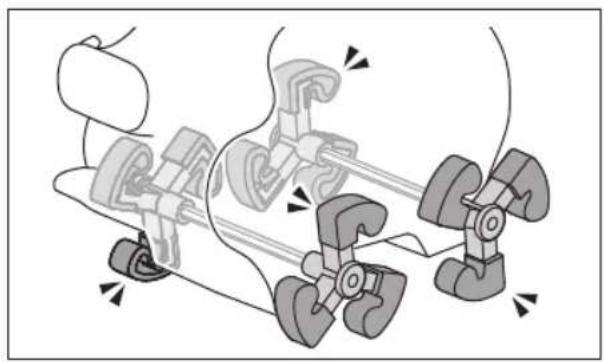

7

14

Step 14 \~ 19 Have the pieces assembled on the table, you can help in assembly of parts.

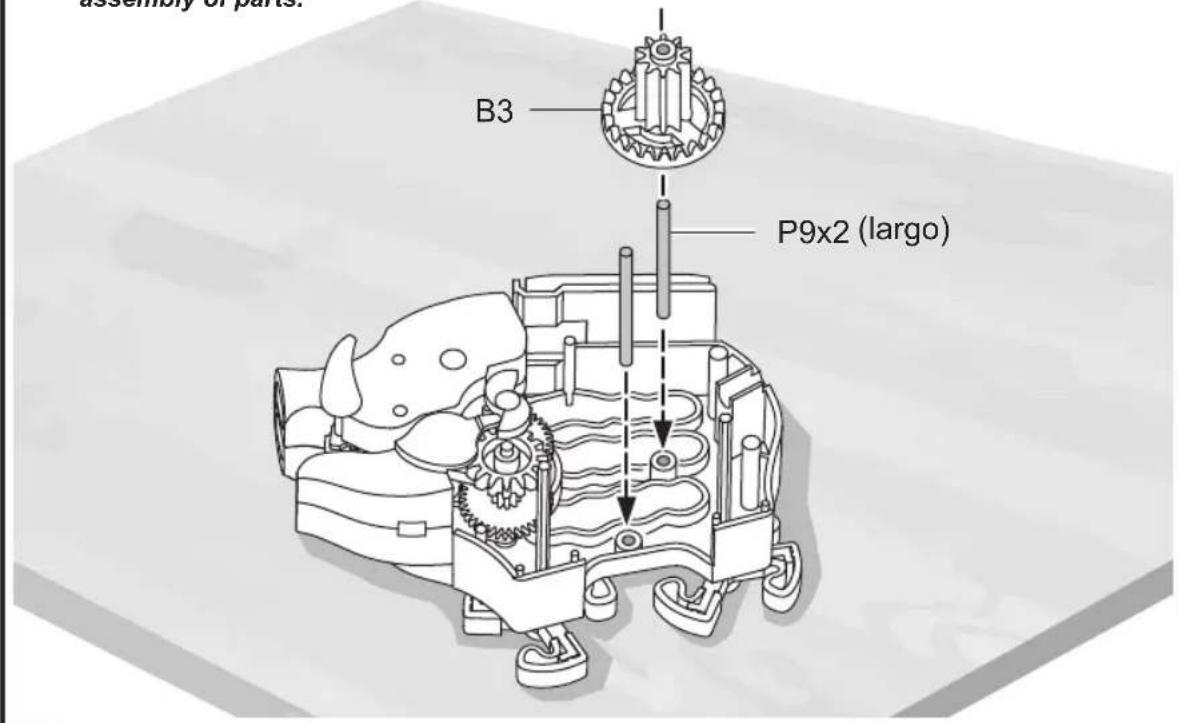

assembly of parts. B3 P9x2 (largo)

15

C3x2

Very important! Press C3 down. × ○

16
16 Very important! Aim the legs in the direction shown on the image before inserting part B2

17 B2

18 A3 B5

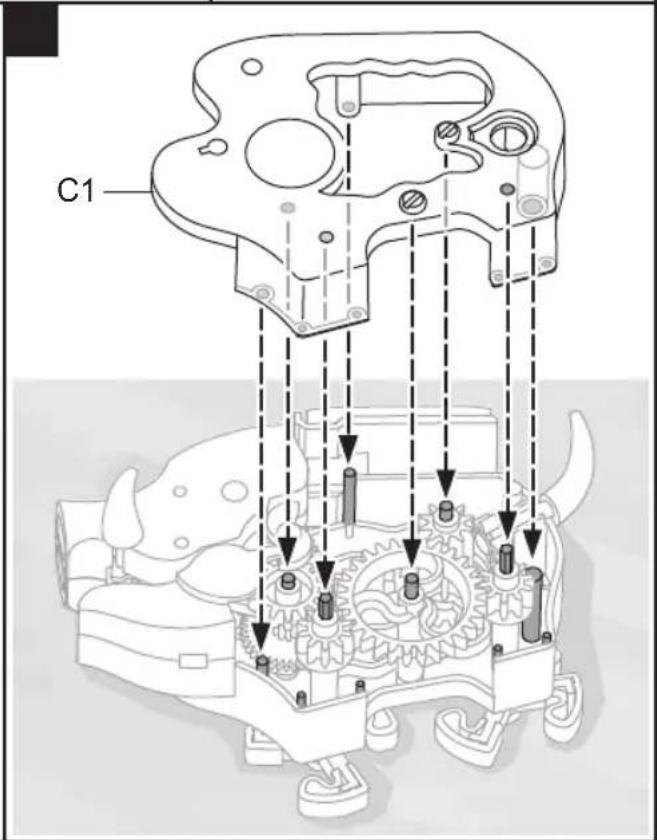

C1

9

20
A6 B6x3 ×2

Very important!

Point the legs in the direction displayed in the image before inserting on the shaft.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Mechanical assembly diagram showing clamping mechanism with no visible text or symbols

Line drawing of a mechanical device with gears and springs (no text or symbols)

22

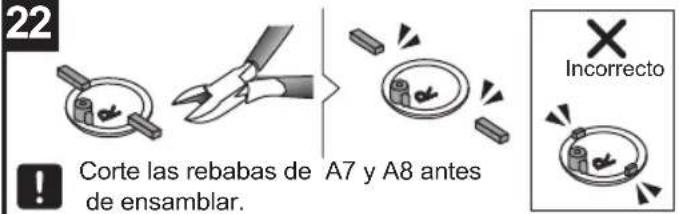

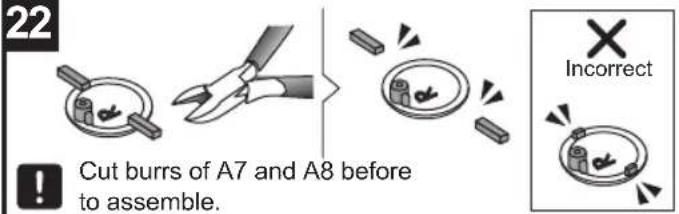

22 Cut burrs of A7 and A8 before to assemble. Incorrect

23 Running

A8 R R A7 L A9

Technical line drawing of a mechanical assembly with gears and springs (no text or symbols)

Abstract grayscale pattern with curved and angular shapes, no text or symbols present

SPECIFICATIONS

Input: 1 V--- (solar panel)

Solar ponel: 1 V --- 75mA

Motor: 10 000 rpm / 1,2 V ---

Four black-and-white social media icons: YouTube, Facebook, Twitter, and Google+ (no text or symbols beyond logos)

www.steren.com

Abstract grayscale pattern with curved and angular shapes, no text or symbols present

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Steren

Model : K-705-JABALI

Category : Toy
