Product Type	Home Theater Video Projector
Model	XV-Z7000U
Brand	Sharp
Display Technology	DLP (0.65" DMD)
Resolution	1920 x 1080 (Full HD)
Brightness	1200 ANSI Lumens
Contrast Ratio	2500:1
Lamp Type	275W SHP
Lamp Life (Normal Mode)	2000 hours
Lamp Life (Eco Mode)	3000 hours
Projection Distance	1.15 - 11.5 m
Screen Size	40 - 300 inches
Lens	F2.5 - 2.8, f=21.1 - 25.8 mm
Zoom	1.2x manual
Input Terminals	HDMI, Component, S-Video, Composite, VGA, RS-232C
Output Terminals	Trigger 12V, Audio Out
Noise Level (Normal Mode)	30 dB
Noise Level (Eco Mode)	27 dB
Power Consumption (Normal)	350 W
Power Consumption (Standby)	< 1 W
Dimensions (W x H x D)	360 x 128 x 310 mm
Weight	4.9 kg
Power Supply	AC 100-240V, 50/60 Hz

Frequently Asked Questions - XV-Z7000U SHARP

How do I replace the lamp in my Sharp XV-Z7000U?

Turn off the projector and unplug it. Let it cool for at least 30 minutes. Remove the lamp cover screw, slide the cover off, loosen the lamp screws, and carefully pull out the lamp module. Insert the new lamp, tighten screws, replace the cover, and reset the lamp timer via the menu (Settings > Lamp Timer Reset).

What is the recommended projection distance for a 100-inch screen?

For a 100-inch diagonal screen, the projector should be placed approximately 3.0 to 3.6 meters away, depending on the zoom setting. Refer to the projection distance table in the manual for exact values.

Can I use my Sharp XV-Z7000U in a bright room?

The projector has 1200 ANSI lumens, which is suitable for a dark or dimly lit room. For best picture quality, use blackout curtains and avoid direct light on the screen.

How do I clean the air filter?

Turn off and unplug the projector. Locate the air filter on the side or bottom. Gently remove the filter and vacuum it from the outside to remove dust. Do not wash it. Reinstall and ensure it is secure. Clean every 100 hours of use.

Which input should I use for Blu-ray or gaming?

For the best quality, use the HDMI input. The projector supports 1080p/60 Hz. Alternatively, use component video for analog sources.

Why is my projector overheating or shutting down?

Check if the air filter is clogged or the ventilation holes are blocked. Ensure the projector is in a well-ventilated area. Also, verify the lamp life; an old lamp can cause overheating. Clean the filter and allow the projector to cool before restarting.

How do I mount the projector on the ceiling?

Use a compatible ceiling mount that can support 4.9 kg. Follow the mount instructions. The projector has threaded inserts for mounting. Ensure the mount is securely attached to ceiling joists. Adjust the image orientation via the menu (Setup > Projection Mode: Ceiling Mount).

What is the lamp part number?

The replacement lamp module for the Sharp XV-Z7000U is Sharp BQHXP6803JZZ or equivalent. Check your manual or the manufacturer's website for the exact model.

How do I perform a factory reset?

Go to the Setup menu, select Reset, and choose Factory Defaults. Confirm with the remote or control panel. This will erase all custom settings.

Can I connect external speakers?

Yes, use the Audio Out jack (3.5mm stereo) to connect powered speakers or an audio system. Note that the projector's internal speaker is only 1W, so external speakers are recommended for better sound.

USER MANUAL XV-Z7000U SHARP

Before using the LCD projector, please read this operation manual carefully.

OPERATION MANUAL ENGLISH

IMPORTANT

For your assistance in reporting the loss or theft of your Color LCD Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please be sure that you have checked the contents of the carton thoroughly against the list of “Supplied Accessories” on page 10.

Model No.: XV-Z7000U

Serial No.:

There are two important reasons for prompt warranty registration of your new SHARP LCD Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT "LIMITED WARRANTY" CLAUSE. U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT REMOVE SCREWS EXCEPT SPECIFIED USER SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. U.S.A. ONLY

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Rules. U.S.A. ONLY

PRODUCT DISPOSAL

This product utilizes tin-lead solder, and high intensity discharge lamp (HID lamp) containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of Conformity

SHARP LCD PROJECTOR, MODEL XV-Z7000U

This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL: 1-800-BE-SHARP (1-800-237-4277)

U.S.A. ONLY

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During normal operation, when turning the power off always use the ON/OFF button on the projector or the POWER button on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

Line drawing of a projector case with a flat panel and lens (no text or symbols)

Caution Concerning the Lamp Replacement

See "Replacing the Projection Lamp" on pages 38 and 39.

LAMP REPLACEMENT CAUTION

BEFORE REMOVING THE SCREW, DISCONNECT POWER CORD. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT TYPE BQC-PGC20X /1 ONLY. UV RADIATION : CAN CAUSE EYE DAMAGE. TURN OFF LAMP BEFORE SERVICING. MEDIUM PRESSURE LAMP : RISK OF EXPLOSION. POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.

PRECAUTIONS A OBSERVER LORS DU REMPLACEMENT DE LA LAMPE.

DEBRANCHER LE CORDON D'ALIMENTATION AVANT DE RETIRER LES VIS, L'INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD. ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REPLACER QUE PAR UNE LAMPE SHARP DE TYPE BQC- PGC20X//1. RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER A L'ENTRETIEN. LAMPE A MOYENNE PRESSION : RISQUE D'EXPLOSION. DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS D'ECLATEMENT DE LA LAMPE. A MANIPULER AVEC PRECAUTION, SE REPORTER AU MODE D'EMPLOI.

USER SERVICE SCREW

VIS POUR ENTRETIEN PAR L'UTILISATEUR

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your personal safety. However IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its installation, use and servicing. For your own protection and reliable usage of your LCD Projector, please be sure to read these "IMPORTANT SAFEGUARDS" carefully before use.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water—for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. The openings should never be covered or blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the power cord. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.
e. If the product has been dropped or damaged in any way.
f. If the product exhibits a distinct change in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Outstanding Features

1. FOR USE WITH DTV

Allows projection of DTV images and 16:9 wide-screen images when connected to a DTV decoder or similar video systems. (Page 11)

Provides high quality images with minimal dot crawl and cross color noise.

3. 3D DIGITAL UNIFORMITY

Equipped with new 3D digital uniformity technology for a clearer, more uniform image.

4. ACTIVE DIGITAL KEYSTONE CORRECTION

Corrects keystone distortion caused when the projected image is not perpendicular to the screen. This method provides not only horizontal correction, but vertical as well, thus maintaining the original 4:3 aspect ratio and eliminating jag lines. (Page 19)

5. EASY-TO-USE GRAPHICAL USER INTERFACE (GUI)

A multi-color menu system allows for simple image adjustments. (Page 20)

6. NEW PROGRESSIVE MODE AND FILM MODE

Optimizes the image by converting the interlaced signal to the progressive. Useful for displaying slow-moving images or still images. Four modes are available. (Page 25)

7. COLOR TEMPERATURE ADJUSTMENT

The function can be used to adjust the color temperature to suit the type of image input to the projector. (Page 29)

8. GAMMA CORRECTION FUNCTION

The gamma value setting can be adjusted according to the input source for optimal image contrast. (Page 30)

9. WIDESCREEN IMAGES

Allows projection of DVD, DTV and other anamorphic images recorded in widescreen format with a 16:9 aspect ratio. (Page 31)

10. BRIGHTNESS SWITCHOVER FUNCTION

Function with toggle switch to control the quantity of projected light. Select "ON" or "OFF" to decrease or increase brightness, power consumption and fan noise. (Page 33)

11. ANALOG COMPONENT VIDEO INPUT

Utilizes a component video input signal (Y, PB, PR). The video signal is input as separate components to provide superior color and image quality.

12. DIRECT COMPUTER COMPATIBILITY

A multi-scan RGB input accepts signals from VGA (640 dots × 480 lines) and Macintosh (from 13") compatible computers without the need for any additional hardware.

For SHARP Assistance (U.S.A. only)

If you encounter any problems during setup or operation of this projector, first take a look at the section "Troubleshooting" on page 40. If this operation manual does not answer your question, please call toll free 1-877-DTV-SHARP (1-877-388-7427) for further assistance. Or, send us an e-mail at [e-mail].

Our World Wide Web address is http://www.sharp-usa.com/.

Contents

Important Information

IMPORTANT SAFEGUARDS .... 3

Outstanding Features 4

For SHARP Assistance (U.S.A. only) 4

Contents 5

Usage Guidelines 6

Part Names ...... 7

Setup & Connections

Supplied Accessories 10

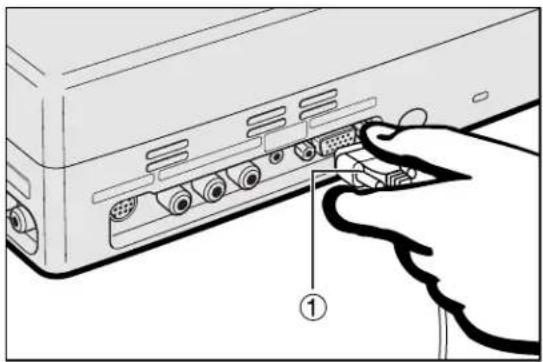

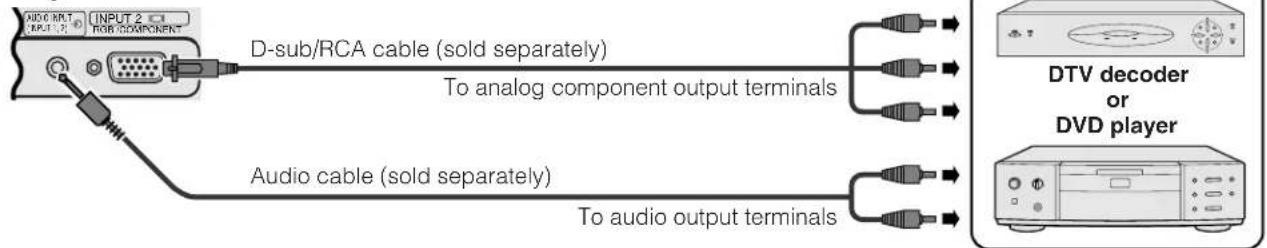

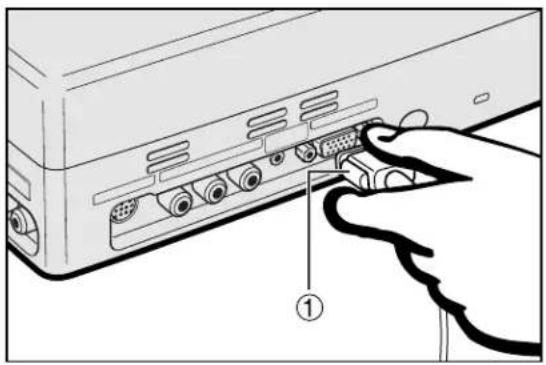

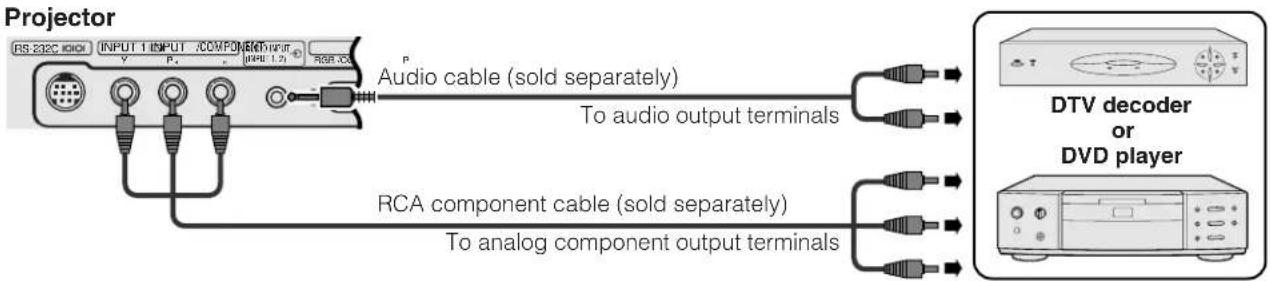

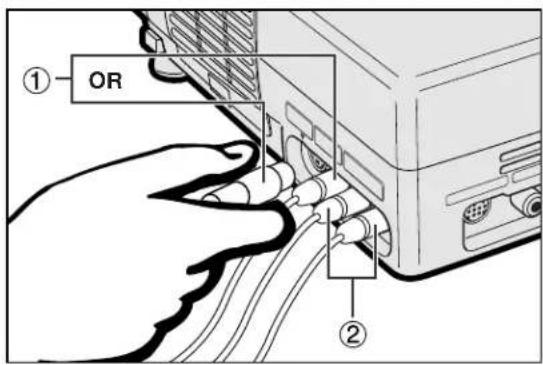

Connecting the Projector 11

Operation

Basic Operations 15

Setting up the Screen 17

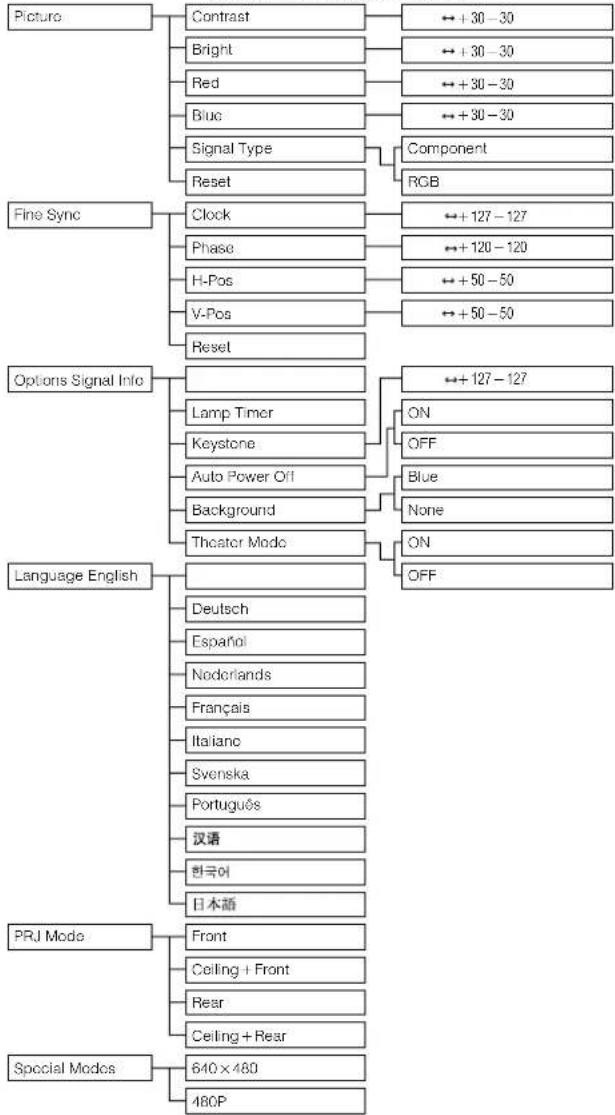

Using the GUI (Graphical User Interface) Menu Screens .... 20

Selecting the On-screen Display Language ... 23

Selecting the Video Input System Mode (S-VIDEO or VIDEO mode only) 23

Picture Adjustments 24

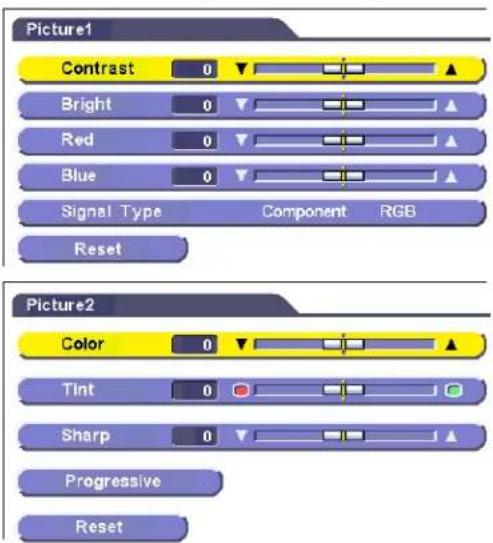

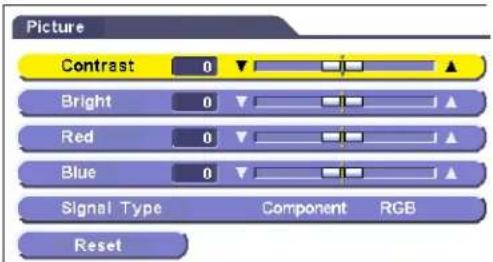

Adjusting the Picture 24

Selecting the Signal Type 25

Progressive Mode 25

Computer Image Adjustments (INPUT 2 (RGB) mode only) ...... 26

Auto Sync Adjustment 26

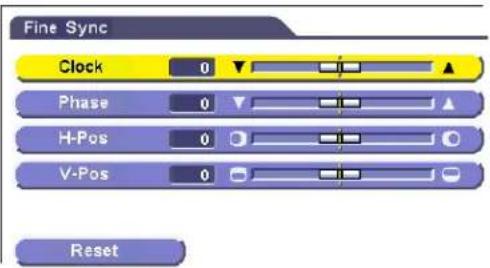

Adjusting the Computer Image 27

Useful Features

Freeze Function 28

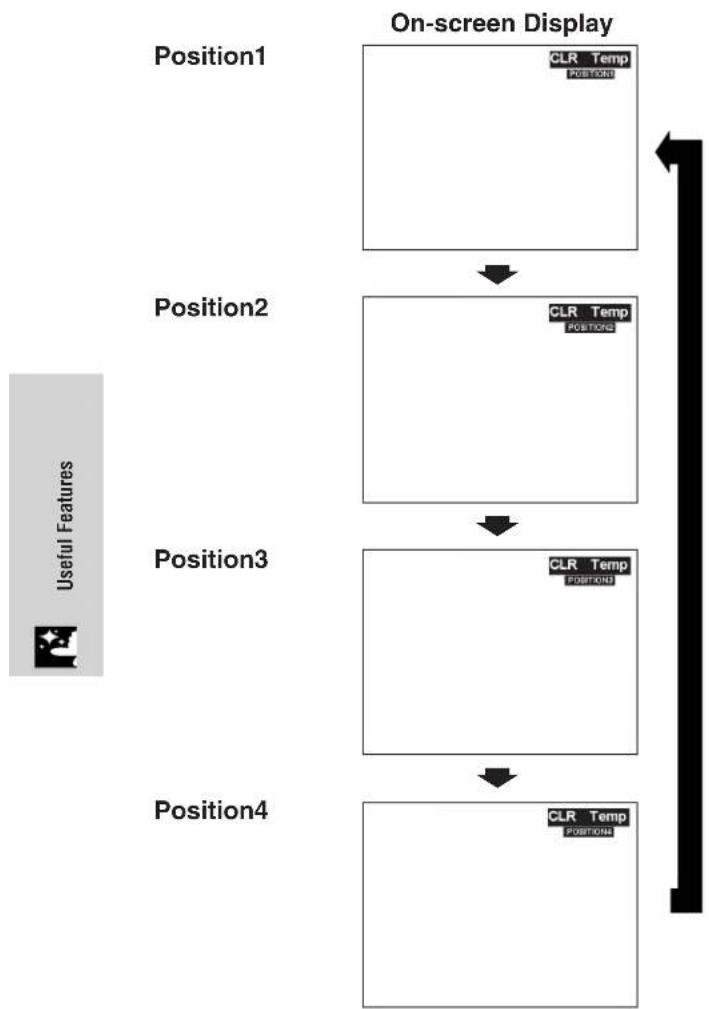

Adjusting the Color Temperature 29

Gamma Correction 30

Selecting the Picture Display Mode 31

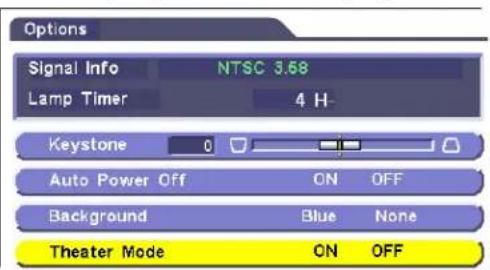

Checking the Input Signal and the Lamp Usage Time.... 32

Automatic Power Shutoff Function 32

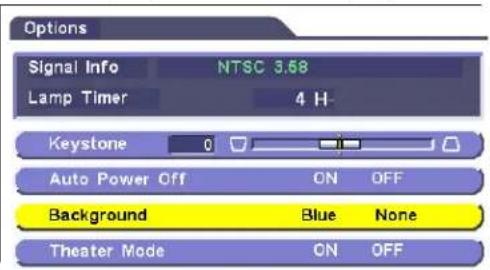

Selecting a Background Image 33

Theater Mode Function 33

Reverse/Invert Image Function 34

Special Mode Adjustment 34

Maintenance & Troubleshooting

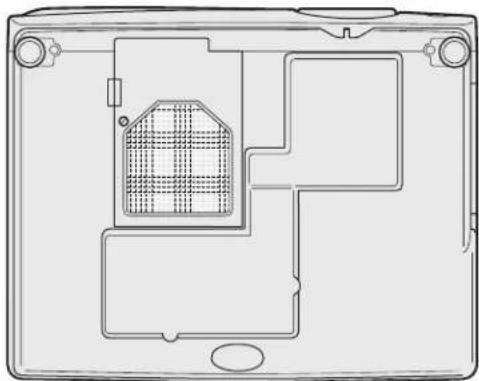

Air Filter Maintenance 35

Lamp/Maintenance Indicators 37

Replacing the Projection Lamp 38

Using the Kensington Lock 40

Troubleshooting 40

Appendix

Attaching the Lens Cap 41

Connection Pin Assignments.... 42

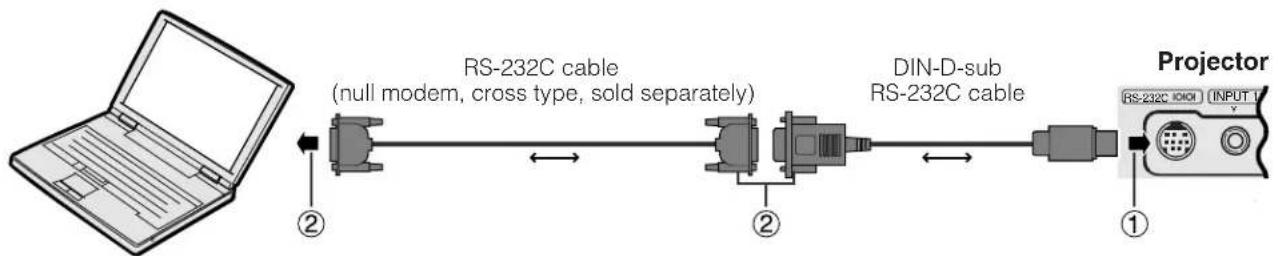

RS-232C Port Specifications 43

Computer Compatibility Chart 45

Specifications 46

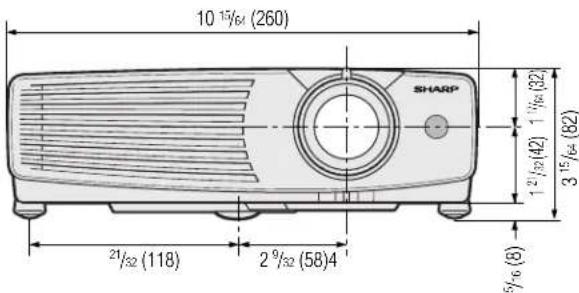

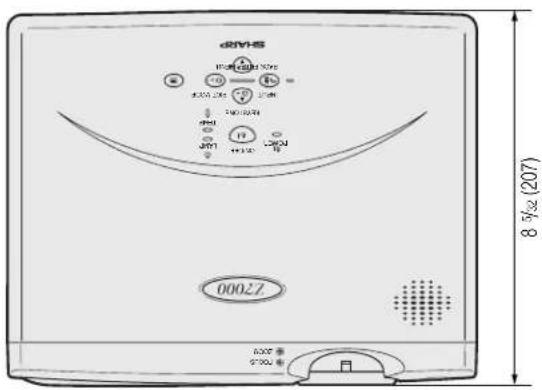

Dimensions 47

Glossary 48

Caution Concerning the Lamp Unit

Potential hazard of glass particles if lamp ruptures. Please have the nearest Authorized SharpVision Service Center or Dealer replace lamp if rupture occurs. See "Replacing the Projection Lamp" on pages 38 and 39.

Cautions Concerning the Setup of the Projector

For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the lens and filter must be cleaned more often. Periodically the filter should be replaced and the projector should be cleaned internally. As long as the projector is properly maintained in this manner, use in these environments will not reduce the overall operation life. Please note that all internal cleaning must be performed by the nearest Authorized SharpVision Service Center or Dealer.

• Do not expose the projector to extreme heat or cold.
  Operating temperature: 41°F to 95°F (+5°C to +35°C)
  Storage temperature: -4^ to 140^ ( -20^ to +60^ )

Notes on Operation

• The mark shown on the left calls the user's attention to a part of the projector that emits intense heat during operation.
• The exhaust vent, the lamp cage cover and adjacent areas may be extremely hot during projector operation. To prevent injury, do not touch these areas until they have sufficiently cooled.
• Allow at least 4 inches (10 cm) of space between the cooling fan (exhaust vent) and the nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically turn off the projector lamp. This does not indicate a malfunction. Remove the projector power cord from the wall outlet and wait at least 10 minutes. Then turn on the power by plugging the power cord back in. This will return the projector to the normal operating condition.

TEMP.

LAMP

Temperature Monitor Function

If the projector starts to overheat due to setup problems or a dirty air filter, "TEMP." will appear in the lower-left corner of the picture. If the temperature continues to rise, the lamp will turn off, the TEMPERATURE WARNING indicator on the projector will flash, and after a 90-second cooling-off period the power will shut off. Refer to "Lamp/Maintenance Indicators" on page 37, for details.

NOTE

- The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed.

Lamp Monitor Function

When the projector is turned on after the lamp has been used for 900 hours, "LAMP" will appear in the lower-left corner of the picture to advise you to replace the lamp. See pages 38 and 39 for lamp replacement. If the lamp has been used for 1,000 hours, the projector power will automatically turn off and the projector will enter standby mode. Refer to "Lamp/Maintenance Indicators" on page 37, for details.

Numbers next to the part names refer to the main pages in this manual where the topic is explained.

Projector

Front and Top View

Side and Rear View

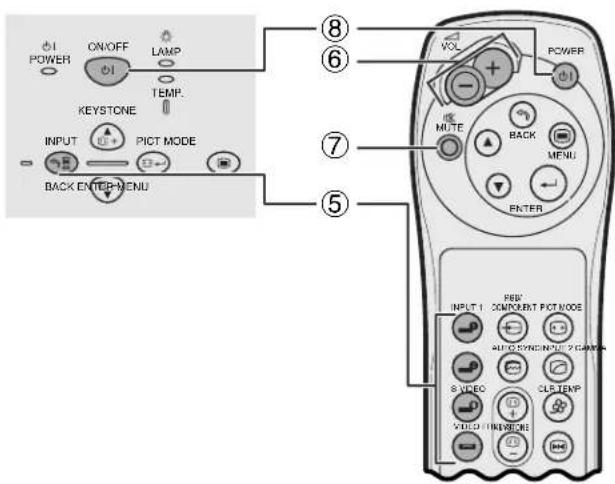

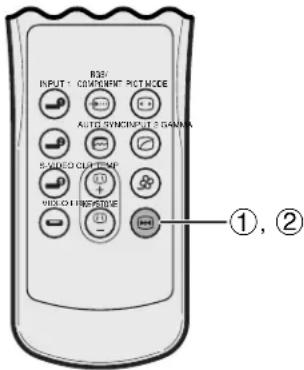

Remote Control

Front View

VOLUME buttons

MUTE button

Mouse

Adjustment

buttons

RGB/COMPONENT button

INPUT 1 button

INPUT 2 button

S-VIDEO button

VIDEO button

KEYSTONE buttons

Top View

Remote control signal transmitter

Inserting the Batteries

1 Slide in the direction of the arrow to remove the battery cover.	2 Insert two AAA size batteries, making sure their polarities match the + and - marks inside the battery compartment.	3 Insert the side tabs of the battery cover into their slots and press the cover in until it is properly seated.

NOTE

• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not mix new and old or different types of batteries.
• There are operations that can only be carried out by remote control. Handle the remote control carefully.

Attaching the Rubber Leg Tips

The rubber leg tips are provided to prevent the remote control from skidding and shaking over a flat surface.

Two identical remote control devices shown in side-by-side diagrams, with no text or symbols present.

Positioning the Remote Control

The remote control can be used to control the projector within the ranges shown below.

NOTE

- The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ due to the screen material.

Setup & Connections

Supplied Accessories

Remote control RRMCG1636CESA

Two AAA size batteries

Rubber leg tips for remote control GLEGG9095CEZZ

Power cord CACCU5013DE01

DIN-D-sub RS-232C cable QCNW-5288CEZZ

Extra air filter PFILD0123CEZZ

Lens cap PCOVZ1095CEKA

Lens cap strap UBNDT0013CEZZ

LCD projector operation manual TINS-7273CEZZ

Connecting the Projector

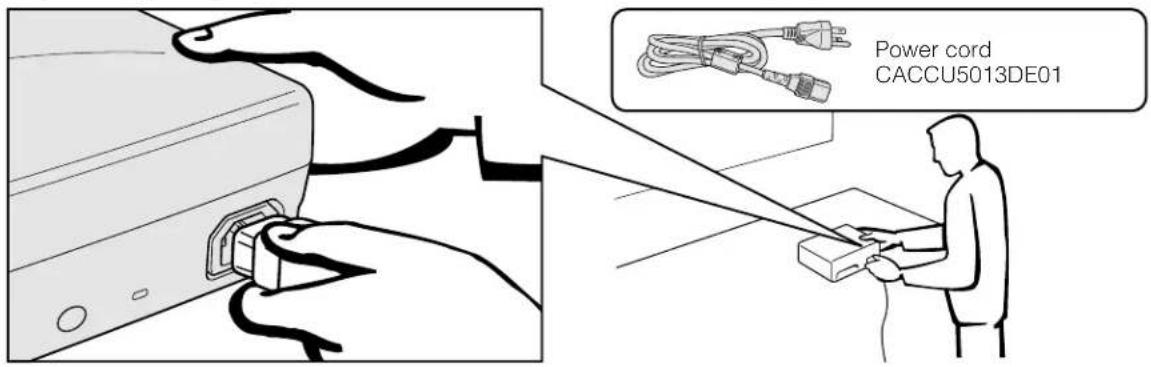

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the back of the projector.

CAUTION

• Make sure you connect the power cord firmly into the AC socket.

Connecting the Projector to Audiovisual Equipment

You can connect your projector to a VCR, laser disc player, DVD player, DTV decoder and other audiovisual equipment.

CAUTION

- Always turn off the projector while connecting to audiovisual equipment, in order to protect both the projector and the equipment being connected.

Connecting a video source (VCR, laser disc player, DTV decoder or DVD player) using the standard video and audio input

①Connect one end of the S-video cable to the S-VIDEO INPUT terminal, or one end of the video cable to the VIDEO INPUT terminal on the projector and the video output terminal on the video source.
②To use the built-in audio system, connect the RCA connectors to the corresponding AUDIO INPUT (S-VIDEO, VIDEO INPUT) terminals on the projector and the audio output terminals on the audiovisual source.

The S-VIDEO INPUT terminal uses a video signal system in which the picture is separated into a color and a luminance signal to realize a higher-quality image.

NOTE

• For higher quality video, you may use the S-VIDEO INPUT terminal on the projector. S-video cable is sold separately.
• If your video equipment does not have an S-video output terminal, use the composite video output terminal.

Connecting an audiovisual source (DTV decoder or DVD player) using the RCA input

①Connect each RCA connector to the corresponding INPUT 1/COMPONENT terminals on the projector.
②Connect the other end of the cable to the corresponding terminals of a DVD player or DTV decoder.
③To use the built-in audio system, connect one end of an audio cable to the AUDIO INPUT (INPUT 1, 2) terminal on the projector.
Connect the other end to the audio output terminal on the audiovisual equipment.

NOTE

- A 3.5 mm minijack to RCA audio cable adaptor may be necessary.

When connecting this projector to a DVD player or a DTV decoder, select "Component" by using RGB/COMPONENT on the remote control or the GUI menu. (See page 25.)

Connecting an audiovisual source (DTV decoder or DVD player) using the 15 pin video and audio input

Illustration of a computer monitor with ports and cable, showing a hand inserting a cable into the port (no text or symbols present)

①Connect the one end of the D-sub/RCA cable to the INPUT 2 RGB/COMPONENT port on the projector.
②Connect the other end of the cable to the corresponding terminals of a DVD player or DTV decoder.
③To use the built-in audio system, connect one end of an audio cable to the AUDIO INPUT (INPUT 1, 2) terminal on the projector.
Connect the other end to the audio output terminal on the audiovisual equipment.

NOTE

- A 3.5 mm minijack to RCA audio cable adaptor may be necessary.

When connecting this projector to a DVD player or a DTV decoder, select "Component" by using RGB/COMPONENT on the remote control or the GUI menu. (See page 25.)

Projector

Connecting the Projector to a Computer

You can connect your projector to a computer for projection of full color computer images.

Connecting a computer using the standard 15-pin video and audio input

Illustration of a computer monitor with ports and cable, showing a hand inserting a cable to the right panel (no text or symbols present)

①Connect one end of the computer RGB cable to the INPUT 2 RGB/COMPONENT port on the projector. Secure the connector by tightening the thumb screws.
②Connect the other end to the Monitor output port on the computer. Secure the connector by tightening the thumb screws.
③To use the built-in audio system, connect one end of the computer audio cable to the AUDIO INPUT (INPUT 1, 2) terminal on the projector.
④Connect the other end to the Audio output terminal on the computer.

CAUTION

- Before connecting, be sure to turn both the projector and the computer off. After making all connections, turn the projector on first. The computer should always be turned on last.

NOTE

• Please read the computer's operation manual carefully.
• Refer to page 45 "Computer Compatibility Chart" for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions not to work.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Authorized SharpVision Service Center or Dearler.

When connecting this projector to a computer, select "RGB" by using RGB/COMPONENT on the remote control or the GUI menu. (See page 25.)

Connecting other compatible computers

When connecting the projector to a compatible computer other than an IBM-PC (VGA/SVGA/XGA/SXGA) or Macintosh (i.e. Workstation), a separate cable may be needed. Please contact your dealer for more information.

When connecting this projector to a computer, select "RGB" by using RGB/COMPONENT on the remote control or the GUI menu. (See page 25.)

NOTE

- Connecting computers other than the recommended types may result in damage to the projector, the computer, or both.

"Plug and Play" function

• This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.
• Before using the "Plug and Play" function, be sure to turn on the projector first and the connected computer last.

NOTE

• The DDC, Plug and Play function of this projector operates only when used in conjunction with a VESA DDC compatible computer.

Connecting RS-232C Port

When the RS-232C port on the projector is connected to a computer with an RS-232C cable (null modem, cross type, sold separately), the computer can be used to control the projector and check the status of the projector. See pages 43 and 44 for details.

DIN-D-sub RS-232C

cable

QCNW-5288CEZZ

①Connect the supplied DIN-D-sub RS-232C cable to the RS-232C port on the projector.
② Connect an RS-232C cable (null modem, cross type, sold separately) to the other end of DIN-D-sub RS-232C cable and to the serial port on the computer.

CAUTION

- Do not connect or disconnect an RS-232C cable to or from the computer while it is on. This may damage your computer.

NOTE

• The RS-232C function may not operate if your computer port is not correctly set up. Please refer to the operation manual of the computer for details on setting up.
• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Authorized SharpVision Service Center or Dealer.

Operation

Basic Operations

Maintenance indicators

Startup image

Maintenance indicators

①Make the necessary connections before proceeding. Connect the power cord to a wall outlet. The POWER indicator illuminates red and the projector enters standby mode.

NOTE

- If the side filter cover is not securely installed, the POWER indicator flashes.

② Press ON/OFF on the projector for over one second, or POWER on the remote control.

NOTE

• The flashing green LAMP REPLACEMENT indicator shows that the lamp is warming up. Wait until the indicator stops flashing before operating the projector.
• If the power is turned off and then immediately turned on again, it may take a short while before the lamp turns on.
• After the projector is unpacked and turned on for the first time, a slight odor may be emitted from the exhaust vent. This odor will soon disappear with use.
• Do not press any buttons before the startup image disappears. Before "Adjusting The Image" appears, only ON/OFF or POWER is available.

When the power is on, the LAMP REPLACEMENT indicator lights indicating the status of the lamp.

Green: Lamp is ready.

Flashing green: Warming up.

Red: Change the lamp.

③Slide the ZOOM knob. The image can be adjusted to the desired size within the zoom range.
④Rotate the FOCUS ring until the image on the screen becomes clear.

Projector Remote control

EXAMPLE

⑤ INPUT 1 Mode INPUT 2 Mode

⑤ Press INPUT on the projector, INPUT 1, INPUT 2, S-VIDEO or VIDEO on the remote control to select the desired input mode.

Press INPUT, INPUT 1, INPUT 2, S-VIDEO or VIDEO again to change the mode.

NOTE

• When the selected input signal is being received, "Adjusting The Image" will be displayed.
• When no signal is being received, "NO SIGNAL" will be displayed. When a signal that the projector is not preset to receive is being received, "NOT REG." will be displayed.

⑥ Press VOLUME on the remote control to adjust the volume.
⑦ Press MUTE on the remote control to temporarily turn off the sound.

Press MUTE again to turn the sound back on.

⑧ Press ON/OFF on the projector for over one second, or POWER on the remote control.

Press ON/OFF or POWER again while the message is displayed.

NOTE

• If you accidentally pressed ON/OFF or POWER and do not want to turn off the power, wait until the power off screen disappears.
• When ON/OFF or POWER is pressed twice, the POWER indicator will light up red and the cooling fan will run for about 90 seconds. The projector will then enter standby mode.
• Wait until the cooling fan stops before disconnecting the power cord.
• The power can be turned on again by pressing ON/OFF or POWER. When the power is turned on, the POWER indicator and the LAMP REPLACEMENT indicator light green.
• The POWER indicator flashes if the right side filter cover is not securely installed.

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During normal operation, when turning the power off always use the ON/OFF button on the projector or the POWER button on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord.

DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

Setting up the Screen

Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image. Move the projector forward or backward if the edges of the image are distorted.

NOTE

• The projector lens should be centered in the middle of the screen. If the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes out colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.
• A polarizing screen cannot be used with this projector.

Standard Setup (Front Projection)

Place the projector at the required distance from the screen according to the desired picture size. (See the table below.)

FULL Mode (4:3)

Picture size			Projection distance (L)		Distance from the lens center to the bottom of the image (H)
Diag. (x)	Width	Height	Maximum (L)	Minimum (L2)
250"	200"	150"	32' 10" (10.0 m)*1	32' 7" (9.9 m)	15" (38.1 cm)
200"	160"	120"	31' 5" (9.6 m)	26' (7.9 m)	12" (30.5 cm)
150"	120"	90"	23' 6" (7.2 m)	19' 6" (5.9 m)	9" (22.9 cm)
100"	80"	60"	15' 7" (4.8 m)	12'11" (3.9 m)	6" (15.2 cm)
84"	67"	50"	13' 1" (4.0 m)	10' 10" (3.3 m)	5 1/32" (12.8 cm)
72"	58"	43"	11' 2" (3.4 m)	9' 3" (2.8 m)	4 5/16" (11.0 cm)
60"	48"	36"	9' 4" (2.8 m)	7' 8" (2.3 m)	3 13/32" (9.1 cm)
40"	32"	24"	6' 2" (1.9 m)	5' 1" (1.6 m)	2 13/32" (6.1 cm)

The formula for picture size and projection distance
L_1 (feet) = (0.0481x - 0.0447)× 3.28
L_2 (feet) = (0.0399x - 0.0447)× 3.28
H (inches) = 0.06x

WIDE Mode (16:9)

Picture size			Projection distance (L)		Distance from the lens center to the bottom of the image (H)
Diag. (x)	Width	Height	Maximum ( I_4 )	Minimum ( I_2 )
225"	196"	110"	32' 10" (10.0 m)*2	32' 0" (9.8 m)	-3 ^43/64 " (-9.3 cm)
200"	174"	98"	32' 10" (10.0 m)*3	28' 5" (8.7 m)	-3 ^17/64 " (-8.3 cm)
150"	131"	74"	25' 7" (7.8 m)	21' 3" (6.5 m)	-2 ^23/64 " (-6.2 cm)
133"	116"	65"	22' 8" (6.9 m)	18' 10" (5.7 m)	-2 ^11/64 " (-5.5 cm)
106"	92"	52"	18' 1" (5.5 m)	14' 12" (4.6 m)	-1 ^47/64 " (-4.4 cm)
100"	87"	49"	17' (5.2 m)	14' 1" (4.3 m)	-1 ^41/64 " (-4.2 cm)
92"	80"	45"	15' 8" (4.8 m)	12' 12" (4.0 m)	-1 ^1/2 " (-3.8 cm)
84"	73"	41"	14' 3" (4.4 m)	11' 10" (3.6 m)	-1 ^3/8 " (-3.5 cm)
72"	63"	35"	12' 3" (3.7 m)	10' 1" (3.1 m)	-1 ^11/64 " (-3.0 cm)
60"	52"	29"	10' 2" (3.1 m)	8' 5" (2.6 m)	- ^63/64 " (-2.5 cm)
40"	35"	20"	6' 9" (2.0 m)	5' 7" (1.7 m)	- ^21/32 " (-1.7 cm)

The formula for picture size and projection distance
L_1 (feet) = (0.0524x - 0.0447)× 3.28
L_2 (feet) = (0.0436x - 0.0447)× 3.28
H (inches) = -0.0163x

NORMAL Mode (4:3)

Picture size			Projection distance (L)		Distance from the lens center to the bottom of the image (H)
Diag. (x)	Width	Height	Maximum (L)	Minimum (L2)
180"	144"	108"	32' 10" (10.0 m)*4	31' 3" (9.5 m)	-3 ^19/32 " (-9.1 cm)
150"	120"	90"	31' 4" (9.6 m)	25' 12" (7.9 m)	-3" (-7.6 cm)
100"	80"	60"	20' 10" (6.3 m)	17' 3" (5.3 m)	-2" (-5.1 cm)
84"	67"	50"	17' 6" (5.3 m)	14' 6" (4.4 m)	-1 ^11/16 " (-4.3 cm)
72"	58"	43"	14' 11" (4.6 m)	12' 4" (3.8 m)	-1 _16 " (-3.7 cm)
60"	48"	36"	12' 5" (3.8 m)	10' 3" (3.1 m)	-1 _16 " (-3.0 cm)
40"	32"	24"	8' 3" (2.5 m)	6' 9" (2.1 m)	^-13/16 " (-2.0 cm)

The formula for picture size and projection distance
L_i (feet) = (0.0641x - 0.0447) × 3.28
L_2 (feet) = (0.0532x - 0.0447)× 3.28
H (inches) = -0.02x

x : Picture size (diag.) (inches)

L_i : Maximum projection distance (feet)

L_2 : Minimum projection distance (feet)

H: Distance from the lens center to the bottom of the image (inches)

NOTE

• There are errors of ±3% in the formulas above.
- Values with a minus (−) sign indicate the distance of the lens center below the bottom of the screen.
- The values do not match up when applying the formula in *1 to *4 above. However, this is not a calculation error.
- For optimum focus, the recommended projection distance (L) is from 3' 9" (1.15m) to 32' 10" (10.0m).

Illustration of hands operating a projector with directional arrows indicating motion (no text or symbols)

Line drawing of a projector with control knobs and a speaker (no text or symbols)

Using the Adjustment Feet

You can adjust the height of the image by raising the projector with the foot releases.

①Press the foot releases and lift the projector to the desired angle. (Adjustable up to approximately 7^ from the standard position.)
②Remove your hands from the foot releases. Once the adjustment feet have locked in position, release the projector.
③If the screen is at an angle, the adjusters can be used to adjust the angle of the image.

Returning the projector to its original position

While holding the projector, press the foot releases and slowly lower the projector to its original position.

NOTE

- When an adjustment is made, the image may become distorted (keystoned), depending on the relative positions of the projector and the screen.

CAUTION

• Do not press the foot releases when the adjustment feet are extended without firmly holding the projector.
• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment feet and the projector.

Reversed Image Setup

Rear projection

• Place a translucent screen between the projector and the audience.
• Use the projector's menu system to reverse the projected image. (See page 34 for use of this function.)

Line drawing of three people watching a presentation on a screen (no text or symbols)

Projection using a mirror

• When the distance between the projector and screen is not sufficient for normal rear projection, you can use a mirror to reflect the image onto the screen.
• Place a mirror (normal flat type) in front of the lens.
• Project the normal image onto the mirror.
• The image reflected from the mirror is projected onto the translucent screen.

Simple line drawing of two people viewing a large screen and projecting a light source (no text or symbols)

NOTE

- Optimal image quality can be achieved when the projector is positioned perpendicular to the screen with all feet flat and level.

CAUTION

- When using a mirror, be sure to carefully position both the projector and the mirror so the light does not shine into the eyes of the audience.

Ceiling-mount Setup

• It is recommended that you use the optional Sharp ceiling-mount bracket for this installation.
• Before mounting the projector, contact your nearest Authorized SharpVision Dealer or Servicer to obtain the recommended ceiling-mount bracket and hardware (sold separately). (AN-CM240 ceiling-mount bracket, AN-EP101AP extension tube for AN-CM240 and AN-PGCM80 ceiling adapter for AN-CM240.)
• When the projector is in the inverted position, use the upper edge of the screen as the base line.
• Use the projector's menu system to select the appropriate projection mode. (See page 34 for use of this function.)

Line drawing of a meeting scene with three people seated facing a screen and a projector on the wall (no text or symbols)

Projector Remote control

Projector

(GUI) On-screen Display

Digital Keystone Correction

• When the image is distorted due to the projection angle, the digital keystone correction function allows you to correct it.
• The digital keystone correction can be made by pressing KEYSTONE, or by setting "Keystone" correction in the GUI menu.

Using the KEYSTONE buttons

①Press KEYSTONE to adjust the setting.

Using the GUI menu

①Press MENU.
② Press ▲/▼ to select "Options", and then press ENTER.
③ Press ▲/▼ to select "Keystone", and then press ENTER.
④ Press ▲/▼ to move the □□ mark to the desired setting.
⑤To exit from the GUI, press MENU.

NOTE

• To reset the keystone setting, press BACK.
- Straight lines and the edges of the displayed image may appear jagged, when adjusting the keystone setting.

Using the GUI (Graphical User Interface) Menu Screens

Projector Remote control This projector has three sets of menu screens (INPUT 1

or 2 (COMPONENT), INPUT 2 (RGB) and S-VIDEO or VIDEO) that allow you to adjust the image and various projector settings. These menu screens can be operated from the projector or the remote control with the following buttons.

(GUI) On-screen Display

EXAMPLE

INPUT 1 or 2 (COMPONENT) mode
        F2["Bright 0 ▼▲"]
        F3["Red 0 ▼▲"]
        F4["Blue 0 ▼▲"]
        F5["Reset"]
    end
    subgraph S-Video_Sector1
        H1["Picture"] --> I1["Contrast 0 ▼▲"]
        I1 --> J1["Bright 0 ▼▲"]
        I2["Red 0 ▼▲"]
        I3["Blue 0 ▼▲"]
        I4["Signal Type Component RGB"]
        I5["Reset"]
    end

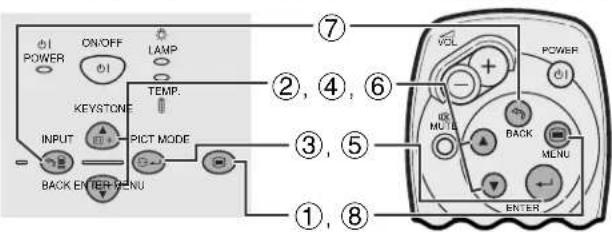

①Press MENU to display the main menu.
② Press ▲/▼ to select an adjustment item in the main menu.
③Press ENTER to display the sub menu.
④ Press ▲/▼ to select an adjustment item in the sub menu.
⑤ Press ENTER to activate the selected adjustment item.
⑥ Press ▲/▼ to adjust the item.
⑦ Press BACK to return to the previous screen.
⑧Press MENU to exit from the GUI.

NOTE

- For details on items on the menu screen, see the tree charts on pages 21 and 22.

Items on the INPUT 1 or 2 (COMPONENT) Mode Menu Bar

Main menu Main menu

    I["Picture2"] --> J["Color"]
    I --> K["Tint"]
    I --> L["Sharp"]
    I --> M["Progressive *2"]
    I --> N["Reset"]
    I --> O["2D Progressive"]
    I --> P["3D Progressive"]

    Q["Options Signal Info"] --> R["Lamp Timer"]
    Q --> S["Keystone"]
    Q --> T["Auto Power Off"]
    Q --> U["Background"]
    Q --> V["Theator Mode"]
    Q --> W["Film Mode 1"]
    Q --> X["Film Mode 2"]
    Q --> Y["↔ + 127 - 127"]
    Q --> Z["ON"]
    Q --> AA["OFF"]
    Q --> AB["Blue"]

    AC["Language English"] --> AD["Deutsch"]
    AC --> AE["Espanol"]
    AC --> AF["Nodorlands"]
    AC --> AG["Français"]
    AC --> AH["Italiano"]
    AC --> AI["Svenska"]
    AC --> AJ["Português"]
    AC --> AK["汉语"]
    AC --> AL["한국어"]
    AC --> AM["日本語"]

    AN["PRJ Mode"] --> AO["Front"]
    AN --> AP["Ceiling + Front"]
    AN --> AQ["Rear"]
    AN --> AR["Ceiling + Rear"]

    AS["Special Modes"] --> AT["640 × 480"]
    AS --> AU["480P"]

Items on the INPUT 2 (RGB) Mode Menu Bar

Sub menuSub menu

NOTE

*1 "Signal Type" does not appear when the INPUT 1 (COMPONENT) mode is selected.
*2 "Progressive" only appears when receiving a 480i signal in the INPUT 2 (COMPONENT) mode.
• "Color", "Tint" and "Sharp" do not appear in the INPUT 2 (RGB) mode.

Items on the S-VIDEO or VIDEO

Mode Menu Bar

    M["Sub menu"] --> N["Picture2"]
    N --> O["Color"]
    O --> P["+30-30"]
    N --> Q["Tint *3"]
    Q --> R["+30-30"]
    N --> S["Sharp"]
    S --> T["0↔7"]
    N --> U["Progressive"]
    U --> V["2D Progressive"]
    U --> W["3D Progressive"]
    N --> X["Reset"]
    X --> Y["+30-30"]

    Z["Options Signal Info"] --> AA["Lamp Timer"]
    AA --> AB["Film Mode 1"]
    AA --> AC["Film Mode 2"]
    AA --> AD["Keystone"]
    AD --> AE["+127-127"]
    AA --> AF["Auto Power Off"]
    AF --> AG["ON"]
    AA --> AH["Background"]
    AH --> AI["OFF"]
    AA --> AJ["Theator Mode"]
    AJ --> AK["Blue"]
    AJ --> AL["None"]

    M --> AM["Language English"]
    AM --> AN["Deutsch"]
    AM --> AO["Espanol"]
    AM --> AP["Nodorlands"]
    AM --> AQ["Français"]
    AM --> AR["Italiano"]
    AM --> AS["Svenska"]
    AM --> AT["Português"]
    AM --> AU["汉语"]
    AM --> AV["한국어"]
    AM --> AW["日本語"]

    M --> AX["PRJ Mode"]
    AX --> AY["Front"]
    AY --> AZ["Coiling + Front"]
    AY --> BA["Rear"]
    AY --> BB["Ceiling + Rear"]

    M --> BC["Video System Auto"]
    BC --> BD["PAL"]
    BC --> BE["NTSC3.58"]
    BC --> BF["SECAM"]
    BC --> BG["NTSC4.43"]
    BC --> BH["PAL M"]
    BC --> BI["PAL N"]
    BC --> BJ["PAL (60Hz)"]

NOTE

*3 "Tint" does not appear when receiving "PAL", "SECAM", "PAL M", "PAL N" or "PAL (60Hz)" in the S-VIDEO or VIDEO mode.

Selecting the On-screen Display Language

(GUI) On-screen Display

English is the preset language for the On-screen Display. The language can be set to English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

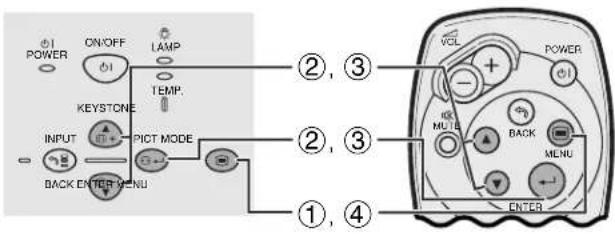

①Press MENU.
② Press ▲/▼ to select "Language", and then press ENTER.
③ Press ▲/▼ to select the desired language.
④ Press ENTER to save the setting. The On-screen Display is now programmed to display in the language selected.
⑤To exit from the GUI, press MENU.

Selecting the Video Input System Mode (S-VIDEO or VIDEO mode only)

(GUI) On-screen Display

The video input system mode is preset to "Auto"; however, it can be changed to a specific system mode, if the selected system mode is not compatible with the connected audiovisual equipment.

①Press MENU.
② Press ▲/▼ to select "Video System", and then press ENTER.
③ Press ▲/▼ to select the desired video system mode.
④Press ENTER to save the setting.
⑤To exit from the GUI, press MENU.

NOTE

- When the system mode is set to "Auto", you may not receive a clear picture due to signal differences. Should this occur, switch to the video system of the source signal.

(GUI) On-screen Display INPUT 1 or 2 (COMPONENT) mode

INPUT 2 (RGB) mode

Adjusting the Picture

You can adjust the projector's picture to your preferences with the following picture settings.

Description of Adjustment Items

Selected item	▼ button ▲ button
Contrast	For less contrast	For more contrast
Bright	For less brightness	For more brightness
Red	For weaker red	For stronger red
Blue	For weaker blue	For stronger blue
Reset	All image adjustment items are returned to the factory preset settings.
Color	For less color intensity	For more color intensity
Tint	Skin tones become purplish	Skin tones become greenish
Sharp	For less sharpness	For more sharpness

NOTE

• "Signal Type" does not appear when the INPUT 1 (COMPONENT) mode is selected.
• "Progressive" only appears when receiving a 480i signal in the INPUT 2 (COMPONENT) mode.
• "Color", "Tint" and "Sharp" do not appear in the INPUT 2 (RGB) mode.
• "Tint" does not appear when receiving "PAL", "SECAM", "PAL M", "PAL N" or "PAL (60Hz)" in the S-VIDEO or VIDEO mode.

①Press MENU.

② Press ▲/▼ to select "Picture1" or "Picture2" in INPUT 1 or 2 (COMPONENT), S-VIDEO or VIDEO mode, or to select "Picture" in INPUT 2 (RGB) mode, and then press ENTER.
③ Press ▲/▼ to select a specific adjustment item, and then press ENTER.
④ Press ▲/▼ to move the □□ mark of the selected adjustment item to the desired setting.
⑤To exit from the GUI, press MENU.

NOTE

• To reset all adjustment items, select "Reset", and then press ENTER.
• The adjustments can be stored separately in the INPUT 1, INPUT 2, S-VIDEO and VIDEO modes.

Projector Remote Control

(GUI) On-screen Display

Projector Remote Control

(GUI) On-screen Display

Selecting the Signal Type

This function allows you to select the input signal type (RGB or COMPONENT) for INPUT 2 port.

①Press MENU.
② Press ▲/▼ to select "Picture" in INPUT 2 (RGB) mode, and then press ENTER.
③ Press ▲/▼ to select "Signal Type", and then press ENTER.
④ Press ▲/▼ to select "Component" or "RGB".
⑤Press ENTER to save the setting.
⑥To exit from the GUI, press MENU.

Progressive Mode

This function allows you to select the progressive display of a video signal. The progressive display projects a smoother video image. For reducing distortion and noise, select an item in "Progressive" for optimum image quality.

①Press MENU.
② Press ▲/▼ to select "Picture2" in S-VIDEO or VIDEO mode, and then press ENTER.
③ Press ▲/▼ to select "Progressive", and then press ENTER.
④ Press ▲/▼ to select the desired progressive display.
⑤Press ENTER to save the setting.
⑥To exit from the GUI, press MENU.

Description of Progressive Modes

2D Progressive

Useful for displaying fast-moving images such as sports and action films. Mode that optimizes the image in a displayed frame.

3D Progressive

Useful for displaying relatively slow-moving images such as drama and documentary more clearly. Mode that optimizes the image by estimating the movement of a number of preceding and succeeding frames.

Film Mode 1

Effective for displaying action movies or other fast-moving film sources.

Film Mode 2

Effective for displaying still images or slow-moving film sources as in a documentary.

NOTE

- The film source is a digital video recording with the original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second to play back a high-definition image.

Computer Image Adjustments (INPUT 2 (RGB) mode only)

Remote control

On-screen Display

Auto Sync Adjustment

• Used to automatically adjust a computer image.
- Auto Sync adjustment can be made manually by pressing AUTO SYNC.

NOTE

- The sync adjustment is automatically made each time the projector is turned on while connected to a computer or the input selection is changed.

① Press AUTO SYNC on the remote control.

During Auto Sync adjustment, "Adjusting The Image" is displayed as shown on the left.

NOTE

• Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.
• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 27.)

Projector

Remote control

(GUI) On-screen Display

Adjusting the Computer Image

When displaying computer patterns which are very detailed (tiling, vertical stripes, etc.), interference may occur between the LCD pixels, causing flickering, vertical stripes, or contrast irregularities in portions of the screen. Should this occur, adjust "Clock", "Phase", "H-Pos" and "V-Pos" for the optimum computer image.

Description of Adjustment Items

	DescriptionSelected item
Clock	Adjusts vertical noise.
Phase	Adjusts horizontal noise (similar to tracking on your VCR).
H-Pos	Centers the on-screen image by moving it to the left or right.
V-Pos	Centers the on-screen image by moving it up or down.

NOTE

- Computer image adjustments can be made easily by pressing AUTO SYNC (☐). See page 26 for details.

(Select the desired computer input mode with INPUT on the projector or INPUT 2 on the remote control.)

①Press MENU.
② Press ▲/▼ to select "Fine Sync", and then press ENTER.
③ Press ▲/▼ to select a specific adjustment item, and then press ENTER.
④ Press ▲/▼ to move the □□ mark of the selected adjustment item to the desired setting.
⑤To exit from the GUI, press MENU.

NOTE

• The value range of "Clock" setting is limited by the type of signal received.
• To reset all adjustment items, select "Reset" on the "Fine Sync" menu screen and press ENTER.

Freeze Function

Remote control

This function allows you to instantly freeze a moving image. This is useful when you want to display a still image from a computer or video, giving you more time to explain the image to the audience.

① Press FREEZE on the remote control to freeze the image.
② Press FREEZE again to return to the moving image.

On-screen Display

Remote control This function can be used to adjust the color

temperature to suit the type of image input to the projector (video, computer image, TV broadcast, etc.). Decrease the color temperature to create warmer, reddish images for natural flesh tones. Increase the color temperature to create cooler, bluish images for a brighter picture.

Description of Color Temperature

1 (Red) (Blue)	2	3	4
Decreases color temperature for warmer, reddish, incandescent-like images. (Low color temperature)	Increases color temperature for cooler, bluish, florescent-like images. (High color temperature)

① Press CLRTEMP on the remote control. Each time CLRTEMP is pressed, color temperature toggles as shown below.

Remote control

STANDARD
On-screen Display

Illustration of four people sitting on a bench in an outdoor setting, no text or symbols present

GAMMA 1

Black-and-white illustration of four anime-style characters sitting on a bench in an outdoor park setting (no text or symbols visible)

GAMMA 2

Illustration of three people sitting on a bench outdoors, no text or symbols present

• Gamma is an image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions.
• Three gamma settings are available to allow for differences in the images displayed and in the brightness of the room.
• When you are displaying images with frequent, dark scenes, such as a film or concert, or when you are displaying images in a bright room, this feature makes the dark scenes easier to see and gives the impression of greater depth in the image.

Gamma Modes

	Gamma modeSelected Mode
STANDARD	For a highly defined image emphasizing high contrast and color reproduction.
GAMMA 1	For a warm and moist image controlling contrast and brightness.
GAMMA 2	Most suitable when viewing images in a brightly lit room.

① Press GAMMA on the remote control. Each time GAMMA is pressed, the gamma level toggles as shown on the left.

Selecting the Picture Display Mode

Projector

Remote control

This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose the picture display mode preferred.

① Press PICT MODE. Each time PICT MODE is pressed, the picture mode changes as shown below.

			FULL	WIDE	NORMAL
Video	4:3 aspect ratio480I/P, NTSC, PAL, SECAM	4:3	800 × 600	800 × 450	600 × 450
		Letterbox	800 × 600	800 × 450	600 × 450
		Squeeze	800 × 600	800 × 450	600 × 450
	16:9 aspect ratio, 720P, 1080i	720P, 1080i	-	800 × 450	-
Computer	VGA, SVGA, XGA, SXGA		800 × 600	-	-

	Input Signal	Output screen image
		FULL WIDE NORMAL
480I/P, NTSC, PAL, SECAM	4:3 aspect ratio		→ →
	Letterbox		→ →
	Squeeze		→ →
720P, 1080i	16:9 aspect ratio

	Input Signal	Output screen image
		FULL
VGA,SVGA,XGA,SXGA	4:3 aspect ratio

NOTE

- When inputting a VGA text mode (640×350) signal or an RGB signal from a device other than a computer, the display is fixed in FULL (4:3) mode, with the image filling up the whole screen.

Checking the Input Signal and the Lamp Usage Time

Projector Remote control

(GUI) On-screen Display

This function allows you to check the current input signal information and the accumulated lamp usage time.

①Press MENU.
② Press ▲/▼ to select "Options", and then press ENTER. The current input signal information and the lamp usage time will be displayed.

NOTE

- It is recommended that the lamp be replaced after approximately 900 hours of usage. See pages 38 and 39 for lamp replacement.

Automatic Power Shutoff Function

Projector Remote control

(GUI) On-screen Display

When no input signal is detected for more than 15 minutes, the projector will automatically shut off.

Description of Automatic Power Shutoff

ON	Power automatically shuts off after 15 minutes without a signal being input.
OFF	Automatic Power Shutoff disabled.

①Press MENU.
② Press ▲/▼ to select "Options", and then press ENTER.
③ Press ▲/▼ to select "Auto Power Off", and then press ENTER.
④ Press ▲/▼ to select "ON" or "OFF".
⑤To exit from the GUI, press MENU.

NOTE

• "Auto Power Off" is factory preset to "ON".
• “Power OFF in 5 min.” will appear five minutes before the power is automatically turned off.

Selecting a Background Image

Projector Remote control

(GUI) On-screen Display

This function allows you to select the image displayed when no signal is being sent to the projector.

Description of Background Images

Blue	Blue screen	*1
None	Black screen

①Press MENU.
② Press ▲/▼ to select "Options", and then press ENTER.
③ Press ▲/▼ to select "Background", and then press ENTER.
④ Press ▲/▼ to select "Blue" or "None".
⑤To exit from the GUI, press MENU.

NOTE

*1 While projecting the blue screen, the picture automatically switches to FULL (4:3) mode even if another display mode has been selected.

Theater Mode Function

Projector Remote control

(GUI) On-screen Display

Function with toggle switch to control the quantity of projected light. Select "ON" or "OFF" to decrease or increase brightness, power consumption and fan noise.

Description of Theater Modes

ON	Quantity of light is 70%.Power consumption is 200 W.
OFF	Quantity of light is 100%.Power consumption is 230 W.

①Press MENU.
② Press ▲/▼ to select "Options", and then press ENTER.
③ Press ▲/▼ to select "Theater Mode", and then press ENTER.
④ Press ▲/▼ to select "ON" or "OFF".
⑤To exit from the GUI, press MENU.

NOTE

• "Theater Mode" is factory preset to "ON"
• When selecting "OFF" in "Theater Mode", fan noise is increased.
• Even when selecting "ON" in "Theater Mode", fan noise may increase if internal temperature rises enough to activate the cooling function.

Reverse/Invert Image Function

Projector Remote control

(GUI) On-screen Display

This projector is equipped with a reverse/invert image function which allows you to reverse or invert the projected image for various applications.

Description of Projected Images

Selected item	Projected image
Front	Normal image
Ceiling + Front	Inverted image
Rear	Reversed image
Ceiling + Rear	Reversed and inverted image

①Press MENU.
② Press ▲/▼ to select "PRJ Mode", and then press ENTER.
③ Press ▲/▼ to select the desired projection mode, and then press ENTER.
④To exit from the GUI, press MENU.

NOTE

- This function is used for the reversed image and ceiling-mount setups. See page 18 for these setups.

Special Mode Adjustment

Projector Remote control

(GUI) On-screen Display

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, since the projector cannot distinguish 640×480 signal resolution on computers or 480P on DTVs, select an appropriate mode on "Special Modes."

①Press MENU.
② Press ▲/▼ to select "Special Modes", and then press ENTER.
③ Press ▲/▼ to select the optimal resolution mode.
④Press ENTER to save the setting.
⑤To exit from the GUI, press MENU.

NOTE

- When inputting DTV 480P signals, select "480P" in step ③ above.

Maintenance & Troubleshooting

Air Filter Maintenance

Right Side View

• This projector is equipped with an air filter to ensure the optimal operating condition of the projector.

- The air filter should be cleaned every 100 hours of use. Clean the filters more often when the projector is used in a dusty or smoky location.

- Have your nearest Authorized SharpVision Service Center or Dealer exchange the filter (PFILD0123CEZZ) when it is no longer possible to clean it.

Cleaning the air filter

1 Disconnect the power cord.	2 Remove the filter cover.
Unplug the power cord from the AC socket.	Turn over the projector. Press the tab and remove the filter cover in the direction of the arrow.
3 Clean the air filter.	4 Replace the filter cover.
Clean the dust off the air filter and cover with a vacuum cleaner extension hose.	Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

Replacing the air filter

1 Disconnect the power cord.	2 Remove the filter cover.		3 Remove the air filter.
Unplug the power cord from the AC socket.	Turn over the projector. Press the tab and remove the filter cover in the direction of the arrow.		1Remove the air filter stopper.2Remove the air filter.
4 Replace the air filter.		5 Replace the filter cover.
1Put the new air filter into position.2Put the air filter stopper back into position.		Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

NOTE

- Be sure the filter cover is securely installed. The power will not turn on unless it is correctly installed.

Lamp/Maintenance Indicators

Maintenance Indicators

• The warning lights on the projector indicate problems inside the projector.
• There are two warning lights: a TEMPERATURE WARNING indicator which warns that the projector is too hot, and a LAMP REPLACEMENT indicator which lets you know when to change the lamp.
• If a problem occurs, either the TEMPERATURE WARNING indicator or the LAMP REPLACEMENT indicator will illuminate red. After turning off the power, follow the procedures given below.

		ProblemMaintenance	Indicator Condition Possible Solution
TEMPERATURE WARNING indicator	The internal temperature is abnormally high.	• Blocked air intake.	• Relocate the projector to an area with proper ventilation.
		• Clogged air filter.	• Clean the filter.(See pages 35 and 36.)
		• Cooling fan breakdown.• Internal circuit failure.	• Take the projector to your nearest Authorized SharpVision Service Center or Dealer for repair.
	The indicator flashes in red.	• Cooling down. • Wait until the indicator stops flashing and turns off.
LAMP REPLACEMENT indicator	The lamp does not illuminate.	• Burnt-out lamp.• Lamp circuit failure.	• Carefully replace the lamp. (See pages 38 and 39.)• Take the projector to your nearest Authorized SharpVision Service Center or Dealer for repair.
	The lamp requires replacement.	• Lamp has been used for over 900 hours.
POWER indicator	The indicator flashes in red when the projector is on.	• The filter cover is open.	• Securely install the filter cover.

NOTE

• If the TEMPERATURE WARNING indicator illuminates, follow the solution listed above and then wait until the projector has cooled down completely before turning the power back on. (At least 5 minutes.)
• If the power is turned off and then turned on again, as during a brief rest, the LAMP REPLACEMENT indicator may be triggered, preventing the power from going on. Should this occur, remove the power cord from the wall outlet and plug it in again.

Lamp

The lamp in this projector operates for approximately 1,000 cumulative hours, depending on the usage environment. It is recommended that the lamp be replaced after 900 cumulative hours of use or when you notice a significant deterioration of the picture and color quality. The lamp usage timer can be checked with the On-screen Display. (See page 32.)

CAUTION

- Intense light hazard. Do not attempt to look into the aperture and lens while the projector is operating.

NOTE

• As the usage environment can vary significantly, the projector lamp may not operate for 1,000 hours.
• “1,000 hours” above indicates average life span and should be used for reference only. This is different than the warranty period.
• For safety, the power will not be turned on from the fourth times when turning on the power without changing the lamp after use for 1,000 hours.

Condition	Problem	Possible Solution
The LAMP REPLACEMENT indicator illuminates red, and “LAMP” will appear in yellow in the lower-left corner of the picture.	• Lamp has been used for over 900 hours.	• Purchase a replacement lamp unit (lamp cage/module) of the current type BQC-PGC20X//1 from your nearest Authorized SharpVision Service Center or Dealer.• Replace the lamp. (See pages 38 and 39.) If you wish, you may have the lamp replaced at your nearest Authorized SharpVision Service Center or Dealer.
A significant deterioration of the picture and color quality occurs.
The power will automatically turn off and the projector will enter standby mode.	• Lamp has been used for over 1,000 hours.
“LAMP” will appear in red in the lower-left corner of the picture, and the power will turn off.

CAUTION:

• Potential hazard of glass particles if lamp ruptures. Please have the nearest Authorized SharpVision Service Center or Dealer replace lamp if rupture occurs.
• Do not remove the lamp cage directly after operation of the projector. The lamp may be extremely hot. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp cage to fully cool before removing the lamp cage.

It is recommended that the lamp be replaced after approximately 900 cumulative hours of use or when you notice a significant deterioration of the picture and color quality. Carefully change the lamp by following the steps below. If the new lamp does not light after replacement, take your projector to the nearest Authorized SharpVision Service Center or Dealer for repair. Purchase a replacement lamp unit (lamp/cage module) of the current type BQC-PGC20X//1 from your nearest Authorized SharpVision Service Center or Dealer. Then carefully change the lamp by following the instructions below. If you wish, you may have the lamp replaced at your nearest Authorized SharpVision Service Center or Dealer.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through the nearest Authorized SharpVision Service Center or Dealer. For the name of the nearest Authorized SharpVision Service Center or Dealer, please call toll-free: 1-877-DTV-SHARP (1-877-388-7427).

Removing and installing the lamp unit

CAUTION

• Be sure to remove the lamp cage by the handle. Be sure not to touch the glass surface of the lamp cage or the inside of the projector.
  • To avoid injury to yourself and damage to the lamp, be sure to carefully follow the steps below.
• Be sure to change the air filter during lamp replacement. The air filter comes packaged with the lamp unit.

1 Turn off the power.	2 Disconnect the power cord.	3 Remove the filter cover.
Press ON/OFF on the projector or POWER on the remote control. Wait until the cooling fan stops.	Unplug the power cord from the AC socket.	Turn over the projector. Press the tab and remove the filter cover in the direction of the arrow.
4 Remove the air filter.	5 Replace the air filter.	6 Replace the filter cover.
1Remove the air filter stopper.2Remove the air filter.	1Put the new air filter into position.2Put the air filter stopper back into position.	Insert the tab on the end of the filter cover into the filter cover opening and press the filter cover into position.

Then Change Lamp (Steps 7-10)	8 Remove the lamp cage.
7 Remove the lamp cage cover.
Turn over the projector and loosen the user service screw that secures the lamp cage cover. Then lift open the cover in the direction of the arrow.	Loosen the securing screws on the lamp cage. Hold the lamp cage by the handle and pull it towards you.
9 Insert the new lamp cage.	10 Attach the lamp cage cover.
Press the lamp cage firmly into the lamp cage compartment. Fasten the securing screws.	Slide the lamp cage cover in the direction of the arrow. Then tighten the user service screw.

Resetting the lamp timer

1 Connect the power cord.	2 Reset the lamp timer.
Plug the power cord into the AC socket of the projector.	1 Press KEYSTONE ▲ and KEYSTONE ▼ on the projector at the same time.2 Press INPUT and PICT MODE on the projector at the same time.3 Press PICT MODE and MENU on the projector at the same time.	“LAMP 0000H” is displayed, indicating that the lamp timer is reset.

NOTE

- Reset the lamp timer only after replacing the lamp.

Using the Kensington Lock

Line drawing of a projector device (no text or symbols visible)

Kensington Security Standard connector

This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Troubleshooting

Problem	Check
No picture and no sound.	Projector power cord is not plugged into the wall outlet.The filter cover is not securely installed.Selected input is wrong. (See page 16.)Cables incorrectly connected to side and rear panels of the projector. (See pages 11–14.)Remote control batteries have run down. (See page 8.)
Sound is heard but no picture appears.	Cables incorrectly connected to side and rear panels of the projector. (See pages 11–14.)“Contrast” and “Bright” adjustments are set to minimum position. (See page 24.)
Color is faded or poor.	“Color” and “Tint” adjustments are not correct. (See page 24.)
Picture is blurred.	Adjust the focus. (See page 15.)Projection distance is too long or too short to allow for proper focus. (See page 17.)
Picture appears but no sound is heard.	Cables incorrectly connected to side and rear panels of the projector. (See pages 11–14.)Volume is set to minimum. (See page 16.)
An unusual sound is occasionally heard from the cabinet.	If the picture is normal, the sound is due to cabinet shrinkage caused by temperature changes.This will not affect operation or performance.
Maintenance indicator illuminates.	Refer to “Lamp/Maintenance Indicators” on page 37.
Picture noise appears.	Adjust the “Phase” setting. (See page 27.)
480P images do not appear.	Set the resolution mode to 480P. (See page 34.)
Color is distorted (INPUT 2 mode only).	Change the input signal type. (See page 25.)

Appendix

Attaching the Lens Cap

Put on the lens cap to prevent damage to the lens when transporting the projector. A lens cap strap is provided to prevent the loss of the lens cap.

1 Attach the lens cap strap to the lens cap.	2 Attach the lens cap strap to the projector.	3 Attach the lens cap to the projector with the lens cap eyelet facing up.

CAUTION

- Do not lift or carry the projector by the lens or the lens cap as this may damage the lens.

NOTE

- You can also use the end of a mechanical pencil or other pointed object to feed the lens cap strap through the openings.

1. Video input (red)
2. Video input
   (green/sync on green)
3. Video input (blue)
4. Not connected
5. Composite sync
6. GND (red)
7. GND (green/sync on green)

8. GND (blue)

9. Not connected

10. Not connected
11. GND
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock

RS-232C Port: 9-pin D-sub male connector of the DIN-D-sub RS-232C cable

Pin No. Signal Name I/O Reference

1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 Not connected
8 Not connected
9 Not connected

RS-232C Terminal: 9-pin Mini DIN female connector

Pin No. Signal

1 Not connected
2 RD
3 SD
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 Not connected
8 Not connected
9 Not connected
Input
Output
7 Not connected
8 Not connected
9 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected
1 Not connected

I/O

Reference

Connected to internal circuit
Connected to internal circuit

Pin No. Signal

[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

RS-232C Port Specifications

PC control

A computer can be used to control the projector by connecting an RS-232C cable (null modem, cross type, sold separately) to the projector. (See page 14 for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table.

Signal format: Conforms to RS-232C standard.

Baud rate: 9,600 bps

Data length: 8 bits

Parity bit: NON

Stop bit: 1 bit

Flow control: None

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

Command 4-digits Parameter 4-digits

Response code format

Normal response

Return code (0DH)

Problem response (Failure due to incorrect command/parameter or the other communication errors)

When more than one code is being sent, send each command only after the OK response code for the previous command from the projector is verified.

NOTE

- When using the computer control function of the projector, the projector operating status cannot be read to the computer. Therefore, confirm the status by transmitting the display commands for each adjustment menu and checking the status with the On-screen Display. If the projector receives a command other than a menu display command, it will execute the command without displaying the On-screen Display.

Commands

EXAMPLE

- When "BRIGHT" of RGB IMAGE ADJUSTMENT is set to -10.

Computer

R

A

B

R

1

0

O

Projector

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3	C4	P1	P2	P3	P4
AUTO POWER OFF	A	P	O	W	-	-	-	0	AUTO POWER OFF (OFF)
	A	P	O	W	-	-	-	1	AUTO POWER OFF (ON)
POWER SETTING	P	O	W	R	-	-	-	0	POWER OFF (STANDBY)
	P	O	W	R	-	-	-	1	POWER ON
INPUT SWITCHING	I	V	E	D	-	-	-	1	S-VIDEO
	I	V	E	D	-	-	-	2	VIDEO
	I	R	G	B	-	-	-	1	INPUT1
	I	R	G	B	-	-	-	2	INPUT2
INPUT CHECK	I	C	H	K	-	-	-	0	INPUT CHECK
KEYSTONE ADJUSTMENT		EK		Y		S		* *	KEYSTONE (-127 - +127)
LANGUAGE SELECTION	M	E	L	A	-	-	-	1	ENGLISH
	M	E	L	A	-	-	-	2	DEUTSCH
	M	E	L	A	-	-	-	3	ESPAÑOL
	M	E	L	A	-	-	-	4	NEDERLANDS
	M	E	L	A	-	-	-	5	FRANÇAIS
	M	E	L	A	-	-	-	6	ITALIANO
	M	E	L	A	-	-	-	7	SVENSKA
	M	E	L	A	-	-	-	8	PORTUGUÊS
	M	E	L	A	-	-	-	9	汉语
	M	E	L	A	-	-	1	0	한국어
	M	E	L	A	-	-	1	1	日本語
VIDEO SYSTEM SELECTION	M	E	S	Y	-	-	-	1	AUTO
	M	E	S	Y	-	-	-	2	PAL
	M	E	S	Y	-	-	-	3	NTSC 3.58
	M	E	S	Y	-	-	-	4	SECAM
	M	E	S	Y	-	-	-	5	NTSC 4.43
	M	E	S	Y	-	-	-	6	PAL (M)
	M	E	S	Y	-	-	-	7	PAL (N)
	M	E	S	Y	-	-	-	8	PAL (60 Hz)
S-VIDEO/VIDEO IMAGE ADJUSTMENT 1	V	A	P	I	-	^	^	^	CONTRAST (-30 - +30)
	V	A	B	R	-	^	^	^	BRIGHT (-30 - +30)
	V	A	R	D	-	^	^	^	RED (-30 - +30)
	V	A	B	E	-	^	^	^	BLUE (-30 - +30)
	V	A	R	E	-	-	-	1	RESET
S-VIDEO/VIDEO IMAGE ADJUSTMENT 2	V	A	C	O	-	*	*	*	COLOR (-30 - +30)
	V	A	T	I	-	*	*	*	TINT (-30 - +30)
	V	A	S	H	-	-	-	*	SHARPNESS (0 - 7)
	V	A	R	E	-	-	-	2	RESET
S-VIDEO/VIDEO COLOR TEMPERATURE ADJUSTMENT		AVCT						*	COLOR TEMPERATURE (1-4)
COMPONENT IMAGE ADJUSTMENT 1	R	A	P	I	-	^	^	^	CONTRAST (-30 - +30)
	R	A	B	R	-	^	^	^	BRIGHT (-30 - +30)
	R	A	R	D	-	^	^	^	RED (-30 - +30)
	R	A	B	E	-	*	*	*	BLUE (-30 - +30)
	R	A	R	E	-	-	-	1	RESET

CONTROL ITEM	COMMAND				PARAMETER				CONTROL CONTENTS
	C1	C2	C3 C4	P1	P2	P3 P4
COMPONENT IMAGE ADJUSTMENT 2	R	A	C	O	_	^	^	^	COLOR (-30 - -30)
	R	A	T	I	_	^	^	^	TINT (-30 - +30)
	R	A	S	H	_	_	_	^	SHARPNESS (0 - 7)
	R	A	R	E	_	_	_	2	RESET
COMPONENT COLOR TEMPERATURE ADJUSTMENT		ARCT						^	COLOR TEMPERATURE (1 - 4)
RGB IMAGE ADJUSTMENT	R	B	P	I	_	^	^	^	CONTRAST (-30 +30)
	R	B	B	R	_	^	^	^	BRIGHT (-30 +30)
	R	B	R	D	_	^	^	^	RED (-30 +30)
	R	B	B	E	_	^	^	^	BLUE (-30 +30)
	R	B	R	E	_	_	_	1	RESET
RGB COLOR TEMPERATURE ADJUSTMENT		BRCT						^	COLOR TEMPERATURE (1 - 4)
BACKGROUND SELECTION	I	M	B	G	_	_	_	3	BLUE
	I	M	B	G	_	_	_	4	NONE
VOLUME ADJUSTMENT	V	O	L	A	_	_	^	^	VOLUME (00 - 60)
	M	U	T	E	_	_	_	1	MUTE ON
	M	U	T	E	_	_	_	0	MUTE OFF
SCREEN SETTING	I	M	R	E	_	_	_	0	REVERSE OFF
	I	M	R	E	_	_	_	1	REVERSE ON
	I	M	I	N	_	_	_	0	INVERT OFF
	I	M	I	N	_	_	_	1	INVERT ON
	I	M	I	P	_	_	_	0	2D PROGRESSIVE
	I	M	I	P	_	_	_	1	3D PROGRESSIVE
	I	M	I	P	_	_	_	2	FILM MODE1
	I	M	I	P	_	_	_	3	FILM MODE2
INPUT2 SIGNAL TYPE SELECTION	I	B	S	I	_	_	_	1	RGB
	I	B	S	I	_	_	_	2	COMPONENT
INPUT1 PICTURE MODE	R	A	S	R	_	_	_	1	FULL
	R	A	S	R	_	_	_	2	WIDE
	R	A	S	R	_	_	_	3	NORMAL
INPUT2 PICTURE MODE	R	B	S	R	_	_	_	1	FULL
	R	B	S	R	_	_	_	2	WIDE
	R	B	S	R	_	_	_	3	NORMAL
S-VIDEO/VIDEO PICTURE MODE	R	A	S	V	_	_	_	1	FULL
	R	A	S	V	_	_	_	2	WIDE
	R	A	S	V	_	_	_	3	NORMAL
INPUT1/S-VIDEO/VIDEO GAMMA SELECTION	G	A	M	V	_	_	_	1	STANDARD
	G	A	M	V	_	_	_	2	GAMMA1
	G	A	M	V	_	_	_	3	GAMMA2
INPUT2 GAMMA SELECTION	G	A	M	R	_	_	_	1	STANDARD
	G	A	M	R	_	_	_	2	GAMMA1
	G	A	M	R	_	_	_	3	GAMMA2
INPUT AUTO SYNCHRONIZATION		DAJS						1	AUTO SYNC START

NOTE

- If an underbar (_) appears in the parameter column, enter a space. If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

Horizontal Frequency: 15–80 kHz

Vertical Frequency: 43–85 Hz

Pixel Clock: 12–108 MHz

Compatible with sync on green and composite sync signals

SXGA (1,280 × 1,024) compatible in intelligent compression

PC/MAC/WS	Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard	Display
PC	VGA	640 × 350	27.0 60			Upscale
			31.5 70
			37.9 85		×
		720 × 350	27.0 60
			31.5 70
		640 × 400	27.0 60
			31.5 70		×
			37.9	85	×
		720 × 400	27.0	60
			31.5	70	×
			37.9	85	×
		640 × 480	26.2	50
			31.5	60	×
			34.7	70
			37.9	72	×
			37.5	75	×
			43.3	85	×
	SVGA	800 × 600	31.3 50			True
			35.1 56		×
			37.9 60		×
			44.5 70
			48.1 72		×
			46.9 75		×
			53.7 85		×
	XGA	1,024 × 768	35.5 43		×	Intelligent Compression
			40.3 50
			48.4 60		×
			56.5 70		×
			60.0 75		×
			68.7 85		×

PC/MAC/WS	Resolution Display		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	VESA Standard
PC	SXGA	1,152 × 864	55.0 60			Intelligent Compression
			66.2 70
			67.5 75		×
		1,152 × 882	54.8 60
			65.9 72
		1,280 × 1,024	64.0 60		×
PC/MAC 13"	VGA	640 × 480	35.0	67		Upscale
PC/MAC 19"	XGA	1,024 × 768	48.4 60		×	Intelligent Compression
			60.0	75	×
MAC 16"	SVGA	832 × 624	49.7 75
MAC 21"	SXGA	1,152 × 870	68.7	75

NOTE

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in "CRT only" mode. Details on how to change display modes can be found in your notebook computer's operation manual.
• This projector can receive 640 × 350 VESA format VGA signals, however, "640 × 400" will appear on the screen.
• The image from Mac 16 (832 × 624) cannot be displayed in "FULL" mode.

Product type	LCD Projector
Model	XV-Z7000U
Video system	PAL/PAL 60/PAL-M/PAL-N/SECAM/NTSC 3.58/NTSC 4.43/DTV 480P/DTV 720P/DTV 1080I
Display method	LCD panel × 3, RGB optical shutter method
LCD panel	Panel size: 0.9" (13.9 [H] × 18.5 [W] mm)
	Display method: Translucent TN liquid crystal panel
	Drive method: TFT (Thin Film Transistor) Active Matrix panel
	No. of dots: 480,000 dots (800 [H] × 600 [V])
Lens	1-1.2× zoom lens, F2.3-2.6, f = 36.0-43.2 mm
Projection lamp	DC 150 W lamp
Contrast ratio	350:1
Video input signal	RCA Connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated
	RCA Connector: AUDIO, 0.5 Vrms more than 22 kΩ (stereo)
S-video input signal	4-pin Mini DIN connector
	Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
	C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
Component input signal	RCA Connector (INPUT 1 terminals)
	Y: 1.0 Vp-p, sync negative, 75 Ω terminated
	Pb: 0.7 Vp-p, 75 Ω terminated
	Pr: 0.7 Vp-p, 75 Ω terminated
Horizontal resolution	520 TV lines (DTV 720P input)
Audio output	1.0 W (monaural)
Computer RGB input signal	15-PIN MINI D-SUB CONNECTOR (INPUT 2 port):RGB separate/composite sync/sync on green type analog input: 0-0.7 Vp-p, positive, 75 Ω terminated
	STEREO MINIJACK: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo)
	HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) or composite sync (Apple only)
	VERTICAL SYNC. SIGNAL: Same as above
Pixel clock	12-108 MHz
Vertical frequency	43-85 Hz
Horizontal frequency	15-80 kHz
Computer control signal	9-pin Mini DIN female connector (RS-232C port)
Speaker system	1 7/4" (2.8 cm) round
Rated voltage	AC 100-240 V
Input current	2.6 A
Rated frequency	50/60 Hz
Power consumption	230 W (Selecting "OFF" in the "Theater Mode".)
	200 W (Selecting "ON" in the "Theater Mode".)
Operating temperature	41°F to 95°F (+5°C to +35°C)
Storage temperature	-4°F to 140°F (-20°C to +60°C)
Cabinet	Plastic
I/R carrier frequency	38 kHz
Dimensions (approx.)	10 15/64" (W) × 2 29/32" (H) × 8 5/32" (D) (260 × 74 × 207 mm) (main body only)
	10 15/64" (W) × 3 15/64" (H) × 8 5/32" (D) (260 × 82 × 207 mm) (including adjustment feet and projecting parts)
Weight (approx.)	5.73 lbs. (2.6 kg)
Supplied accessories	Remote control, Two AAA size batteries, Rubber leg tips for remote control, Power cord (11' 10", 3.6 m), DIN-D-sub RS-232C cable (6 4%4", 15 cm), Extra air filter, Lens cap (attached), Lens cap strap, LCD projector operation manual
Replacement parts	Lamp unit (Lamp/cage module) (BQC-PGC20X//1), Remote control (RRMCG1636CESA), AAA size batteries, Rubber leg tips for remote control (GLEGG9095CEZZ), Power cord (CACCU5013DE01), DIN-D-sub RS-232C cable (QCNW-5288CEZZ), Air filter (PFILD0123CEZZ), Lens cap (PCOVZ1095CEKA), Lens cap strap (UBNDT0013CEZZ), LCD projector operation manual (TINS-7273CEZZ)

This SHARP projector uses LCD (Liquid Crystal Display) panels. These very sophisticated panels contain 480,000 pixels (× RGB) TFTs (Thin Film Transistors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to.

This unit has some inactive TFTs within acceptable tolerances which may result in illuminated or inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit. If you have any questions about this matter, please call toll free 1-877-DTV-SHARP (1-877-388-7427). U.S.A. ONLY

Specifications are subject to change without notice.

Rear View

Front view of a computer monitor with ports and buttons (no visible text or labels)

Top View

Line drawing of a portable air conditioner unit with ventilation grilles and control knobs (no text or symbols)

Side View

Front View

Top-down schematic of a device casing with internal components and wiring (no text or symbols)

Bottom View

Active digital keystone correction

Corrects keystone distortion caused when the projected image is not perpendicular to the screen. This method provides not only horizontal correction, but vertical as well, thus maintaining the original 4:3 aspect ratio and eliminating jag lines.

Aspect ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto sync

Optimizes projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being input.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

Color temperature

Function that can be used to adjust the color temperature to suit the type of image input to the projector.

Freeze

Function to freeze a moving image.

Gamma correction

Offers richer image viewing with dark scene phase and contrast correction according to image and room brightness. Three gamma settings are available.

GUI

Graphical User Interface. User interface with graphics that allow easier operation.

Intelligent compression and expansion

High quality resizing of lower and higher resolution images to fit the projector's native resolution.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Picture display mode

Allows you to modify or customize the picture display mode to enhance the input image.

Progressive mode (Film mode)

Optimizes the image by converting the interlaced signal to the progressive. Useful for displaying slow-moving images or still images.

RS-232C

Function to control the projector from the computer by using the RS-232C ports on the projector and computer.

Sync on green

Video signal mode of a computer which overlaps horizontal and vertical sync signal to green color signal pin.

Theater mode function

Function with toggle switch to control the quantity of projected light. Select "ON" or "OFF" to decrease or increase brightness, power consumption and fan noise.
