USER MANUAL BFL2372YX BRANDT

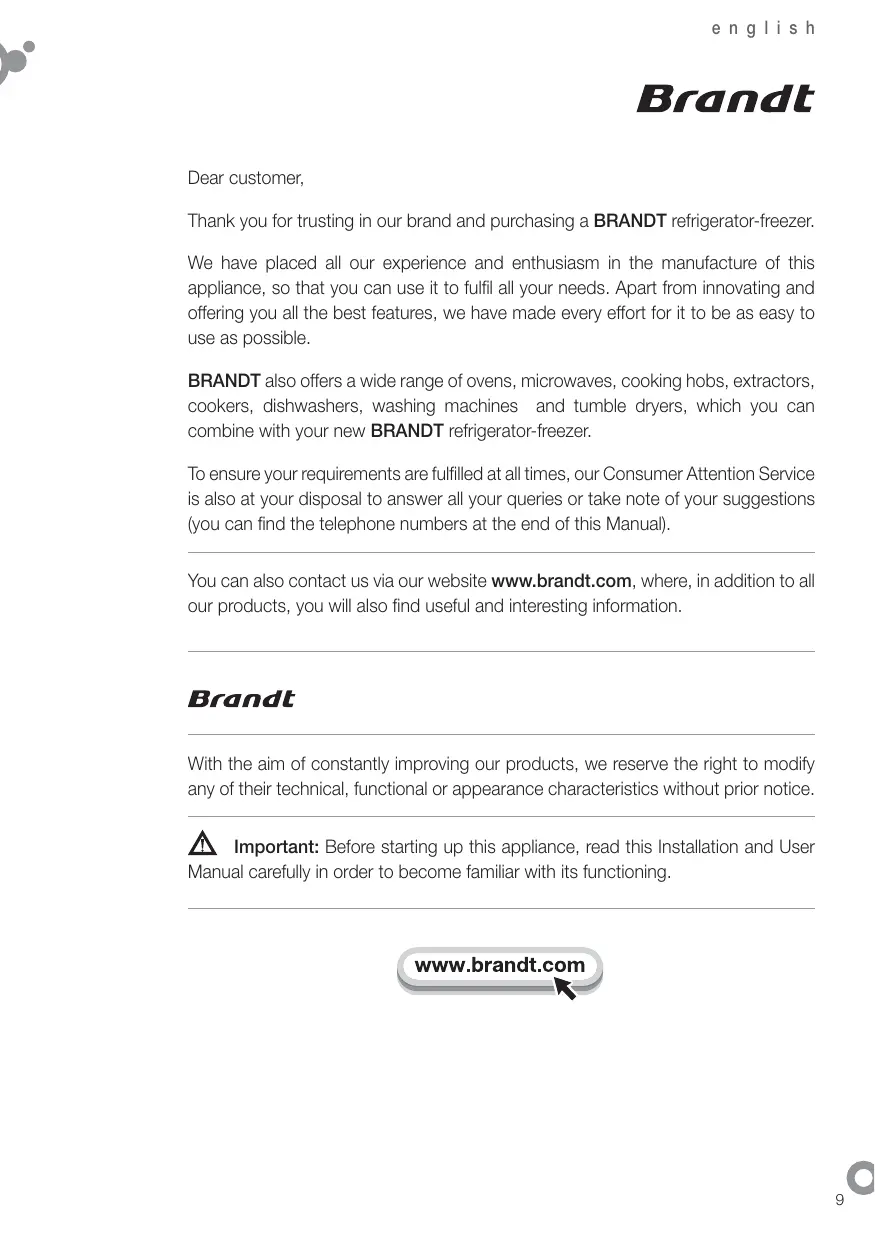

Dear customer, Thank you for trusting in our brand and purchasing a BRANDT refrigerator-freezer. We have placed all our experience and enthusiasm in the manufacture of this appliance, so that you can use it to fulfil all your needs. Apart from innovating and offering you all the best features, we have made every effort for it to be as easy to use as possible. BRANDT also offers a wide range of ovens, microwaves, cooking hobs, extractors, cookers, dishwashers, washing machines and tumble dryers, which you can combine with your new BRANDT refrigerator-freezer. To ensure your requirements are fulfilled at all times, our Consumer Attention Service is also at your disposal to answer all your queries or take note of your suggestions (you can find the telephone numbers at the end of this Manual). You can also contact us via our website www.brandt.com, where, in addition to all our products, you will also find useful and interesting information.

With the aim of constantly improving our products, we reserve the right to modify any of their technical, functional or appearance characteristics without prior notice. Important: Before starting up this appliance, read this Installation and User Manual carefully in order to become familiar with its functioning.

Instruction manual Very important: Please read this manual fully before using your refrigerator. This manual has been designed so that the text is linked to the relevant drawings.

Identify the model of your refrigerator (“a”, “b”, “c”) by comparing the control panel with the illustrations.

Make a notch for the lead on the other side, in the area indicated on the casing (1.4.7). Replace the control panel passing the lead through the notch made (1.4.8).

Undo the screws from the bottom hinge and remove it. Change the position of the pin in the hinge and position it on the other side (1.4.9).

1.1 Unpacking. Remove all the protection. 1.2 Location. Position the refrigerator away from heat sources and protected from direct sunlight to reduce consumption. Do not install the refrigerator outside or anywhere it is exposed to rain. Air must be able to circulate around the back of the refrigerator. Leave 25 mm between the back of the refrigerator and the wall behind it. Do not block the space between your refrigerator and the floor or ceiling with any object. Level the refrigerator to prevent any vibrations or noise. Remember that if the refrigerator is located next to a wall or cabinet, it might make a small noise. Also check that the shelves have been fitted correctly, and place containers apart to prevent any vibrations. 1.3 Electrical connection. Stand the refrigerator upright for at least 2 hours before plugging it in. Check the information on the specifications plate (220-240V earthed) (1.3.1, 1.3.2). Do not use any adapters or extension leads. Make sure that the lead is not touching the motor or trapped underneath it. 1.4 Changing the direction the door opens. Unplug the refrigerator from the mains supply and empty it completely. Gently lay the appliance on its back (1.4.1). Undo the screws (1.4.2) and remove the top hinge and the rotating bushing with the aid of a screwdriver (1.4.3). 10

Unplug by pressing on the connector tab (1.4.4). Remove the refrigerator door (1.4.5). Remove the control panel, levering it up by inserting a screwdriver in the notches provided for that purpose (1.4.6).

Remove the vertical handle and fit it on the other side of the door turning it 180º (1.4.10). Fit the door (1.4.11). Fit the closing capsule in the top hinge space on the other side (1.14.12). Press the connector to plug it into the door (1.4.13). Fit the top hinge and the rotating bushing, inserting any spare lead in the control panel (1.4.14) and replace the screws (1.4.15). Lift the refrigerator up carefully (1.4.16). 1.5 Levelling the appliance. Adjust the feet so that it is tilting backwards slightly, to help the door close correctly (1.5.1).

2.1 Switching on the refrigerator. Press the , button (2.1.1). Press until a digit appears on the display (2.1.2) or turn the control (2.1.3). In models b and c , the “on” LED will come on to indicate that the appliance is switched on. The child lock is automatically activated in model a , to release it press the button for 3 seconds (2.3.6). 2.2 Setting the temperature. Press the , , buttons (2.2.1). Press (2.2.2), or turn the control (2.2.3). Once you have set the temperature required, you can find out , the actual temperature by pressing the or (2.2.4), (2.2.5) buttons for five seconds. The temperature will flash. Model c does not have this function.

Recommendation: The recommended temperature for your refrigerator is degrees. It is best to always keep it between and degrees.

5. Pulses and vegetables. 6. Vacuum box (accessory). 7. Ice maker (accessory).

Remember that the temperature inside the refrigerator depends on the ambient temperature, the location and how often the refrigerator door is opened. 2.3 Refrigerator functions. Fast cooling function: This function sets the refrigerator to the coolest temperature for 6 hours. It is recommended that you activate this function when you put a large amount of food into the refrigerator. To activate and deactivate it: Press (2.3.1) or (2.3.2, 2.3.3), in model b the display will whilst the function is activated. show Holiday function: Ideal for when you are away from home for a long time. The degrees, refrigerator will remain set at preventing any bad smells from developing and keeping electricity consumption very low. To activate and deactivate it: Press the button until appears on the display (2.3.4) or press the , button, the screen whilst the function remains will show activated (2.3.5). Model c does not have this function. Warning: For the holiday function to work correctly, the refrigerator door must be closed. Child lock: Ideal for preventing changes being made inadvertently to appliance settings or children from interfering with them. The screen will display the icon whilst the child lock is activated. Press (2.3.6) or (2.3.7). The screen will show alternating with the normal display whilst the function is activated. Model c does not have this function. 2.4 Arranging food in your refrigerator. The temperature is not uniform inside your refrigerator. Some areas are colder than others. Food must be stored in the right area to make sure that it is kept correctly (2.4.1): 1. Butter. 2. Hors d’oeuvres, cheese, yoghurts, cream, sauces, eggs.

2.5 ICE MAKER. This is an accessory in your refrigerator that can generate up to 20 cubes of ice. If you have an Ice Maker, take it out of the refrigerator (2.5.1). Remove each of the 5 ice-trays inside (2.5.2) and fill them with water (2.5.3). Put the ice-trays back trying not to spill any water (2.5.4). Put your Ice Maker carefully back into place inside the refrigerator (2.5.5). The ice cubes will be ready for use in 24 hours. 2.6 Switching the refrigerator off. Press for until no temperature 3 seconds or press appears on the display (2.6.1, 2.6.2), or turn the control to the off setting (2.6.3). In models b , c the “on” LED will go off. 2.7 Recommendations for use. • Keep the fan switched off for greater energy savings (2.7.1). • Do not open the doors for longer than necessary. This will allow your refrigerator to work more efficiently and prevent any increase in energy consumption. • Store food in sealed containers to prevent it from drying out.

Maintenance and cleaning

3.1 Cleaning the inside. Use a sponge or cloth soaked in water with bicarbonate of soda to clean the inside of the refrigerator to prevent any smells from forming. Never use a steam cleaner, solvents or scouring powders. 3.2 Cleaning the outside. Never use a steam cleaner to clean the displays. It is a good idea to clean the grille at the back once a year with a vacuum cleaner. 3.3 Cleaning the accessories. Do not put them in the dishwasher. Clean them by hand with the help of a sponge or cloth.

3. Bottles, milk. 4. Meat, poultry, game and fresh fish, cooked meats.

3.4 Changing the light bulb. If the light bulb blows: switch off the refrigerator. Remove the cover by pressing on the lug (3.4.1) and removed the blown bulb (3.4.2). Replace it 11

with another with the same type of thread, E14, 220-240V, 15/25W or as indicated on the light fitting. 3.5 Changing the carbon filter. Your refrigerator may have a carbon filter to absorb any strange smells from some types of food and capture any microorganisms (fungus and bacteria) circulating in the air. The filter keeps its properties for a limited time of 6 months. After this time it is recommended that you replace it with a new one. Its location varies depending on the model. To activate the filter: Press down on the tab and remove the cover to access the filter (3.5.1). Separate the used filter from the cover (3.5.2). Remove the seals from the new filter (3.5.3). Press the BIOFILTER visor until you hear a light click (3.5.4) and in a few seconds the duration scale will start to colour. Put the filter back into place. Keep used and new filters out of the reach of children; digesting large quantities can be dangerous. Do not wet the filter as it can lose its properties.

4.1 Door open. If you leave the door open for , signal will come more than 1 minute, the on, an alarm will sound and the refrigerator light will go off (4.1.1, 4.1.2). The alarm will stop when the door is closed. 4.2 Power cut. Open the refrigerator as few times as possible. 4.3 Normal noises in the refrigerator. Your refrigerator may make a number of quite normal operating noises which should not concern you. • The refrigerant may make a gargling noise as it passes through the circuits. • The compressor may make a buzzing and/ or a slight knocking noise, above all when it switches on.

• The dilation or contraction of the materials used can make clicking or creaking noises. • The air moved by the freezer fan can make a small background noise. Do not tamper with your refrigerator in an attempt to repair it. Call for service.

• Be careful not to damage the refrigeration circuit. • Do not use any electrical appliances inside your refrigerator unless they are of the type recommended by the manufacturer. • Do not use any mechanical devices or any other means to speed up defrosting other than those recommended by the manufacturer. • This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. • If the power lead is damaged, it must be replaced by the manufacturer, or by their after sales service or a similar qualified person to prevent any risk.

This refrigerator was designed with environmental conservation in mind. The appliance operates with coolant R600A, which does not damage the environment. Respect the environment. Use the recommended temperatures for each compartment. They will depend on the mode you need for efficient use of your refrigerator. Disconnect the refrigerator or set it to holiday mode when you will not be using it for a prolonged period. You will reduce power consumption and save energy.

Avoid leaving the doors open more time than necessary. It causes an increase in power use. Waste management of electrical and electronic appliances. The symbol indicates that the appliance must not be disposed of in traditional bins for domestic waste. Deliver your refrigerator to a special collection centre. Recycling domestic appliances prevents negative impacts on health and the environment and helps save energy and resources. For more information, contact your local authorities or the establishment where you purchased your refrigerator.
