Product Type	Chest Freezer
Brand	Balay
Model	3HEB9035
Climate Class	SN, N, ST, T
Ambient Temperature Range	+10°C to +43°C (depending on climate class)
Voltage	220-240 V
Frequency	50 Hz
Fuse Requirement	10 to 16 A
Refrigerant	R600a (flammable)
Temperature Setting	Adjustable from position 1 (warmest) to 6 (coldest)
Super Freeze Function	Yes, activated by 'super' button
Temperature Alarm	Red display lights when temperature too warm
Eco Mode	Yes, for partially loaded compartments
Interior Light	Yes, replaceable bulb (220-240 V, E14)
Defrost Method	Manual defrost with drainage system
Storage Baskets	Yes, removable
Prefreezer Compartment	Yes, for rapid freezing
Removable Partition	Available on some models
Transportation Protection	Four devices included; must be removed before use
Noise Level	Normal operating noises: humming, bubbling, clicking

Frequently Asked Questions - 3HEB9035 BALAY

How to adjust the temperature in the freezer?

Turn the temperature selector with a coin. Position 1 is the warmest, position 6 the coldest.

What does the red alarm light mean?

The red 'alarm' display indicates the temperature inside is too warm (approx. -9°C). Avoid opening the lid frequently and check if the ventilation openings are blocked.

How to use the super freeze function?

Press the super button several hours before freezing fresh food. The yellow display lights up. This runs the compressor continuously for rapid freezing.

How often should I defrost the freezer?

Defrost when a layer of hoarfrost accumulates. Switch on super freeze 4 hours before, remove food, pull out the drain stoppers, and let the water drain. Clean and dry before restarting.

Can I use electrical appliances to defrost?

No. Never use heaters, steam cleaners, or sharp objects to remove ice. They can damage the refrigerant circuit and cause fire or injury.

What causes thick frost along the upper edge?

Check the defrost water stoppers are inserted correctly, ensure transportation protection devices are removed, and avoid frequent lid openings.

How to change the interior light bulb?

Pull out the mains plug, remove the bulb cover (Fig. 8), replace with a 220-240 V, E14 bulb of the same wattage.

What should I do if the green power indicator is off?

Check if the mains plug is connected, the fuse is on, and there is power. The appliance may have been switched off.

How to save energy with this freezer?

Install in a cool, dry place away from heat sources. Open the lid briefly. Use eco mode if partially loaded. Defrost regularly and clean the rear ventilation.

What are normal operating noises?

Humming from the compressor, bubbling or gurgling from refrigerant flow, and clicking when switching on/off are normal. Ensure the appliance is level and not touching furniture.

USER MANUAL 3HEB9035 BALAY

Safetyandwarninginformation3.... Switchingoff and disconnecting Observeambienttemperature the appliance ... 8

andventilation5...... Freezing and storing frozen food 8.....

Installingtheappliance5.... Defrosting 10

Connecting the appliance6.... Tips for saving energy .... 11

Gettingtoknowyour appliance 6...... Operating noises .... 11

Fascia .... 7 Eliminatingminorfaultsyourself ... 12....

Switchingonthe appliance .... 7 Customer service .... 13

es Índice

Disposal of packaging

The packaging protects your appliance from damaged during transit. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old pliance

Oldappliancesarenotworthlessrubbish! Valuablerawmaterialscanbereclaimed byrecyclingoldappliances.

Thisapplianceislabelledin accordance with European Directive 2002/96/EGconcerningused electricalandelectronicappliances (wasteelectricalandelectronic equipment-WEEE). The guideline determines the framework for their return and recycling of used appliances as applicable throughout the EU.

Warning

Redundantappliances:

1. Pulloutthemainsplug.
2. Cutoff the power cord and discard with themains plug.

Refrigeratorscontainrefrigerantsandthe insulationcontainsgases. Refrigerant and gasesmustbedisposedofproperly. Ensurethattubingoftherefrigerant circuitisnotdamagedpriortoproper disposal.

Safetyandwarning information

BeforeyouswitchONthe appliance

Pleasereadtheoperatingandinstallation instructionscarefully. Theycontainimportantinformation on howtoinstall,useandmaintainthe appliance. Keepalldocumentationforsubsequent useorforthenextowner.

Technicalsafety

- This appliance contains a small quantity of environmentally-friendly but flammable R600 are refrigerant. Ensure that the tubing of there refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

Ifdamagehasoccurred

-Keepnakedflamesand/orignition sourcesawayfromtheappliance.
-Thoroughlyventilatetheroomfor severalminutes.
- S witchofftheapplianceandpullout themainsplugorswitchoffthefuse.
-Notifycustomerservice.

Themorerefrigerantanappliance contains, the largertheroommustbe. Leakingrefrigerantcanforma flammablegas-airmixtureinrooms which are too small.

Theroommustbeatleast1 m ^3 per8 g ofrefrigerant. The amountofrefrigerant inyourapplianceisindicatedonthe ratingplateinsidetheappliance.

en

- Only customer service may change the powercordandcarryoutanyother repairs.Improperinstallationsand repairsmayputtheuserat considerablerisk.

Importantinformationwhen usingtheappliance

• Neveruse electrical appliances inside the appliance (e.g. heaters, electric ice makers, etc.). Risk of explosion!
• Neverusea steamcleanertodefrost or cleanthe appliance. Thesteammay penetrate electrical parts and cause a short-circuit.

Riskofelectricshock!

• Donotusepointedorsharp-edged implementstoremovefrostorlayers of ice.
  Youcoulddamagetherefrigerant tubing.Leakingrefrigerantmayignite or causeeyeinjuries.
• Donotstoreproductswhichcontain flammablepropellants(e. g. spraycans) orexplosivesubstancesinthe appliance. Explosion hazard!
• Donotstandorsupportyourselfon the base, drawersordoors, etc.
• Beforedefrostingorcleaningthe appliance,switchofftheappliance, pull outthemainsplugorswitchoff the fuse.

Pullonthemainsplug, not on the powercord.

• Bottleswhichcontainahigh percentageofalcoholmustbesealed andstoredinanuprightposition.
- Keepplasticpartsandthedoorseal freeofoilandgrease. Otherwise, parts anddoorsealwillbecomeporous.
- Nevercoverorblocktheventilation openingsfortheappliance.

• Peoplewhohavelimitedphysical, sensory ormentalabilitiesor inadequateknowledgemustnotuse thisapplianceunlessstheyare supervisedorgivenmeticulous instructions.
• Donotstorebottledorcanneddrinks (especiallycarbonateddrinks)inthe freezercompartment.Bottlesandcans mayexplode!
• Neverputfrozenfoodstraightfromthe freezercompartmentintoyourmouth. Riskoflow-temperatureburns!
• Avoidprolongedtouchingoffrozen food,iceortheevaporatorpipes,etc. Riskoflow-temperatureburns!

Childreninthehousehold

• Keepchildrenawayfrompackaging anditsparts.Dangerofsuffocation fromfoldingcartonsandplasticfilm!
• Do not allow children to play with the appliance!
• If the appliance features a lock, keep the key out of there a each of children.

Generalrequirements

Theapplianceissuitable

•forfreezingfood,
- formakingice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EUDirective 2004/108/EC.

Therefrigerantcircuithasbeentestedfor leaks.

Thisproductcomplieswiththerelevant safetyregulationsforelectricalappliances (EN 60335/2/24).

Observeambient temperature and ventilation

Irrespectiveoftheclimaticclass (see ratingplate), the appliance can be operated at the following ambient temperatures: (Therating plate is located in the chest freezer lid. Fig. 1/10)

Climatic classfrom...to

Ambient temperature

SN+10 °C to 32 °C

N+16 °C to 32°C

ST+16 °C to 38 °C

T+16 °C to 43 °C

If the ambient temperature drops below the lower ambient temperature limit, the running time of there refrigerating unit is reduced. As a result, the freezer compartment is not adequately refrigerated. The frozen food may thaw in extreme cases.

Ventilation

Fig. 10

Theairontherearpanelandonthe side panelsoftheapplianceheatsup. The warmairmustbeabletoescape. Otherwise, the refrigerator must work harder. Thiswillincreasethepower consumption. Therefore: Nevercover or blockventilationopenings!

Installing the appliance

Installtheapplianceinadry,well ventilatedroom.Theinstallationlocation shouldneitherbeexposedtodirect sunlightnornearaheatsource,e.g. a cooker,radiator,etc.lfinstallationnext toaheatsourceisunavoidable,use a suitableinsulatingplateorobservethe following minimum distances to a heat source:

3 cmtoelectricorgascookers. 30cmtoanoilorsolid-fuelcooker.

Theflooroftheinstallationlocationmust notgiveway;ifrequired,reinforcefloor.

Alignappliancewithaspiritlevel.

If the floor is uneven, compensate with supports.

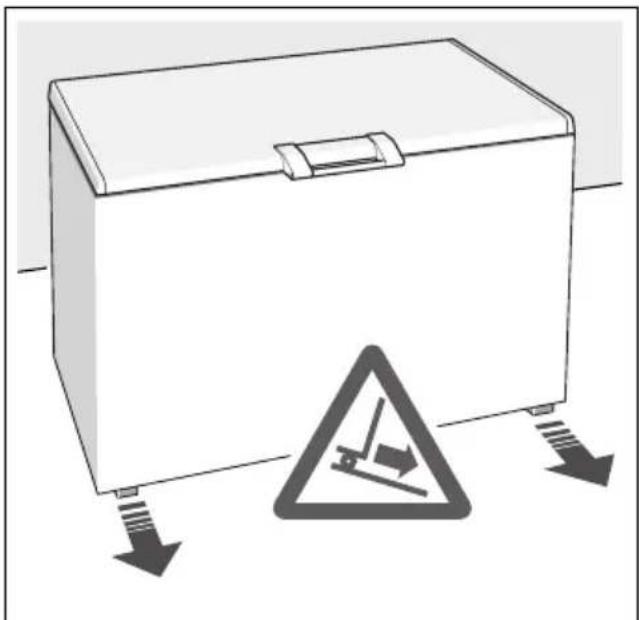

The appliance can be transported on its smooth-running rollers. Fig. 4

⚠ Warning!

Ifrequired, secure the appliance to prevent it from rolling away.

If the appliance is placed next to the wall, there must be a minimum distance of 70 mmbetween the wall and rear panel or side panels.

Removing the transportation protectiondevices

Removethefourtransportationprotection devices, Fig. 3, which are attached between the chest freezer lid and appliance.

Inserttwoofthesetransportation protectiondevicesintothedesignated holdersatthebackoftheappliance. This maintains the minimum distance betweentheapplianceandthewall,the chestfreezerlidcanbeopenedcorrectly andventilationisguaranteed.

Connecting the appliance

Afterinstallingtheappliance,waitatleast 12 hourbeforeswitchingonthe appliance.Duringtransportationtheoilin thecompressormayhaveflowedinto the refrigerationsystem.

Beforeswitchingontheapplianceforthe firsttime,cleantheinterior (see Cleaning).

Thesocketshouldbefreelyaccessible. Connecttheapplianceto220-240 V/50 Hzalternatingcurrentviaacorrectly installedearthedsocket. Thesocketmust befusedwitha10to16Afuse.

Forappliancesoperatedinnon-European countries, the identification plates should be checked whether the electricity supply and the current model stated match the valesofthemainssupply. These specifications can be found on the rating plate. Fig. 11

Themainsconnectioncablemaybe replacedbyanelectricianonly.

Warning!

Neverconnecttheappliancetoelectronic energysaverplugsortopowerinverters whichconvertthedirectcurrentto230 V alternatingcurrent(e.g.solarequipment, powersuppliesonships).

Gettingtoknow your appliance

Pleasefoldouttheillustratedlastpage. Theseoperatinginstructionsreferto severalmodels.

Theillustrationsmaydiffer.

Fig. 1

* notallmodels

1-5Fascia

6Interiorlight *

7 B a sket *

8Storagedrawer

9Defrostwaterdrainage with drainagestopper

10Ratingplate

11 Loweredgeofcoverframe (stackinglimit)

12Prefreezercompartment *

13Removablepartition *

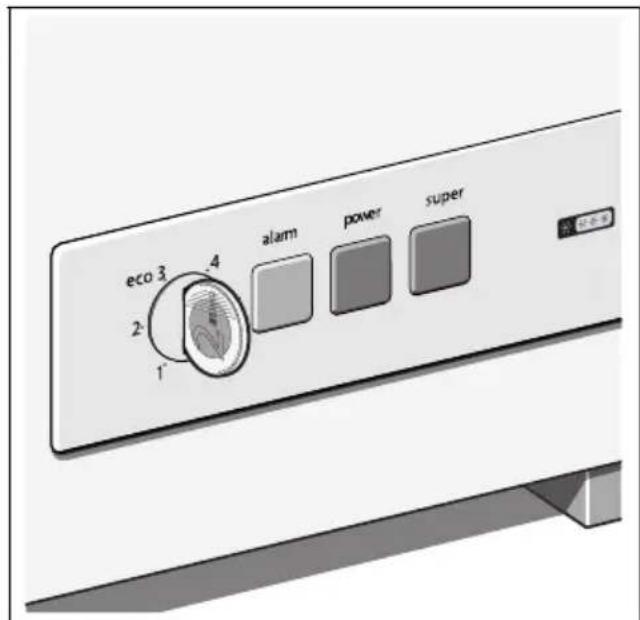

Fascia

Fig. 2

1"eco"setting

If the appliance is only partially filled (for appliances with partition up to maximum “e” mark on the partition), this setting can be selected to save energy.

2 Temperature selector

Thetemperatureinthefreezer compartmentcanbesetbyturning thetemperatureselectorwithacoin.

Position 1:highesttemperature

Position 6: lowesttemperature

3"alarm"display

Ifthereddisplayislit, this indicates that the temperatures in the appliance are too low.

4On/Offdisplay

Whenthegreendisplayislit, this indicatesthattheappliance is switchedon.

5 “ super”function

Switchessuperfreezingon andoff. The "super" function is switched on when they yellow display is lit.

Switchingon the appliance

Switchingontheappliance

• Whentheapplianceisconnected, it switchesonandthegreendisplay, Fig. 2/4,islit.
• If the red display is lit, Fig. 2/3, this indicate that the temperature in the appliance is too warm; donotput frozen food in the appliance until the reddish play goes out.

Selectingthetemperature

Thetemperatureselectorhasbeenset to setting 4atthefactory.

Tochangethesetting, rotatethe temperature selector. Fig. 2/2

Position 1:highesttemperature

Position 6: lowesttemperature

Attention: Temperature changes donot take effect straight away.

Operatingtips

Ifthelidcannotbeimmediatelyopened againwhenthechestfreezerisclosed, waittwotothreeminutesuntilthe resultinglowpressurehasequalised.

Warning messages

Temperaturealarm

If the temperature in the freezer compartment becomes too warm (approx. -9 °C) and the frozen food is at risk, the “alarm” display is lit. Fig. 2/3

Switchingoff and disconnecting the appliance

Switchingofftheappliance

Pulloutthemainsplugorswitchoffthe fuse.

Disconnecting the appliance

If the appliance is not used for a prolonged period:

1. Pulloutthemainsplugorswitchoff the fuse.
2. Defrostandcleantheappliance.
   3.Leavechestfreezerlidopen.

Freezing and storing frozenfood

Freezingcapacity

Informationaboutthemax.freezing capacitywithin24 hourscanbefound on theratingplate.

Packingfood

1. Placethefoodinthewrapping.
2. Pressoutalltheair.
   3.Sealthewrapping.
   4.Labelthewrappingwiththecontents anddate.

The following products are not suitable for wrapping food:

Wrappingpaper, greaseproofpaper, cellophane, refusebags and used shoppingbags.

The following products are suitable for wrappingfood:

Plasticfilm,polyethyleneblownfilm, aluminiumfoilandfreezertins. Theseproductscanbepurchasedfrom yourdealer.

The following products are suitable for sealing the wrapped food:

Rubberbands, plasticclips, string, cold-resistantadhesivetape. Bagsandpolyethyleneblownfilmcanbe sealedwithafilmsealer.

Freezingfreshfood

Intheprefreezercompartment, Fig. 1/12, fresh food is frozen especially quickly and therefore also gently. Distributethefoodoverthebottomand alongthesidepanelsoftheprefreezer compartment. Already frozen food must not come into contact with food which is tobefrozen. If required, restack frozen food in the storage compartment.

If more food is frozenthan there is space in the pre-freezer compartment, the left side of the bottom of the storage compartment can be used for freezing.

Fastfreezing

Inordertoretainthevitamins,nutritional value,appearanceandflavourfood shouldbefrozenasquicklyaspossible. Donotexceedthemax.freezing capacity.Vitamins,nutritionalvalues, appearanceandtastearetherefore retained.

Topreventanundesirabletemperature risewhenplacingfreshfoodinthefreezer compartment,switchonfastfreeze severalhoursbeforehand.

Asarule, 4-6 hoursisadequate.

Ifmax.freezingcapacityistobeutilised, 24 hoursarerequired.

Smallerquantitiesoffood(approx. 10% of thefreezingcapacity)canbefrozen withoutfastfreeze.

Toswitchfastfreezeonandoff, press the "super" button. Fig. 2/5

Fastfreezehasstartedwhenthe"super" displayislit.Fig. 2/5

Therefrigeratingunitnowoperates continuously. Thefreezercompartment dropstoalowtemperature.

Storingfood

Glassbottlescontainingliquidswhich mayfreezemustnotbestoredinthe appliance.Bottleswillcrack. Thebasketsallowtheproducetobe clearlyarranged.Thechestfreezercan alsobeloadedwithoutthebasketsup to the stacking limit, Fig. 1/11, (lower edgeofthecoverframe).Inthiscase morefrozenfoodcanbestored,the energyconsumptionreducedand, if a faultoccurs,thetemperaturerise delayed.

Attention!

Donotstackfoodabovetheloweredge of the cover frame. Fig. 1/11 Ensurethatthestoragetemperature is at least-18 °C.

If the temperature in the appliancerises dueto a fault or power failure, check whether the produce has started to thaw.

Donotrefreezethawedfood.Exception: If youusethefoodtomakeareadymeal (boilingorfrying),youcanrefreezethis readymeal.

Storageduration

Toretainthequalityofthefrozenfood,do notexceedthepermittedstorage durationat-18 °C.

Fish, coldmeats, ready meals, cakes and pastries

Upto6months

Cheese, poultry, meat

Upto8months

Vegetables, fruit Upto 12 months

Smallbasket

Fig. 9

Forstorageofsmallitemsoffrozenfood.

Ifbasketsaretobeplacedonthebase of theappliance,firstremoveorfoldin thehandles.

Ifrequired, purchasemorebasketsina specialistshop, specifying the appliance designation. Fig. 12

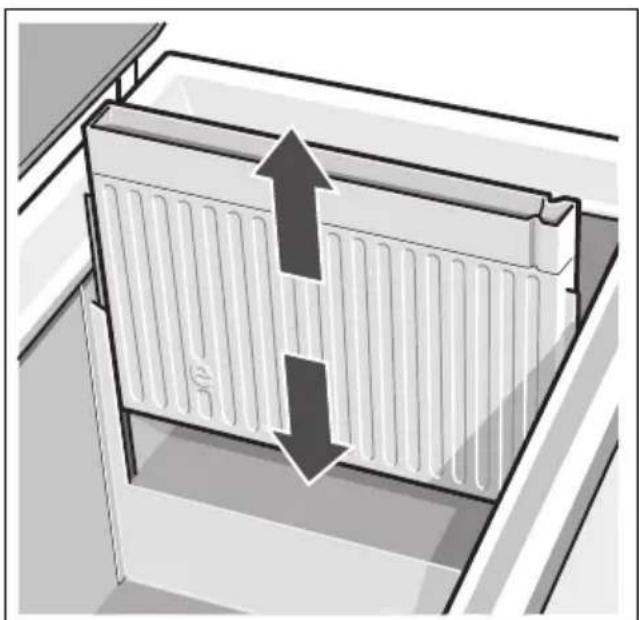

Removablepartition

Fig. 6 (some models only)

Thepartitionpreventsfoodwhichistobe frozenintheprefreezercompartment fromcomingintocontactwithalready frozenfoodinthestoragecompartment.

If the partition is pulled out and placed on the bottom of the chest freezer, small item soffrozen food, e.g. strawberries, can be frozen quickly and above all individually. When defrosting the appliance, the partition can be placed under the drain aged to catch the defrostwater.

Defrosting

Alayeroffrostonthecontainerwalls impairsrefrigerationofthefrozenfood andincreasespowerconsumption. Removethelayerofhoarfrostregularly.

Generaltips

• Whenloadingandunloadingthechest freezer,openthelidasbrieflyas possible.
• Donotinstallthechestfreezer in a damproom.Highairhumidity promotesformationoffrost.
• Packfreshfoodasairtightaspossible.

Attention: Donotscrapeoffhoarfrostor icewithaknifeorpointedobject. You coulddamagetherefrigeranttubes. Leakingrefrigerantmayigniteorcause eyeinjuries.

Thawingtheappliance

• Approx. 4 hours before defrosting switch on fast freezeto ensure that the food is frozensolid.
• Thenremovefrozenfoodandwrapin severallayersofnewspaperora blanketandstoreinacoollocation.
• Opentheliidandpulloutthemains plug.
• Pullout outerdrainagestopper, Fig. 7/1, take flat tray or, if available, appliance partition, Fig. 7/2, out of the appliance, placeunderthedrainage holetocatchthedefrostwater, Fig. 7/3, andpullouttheinner drainagestopper, Fig. 7/4.
• Afterdefrosting, cleantheappliance andwipetheinsidedry.
• Close defrost water drainage with both stoppers, insert partition, connect appliance and put back frozen food.

Defrostingaids

Toacceleratethedefrostingprocess, a plasticspatulacanbeusedtoremove thelayerofice

Warning!

Neveruseelectricappliances,defrosting spraysoranakedflametodefrostthe appliance,suchasheaters,steam cleaningequipment,candlesor petroleumlamps,etc.

Donotplaceapanofhotwaterinthe appliancetoacceleratethedefrosting process.

Cleaningtheappliance

• Itisadvisabletocleanthefreezer compartmentaftereachdefrosting process.
• Pulloutthemainsplugorremove the fuse.
  •Takeoutthefrozenfoodandstore in a collocation.Piacetheiceblock (if enclosed)onthefood.
• Clean the appliance with lukewarm waterandalittlewashing-upliquid.
• Aftercleaning:Reconnectthe appliance.
• Occasionallycleantherearofthe appliancewithavacuumcleaneror paintbrushtopreventanincreased powerconsumption.

⚠ Attention

Donotuseabrasiveoracidiccleaning agentsandsolvents.

Clean the lid seal with water only and dry thoroughlywithacloth.

Thecleaningwatermustnotgetintothe controlpanelorthelight.

Tips for saving energy

• Install appliance in a cool, dry, well ventilated room but not indirect sunlight and not near a heat source (e.g. radiator, cooker, etc.). If required, use an insulating plate.
• Leave warm food to cool down before placing it in the appliance!

• Thawfrozenfoodbyplacingitinthe refrigerator. Thelowtemperatureofthe frozenfoodthencoolsthefoodinthe refrigerator.

• Openappliancelidasbrieflyas possible!

• Alayerofhoarfrostinthefreezer compartment will impair refrigeration of thefrozenfoodandincreasepower consumption.Defrosttheappliance if frostforms!
• Occasionallycleantherearofthe appliancewithavacuumcleaneror paintbrushtopreventanincreased powerconsumption.
• Ifonlyaveragequantitiesoffood (approx. 40%–60%ofthemaximum freezingcapacity) are frozen, the food can be placed in the appliance 6 hours aftersuperfreezingwasswitchedon and then superfreezing can be switched off.
• If the appliance is only partially loaded (for appliances with partition no higher than "e" mark on the partition), load with food which uses the "eco" setting.

Operating noises

Quitenormalnoises

Humming –refrigeratingunitisrunning.

Bubbling, gurgling or whirring noises – refrigerantisflowingthroughthetubing.

Clicking –motor,switchesorsolenoid valvesareswitchingon/off.

Preventingnoises

Theapplianceisnotlevel

Please align the appliance with as spirit level. If the floor is uneven, compensate with supports.

The appliance is not free-standing

Pleasemovetheapplianceawayfrom adjacentfurnitureorappliances.

Baskets or partition panel wobble or stick

Pleasechecktheremovablepartsand re-insertthemifrequired.

Receptaclesaretouchingeachother

Movethereceptaclesslightlyawayfrom eachother.

Eliminating minor faults yourself

Beforeyoucallcustomerservice:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice, even if the appliance is still under guarantee!

Fault	PossiblecauseRemedialaction
Temperaturediffers greatlyfromtheset value.		Insomecasesitisadequatetoswitchoff the appliancefor5 minutes.Ifthetemperatureistoohigh,waitafew hoursandcheckwhetherthetemperature hasapproachedthesetvalue.If the temperature is toolow, check the temperatureagainthenextday.
Interiorlightdoesnot function.	Thebulbisdefective.Replacebulb	1.Pulloutthemainsplugordisconnect the fuse.2.Removebulbcover,Fig.8.3.Changethebulb(replacementbulb,220-240 Va.c., E14 bulbholder,seedefectivebulbfor wattage).
Therefrigeratingunit is switchingonmore frequentlyandforlonger.Fault	Thechestfreezerlid is openedfrequently.Theventilationopenings havebeencovered.Fig.10	Donotopenlidunnecessarily.Removeobstacles.RemedialactionPossiblecause
“alarm”display, Fig. 2/3,islit. (It is too warminside the appliance)	Thechestfreezerlid is openedfrequently.	Donotopenlidunnecessarily.
	Alotoffoodwasplaced in thefreezer.	SwitchonSupercoolingbeforeplacingfood inthefreezer.
	Theventilationopenings havebeencovered.	Removeobstacles.
	Applianceissituatednear aheatsource	Observetheminimumdistanceoruse insulatingplate.
Greenindicatorlight, Fig. 2/4,isnotlit.	Appliancehasbeen switchedoff.	Connectmainsplug.
	Powerfailure;thefusehas beenswitchedoff;the mainsplughasnotbeen insertedproperly.	Checkwhetherthepowerison,checkthe fuses.
Thickerfrostalong the upperedgeof the appliance.	Defrostwaterstoppers not fittedcorrectly.	Correctlyinsertdefrostwaterstopperson thebaseoftheapplianceandonthefront of theappliance.
	Transportationprotection deviceswerenotremoved.	Removeallfourtransportationprotection devices,Fig. 3(seelnstallingthe appliance).
	Thechestfreezerlid is openedfrequently.	Donotopenlidunnecessarily.

Customer service

Yourlocalcustomerservicecanbefound inthetelephonedirectoryorinthe customerserviceindex.Pleaseprovide customerservicewiththeappliance productnumber(E-Nr.)andproduction number(FD-Nr.).

Thisinformationcanbefoundonthe productlabel.Fig.11

Topreventunnecessarycall-outs, please assistcustomerservicebyquotingthe productandproductionnumbers. This willsaveyouadditionalcosts.

Diagram of a mechanical or electrical component with arrows indicating direction, showing internal components and a grid structure (no text or symbols)

3

Illustration of a rectangular device with a warning sign and downward arrows indicating shock or damage (no text or symbols present)

4

5

Diagram of a refrigerator interior with ventilation grilles and upward arrow indicating airflow direction (no text or symbols)

6

7

8

9

Diagram of a white refrigerator with airflow arrows indicating movement or flow (no text or symbols)

10

11

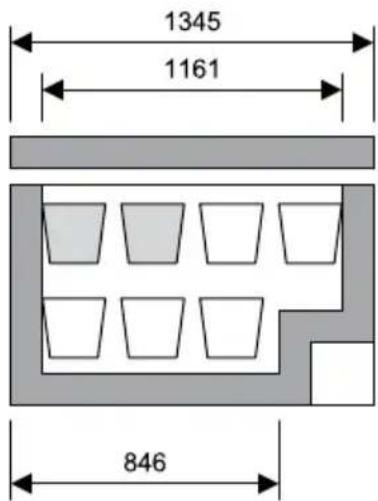

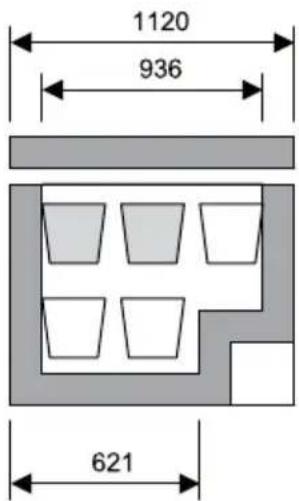

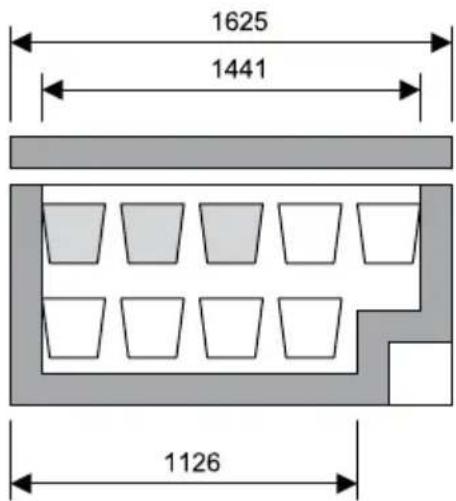

GTM12../GT12M.. 3HEB9015

GTM26../GT26M.. GT26E../GTE26..
GTM30../GT30M.. GTE30../GT30E.. 3HEB9035

GTE20../GT20E.. GTM20../GT20M.. 3HEB9025

GTE38../GT38E.. GTM38../GT38M..

Abstract black-and-white geometric logo design with concentric circular and curved shapes (no text or symbols)

Balay
