3GF1836B - Freezer BALAY - Free user manual and instructions

Product Type	Freezer
Brand	Balay
Model	3GF1836B
Height	180 cm
Width	60 cm
Depth	65 cm
Weight	70 kg
Energy Supply	220-240 V ~ 50 Hz
Energy Class	E
Annual Energy Consumption	250 kWh
Total Net Capacity	200 L
Freezing Capacity	10 kg/24h
Climate Class	SN-T
Noise Level	42 dB(A)
Fast Freeze Function	Yes
Temperature Alarm	Yes
Door Hinge	Right, reversible
Defrosting	Manual
Interior Light	No
Child Lock	No
Door Alarm	Yes
Spare Parts Availability	Up to 10 years
Cleaning	Wipe with damp cloth

Frequently Asked Questions - 3GF1836B BALAY

What is the recommended temperature setting for the freezer?

The recommended temperature is -18°C. You can adjust it using the thermostat control inside the freezer.

How often should I defrost the freezer?

Defrost when the ice layer reaches 1-2 cm thickness. It is recommended to defrost at least once a year.

Why is the freezer making loud noises?

Normal operation sounds include humming from the compressor and clicking from the thermostat. If unusually loud, check if the freezer is level and not touching walls.

How do I reverse the door hinge?

The door is reversible. You need to unscrew the hinges and move them to the opposite side. Refer to the user manual for step-by-step instructions.

What does the temperature alarm mean?

The alarm sounds when the internal temperature rises too high. This could be due to a door left open, power failure, or malfunction.

How can I clean the freezer interior?

Use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners. Rinse and dry thoroughly before turning back on.

Is the freezer energy efficient?

The freezer has an energy class E, which is standard for this model. Annual consumption is about 250 kWh.

What should I do if the freezer stops working?

Check the power cord and fuse. Ensure the thermostat is not set to '0'. If still not working, contact Balay customer service.

Can I store frozen food immediately after power on?

Wait until the temperature reaches -18°C (usually 4-6 hours). Use the fast freeze function to speed up the process.

Where can I find spare parts for my Balay freezer?

Spare parts are available through Balay's official website or authorized service centers. Use the model number 3GF1836B.

USER MANUAL 3GF1836B BALAY

Diagram of a vertical cylindrical device with upward arrows indicating airflow or heat transfer, connected to a power outlet (no text or symbols)

3

4

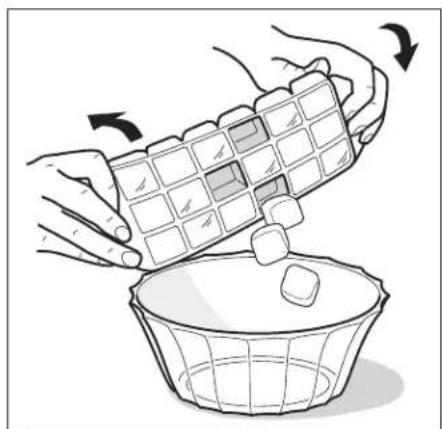

Illustration of hands placing a grid-based object into a bowl with an eraser (no text or symbols)

5

Illustration of a refrigerator with an open refrigerator and directional arrows indicating airflow or movement (no text or symbols)

6

Line drawing of a refrigerator interior with cooling fins and a black arrow pointing to the drain (no text or symbols)

7

8

VDETestingandCertificationInstitute

SectionFG23

Merianstrasse 28

D-630690ffenbach

BSHELECTRODOMÉSTICOS,S.A.

C/Itaroa,n°1

31620Huarte

Pamplona(NAVARRA)

A-28-893550

9000162467(8603)es/pt/el/tr
