ND-861 - DVD player Naxa - Free user manual and instructions

Product Type	DVD Player
Brand	Naxa
Model	ND-861
Dimensions (Approx.)	430 x 250 x 40 mm
Weight (Approx.)	1.5 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	10 W
Disc Compatibility	DVD, CD, CD-R/RW, VCD, MP3
Video Output	Composite (RCA), Component (YUV)
Audio Output	Stereo RCA, Digital Coaxial
USB Playback	Via front USB port for media files
Playback Functions	Play, Pause, Stop, Next, Previous, Repeat, Shuffle, Slow Motion
Remote Control	Included with batteries
Region Code	Region 1 (NTSC) or multi-region
Safety	Class I, no user-serviceable parts; refer to manual
Maintenance	Clean with soft dry cloth; avoid liquids and abrasives
Spare Parts / Repairability	Remote control and power cable available from support
General Information	Download manual from Naxa support website

Frequently Asked Questions - ND-861 Naxa

What types of discs can the Naxa ND-861 play?

The ND-861 plays DVD, CD, CD-R/RW, VCD, and MP3 discs.

Why is there no power when I plug in the player?

Ensure the power cable is securely connected to both the player and a working AC outlet. Check for a blown fuse on the plug or use the power button on the front panel.

How do I clean the lens if the player skips or doesn't read discs?

Use a lens cleaning disc designed for DVD players. Do not open the player or use liquids. If problem persists, consult a technician.

The remote control doesn't work. What should I do?

First, replace the batteries with new ones. Ensure there are no obstructions between remote and sensor. Point remote directly at the player within 7 meters.

How do I change the region code on my Naxa ND-861?

Region codes are typically set at the factory. Some models allow multi-region playback via a remote code. Refer to the manual or contact support for specific instructions.

Can I play movies from a USB flash drive?

Yes, the ND-861 features a USB port on the front panel that supports playback of MP4, AVI, MKV, and other common video formats.

What video outputs are available?

The player has Composite (yellow RCA) and Component (red/green/blue RCA) outputs for standard and high-definition TVs. Use the appropriate cables for your TV.

Why is the picture distorted or in black and white?

Check the TV system setting (NTSC/PAL) in the setup menu. Ensure video cables are connected correctly and the TV input matches the output used.

How do I reset the player to factory settings?

With no disc inside, open the disc tray. Press STOP on the remote, then press 0 (zero) three times. The player will reset to default settings.

My remote control lost its code pairing. How do I sync it?

If the remote uses IR, there is no pairing needed; just ensure batteries work. For Bluetooth models (if applicable), press and hold the Pair button on the remote and player.

USER MANUAL ND-861 Naxa

Black Naxa DVD player with control buttons and drive dials (no visible text beyond branding)

INSTRUCTION MANUAL

PLEASE READ CAREFULLY BEFORE OPERATING

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

• THIS DIGITAL VIDEO DISC PLAYER EMPLOYS A LASER SYSTEM.
  • TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
  • SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE PROVIDER.
  • MISUSE OF CONTROLS, ADJUSTMENTS TO THE UNIT OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
  • TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. VISIBLE LASER RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED.
  • DO NOT STARE INTO BEAM.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

SURGE PROTECTORS:

It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER: Invisible and hazardous laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

The FCC Wants You to Know

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for additional suggestions.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.

WARNING:

USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD

This unit has a long AC cord or other long cord that can easily be tripped on or pulled on, causing injury, Please make sure it is arranged so it will not drape over a tabletop, etc. where it can be pulled on by children or tripped over accidentally.

EXERCISE CAUTION AS UNIT HAS SHARP POINTS.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Important Safety Instructions

Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.

1) Read these instructions.

All the safety and operating instructions should be read before the product is operated.

2) Keep these instructions.

The safety and operating instructions should be retained for future reference.

3) Heed all warnings.

All warnings on the product and in the operating instructions should be adhered to.

4) Follow all instructions.

All operating and use instructions should be followed.

5) Do not use this apparatus near water.

Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.

6) Clean only with dry cloth.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a dry cloth for cleaning.

7) Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

Slots and openings in the cabinet and in the back or bottom are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat source. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

An appliance and cart combination should be moved with care. Quick stop, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture or does not operate normally, or has been dropped.

15) Power source

This product should be operated only from the type of power source indicated on the marking label.

If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.

For products intended to operate from battery power, or other source, refer to the operation instructions.

16) Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Important Safety Instructions

17) Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

18) Object and liquid entry

Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.

19) Outdoor antenna grounding

If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code ANSI/NFPA 70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge product, size of grounding conductors, location of antenna-discharge product, connection to grounding electrodes and requirements for the grounding electrodes.

20) Service

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

21) Replacement parts

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original parts. Unauthorized substitutions may result in fire or electric shock or other hazards.

22) Safety check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

23) Wall or ceiling mounting

The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

24) Damage requiring service

Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions.

a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an adjustment of other controls may result in damage and will require extensive work by a qualified technician to restore the product to its normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) When the product exhibits a distinct change in performance-this indicates a need for service.

25) Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTE:

Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way such as the following: the power-supply cordor plug has been damaged, liquid has been spilled into unit, the unit has been exposed to rain or moisture, the unit has been dropped or the unit does not operate normally.

Important Safety Instructions

NOTES ON HANDLING:

• When shipping the DVD player, always use the original shipping carton and packing materials. For maximum protection, repack the unit as it was originally packed at the factory.
• Do not use volatile liquids, such as insect spray, near the DVD player. Do not leave rubber or plastic products in contact with the DVD player for a long time. They will leave marks on the finish.
• The top and rear panels of the DVD player may become warm after a long period of use. This is normal and not a malfunction.
• When the DVD player is not in use, be sure to remove the disc and turn off the power.

NOTES ON LOCATING THE DVD PLAYER:

- When you place this DVD player near a TV, radio or VCR, the playback picture may become poor and the sound may be distorted. In this case, move the DVD player away from the TV, radio or VCR.

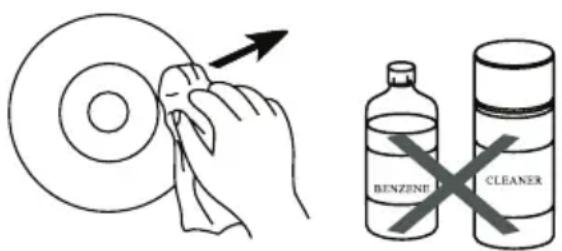

NOTES ON CLEANING:

Use a soft, dry cloth for cleaning

• For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzene, as this may damage the surface of the DVD player.
• If you use a chemical-saturated cloth to clean the unit, follow that product's instructions.

Warning:

Cleaning and adjustment of lenses and /or other components of playback mechanism should be performed by a qualified service technician.

NOTES ON MOISTURE CONDENSATION:

Moisture condensation damages the DVD player. Please read the following carefully.

- Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD player.

Moisture condensation occurs during the following cases:

• When you bring the DVD player directly from a cold place to a warm place.
• When you use the DVD player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit.
• In summer, when you use the DVD player in a hot and humid place just after you moved the unit from an air conditioned room.
• When you use the DVD player in a humid place.

Do not use the DVD player where moisture condensation may occur.

- If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD player to the wall outlet, turn on the DVD player and leave it ON for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. Keep the DVD player connected to the wall outlet and moisture condensation will seldom occur.

About Discs

THE REGION NUMBER FOR THIS DVD PLAYER IS:

See below for information regarding region numbers.

PLAYABLE DISCS:

The following discs can be played back on this DVD player:

DISC TYPES:

DVD

Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. Some features of this DVD player will not operate with some DVD discs as they are preset. If a function you selected does not run as desired, refer to the manual accompanying the DVD disc.

Compatible with DVD/DVD±R/DVD±RW/Kodak Picture JPEG/MP4.

AUDIO CD:

Data on an audio CD is divided into sections called tracks, each of which is given a track number.

Compatible with CD/CD-R/CDRW/MP3.

IMPORTANT:

It is important that you read the manual that accompanies the DVD disc, as there are features that are on the DVD player that cannot be used with certain DVDs. There are also extra features on the DVD disc that are different for each DVD disc, so they are not explained in this owner's manual.

This player conforms to the NTSC and PAL color systems. However, if you are in the USA, Canada or Mexico, leave this setting on NTSC. If incorrectly set to PAL, the TV picture may roll vertically. In this case, set the TV system to NTSC accord ngly.i

Notes on Copyright:

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public and rent copyrighted material without permission. DVD video discs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Region management information:

This DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc. You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes. When you try to play back an unauthorized disc, Wrong Region appears on the TV screen.

Product Overview

Front View

1 Power On/Standby Button
2 Disc Tray
3 Remote Control Receiver
4 Power Indicator
5 Open/Close Button

6 Play/Pause Button
7 Stop Button
8 Previous Button
9 Next Button

Rear View

1 Power Cable
2 HDMI Output jack
3 Y/PbCb/PrCr Output jack
4 Left Audio Output jack

5 Right Audio Output jack
6 Composite Video Output jack
7 Digital Coxial Audio Output jack

Remote Control

1. (▲) OPEN/CLOSE BUTTON

Opens and closes the disc tray.

2. OSD BUTTON

To display the current playback information.

3. 0-9 BUTTONS

To locate a title / chapter / track / specific time

10+ Button To select and switch to a track that is higher than 10.

4. TITLE BUTTON

Go to title menu.

5. MENU BUTTON

To display the DVD root menu.

6. SUBTITLE BUTTON

To select one of the subtitle languages programs on a DVD (if available).

7. DIRECTION BUTTONS

Press to navigate and make selection for on-screen menus.

ENTER Button

To confirm the selection or current operation.

1. REV / FWD To perform fast reverse / fast forward playback.

9. PLAY/PAUSE BUTTON(▶II)

To start and pause the playback.

10. VOL +/- BUTTONS

T o increase and decrease volume.

11. BUTTON (■) STOP

To stop the playback.

12. VIDEO BUTTON

To change the video output mode.

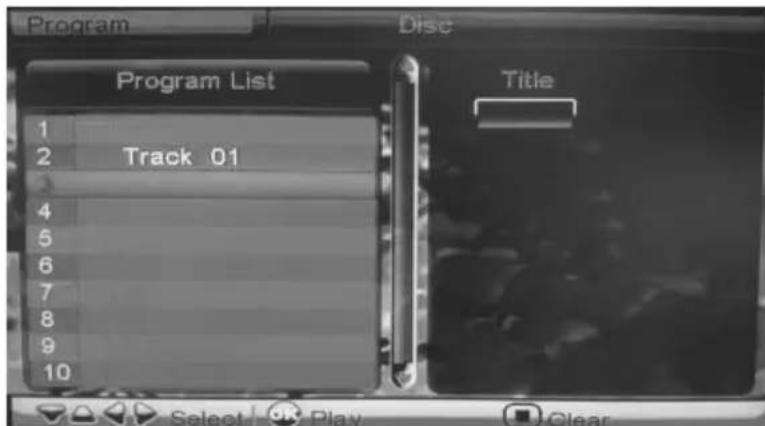

13. PROGRAM BUTTON

To play the contents of the disc in the order you want by programming the track to be played.

14. STEP BUTTON

To play or move the playback forward frame by frame.

15. N/P BUTTON

Switch to PAL/NTSC/AUTO TV system.

16. RETURN BUTTON

Return to previous screen.

Remote Control

17. POWER BUTTON

Turns the power on or restores the DVD player to standby mode.

18. GOTO BUTTON

To skip directly to a specific time / title / chapter / track on a DVD.

19. LANGUAGE BUTTON

Display the audio information or switch the channel.

20. SETUP BUTTON

Press to access or exit the SETUP menu.

21. ANGLE BUTTON

To switch between multiple camera angles programmed on a DVD (if available).

22. V / NEXT BUTTONS ◀◀PREI

Press to skip to the previous/next track, title, or chapter.

23. MUTE BUTTON

Press to turn off/r restore sound output from the player.

24. ZOOM BUTTON

To enlarge a picture on the screen.

25. A-B BUTTON

To repeat the playback from point A to point B on a disc.

26. WIDE BUTTON

To switch the aspect ratio.

27. REPEAT BUTTON

To toggle between different repeat modes.

28. SLOW BUTTON

Press to toggle between slow motion playback speeds.

Operating the Remote Control

Battery Installation

1. Press the tabs on the back door and lift off.
2. Insert two AAA size batteries into the battery compartment as shown in the illustration. Match the (+) and (−) polarity symbol markings inside the battery compartment.
3. Replace the battery door.

BATTERY PRECAUTIONS:

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
  • Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will not function. Replace both batteries at the same time with new ones. Do not install new batteries with used ones and do not mix different types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local regulations.

HANDLING THE REMOTE CONTROL:

• Take care of your fingernails when you press and hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the batteries from the remote control before storing it for a long period of time. This will reduce the chance of corrosion or battery leakage which could result in physical injury and/or property damage including fire.

Remote Control Operation Range

Point the remote control at the DVD player no more than 5 metres from the remote control sensor and within 60° of the front of the DVD player. The operating distance may vary depending on the brightness of the room.

Connections

When connecting any external AV device or TV, do not connect the power cable to the mains power socket until all other connections are complete.

Method 1:

Connecting to a Stereo System With a Coaxial Cable

Method 2:

Connecting to a TV With an HDMI Cable

Connections

Method 3:

Connecting to a TV with a Component Cable

Component Video Cable (Y,Pb/Cb,Pr/Cr)(not included)

Connections

Method 4:

Connecting to a TV with an AV Cable

Method 5:

Connecting to a Stereo System and TV with an AV Cable

Operating System

Playback of a DVD

Unless otherwise stated, all operations described are based on Remote Control use.

1. Insert the AC plug from the DVD player to a conveniently located AC outlet.
2. Connect the DVD player to the external TV Turn on the TV and set it to the input source that the DVD player is connected to.
3. Press the ⏻ POWER button to turn the player on.
4. Press the ▲ OPEN/CLOSE button to open the disc tray. Place the disc in the center of tray with the label side face up. Close the tray by pressing the▲ OPEN/CLOSE button. The unit will start playback automatically.
5. Press the ■ STOP button to stop playback. The player will remember the point where disc was stopped. If you press the ▶ button again, playback will start from this point. To stop playback completely or to start again from the beginning, press the ■ STOP button twice.

Note: If the player will not be used for a long period of time, turn off the player and unplug the AC Cord from the wall outlet.

SEARCH (FWD, REV)

During playback, press either the ▶ button or the ◀ to move the DVD forward backward at double (x2) speed to locate a specific section. Repeatedly prethese buttons and the speed will increase to x4, x8, x16, x32, then resume normal playback. Resume normal playback by pressing the ▶ II button on the remote control or the ▶ II button on the unit.

Note: This function is not available on all discs.

SKIP (NEXT, PREV)

While a disc is playing, you can skip forward or backward a chapter or track at any time by pressing the ◀◀ PREV or ▶▶ NEXT button.

LANGUAGE:

Press the LANGUAGE button repeatedly to selected available language/sound channels. Note: This function is not available on all discs.

SUBTITLE:

Press the SUBTITLE button repeatedly to select the subtitle language or turn the subtitle menu off. Note: This function is not available on all discs.

MENU:

Press the MENU button; the menu of the current DVD will appear on the screen. Press the ▲, ▼, ◀, ▶ direction buttons to select the desired option, and then press the ENTER button to confirm the selection. Note: This function is not available on all discs.

TITLE

Press the TITLE button; the title menu of the current DVD will appear on the screen. Use the ▲, ▼, ◀, ▶ direction buttons to select the desired option, then press the ENTER button to confirm the selection. Note: This function is not available on all discs.

Operating System

OSD (ON SCREEN DISPLAY)

During playback, press the OSD button repeatedly to read the information of playback status.

ZOOM

During movie playback, press the ZOOM button repeatedly to zoom in the picture by ZOOM X2, ZOOM X4, then ZOOM X1.

ANGLE

If the multi-angle icon appears on the screen, it means more than one scene is available on the current DVD. Press the ANGLE button repeatedly to select the desired scenes. Note: This function is not available on all discs.

MUTE

Press the MUTE button to temporarily disable sound from the DVD player. Press it again to restore the sound.

VIDEO

Press the VIDEO button repeatedly to set video output modes.

STEP

During movie playback, press the STEP button repeatedly to play the movie frame by frame. Resume normal playback by pressing the ▶II PLAY/PAUSE button on the remote control or ▶II play/pause button on the unit.

SLOW

During movie playback, press the SLOW button to slow down by x1/2, 1/4, 1/8, 1/16, 1/32.

N/P

Press the N/P button to set the TV system to NTSC/PAL/AUTO accordingly.

REPEAT

During movie playing, press REPEAT button to repeat chapter /title/all.

A-B Repeat

Repeat a section between points A and B within a Title / Chapter / Track.

1. Press the A-B button to choose a starting point A.
2. Press the A-B button again to set an ending point B and complete the setting. The selected section will be repeated from point A to B.
3. Press the A-B button a third time to cancel and exit.

WIDE

During movie playback, press the WIDE button to switch aspect ratio to 4:3PS, 4:3LB or 16:9.

GOTO

1. During playback, press the GOTO button to search the title / chapter in the disc.
2. Press the button again to display the search menu.
3. Press the ◀▶ buttons repeatedly to select the select the title / chapter.
4. Press the 0-9, 10+ buttons to select title / chapter.

NOTE: DVD Disc can not be programmed. NOTE: DVD Disc can not be prograr

Programming

1. During VCD Disc playing, press the MENU Button on remote control repeatedly until "PCB Off" appears on screen.

2. Press the "PROG" Button to view the Program List screen (see below).

1. Use the Direction arrow buttons to select a position in the Program List (e.g., 2), then press the RIGHT arrow to move to the "Title" column on the right. Select a track (e.g., 01) and press ENTER to confirm. (Press ■ STOP on the remote to clear any mistakes when programming.)

1. Track 01 will appear on Program List in position 2.

1. After programming, press the "OK" Button to play the programmed tracks as desired.

System Setup

Press the SETUP button; the setting menu will appear on the screen (see below). Use the Direction buttons to select and highlight the function you need to adjust. Press the ENTER button to confirm the selection.

When you are done, press the SETUP button to save your changes and exit.

Language Setup Page: Language Setup Page: Language Setup Page: If OSD (On Screen Display Language), Menu, Audio or Subtitle is selected, use the direction and ENTER buttons to set the desired language.

Photo Setting Page: Photo Setting Page: Photo Setting Page:

\~Interval Time: Select a time to set the interval time for photo playing.
\~Transition Effect: change the photo slideshow effect (Mask, Dissolve, Fade in, Fade out, or Random).
\~Show Type: Change the display mode to Fit Screen (fits the photo to the screen) or Full Screen (stretches the photo to fill the whole screen).
\~Color Tone: Apply a color filter. Normal (none), Black & White, or Classic.
\~Browse: Change the way you browse the photos on the disc. Thumbnail (small picture preview) or File Manage (file names).

System Setup

Display Setup Page: Display Setup Page: Display Setup Page: Display Setup Page:

\~If TV Standard is selected, use the direction and ENTER buttons to set to PAL, AUTO or NTSC to match the color system of the connected TV. (Note: Select AUTO or NTSC in the US, Canada, and Mexico).
\~If Display Type is selected, use the direction and ENTER buttons to set the aspect ratio to 4:3PS (pan & scan), 4:3LB (letterboxed), or 16:9.
\~If Video Output is selected, use the direction and ENTER buttons to enable YUV P-SCAN (480p progressive scan) /YUV(interlaced scan) when the DVD player is using the component video connection (Y, Pb/Cb, Pr/Cr).
\~If HDMI Resolution is selected, use the direction and ENTER buttons to adjust the resolution output to match the native resolution of your TV.
\~If Sharpness is selected, use the direction and ENTER buttons to adjust image sharpness.
\~If Contrast is selected, use the direction and ENTER buttons to adjust the contrast level.
\~If Brightness is selected, use the direction and ENTER buttons to adjust to brightness level.

System Setup

Audio Setup Page:Audio Setup Page:Audio Setup Page:

1. If Digital Out is selected, use the direction and ENTER buttons to set the output of the coaxial digital audio connector. Use SPIDF/PCM when connected to a TV or other device that cannot decode digital audio. Use SPIDF/RAW when connecting to a stereo system or other device that can decode digital audio.
2. Analog Out default setting is 2 channel (i.e., stereo).
3. If Downmix is selected, use the direction and ENTER buttons to set how the player processes DVDs encoded with Dolby 5.1 surround sound for simpler 2-speaker environments.

--Lo/Ro: The rear left/right channels are kept separate. The rear left channel will play on the left speaker; the rear right channel will play on the right speaker.
--Lt/Rt: The rear left/right channels are mixed together. The mixed output will play on the left and right speakers.
--Auto: the speaker will play automatically without limitation.

Custom Setup Page: Custom Setup Page: Custom Setup Page:

1. Set the screen saver to On or Off.

2. Angle Mark: when playing a multi-angle disc, set angle mark to on, the multi-angle effect will be shown on screen.

3. If Default is selected, use the direction and ENTER buttons to reset all options to their default setting or press the SETUP button to exit.

Care and Maintenance

CARING FOR DISCS

Treat the disc carefully. Handle the disc only by its edges.

Never allow your fingers to contact the shiny, unprinted side of the disc.

Line drawing of two hands holding a circular CD or DVD disc (no text or symbols)

• Do not attach adhesive tape, stickers, etc. to the disc label.
- Clean the disc periodically with a soft, lint-free,dry cloth, Never use detergents or abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.
- If a disc skips or gets stuck on a section of the disc, it is probably dirty or damaged(scratched).
- When cleaning the disc, wipe in straight lines from the center of the disc to the outer edge of the disc. Never wipe in circular motions.

• Discs should be stored in their cases after each use to avoid damage.
- Do not expose discs to direct sunlight, high temperatures or dust, etc. Prolonged exposure or extreme temperatures can warp the disc.
- Do not stick or write anything on either side of the disc. Sharp writing instruments, or the ink, may damage the surface.

CLEANING THE UNIT

• To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning.
- The finish on your unit may be cleaned with a dust cloth and cared for as any other furniture. Use caution when cleaning and wiping the plastic parts.
• Mild soap and a damp cloth may be used on the front panel.

Troubleshooting Guide

CHECK THE FOLLOWING SYMPTOMS BEFORE REQUESTING SERVICE:

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
No power. AC cord is unplugged. Plug AC cord into an AC outlet.
Power is on, but unit is not functioning properly.	Condensation has formed. Unplug the unit and wait about 1-2 hours for unit to dry out.
	Wrong type of disc, or the disc is corrupt.	Try other discs.
	The disc is dirty or inserted incorrectly.	Clean disc and re-insert with label side up.
No picture and/or no sound.	The connection cables are not installed correctly.	Re-install the cables.
	Settings on the video output of the player are incorrect.	Press the VIDEO button repeatedly until the correct picture displays on the TV.
	The connected TV may be turned off.	Turn the power strip on (if used). Turn the TV on.
Playback picture is rolling	Settings are wrong in the color system of the player	Press the P/N button on the remote control repeatedly until the correct picture displays on the TV.
Poor picture quality.	The disc is dirty or damaged.	Clean the disc as best you can and try again.
The remote control is not working.	The batteries are weak or dead. Replace with new batteries.
	The batteries are not installed properly.	Install the batteries following the polarity markings shown inside the battery compartment.
	The remote is not aimed at the sensor. Lower the lights in the room and aim the remote at sensor.
	Distance is too far. Operate within 5 m (16 feet).
	An obstacle is in the path of the beam. Move obstacle.
The unit does not start playback.	Rating level set to block the TV.	Remove the lock with the password.
	DVD not inserted or DVD inserted upside down.	Insert DVD correctly.
	A non-playback disc is inserted. Try another CD/DVD disc.
	The disc is not placed correctly in the guide.	Adjust the disc until it is seated firmly in the guide of the disc tray.
	The disc is dirty or damaged.	Clean the disc as best you can and try again.
Some functions do not work.	Some features and functions are not available on all discs.	Function may not be available on the disc. Try another disc.
Selected language is not audible, or is not showing in the subtitles.	If the Audio or Subtitle Language selection does not appear on the disc, then the initial setting will not be seen or heard.	Function is not available for that disc. Try another disc.
Subtitles are not working properly.	Subtitles appear only when the disc contains them.	Function is not available for that disc. Try another disc.
	Subtitles are not turned on.	Turn the subtitles on.
Angle cannot be changed.	Angles may not be recorded on the disc (see jacket/case), or they may only be recorded on a certain section of the disc.	Try another disc. The multi-angle may not be available on the whole disc. Wait until the multi-angle icon appears on the screen then press the ANGLE button on the remote control to change the angle on screen.

Specifications

Power Source 110-240V\~50/60Hz

Power Consumption 10 W

Signal System....NTSC / PAL

Operating Temperature ....+5°C to +35°C

Operating Humidity Range ....5% to 90% (no condensation)

DISCS PLAYED:

DVD-VIDEO DISC

12cm single-sided, single layer

12cm single-sided, dual layer

12cm double-sided, single layer

8cm single-sided, single layer

8cm single-sided, dual layer

8cm double-sided, single layer

COMPACT DISC (VIDEO CD)

12 cm disc

8 cm disc

Video Output Level 1 Vp-p

Audio Output Level 2 Vrms (1KHz, 0 dB)

AUDIO SIGNAL OUTPUT CHARACTERISTICS:

Frequency Responses:

DVD (Linear Audio)....20Hz \~ 20KHz (48KHz / 96KHz sampling)

CD Audio 20Hz \~ 20KHz

S/N Ratio 70 dB

PICKUP:

Wavelength 655nm

Laser Power ....Classse 1

Specifications are subject to change without notice.

Support

If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.naxa.com to get up to the minute news, alerts, and documentation for your device.

For additional assistance, please contact Naxa Technical Support.

DISCS PLAYED:

Naxa Electronics

Technical Support

2320 East 49th St.

Vernon, CA 90058

http://www.naxa.com/naxa_support/
