FR 01 Dear Customer, EN 16 You have just acquired a THOMSON hood and we would like to thank you. DE 30 We have invested all our dedication and know-how in this appliance so that it would best meet your needs. With innovation and performance, we designed it to be always easy to use. In the THOMSON product range, you will also find a wide choice of ovens, microwaves, cooking hobs, cookers, dishwashers, washing machines, driers, fridges and freezers, that you can coordinate with your new THOMSON hood Visit our website where you will find all of our products, as well as useful and complementary information. THOMSON As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Warning: Before installing and using your appliance, please carefully

read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

2 / INSTALLING YOUR APPLIANCE

3 / USING YOUR APPLIANCE

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the grease filters __________________________________
• Changing the charcoal filters ________________________________
• Cleaning and caring of the casing ____________________________
• Changing the light bulb _____________________________________
• How to take off the glass ___________________________________

1 / NOTICES TO THE USER

combustible fuel burning stove (wood, coal, etc.). - Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety). - With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress. - In order to easily locate the reference information for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relations" page. (This page also explains to you where to find this information on your appliance.) -Carefully follow the instructions contained in this user guide. The manufacturer declines all responsibility for any problems, damage or fire caused by the appliance if failing to observe the instructions contained in this user guide. Attention Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

• SAFETY RECOMMENDATIONS - This oven was designed for use by private persons in their homes. - This appliance is to be used by adults. Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel. - When you receive the appliance, unpack or have it unpacked immediately. Give it an over-all general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form. - Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed. - Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety. - Repairs must only be carried out by an approved specialist. - Always unplug the hood before cleaning it or performing other maintenance acts. - Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases. - You should never "flambé" dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance). - When frying food under the appliance, you must carefully monitor the preparation at all times. Oils and grease brought to very high temperatures can catch fire. - Respect the recommended frequency of cleanings and filter replacements. The accumulation of grease deposits may cause a fire. - The hood should never be used over a Warning In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "filtering" version of the hood should be installed. Do not use the hood without grease filters. Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

• ENVIRONMENTAL PROTECTION - This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. - Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. - We thank you doing your part to protect the environment. Warning Installation should only be performed by installers and qualified technicians Warning Remove the protective film from the grease filter before use.

2 / INSTALLING YOUR APPLIANCE

- The appliance must be unplugged during installation or when any repairs or maintenance work is being performed. - Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood. - If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician. - If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system. - Under no circumstances should the exhaust duct empty into the attic. - Install the hood at safe distance of at least 65 cm from an cooking hob. This appliance can be installed in either duction version or filtering version. The appliance is supplied in the filtering version, the charcoal filter is installed (Ref.AH4010E1).

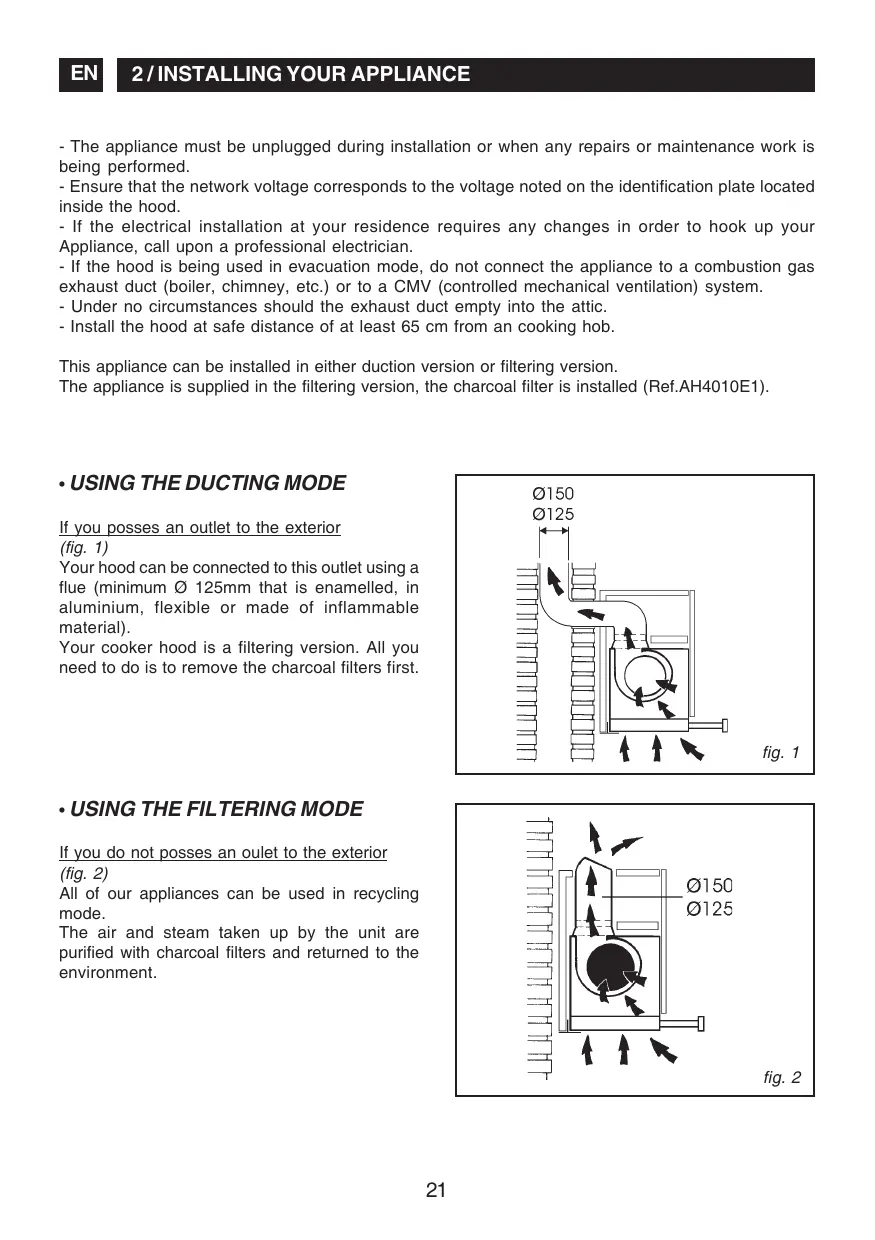

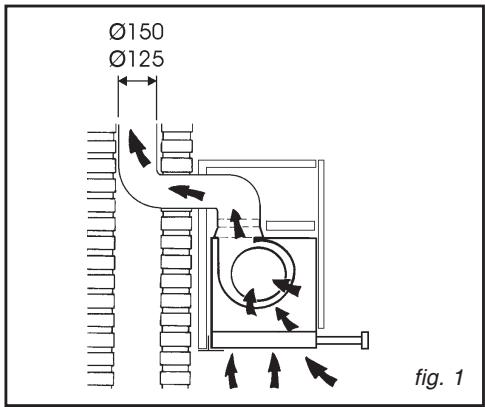

• USING THE DUCTING MODE If you posses an outlet to the exterior (fig. 1) Your hood can be connected to this outlet using a flue (minimum Ø 125mm that is enamelled, in aluminium, flexible or made of inflammable material). Your cooker hood is a filtering version. All you need to do is to remove the charcoal filters first. fig. 1

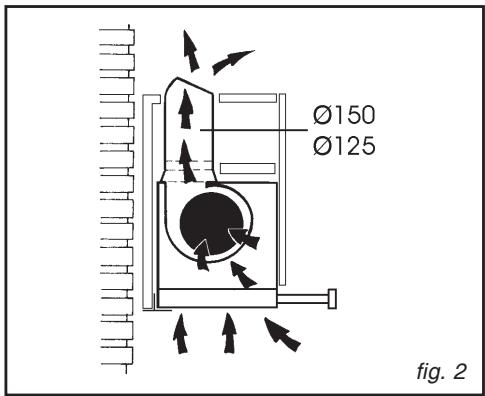

• USING THE FILTERING MODE If you do not posses an oulet to the exterior (fig. 2) All of our appliances can be used in recycling mode. The air and steam taken up by the unit are purified with charcoal filters and returned to the environment. fig. 2

2 / INSTALLING YOUR APPLIANCE

• ELECTRICAL CONNECTIONS During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed. The electrical connections are made before the appliance is installed in its housing. Ensure that - the electrical installation has sufficient voltage, - the electrical wires are in good condition, - the diameter of the wires complies with the installation requirements. Warning This appliance must be grounded. We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead. In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm, such separating device ensuring disconnection from the main must be included in the fixed installation. This appliance is delivered with a H05VVF power cord that has three-0.75mm2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 230-240V single phase current) via a CEI60083 standardised socket that should remain accessible after installation, in keeping with installation guidelines. If the power cable is damaged, call the after-sales service department in order to avoid danger. Warning If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician. Warning If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

2 / INSTALLING YOUR APPLIANCE

• ASSEMBLING THE HOOD Warning The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

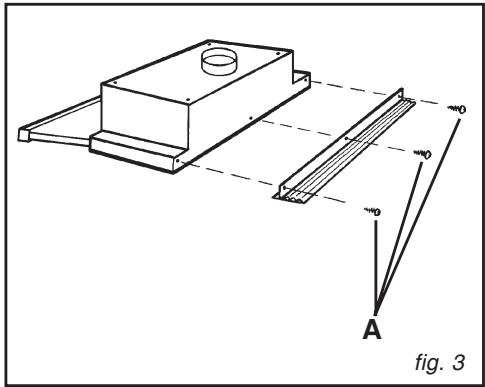

fig. 3 The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 650 mm. If the instructions for installation for the hob specify a greater distance, this has to be taken into account. IMPORTANT: So as not to damage your product, during installation USE ONLY THE SCREWS PROVIDED. Make sure these are used as shown in the following instructions. To compensate possible depth voids between the appliance and the wall, a plastic SPACING BAR to be fixed at the back of the appliance by means of the three screws A is included (fig. 3). The 3 screws A to be used are contained in the accessory bag attached to the plastic spacing bar. Cut the spacing bar according to the distance to be adjusted. fig. 4 Install the flange in the device air outlet and press slightly (fig.4).

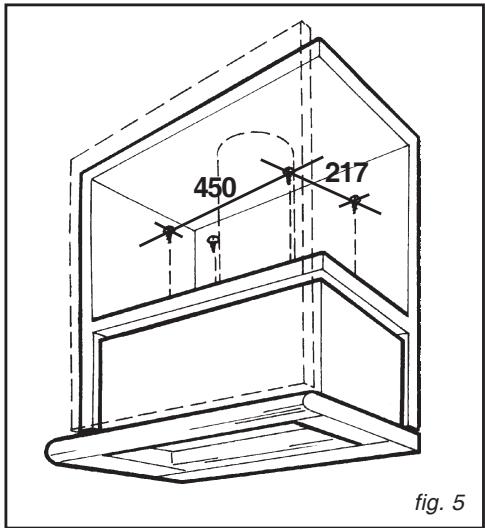

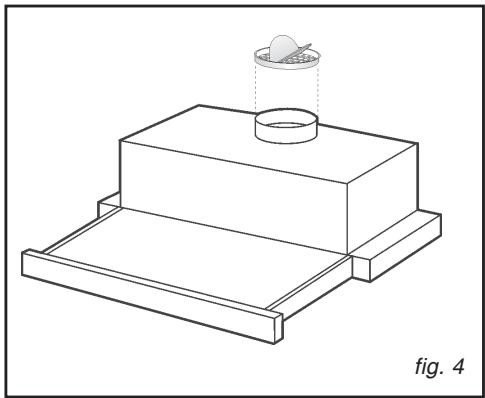

The following operations are essential for assembly: – Install the wiring system – Prepare the air venting hole if your appliance is to be installed in the ducting mode. Fixation (fig. 5): Make the 4 necessary fixing holes in the bottom of the cupboard and cut the air venting hole. Move the hood close to the bottom of the wall unit and then connect the two units by means of the 4 self-tapping screws supplied together with the appliance.

2 / INSTALLING YOUR APPLIANCE

• Ducting mode Connect the flange of the hood with the air venting hole made previously in the wall/ceiling by means of an adequate tube. Make the electrical connections. Warning This is the filtering version of your cooker hood; you must first remove the charcoal filters. Tip For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using out-door evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room. Non-return valve In the case of installation with air evacuation to the outside, fitting the non-return valve prevents the wind from entering and the air from returning. Caution: Before fastening the air exhaust pipe to the motor, check that the non-return valve on the air vent can move freely.

• Filtering mode Connect an adequate pipe to the connecting flange of the appliance so that it conveys the air up to the top of the pensile cupboard (pipe is not provided). Make the electrical connections.

3 / USING YOUR APPLIANCE

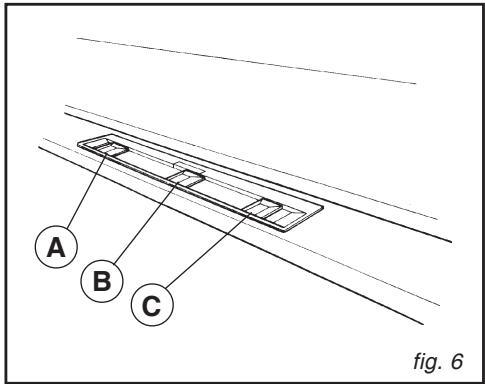

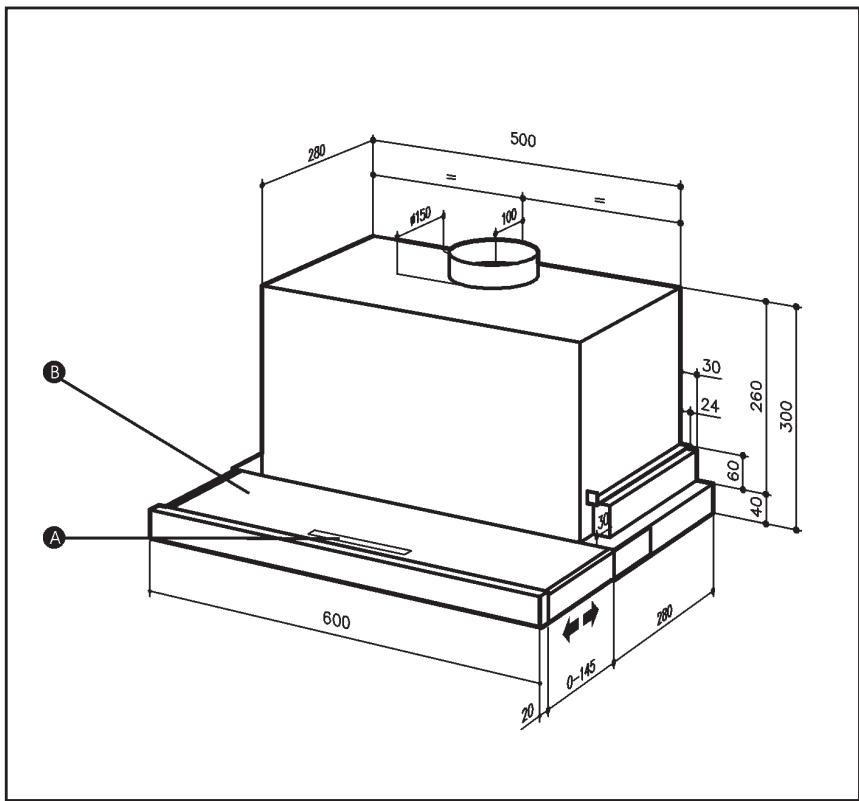

• DESCRIPTION OF CONTROL PANEL MOTOR - Switch A. When set on position "1" the motor will be switched on and off automatically by opening and closing the trolley. When set on position "0" the motor will remain off at all times. SPEED - Switch B. Allows the operating speed of the motor to be regulated by means of an electronic speed variator.

LIGHT - Switch C. When light switch is on "AUT" position the light will be turned on and off automatically by opening and closing the trolley. When set to "0" position, the light will remain off, regardless of position of trolley. On "MAN" position the light will be switched on regardless of position of trolley.

fig. 6 Tip This guide to installation and use is valid for several models. Minor differences in details and fittings may emerge between your appliance and the descriptions provided.

4 / CARING FOR AND CLEANING YOUR APPLIANCE

Warning Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability. Warning Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

• CLEANING THE GREASE FILTERS Pay special attention to the grease filters, that must be cleaned at regular intervals. Filter cleaning frequency: exactly how often depends on use (at least once every other month). Wash the filters with a commercial household cleanser, then rinse fully and dry. They may be cleaned in a dishwasher making sure that the filter does not come into contact with dirty dishes or silver tableware. fig. 7

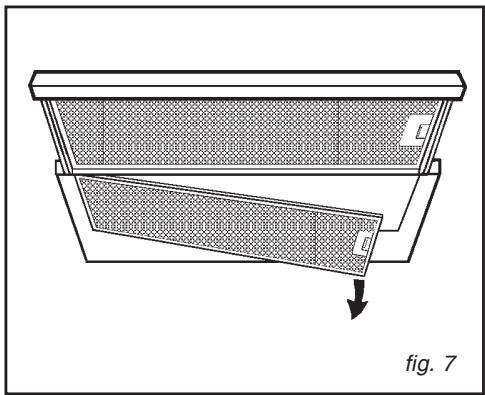

• Removing the grease filters (fig.7) At the handle, push the stop inwards and pull the filter downwards; open the trolley and take off the other filter doing the same.
• CHANGING THE CHARCOAL FILTERS If using the hood in the filtering version, the charcoal filters will periodically have to be replaced. Frequency of filter replacement: The charcoal filters must be replaced according to use: on the average once every 6 months.

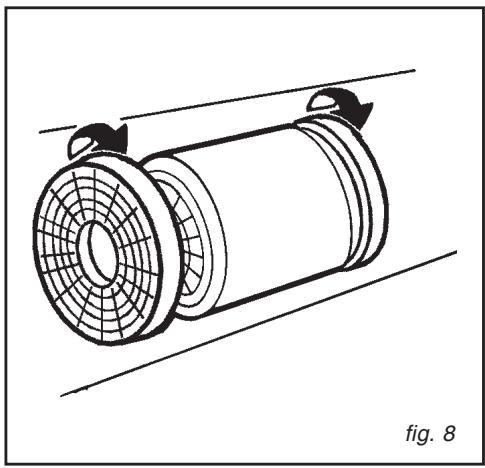

• Replacing the charcoal filters (fig. 8). At the handle, push the stop inwards and pull the filter downwards (fig.7); open the trolley and take off the other filter doing the same. Remove the filters by rotating them and fit them back on by rotating them in the opposite direction (fig.8). Charcoal filter ref. no. AH4010E1 fig. 8

4 / CARING FOR AND CLEANING YOUR APPLIANCE

CLEANING AND CARING OF THE

Avoid products containing abrasives when cleaning the casing.

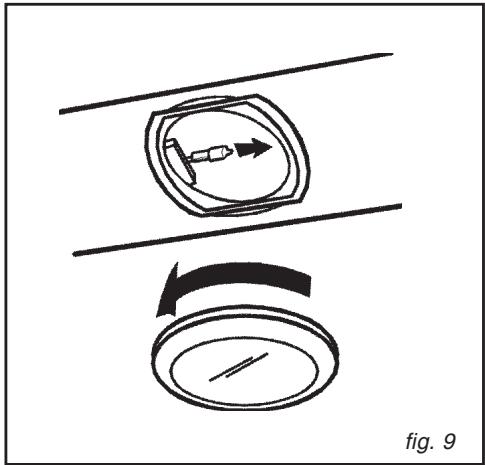

• CHANGING THE LIGHT BULB Warning Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch. fig. 9 If the halogen lamps need changing, slacken the ring nut in an anticlockwise direction and remove the bulb itself (fig.9). Replace with a bulb of the same type. CAUTION: Do not handle glass bulb with bare hands. In case the new halogen bulb does not light up once it is on, disconnect the apparatus for a few seconds.

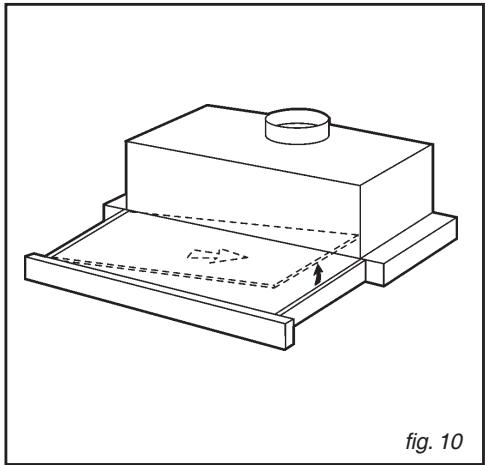

• HOW TO TAKE OFF THE GLASS Warning Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch. fig. 10 To take off the glass, open the trolley pulling it frontwards; pull the glass towards the left (or the right) and lift one side upwards as it is indicated in the figure 10.

4 / CARING FOR AND CLEANING YOUR APPLIANCE

Warning Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

• MAINTAINING YOUR APPLIANCE MAINTENANCE... Top surface accessoires Grease filter Charcoal filter and WHAT TO DO ? PRODUCTS/ACCESSORIES TO USE Never use metal scouring pads, abrasive products or excessively stiff brushes. To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth. This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a nonabrasive cream, then rinse with clean water. Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. (Do not alow them touch dirty dishes or silverware). This filter traps odours and must be changed at least once every 6 months depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

5 / TROUBLESHOOTING SYMPTOMS SOLUTIONS Ensure that: The hood working...

• The power is not cut off.
• A speed has been selected. Ensure that: The hood is not operating effectively...

• The selected motor speed is sufficient for the quantity of smoke or vapours to be cleared.
• The kitchen is sufficiently ventilated to allow une for fresh air intake.
• The charcoal filter is not worn (hood operating in filtering mode). Ensure that: The hood working stopped

• The power is not cut off.
• The single-pole cut-off device was not activated.

Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer’s nameplate attached to your equipment.
