Product Type	7" TFT/LCD Video Quad Monitor
Screen Size	7 inches
Display Type	TFT LCD
Resolution	480RGB x 234 pixels
Video System	PAL/NTSC
Input Voltage	12V DC (red positive, black ground)
Power Consumption	6W max
Control Method	Touch button and remote controller
Purpose	Monitor and vehicle entertainment
Operating Temperature	-20°C to +65°C
Storage Temperature	-20°C to +65°C
Battery Type (Remote)	Lithium battery
Battery Life (Remote)	Approximately 1 year under normal conditions
Video Inputs	4 composite video inputs (yellow RCA)
Reverse Lamp Input	Yes (blue wire)
Split Screen Modes	Quad split, switchable via Mode button
Package Contents	Host, remote controller, user manual, power cable, optional small bracket
Cleaning	Use soft wet cloth; do not use solvents
Safety	Do not watch while driving; keep from moisture, heat, and direct sunlight
Installation	Professional installation recommended

Frequently Asked Questions - PLHRQD7B Pyle

How do I replace the remote controller battery?

Press down the card bolt and pull out the battery card. Replace the lithium battery with anode (+) upward, then reinsert the battery card. Use a dry cloth to clean contacts. Do not charge or dispose of in fire.

What should I do if the monitor gets wet or dewy?

If dew appears inside, wait a moment for the moisture to evaporate. The device will return to normal. Avoid exposing the monitor to moisture, dirt, or extreme temperature changes.

How do I connect video sources to the monitor?

Use the four yellow RCA video inputs (Video 1 to 4). Connect the red wire to +12V, black to ground, and blue wire for reverse lamp signal. Refer to the wiring diagram in the manual.

Why is the remote controller not working?

Ensure the remote is within range and not exposed to direct sunlight, which can interfere with the signal. Point the remote toward the front panel sensor. Replace the battery if needed.

Can I leave the monitor in the car during summer?

Avoid exposing the monitor or remote to direct sunlight or high temperatures, as it may cause deformation. Park in shade or store the remote in a toolbox. Operating range is -20°C to +65°C.

How do I clean the LCD screen?

Use a slightly wet soft cloth to gently wipe the screen. Do not use gasoline, thinner, or anti-static sprays, as they may damage the LCD.

What should I do if the picture is unclear?

If the car is parked in extreme cold or heat, the video may appear unclear until the internal temperature normalizes. This is normal and not a fault. Also check connections and adjust brightness/contrast.

Is it normal to see a static blue or red spot on the screen?

Yes, this is called a light spot and is common in all LCDs. Over 99.99% of the display is functional, and these tiny flaws do not affect visual effects.

Do I need professional installation?

Yes, it is strongly recommended to have a qualified technician install the monitor to avoid improper wiring, battery leakage, or short circuits. Check connections and fuses if the monitor does not work.

What are the split screen modes?

The monitor supports quad split image display. Press the Mode button to switch between split views. Use the button labeled 'Four video switch in each split image' to change which camera is shown.

USER MANUAL PLHRQD7B Pyle

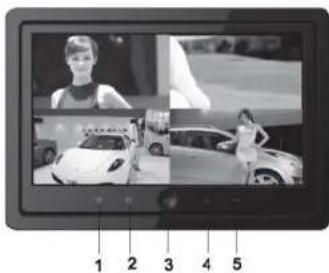

XI. Panel button function

1. Mode: Split image switch
   2.TFT MENU
2. Power: ON/OFF
3. Decrease brightness, contrast, color, vol, etc
4. Increase brightness, contrast, color, vol, etc

XII.PACKAGING LIST

SN	NAMES	QUANTITY
1	Host	1
2	Remote controller	1
3	User's Manual	1
4	Power Cable	1
5	Small bracket(optional)	1

MS 1112703A

7" TFT/LCD Video Quad Monitor

USER'S MANUAL

Black-and-white photo collage showing a woman in a studio setting, alongside two cars with visible branding and interior lighting (no text or symbols)

Please read this Manual thoroughly before using this product and keep it well for future reference.

Thank you for purchasing our products. To enjoy all the features of this product and ensure it free of fault as long as possible, please read this Manual thoroughly and follow the instructions herewith accordingly:

1. No parts of this product can be repaired by user himself. In case of faults, shut off the power immediately, and consult us or our dealers. As this product is made of precise electronic components, unauthorized detachment or reassembly may damage it
2. Do not expose this device in moisture, dirt, smoke, vapor or direct sunshine.
3. Do not use thinner or other chemical cleaner to clean the device. Please use soft wet cloth to clean the dirt if any on the device.
4. Keep the monitor far from extremely hot or cold places, storage temperature of this device is -20^ +65^
5. Avoid dropping or bumping this device.

CAUTIONS:

For your safety, driver please do not watch the Monitor while you are driving

-1-

X. REPLACE BATTERY

In normal conditions, the battery has 1 year life (or shorter, it depends on the operating conditions). The lower the power of battery is, the narrower the working range of the power is.

Precautions of lithium battery

• Please keep the battery out of reach of children, if children has swallowed the batteries, please ask doctor for help.
• Clean the batteries with dry cloth so as to ensure they are in good contact
• When installing batteries, make sure they are properly fit in polarity.
• Do not use metal clamp to clip the batteries, in order to prevent short circuit.

WARNINGS!

If improperly handled, the batteries may explode, do not charge the batteries, decompose them or put it into fire.

Installation procedures of batteries:

• Take out battery card: press down the card bolt, pull out the battery card
- Replace the batteries: place in battery card, with anode (+) upward
- Insert battery card: insert the battery card to the original place

\~6\~

VIII.Monitor

Black-and-white photo collage showing a woman presenting in a studio, with cars and a person posing nearby (no visible text or symbols)

IX.OPERATIONS OF REMOTE CONTROLLER

1. Power
2. Up
3. Function decrease
4. Down
5. Function increase
6. MENU
7. Split image switch
8. Four video switch in each split image

\~5\~

I.SPECIFICATION

TYPE	7inch
Screen size	7-inch TFT LCD Panel
Definition	480RGB(W)X234(H)
System	PAL/NTSC
Nominal voltage	12V,red line;positive:black
Power consumption	6W MAX
Way of control	Touch button
Purpose	Monitor and vehicle entertainment
Working environment	-20°C~+65°C

II.ON INSTALLATION

• We strongly recommend have qualified technician or maintenance engineer install this device.
- If this monitor does not work well, check the connection first, then the fuse if it the connection is ok.
- Improper installation of this Monitor may cause battery leakage or short circuit

III.DEWING

When environmental temperature declines dramatically, dew may occur inside the monitor, user need wait for a minute till the moisture vapors, then the device will return to good condition.

If you have any query or question about this machine, please consult your nearest dealer.

-2-

IV. ADDITIONAL INFORMATION

Precautions of remote controller

• Do not place the remote controller on dashboard, steering wheel or any other place under direct sunlight especially in summer, where there is high temperature which may deform the remote controller.
• When parking the car in the sun, please place the card-style remote controller in toolkit or other safe places.
• When exposed in direct sunlight, signal emitting from the remote controller may not be properly received by the monitor. It should be place nearer to the inductor of frontal panel of the host.

ON LCD

• Do not press the screen of LCD, otherwise distortion or other fault may occur. the image may become unclear or LCD may be damaged.
  • Precautions of cleaning

Uses a little wet soft cloth to clean the screen.

Do not use solvent such as gasoline, thinner, cleaner in the market or anti static spray to clean the screen.

Do not use this product when environmental temperature is lower than -20°C or higher than 65°C

- If you park your car in an extremely cold or hot place, the video may become unclear, it is not a fault, when the temperature in car returns to normal level, the video will become clear.

- Static blue or red spot may appear on the monitor, this is called light spot, it is a common phenomenon for any kind of LCD. LCD is a very precise device, more than 99.99% segment is normal, but less than 0.01% segment may be flaw, however, this will not affect your visual effects.

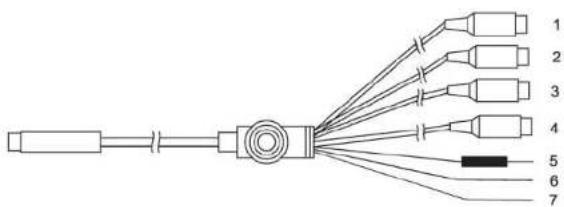

V.Connection of DVD player

1 Yellow 1 Video input 1
2 Yellow 2 Video input 2
3 Yellow 3 Video input 3
4 Yellow 4 Video input 4
5 Red "+"
6 Black GND
7 Blue Resverse lamp
