Product Type	Monitor
Brand	Pyle
Model	PLHR77
Screen Size	7 inches
Display Type	TFT LCD
Resolution	800 x 480 pixels
Aspect Ratio	16:9
Video Input	Composite (RCA)
Power Supply	12V DC (car cigarette lighter adapter included)
Power Consumption	5W (typical)
Dimensions (W x H x D)	7.5 x 5.5 x 1.5 inches (190 x 140 x 38 mm)
Weight	0.55 lbs (250 g)
Mounting Type	Desktop stand or VESA compatible (75x75 mm)
Features	Auto-switching, brightness adjustment, tilt function
Accessories Included	Power cable, RCA cable, remote control (depending on version)
Cleaning Instructions	Wipe gently with a soft dry cloth; avoid harsh chemicals
Safety Precautions	Use only supplied power adapter; do not expose to moisture
Repair/Spare Parts	Contact Pyle support or authorized service center
Warranty	1 year limited warranty

Frequently Asked Questions - PLHR77 Pyle

What is the screen size and resolution of the Pyle PLHR77?

The Pyle PLHR77 is a 7-inch TFT LCD monitor with a resolution of 800 x 480 pixels, providing a clear and vivid display.

How do I power the PLHR77 monitor?

The monitor operates on 12V DC power. It typically comes with a cigarette lighter adapter for use in vehicles, or you can use a 12V power supply.

What video inputs does the PLHR77 support?

It supports composite video input via a standard RCA connector. You can connect devices like cameras, DVD players, or game consoles.

Can I mount the monitor on a wall or dashboard?

Yes, the PLHR77 includes a desktop stand and is also compatible with VESA 75x75 mm mounts for flexible installation.

Does the monitor have an auto-switching feature?

Yes, it has an auto-switching function that turns on the display automatically when it detects a video signal.

How do I clean and maintain the PLHR77?

Use a soft, dry cloth to gently wipe the screen and casing. Avoid using abrasive cleaners or liquids that could seep into openings.

What should I do if the monitor is not powering on?

Check the power connections and ensure the voltage is correct. If using the car adapter, verify the cigarette lighter works. For persistent issues, contact Pyle support.

Is the PLHR77 suitable for outdoor use?

It is designed for indoor or vehicle use. Avoid exposing it to direct rain or extreme temperatures as it is not fully weatherproof.

Can I connect multiple devices to the monitor?

It has a single composite input, so you would need an external switch to connect multiple sources. Some models may include additional inputs.

Where can I find a replacement remote control or manual?

Replacement accessories can be obtained from Pyle's official website or authorized dealers. The user manual is available for free on notice-facile.com.

USER MANUAL PLHR77 Pyle

1. When connect the electric power wires, you should make clear about the positive and negative electrode (the red one is positive and the black is negative). If you wrongly connected the fuse in the filter box will be broken protectively. Please replace the fuse in same parameter.
2. Because the LCD screen is the main component It should be paid attention to be damp-proof.
3. The device must be installed firmly to prevent falling of device that will possibly cause injury and device-broken.
4. The connecting-point of direct current (12V) should connect on the Main line of storage battery as possible as it can, for keeping this device in normal operation and be away from the large voltage drop influence.
5. There is high voltage cluster in this machine, if you are the professional person, should never to take part the machine if malfunction and contact the dealer in time.

Accessories

1 x bracket 1 x headrest shroud
1 x remote control 1 x instruction manual

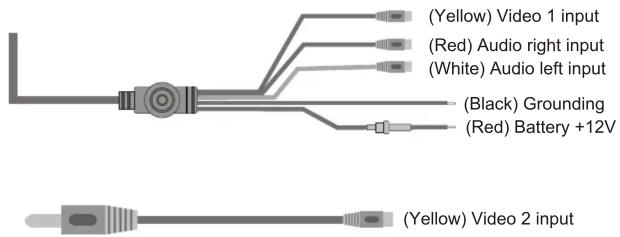

2 x connection wire

Instruction Manual
PLHR77

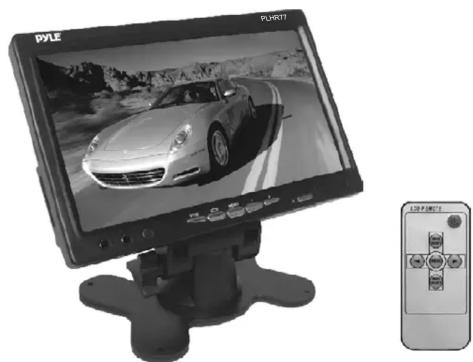

Black-and-white photo of a PYLE monitor displaying a car on a mountain road, next to a remote control unit (no visible text or symbols)

7" Widescreen TFT/LCD Video Monitor w/Headrest Shroud and Stand

HTTP://WWW.PYLEAUDIO.COM

Thank you for purchasing the TFT LCD color monitor. To enjoy the features of this device and to ensure years of trouble-free operation, please read this manual carefully and follow the instructions.

Front Panel

1. AV input
2. Earphone jack
3. Pilot lamp
4. V1/V2 switch

5. Mode

6. Activation of menu indicator

7. Negative adjustment
8. Positive adjustment
9. Power ON/OFF
10. Remote sensor

Remote control

Specification

Screen Size: 7 inch

Resolution: 480xRGBx234

System: NTSC/PAL

Power source: DC 12V

Power consumption: <9W

Video Input: Composition video signal

Operating Temperature: 0^ C \~ 60^ C

Storage Temperature: -20^ 80^

Headrest bracket

Installation Diagram
