Product Type	Network Switch / Video Scaler
Brand	Kramer
Model	VP-439
Dimensions (W x D x H)	21.5 cm x 16.1 cm x 4.36 cm (8.46" x 6.34" x 1.7")
Weight	1.1 kg (2.43 lbs) approx.
Power Supply	5V DC, 1.1A (included)
Power Consumption	5.5W
Inputs	1 HDMI (with unbalanced stereo on 3.5mm), 1 PC/HD (VGA/YPbPr) on 15-pin HD (with unbalanced stereo on 3.5mm), 1 Composite Video on RCA (with unbalanced stereo on 2 RCA)
Outputs	1 HDMI on DVI-I connector, unbalanced stereo audio on 2 RCA
Control Interfaces	Front panel buttons, OSD (On-Screen Display), Web pages, RS-232, Ethernet
Video Scaling	Up/down scaling to resolutions up to 1080p / WUXGA
Supported Output Resolutions	480i/p, 576i/p, 720p, 1080i/p, VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA, and Native (from EDID)
HDCP Support	Enabling/disabling on HDMI input
Audio Features	Lip sync delay (up to 150ms, Auto), analog audio inputs, embedded or analog selection
On-Screen Display (OSD)	For setup and adjustment of picture, color, input, audio, and advanced settings
Auto-Switching	Clean and quiet auto-switching with no video glitches or audible clicks
ProcAmp	Adjust brightness, contrast, color, sharpness, and hue
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	-40° to +70°C (-40° to 158°F)
Humidity	10% to 90% RHL non-condensing
Included Accessories	Power supply
Optional Accessories	RK-1 19" rack adapter
Warranty	7 years limited warranty (original purchaser)
Safety	Use only provided power supply; disconnect before servicing; no user serviceable parts inside

Frequently Asked Questions - VP-439 Kramer

How do I connect the VP-439 to my sources and display?

Connect your HDMI, PC/VGA, or composite video sources to the corresponding inputs. For audio, use the 3.5mm mini jacks or RCA connectors. Connect the HDMI output (DVI-I) to your display. Optionally, connect the RS-232 or Ethernet port for control. Always power off devices before connecting.

How can I select the input source on the VP-439?

Press the front panel INPUT SELECT buttons (HDMI, PC, CV) to choose the desired input. Alternatively, use the OSD menu (press MENU button) or the Web pages (via Ethernet) to select the source.

How do I access the VP-439 Web pages?

Ensure the device is connected to your network via Ethernet. Open a web browser and enter the device's IP address (default: 192.168.1.39). The Input Select page appears. You can then navigate to other settings pages.

How do I reset the VP-439 to factory defaults?

Via the OSD: press MENU, go to Factory -> Reset, set to YES, and press ENTER. Alternatively, use the RS-232/Ethernet command #FACTORY. This deletes all user data.

What output resolutions are supported by the VP-439?

The VP-439 supports a wide range of resolutions including 480i/p, 576i/p, 720p, 1080i/p, computer resolutions from VGA to WUXGA, and NATIVE (from EDID). The refresh rate is 60Hz for computer graphics and 50/60Hz for HDTV.

How do I adjust the audio delay for lip-sync correction?

In the Audio Settings page (or OSD menu), set the Delay option. Choices are OFF, 40ms, 110ms, 150ms, or Auto. Auto mode automatically synchronizes audio with video.

How can I enable or disable HDCP on the HDMI input?

Go to the HDCP page (or OSD menu under Advanced). For the HDMI input, set HDCP On Input to ON or OFF. Disabling may help with non-HDCP sources like some Mac computers.

What is the default IP address of the VP-439?

The default IP address is 192.168.1.39 with subnet mask 255.255.255.0 and default gateway 192.168.0.254. The default UDP port is 50000. These can be changed via the Web pages or RS-232 commands.

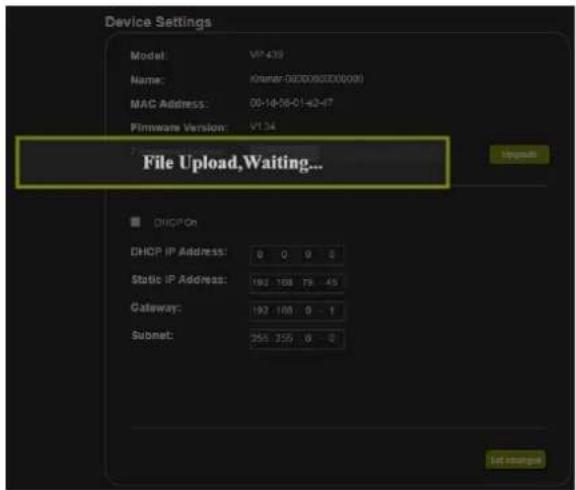

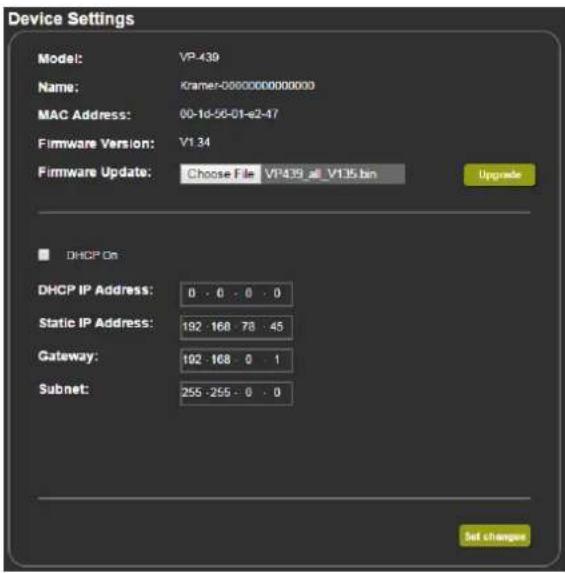

How do I upgrade the firmware on the VP-439?

Access the Device Settings Web page. Click Choose File to select the firmware file, then click Upgrade. Follow the on-screen instructions. After restart, reload the Web pages to confirm the new version.

What is the warranty period for the VP-439?

Kramer provides a 7-year limited warranty for this product from the date of original purchase, covering defects in materials and workmanship. It is non-transferable. For details, visit www.kramerav.com.

USER MANUAL VP-439 Kramer

Connecting the VP-439 6

Operating and Controlling the VP-439 7

Using the Front Panel Buttons 7

Using the CONTROL Buttons 7

Connecting to the VP-439 via RS-232 10

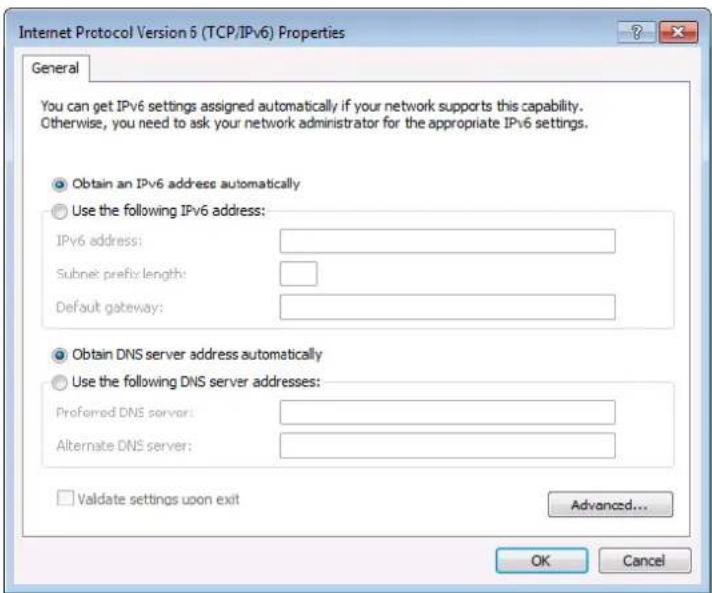

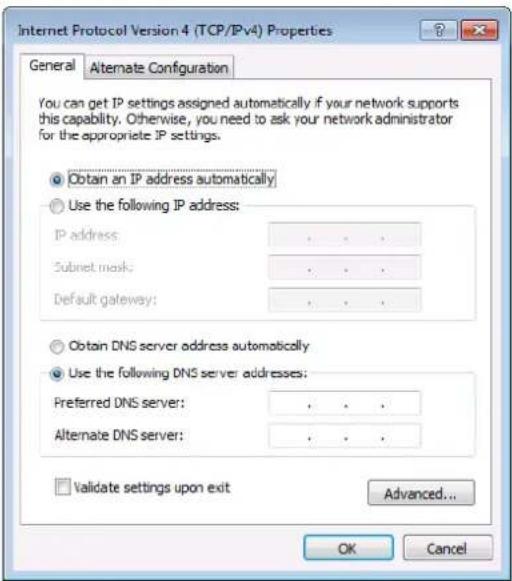

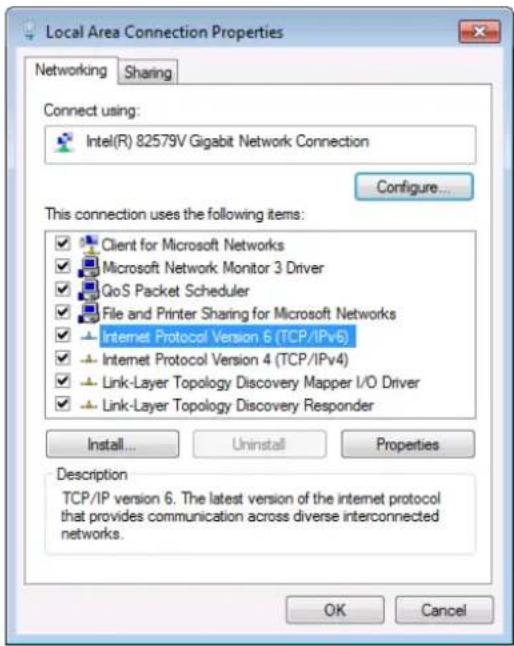

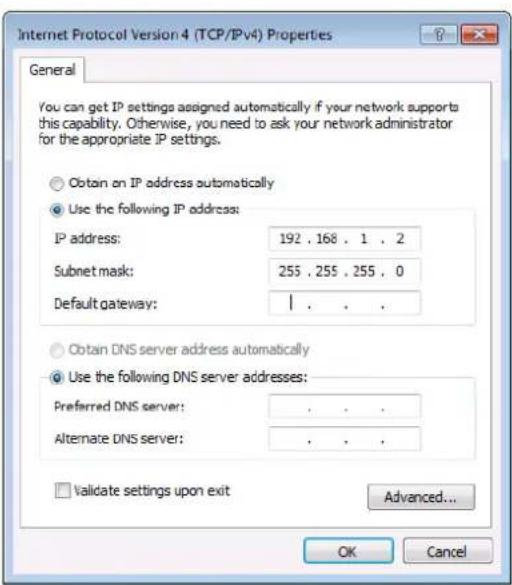

Operating via Ethernet 10

Using the Embedded Web Pages 13

Browsing the VP-439 Web Pages 14

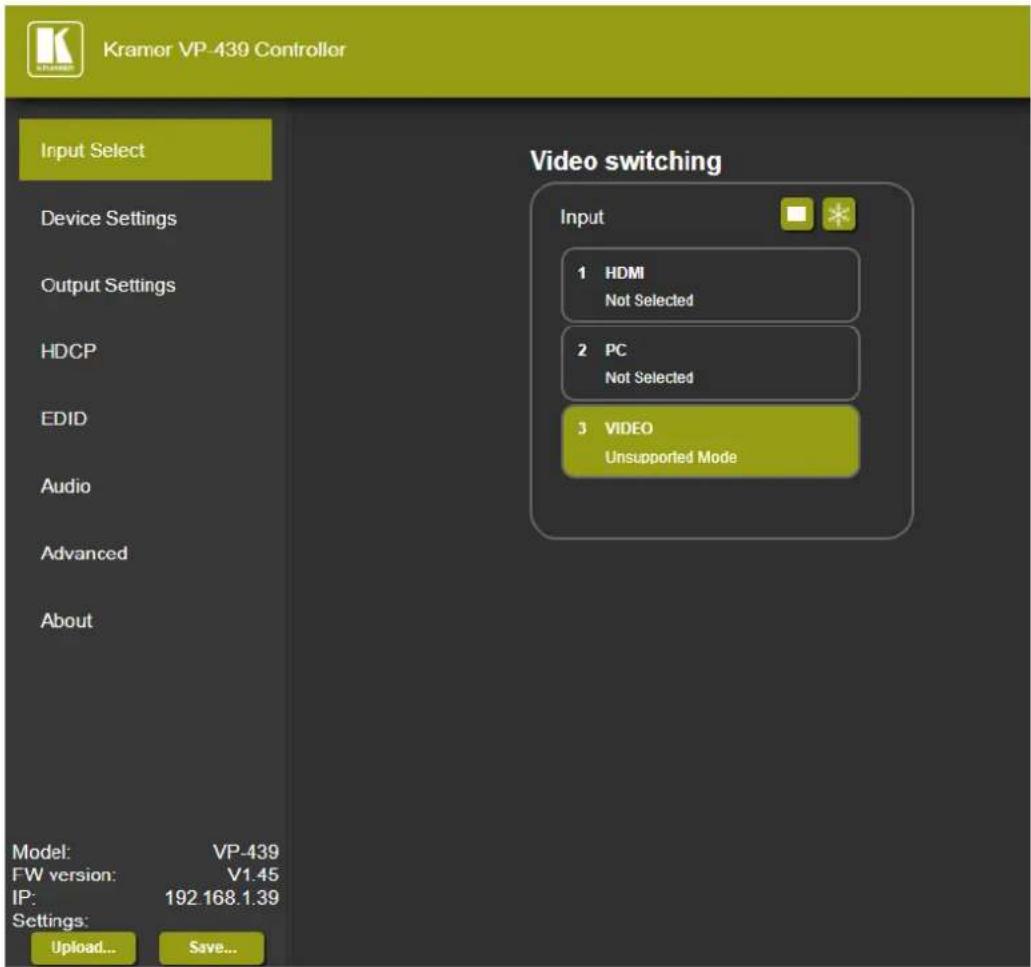

The Input Select Page 15

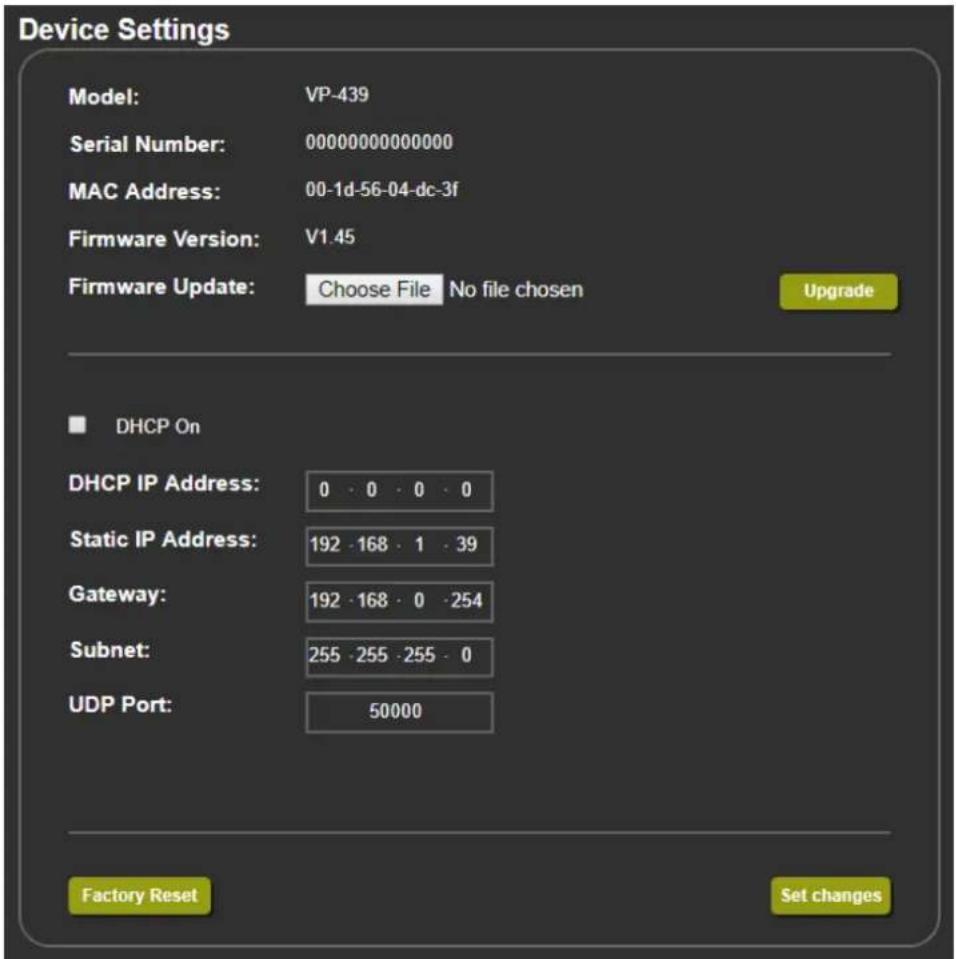

The Device Settings Page 16

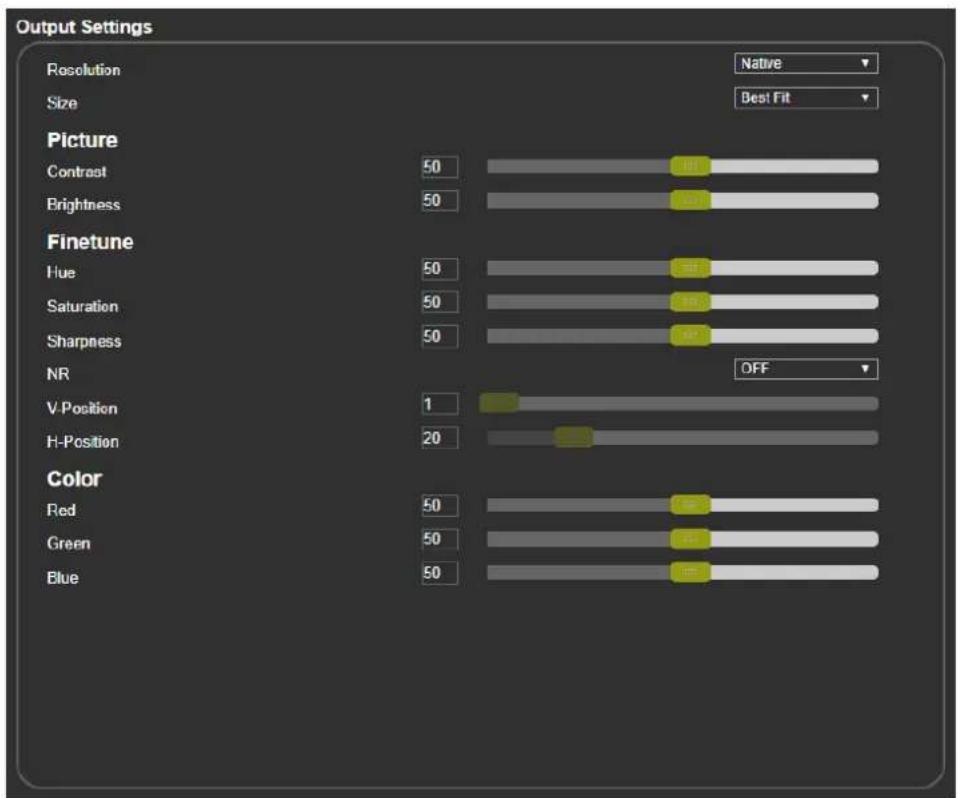

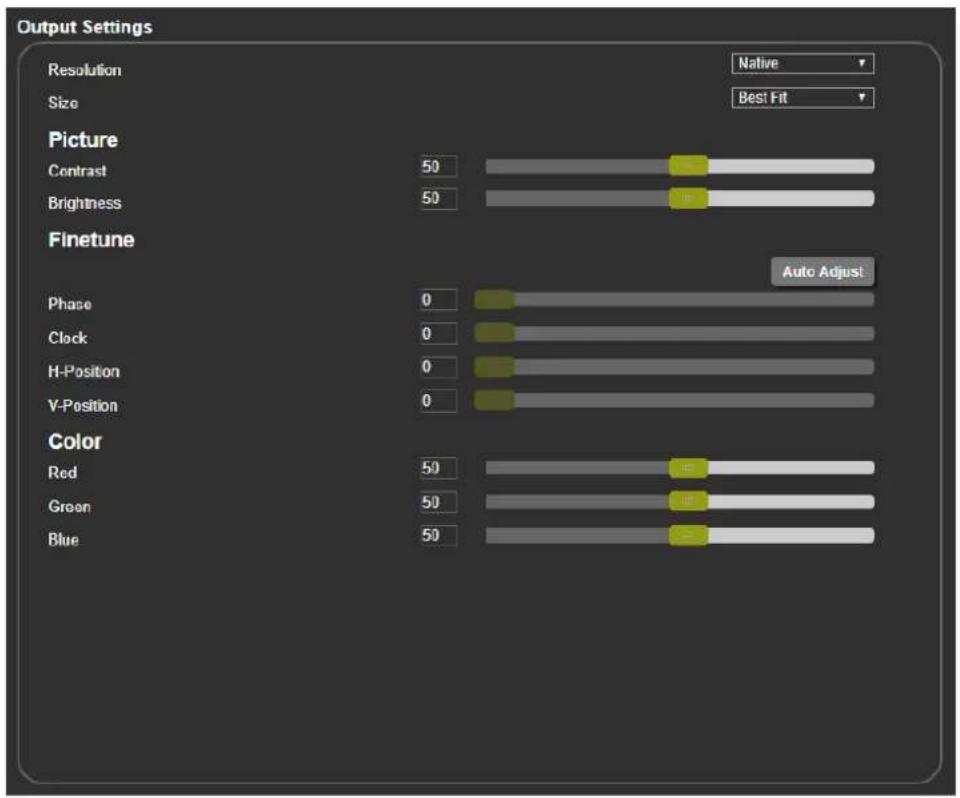

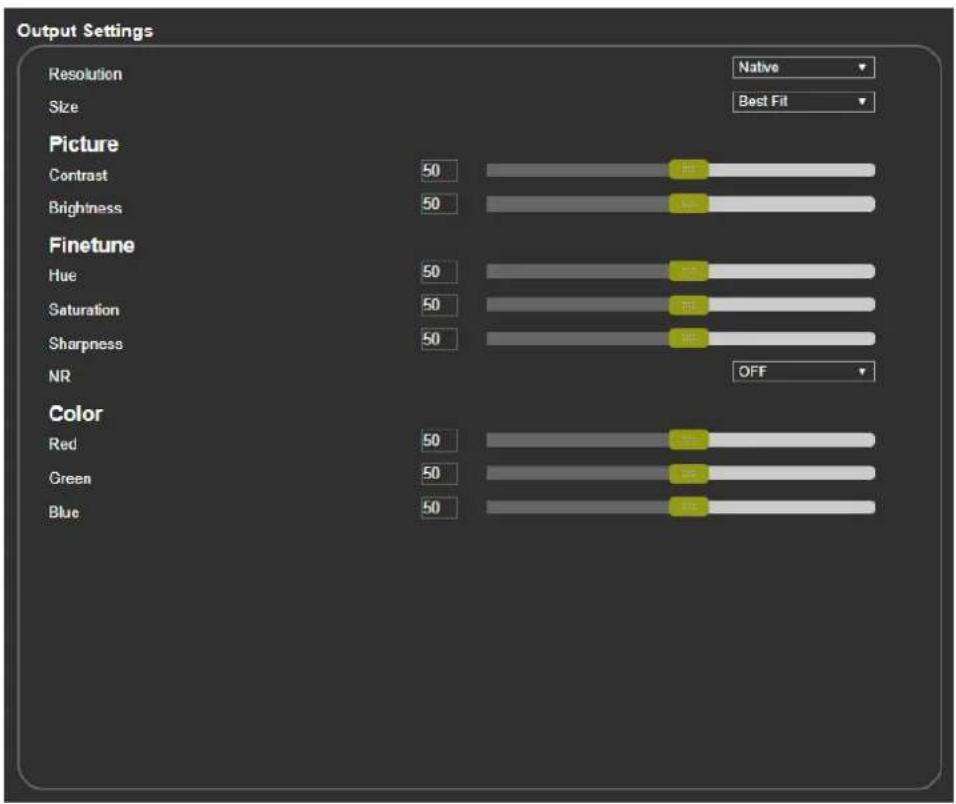

The Output Settings Page 19

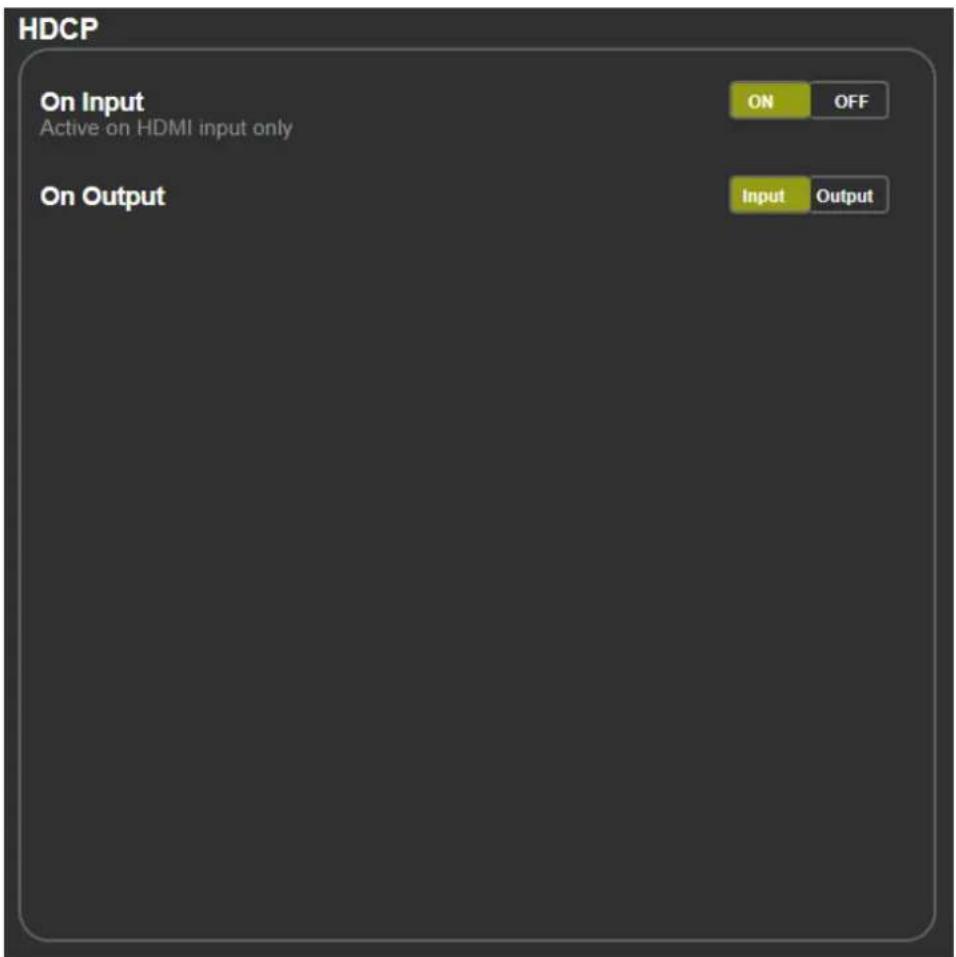

The HDCP Page 21

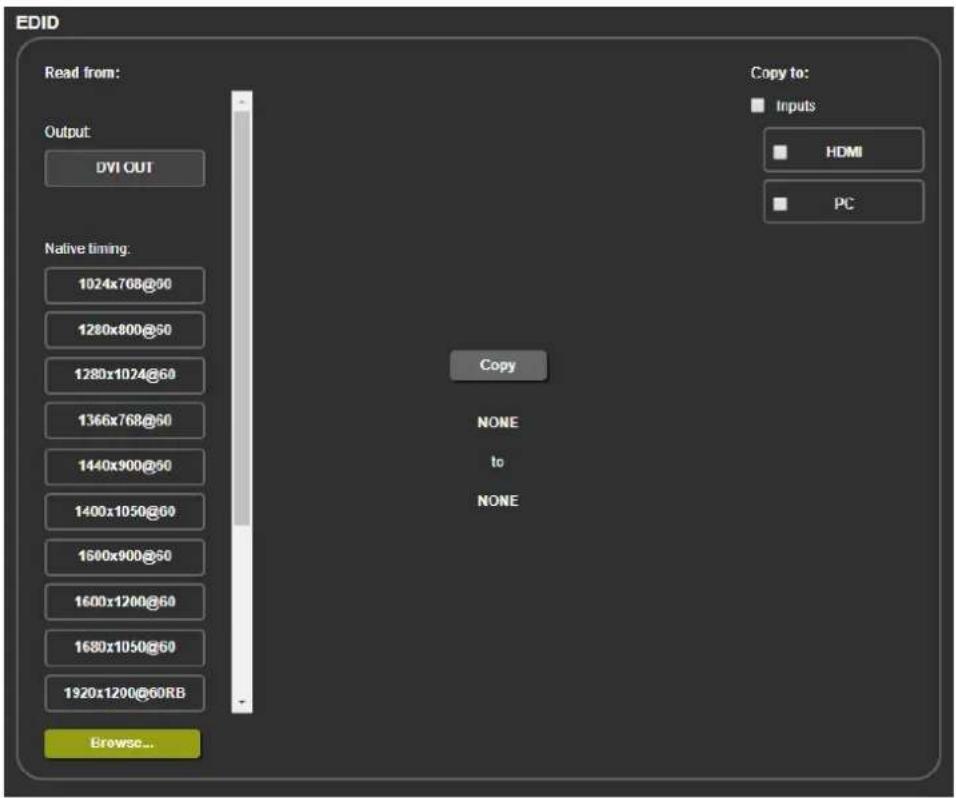

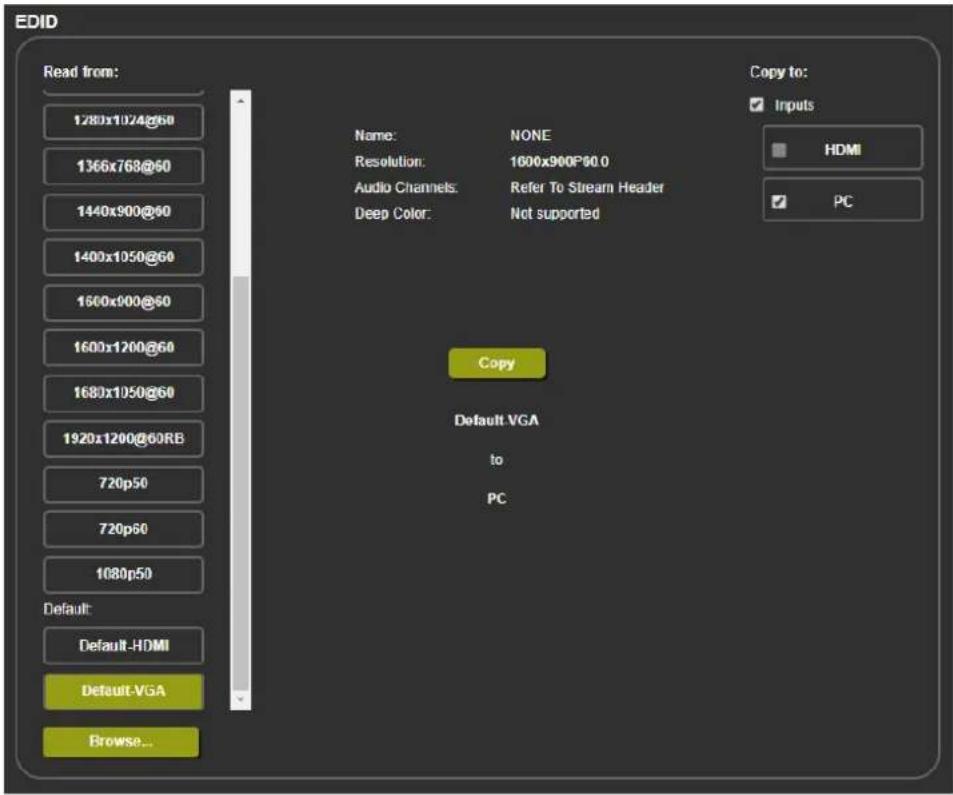

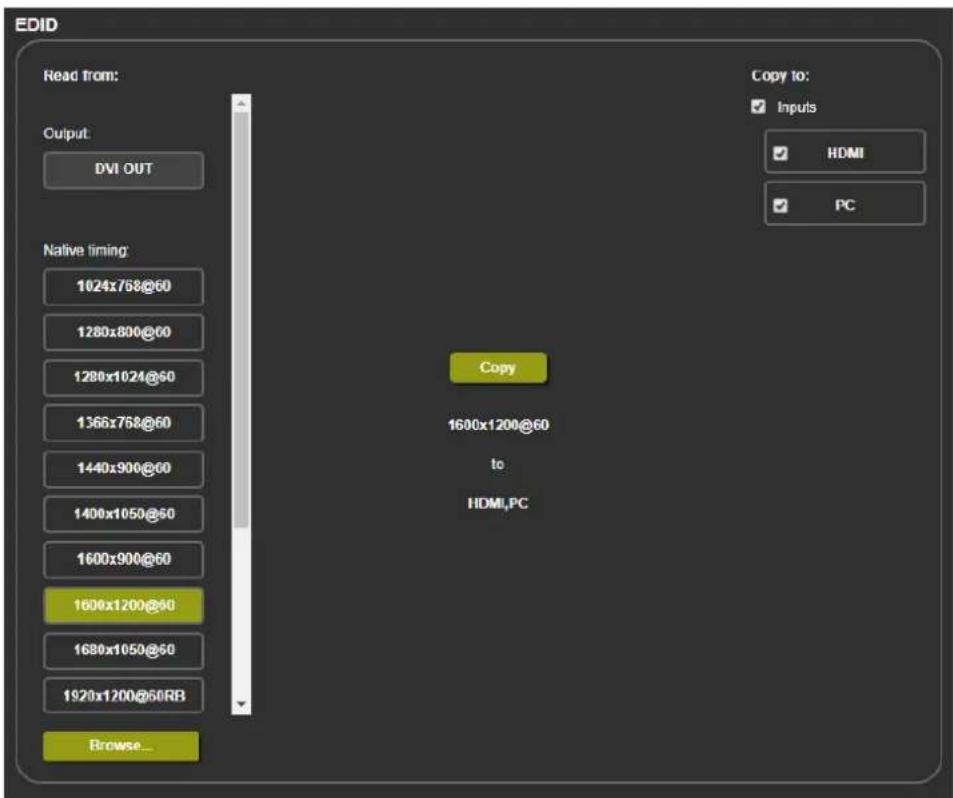

The EDID Management Page 22

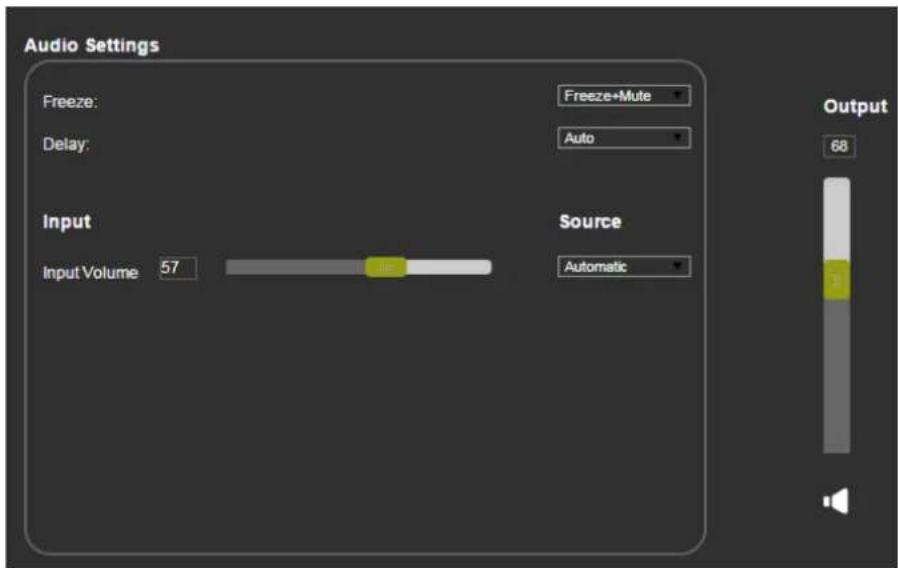

The Audio Settings Page 24

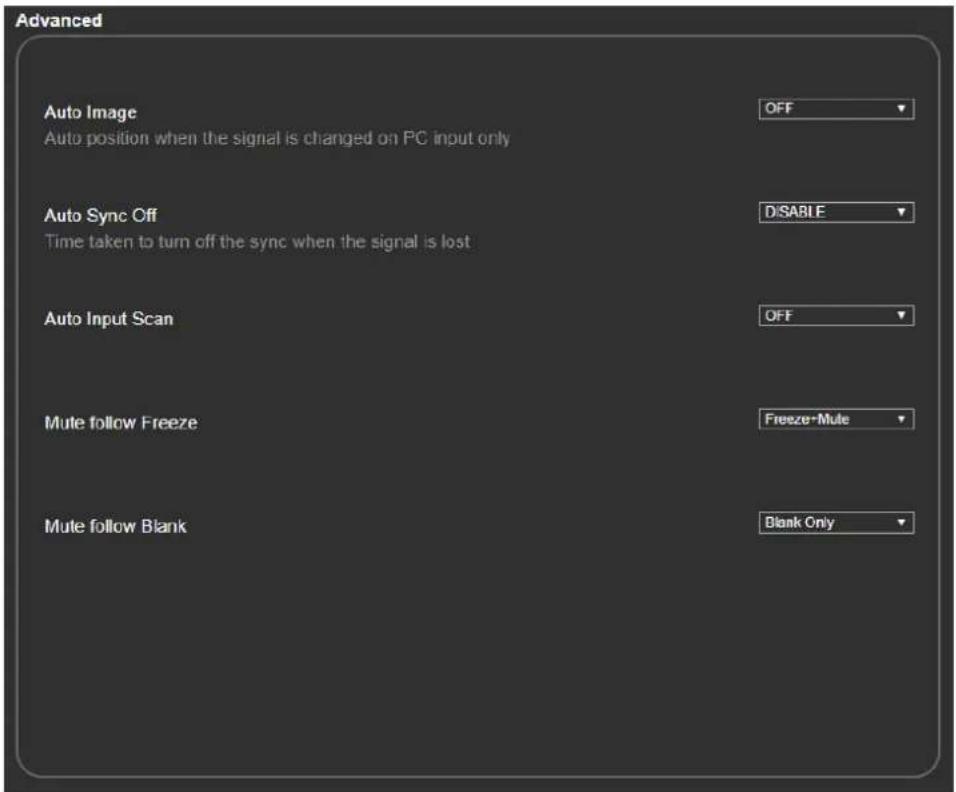

The Advanced Settings Page 25

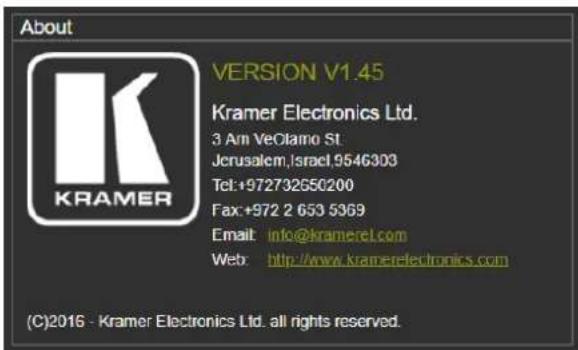

The About Page 26

Technical Specifications 27

Default Communication Parameters 28

The RS-232/Ethernet (UDP) Communication Protocol 29

Kramer Protocol 3000 Syntax 29

Kramer Protocol 3000 – Command List 32

Kramer Protocol 3000 – Detailed Commands 33

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment.
• Review the contents of this user manual.

Go to www.kramerav.com/downloads/VP-439 to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
• Do not secure the cables in tight bundles or roll the slack into tight coils.
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality.
• Position your Kramer VP-439 away from moisture, excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

Safety Instructions

Caution: There are no operator serviceable parts inside the unit.

Warning: Use only the Kramer Electronics power supply that is provided with the unit.

Warning: Disconnect the power and unplug the unit from the wall before installing.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.

Overview

The VP-439 is a high-performance digital scaler for computer graphics video, composite and HDMI signals, including audio. It up- or down-scales the selected HDMI, CV or computer graphics video/YPbPr input and outputs it to HDMI.

The audio input source is selectable from Web pages—either from the relevant analog audio input, or de-embedded from the HDMI input. The audio output can be delayed for lip-sync compensation, and is available on the analog stereo output, as well as being embedded onto the HDMI output.

More specifically, the VP-439 features:

• HDTV compatibility and scales to resolutions up to 1080p/WUXGA
• Clean and quiet auto-switching that searches for valid signal when the input signal is lost with no video glitches or audible clicks or noises
• Automatic detection and selection of the audio source for the HDMI input. Default selection is HDMI – if this is not present, then the machine uses the audio from the analog input
• Auto-power down if no valid input signal is detected for a period of 2 to 3 minutes, the HDMI output is shut down, and the PC output syncs are disabled

• HDCP enabling/disabling

- Analog audio inputs for the CV, PC and HDMI inputs

- Lip sync delay

- An On-Screen Display (OSD) for easy setup and adjustment, accessible via the front-panel buttons

- An OSD INFO screen showing the selected input source, input and output resolutions, HDCP status, firmware version, etc.

- A built-in ProcAmp for convenient adjustment of video parameters, such as brightness, contrast, color, sharpness and hue

- A non-volatile memory that retains the last settings used

- Convenient setup and control options – front panel buttons, OSD, Web page

Defining the VP-439 Video Scaler

Front Panel


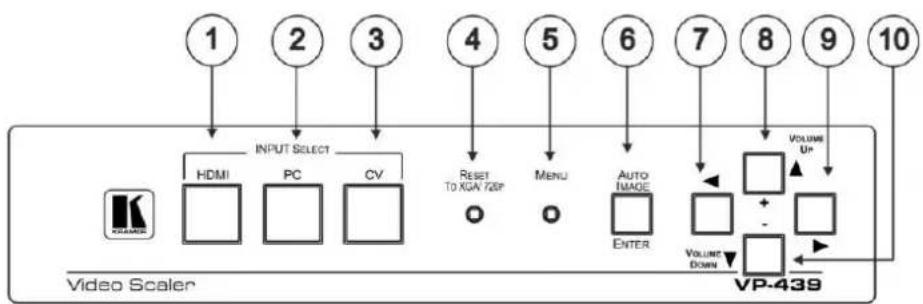

Figure 1: Front Panel VP-439 Video Scaler

#	Feature		Function
1	INPUT	HDMI	Press to select the HDMI input
2	SELECT Buttons	PC	Press to select the PC/VGA input
3		CV	Press to select the composite video input
4	RESET TO XGA/720p Button		Toggles between reset to 720p and reset to XGA.If the button has not been pressed for more than 30 seconds, the first press resets to 720p
5	MENU Button		Press to activate the on-screen display (OSD). The button is recessed to prevent unwanted tampering with the unit (use a small pointed tool)
6	AUTO IMAGE/ENTER Button		Press to enter or confirm menu selections.When not in the OSD menu, press to auto-position the image on the screen.
7	◀ Button		Press to access the OSD menu, exit the OSD menu and, when in the OSD menu, move to the previous level in the OSD screen
8	▲/VOLUME UP/+ Button		Press to move up the menu list and to Increase numerical values. When not within the OSD menu mode, press to increase the output volume
9	▶ Button		Press to access sub-menu items and select from several settings
10	▼/VOLUME DOWN/- Button		Press to move down the menu list and to decrease numerical values.When not within the OSD menu mode, press to reduce the output volume

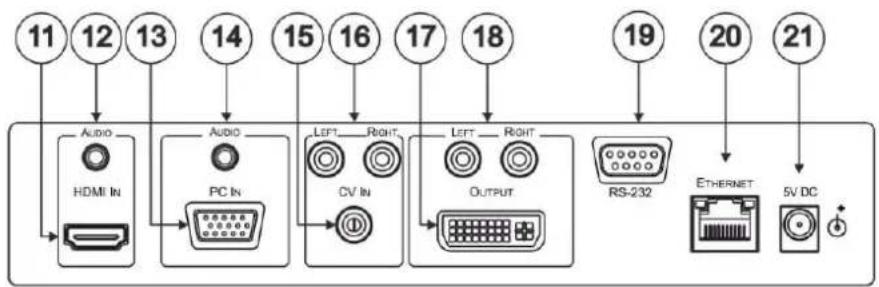

Rear Panel

Figure 2: Rear Panel VP-439 Video Scaler

#	Feature		Function
11	HDMI	HDMI IN Connector	Connects to an HDMI source
12		AUDIO 3.5mm Mini Jack Connector	Connects to an unbalanced stereo audio source
13	VGA	PC IN 15-pin HD Connector	Connects to a PC graphics source
14		AUDIO 3.5mm Mini Jack Connector	Connects to an unbalanced stereo audio source
15	CV	CV IN RCA Connector	Connects to a composite video source
16		LEFT/RIGHT RCA Connectors	Connects to the left and right unbalanced stereo audio source
17	HDMI Output	OUTPUT DVI Connector	Connects to an HDMI acceptor
18		LEFT/RIGHT RCA Connectors	Connects to the left and right unbalanced stereo audio acceptor
19	RS-232 9-pin D-type Connector		Connects to the PC or other controller
20	ETHERNET RJ-45 Connector		Connects to a PC or other controller over a network
21	5V DC Connector		+5V DC connector for powering the unit

Connecting the VP-439

Always switch off the power to each device before connecting it to your VP-439. After connecting your VP-439, connect its power and then switch on the power to each device.

To connect the VP-439 as illustrated in the example in Figure 3:

1. Connect an HDMI source (for example, from a Blu-ray player) to the HDMI IN HDMI connector.
2. Connect a PC graphics and unbalanced stereo audio source (for example, from a laptop PC) to the PC IN 15-pin HD and 3.5mm mini jack connectors.
3. Connect a composite video and unbalanced stereo audio source (for example, from a DVD payer) to the CV IN RCA and LEFT/RIGHT RCA connectors.
4. Connect the HDMI OUTPUT on a DVI-I connector and the LEFT/RIGHT unbalanced stereo audio on two RCA connectors to an HDMI acceptor (for example, to a display with speakers).
5. If desired, connect the ETHERNET RJ-45 connector to a control device (for example, a PC).


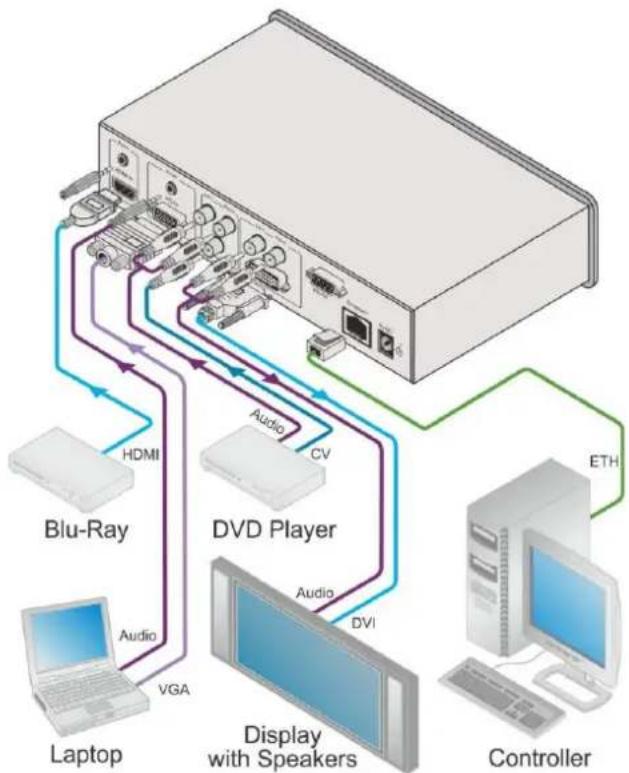

Figure 3: Connecting the VP-439 Video Scaler

Operating and Controlling the VP-439

You can operate the VP-439 directly via the front panel buttons (see Using the Front Panel Buttons on page 7), via the OSD menu (see Using the CONTROL Buttons on page 7).

Using the Front Panel Buttons

Press the VP-439 front panel buttons to select:

• The required INPUT (HDMI, PC or CV)
• A reset RESOLUTION (to XGA/720p)
- A control operation, using the MENU, ENTER (when in the OSD menu), + and – buttons

Using the CONTROL Buttons

The CONTROL buttons let you control the VP-439 via the OSD menu. Press the:

• MENU button to enter the menu
  The default timeout is set to 10 seconds.
• ENTER (AUTO IMAGE) button to accept changes and to change the menu settings (a selected value parameter appears yellow and when set, changes back to blue) The ENTER function is active when in the OSD menu
• Arrow buttons to move through the OSD menu

On the OSD menu, select EXIT to exit the menu.

The OSD MENU

This table illustrates the MENU features and functions.

LEVEL 1	LEVEL 2	LEVEL 3	SELECTION
Picture	Contrast		value
	Brightness		value
	For the PC input	Phase	value
		Clock	value
		H-Position	value
		V-Position	Off/Low/Middle/High
	FineTune	HDMI	HUE	Sets the color hue
			SATURATION	Sets the color saturation
			SHARPNESS	Sets the sharpness of the picture
			NOISE REDUCTION	Selects the noise reduction level: OFF, HI, LOW and MID (middle)
		PC	PHASE	Sets the clock phase
			CLOCK	Sets the clock frequency
			H-POSITION	Sets the horizontal position of the picture
			V-POSITION	Sets the vertical position of the picture
		CV	HUE	Sets the color hue
			SATURATION	Sets the color saturation
			SHARPNESS	Sets the sharpness of the picture
			NOISE REDUCTION	Selects the noise reduction level: OFF, HI, LOW and MID (middle)
			H-POSITION	Sets the horizontal position of the picture
			V-POSITION	Sets the vertical position of the picture
	Color	Red	value
		Green	value
		Blue	value
Input	Source		HDMI, PC/YPbPr, Video (CV)
Output	Size		Full / Over Scan / Under Scan / Letter Box / Pan Scan /Best Fit
Output	Resolution	Select the output resolution from the menu:
		Resolution:	Appears as:	Resolution:	Appears as:
		NATIVE		1600x900	1600x900
		640x480	VGA	480i	480I
		800x600	SVGA	480p	480P
		1024x768	XGA	720p60	720P60
		1280x1024	SXGA	1080i60	1080i60
		1600x1200	UXGA	1080p60	1080P60
	Resolution continued	1366x768	WXGA	576i	576I
		1680x1050	WSXGA	576p	576P
		1920x1200	WUXGA	720p50	720P50
		1280x800	1280x800	1080i50	1080i50
		1440x900	1440x900	1080p50	1080P50
		NATIVE - Select NATIVE to select the output resolution from the EDID of the connected HDMI monitor
Audio	Output Volume			Set the output volume
	Input Volume			Set the input volume
	Delay			OFF/40ms/110ms/150ms/Auto
	Input			Automatic/Analog/Embedded
OSD	H-Position			value
	V-Position			value
	Timer			Off/5/6/7.../100
	Background			Set the transparency of the OSD (100 is fully transparent)
	Display			Info/On/Off
Advanced	HDCP On Input			On/Off (disabled for PC and CV)
	HDMI On Output			Input/Output
	Auto SYNC Off			Disable/Fast/Slow
	Auto Input Scan			Off/On/HDMI+PC/HDMI+CV/CV+PC
	Auto Image			On/Off (disabled for HDMI and CV)
	Freeze			Freeze+Mute/Mute Only/Freeze Only
	Ethernet	IP Mode		DHCP/Static
		Static IP
		IP Address		xxx.xxx.xxx.xxx
		Subnet Mask		xxx.xxx.xxx.xxx
		Def. Gateway		xxx.xxx.xxx.xxx
		UDP Port		50000
		IP Address		xxx.xxx.xxx.xxx
		MAC Address		xx:xx:xx:xx:xx:xx
	Timing Shift			When ON (recommended), implements a small shift on the horizontal sync which may resolve instabilities seen on some displays working at specific resolutions
About	Source			The input source
	Input			The input resolution
	Output			The output resolution
	IP Address			xxx.xxx.xxx.xxx
	Version			Firmware version: x.xx
Factory	Reset			NO / YES

Connecting to the VP-439 via RS-232

You can connect to the VP-439 via an RS-232 connection using, for example, a PC. Note that a null-modem adapter/connection is not required.

To connect to the VP-439 via RS-232, connect the RS-232 9-pin D-sub rear panel port on the product unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC

Operating via Ethernet

You can connect to the VP-439 via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Connecting the Ethernet Port Directly to a PC on page 10)
• Via a network hub, switch, or router, using a straight-through cable (see Connecting the Ethernet Port via a Network Hub on page 12)

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the VP-439 directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the VP-439 with the factory configured default IP address.

After connecting the VP-439 to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.
   The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 4.

Figure 4: Local Area Connection Properties Window

1. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT system.
2. Click Properties.

The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 5 or Figure 6.

Figure 5: Internet Protocol Version 4 Properties Window

Figure 6: Internet Protocol Version 6 Properties Window

1. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 7.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.

Figure 7: Internet Protocol Properties Window

1. Click OK.

2. Click Close.

Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VP-439 to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

Configuring the Ethernet Port

You can set the Ethernet parameters via the embedded Web pages.

Using the Embedded Web Pages

The VP-439 can be operated remotely using the embedded Web pages. The Web pages are accessed using a Web browser and an Ethernet connection.

Before attempting to connect:

• Perform the procedures in Section Operating via Ethernet on page 10
- Ensure that your browser is supported

The following operating systems and Web browsers are supported:

Operating Systems	Applicable Browser Versions and Higher
Windows 7	Chrome: 25Internet Explorer: 9Firefox 19Opera: 11
Mac (PC)	Chrome: 25Firefox: 19Opera: 11
iOS	Chrome: 25Safari (depends on the IOS version)Opera: 11
Android OS	Chrome: 25Opera: 11

Note that some features might not be supported by some cellphone operating systems.

Browsing the VP-439 Web Pages

To browse the VP-439 Web pages:

1. Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser. For example, the default IP number:

http://192.168.1.39

The Input Select Web page appears.

There are eight Web pages:

• The Input Select Page on page 15.
• The Device Settings Page on page 16.
• The Output Settings Page on page 19.
• The HDCP Page on page 21.
• The EDID Management Page on page 22.
• The Audio Settings Page on page 24.
• The Advanced Settings Page on page 25.
• The About Page on page 26.

The Input Select Page

Figure 8 shows the Input Select page that is also the first Web page. The column on the left shows the Input Select page selected and below a list of all the other available Web pages.

The model name, FW version and IP number appear on the lower left side of the main page. The lower part of the screen lets you save the settings and upload a saved setting.

Figure 8: The Input Select Page

Use the freeze icon ( ) to freeze a selected input and the blank button ( )

The Device Settings Page

The device Settings window (Figure 9) lets you upgrade the firmware and set the Ethernet parameters.

Figure 9: The Device Settings Page

Any change in the device settings requires confirmation, as illustrated in the example in Figure 10.

Figure 10: The Device Settings Page – Static IP Confirmation

Firmware Upgrade

You can upgrade the firmware via the Device Settings page. To do so:

1. Choose the firmware file by clicking the Choose File button in the Firmware upgrade line.

Figure 11: The Device Settings Page – Selecting the New Firmware File

1. Click the Upgrade button.

The new firmware is uploaded:

Figure 12: The Device Settings Page – Uploading the New Firmware File

1. Once the file is uploaded follow the instructions on the Web page:

The new firmware is uploaded:

And then:

Figure 13: The Device Settings Page – Uploading the New Firmware File

1. After restarting the system you need to upload the Web page once again.
2. Make sure that the new version appears on the Web page lower left side:

Figure 14: The Device Settings Page – New Firmware Updated

The Output Settings Page

Figure 15 shows the Output Settings page which varies for each selected input:
For the HDMI input:

For the PC input:

For the CV (Video) input:

Figure 15: The Video Settings Page

The output settings, include the Resolution and Size, the Finetune items (which are enabled for VGA inputs), and the picture settings.

The HDCP Page

The HDCP page lets you select the HDCP option for the HDMI input. Disabling HDCP On Input allows the source to transmit a non-HDCP signal if required (for example, when working with a Mac computer).

Figure 16: The HDCP Management Page

The EDID Management Page

The EDID page lets you copy a selected resolution from the DVI output or the default resolution (Default HDMI or Default VGA) to one or both inputs (HDMI and PC).

Figure 17: The EDID Page

Figure 18 shows how to select a resolution (1600x1200 in this example) and select one or both inputs. To copy, click the Copy button:

Figure 18: The EDID Page – Copying the Output

The EDID page displays the machine name, selected resolution, the audio channels and deep color support.

After clicking the Copy button, the EDID page shows the copy EDID results:

Figure 19: The EDID Page –The Copy EDID Results

Click Close to complete the EDID procedure.

In the same way you can read the default EDID:

Figure 20: The EDID Page – Copying the Default EDID

The Audio Settings Page

The audio settings page lets you define the input audio level separately for each input and the output level, you can set the Freeze state, the Delay and for the HDMI input set the audio source (automatic, analog or embedded).

Figure 21: The Audio Settings Page

The Advanced Settings Page

The Advanced settings page lets you define the following:

• Auto Image
• Auto SYNC Off
• Auto Input Scan
• Mute follow Freeze
• Mute follow Blank

Figure 22: The Advanced Page

The About Page

The VP-439 About page lets you view the Web page version and Kramer Electronics Ltd details.

Figure 23: The About Page

Technical Specifications

INPUTS:	1 HDMI with unbalanced stereo on a 3.5mm mini jack,1 PC/HD (RGBHV/YPbPr) on a 15-pin HD connector with unbalanced stereo on a 3.5mm mini jack,1 composite video on an RCA connector with unbalanced stereo on 2 RCA connectors
OUTPUTS:	1 HDMI on a DVI-I connector with unbalanced stereo on 2 RCA connectors
PORTS:	1 Ethernet on an RJ-45 connector, 1 RS-232 on a 9-pin D-sub connector
OUTPUT COLORSPACE:	RGB/YPbPr
OUTPUT RESOLUTIONS:	1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, WXGA+, SXGA+, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 1600x900
OUTPUT REFRESH RATE:	60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
PROCESSING DELAY:	30ms approx.
CONTROLS:	Front panel buttons, menu-driven OSD control, Web page
POWER CONSUMPTION:	5V DC, 1.1A
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	21.5cm x 16.1cm x 4.36cm (8.46" x 6.34" x 1.7") W, D, H
WEIGHT:	1.1kg (2.43lb) approx.
INCLUDED ACCESSORIES:	Power supply
OPTIONAL ACCESSORIES:	RK-1 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.com

Default Communication Parameters

RS-232
Baud Rate:	9,600
Data Bits:	8
Stop Bits:	1
Parity:	None
Ethernet
To reset the IP settings to the factory reset values go to: Menu-> Factory-> RESET->Change the option to YES and press Enter
IP Address:	192.168.1.39
Subnet mask:	255.255.255.0
Default gateway:	192.168.0.254
Default UDP Port #:	50000
Maximum UDP Ports:	4
Full Factory Reset
OSD	Go to: Menu-> Factory-> RESET->Change the option to YES and press Enter
RS-232/Ethernet (UDP) Command Protocol
Command Format:	ASCII protocol 3000
Example (Route the video input to the output):	#ROUTE 12,1,2

The RS-232/Ethernet (UDP) Communication Protocol

The VP-439 can be operated using serial commands from a PC, remote controller, or touch screen. The unit communicates using the default Kramer Protocol 3000.

• Kramer Protocol 3000 syntax (see Kramer Protocol 3000 Syntax on page 29)
• Kramer Protocol 3000 commands (see Kramer Protocol on page 32)
• Kramer Protocol 3000 detailed commands (See Kramer Protocol 3000 – Detailed Commands on page 33)

Kramer Protocol 3000 Syntax

Protocol 3000 communicates at a data rate of 9,600 baud, no parity, 8 data bits and 1 stop bit.

Host Message Format

Start	Address (optional)	Body	Delimiter
#	Destination_id@	Message	CR

Simple Command

Command string with only one command without addressing:

Start	Body			Delimiter
#	Command	SP	Parameter_1,Parameter_2,...	CR

Command String

Formal syntax with commands concatenation and addressing:

Start	Address	Body	Delimiter
#	Destination_id@	Command_1 Parameter1_1,Parameter1_2,...|Command_2 Parameter2_1,Parameter2_2,...|Command_3 Parameter3_1,Parameter3_2,...|...	CR

Device Message Format

Start	Address (optional)	Body	Delimiter
~	Sender_id@	Message	CR LF

Device Long Response

Echoing command:

Start	Address (optional)	Body					Delimiter
~	Sender_id@	Command SP [Param1,Param2...] result					CR LF

• CR = Carriage return (ASCII 13 = 0x0D)
• LF = Line feed (ASCII 10 = 0x0A)
• SP = Space (ASCII 32 = 0x20)

Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-'').

Command and parameters must be separated by at least one space.

Parameters

A sequence of alphameric ASCII characters ('0'-9', 'A'-Z', 'a'-z' and some special characters for specific commands). Parameters are separated by commas.

Message string

Every command entered as part of a message string begins with a message starting character and ends with a message closing character.

Note: A string can contain more than one command. Commands are separated by a pipe ('|') character.

Message starting character

'#' – For host command/query

'\~' – For machine response

Device address (Optional, for K-NET)

K-NET Device ID followed by '@'

Query sign

'?' follows some commands to define a query request.

Message closing character

CR – For host messages; carriage return (ASCII 13)

CRLF – For machine messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character

When a message string contains more than one command, a pipe ( ' |' ) character separates each command.

Spaces between parameters or command terms are ignored.

Entering Commands

You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key.

(LF is also sent but is ignored by command parser).

- For commands sent from some non-Kramer controllers like Crestron, some characters require special coding (such as, /X##). Refer to the controller manual.

Command Forms

Some commands have short name syntax in addition to long name syntax to allow faster typing. The response is always in long syntax.

Command Chaining

Multiple commands can be chained in the same string. Each command is delimited by a pipe character ( ' |' ). When chaining commands, enter the message starting character and the message closing character only once, at the beginning of the string and at the end.

Commands in the string do not execute until the closing character is entered.

A separate response is sent for every command in the chain.

Maximum String Length

64 characters

Kramer Protocol 3000 - Command List

Command	Short Form	Description
#		Protocol handshaking
#HELP		List of commands
#BUILD-DATE?		Read device build date
#FACTORY		Reset to factory default configuration
#MODEL?		Read device model
#PROT-VER?		Read device protocol version
#VERSION?		Read device firmware version
#NET-MAC?	NTMC?	Get MAC address
#NET-IP	NTIP	Set device IP address
#NET-IP?	NTIP?	Get device IP address
#NET-GATE	NTGT	Set Gateway IP
#NET-GATE?	NTGT?	Get Gateway IP
#NET-MASK	NTMSK	Set device subnet mask
#NET-MASK?	NTMSK?	Get device subnet mask
#NET-DHCP	NTDH	Set DHCP mode
#NET-DHCP?	NTDH?	Get DHCP mode
#ROUTE		Set input source
#ROUTE?		Get input source
#DISPLAY?		Get output HPD status
#HDCP-MOD		Set input HDCP
#HDCP-MOD?		Display input HDCP status
#VID-RES		Set input/output resolution
#VID-RES?		Get input/output resolution
#VFRZ		Set freeze
#VFRZ?		Display freeze status
#AUD-LVL		Set audio level
#AUD-LVL?		Get audio level
#MUTE		Set audio mute
#MUTE?		Display audio mute status
#SCLR-AS		Set auto sync mode
#SCLR-AS?		Display auto sync status
#IMAGE-PROP		Set size mode
#IMAGE-PROP?		Display size status
#SCLR-AUDIO-DELAY		Set audio delay mode
#SCLR-AUDIO-DELAY?		Display audio delay status

Kramer Protocol 3000 - Detailed Commands

This section describes the detailed commands list (see Protocol 3000

Commands on page 35) as well as the output resolutions key (see Output Resolutions

Key on page 33) and the input resolutions key (see Input Resolutions Key on page 34).

Output Resolutions Key

Resolution	Key	Resolution	Key	Resolution	Key
640x480	200	1440x900	208	1080i60	216
800x600	201	1400x1050	209	1080p60	217
1024x768	202	1680x1050	210	576p	218
1280x768	203	1600x1200	211	720p50	219
1360x768	204	1920x1080	212	1080i50	220
1280x720	205	1920x1200	213	1080p50	221
1280x800	206	480p	214	Native	222
1280x1024	207	720p60	215

Input Resolutions Key

Resolution	CV	PC	HDMI	YPbPr	Key
NTSC	√				0
PAL	√				1
640x480 @60Hz (VGA)		√	√		6
640x480 @72Hz (VGA)		√	√		8
640x480 @75Hz (VGA)		√	√		9
800x600 @56Hz (SVGA)		√	√		11
800x600 @60Hz (SVGA)		√	√		12
800x600 @72Hz (SVGA)		√	√		14
800x600 @75Hz (SVGA)		√	√		15
1024x768 @60Hz (XGA)		√	√		20
1024x768 @70Hz (XGA)		√	√		21
1024*768 @75Hz (XGA)		√	√		23
1152x864 @75Hz (XGA+)		√	√		27
1280x720 @60Hz		√	√		30
1280x768 @60Hz		√	√		33
1280x960 @60Hz		√	√		36
1280x1024 @60Hz		√	√		40
1280x1024 @75Hz		√	√		41
1360x768 @60Hz		√	√		43
1400x1050 @60Hz (SXGA+)		√	√		48
1440x900 @60Hz (WXGA+)		√	√		51
1600x1200 @60Hz (UXGA)		√	√		56
1680x1050 RB @60Hz (WSXGA)		√	√		61
1920x1080 @60Hz		√	√		65
1920x1200 RB @60Hz		√	√		66
1280x800 @60Hz		√	√		70
480I			√	√	74
576I			√	√	76
480P			√	√	75
576P			√	√	77
720P@50Hz			√	√	78
720P@60Hz			√	√	79
1080I@50Hz			√	√	80
1080I@60Hz			√	√	81
1080P@24Hz			√		82
1080P@30Hz			√		87
1080P@50Hz			√	√	84
1080P@60Hz			√	√	85

Protocol 3000 Commands

This section includes the following commands:

• HELP on page 36.
  • BUILD-DATE on page 36.
  • FACTORY on page 36.
  • MODEL? on page 36.
  • PROT-VER? on page 37.
• VERSION? on page 37.
  • NET-MAC? on page 37.
  • NET-IP on page 38.
  • NET-GATE on page 38.
  • NET-MASK on page 38.
  • NET-DHCP on page 39.
• ROUTE on page 39.
• DISPLAY? on page 40.
  • HDCP-MOD on page 40.
  • VID-RES on page 41.
  • VFRZ on page 41.
  • AUD-LVL on page 42.
• MUTE on page 42.
  • SCLR-AS? on page 43.
  • IMAGE-PROP on page 43.
  • SCLR-AUDIO-DELAY on page 44.

HELP

Functions		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	-
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	2 options:1. #HELPCR2. #HELPSPcommand_nameCR

BUILD-DATE

Functions		Permission	Transparency
Set:	BUILD-DATE	End User	-
Get:	-	-	-
Description		Syntax
Set:	Read device build date	#BUILD-DATE?CR
Get:	-	-
Response
~nn@BUILD-DATESPdateSPtimeCRLF
Parameters
date – Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time – Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds

FACTORY

Functions		Permission	Transparency
Set:	FACTORY	End User	-
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory defaults configuration	#FACTORYCR
Get:	-	-
Response
~nn@FACTORYSPOKCR LF
Notes
This command deletes all user data from the device. The deletion can take some time.

MODEL?

Functions		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	-
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~nn@MODELSPmodel_nameCR LF
Parameters
model_name – String of up to 19 printable ASCII chars

PROT-VER?

Functions		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	-
Description		Syntax
Set:	-	-
Get:	Get protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version – Format: XX.XX where X is a decimal digit

VERSION?

Functions		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	-
Description		Syntax
Set:	-	-
Get:	Get version number	#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version – Format: XX.XX.XXXX where the digits group are: major.minor.build version

NET-MAC?

Functions		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	-
Description		Syntax
Set:
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCR LF
Parameters
mac_address – Unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit.

NET-IP

Functions		Permission	Transparency
Set:	NET-IP	Administrator	-
Get:	NET-IP?	End User	-
Description		Syntax
Set:	Set device IP address	#NET-IP _SP P1 _CR
Get:	Get device IP address	#NET-IP? _CR
Response
Set: ~nn@ NET-IP _SP ip_address _SP OK _CR LF
Get: ~nn@ NET-IP _SP ip_address _CR LF
Parameters
P1 (valid IP address)= xxx.xxx.xxx.xxx
Notes
For proper settings consult your network administrator.

NET-GATE

Functions		Permission	Transparency
Set:	NET-GATE	Administrator	-
Get:	NET-GATE?	End User	-
Description		Syntax
Set:	Set Gateway IP	#NET-GATE _SP P1 _CR
Get:	Get Gateway IP	#NET-GATE? _CR
Response
Set: ~nn@ NET-GATE _SP P1 _SP OK _CR LF
Get: ~nn@ NET-GATE _SP ip_address _CR LF
Parameters
P1 (valid IP address)=xxx.xxx.xxx.xxx
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator

NET-MASK

Functions		Permission	Transparency
Set:	NET-MASK	Administrator	-
Get:	NET-MASK?	End User	-
Description		Syntax
Set:	Set device subnet mask	#NET-MASK _SP net_mask _CR
Get:	Get device subnet mask	#NET-MASK? _CR
Response
Set: ~nn@NET-MASK _SP P1 _SP OK _CR LF
Get: ~nn@NET-MASK _SP net_mask _CR LF
Parameters
P1 (valid IP address)=xxx.xxx.xxx.xxx
Response triggers
The subnet mask limits the Ethernet connection within the local network.For proper settings consult your network administrator.

NET-DHCP

Functions		Permission	Transparency
Set:	NET-DHCP	Administrator	-
Get:	NET-DHCP?	End User	-
Description		Syntax
Set:	Set DHCP mode	#NET-DHCP _SP P1 _CR
Get:	Get DHCP mode	#NET-DHCP? _CR
Response
Set: ~nn@ NET-DHCP _SP P1 _SP OK _CR LF
Get: ~nn@ NET-DHCP _SP mode _CR LF
Parameters
P1 – 0=Static IP; 1=DHCP0 – Use static IP.1 – Use DHCP. If unavailable, use IP as above.
Notes
Connecting Ethernet to devices with DHCP may take more time in some networks.To connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if available.For proper settings consult your network administrator.

ROUTE

Functions		Permission	Transparency
Set:	ROUTE	End User	-
Get:	ROUTE?	End User	-
Description		Syntax
Set:	Set layer routing	# ROUTE SP P1,P2,P3 CR
Get:	Get layer routing	# ROUTE? SP P1,P2 CR
Response
~ nn@ ROUTE SP P1,P2,P3 CR LF
Parameters
P1 (Layer number) -12=Video+AudioP2 – 1=ScalerP3 – video inputs (0~2) – 0=HDMI; 1=PC; 2=Video (CV);
Notes
This command replaces all other routing commands.

DISPLAY?

Functions		Permission	Transparency
Set:	-	-	-
Get:	DISPLAY?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get output HPD status	#DISPLAY?SPP1CR
Response
~nn@DISPLAYSPP1CR LF
Parameters
P1 (Output number) – 0=DVI
Response triggers
After execution, response is sent to the com port from which the Get was receivedResponse is sent after every change in output HPD status ON to OFFResponse is sent after every change in output HPD status OFF to ON and ALL parameters (new EDID, etc.) are stable and valid

HDCP-MOD

Functions		Permission	Transparency
Set:	HDCP-MOD	Administrator	Public
Get:	HDCP-MOD?	End User	Public
Description		Syntax
Set:	Set HDCP mode	#HDCP-MOD _SP P1,P2,P3 _CR
Get:	Get HDCP mode	#HDCP-MOD? _SP P1,P2 _CR
Response
Set / Get : ~nn@HDCP-MOD _SP P1,P2,P3 _CR LF
Parameters
P1 (Input/Output) – 0=InputP2 (Scaler number) –0=HDMIP3 (Status) – Input: 0=Off; 1=On
Response triggers
Response is sent to the com port from which theSet(before execution) / Getcommand was receivedResponse is sent to all com ports after execution if HDCP-MOD was set any other external control device (button press, device menu and similar) or genlock status changed
Notes
Set HDCP working mode on device input:HDCP supported – HDCP_ON [default]HDCP not supported – HDCP OFFHDCP support changes following detected sink – MIRROR OUTPUT

VID-RES

Functions		Permission	Transparency
Set:	VID-RES	End User	Public
Get:	VID-RES?	End User	Public
Description		Syntax
Set:	Set video resolution	#VID-RES _SP P1,P2,P3,P4 _CR
Get:	Get video resolution	#VID-RES? _SP P1,P2,P3 _CR
Response
~nn@VID-RES _SP P1,P2,P3,P4 _CR LF
Parameters
P1 -0=Input; 1=OutputP2 - 1=ScalerP3 - 0P4 - video resolutions - see output resolutions in Output Resolutions Key on page 33 and input resolutions in Input Resolutions Key on page 34
Response triggers
After execution, response is sent to the com port from which the Set /Get was receivedAfter execution, response is sent to all com ports if VID-RES was set by any other external control device (button press, device menu and similar)
Notes
“Set” command is only applicable for stage=Output“Set” command with is_native=ON sets native resolution on selected output (resolution index sent = 0).Device sends as answer actual VIC ID of native resolution“Get” command with is_native=ON returns native resolution VIC, with is_native=OFF returns current resolutionTo use “custom resolutions” (entries 100-105), define them using command DEF-RES

VFRZ

Functions		Permission	Transparency
Set:	VFRZ	End User	Public
Get:	VFRZ?	End User	Public
Description		Syntax
Set:	Set freeze on selected output	#VFRZ _SP P1,P2 _CR
Get:	Get output freeze status	#VFRZ? _SP P1 _CR
Response
~nn@VFRZ _SP P1, P2 _CR LF
Parameters
P1 – 1=ScalerP2 – 0=Off; 1=On
Response Triggers
After execution, response is sent to the com port from which the Set/Get was receivedAfter execution, response is sent to all com ports if VFRZ was set by any other external control device (button press, device menu and similar)

AUD-LVL

Functions		Permission	Transparency
Set:	AUD-LVL	End User	-
Get:	AUD-LVL?	End User	-
Description		Syntax
Set:	Set audio level in specific amplifier stage	#AUD-LVL _SP P1,P2,P3 _CR
Get:	Get audio level in specific amplifier stage	#AUD-LVL? _SP P1,P2 _CR
Response
~nn@AUD-LVL _SP P1,P2 _CR LF
Parameters
P1 (Input/Output)- 0=Input; 1=OutputP2 N/AP3 – Input=0 to 100, ++/--; Output=0 to 110, ++/--

MUTE

Functions		Permission	Transparency
Set:	MUTE	End User	Public
Get:	MUTE?	End User	Public
Description		Syntax
Set:	Mute the selected output	# MUTE _SP P1,P2 _CR
Get:	Mute the selected output	# MUTE? _SP P1 _CR
Response
Set / Get : ~ nn@ MUTE _SP P1,P2. _CR LF
Parameters
P1 – 1=ScalerP2 – 0=Off; 1=On
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device(button press, device menu and similar) or genlock status was changed
Notes
Mutes the selected audio output

SCLR-AS?

Functions		Permission	Transparency
Set:	SCLR-AS	End User	Public
Get:	SCLR-AS?	End User	Public
Description		Syntax
Set:	Set the auto sync off timer	# SCLR-AS SP P1,P2 CR
Get:	Get the auto sync off timer definition	# SCLR-AS? SP P1 CR
Response
Set / Get : ~ nn@ SCLR-AS SP P1,P2.... CR LF
Parameters
P1 (Scaler Number) -1=ScalerP2 (Off/On) - 0=Off; 1=Fast; 2=Slow
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
Sets the Auto Sync features for the selected Scaler

IMAGE-PROP

Functions		Permission	Transparency
Set:	IMAGE-PROP	End User	Public
Get:	IMAGE-PROP?	End User	Public
Description		Syntax
Set:	Set the image size	# IMAGE-PROP _SP P1 _CR
Get:	Get the image size	# IMAGE-PROP? _SP P1,...,P6 _CR
Response
Set / Get : ~nn@ IMAGE-PROP _SP P1,P2.... _CR LF
Parameters
P1 (Scaler number) – 1=ScalerP2 (Status) – 0=Full; 1=Over Scan; 2=Under Scan; 3=Letter Box; 4=PanScan; 5=Best Fit
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
Sets the image properties of the selected scaler

SCLR-AUDIO-DELAY

Functions		Permission	Transparency
Set:	SCLR-AUDIO-DELAY	End User	Public
Get:	SCLR-AUDIO-DELAY?	End User	Public
Description		Syntax
Set:	Set the scaler audio delay	# SCLR-AUDIO-DELAY _SP P1,P2 _CR
Get:	Get the scaler audio delay	# SCLR-AUDIO-DELAY? _SP P1 _CR
Response
Set / Get : ~ nn@ SCLR-AUDIO-DELAY _SP P1,P2 _CR LF
Parameters
P1 (Audio output number) -1=ScalerP2 (Level selection) - 0=Off; 1=40ms; 2=110ms; 3=150ms; 4=Auto
Response triggers
Response is sent to the com port from which the Set (before execution) / Get command was receivedAfter execution, response is sent to all com ports if CMD-NAME was set any other external control device (button press, device menu and similar) or genlock status was changed
Notes
Sets the audio delay for the selected audio output

The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product. Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates.
2. All Kramer fiber optic cables, adapter-size fiber optic extenders, active cables, cable retractors, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.
4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).
6. K-Touch software is covered by a standard one (1) year warranty for software updates.
7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product. If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

P/N:

2900-300415

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.
