USER MANUAL VS-88DT Kramer

Front and back views of a network equipment rack with ports, indicator lights, and a USB port (no readable text or symbols)

Contents

Introduction 1

Getting Started 2

Achieving the Best Performance 2

Safety Instructions 2

Using TP cables 2

Recycling Kramer Products 3

Overview 4

About HDBaseT™ Technology 5

Defining the VS-88DT HDMI/HDBT Matrix Switcher 6

Installing the VS-88DT in a Rack 8

Connecting the VS-88DT 9

Connecting a Serial Controller to the VS-88DT 10

Connecting to the VS-88DT via Ethernet 10

Operating the VS-88DT 13

Switching Inputs to Outputs 13

Storing and Recalling Preset Configurations 14

Acquiring an EDID 14

Cancelling One or All Outputs 14

Resetting the Device to Factory Default Configuration 15

Locking and Unlocking the Front Panel 15

RS-232 Data Routing over HDBaseT 16

Configuring the VS-88DT

Using the Menu 17

Selecting the HDBaseT or HDMI Outputs 19

Selecting DHCP 19

Configuring the IP Network Address 19

Resetting the VS-88DT to Factory Default Configuration 20

Operating the VS-88DT Remotely Using the Web Pages

Switching Page 21

Device Settings Page 24

Authentication Page 25

RS-232 Routing Page 26

EDID Page 27

About Page 27

Wiring the DGKat TP RJ-45 Connectors

Updating the Firmware 29

Technical Specifications 30

Default Parameters 31

Default Communication Parameters 31

Kramer Protocol

Kramer Protocol 3000 Syntax 32

Kramer Protocol 3000 Commands 34

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Congratulations on purchasing your VS-88DT HDMI/HDBT Matrix Switcher which is ideal for:

• Conference room presentations
- Advertising applications

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to www.kramerav.com/downloads/VS-88DT

to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer VS-88DT away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

Safety Instructions

Caution: There are no operator serviceable parts inside the unit.

Warning: Use only the power cord that is supplied with the unit.

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

Warning: Disconnect the power and unplug the unit from the wall before installing.

Using TP cables

Kramer engineers have developed a special twisted pair cable to best match our HDBaseT products, the Kramer BC-HDKat6a (CAT 6 23 AWG) cable. This specially built cable significantly outperforms regular CAT 5/CAT 6/CAT 7a cables.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.

Overview

The high-quality Kramer VS-88DT is an HDMI/HDBT Matrix Switcher that accepts up to eight HDMI signals and routes any or all of them to any or all eight HDMI outputs or HDBaseT for connection to compatible receivers, for example, the TP-588D and TP-588VGA.

The VS-88DT features:

• Eight HDMI and nine IR inputs
• Eight HDMI, eight HDBaseT and nine IR outputs
- Bandwidth up to 6.75Gbps (2.25Gbps per video channel)
- EDID Capture—copies and stores the EDID from a display device
• Hot-plug Detect (HPD)
- HDBaseT range up to 130m (430ft) at normal mode (2K) when using BC-UNIKat cables
• RS-232 data tunneling over HDBaseT

- HDCP support

- HDTV compatibility

- Support for HDMI – 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD® and linear PCM 7.1 surround sound

- A non-volatile memory for matrix configuration

- A store and recall facility for preset configurations

- Automatic output shutdown if no input signal is detected after a configurable idle period

- An LCD display for easy configuration and operation

- Remote control using serial commands (over RS-232 and Ethernet) and built-in, browser-based Web pages

• Support for Kramer Protocol 3000

- A lock button to prevent unwanted tampering with the settings

- 2U height that fits a standard 19" professional rack enclosure

You can control the VS-88DT using the front panel buttons, or remotely via:

• Built-in, embedded Web pages using a standard Web browser over Ethernet
- RS-232 serial commands transmitted by a touch screen system, PC or other serial controller
- The Kramer infrared remote control transmitter

About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (supported by the HDBaseT Alliance). It is particularly suitable in the consumer home environment as a digital home networking alternative where it enables you to replace numerous cables and connectors by a single LAN cable used to transmit, for example, uncompressed, full, high definition video, audio and IR as well as various control signals.

Defining the VS-88DT HDMI/HDBT Matrix Switcher

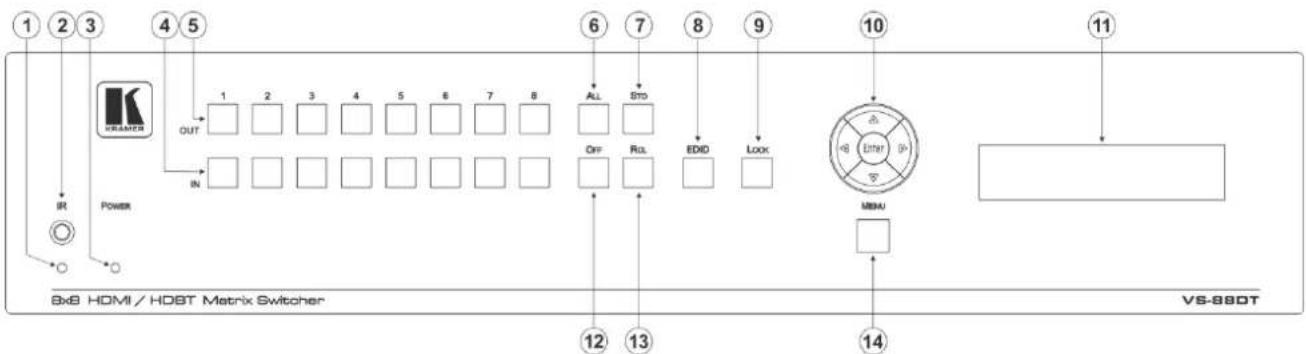

Figure 1 defines the front panel of the VS-88DT.

Figure 1: VS-88DT HDMI/HDBT Matrix Switcher Front Panel

#	Feature	Function
1	IR LED	Lights yellow when receiving an IR signal
2	IR Sensor	IR receiver for remote control
3	POWER LED	Lights green when the device is powered on
4	IN 1~8	Press to select an input after selecting an output (see Switching Inputs to Outputs on page 13)
5	OUT 1~8	Press to switch, followed by an input or OFF
6	ALL Button	Press, followed by an Input to switch the Input to all outputs or press followed by the Off button to disconnect all switches, (see Cancelling One or All Outputs on page 14)
7	STO Button	Press to store a preset configuration followed by the preset number in which to save it (see Section Storing and Recalling Preset Configurations on page 14)
8	EDID Button	Press to copy the EDID from an Output to an Input (see Acquiring an EDID on page 14)
9	LOCK Button	Press and hold to lock the front panel buttons, (see Locking and Unlocking the Front Panel on page 15). Press and hold again to unlock
10	Menu Navigation Pad	Use the Enter, up (▲), down (▼), left (◀) and right (▶) buttons to navigate the menu, and modify parameters or values (see Section Using the Menu on page 17)
11	LCD Readout (20 char x 2 lines)	Displays either the input/output resolution currently selected or the menu during configuration
12	OFF Button	Press after an output button to cancel the currently selected outputs. Press after the All button to cancel all currently switched outputs (see Cancelling One or All Outputs on page 14)
13	RCL Button	Press, followed by a preset number to recall the preset configuration (see Section Storing and Recalling Preset Configurations on page 14)
14	MENU Button	Press to enter the Menu and move one level back when the menu is displayed (see Section Using the Menu on page 17)

©

Installing the VS-88DT in a Rack

Before installing in a rack, be sure that the environment is within the recommended range:

OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing

CAUTION!

When installing on a 19" rack, avoid hazards by taking care that:

1. It is located within the recommended environmental conditions, as the operating ambient temperature of a closed or multi unit rack assembly may exceed the room ambient temperature.
2. Once rack mounted, enough air will still flow around the machine.
3. The machine is placed straight in the correct horizontal position.
4. You do not overload the circuit(s). When connecting the machine to the supply circuit, overloading the circuits might have a detrimental effect on overcurrent protection and supply wiring. Refer to the appropriate nameplate ratings for information. For example, for fuse replacement, see the value printed on the product label.
5. The machine is earthed (grounded) in a reliable way and is connected only to an electricity socket with grounding. Pay particular attention to situations where electricity is supplied indirectly (when the power cord is not plugged directly into the socket in the wall), for example, when using an extension cable or a power strip, and that you use only the power cord that is supplied with the machine.

To rack-mount a machine:

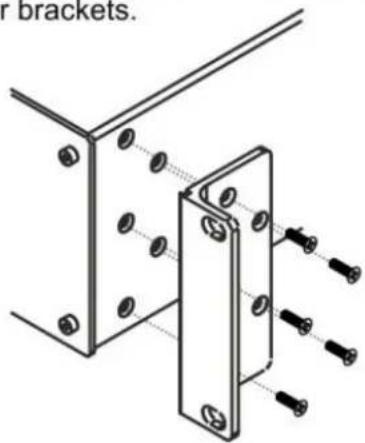

1. Attach both ear brackets to the machine. To do so, remove the screws from each side of the machine (5 on each side), and replace those screws through the ear brackets.

Technical diagram of a metal bracket assembly with bolts and mounting holes (no text or symbols)

1. Place the ears of the machine against the rack rails, and insert the proper screws (not provided) through each of the four holes in the rack ears.

Note:

• In some models, the front panel may feature built-in rack ears
- Detachable rack ears can be removed for desktop use
• Always mount the machine in the rack before you attach any cables or connect the machine to the power
- If you are using a Kramer rack adapter kit (for a machine that is not 19"), see the Rack Adapters user manual for installation instructions available from our Web site

Connecting the VS-88DT

Switch off the power to all devices before connecting them to your

VS-88DT. After connecting your VS-88DT, connect its power and then switch on the power to the other devices.


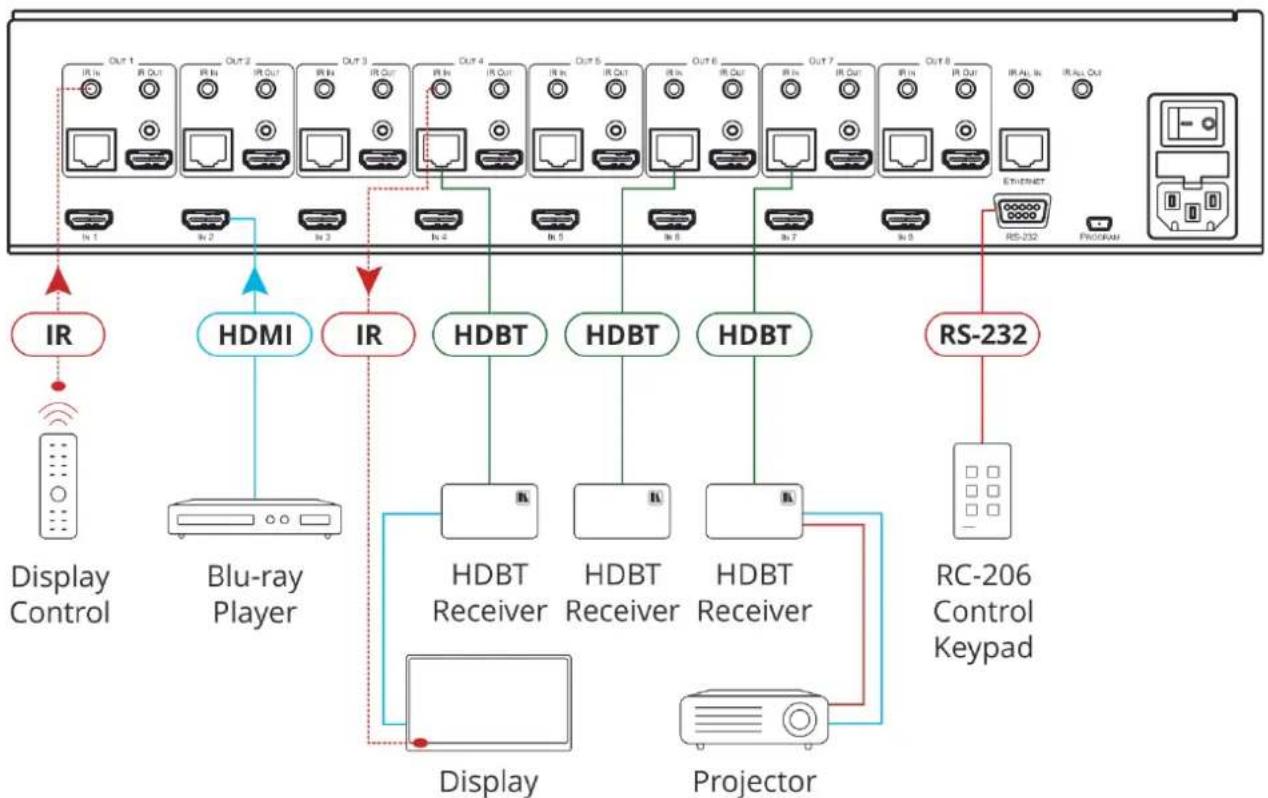

Figure 3: Connecting the VS-88DT HDMI/HDBT Matrix Switcher

To connect the VS-88DT as illustrated in the example in Figure 3:

1. Connect the HDMI sources, (for example, Blu-ray disc players) to the HDMI In 1 and In 2 connectors.
2. Connect an external IR sensor to the In 4 IR In 3.5mm mini jack.
3. Connect the Out 1 IR 3.5mm mini jack to an external IR transmitter.
4. Connect the Out 4 HDMI connector to an HDMI acceptor, (for example, a display).
5. Connect the Out 3 TP RJ-45 HDBT connector to a compatible HDBT receiver, (for example, the TP-580Rxr), and connect the HDMI output of the TP-580Rxr to a display.
6. Connect the Out 7 TP RJ-45 HDBT connector to a compatible HDBT receiver, (for example, the TP-588D), and connect the DVI output of the TP-588D to a display.
7. Connect a controller via either RS-232 or a LAN to the Ethernet RJ-45 connector.

Connecting a Serial Controller to the VS-88DT

You can connect to the VS-88DT via an RS-232 connection using, for example, a PC. For information about routing RS-232 data over HDBaseT, see RS-232 Data Routing over HDBaseT on page 16.

To connect to the VS-88DT via RS-232:

- Connect the 9-pin D-sub connector on the rear panel of the VS-88DT (pin 5 to pin 5, pin 2 to pin 3, pin 3 to pin 2) to the RS 232 9-pin D-sub port on your PC

Connecting to the VS-88DT via Ethernet

You can connect to the VS-88DT via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Connecting the Ethernet Port Directly to a PC on page 10)
• Via a network hub, switch, or router, using a straight-through cable (see Connecting the Ethernet Port via a Network Hub on page 12)

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the VS-88DT directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the VS-88DT with the factory configured default IP address.

After connecting the VS-88DT to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.
   The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 4.

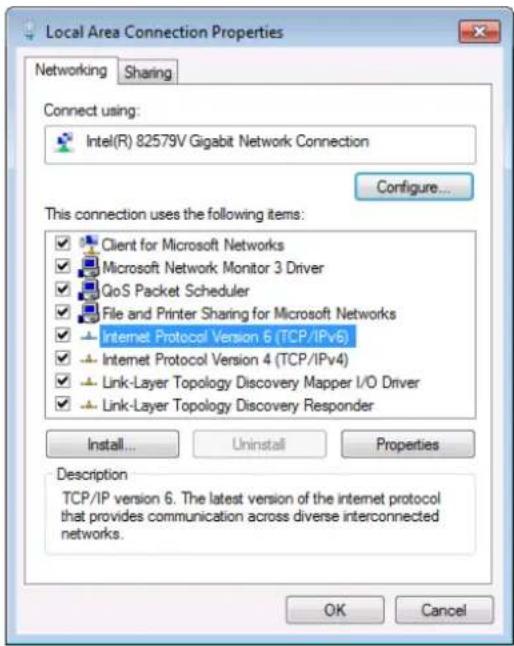

Figure 4: Local Area Connection Properties Window

1. Highlight Internet Protocol Version 4 (TCP/IPv4).
2. Click Properties.

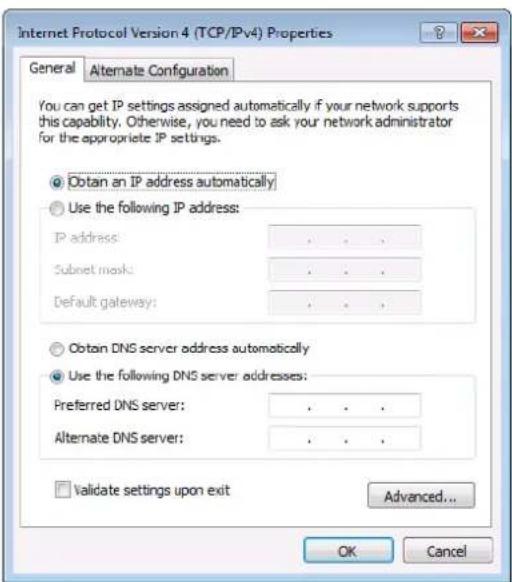

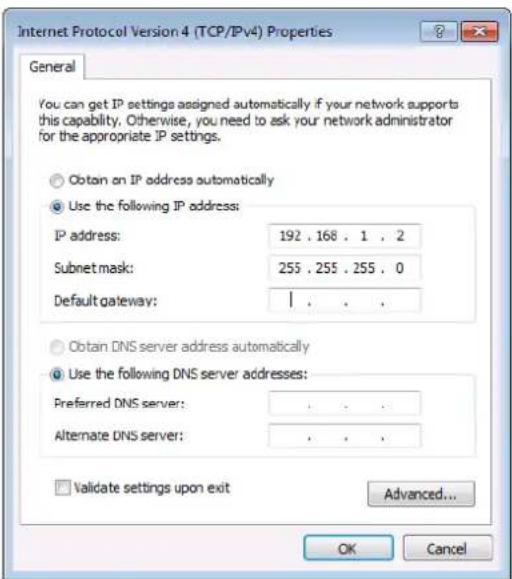

The Internet Protocol Properties window appears as shown in Figure 5.

Figure 5: Internet Protocol Version 4 Properties Window

1. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 6.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.

Figure 6: Internet Protocol Properties Window

1. Click OK.
2. Click Close.

Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the VS-88DT to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

Operating the VS-88DT

When the VS-88DT is powered on, the following is displayed briefly on the LCD display:

KRAMER ELEC

8X8 HDMI/HDBT Matrix

Following the self-test the current switching configuration is displayed, an example of which is shown below. The top row indicates the output port and the bottom row indicates which input port is switched to the output port displayed directly above it. An input port showing 0 (zero) indicates that the output port has no input switched to it.

O:	1	2	3	4	5	6	7	8
I:	3	0	1	2	4	5	2	8

Note: If there is no button activity during any procedure for approximately 30 seconds, the procedure is aborted and the display reverts back to the Input/Output display.

Switching Inputs to Outputs

You can switch:

• Individual inputs to individual outputs
  • One input to all outputs

To switch an output to an input, (for example, Input 7 to Output 3):

1. Press Out 3.
   The Output button lights red.
2. Press In 7.
   The Input button lights red and the switch is performed.

To switch one input to all outputs, (for example, Input 2 to all outputs):

1. Press All.
   The All button lights red.
2. Press In 2.
   The Input 2 button lights and Input 2 is switched to all outputs.

Storing and Recalling Preset Configurations

You can store up to eight preset configurations for instant recall. The top row of output buttons relate to presets one to eight.

To store the current configuration in preset 5:

1. Press Sto.
2. Press Out 5.
   The selection is displayed in the readout.
3. Press Sto.
   The current configuration is stored in preset 5.

To recall preset 8:

1. Press Rcl.
2. Press Out 8.
   The selection is displayed in the readout.
3. Press Rcl.
   The configuration stored in preset 8 is recalled.

Acquiring an EDID

You can acquire the EDID from an output and assign it to either one or all inputs.

To acquire the EDID from an output and store it on one input, (for example, Output 5 to Input 8):

1. Press EDID.
   The button lights red.
2. Press Out 5.
3. Press In 8.
4. Press EDID.
   The button no longer lights and the EDID from Output 5 is stored in Input 8.

Cancelling One or All Outputs

The Off button is used to cancel one or all currently switched outputs.

To cancel one currently switched output, (for example, Output 7):

1. Press Out 7.
2. Press Off.

To cancel all currently switched outputs:

1. Press All.
2. Press Off.

Resetting the Device to Factory Default Configuration

The VS-88DT can be reset to factory default configuration either by sending a Protocol 3000 command or by using the front panel buttons.

To reset the device to the factory default configuration by sending a P3000 command:

1. Connect from a PC to the VS-88DT via the serial port using the following parameters:

■ 115200, 8, 1, none

1. Send the P3000 command to reset the device to factory default (see Section Kramer Protocol 3000 Commands on page 34).

After a few seconds the VS-88DT is reset to factory default.

To reset the device to the factory default configuration using the front panel buttons:

1. Press the Menu button.
   The Menu button lights and the first option on the menu appears.

2. Use the up (▲) and down (▼) arrows on the keypad to scroll to the RESET TO DEFAULT option.

3. Press the Enter button.

The Reset to Default No and Yes options appear.

1. Use the left (◀) and right (▶) arrows on the keypad to select Yes.

2. Press Enter.

After a few seconds the standby readout is displayed and the device is reset to factory default.

Locking and Unlocking the Front Panel

You can lock the front panel buttons to prevent unwanted key presses from changing the current configuration.

To lock the front panel:

• Press and hold the Lock button.
  The button lights, the Locked message is displayed briefly, and the front panel buttons are locked. Pressing any button causes the Locked message to display briefly and the Lock button to flash

To unlock the front panel:

• Press and hold the Lock button.
  The button no longer lights and the front panel buttons are unlocked

RS-232 Data Routing over HDBaseT

The VS-88DT enables routing data from a source connected to the RS-232 serial port to one of the HDBaseT outputs. This can be performed from the RS-232 Routing Web page (see RS-232 Routing Page on page 26) or using the ROUTE command (see Kramer Protocol on page 32).

For simulation purposes, the VS-88DT also enables routing the RS-232 data to all the HDBaseT outputs, by chaining multiple ROUTE commands. For more information on chaining multiple commands, see Chaining Commands on page 34.

Note: When RS-232 data routing is enabled, the RS-232 serial port cannot be used for connecting a serial controller.

Configuring the VS-88DT

Using the Menu

The main menu comprises three sections:

• Interface Out (see Interface Out Sub-menu on page 17)
• RS-232 Routing (see RS-232 Routing Sub-menu on page 17)
• DHCP (see Network Settings Sub-menu on page 18)
- Ethernet Status (see Ethernet Status on page 18)
• FW version display (see FW Version Display on page 18)
- Reset to Default (see Reset to Default Sub-menu on page 18)
- Update Firmware (see Update Firmware Sub-menu on page 18)

Navigation through the menu is performed as follows:

• Menu—Enter the Menu or exit one level when in the Menu
• Enter—Select a parameter/value
• Up (▲) or Right (▶)—scroll up through the parameter/value list
• Down (▼) or Left (◀)—scroll down through the parameter/value list

Note: If there is no button activity for approximately 30 seconds, the display reverts back to the Input/Output display.

Interface Out Sub-menu

The parameters in the Interface Out sub-menu set the output signal format.

Parameter	Description	Options
Output 1~8:	Sets the required outputs	HDBT, HDMIDefault—HDBT

RS-232 Routing Sub-menu

The RS-232 Status sub-menu turns the RS-232 serial communication routing on and off.

Parameter	Description	Options
OFF, ON	Turns the RS-232 routing on and off	OFF, ONDefault—OFF

Network Settings Sub-menu

The Network Status sub-menu controls DHCP selection and IP network parameters.

Parameter	Description	Options
OFF, ON	Turns DHCP on and off	OFF, ONDefault—OFF
IP Settings	Sets the IP network address	All valid IP addresses
Netmask Settings	Sets the IP netmask	All valid IP netmask addresses
Gateway Settings	Sets the IP gateway	All valid IP gateway addresses

Note: When turning DHCP on, the device performs an automatic reset.

Ethernet Status Sub-menu

The parameters in the Ethernet Status sub-menu display the TCP/IP communication parameters.

Parameter	Description
IP Status:	Displays the TCP/IP address of the device
Netmask Status:	Displays the TCP/IP netmask of the device
Gateway Status:	Displays the TCP/IP gateway
MAC Address:	Displays the MAC address of the device

FW Version Display

Displays the firmware version similar to the following:

V1.1.1123+04A+1.0

Reset to Default Sub-menu

Parameter	Description
NO, YES	Resets the device to default factory parameters

Update Firmware Sub-menu

Parameter	Description
Update I/O FW:	Updates the I/O firmware

Selecting the HDBaseT or HDMI Outputs

To select the HDBaseT or HDMI outputs:

1. Press the Menu button to display the menu. The menu is displayed.

2. Using the up (▲) or down (▼) button, move through the menu options until the Interface Out: option is displayed.

3. Press Enter. The HDBaseT and HDMI options are displayed.

4. Using the left (◀) or right (▶) button, select either HDBaseT or HDMI.

5. Press Enter. The change is saved.

Selecting DHCP

Note: Turning DHCP off does not de-encrypt encoded streams, it simply indicates to the source that DHCP is not supported.

To select the DHCP:

1. Press the Menu button to display the menu. The menu is displayed.

2. Using the up (▲) or down (▼) button, move through the menu options until the Network Settings option is displayed.

3. Press Enter. The DHCP On and OFF options are displayed.

4. Using the left (◀) or right (▶) button, select either On or Off.

5. Press Enter. The change is saved.

Configuring the IP Network Address

To configure the IP network address:

1. Press the Menu button to display the menu. The menu is displayed.

2. Using the up (▲) or down (▼) button, move through the menu options until the Network Settings option is displayed.

3. Press Enter. The DHCP Settings option is displayed.

4. Using the up (▲) or down (▼) button, move through the menu options until the IP Settings option is displayed.

5. Press Enter.

6. Using the left (◀) or right (▶) button, move the cursor to the digit you wish to change.
7. Using the up (▲) or down (▼) button, select the required digit.
8. Repeat steps 6 and 7 until the required address is displayed.
9. Press Enter.

The change is saved.

Resetting the VS-88DT to Factory Default Configuration

To reset the VS-88DT to factory default parameters:

1. Press the Menu button to display the menu.

The menu is displayed.

1. Using the up (▲) or down (▼) button, move through the menu options until the Reset to

Default: option is displayed.

1. Press Enter.

The NO and YES options are displayed.

1. Using the left (◀) or right (▶) button, select YES.

2. Press Enter.

The device is reset to factory default parameters and automatically reboots.

Operating the VS-88DT Remotely Using the Web Pages

You can configure and control the VS-88DT using the embedded Web pages by connecting via a Web browser over Ethernet. For a first time connection or if you have authentication enabled the Login page shown in Figure 7 is displayed.

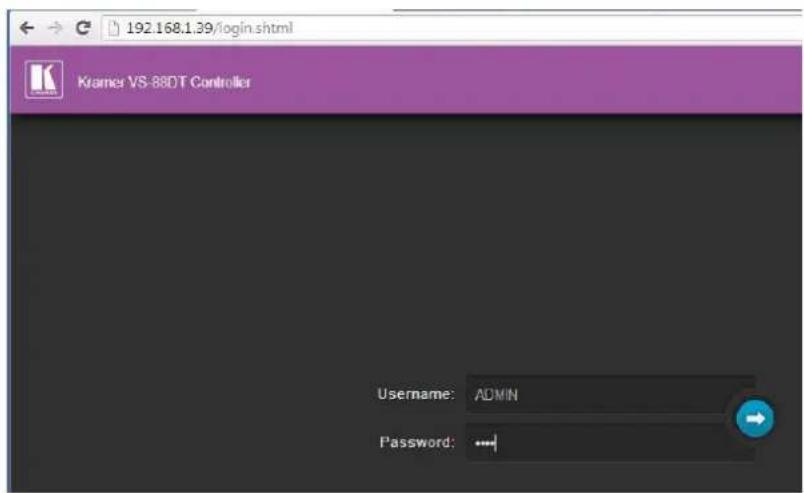

Figure 7: Login Page

If authentication is not enabled, click on the arrow. If authentication is enabled, enter a valid user name and password and click on the arrow. The Switching page shown in Figure 8 is displayed.

Switching Page

The Switching page allows you to:

• Switch inputs to outputs
• Edit the button name
• Select either the HDMI or HDBT output
• Mute the output
  • See what signal is present on the input and output
  • See which input is switched to which output

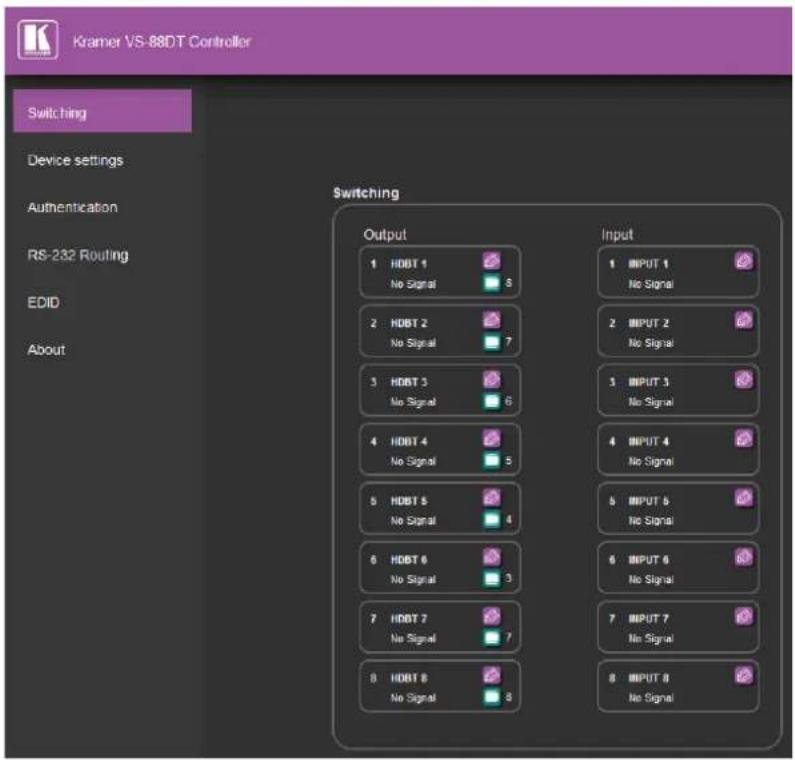

Figure 8: Switching Page


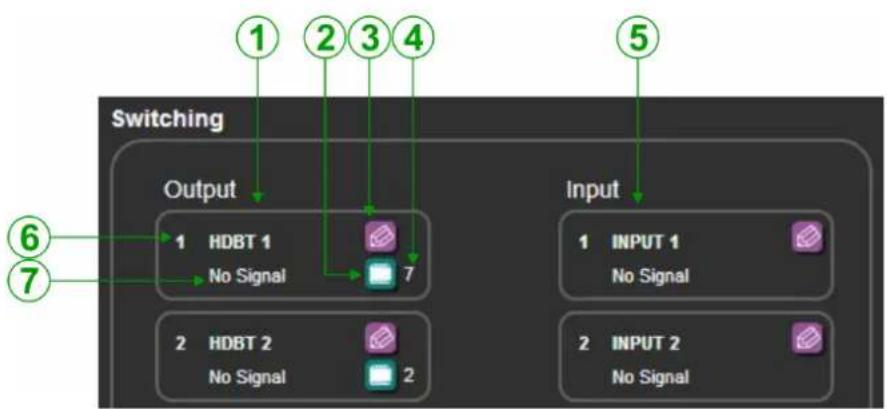

Figure 9: Switching Button Details

#	Item	Description
1	Eight output buttons	Click on the button to select an output
2	Mute button	Click to mute the output
3	Edit button	Click to open the button edit popup
4	Input number	Indicates which input is switched to this output
5	Eight input buttons	Click to select an input
6	Output number	Indicates the output number
7	Signal type	Indicates the signal type present on the output

Figure 10 shows the Input button properties popup.

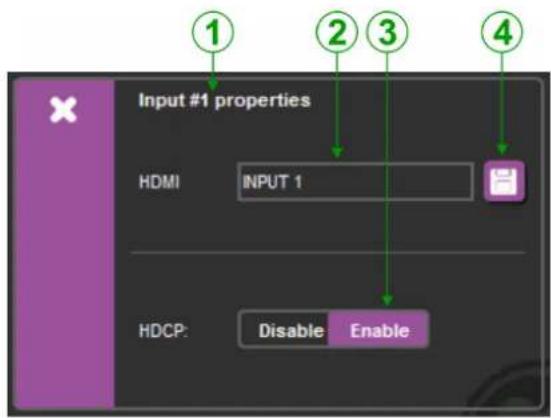

Figure 10: Input Properties Popup

#	Item	Description
1	Input #1 properties	Displays the input you are currently editing
2	HDMI output label	Enter the text required for the HDMI input label
3	HDCP button	Click to enable/disable HDCP
4	Save button	Click to save changes to either of the labels

Figure 11 shows the Output properties popup.

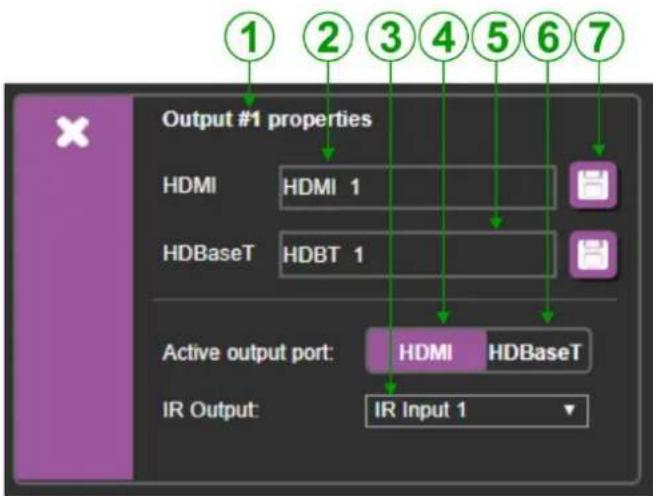

Figure 11: Output Properties Popup

#	Item	Description
1	Output #2 properties	Displays the output you are currently editing
2	HDMI output label	Enter the text required for the HDMI output label
3	IR Output routing	Select which IR input to use for this IR output
4	HDMI button	Click to enable the HDMI output
5	HDBaseT output label	The current HDBaseT output label
6	HDBaseT button	Click to enable the HDBaseT output
7	Save button	Click to save changes to either of the labels

Device Settings Page

The Device Settings page allows you to:

• See the current IP settings
• Turn DHCP on and off
• Edit the IP settings for static IP

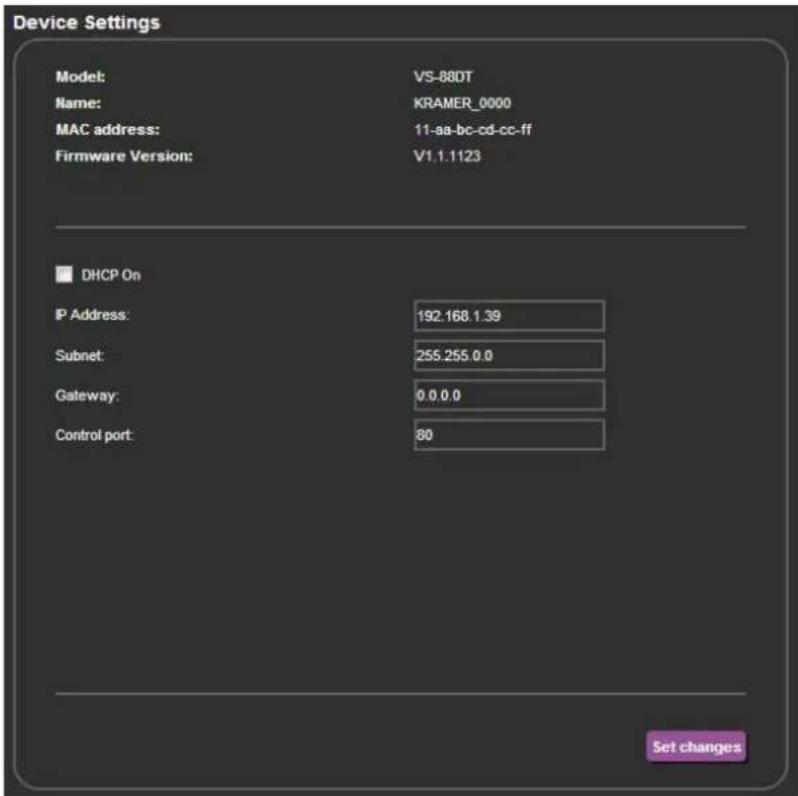

Figure 12: Device Settings Page

Authentication Page

There are three levels of authentication:

• No username or password required to access any settings
• Access to all settings limited to entry with a valid username and password
• Access to only the serial port settings limited to entry with a valid username and password

The Authentication page allows you to:

• Turn Web page authentication on and off
• Set the Web page access username and password
• Set the Web page access logout timeout
• Turn serial port settings access on and off
• Set the serial port settings access username and password
• Set the serial port Web page logout timeout

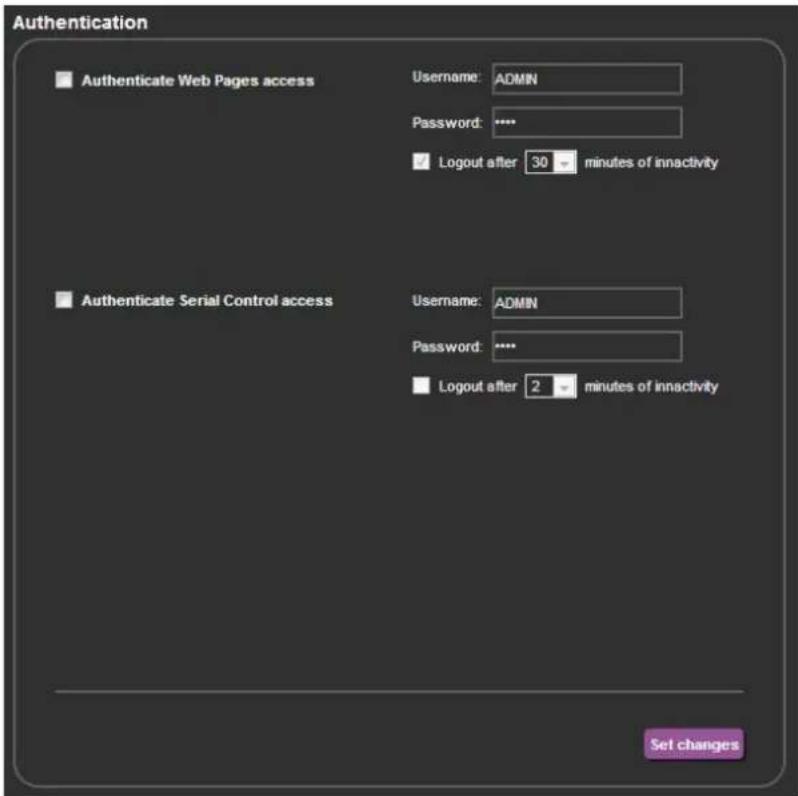

Figure 13: Authentication Page

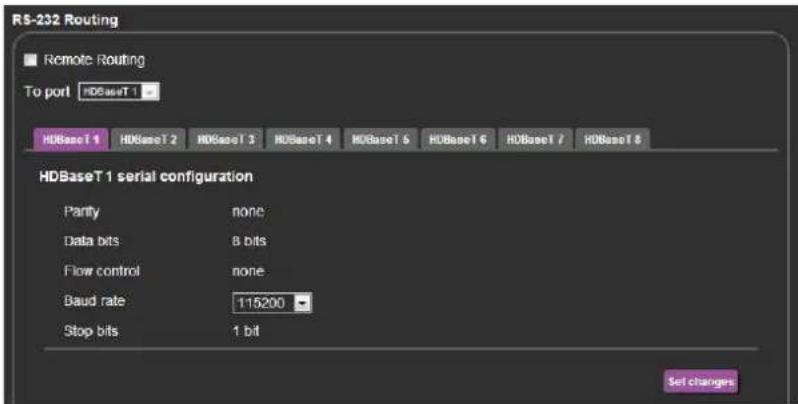

RS-232 Routing Page

The RS-232 Routing page allows you to:

• Turn remote RS-232 routing on and off
• Select the HDBaseT output to which to route the RS-232 data
• Select the serial baud rate for each HDBaseT port

Figure 14: RS-232 Routing Page

Note: When RS-232 data routing is enabled, the RS-232 serial port cannot be used for connecting a serial controller.

EDID Page

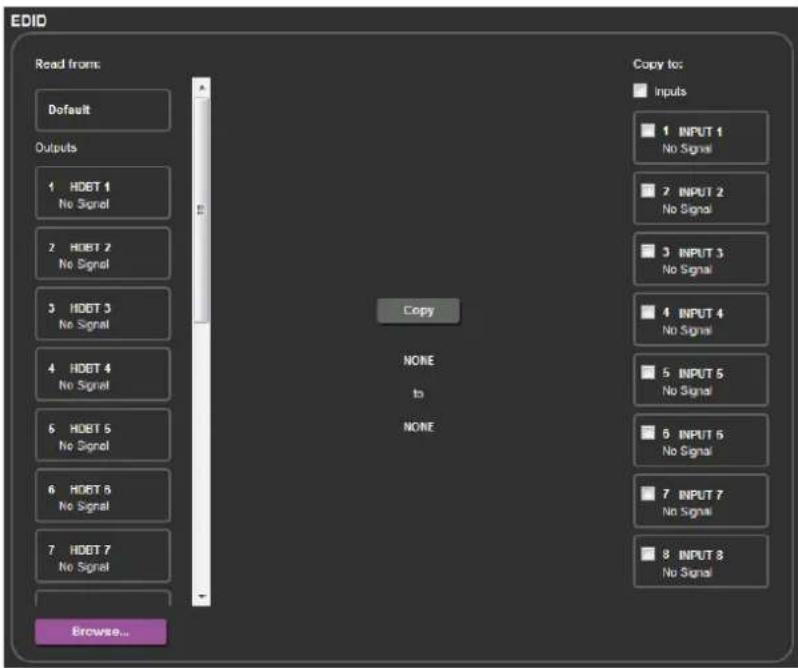

The EDID page allows you to:

- Copy an EDID from:

The default EDID
■ Any HDBaseT output
■ Any input
■ An EDID stored in a file

- Copy an EDID to one or more inputs

Figure 15: EDID Page

About Page

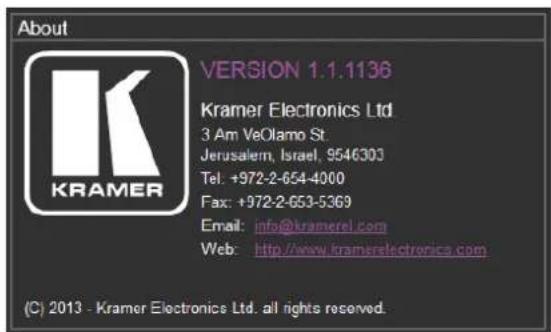

The About page displays the device firmware revision and the Kramer company details.

Figure 16: About Page

Wiring the DGKat TP RJ-45 Connectors

Connect/solder the cable shield to the RJ-45 connector shield.

Do not use a crossed TP cable with this product.

Using a TP cable that is incorrectly wired may cause permanent damage to the device

Do not use unshielded TP cables with this product

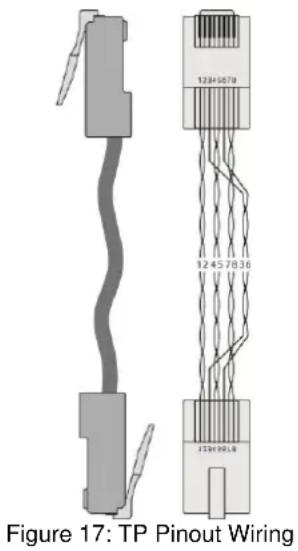

Figure 17 displays the TP pinout using a straight pin-to-pin cable with RJ-45 connectors.

EIA /TIA 568B
PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown
Pair 1	4 and 5
Pair 2	1 and 2
Pair 3	3 and 6
Pair 4	7 and 8

Updating the Firmware

The VS-88DT uses two microcontrollers that run firmware located in flash memory. The firmware for these microcontrollers may be upgraded independently.

To upgrade the main microcontroller firmware:

1. From www.kramerav.com download the latest firmware file to your PC, (for example, VS-88DT_V1.1.1111_030713.bin).
2. Open Windows Explorer on your PC.
3. Power off the VS-88DT.
4. Connect the VS-88DT to your PC using a USB cable.
5. Power on the VS-88DT while holding down the OFF button.
6. After a few seconds a removable drive is displayed in your Windows Explorer. Release the OFF button.
7. Copy the firmware file from your PC to the new removable drive.
8. After the file has been transferred, power-cycle the VS-88DT. As soon as the VS-88DT is ready for operation, the upgrade process is complete.

To upgrade the I/O microcontroller firmware:

1. Download the latest firmware file, (for example, VS-88DT_IO(v02)_030713.bin) from www.kramerav.com to your PC.
2. Open Windows Explorer on your PC.
3. Power off the VS-88DT.
4. Connect the VS-88DT to your PC using a USB cable.
5. Power on the VS-88DT while holding down the OFF button.
6. Copy the firmware file from your PC to the new removable drive.
7. After the file has been transferred, power-cycle the VS-88DT. As soon as the VS-88DT is ready for operation, the upgrade process is complete.

Technical Specifications

INPUTS:	8 HDMI on HDMI connectors9 IR on 3.5mm mini jack connectors
OUTPUTS:	8 HDMI on HDMI connectors8 HDBaseT on RJ-45 connectors9 IR on 3.5mm mini jack connectors
PORTS:	1 Ethernet on an RJ-45 connector1 Program on a mini USB connector1 RS-232 on a 9-pin D-sub connector
VIDEO BANDWIDTH:	6.75Gbps (2.25Gbps per graphic channel)
SUPPORTED RESOLUTIONS:	VGA to UXGA480i to 1080p
HDMI RANGE:	15m (49ft) @ 8bit resolution10m (33ft) @ 12 bit resolution
HDBaseT RANGE:	130m (430ft) at normal mode (2K) when using BC-UNIKat cables
POWER CONSUMPTION:	100-240V AC 50/60Hz 60VA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	19" x 13.94" x 2U (W, D, H) rack mountable
WEIGHT:	3.2kg (7.05lbs) approx.
INCLUDED ACCESSORIES:	Rack “ears”, IR blaster, IR receiver
Specifications are subject to change without noticeFor the most updated resolution list, go to our Web site atwww.kramerav.com

Default Parameters

Default Communication Parameters

RS-232
Baud Rate	115,200
Data Bits	8
Stop Bits	1
Parity	None
Command Format	ASCII
Example (Output 1 to Input 1)	#AV 1>1
Ethernet
IP Address	192.168.1.39
Subnet mask	255.255.0.0
Default gateway	192.168.1.1
TCP Port #	5000
UDP Port #	50000
Maximum UDP Ports	10
Maximum TCP Ports	4

Kramer Protocol

The VS-88DT supports the Kramer Protocol 3000.

The Protocol 3000 RS-232 communication protocol lets you control the machine from any standard terminal software (for example, Windows® HyperTerminal Application).

Kramer Protocol 3000 Syntax

Host Message Format

Start	Address (optional)	Body	Delimiter
#	Destination_id@	Message	CR

Simple Command

Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SPParameter_1,Parameter_2,...	CR

Command String

Formal syntax with commands concatenation and addressing:

Start	Address	Body	Delimiter
#	Destination_id@	Command_1 Parameter1_1,Parameter1_2,...|Command_2 Parameter2_1,Parameter2_2,...|Command_3Parameter3_1,Parameter3_2,...|...	CR

Device Message Format

Start	Address (optional)	Body	delimiter
~	Sender_id@	Message	CR LF

Device Long Response

Echoing command:

Start	Address (optional)	Body				Delimiter
~	Sender_id@	Command	SP	[Param1,Param2 ...]	result	CR	LF

CR = Carriage return (ASCII 13 = 0x0D)

LF = Line feed (ASCII 10 = 0x0A)

SP = Space (ASCII 32 = 0x20)

Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-'').

Command and parameters must be separated by at least one space.

Parameters

A sequence of alphanumeric ASCII characters ('0'-9', 'A'-Z', 'a'-z' and some special characters for specific commands). Parameters are separated by commas.

Message string

Every command entered as part of a message string begins with a message starting character and ends with a message closing character.

Note: A string can contain more than one command. Commands are separated by a pipe ('|') character.

Message starting character

'#' – For host command/query

'\~' – For device response

Device address (Optional, for K-NET)

K-NET Device ID followed by '@'

Query sign

'?' follows some commands to define a query request.

Message closing character

CR – For host messages; carriage return (ASCII 13)

CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character

When a message string contains more than one command, a pipe ( ' |' ) character separates each command.

Spaces between parameters or command terms are ignored.

Entering Commands

You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key.

(LF is also sent but is ignored by command parser).

For commands sent from some non-Kramer controllers, (for example, Crestron) some characters require special coding (such as, /X##). Refer to the controller manual.

Command Forms

Some commands have short name syntax in addition to long name syntax to allow faster typing. The response is always in long syntax.

Chaining Commands

Multiple commands can be chained in the same string. Each command is delimited by a pipe character ("|"). When chaining commands, enter the message starting character and the message closing character only once, at the beginning of the string and at the end.

Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain.

Maximum String Length

64 characters

Kramer Protocol 3000 Commands

Full details for each command are presented in the Kramer Protocol 3000 document available for download from www.kramerav.com.

Command	Description
#	Protocol handshaking
BUILD-DATE?	Read device build date
FACTORY	Reset to factory default configuration
HELP	List of commands
LOCK-FP	Lock the front panel
MACH-NUM	Sets the machine number
MODEL?	Read device model
NAME	Sets the machine (DNS) name
NET-DHCP	Set DHCP mode
NET-GATE	Set Gateway
NET-IP	Set IP address
NET-MAC?	Read MAC address
NET-MASK	Set subnet mask
PROT-VER?	Read device protocol version
PRST-RCL	Recall a saved preset list
PRST-STO	Store the current connections, volumes and modes
PRST-VID?	Get video connections from a saved preset
RESET	Reset device
ROUTE	Set/get data layer routing
SIGNAL?	Get input signal lock status
SIG-TYPE	Set/get signal type on input/output
SN?	Read device serial number
VERSION?	Read device firmware version
VID	Set video switch state

Function		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
Parameters
Notes
Use to validate the Protocol 3000 connection and get the machine number

BUILD-DATE

Function		Permission	Transparency
Set:	-	-	-
Get:	BUILD-DATE?	End User	Public
Description		Syntax
Set:	Get device build date	#BUILD-DATECR
Get:	-	-
Response
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
Response Triggers

FACTORY

Function		Permission	Transparency
Set:	FACTORY	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory default configuration	#FACTORYCR
Get:	-	-
Response
Parameters
Notes
This command deletes all user data from the device. The deletion can take some time.

HELP

Function		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	2 options:1.#HELPCR2.#HELPSPcommand_nameCR
Response
1.Multi-line:~nn@Device available protocol 3000 commands:CR LFcommand,SPcommand...CR LFTo get help for command use:HELP (COMMAND_NAME)CR LF2.Multi-line:~nn@HELPSPcommand:CR LFdescriptionCR LFUSAGE:usageCR LF
Parameters
Response Triggers
Notes

LOCK-FP

Function		Permission	Transparency
Set:	LOCK-FP	End User	Public
Get:	LOCK-FP?	End User	Public
Description		Syntax
Set:	Lock front panel	Option 1: #LOCK-FP SP lock_mode CROption 2: #LOCK-FP SP device_id,lock_mode CR
Get:	Get front panel lock state	Option 1: #LOCK-FP? CROption 2: #LOCK-FP? SP device_id CR
Response
Set: Option 1: ~nn@LOCK-FP SP lock_mode SP OK CR LFOption 2: ~01@LOCK-FP SP device_id,lock_mode SP OK CR LFGet: Option 1: ~nn@LOCK-FP SP lock_mode CR LFOption 2: ~01@LOCK-FP SP device_id,lock_mode CR LF
Parameters
lock_mode - 0/OFF - unlocks the front panel buttons, 1/ON - locks the front panel buttons device_id - for K-Net controllers, select the button panel to lock. Locking is allowed only from the master
Response Triggers
Notes

MACH-NUM

Function		Permission	Transparency
Set:	MACH-NUM	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Set machine number	#MACH-NUMSPmachine_numberCR
Get:	-	-
Response
Parameters
machine_number - new device machine number
Response Triggers
Notes
Some devices do not set the new machine number until the device is restartedSome devices can change the machine number only from DIP-switches

Notes

MODEL

Function		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
Parameters
model_name - String of up to 19 printable ASCII chars
Response Triggers

NAME

Functions		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAME SP machine_name CR
Get:	Get machine (DNS) name	#NAME? CR
Response
Set: ~nn@NAME SP machine_name CR LF
Get: ~nn@NAME? SP machine_name CR LF
Parameters
machine_name – string of up to 15 alpha-numeric chars (can include hyphen, not at the beginning or end)
Response Triggers
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on)

NET-DHCP

Function		Permission	Transparency
Set:	NET-DHCP	Administrator	Public
Get:	NET-DHCP?	End User	Public
Description		Syntax
Set:	Set DHCP mode	#NET-DHCPSPmodeCR
Get:	Get DHCP mode	#NET-DHCP?CR
Response
Set: ~nn@NET-DHCPSPmodeSPOKCR LF
Get: ~nn@NET-DHCPSPmodeCR LF
Parameters
mode - 0 - Do not use DHCP. Use the IP set by the factory or using the IP set command1 - Try to use DHCP. If unavailable, use IP as above
Response Triggers
Notes
Connecting Ethernet to devices with DHCP may take more time in some networksTo connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if availableFor proper settings consult your network administrator

NET-GATE

Function		Permission	Transparency
Set:	NET-GATE	Administrator	Public
Get:	NET-GATE?	End User	Public
Description		Syntax
Set:	Set gateway IP	#NET-GATE _SP ip_address _CR
Get:	Get gateway IP	#NET-GATE? _CR
Response
Set: ~nn@NET-GATE _SP ip_address _SP OK _CR LF
Get: ~nn@NET-GATE _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator

NET-IP

Function		Permission	Transparency
Set:	NET-IP	Administrator	Public
Get:	NET-IP?	End User	Public
Description		Syntax
Set:	Set IP address	#NET-IP _SP ip_address _CR
Get:	Get IP address	#NET-IP? _CR
Response
Set: ~nn@NET-IP _SP ip_address _SP OK _CR LF
Get: ~nn@NET-IP _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response Triggers
Notes
For proper settings consult your network administrator

NET-MAC

Function		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSPmac_addressCR LF
Parameters
mac_address - Unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit
Response Triggers
Notes

NET-MASK

Function		Permission	Transparency
Set:	NET-MASK	Administrator	Public
Get:	NET-MASK?	End User	Public
Description		Syntax
Set:	Set subnet mask	#NET-MASKSPnet_maskCR
Get:	Get subnet mask	#NET-MASK?CR
Response
Set: ~nn@NET-MASKSPnet_maskSPOKCR LF
Get: ~nn@NET-MASKSPnet_maskCR LF
Parameters
net_mask - format: xxx.xxx.xxx.xxx
Response Triggers
The subnet mask limits the Ethernet connection within the local networkFor proper settings consult your network administrator
Notes

PROT-VER

Function		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version - XX.XX where X is a decimal digit
Response Triggers
Notes

PRST-RCL

Function		Permission	Transparency
Set:	PRST-RCL	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Recall saved preset list	#PRST-RCLSPpresetCR
Get:	-	-
Response
~nn@PRST-RCLSPpresetCR LF
Parameters
preset - preset number
Response Triggers
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL

PRST-STO

Function		Permission	Transparency
Set:	PRST-STO	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Store current connections, volumes and modes in preset	#PRST-STOSPresetCR
Get:	-	-
Response
~nn@PRST-STOSPresetCR LF
Parameters
preset - preset number
Response Triggers
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL

PRST-VID?

Functions		Permission	Transparency
Set:	-	-	-
Get:	PRST-VID?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get video connections from saved preset	#PRST-VID? SP preset,out CR #PRST-VID? SP preset,* CR
Response
~nn@PRST-VID SP preset,in>out CR LF ~nn@PRST-VID SP preset,in>1,in>2,in>3,...CR LF
Parameters
preset-preset number in-input number or '0' if output disconnected > - connection character between in and out parameters out-output number or '*' for all outputs
Response Triggers
Notes
In most units, video and audio presets with the same number are stored and recalled together by commands #PRST-STO and #PRST-RCL
Examples
Store current audio and video connections, volumes and modes to preset 5		#PRST-STO 5 CR	~PRST-STO 5 CR LF
Recall audio and video connections from preset 3		#PRCL 3 CR	~PRST-RCL 3 CR LF
Show source of video output 2 from preset 3		#PRST-VID? 3,2 CR	~PRST-VID 3,4>2 CR LF

RESET

Function		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
Parameters
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.

Notes

ROUTE

Function		Permission	Transparency
Set:	ROUTE	End User	Public
Get	ROUTE?	End User	Public
Description		Syntax
Set:	Set data layer routing	#ROUTE _SP layer,dest,src _CR
Get:	Get data layer routing	#ROUTE? _CR
Response
~nn@ROUTE _SP layer,dest,src _CR LF
Parameters
layer-3 (Data)dest-1-8 (Output 1-8)x (Disconnect / Disable routing)src-0 (Data source ID)
Response Triggers
Notes
The GET command identifies input switching on Step-in clientsThe SET command is for remote input switching on Step-in clients (essentially via by the Web)
K-Config Example
The following example routes RS-232 data from the RS-232 source to HDBaseT Out 4:"#ROUTE 3,4,0",0x0D

SIGNAL

Function		Permission	Transparency
Set:	-	-	-
Get	SIGNAL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get input signal lock status	#SIGNAL?SPinp_idCR
Response
~nn@SIGNALSPinp_id,statusCR LF
Parameters
inp_id - input numberstatus - lock status according to signal validation (0 – No signal, 1 – There is a signal)
Response Triggers
After execution, a response is sent to the com port from which the Get was receivedResponse is sent after every change in input signal status ON to OFF, or OFF to ON
Notes

SIG-TYPE

Command Name		Permission	Transparency
Set:	SIG-TYPE	End User	Public
Get	SIG-TYPE?	End User	Public
Description		Syntax
Set:	Set signal type on input/output	#SIG-TYPE _SP stage, stage_id,type _CR
Get:	Get signal type on input/output	#SIG-TYPE? _SP stage,stage_id _CR
Response
~nn@SIG-TYPE _SP stage,stage_id,type _CR LF
Parameters
stage – input/output (0 – Input, 1 – Output)stage_id – number of chosen stage (1.. max number of inputs/outputs)type – signal type (0 – No signal, 1 – DVI, 2 – HDMI, 3 – DisplayPort, 4 – HDBaseT, 5 – SDI, 6 – VGA, 7 – Follow output, 8 – DGKat)
Response Triggers
After execution, response is sent to the com port from which the Set/Get was receivedAfter execution, response is sent to all com ports if SIG-TYPE was set by any other external control device (button press, device menu and similar)
Notes
“Set” command is not available for all devices (refer to device specifications)

SN?

Functions		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device serial number	#SN?CR
Response
~nn@SNSPserial_numberCR LF
Parameters
serial_number – 14 decimal digits, factory assigned
Response Triggers
Notes

VERSION

Function		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get firmware version number	#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version - XX.XX.XXXX where the digit groups are: major.minor.build version
Response Triggers
Notes

VID

Function		Permission	Transparency
Set:	VID	End User	Public
Get:	VID?	End User	Public
Description		Syntax
Set:	Set video switch state	#VID SP in>out, in>out,... CR
Get:	Get video switch state	#VID? SP out CR#VID? SP * CR
Response
Set: ~nn@VID SP in>out CR LF~nn@VID SP in>out CR LF ...Get: ~nn@VID SP in>out CR LF~nn@VID SP in>1, in>2, ... CR LF
Parameters
in - input number or '0' to disconnect output>- connection character between in and out parametersout - output number or '*' for all outputs
Response Triggers
Notes
When AFV switching mode is active, this command also switches audio and the unit replies with command ~AV.
Examples
When AFV switching mode is active, this command also switches audio and the unit replies with command ~AV.
Switch video and audio input 3 to output 7		#AV 3>7CR	~01@AV 3>7CRLF
Switch video input 2 to output 4		#V 2>4CR	~01@VID 2>4CRLF
Switch video input 4 to output 2 in machine 6		#6@VID 4>2CR	~06@VID 4>2CRLF
Disconnect video and audio output 4		#AV 0>4CR	~01@AV 0>4CRLF
Switch video input 3 to all outputs		#V 3> * CR	~01@VID 3> * CRLF
Chaining multiple commands	#AV 1>* | V 3>4, 2>2, 2>1, 0>2 | V 3>9 | A 0>1 | V? * CR1. Switch audio and video from input 1 to all outputs2. Switch video input 3 to output 4, video input 2 to output 2, video input 2 to output 1 and disconnect video output 23. Switch video input 3 to output 9 (non-existent)4. Disconnect audio output 15. Get status of all video linksCommand processing begins after entering CRA response is sent for each command after processing		~AV 1>*CRLF~VID 3>4CRLF~VID 2>2CRLF~VID 2>1CRLF~VID 0>2CRLF~VID ERR003CRLF~AUD 0>1CRLF~VID 2>1, 0>2, 1>3, 3>4CRLF

The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates.
2. All Kramer fiber optic cables, adapter-size fiber optic extenders, active cables, cable retractors, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.
4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).
6. K-Touch software is covered by a standard one (1) year warranty for software updates.
7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product. If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

P/N:

2900-300275

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.
