MP747 - Tablet MPMAN - Free user manual and instructions

Product Type	Tablet
Model	MP747
Brand	MPMAN
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Dimensions	190 x 110 x 10 mm
Weight	300 g
Battery Capacity	3000 mAh Lithium-ion
Charging	5V / 2A via micro USB
Operating System	Android (version may vary)
Processor	Quad-core 1.2 GHz
RAM	1 GB
Internal Storage	8 GB (expandable via microSD)
Wi-Fi	802.11 b/g/n
Bluetooth	4.0
Front Camera	0.3 MP
Rear Camera	2 MP
Audio Jack	3.5 mm
USB Port	micro USB 2.0
Maintenance & Cleaning	Wipe with a soft, dry cloth. Avoid liquids and abrasive cleaners.
Safety Precautions	Do not expose to extreme temperatures. Use only the supplied charger.
Spare Parts & Repairability	Battery and screen replacement by qualified technician only.
General Information	Supports Wi-Fi, Bluetooth, microSD up to 32 GB, and multimedia playback.

Frequently Asked Questions - MP747 MPMAN

How do I turn on the tablet for the first time?

Press and hold the power button until the screen lights up. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

How can I extend battery life?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, close background apps, and enable battery saver mode in Settings.

Can I expand the storage?

Yes, the tablet has a microSD card slot supporting cards up to 32 GB. Insert a microSD card into the slot to increase storage capacity for photos, videos, and apps.

Why is my tablet not charging?

Check the charging cable and adapter for damage. Try a different USB cable and wall adapter. If the issue persists, the battery or charging port may need servicing.

How do I take a screenshot?

Press and hold the power button and volume down button simultaneously for about 2 seconds. The screenshot will be saved in the Gallery app.

The tablet is frozen. What should I do?

Press and hold the power button for 10-15 seconds to force a restart. If it does not respond, try charging it for 30 minutes and then restart again.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle Wi-Fi on, select your network, and enter the password. Tap Connect.

How do I transfer files between the tablet and a computer?

Connect the tablet to your computer using a micro USB cable. On the tablet, swipe down from the top and select the USB notification, then choose File Transfer mode. Your computer will recognize it as a removable drive.

Is there a way to reset the tablet to factory settings?

Go to Settings > Backup & reset > Factory data reset. Note that this erases all data. Confirm the reset; the tablet will reboot and restore original settings.

What applications come pre-installed?

The tablet comes with basic Google apps such as Play Store, YouTube, Gmail, Chrome, and Maps. Additional apps may vary by manufacturer.

USER MANUAL MP747 MPMAN

For Model No. MID74C

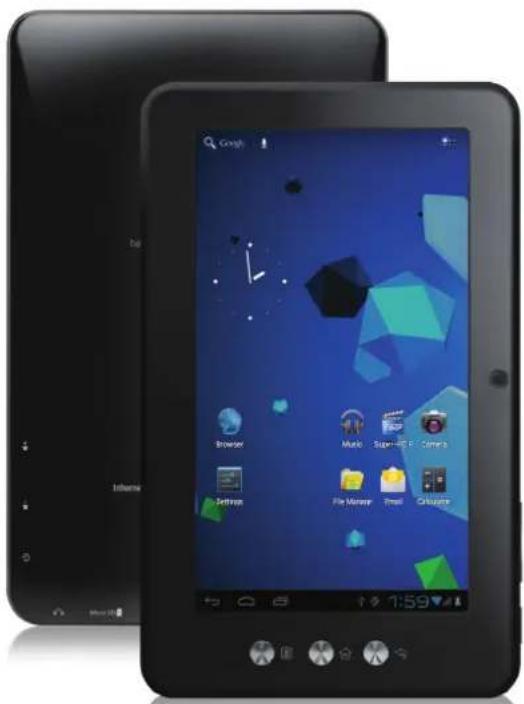

Two black tablets displayed on a blue screen, one with app icons and the other showing a simple graphic (no readable text or symbols)

EN

User Manual

This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.

Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid traffic accidents.

Be sure to use the provided chargers and accessories in the package.

Be sure to charge the product when the following situations take place,

• The battery icon shows lower or empty.
• System automatically shut down and it turns off soon after restart.
• Operation keys do not respond properly.
• The device shows 📁 on the top right corner.

specification

Hardware

7.0" High Definition TFT LCD Touch Screen (800x480 pixel)

Capacitive multi-touch (5 touch) point function

CPU: ARM cortex A8 processor

RAM : DDR3 512MB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

HDMI port for TV-out (1080p output support)

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

Compatible with keyboard, mouse

Dimension : 124 x 192 x 12.8mm

Software

Andriod 4.0 ICS

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080p HD file playback

VoIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Audio: MP3, WMA, AAC, WAV etc.

Photo: JPEG, BMP, GIF, PNG, TIFF

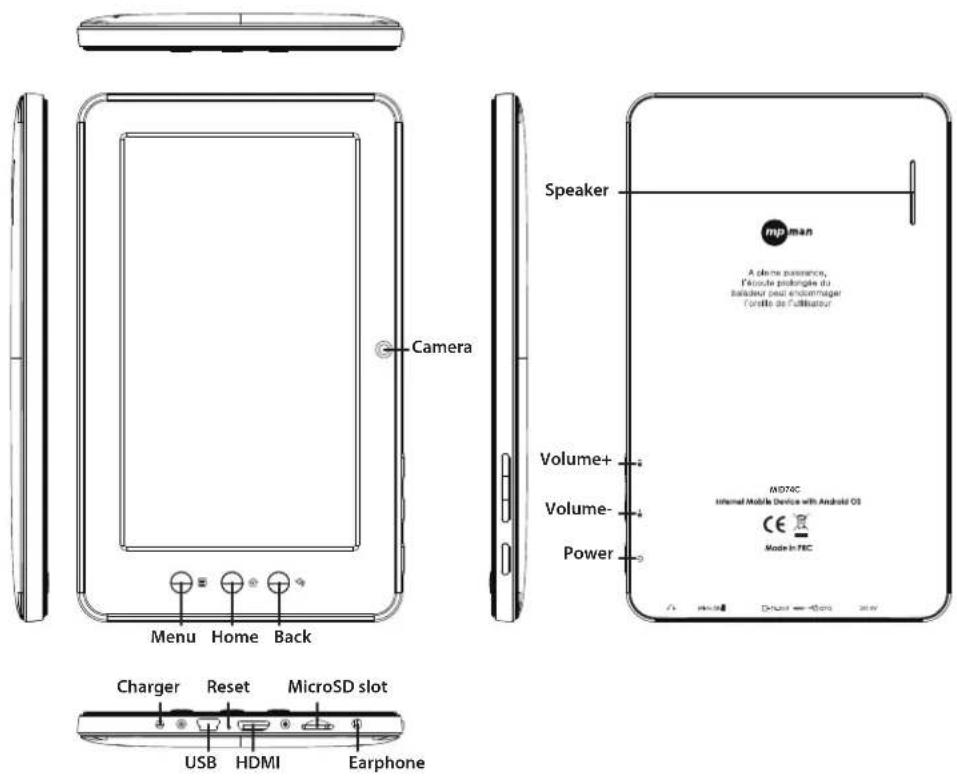

Name

Camera Menu Home Back Charger Reset MicroSD slot USB HDMI Earphone Speaker mp man A clame passarecer, l'écrude prolongée du basideur seul encommager Enrolle de l'effibateur Volume+ Volume- Power MD74C Internal Mobile Device with Android OS CE Mode in FRC

Important Notice

• If the device is freezing or stuck, press the reset button(a small hole) or long press power button for 7 seconds.
• When the performance is slow after using some applications, it is recommended to close running application in setting menu.

Caution

• For charging, be sure to use the power adapter(DC5V) that is provided in the package, otherwise, the device may be damaged and does not work.
• The device is equipped with high performance processor. It may heat in case of using long or while charging.

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. Refer to 3. below)

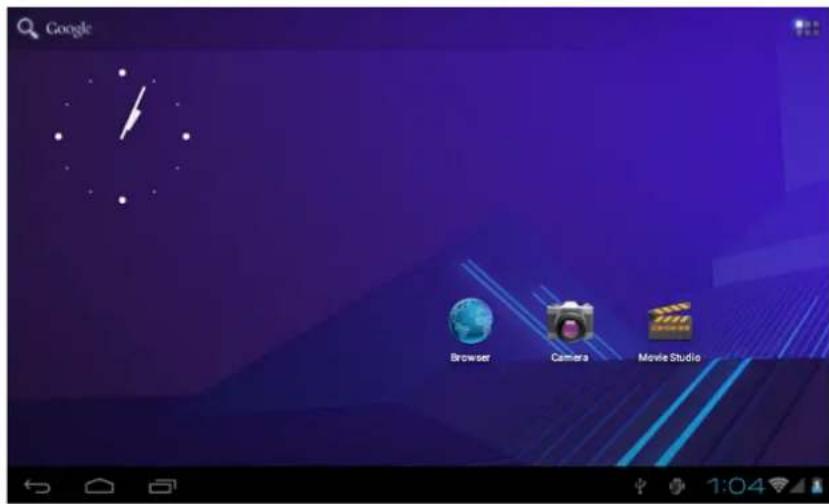

2. Desktop

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

Google Browser Camera Movie Studio

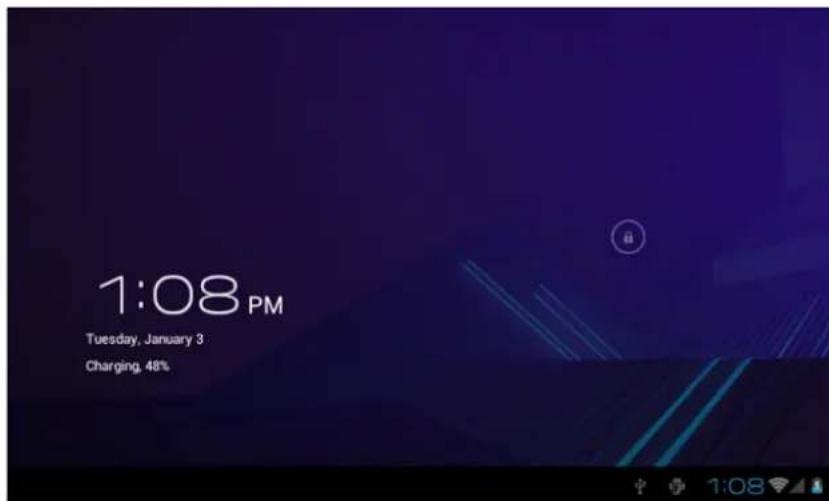

3. Standby mode(Screen off mode) / Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode off, slide the lock icon in order to unlock the screen.

1:08 PM Tuesday, January 3 Charging, 48%

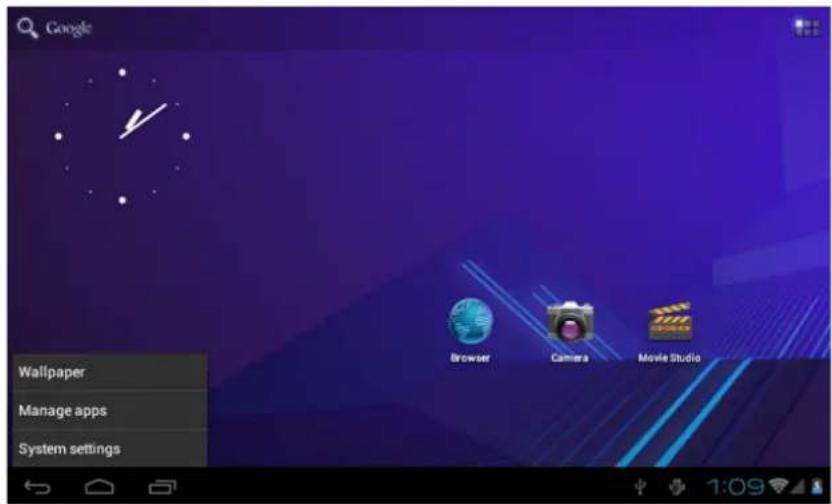

4. System settings

On the desktop, press menu button and select system settings.

Google Wallpaper Manage apps System settings Browser Camera Movie Studio

Press System Settings

1. Wireless & networks


Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Volumes RIMOTONE & NOTIFICATIONS Default notification Pute Dust SYSTEM Touch sounds Screen lock sound

Wi-Fi – Press Wi-Fi to turn on/off
Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with.

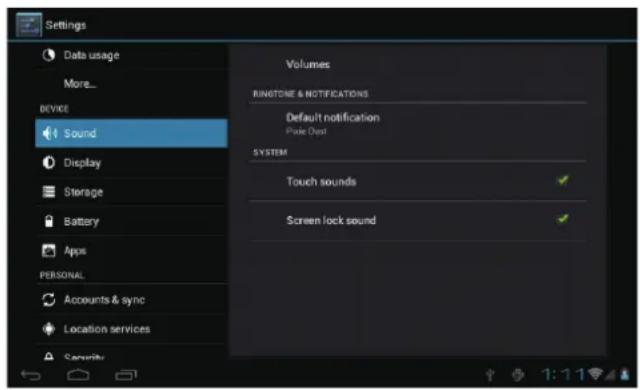

1. Sound


Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Volumes RINGSTONE & NOTIFICATIONS Default notification Radio Dust SYSTEM Touch sounds Screen lock sound

Set up each setting as you like.

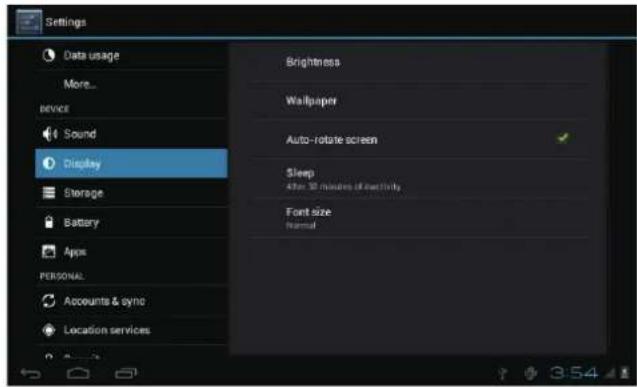

3. Display

Settings Data usage More... device Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Brightness Wallpaper Auto-rotate screen Sleep After 30 minutes of activity Font size Normal

Set up each setting as you like.

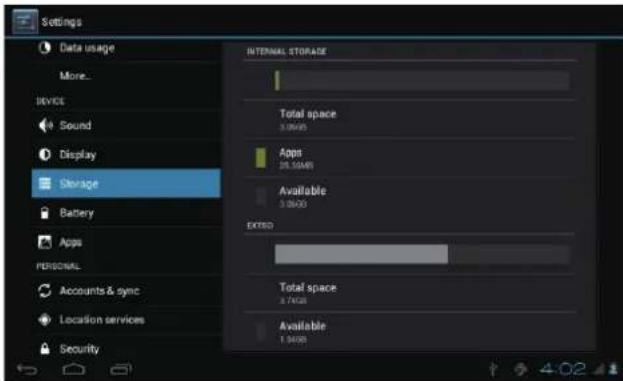

4. Storage

Settings Data usage More... Device Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security INTERNAL STORAGE Total space 3.00KB Apps 28.50MB Available 3.00KB EXTSD Total space 3.70KB Available 1.94KB

Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.

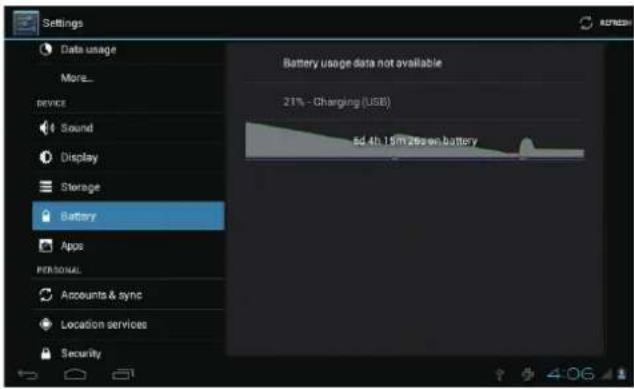

5. Battery

Check battery usage status.

Settings Data usage More... Device Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Battery usage data not available 21% - Charging (USB) 5d 4th 15th 26s on battery

6. Apps

Manage downloaded or running applications.

Settings Bluetooth Data usage More... Device Sound Display Storage Battery Apps PERSONAL Accounts & sync Downloaded RIPMIME ALL Adobe Flash Player 11.1 12.807MB ES File Explorer 2.00MB PointerLocation 34.609-B RealCalc 204KB Internal storage 5/MB user 100MB free

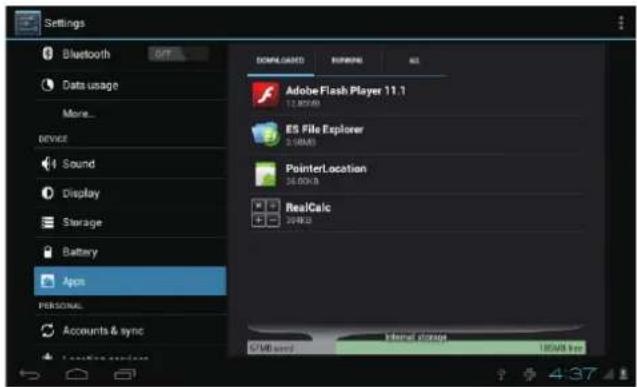

Downloaded

All installed application are listing.

Settings Bluetooth OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync PointerLocation version 1.0 Force stop Uninstall STORAGE Total 36.00KB App 36.00KB USB storage spp 0.00B Data 0.00B 5D card 0.00B Cache 0.00B Cache Accounts

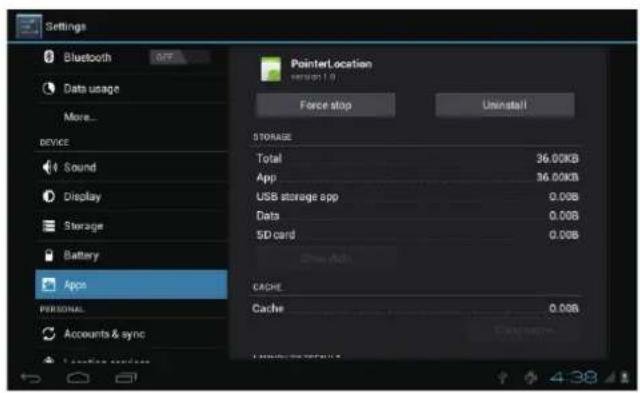

Keep pressing an application to manage.
Press Uninstall to uninstall the selected application.

Settings RMSU DEVICE Sound Display Storage Battery App PERSONAL Accounts & sync Location services Security Language & input SWM CACHED PROCESSO DOWNLOADS RUNNING ALL Settings 1 process and 2 services Music 2 processes and 3 service Android keyboard 2 processes and 1 service 13MB 14MB 91.69 16MB 18.48 10MB sort FAM 10MB free 4:42

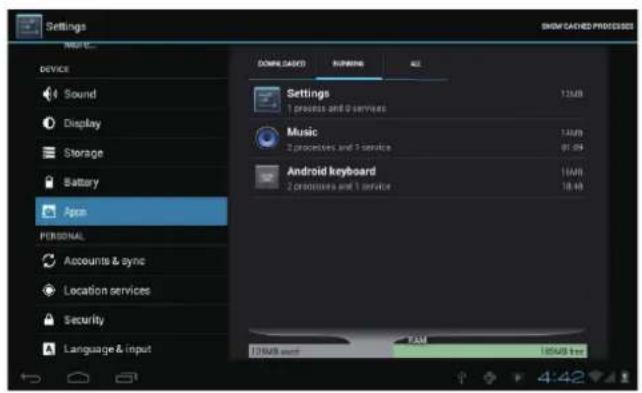

Running services
View and control currently running services.

7. Account & sync

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device.

8. Location services

Google's location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location

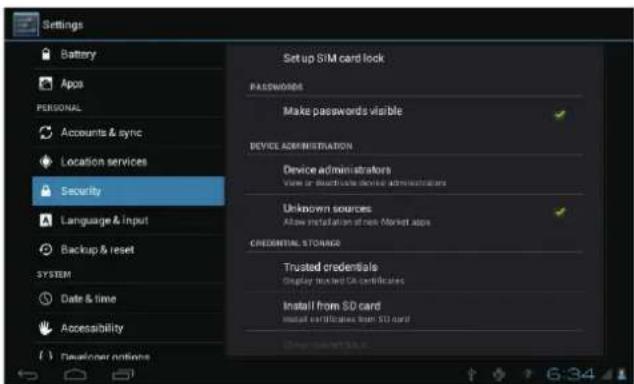

9. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type.

Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.

Settings Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options Setup SiM card lock PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or reachable device administrators Unknown sources Allow installation of new Market apps CREDENTIAL STORAGE Trusted credentials Display mounted CA certificates Install from SD card Install credentials from SD card

Install from SD card – Install encrypted certificates from SD card.

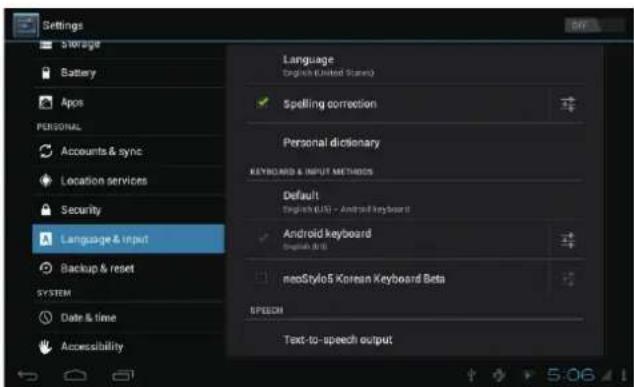

10. Language & input

Language – Choose your preferable language.

Keyboard & input method – Change keyboard & keyboard settings.

On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.

Settings Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & Input Backup & reset SYSTEM Date & time Accessibility Language English (Used Stored) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (LED) - Android Keyboard Android keyboard English Beta neoStyle5 Korean Keyboard Beta SPEEDN Text-to-speech output

11. Date & time

Set date & time and format

12. Developer options

Set options for application development

13. About tablet

See status, legal information, ETC

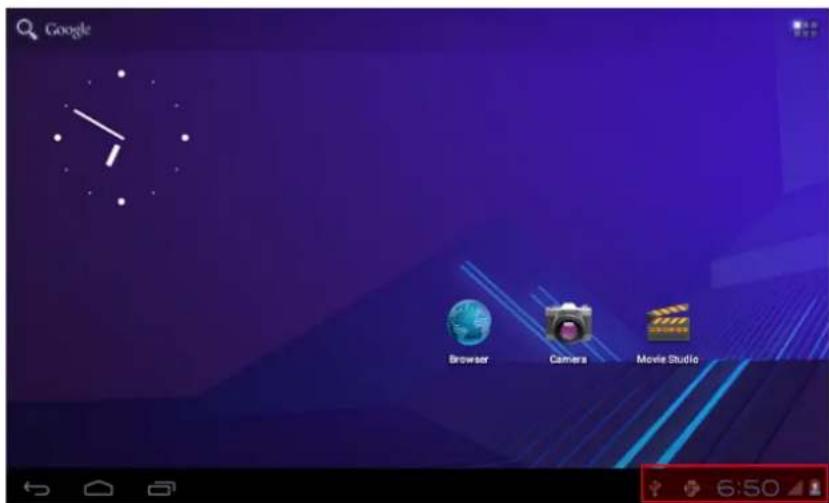

How to connect/disconnect the device with/from the computer

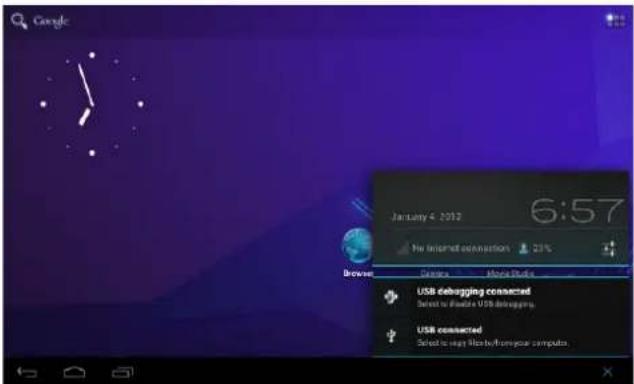

On main desktop, connect the device with the PC, touch right side of the status bar on the bottom of desktop

Google Browser Camera Movie Studio

Google January 4, 2012 6:57 No internet occurrence 23% Browse Camera More Stocks USB debugging connected Select to drive a USB debugging. USB connected Select to log files by from your computer.

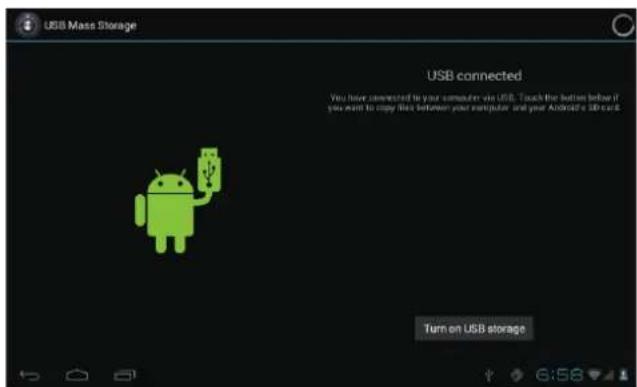

Press "USB connected", select "Turn on USB storage". The device is recognized at Explorer of the computer. Now you can use it as an external storage.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy this between your computer and your Android's USB card. Turn on USB storage

After finishing your work, Press "Turn off USB storage" to unmount it.

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.
2. Run "Market" and search the applications you want to install.
3. Follow the instruction on the screen for installation.

Method 2.

1. With your computer, search application file(.apk) that you want to install into the device.
2. Download the file(.apk) into your computer.
3. Connect the device with your computer.
   See above [How to connect/disconnect the device with/from the computer.]
4. Copy and paste .apk file into the device and disconnect it from your computer.
5. Run "File browser" and find .apk file that was copied into the device.
6. Press the file to install and follow the instruction on the screen.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to download adult applications. In case of any problems including legal issues from the breach by end-user's own decision, the manufacturer shall not be responsible.

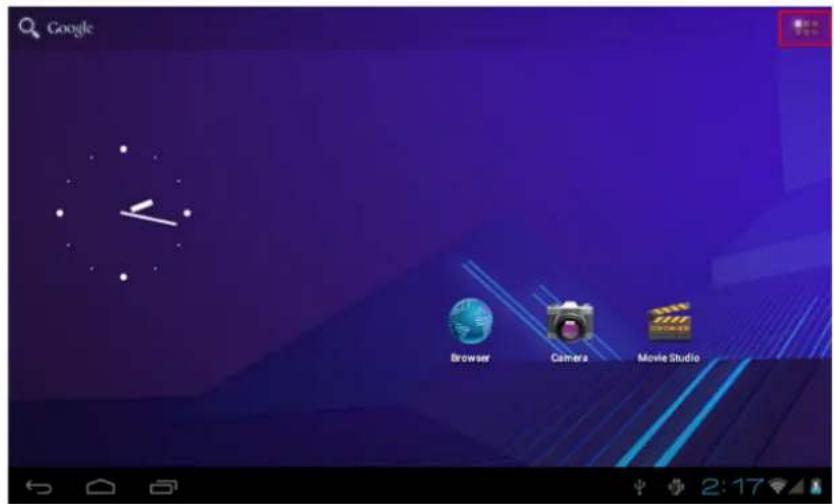

How to make desktop icons

Press the upper right side icon of desktop, the pop-up displays.

Google Browser Camera Movie Studio

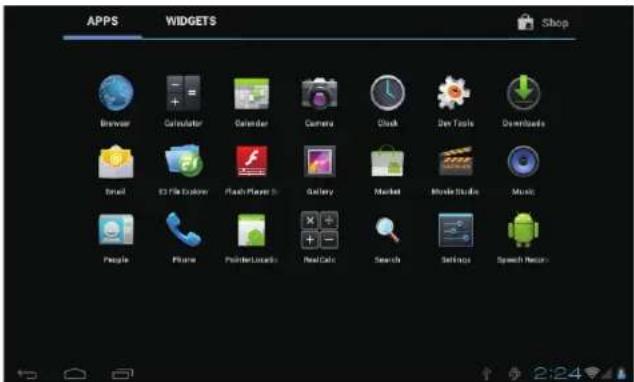

APPS WIDGETS Shop Browser Calculator Calculator Camera Clock Run Tools Downloads Email 3D File Browser Flash Player 5 Gallery Market Movie Studio Music People Phone Printer/Modules RealCalc Search Settings Speech Menu

Shortcuts

Long press your desired APK icon and put it on the desktop.

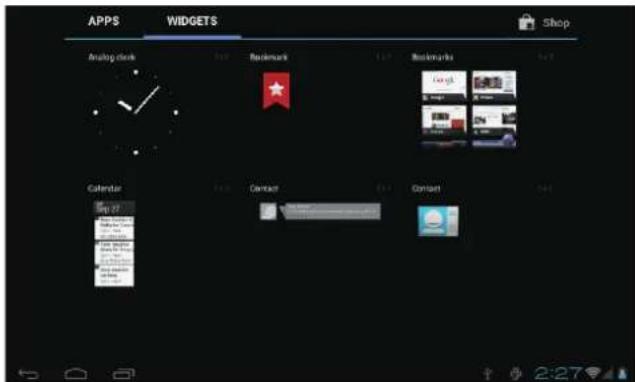

APPS WIDGETS Shop Analog clock Bookmark Backmarks Calendar Contact Contact 2:27

Widgets

Press Widgets and press your desired icon to put it on the desktop.

Wallpaper

Long press the desktop, press Wallpapers and select one of categories of wallpaper.

Select one you desire and press Set wallpaper.

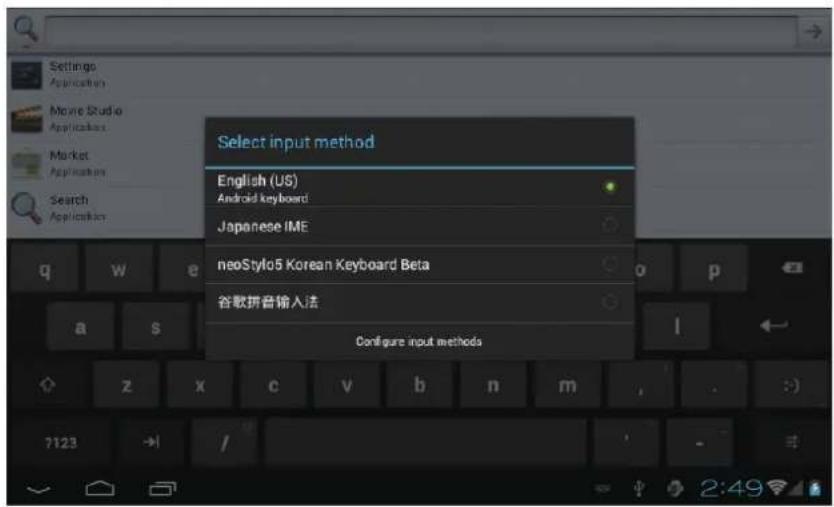

Change Input Method

If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up displays.

Select input method English (US) Android keyboard Japanese IME neoStylo5 Korean Keyboard Beta 谷歌拼音输入法 Configure input methods

Select the installed keyboard, then the keyboard will appear with your desired language you installed.

Specification

OS		Android 4.0 ICS
CPU		ARM cortex A8 processor
SDRAM		DDR3 512MB (3D accelerator possible for 4D games)
Display		7" TFT 800*480 Capacitive touch panel
Multi-touch screen		Yes: 5 point multi-touch
Built-in flash memory		2 / 4 / 8 / 16GB
IO PORTS	Audio port	3.5ø earphones
	USB port	1 x 5pin mini USB port (support USB host and OTG)
	DC port	5V, 2A
	HDMI port	Yes
	Micro SD	Micro SD card
	OTG port	Same with USB port
	Button	Power, VOL-, VOL+, reset, 3 android function key
Speaker		1.5W, Frequency response: 20Hz – 20k Hz, N/S : >85%
G-sensor		Yes
Camera		0.3M pixel (front)
Wi-Fi		802.11b/g/n
Power		Adaptor 5V -2A
Battery		3.7V 3500mAh Li-Polymer
Dimension		124 x 192 x 12.8mm
Charging time	by charger	approx. 3~4hours

For more information please check our website

www.mpmaneurope.com

CE
