MPDC112 - Tablet MPMAN - Free user manual and instructions

Product Type	Tablet
Brand	MPMAN
Model	MPDC112
Operating System	Android (likely version 4.4 or 5.1)
Processor	Quad-core 1.3 GHz
RAM	1 GB DDR3
Internal Storage	8 GB eMMC (expandable via microSD up to 32 GB)
Display	10.1 inch TFT LCD, 1024 x 600 pixels
Touchscreen	Capacitive, multi-touch
Camera (Rear)	2 MP
Camera (Front)	0.3 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	Micro USB 2.0, 3.5 mm headphone jack, microSD card slot
Sensors	G-sensor
Battery	Li-ion 5000 mAh, non-removable
Power Supply	DC 5V, 2A via micro USB
Dimensions	240 x 160 x 10 mm
Weight	Approx. 500 g
Maintenance	Clean with a soft, dry cloth. Avoid liquids and abrasives.
Safety	Do not expose to extreme temperatures or humidity. Use only approved chargers.
Spare Parts & Repairability	Limited spare parts available; contact manufacturer or authorized service center.

Frequently Asked Questions - MPDC112 MPMAN

How to perform a factory reset on MPDC112?

Go to Settings > Backup & Reset > Factory Data Reset. Confirm and the device will reboot. Alternatively, you can use hardware keys: press and hold Volume Up + Power button during startup.

Why is my tablet not charging?

Check the charging cable and adapter. Try a different USB port or cable. Ensure the micro USB connection is secure. If the battery is completely drained, it may take a few minutes to show charging.

How can I expand storage on MPDC112?

Insert a microSD card up to 32 GB into the slot located on the side of the tablet. Go to Settings > Storage to manage the card.

What to do if the screen is unresponsive?

Try a forced restart by holding the Power button for 10 seconds. If the issue persists, check for screen damage. Remove any screen protector that may interfere.

How do I connect to Wi-Fi?

Swipe down from the top and tap the gear icon. Select Wi-Fi, turn it on, and choose your network. Enter the password and tap Connect.

Can I use Bluetooth headphones with this tablet?

Yes. Go to Settings > Bluetooth, turn it on, and pair your device. Ensure your Bluetooth accessory is in pairing mode.

How to update the Android version?

Check for updates in Settings > About Tablet > System Updates. Note that custom ROMs may be required for major updates, as manufacturer may not provide official updates.

What accessories are compatible?

Standard micro USB cables, 5V/2A chargers, and OTG adapters are compatible. Most Bluetooth keyboards and mice work. Cases are model-specific.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds. The screenshot will be saved in the Gallery.

What is the warranty period?

The warranty typically covers 1 year from the date of purchase. Keep your receipt. For specific terms, contact MPMAN support.

USER MANUAL MPDC112 MPMAN

Exterior view of a modern tablet device with app icons on its screen (no readable text or symbols beyond UI elements)

User Manual
EN

mp man®

For Model No.

This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions. Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid traffic accidents. Be sure to use the provided chargers and accessories in the package. Be sure to charge the product when the following situations take place, - The battery icon shows lower or empty.

[Non-Text]

- System automatically shut down and it turns off soon after restart.

- Operation keys do not respond properly.

- The device shows 📁 on the top right corner.

Specification

Hardware specification Software specification

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080p HD file playback

VoIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Audio: MP3, WMA, AAC, WAV etc

Photo: JPEG, BMP, GIF, PNG, TIFF

	Year Ended December 31,
	2018	2017
Accrued expenses	1,465	1,394
Accrued tax benefits	(1,000)	(1,000)
Net income	1,465	1,394

RAM : DDR3 1GB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

Dual camera 2M pixel (backside), 0.3M pixel (front)

HDMI port for TV-out (1080p output support)

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

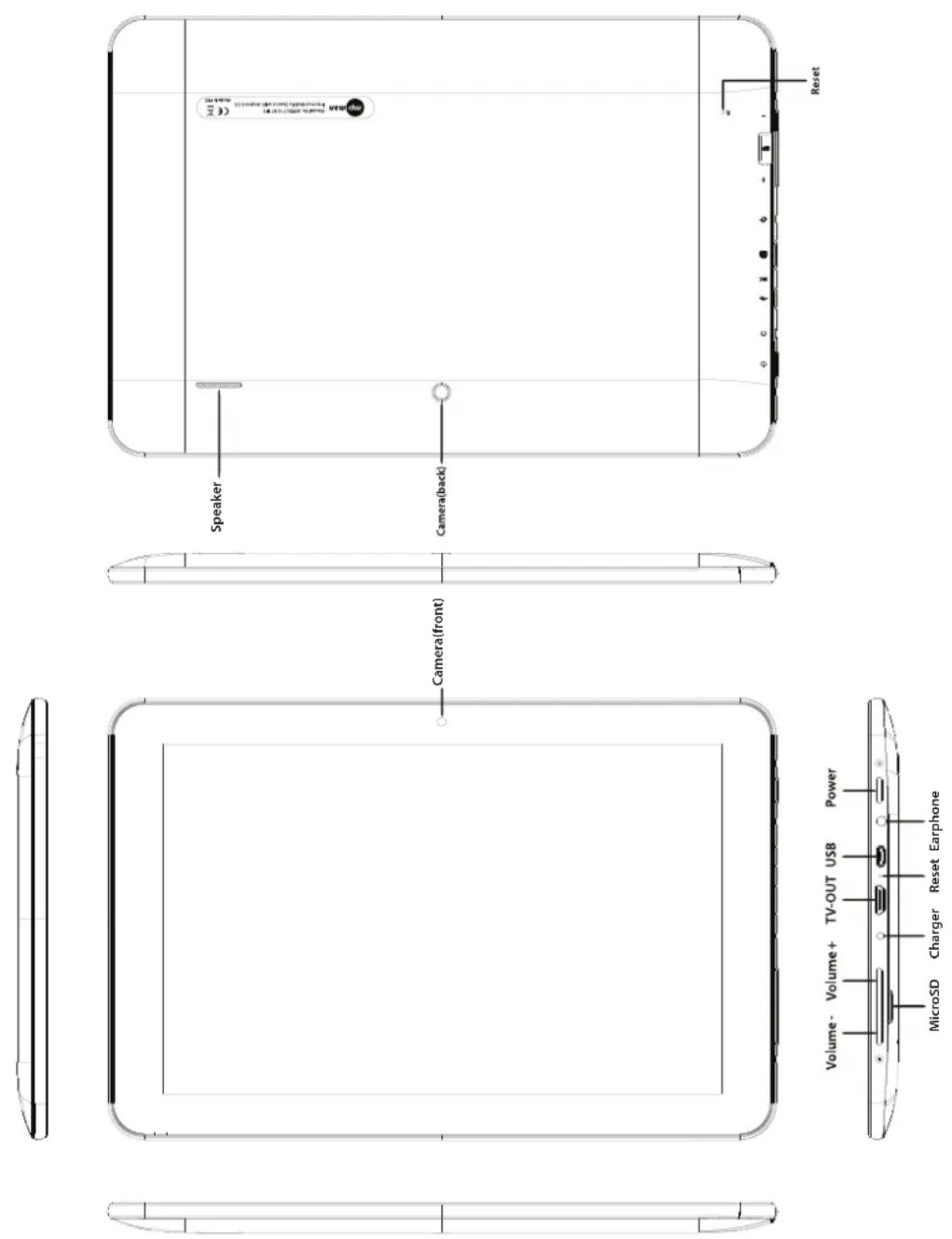

Name

Instruction

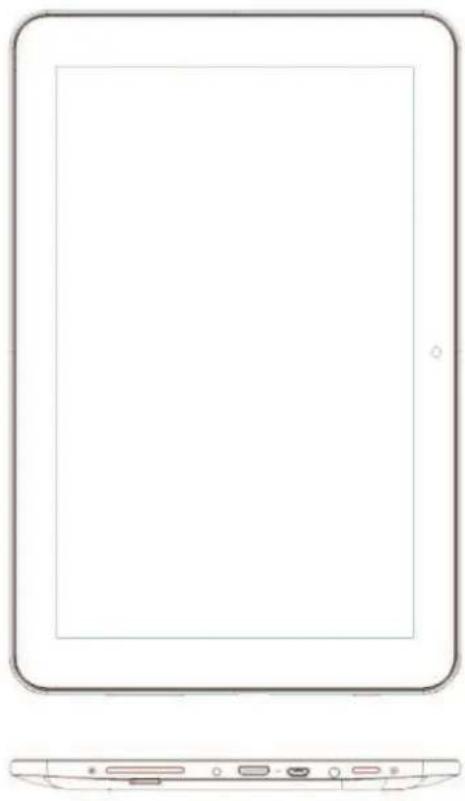

Charging

- Be sure to use the power adapter (DC5V, 2A) that is provided in the package, otherwise, the device may be damaged and does not work.

- See the battery icon ( ) on the status bar to check charging.

protect the device.

Line drawing of a tablet device with front and side views (no text or symbols)

Line drawing of a cordless cable with a power plug and terminal connector (no text or symbols)

Note

The device is equipped with high performance processor.

It may be warm in case of using long or while charging, but not the problem.

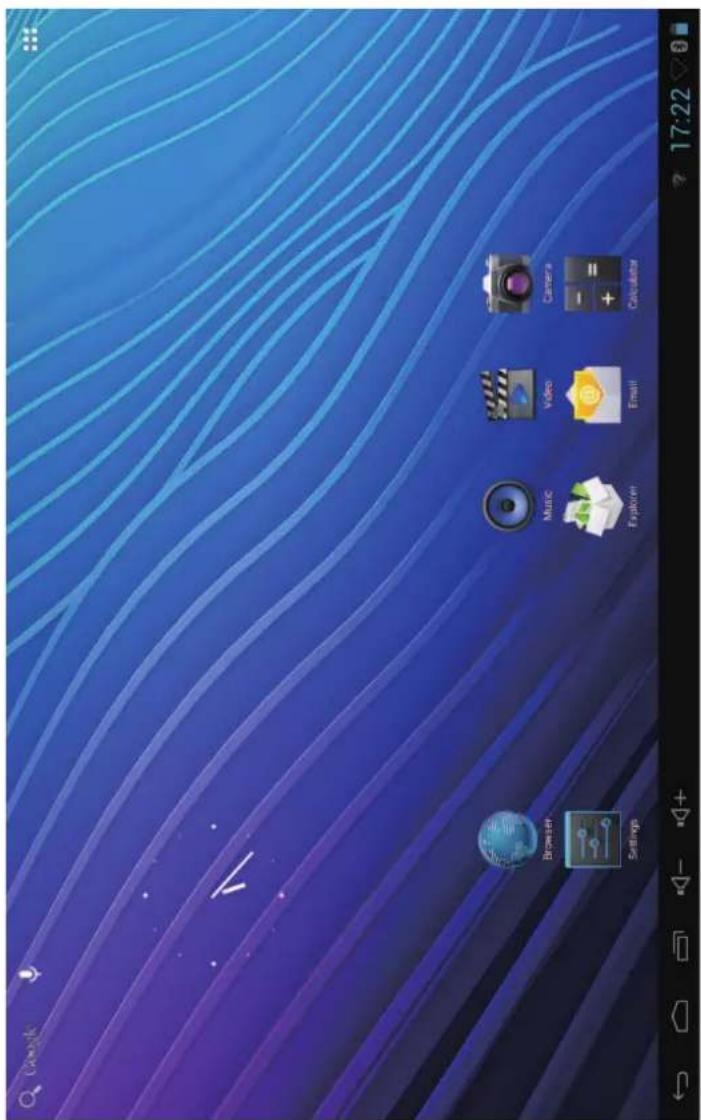

1. Power On/Off

Long press power button to turn on/off the device. It may take a minute to boot the device. Short press power button to turn on/off the screen.(Standby mode. Refer to 3. below)

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

Google Browser Settings Music Video Camera Explore Email Calculator

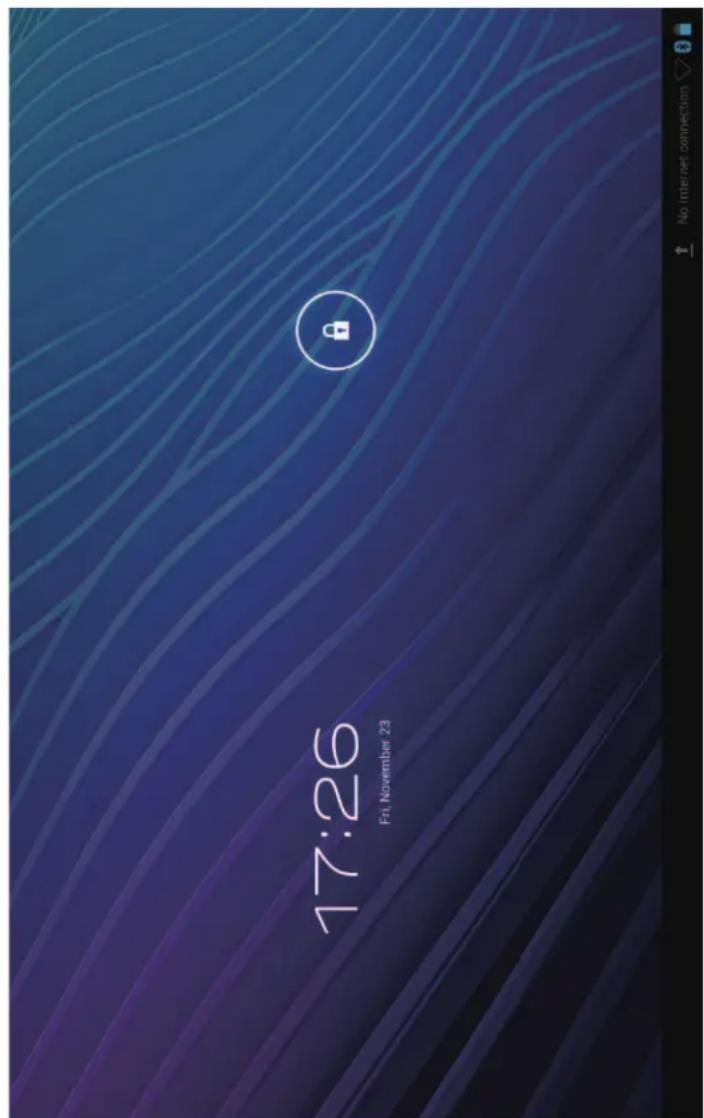

Unlock the screen

Short press the power button to turn on/off the screen (standby mode on/off). After standby mode off, slide the lock icon in order to unlock the screen.

17:26 Fri, November 23

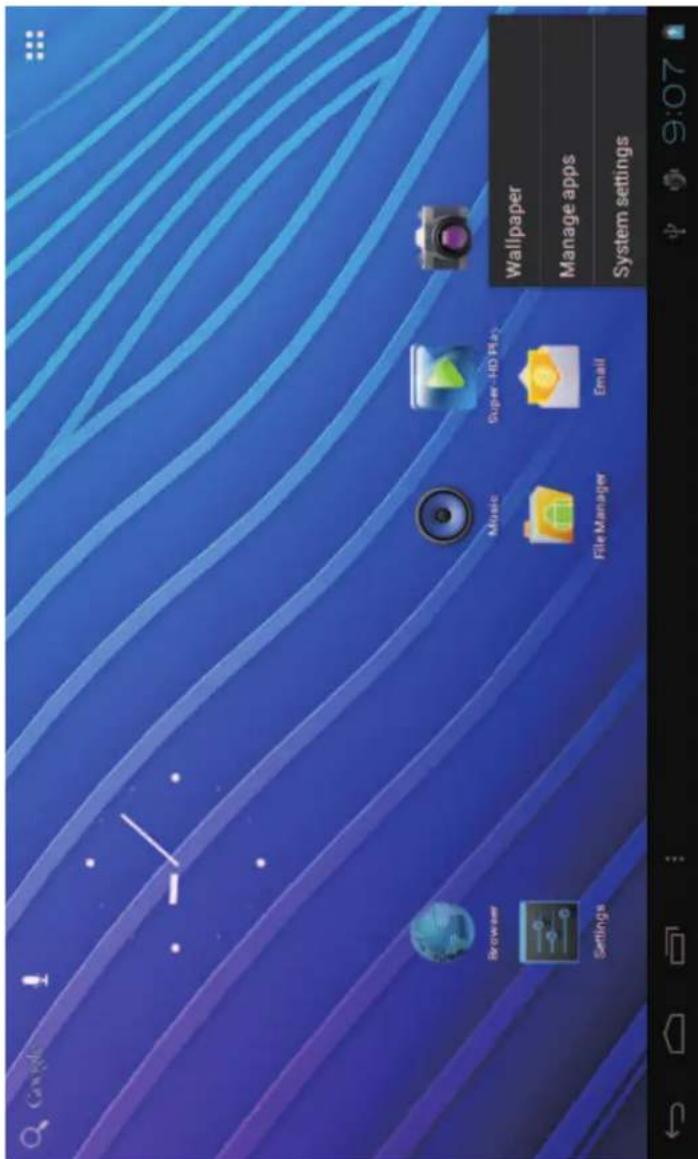

On the desktop, press menu button and select system settings.

Cavix Settings Browser Music Super-HO Play File Manager Email Wallpaper Manage apps System settings

Press system settings

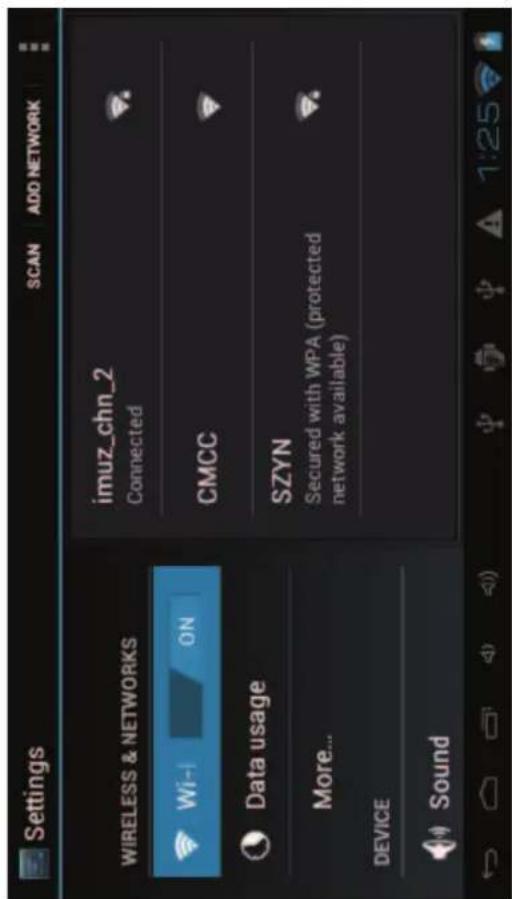

1. Wireless & networks

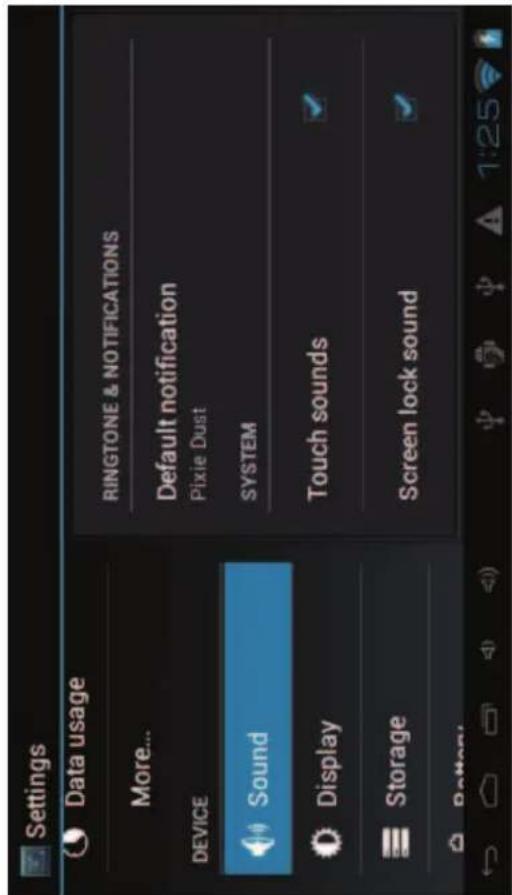

1. Sound

Settings SCAN ADD NETWORK WIRELESS & NETWORKS imuz_chn_2 Connected Wi-1 ON CMCC Data usage More... SZYN Secured with WPA (protected network available) DEVICE Sound

Settings Data usage More... DEVICE Sound Display Storage Battery RINGTONE & NOTIFICATIONS Default notification Pixie Dust SYSTEM Touch sounds Screen lock sound

Set up each setting as you like.
Wi-Fi – Press Wi-Fi to turn on/off
Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the available Wi-Fi signals. Select the network you want to connect with.

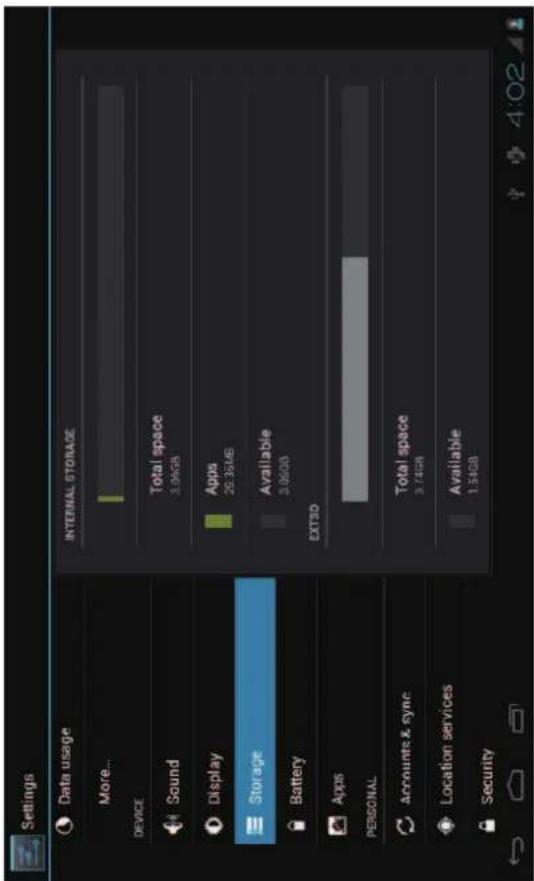

1. Storage
2. Display


Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security INTERNAL STORAGE Total space 3.94GB Apps 26.36MB Available 3.05GB EXTSD Total space 3.74GB Available 1.54GB

Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal.

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Brightness Wallpaper Auto-rotate screen Sleep After 30 minutes of inactivity Font size Normal

Set up each setting as you like.

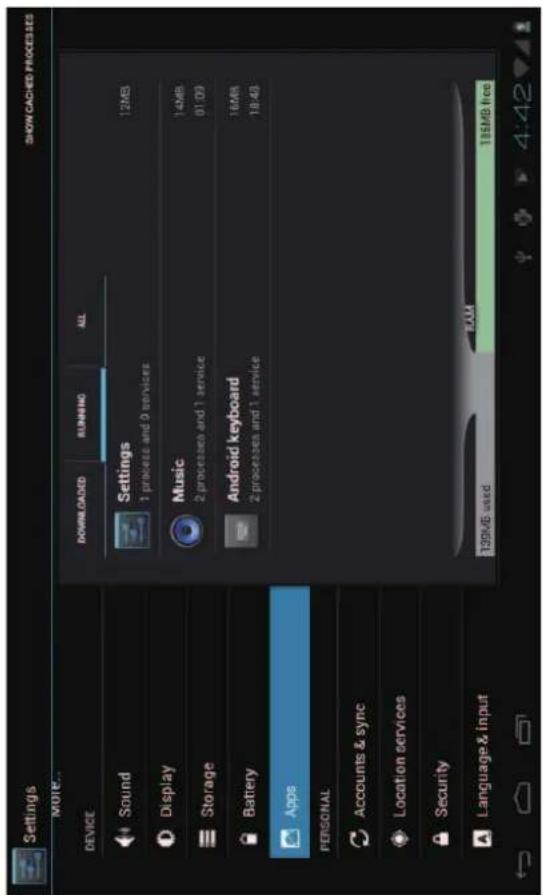

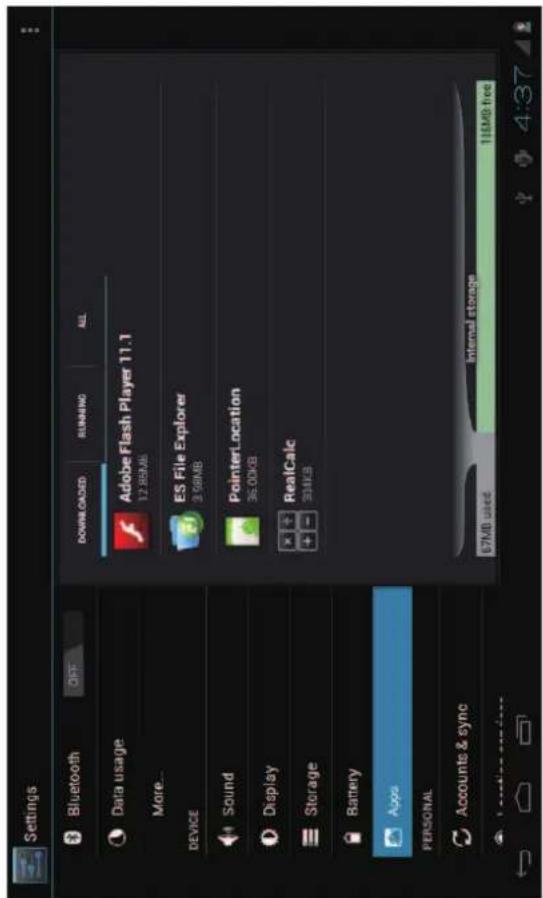

6. Apps

Manage downloaded or running applications.

Settings Bluetooth OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services DOWNLOADS RUNNING ALL Adobe Flash Player 11.1 12.85MB ES File Explorer 3.56MB PointerLocation 36.00KB RealCalc 304KB Internal storage 67MB used 116MB free

Downloaded

All installed application are listing.

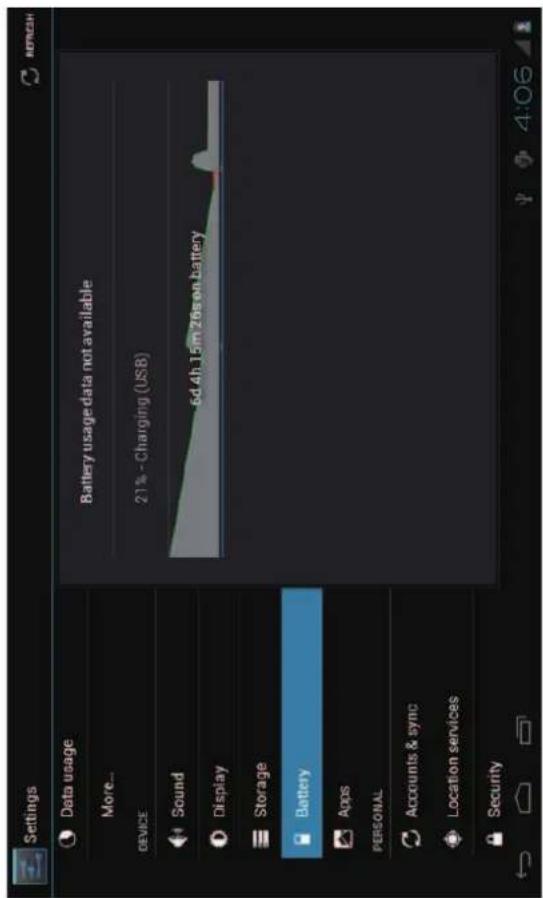

5. Battery

Check battery usage status.

Settings Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Battery usage data not available 21% - Charging (USB) 5d 4h 15m 26s on battery 4:06

Settings MORE... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input DOWNLOADS RUNNING ALL Settings 1 process and 9 services Music 14MB 2 processes and 1 service Android keyboard 16MB 2 processes and 1 service 139MB used RAM 185MB free SHOW CACHED PROCESSES

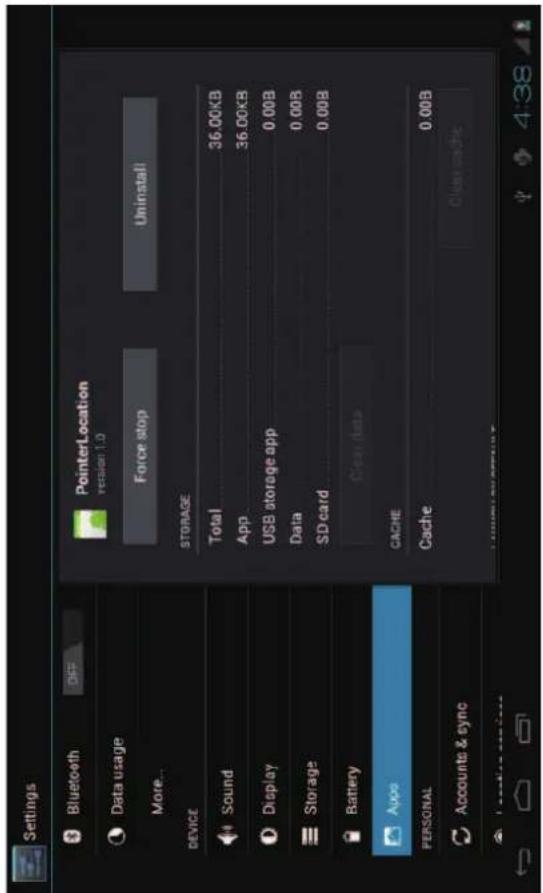

Running services
Press Uninstall to uninstall the selected application. View and control currently running services.

Settings Bluetooth OFF Data usage More... DEVICE Sound Display Storage Battery Aupo PERSONAL Accounts & sync PointerLocation version 1.0 Force stop Uninstall STORAGE Total 36.00KB App 36.00KB USB storage app 0.00B Data 0.00B SD card 0.00B Clear data CACHE Cache 0.00B Clear machine

Keep pressing an application to manage.

7. Account & sync

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes your account with the device. Emails are automatically downloaded into the device.

8. Location services

Google's location service - Let apps use data from sources such as WiFi and mobile networks to determine your approximate location

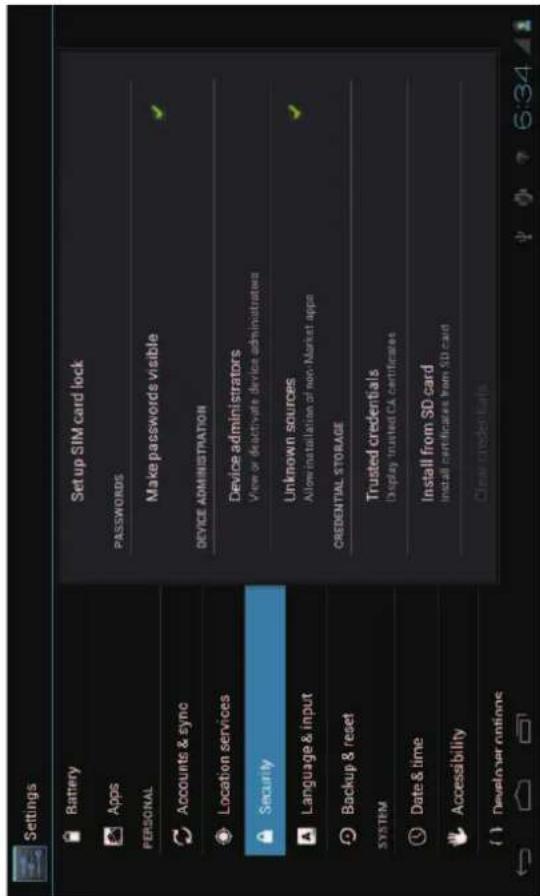

9. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern Make passwords visible – Show password as you type. Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.

Settings Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options Set up SIM card lock PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card Install certificates from SD card Clear credentials

Install from SD card – Install encrypted certificates from SD card.

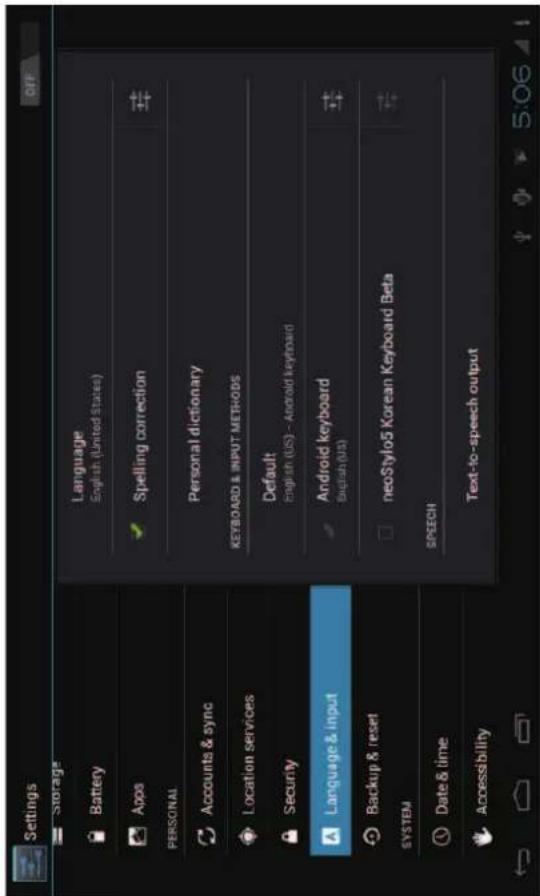

10. Language & input

Language – Choose your preferable language.

Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need.

Settings Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Language English (United States) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (US) - Android keyboard Android keyboard English (US) neoStylo5 Korean Keyboard Beta SPEECH Text-to-speech output

11. Date & time

Set date & time and format

12. Developer options

Set options for application development

13. About tablet

See status, legal information, ETC

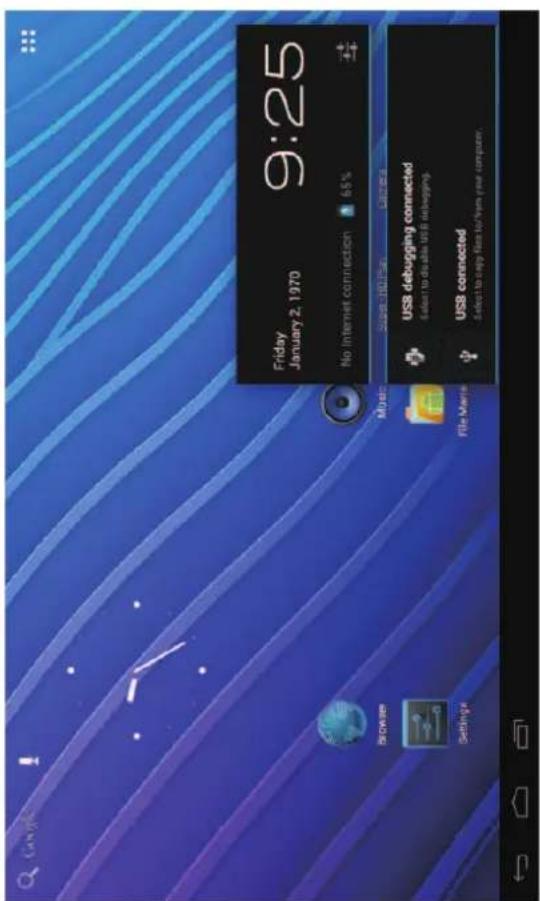

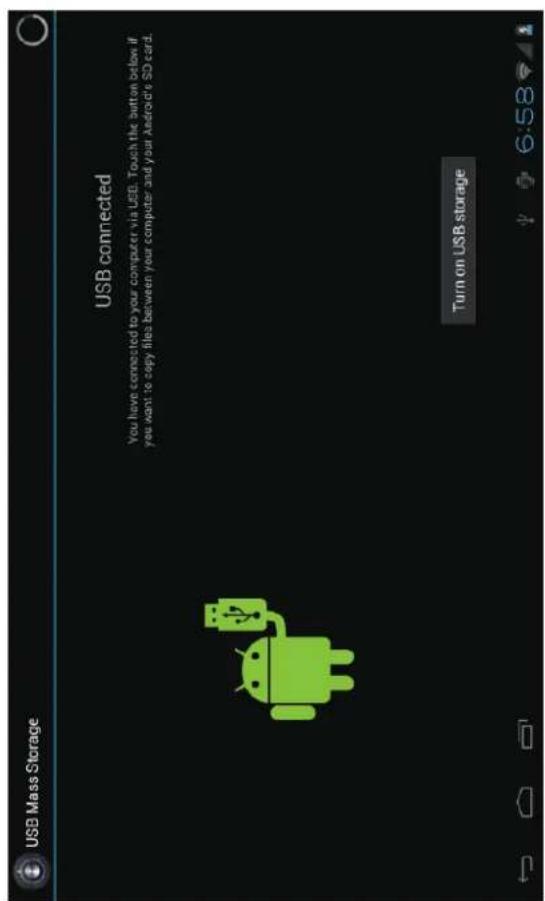

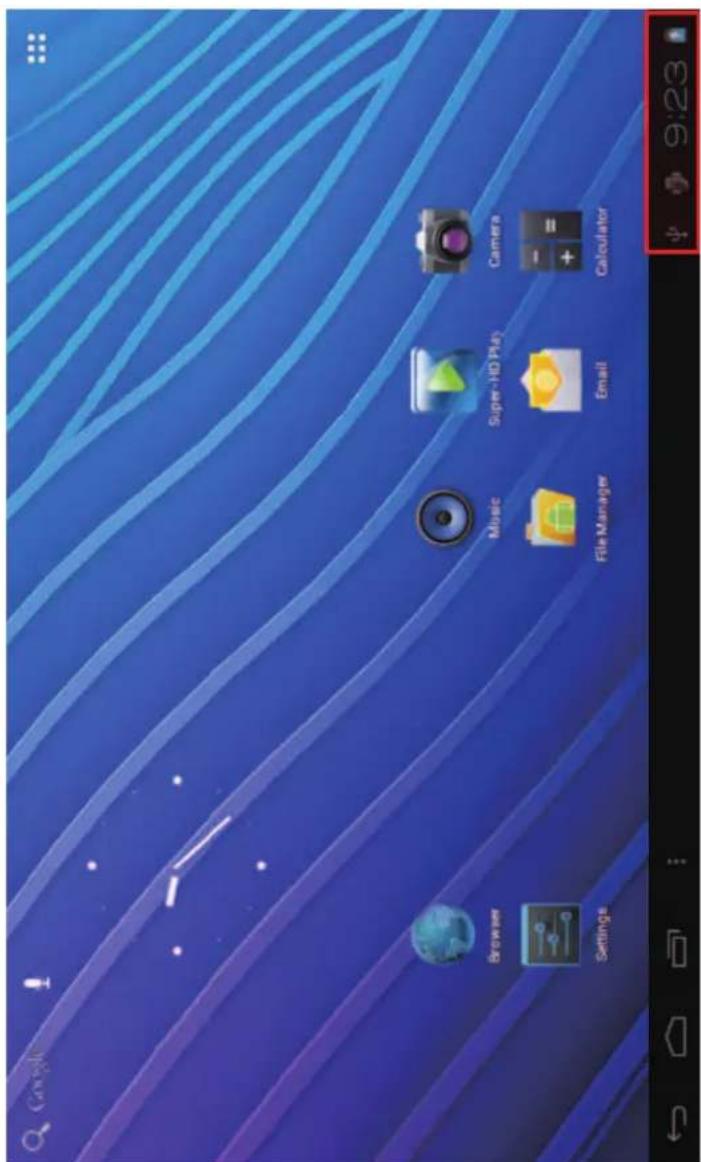

How to connect/disconnect the device with/from the computer

On main desktop, connect the device with the PC,

touch right side of the status bar on the bottom of desktop

Google Browser Settings Music Super-HD Play Camera File Manager Email Calculator 9:23

Press "USB connected", select "Turn on USB storage". The device is recognized at Explorer of the computer. Now you can use it as an external storage.

After finishing your work, Press "Turn off USB storage" to unmount it.

Friday January 2, 1970 9:25 No Internet connection 65% Super HD Plan Camera USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet.

2. Run "Opera" and search the applications you want to install.

3. Follow the instruction on the screen for installation.

Method 2.

1.

2.

3.

computer.]

4.

5.

6.

With your computer, search application file(.apk) that you want to install into the device.

Download the file(.apk) into your computer.

Connect the device with your computer. See above [How to connect/disconnect the device with/from the

Copy and paste .apk file into the device and disconnect it from your computer.

Run "File manager" and find .apk file that was copied into the device.

Press the file to install and follow the instruction on the screen.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in the jurisdiction where you reside or from which you download adult applications. If you do not meet these requirements, then you do not have permission to
download adult applications. In case of any problems including legal issues from the breach by end-user's own decision,
the manufacturer shall not be responsible.

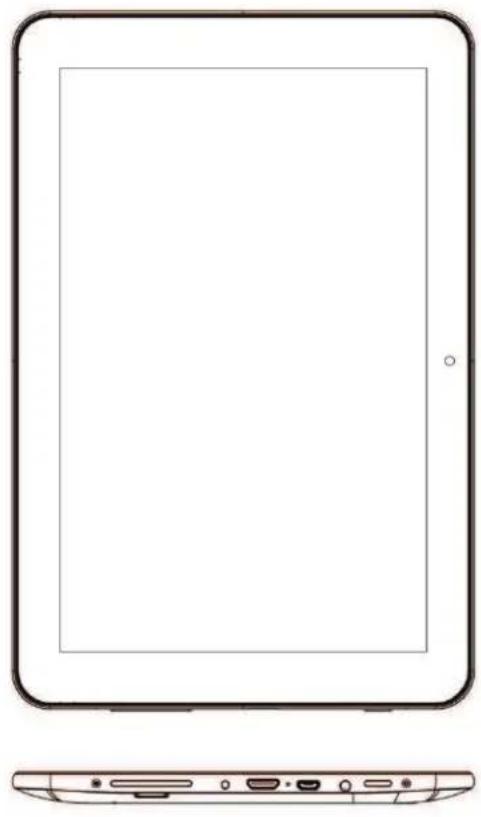

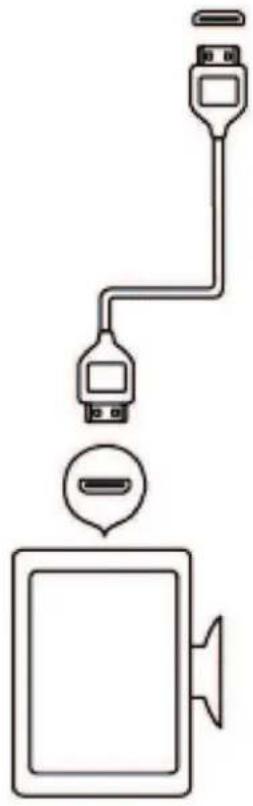

HDMI connection with TV

Turn on the device and TV Connect the device with TV using HDMI cable.

Line drawing of a tablet device showing front and side views (no text or symbols)

Diagram showing a computer monitor connected to two USB cable connectors (no text or symbols present)

Note
HDMI cable is optional, it may not come in the package, depending on countries.

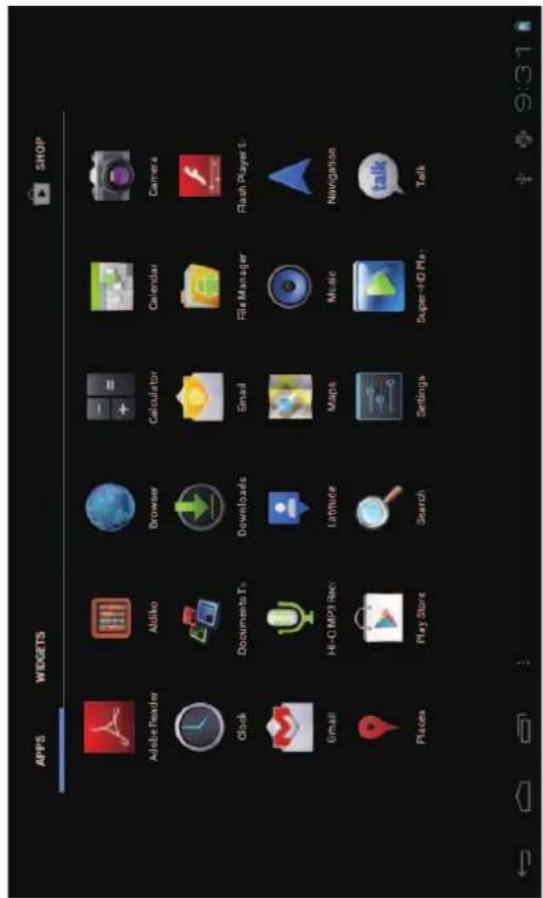

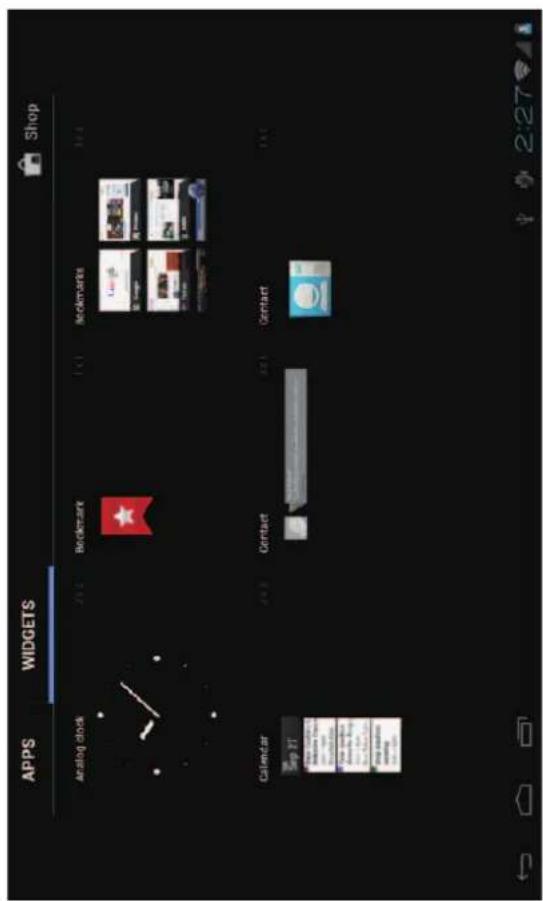

How to make desktop icons

Press the upper right side icon of desktop, the pop-up displays.

Browse Settings Music Video Camera Explore Email Calculator

APPS WIDGETS Shop Analog clock 20:2 Bookmark 1:1 Bookmarks 1:2 Calendar 4:3 Contact 2:1 Contact 1:1 Sep 17 New Computer Tools New Computer Tools New Computer Tools New Computer Tools New Computer Tools New Computer Tools

APPS WIDGETS SHOP Adobe Reader Aldiko Browser Calculator Calendar Camera Clock Documents To Downloads Email File Manager Flash Player S Email Hi-Fi MP3 Rec Latitude Maps Music Navigation Places Play Store Search Settings Super-HD Play Talk

WidgetsShortcuts

Long press your desired wiget icon and put it on the desktop.

Long press your desired APK icon and put it on the desktop.

Wallpaper

Long press the desktop, press Wallpapers and select one of categories of wallpaper. Select one you desire and press Set wallpaper.

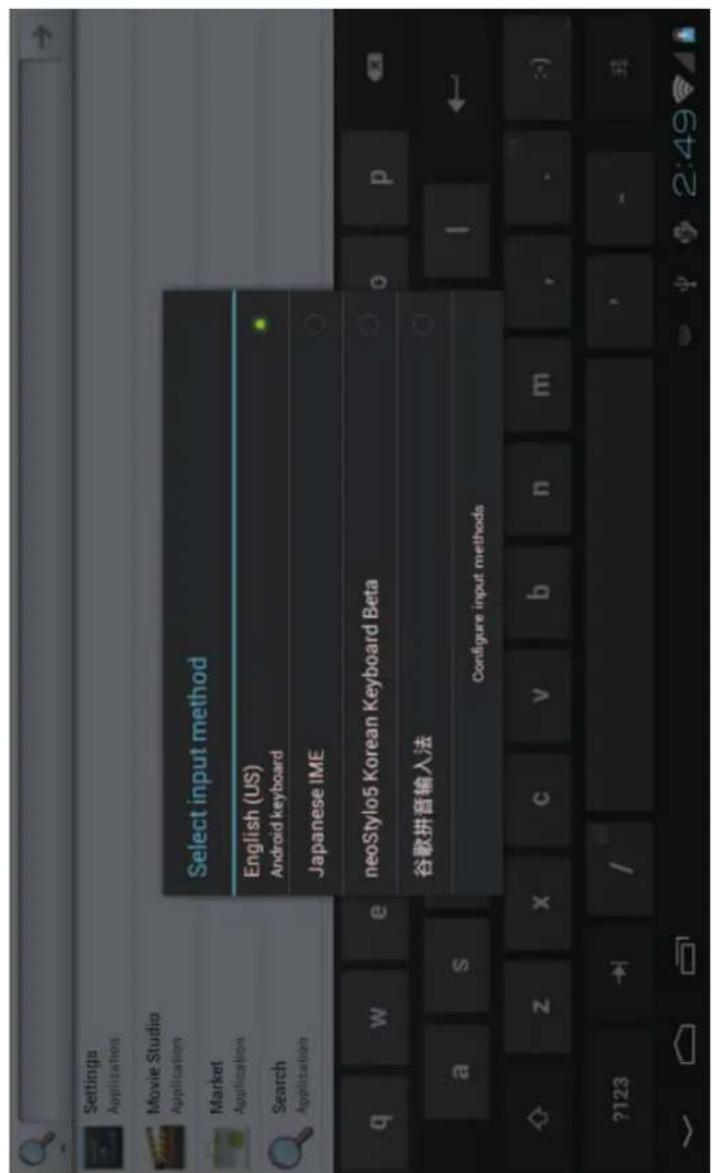

Change Input Method

If your device was installed with other more input method, long press setting icon of keyboard, and the pop-up display

Settings Applications Movie Studio Application Market Application Search Application Select input method English (US) Android keyboard Japanese IME neoStylo5 Korean Keyboard Beta 谷歌拼音输入法 Configure input methods

Select the installed keyboard, then the keyboard will appear with your desired language you installed.

Specification

OS
CPU
SDRAM		DDR3 1GB (3D accelerator possible for 3D games and 3D movie)
Display
Multi-touch screen		multi-touch
Built-in flash memory		2 / 4 / 8 / 16GB, see the package
IO PORTS	Audio port	3.5ø earphones
	USB port	1 x 5pin micro USB port (2.0 high speed)
	DC port	5V, 2A
	HDMI port	Yes
	Micro SD	Micro SD card
	OTG port
	Button	Power, VOL-, VOL+,
Speaker		Frequency response : 20Hz – 20k Hz, N/S : >90%
G-sensor		Yes
Camera		0.3M pixel (front), 2M pixel (backside)
Wi-Fi		802.11b/g/n
Power		Adaptor 5V -2A
Battery		3.7V Li-Polymer
Dimension
Charging time	by charger

For more information please check our website

www.mpmaneurope.com
