USER MANUAL TransImp TIP-D185U3-BK MUKii

SATA/IDE to USB 2.0 Adapter

M one TUNING SYSTEM INTRODUCTION ....10

FAQ 11

WARRANTY 12

CONTACT 12

目錄

包裝內附 13

產品特色 / 產品規格....14

系統需求 15

裝置介面 16

安裝步驟 17

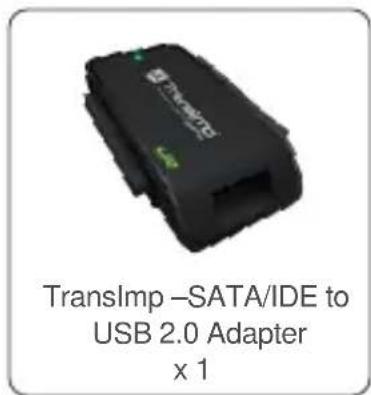

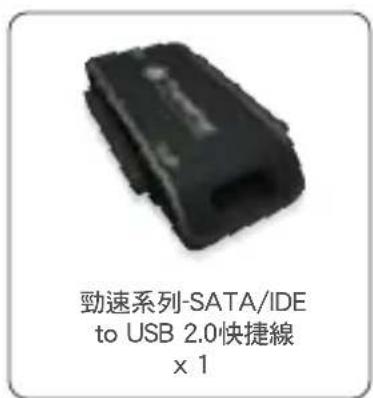

Please check your packing list to be sure all parts are recieved

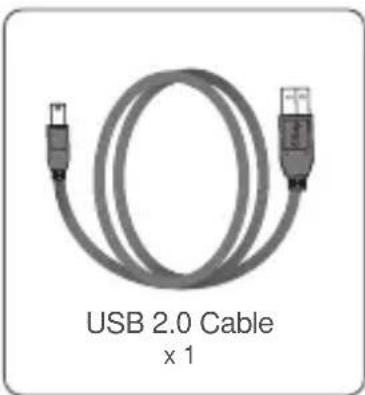

Coiled USB 2.0 cable with two connectors (no text or symbols on the cable itself)

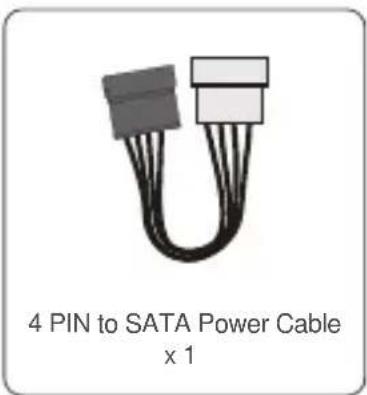

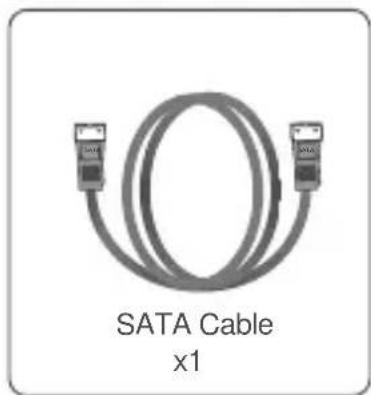

SATA Cable x1 cable with two Ethernet connectors (no text or symbols on the diagram itself)

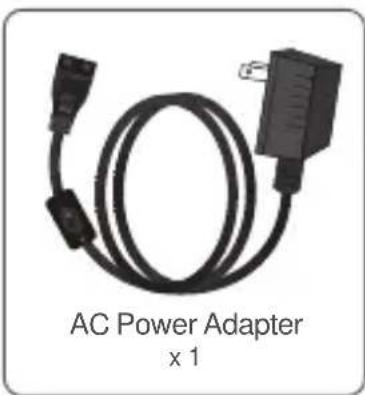

AC Power Adapter x 1 cable with two connectors (no text or symbols on the diagram itself)

FEATURE

■ Easy Installation with Tool-free Design.
■ Support 2.5"/3.5"IDE/SATAI/II HDD/SATA SSD
■The Product Supports the Blu-ray Optical Drives and Regular 5.25" SATA/IDE Devices.
■USB 2.0 Interface for Easy Data Access. Transfer Rates Up to 480Mbps with USB 2.0.
■ Includes a 110V\~240V Certified External Power Adapter which Provide Consistent Power to Your External Device.
■The Port Features Foolproof Design to Prevent HDD Damage Caused by Incorrect Insertion.
■Its Separate Power Switch Provides Trouble-free Hardware Protection.
■ Highly Compact and Extremely Portable
■Hot Swappable: Plug and Play
■M One Tuning System Included : Auto Format / Smart Energy Saving / USB Turbo / Auto Backup / Status Feedback.

SPECIFICATIONS

■ Model : TIP-Q120U2SI
■ Device support : IDE/SATA I/II Hard Drive or SATA SSD
■ Device size : 2.5" / 3.5" / 5.25"
■ Internal interface : USB 2.0
■ Material : Plastic
■ Dimension : 75 x 49 x 13 mm
■ Power : AC Power Adapter
■ Cable : 80cm (31.5 inches)

For the most current storage capacity & Operating System Support, please check our website: www.mukii.com.tw

TransImp®

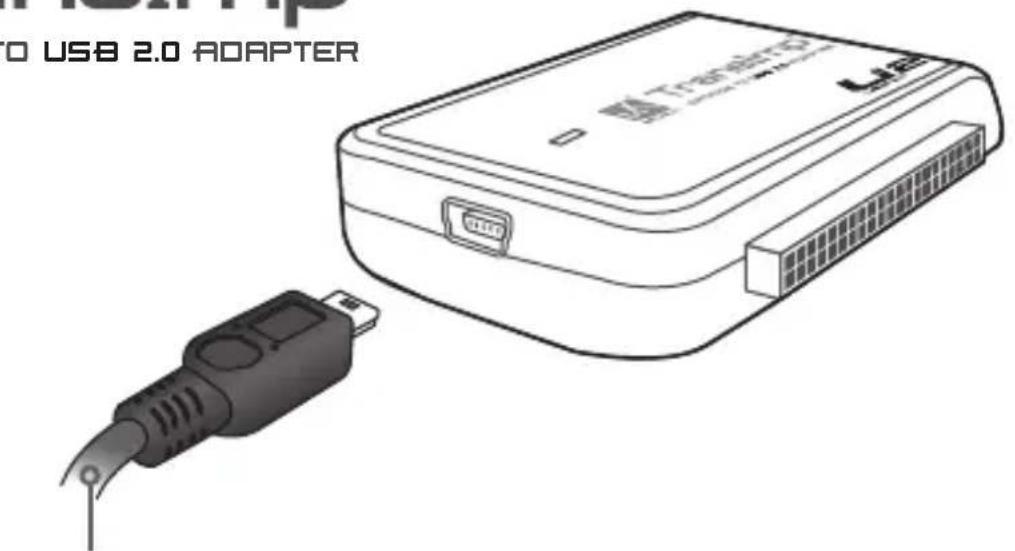

SATAIDE TO USB 2.0 ADAPTER

USB 2.0 Cable

SYSTEM REQUIREMENTS

Intel Pentium II 350 MHz-compatible. Microsoft Windows 2000/XP/VISTA/7.

1. USB Equipped System
2. For USB 2.0 Speeds, the System Must Support USB 2.0 Specifications
3. CD Rom drive (for value added software)

Mac G3 processor & greater. MAC OS 8.6 & greater.

1. USB Equipped System
2. For USB 2.0 Speeds, the System Must Support USB 2.0 Specifications
3. CD Rom drive (for value added software)

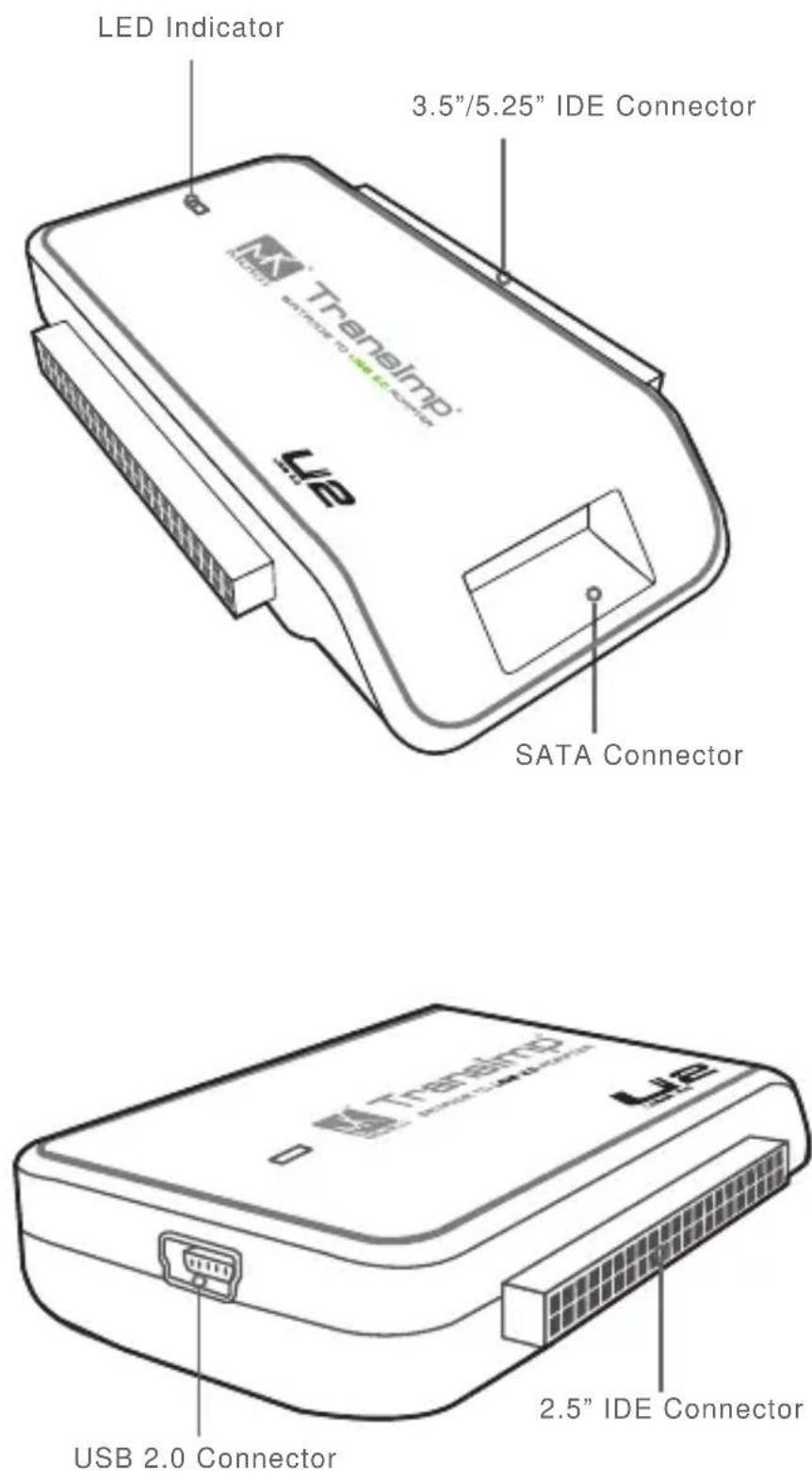

PARTS LAYOUT

INSTALLATION

2.5" IDE Hard Drive Installation:

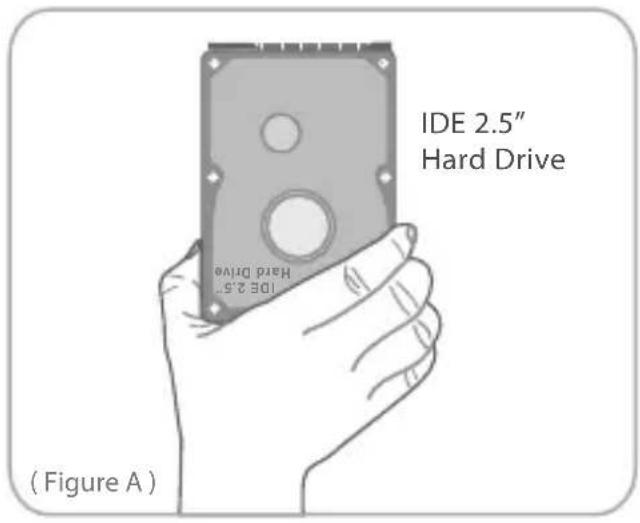

1. Insert 2.5" IDE hard drive (HDD) into the slot. Turn the front side upward.

(Figure A)

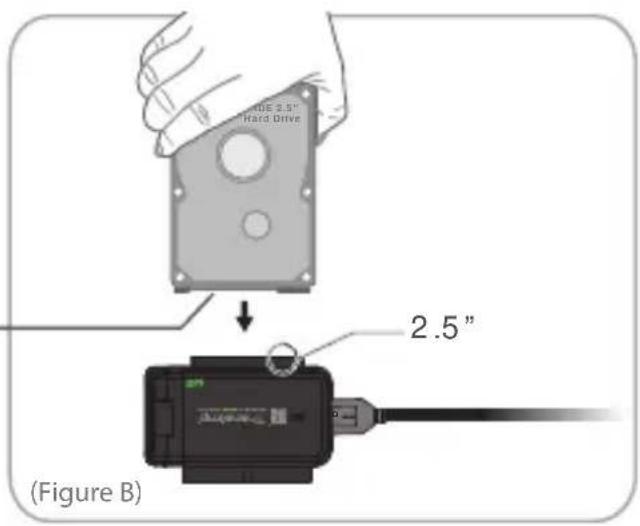

1. Make sure that the IDE 2.5" HDD pins align to the device slot.

(Figure B)

Don't connect the 4-pins on the left side to the device.

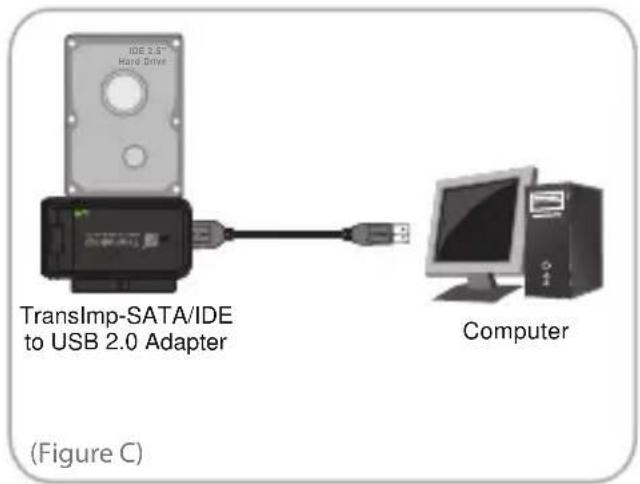

1. Connect the USB cable to the USB port on the PC. Once connected properly, the HDD should be automatically detected and be ready for use. (Figure C)

Once the power consumption of PCIE bus is not enough, please connect the power connector of USB cable to the USB 2.0 port of motheroard.

3.5" IDE Hard Drive Installation:

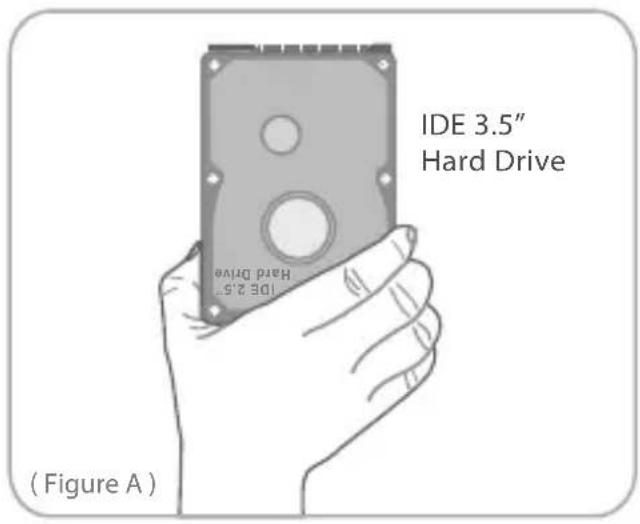

1. Insert 3.5" IDE hard drive into the slot. Turn the front side upward. (Set the HDD to MASTER if needed). (Figure A)

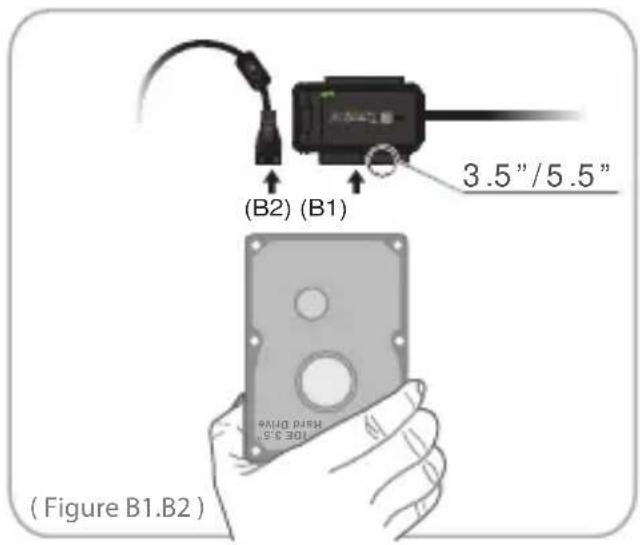

1. Connect the larger 40-pin IDE connector of TransImp-SATA/IDE to USB 2.0 Adapter to the hard drive. (Figure B1)

2. Connect a 4-pin power connector from power supply to hard drive. (Figure B2)

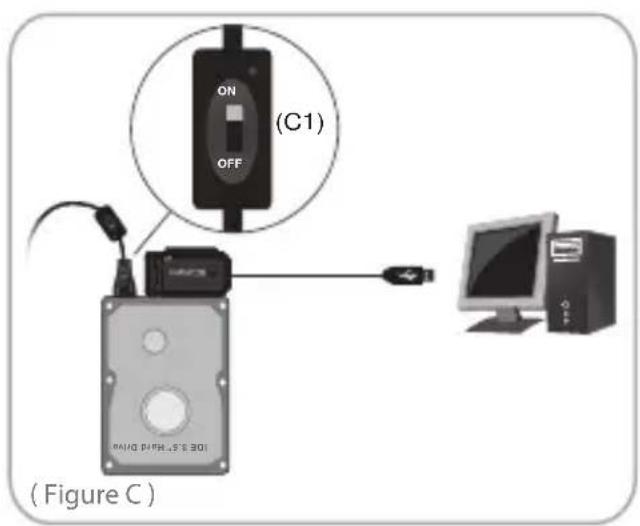

1. Turn on the device power.

(Figure C1)

1. Connect the USB cable to the USB port on the PC. Once connected properly, the HDD should be automatically detected and be ready for use.

(Figure C)

2.5" & 3.5" SATA HDD/SSD installation:

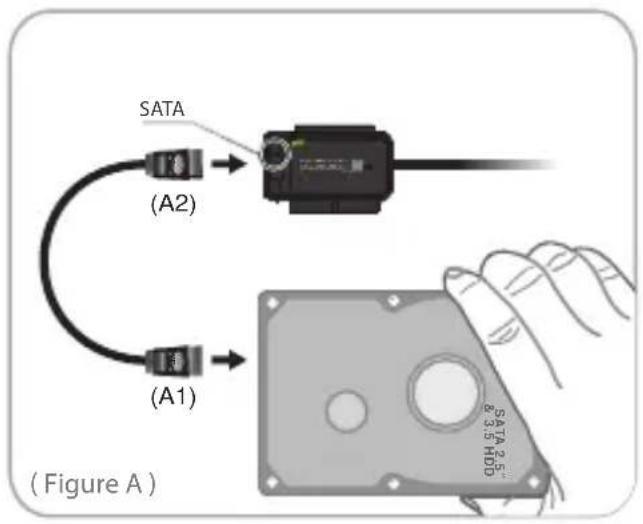

1. Using a SATA cable, connect one cable header to your SATA hard drive. (Figure A)

2. Connect the other header to the SATA port of TransImp-SATA/IDE to USB 2.0 Adapter. (Figure A)

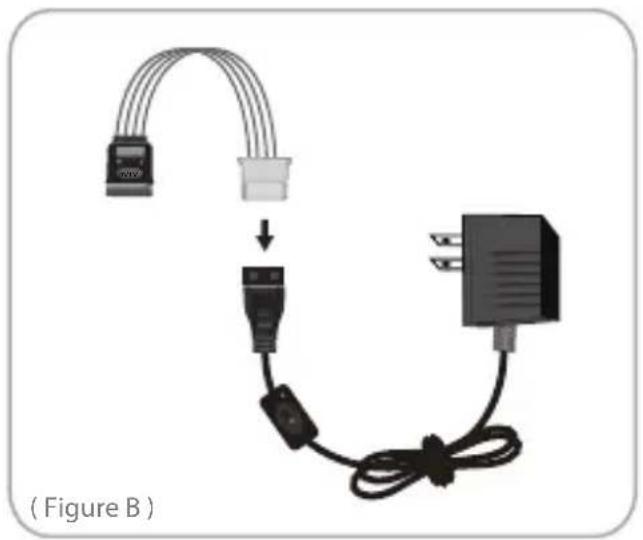

3. Connect Power Cable to Power Adapter. (Figure B)

Diagram showing cable connection between two connectors and a power adapter, labeled (Figure B) (no text or symbols on components)

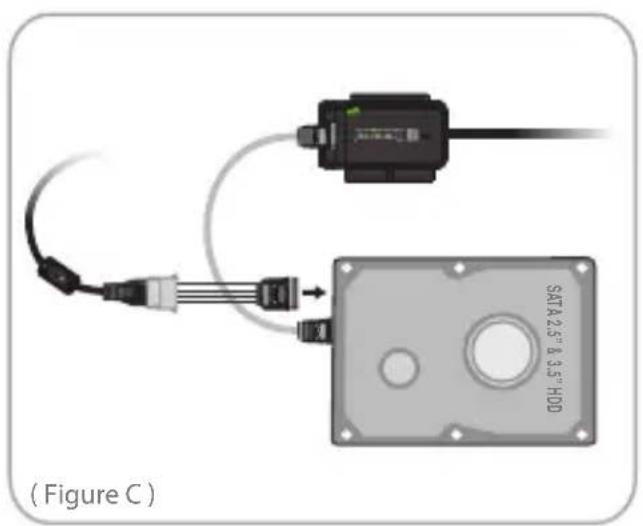

1. Connect Power Adapter to hard drive. (Figure C)

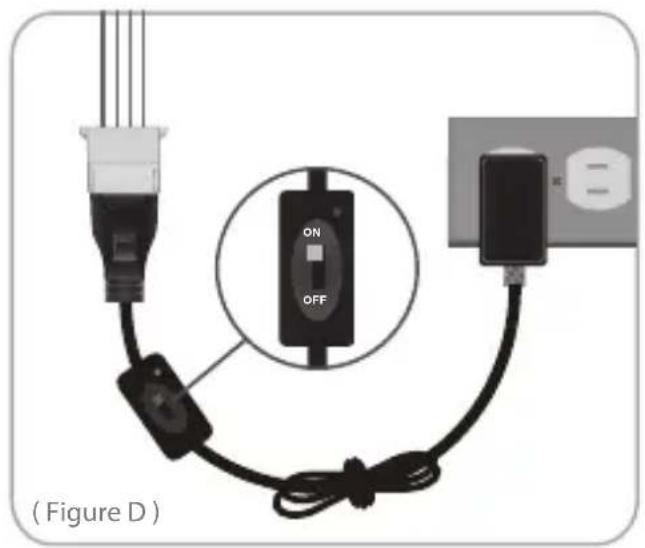

1. Turn on the power, HDD will begin to spin up. (Figure D)

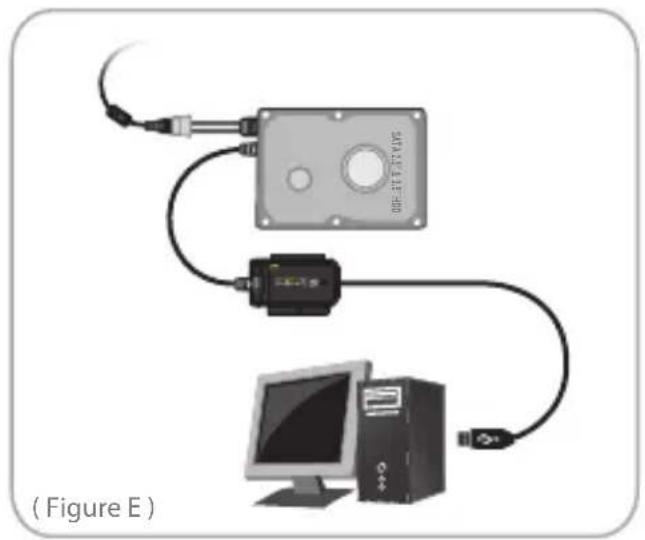

2. Connect the USB cable to the USB port on the PC. Once connected properly, the HDD should be automatically detected and be ready for use. (Figure E)

Diagram of a connected device setup with monitor, CPU, and control panel (no text or symbols)

NOTE :

1. Keep the HDD in a flat position when being used.
2. Make sure Power Adapter Switch has been turned off before disconnecting the HDD from the Power Cable.
3. Do NOT touch PCB of the HDD when it is power-on.
4. Never remove, shake or flap the HDD when hard drive is in use.

M one TUNING SYSTEM INSTALLATION

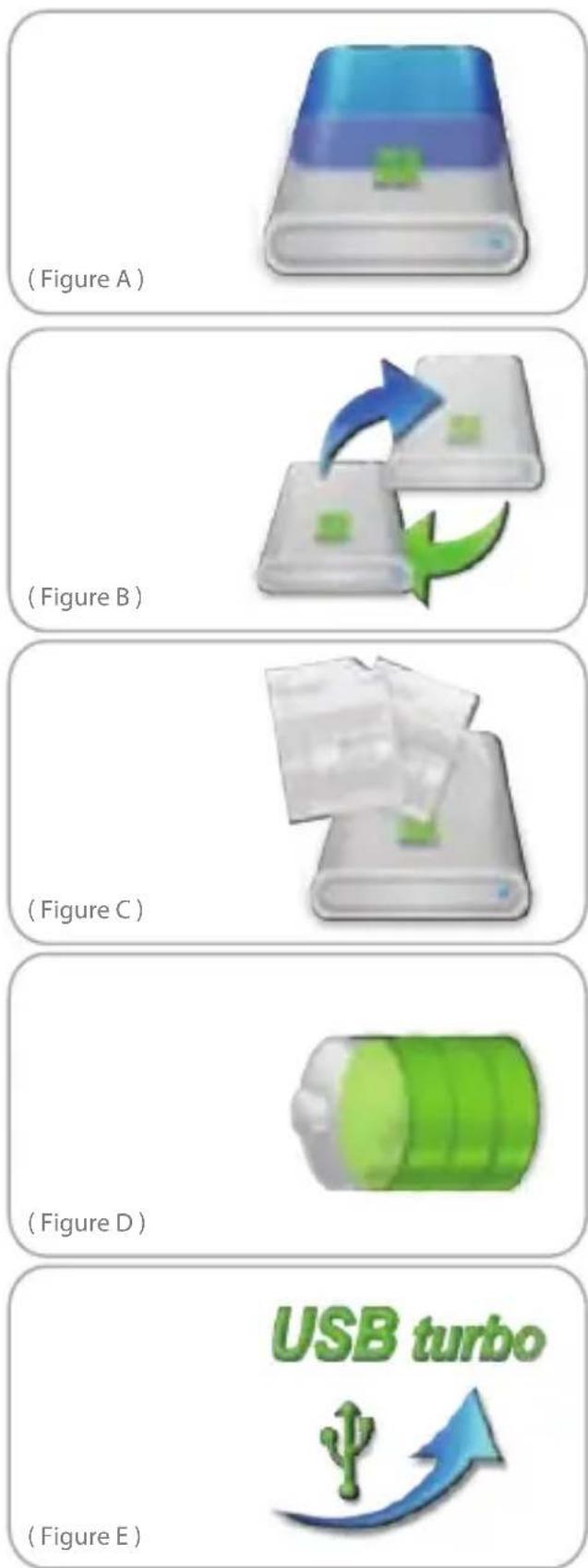

Auto Format :

Partition and format your hard drive into one or two disks, label your disk and setting partition size as you want. (Figure A)

Auto Backup :

Auto Backup automatically backup your critical data from local disk to MUKii TransImp external hard disk. (Figure B)

Status Feedback :

When you connect MUKii TransImp external hard disk, you can read the status of your hard disk situation such as, the brand of HDD, available disk space, healthy condition.

(Figure C)

Smart Energy Saving :

The unit will be automatically running into sleeping mode when you stop operating it for a while.

(Figure D)

USB Turbo :

Boost TransImp external hard disk data transfer rate.

(Figure E)

※ Please Find Software CD for M ONE TUNING SYSTEM User's Manual.

FAQ

1. When the hard drive is connected, why couldn't the computer work?
   A : The 3.5" IDE or SATA drives need to connect the power adapter and turn on the power. When the hard drive works then connect it with the USB cable.
2. Why couldn't the computer detect the new hard drive?
   A : You need to format the new hard drive before using it. Please execute MUKii M one tuning system to start formatting & partition your HDD.
3. Why couldn't the MAC computer use the hard drive which is formatted by Windows system?
   A : The format of different system is not the same. It's not compatible.
4. It couldn't work by connecting one USB cable.
   A : Some NBs and PCs couldn't supply enough electricity. We will suggest you to connect the USB port on the back of PCB.

WARRANTY

The TransImp comes with a One (1) year Limited Warranty (90-day on defective parts). Should your product become defective within the specified time frame, please visit www.mukii.com.tw to receive instructions for obtaining repair or warranty exchange. Cosmetic defects and missing parts are not covered by this warranty. Please check to make sure all parts are included & no visible flaws. If a replacement is required for any cosmetic defects or missing parts, please contact the retailer from whom you purchased the Product immediately.

CONTACT

MUKii Technology INC.

2F, No.588, Tanmei St, Neihu District, Taipei City 114, Taiwan (R.O.C)

TEL:[phone] FAX:[phone]

www.mukii.com.tw
