Patpat GM-423 - Popcorn machine GoldMaster - Free user manual and instructions

Product Type	Popcorn Machine
Brand	GoldMaster
Model	Patpat GM-423
Dimensions (L x W x H)	Approx. 30 x 25 x 35 cm
Weight	Approx. 2.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	1200 W
Capacity	Up to 100 g of kernels per batch
Material	Stainless steel heating element, plastic housing
Heating Method	Hot air circulation
Operation	One-button operation with automatic shut-off
Safety Features	Overheat protection, cool-touch handle
Cleaning	Removable popping chamber, dishwasher-safe parts
Maintenance	Regular cleaning of air vents and chamber
Accessories	Measuring cup, butter melting tray
Warranty	1 year limited warranty
Repairability	Replaceable heating element and fuse
Certifications	CE, RoHS

Frequently Asked Questions - Patpat GM-423 GoldMaster

How do I use the GoldMaster Patpat GM-423 popcorn machine?

Plug in the machine, add up to 100g of popcorn kernels into the popping chamber (use the included measuring cup), place a bowl under the chute, and press the power button. The machine will automatically shut off when popping is complete.

Can I add oil or butter before popping?

No, this is a hot air popper. Do not add oil or butter directly to the popping chamber. Use the butter melting tray on top to melt butter separately and drizzle over popped corn.

How do I clean the popcorn machine?

Unplug and let it cool completely. Remove the popping chamber and clean with warm soapy water. Wipe the exterior with a damp cloth. Do not immerse the base in water.

What should I do if the machine stops working during use?

The machine has overheat protection. Unplug it and let it cool for 15-20 minutes. Check if the air vents are blocked. Plug it back in and try again.

Can I use flavored popcorn kernels?

Yes, but avoid kernels with excessive oil or sugar coatings as they may cause sticking or burning. Standard popcorn kernels work best.

How much popcorn does one batch make?

Approximately 3-4 quarts (about 12-16 cups) of popped popcorn, depending on kernel quality.

Is the popcorn machine safe for children to use?

The machine should be used under adult supervision. The exterior can get hot during operation, but the handle stays cool. Children should not touch the machine while it is on.

Why is my popcorn not popping?

Check that the popping chamber is properly assembled, the air vents are clear, and the kernels are not old or stale. Also ensure the machine is plugged into a working outlet.

Can I replace the heating element if it fails?

Yes, the heating element is replaceable. Contact GoldMaster customer support for a replacement part and instructions. We recommend having a qualified technician perform the replacement.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by email.

USER MANUAL Patpat GM-423 GoldMaster

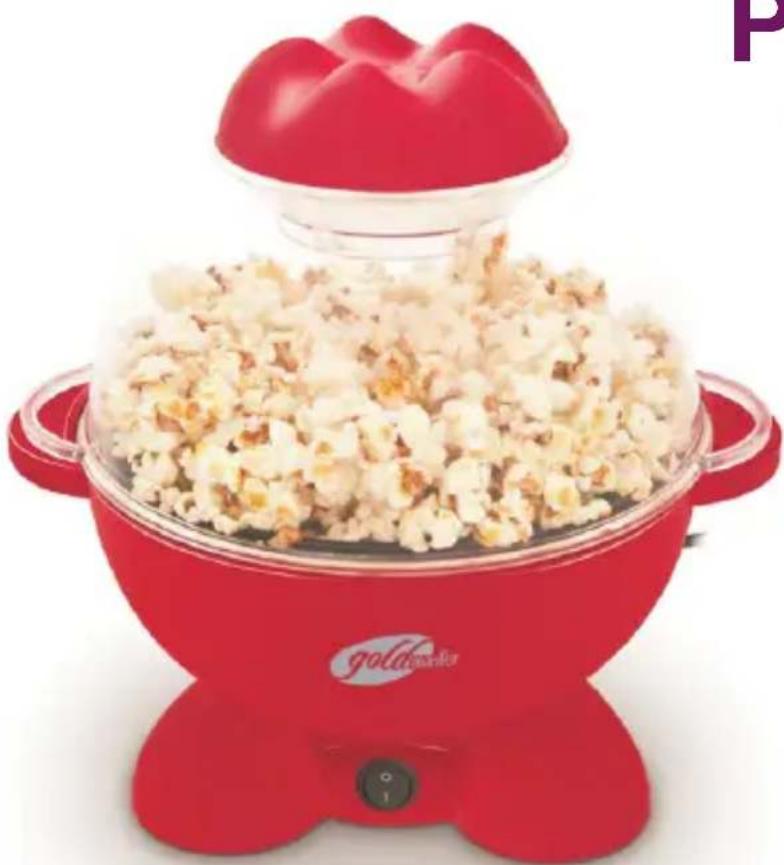

PATPAT GM-423

Red portable food maker with white powder and a red lid, no visible text or symbols on the device itself.

Mısır Patlatma Makinesi KULLANMA KILAVUZU

www.goldmaster.com.tr

içİNDEKİLER

Önemli Uyarılar 2

Genel Görünüm 3

Ürün Özellikleri 4

Ürün Kullanımı 4

Temizlik ve Bakım 6

Teknik Özellikler 7

Close-up of a smooth, curved surface with no visible text or symbols

Illustration of a dark pot with a lid and base, emitting steam or heat (no text or symbols)

Illustration of a cloche with a lid and lid, no text or symbols present

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

WEEE

Web:www.goldmaster.com.tr

E-mail:[e-mail]

CONTENTS

Important Safety Instructions 2

Overview 3

Features 4

Using Instruction 4

Cleaning Instruction 5

Technical Specification....6

Thank you for purchasing this Popcorn Maker. Before using this product, it is important to read this instruction manual carefully.

Use the product only as described and for indicated purpose. Keep this manual in a safe place. If you hand this product onto anyone else, ensure to pass on along all the documentations relating to this product.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions carefully before you use the appliance.
• Make sure your electricity supply is the same as the one shown on the power handle before plugging in .
• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• Never put the power handle and in water or let the cord or plug get wet, you could get an electric shock.
• Do not touch hot surfaces. Use handles or knobs.
• Close supervision is necessary when any appliance is used by or near children.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• A popper that is plugged into an outlet should not be left unattended.
• Extreme caution must be used when unloading popcorn. Always turn the unit over a counter-top so that residual hot oil or water running out will not cause burns.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
• A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

- If a long detectable power-supply cord or extension cord is used:

- The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

- If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.

- This appliances are not intended to be operated by means of an external timer or separate remote-control system.

- For safety reasons a damaged of defective supply cord should only be replaced by service centre.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

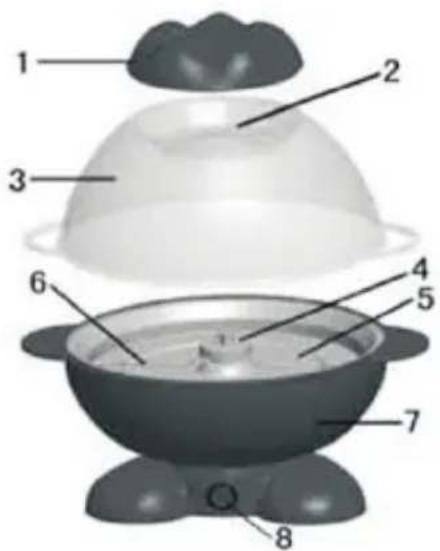

OVERVIEW

1. Plastic bowl and measuring cup plastic cover
2. The cover lid and vent
3. Transparent cover
4. The center lock button
5. Stirring rod
6. Non-stick frying
7. Heat-resistant stand base
8. The switch button

Features

• 700W
• To make oiled and salt corn
• Only need 3-5 minutes
• Cover can be used as a serving bowl
• Non-stick coating popcorn surface
• Heat-resistant stand base

USING INSTRUCTION

- Put the transparent cover on the heat-resistant stand base.

Close-up of a curved metallic object with smooth surfaces (no text or symbols visible)

- Slowly put about 80 grams of corn into the non-stick frying plate through the cover lid and vent. You could open the lid when the corn grain is too large to pass through the hole.

Illustration of a dark pot with a lid and base, no text or symbols present

WARNING: Do not switch on the Popcorn Maker before pouring the corns.

- Plug the power cord and press the switch button. Here the stirring rod begins to rotate, the corn started to be heated.

Illustration of a covered food clove with a lid (no text or symbols)

- When heating, do not place the plastic bowl and measuring cup on the transparent cover at the top of the cover lid and vent.

- With 3-5 minutes, the corn will begin to be popped. The popped speed gradually accelerated. When speed slows down, corn has fully burst. Switch of the button, and then unplug the power cord from electricity. The process will last about 3-9 minutes. The time varies according to corn volume.

- Grasp the handles of the stand base and the lid, place the body and transparent cover upside down, put the popcorn into the transparent cover. Then put aside the cover for next using. Here the transparent cover is used as a large bowl and now we could taste the popcorn. Adding some salt or sugar, the corn will be much more sweet and delicious.

- In addition, please keep the product 15-20 minutes out of working in order to cool it before next use.

The required amount of corn is according to the following table:

The amount of corn (bowl)	The amount of popcorn (liters)
14	212
12	5

Note: Due to different corns, the volume will be little different. The ideal amount of corn is 60 grams. If put some vegetable oil at the same time, the max capacity is 120 grams.

CLEANING INSTRUCTION

- Before cleaning, must be switch of the power and make the appliance cool enough.

- Do not use the diswasher clean any parts.

- Using hot soapy water to clean the transparent cover and plastic bowls. Dry it after the cleaning.

WARNING: To avoid stretching the surface, please do not use abrasive paste when cleaning the transparent plastic cover.

- Twist anti-clockwise the center locks, remove the stirring rod. Dry it after washing with soapy water.

- Dry the non-sticked plate after wiping it with a soft cloth dipped into soapy water to clean the surface. After repeated use, the surface may have some stain stick. In order to eliminate this, you could smear the surface with a soft cloth dipped in lemon juice or vinegar, and then dry after wiping it clean with a soft cloth.

WARNING: Do not place the stand base, the power cord and plug into water or other liquids.

TECHNICAL SPECIFICATION

Voltage: 230V AC 50Hz

Power: 700W

Class: Class I

7 years life-time

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

WEEE

This product contains recyclable materials. Do not dispose this product as unstorted municipal waste. Please contact your local municipality for the nearest collection point.
