Product Type	Heavy Duty Passenger Side Mount Kit for Vehicle
Brand	Havis
Model	C-HDM-205
Category	Car Kit
Compatible Vehicles	Designed for vehicles like 2010 Ford Focus (example in manual)
Primary Function	Mounts a docking station, laptop, or other equipment on the passenger side
Construction Material	Heavy-duty steel or aluminum (typical for Havis mounts)
Weight Capacity	Estimated up to 15-20 lbs (7-9 kg) typical for such mounts
Power Supply	Optional ChargeGuard Power Management System (12V battery connection)
Mounting Method	Uses existing seat bolts; base mounts under or over seat bracket
Adjustability	Height adjustable via shaft collar; offset bracket adjustable; multiple rotation options via different bolt patterns
Required Tools	Metric socket set, wrenches (7/8", 1/2", 7/16"), Allen wrench set, Phillips screwdriver
Included Parts	HDM Base, Offset Bracket, Pole, Adaptor Plate, Swing Arm, Top Offset, Hardware kit
Optional Accessories	C-HMD-409 Offset Plate, ChargeGuard Power Management System, two-piece support collar, L bracket
Safety Precautions	Read all instructions; check for obstructions (wires, brake lines, fuel tank); use provided hardware only
Installation Location	Passenger side floor near seat bracket
Clean and Maintenance	Periodically check tightness of all bolts; clean with mild detergent if needed
Repairability	Individual parts available from Havis; hardware replacement possible
Compliance	Designed for vehicle use; meets typical safety standards
Warranty	Standard Havis warranty (check official website)

Frequently Asked Questions - C-HDM-205 Havis

What tools are required to install the Havis C-HDM-205?

You will need a large metric socket set (1/2" drive), small metric and US standard set (1/4" drive), 7/8", 1/2", and 7/16" wrenches, US standard Allen wrench set, and a Phillips head screwdriver.

How does the mount attach to the vehicle?

The HDM Base mounts using the existing seat bolts. You remove the plastic caps, remove the OEM seat bolts and nuts, then align the base and secure with the original bolts. Some variations mount under or over the seat bracket.

Can I adjust the height of the pole?

Yes, the shaft collar on the inner pole can be loosened and moved up or down to achieve the desired height, then fully tightened. This adjustment is done in step 12 of the installation.

Is the mount compatible with any docking station?

The kit includes an Adaptor Plate and Swing Arm designed to fit Havis docking stations. For third-party docking stations, you may need additional adapters. The manual shows attaching a Docking Station to the mounting bracket.

What is the purpose of the optional ChargeGuard?

The ChargeGuard Power Management System manages power distribution and protects your devices. It connects to the fused 12V battery and provides regulated power to the docking station or laptop.

How do I ensure safety during installation?

Always read all instructions before installing. Check for obstructions such as wires, brake lines, or fuel tanks. Use only the hardware provided with the install kit to avoid damage or failure.

Can the mount be used in other vehicles besides the 2010 Ford Focus?

Yes, the instructions use the 2010 Ford Focus as an example, but the mount is designed to fit a wide range of vehicles. Check the seat bolt pattern and clearance before installation.

What is the weight capacity of this mount?

While not explicitly stated, typical heavy-duty mounts from Havis support up to 15-20 lbs (7-9 kg). For heavier equipment, consider consulting Havis support.

How do I clean and maintain the mount?

Periodically inspect all bolts and tighten if necessary. Clean with a damp cloth and mild detergent. Avoid harsh chemicals that may damage the coating.

What optional accessories are available for the C-HDM-205?

Optional items include the C-HMD-409 Offset Plate for centering, ChargeGuard Power Management System, two-piece support collar with side arm, and L bracket for additional dash support.

USER MANUAL C-HDM-205 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

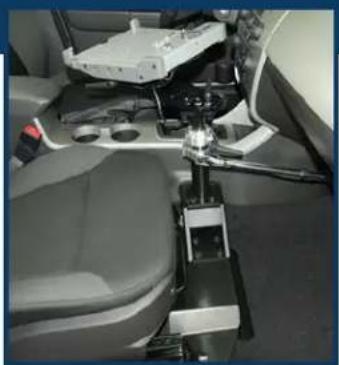

Complete assembly in vehicle (2010 Ford Focus)

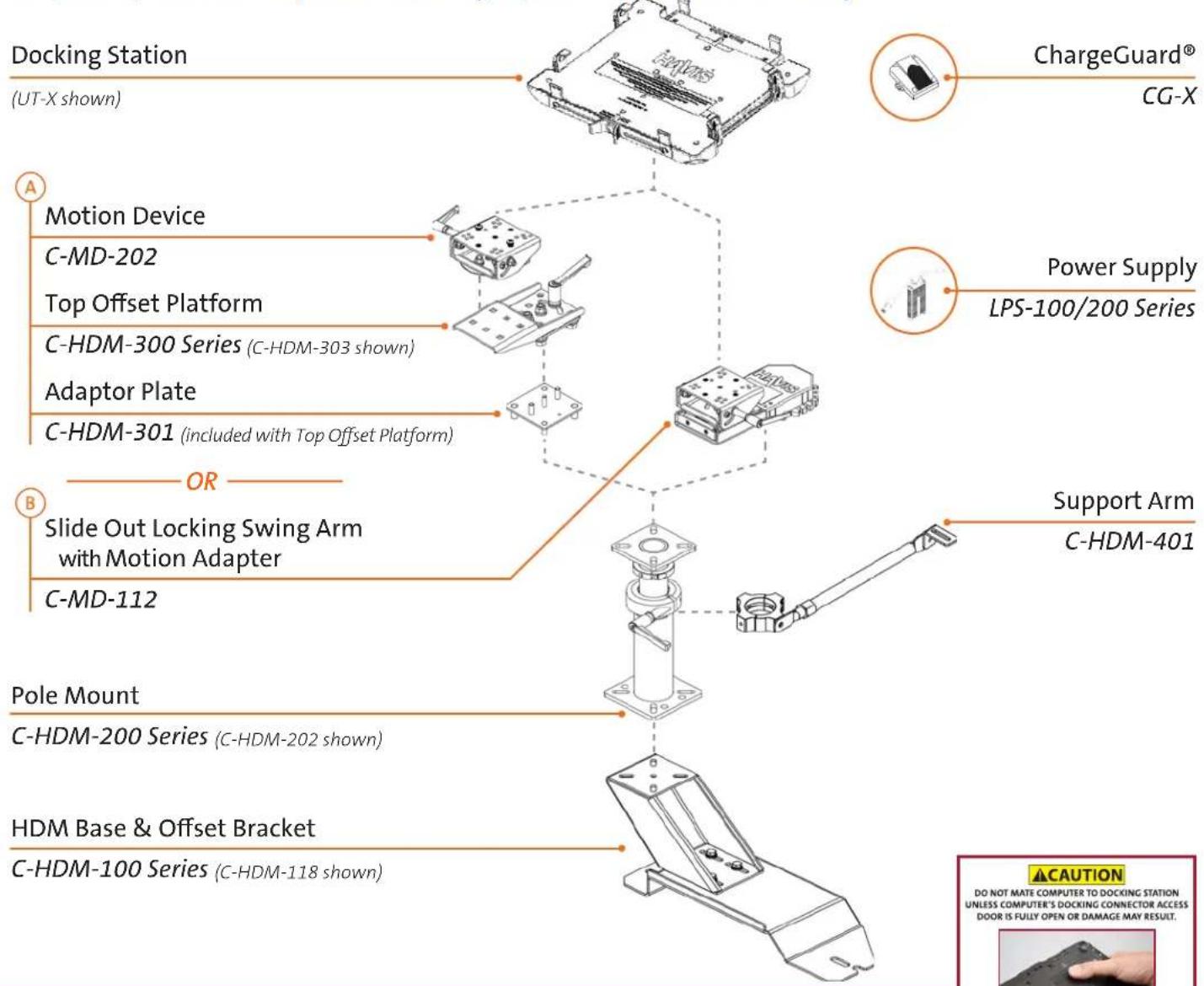

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands pressing a black electronic component with a red arrow indicating a specific area (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

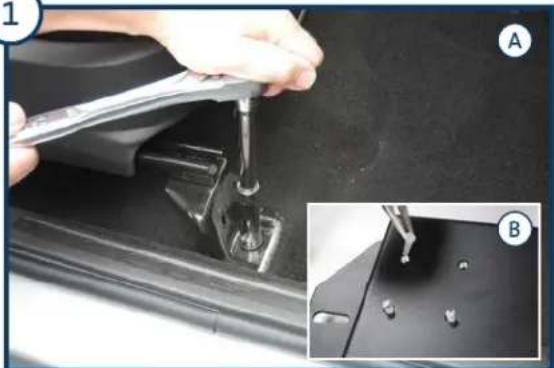

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the intake into a car gear shift lever, with inset showing a close-up of the lever mechanism (no text or symbols visible)

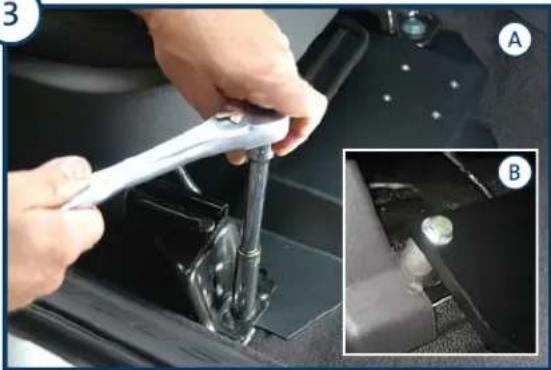

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

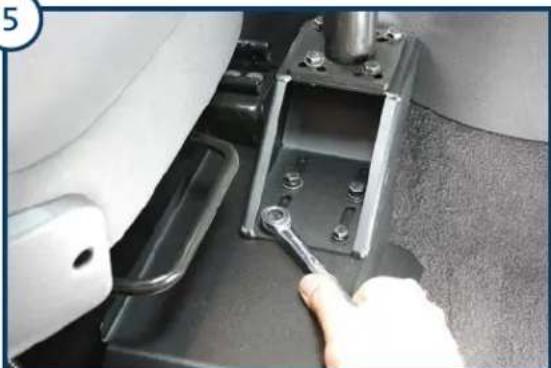

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment, showing no text or symbols.

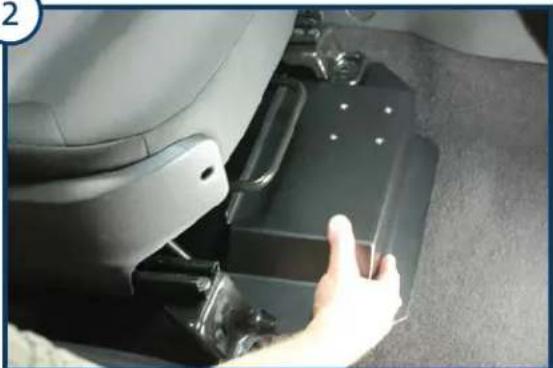

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

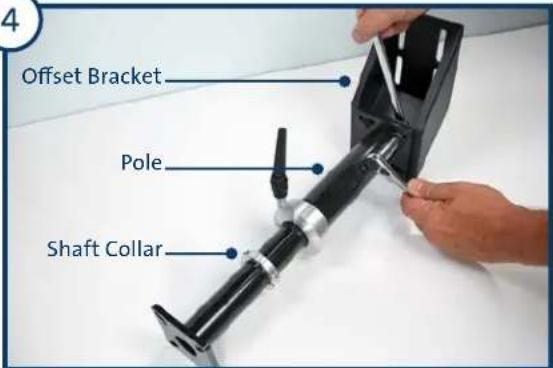

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

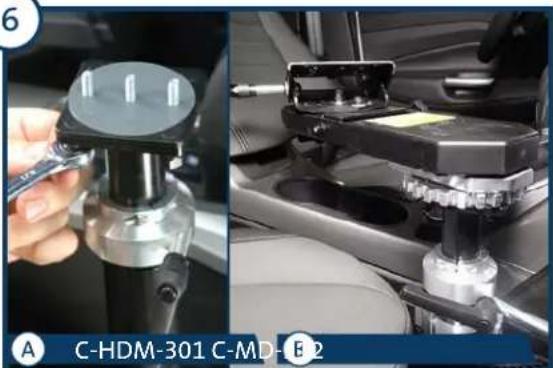

6

Two-panel image showing a mechanical device with a tool and a close-up of a battery mounted on a car (no visible text or symbols)

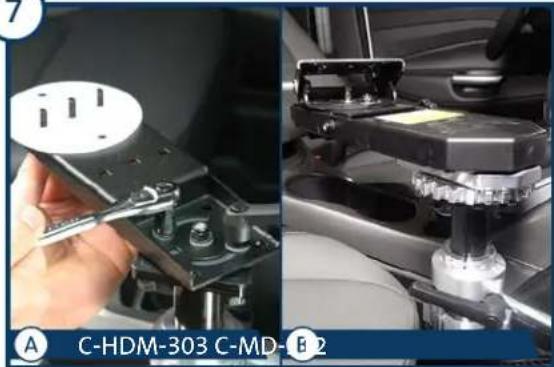

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

7

Close-up of a hand using a tool to adjust components on a mechanical assembly (no visible text or symbols)

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset.

B) No adjustment required, please proceed to Step 8.

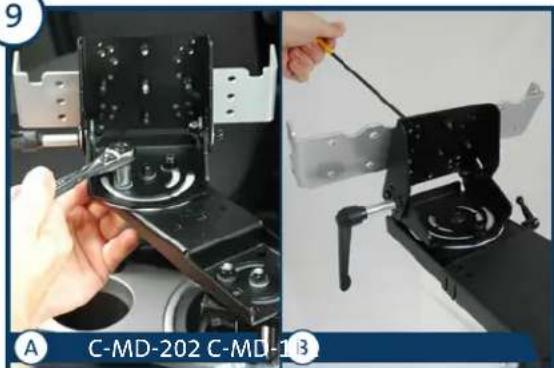

9

Two-panel image showing a hand operating a mechanical device with tools, no visible text or symbols.

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes.
3-bolt pattern allows for 90 rotation.
2-bolt pattern allows for 180 rotation.
B) Motion Device is already connected, please proceed to step 10.

11

Close-up of a hand using a tool to adjust or install a CD drive into a chassis (no visible text or symbols)

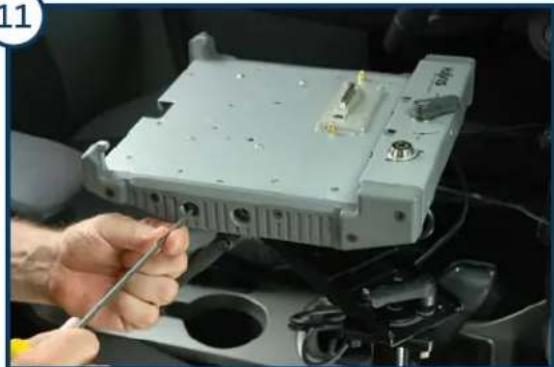

Attach the Docking Station to the mounting bracket.

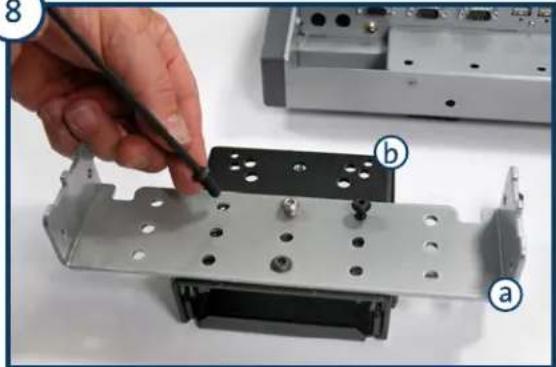

8

Close-up of a hand using a tool to adjust or install a metal bracket component, with labeled parts (a and b) and no visible text or symbols.

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

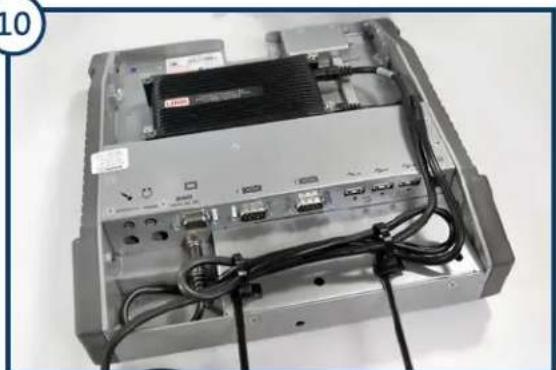

10

Back view of an open computer drive bay with cables and connectors (no visible text or labels)

Attach the Power Supply to the designated mounting location on the Docking Station.

12

Close-up of a hand adjusting a mechanical component inside a vehicle's seat (no visible text or symbols)

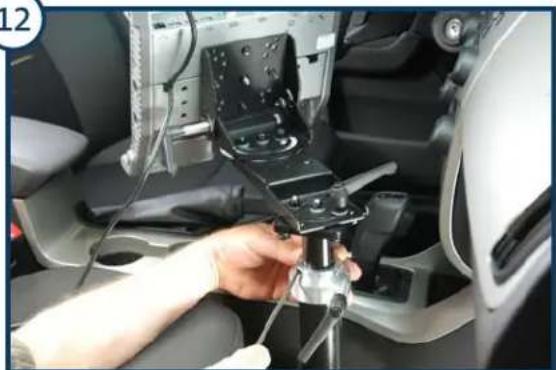

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a car's internal engine assembly with visible shaft, valve, and hub (no text or symbols)

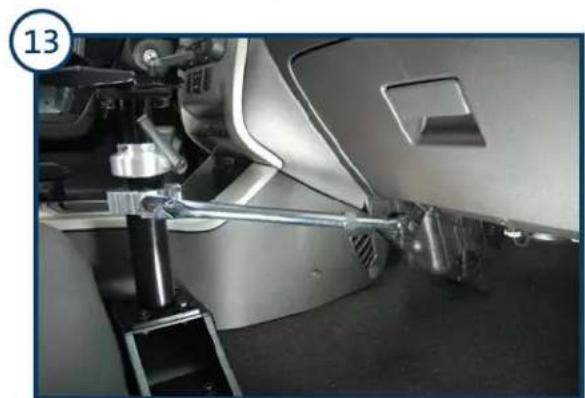

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a USB flash into a black electronic device (no visible text or symbols)

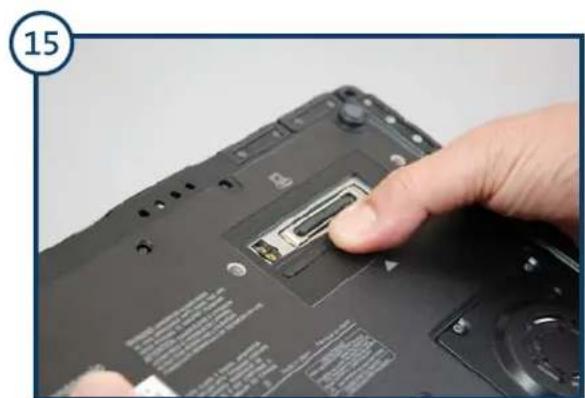

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

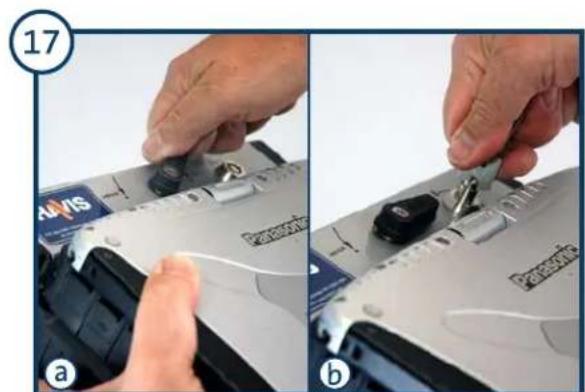

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

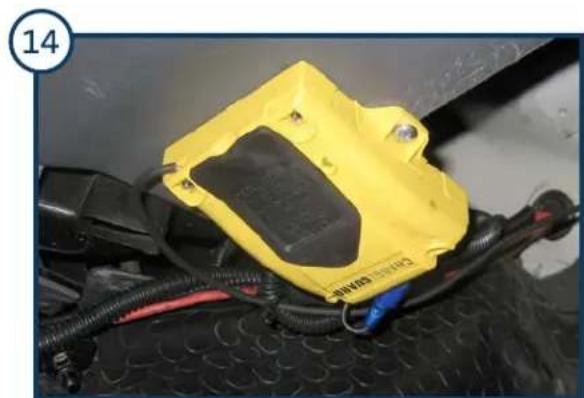

Close-up of a yellow automotive electrical component with black wiring and a blue connector, mounted on a perforated metal surface (no visible text or symbols)

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device into a battery pack, labeled (a) and (b), with no visible text or symbols.

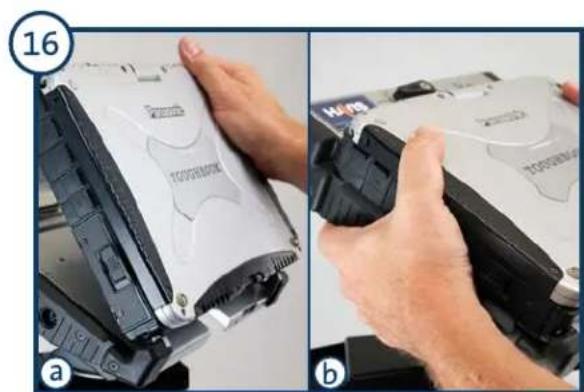

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

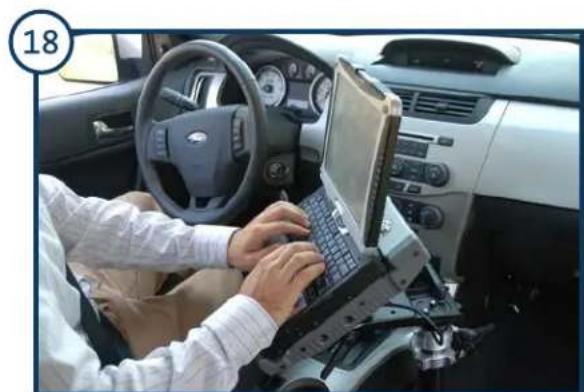

Interior view of a car with a person using a laptop on the steering wheel (no visible text or symbols)

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
