UT-X-SD-KIT-1 - Kit voiture Havis - Free user manual and instructions

Product Type	Parts Replacement Kit for Universal Tray
Brand	Havis
Model	UT-X-SD-KIT-1
Compatible With	Havis UT-X-SD Universal Tray
Kit Contents	Front fence brackets (RH & LH), offset rear fence brackets (2), offset hold down lugs (2), vinyl caps (various sizes), button head screws (4), Belleville washers (4), hex lock nuts (2), flat washers (2), tamper-resistant T25 key
Material	Steel brackets, vinyl caps, steel hardware
Number of Items	22 pieces (including hardware and tool)
Included Tool	Tamper-resistant T25 Pin-in-Torx key
Installation Skill Level	Professional installation recommended
Safety Warning	Improper installation can cause serious injury; ensure device does not interfere with vehicle operation or safety devices
Intended Use	Replacement of lost or damaged parts on UT-X-SD tray
Power	None (mechanical parts only)
Maintenance	None required; retain unused hardware for future use
Weight	Approx. 1 lb
Dimensions	Kit packaging approx. 6 x 4 x 2 inches
Manufacturer	Havis Inc.
Country of Origin	USA
Warranty	Contact manufacturer
Spare Parts Availability	Individual parts available from Havis
Installation Instructions	Included in manual; refer to UT-X-SD exploded view

Frequently Asked Questions - UT-X-SD-KIT-1 Havis

What is the Havis UT-X-SD-KIT-1?

The Havis UT-X-SD-KIT-1 is a parts replacement kit for the UT-X-SD Universal Tray. It includes brackets, hardware, and a tamper-resistant tool to replace lost or damaged components.

What devices is the UT-X-SD-KIT-1 compatible with?

This kit is specifically designed for the Havis UT-X-SD Universal Tray. It is not compatible with other trays without modification.

What tools are needed for installation?

The kit includes a tamper-resistant T25 Pin-in-Torx key (item 12). No additional tools are required for basic replacement.

Can I install the kit myself?

Havis recommends installation by qualified professionals. Improper installation may interfere with vehicle operation or safety devices, causing injury.

What should I do if parts are missing from the kit?

Contact Havis Inc. at 1-800-524-9900 or visit www.havis.com for replacement parts. Retain all unused hardware for future use.

How do I replace a damaged part on the UT-X-SD tray?

Refer to the UT-X-SD exploded view in the manual to identify the item number. Select the corresponding part from the kit, replace it, and adjust the side hold downs and fences per the owner's manual.

Are the screws tamper-proof?

Yes, the screws are button head screws with a T25 Pin-in-Torx drive, which require the included tamper-resistant key to install or remove.

What is the weight of the UT-X-SD-KIT-1?

The kit weighs approximately 1 lb, including all hardware and the tool.

Can I use this kit with other Havis mounting systems?

No, this kit is intended solely for the UT-X-SD Universal Tray. Using it with other systems may result in improper fit or safety hazards.

How do I adjust the fences after installation?

After replacing parts, adjust the side hold downs and front/rear fences according to the set-up instructions in the owner's manual supplied with the original UT-X-SD tray.

USER MANUAL UT-X-SD-KIT-1 Havis

INSTALLATION INSTRUCTIONS:

REPLACING A LOST OR DAMAGED PART:

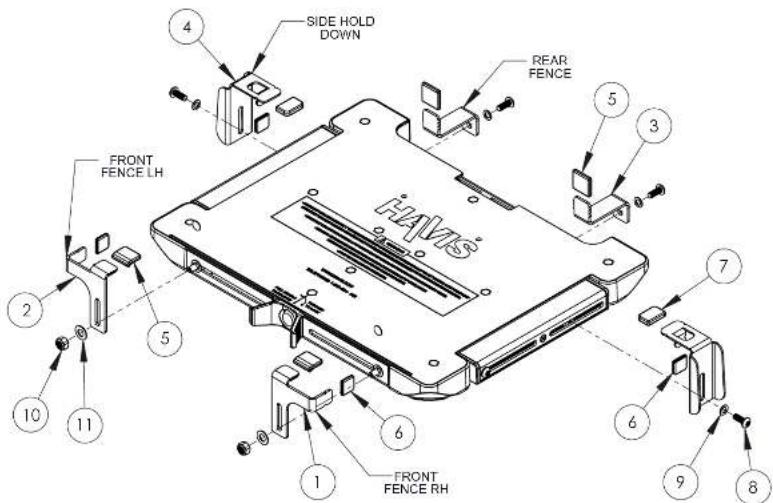

1. Refer to UT-X-SD exploded view shown below and identify item number of lost or damaged part(s).

2. Select appropriate part from UT-X-SD-KIT1 Hardware Contents and replace accordingly.

3. Once replaced, adjust side hold downs and front/rear fences as needed according to the set-up instructions outlined in the owner's manual supplied with this kit.

NOTE: Retain all unused hardware for future use.

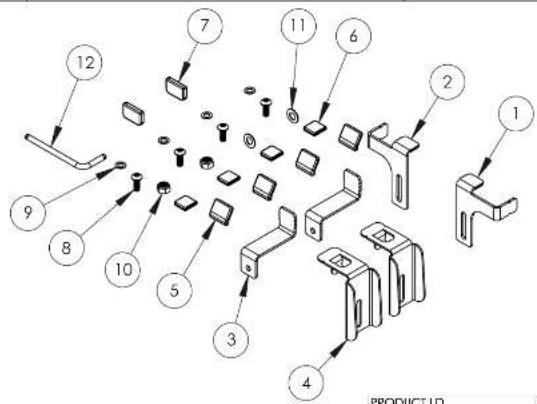

UT-X-SD-KIT1 HARDWARE CONTENTS
REPLACEMENT PARTS

ITEM NO.	DESCRIPTION	HAVIS PART NUMBER	QTY.
1	BRACKET, FRONT FENCE, RH	UT-0081 SM	1
2	BRACKET, FRONT FENCE LH	LT-0080-SM	1
3	BRACKET, OFFSET REAR FENCE	LT-0079-SM	2
4	BRACKET, OFFSET HOLD DOWN LUG	LT-0078-SM	2
5	CAP, VINYL, BLACK, 0.69" X 0.62"	HW-CA-0004/GSM41122	4
6	CAP, VINYL, BLACK, 0.45" X 0.5"	HW-CA-0001/GSM41120	4
7	CAP, VINYL, BLACK, 0.9 X 0.5"	HW-CA-0005/GSM41123	2
8	SCREW, BUTTON HEAD, T25 PIN-IN-TORX, #10-32 X 0.5" LONG	HW-BH-0079/GSM33330	4
9	WASHER, BELLEVILLE, SERRATED, #10 SCREW SIZE	HW-SW-1242/GSM31089	4
10	NUT, HEX LOCK, NYLON INSERT, #10-32	HW-NN 0902/GSM30015	2
11	WASHER, FLAT, 1/4" SCREW SIZE	HW-SW-1206/GSM31085	2

TOOLS

12

TAMPER-RESISTANT T25 PIN-IN-TORX KEY

HW-AW-0006/GSM50261

1

DRAWING NUMBER: UT-X-SD-KIT1\_INST

WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER, PRODUCT DESCRIPTION

IT IS THE JOSE RESPONSIBILITY OF THE OWNER/OPERATION OF A VEHICLE USING HAVIS INC. MOUNTING AND OCCUPATE EQUIPMENT TO INSURG THAT THE EQUIPMENT IS INSTALLED SO. THAT IT WILL NOT INTERFERENCE WITH VEHICLE OPERATING INTERFER WITH SAFETY DEVICES, OBSTRUCT IN VIEW OF DRIVING CONDITIONS OR IN ANY WAY DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFIE DRIVING POSITIONS BEFORE OPERATING VEHICLE.

PARTS REPLACEMENT KIT FOR UT-X-SD UNIVERSAL TRAY

PRODUCT I.D. DATE

UT-X-SD-KIT1 03-18-11

PRODUCT NAME

UT-X-SD

REPLACEMENT KIT1

1-800-524-9900

WWW.HAVIS.COM

WEIGHT: {LBS}

REV. DATE

03-25-11
