Product Type	Vehicle Docking Station
Brand	Havis
Model	C-HDM-405
Compatible Devices	Laptops, Tablets up to 15 inches
Mounting Type	Fixed pedestal
Dimensions (W x H x D)	10 x 6 x 4 inches
Weight	2.5 lbs
Power Source	12V DC (vehicle power)
Power Cable Length	6 feet
Adjustable Tilt	360 degrees
Quick Release	Yes, one-hand operation
Locking Mechanism	Key lock for security
Material	Steel and high-impact plastic
Installation	Vehicle floor mount with included hardware
Maintenance	Wipe with damp cloth; avoid harsh chemicals
Operating Temperature	-20°C to 60°C
Warranty	3 years limited

Frequently Asked Questions - C-HDM-405 Havis

How do I install the Havis C-HDM-405 in my vehicle?

Drill mounting holes using the provided template, secure the base with bolts, then attach the docking station. Ensure the power cable is connected to a 12V source.

Is the C-HDM-405 compatible with my laptop?

It fits most laptops and tablets up to 15 inches with a standard VESA 75x75 or 100x100 pattern. Check your device's mounting compatibility.

Does the dock lock securely?

Yes, it includes a key lock to prevent theft and accidental release.

What power supply is needed?

It operates on 12V DC from your vehicle. No external adapter is required; the cable connects directly to your fuse box or accessory port.

Can I adjust the viewing angle?

The mount offers 360-degree tilt and swivel for optimal positioning.

How do I clean and maintain the dock?

Wipe with a soft damp cloth. Do not use abrasive cleaners or solvents. Check bolts periodically for tightness.

What is the weight capacity?

It supports devices up to 15 lbs (6.8 kg).

Are replacement parts available?

Yes, you can order replacement keys, locking cradles, or mounting hardware from Havis customer service.

Will it fit in all vehicle models?

The floor mount base is universal, but check for adequate clearance. Custom adapters may be needed for some vehicles.

Does it come with a warranty?

Havis provides a 3-year limited warranty against defects in materials and workmanship.

USER MANUAL C-HDM-405 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

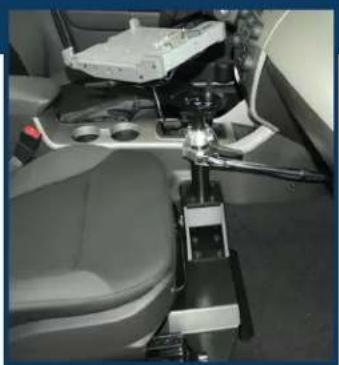

Complete assembly in vehicle (2010 Ford Focus)

Abstract geometric design with two overlapping orange and blue diagonal bars (no text or symbols)

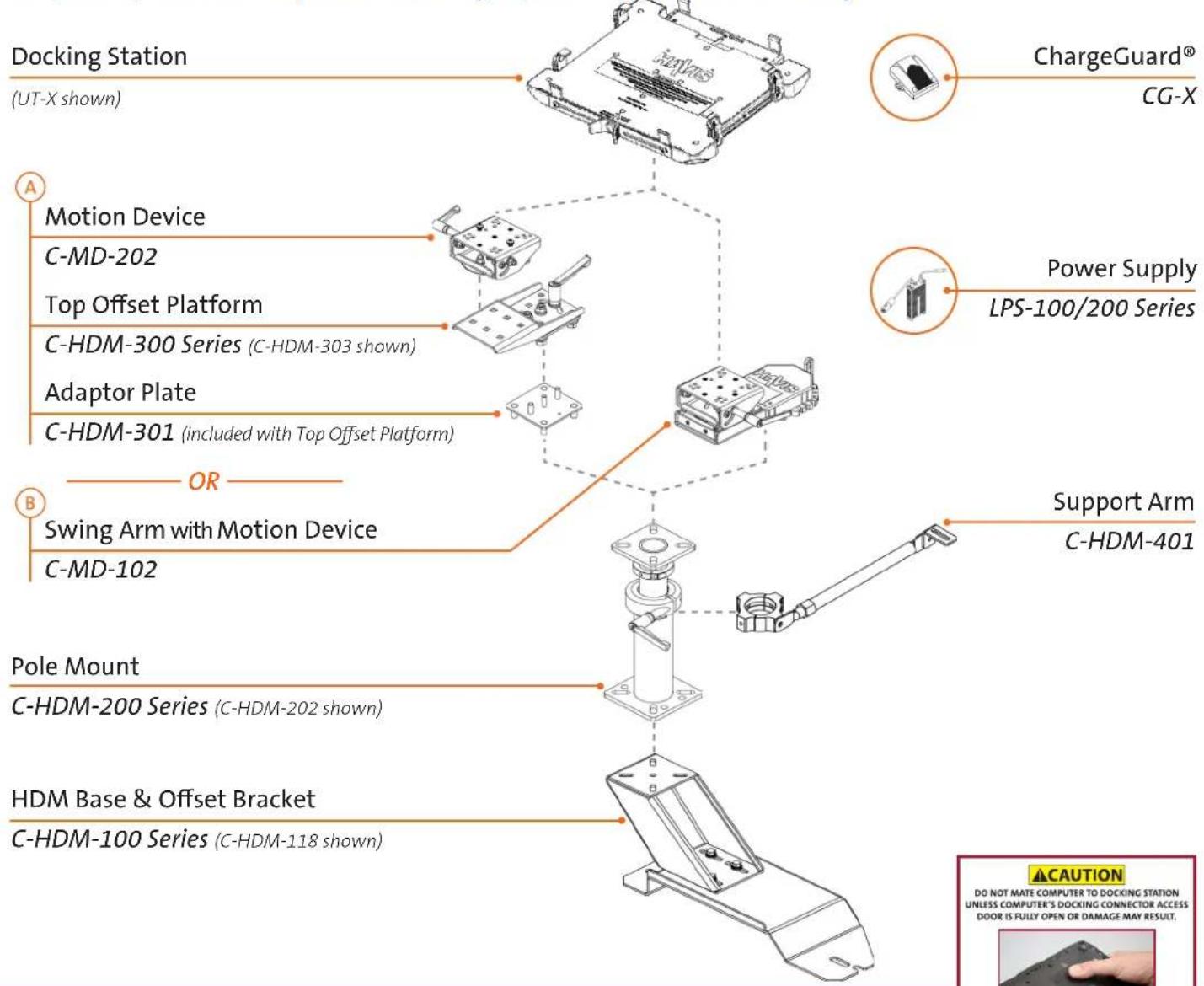

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

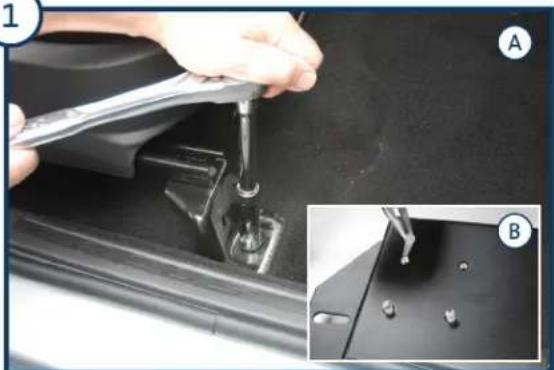

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a vehicle gear (no visible text or symbols)

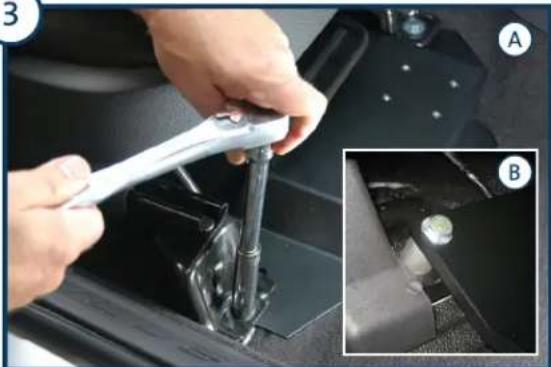

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

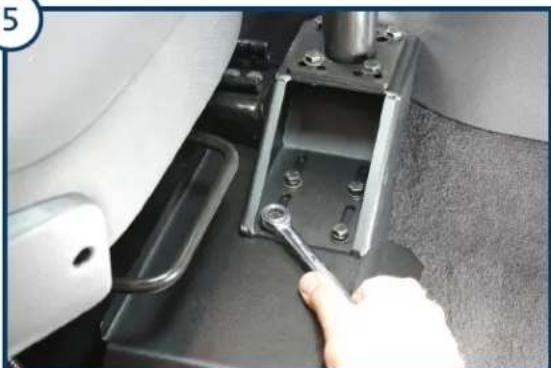

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt switch mechanism with a hand adjusting the component (no visible text or symbols)

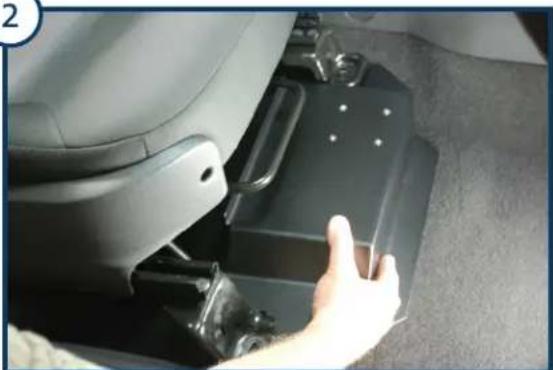

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

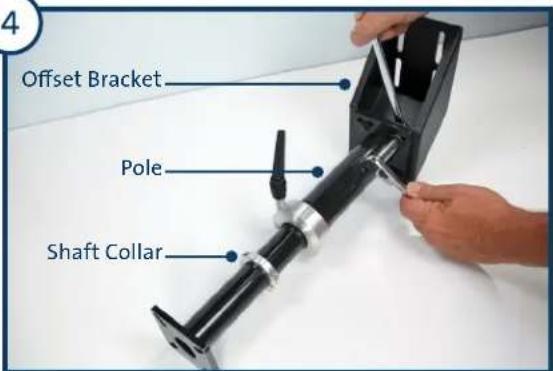

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

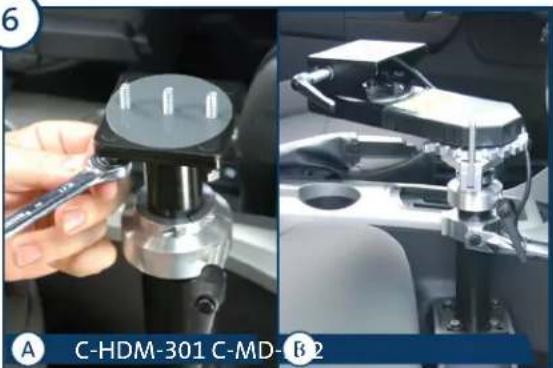

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

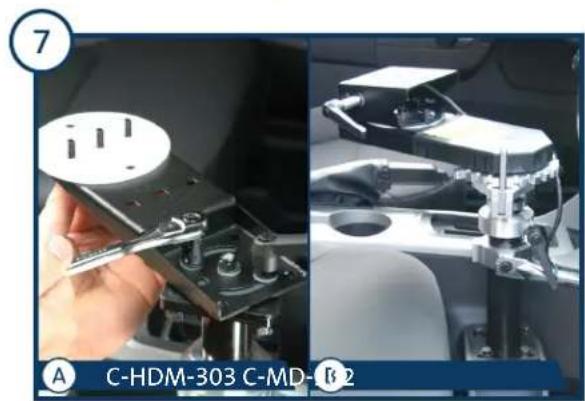

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset. B) No adjustment required, please proceed to Step 8.

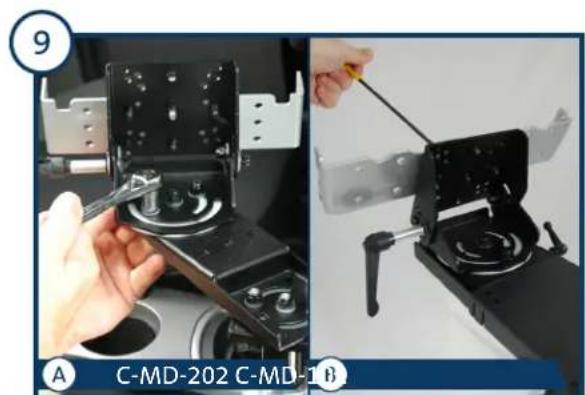

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes. 3-bolt pattern allows for 90 rotation. 2-bolt pattern allows for 180 rotation. B) Motion Device is already connected, please proceed to step 10.

Attach the Docking Station to the mounting bracket.

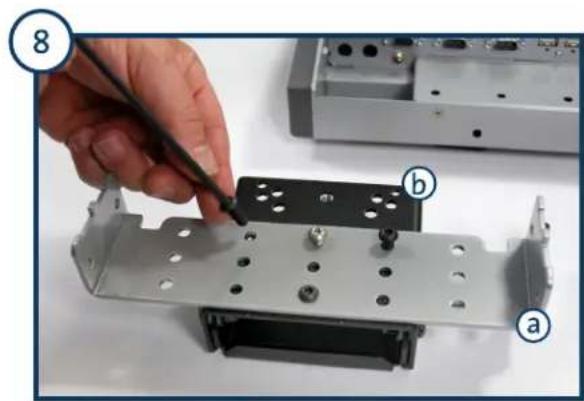

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

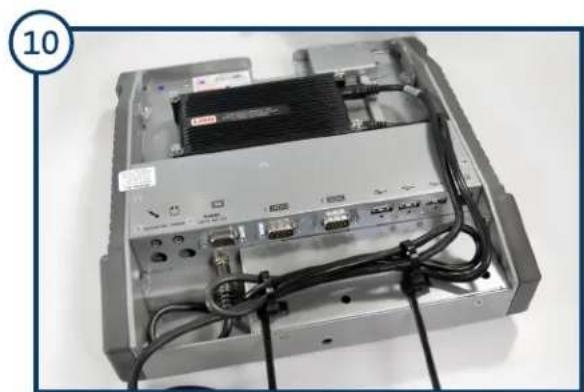

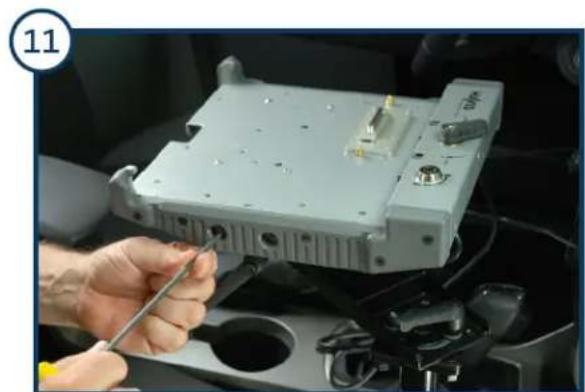

Attach the Power Supply to the designated mounting location on the Docking Station.

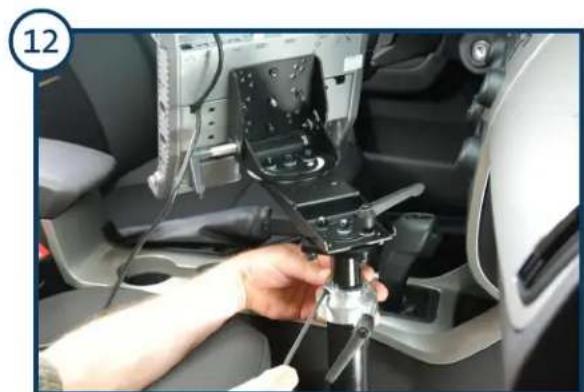

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

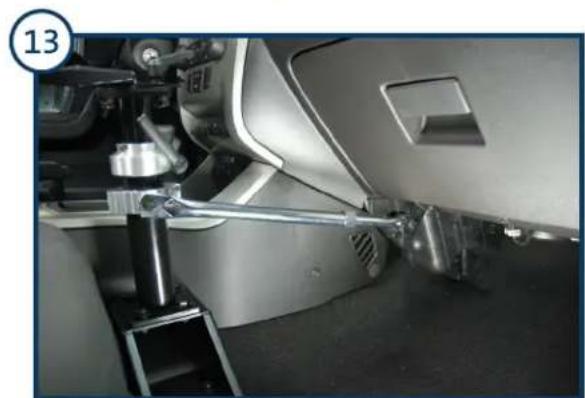

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black surface, with no visible text or symbols.

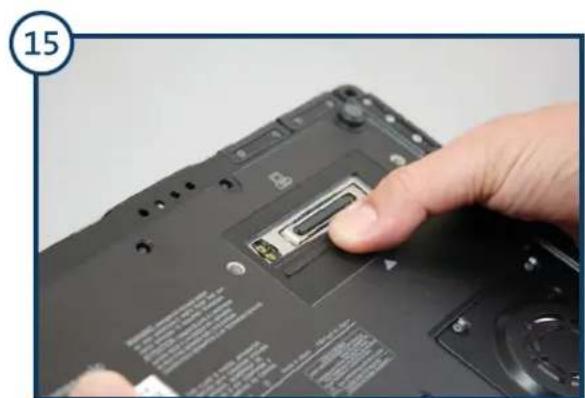

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

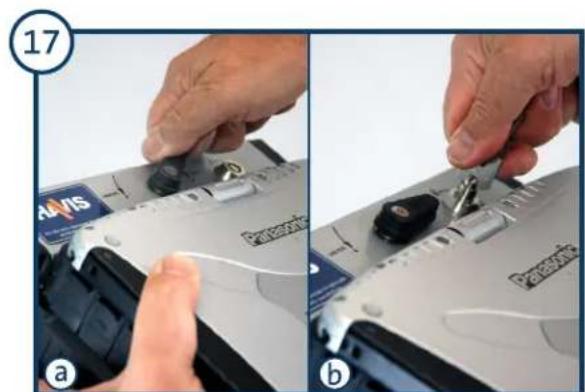

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

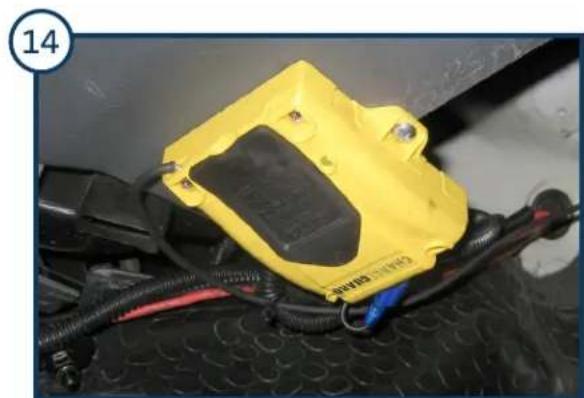

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device component from a battery pack, labeled (a) and (b), with no visible text or symbols.

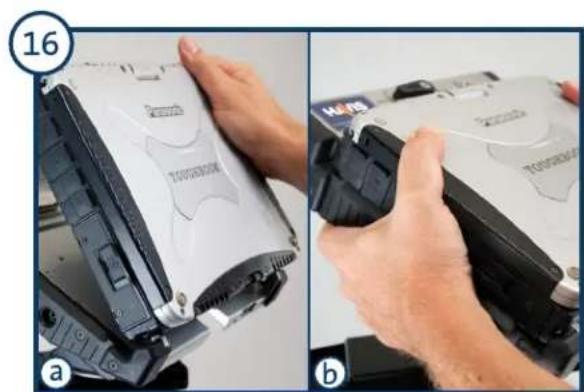

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

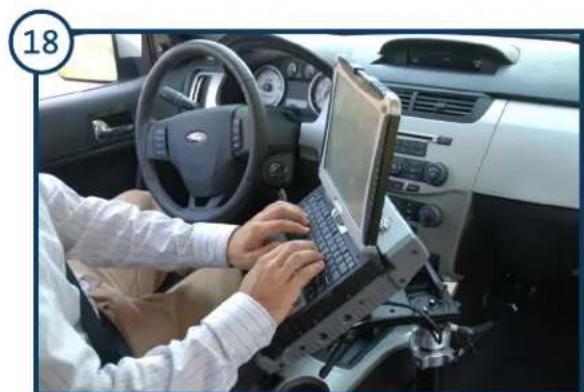

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
