| Product Type | Drill |
| Brand | Mac Tools |
| Model | AD3800K |
| Power Source | Corded Electric |
| Voltage | 120V AC |
| Amperage | 8.0 A |
| No-Load Speed | 0-2500 RPM (variable speed) |
| Chuck Type | Keyless, 1/2 inch |
| Max Drilling Capacity (Steel) | 1/2 inch |
| Max Drilling Capacity (Wood) | 1-1/2 inch |
| Hammer Function | No |
| Reverse Function | Yes |
| Trigger Lock | Yes |
| Depth Stop | Yes, adjustable |
| Auxiliary Handle | Side handle included |
| Weight | 4.5 lbs (2.04 kg) |
| Dimensions (L x W x H) | 11 x 3.5 x 8 inches |
| Cord Length | 8 ft (2.44 m) |
| Certifications | UL Listed |
| Included Accessories | Side handle, depth stop rod, chuck key (if keyed chuck) |
| Cleaning Instructions | Wipe with dry cloth; do not use solvents |
| Maintenance | Periodically lubricate chuck; check carbon brushes |
| Warranty | 1 year limited warranty |
Frequently Asked Questions - AD3800K Mac Tools
What is the maximum drilling capacity of the Mac Tools AD3800K drill?
Is the Mac Tools AD3800K a hammer drill?
Does the drill have a variable speed trigger?
What type of chuck does the AD3800K have?
How do I change the drilling direction?
What accessories are included with the AD3800K?
How do I clean and maintain the drill?
Can I use the drill for mixing paint or mortar?
What safety precautions should I take when using the drill?
Where can I find replacement parts for the AD3800K?
User questions about AD3800K Mac Tools
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Drill in PDF format for free! Find your manual AD3800K - Mac Tools and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AD3800K by Mac Tools.
USER MANUAL AD3800K Mac Tools

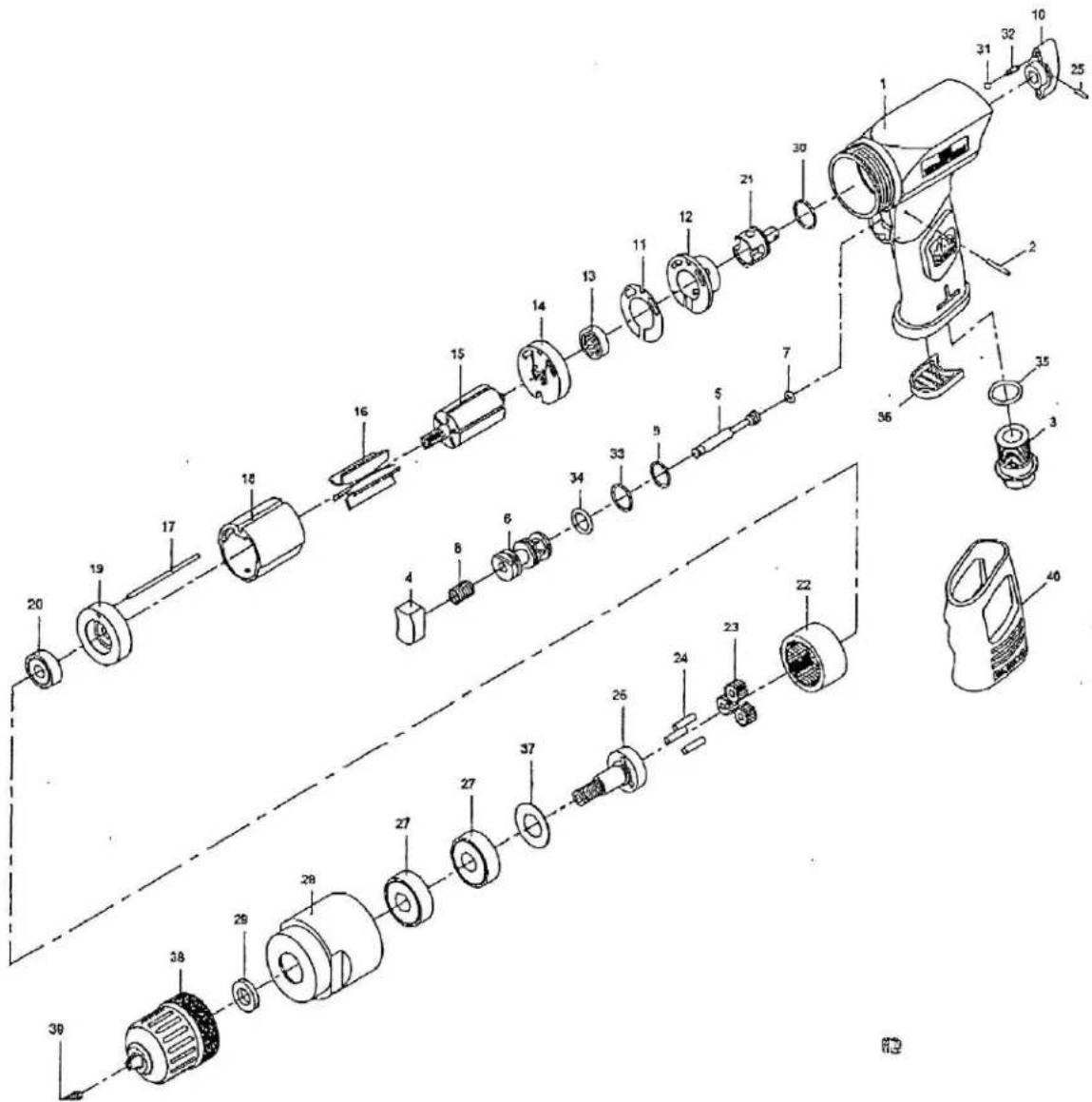

PARTS BREAKDOWN FOR 3/8" REVERSIBLE DRILL - MODEL AD3800K
| Index No. | Parts No. | Description | Index No. | Parts No. | Description |
| 1 | AD3800K-01 | Motor Housing | 21 | AD3800K-21 | Reverse Valve |
| 2 | AD3800K-02 | Spring Pin (∅2.5x22L) | 22 | AD3800K-22 | Internal Gear |
| 3 | AD3800K-03 | Air Inlet | 23 | AD3800K-23 | Idle Gear (3) |
| 4 | AD3800K-04 | Trigger | 24 | AD3800K-24 | Pin (3) (∅4x15.8L) |
| 5 | AD3800K-05 | Valve Shaft | 25 | AD3800K-25 | Spring Pin (∅2.5x10L) |
| 6 | AD3800K-06 | Valve Bushing | 26 | AD3800K-26 | Work Spindle |
| 7 | AD3800K-07 | O-Ring (∅3.8x∅1.9) | 27 | AD3800K-27 | Ball Bearing (2) (6201z) |
| 8 | AD3800K-08 | Valve Spring | 28 | AD3800K-28 | Clamp Nut |
| 9 | AD3800K-09 | O-Ring (∅13.5x∅1.5) | 29 | AD3800K-29 | Washer |
| 10 | AD3800K-10 | Reverse Valve Knob | 30 | AD3800K-30 | O-Ring (∅15.5x∅1.5) |
| 11 | AD3800K-11 | Gasket | 31 | AD3800K-31 | Steel Ball (1/8") |
| 12 | AD3800K-12 | Reverse Valve Case | 32 | AD3800K-32 | Spring |
| 13 | AD3800K-13 | Ball Bearing (628) | 33 | AD3800K-33 | O-Ring (∅14.5x∅1.5) |
| 14 | AD3800K-14 | Rear End Plate | 34 | AD3800K-34 | O-Ring (∅11.8x∅2.4) |
| 15 | AD3800K-15 | Rotor | 35 | AD3800K-35 | O-Ring (∅15.8x∅2.4) |
| 16 | AD3800K-16 | Rotor Blade (5) | 36 | AD3800K-36 | Deflector |
| 17 | AD3800K-17 | Pin (∅3/32"x60L) | 37 | AD3800K-37 | Washer |
| 18 | AD3800K-18 | Cylinder | 38 | AD3800K-38 | Light Duty Keyless Chuck (3/8") |
| 19 | AD3800K-19 | Front End Plate | 39 | AD3800K-39 | Chuck Screw (L M5x30L) |
| 20 | AD3800K-20 | Ball Bearing (608zz) | 40 | AD3800K-40 | Rubber Grip |
