ADC1400 - Drill Mac Tools - Free user manual and instructions

Product Type	Drill
Brand	Mac Tools
Model	ADC1400
Power Source	Corded Electric
Voltage	120 V AC
Amperage	7.5 A
Speed Range	0-2000 RPM Variable
Chuck Type	Keyless, 1/2"
Max Drilling Capacity (Steel)	1/2"
Max Drilling Capacity (Wood)	1"
Weight	4.5 lbs (2.04 kg)
Dimensions (L x W x H)	10.5" x 8" x 4.5"
Cord Length	6 ft (1.8 m)
Included Accessories	Side handle, depth stop, chuck key
Safety Features	Lock-on button, trigger lock, double-insulated
Maintenance	Clean vents with dry air; replace brushes as needed
Warranty	1 year limited
Application	General drilling in wood, metal, plastic
Speed Control	Variable speed trigger
Reverse Function	Yes, for screw removal
Chuck Capacity	1/2" (13 mm)

Frequently Asked Questions - ADC1400 Mac Tools

How do I change the drill bit on the ADC1400?

Turn the chuck counterclockwise to open. Insert the bit, then tighten by turning clockwise. Use the chuck key if necessary for a secure hold.

Can I use this drill for screwdriving?

Yes, the ADC1400 has a variable speed trigger and reverse function, making it suitable for driving screws. Use a screwdriver bit and adjust speed accordingly.

What is the maximum drilling capacity in steel?

The maximum drilling capacity in steel is 1/2 inch (12.7 mm). For larger holes, use a step bit or appropriate technique.

How do I maintain the drill?

Keep the ventilation slots clean and free of dust. Periodically check the carbon brushes for wear and replace them if they are less than 1/4 inch long.

Does the drill have a cord lock?

Yes, the lock-on button allows continuous operation without holding the trigger. Press the button while squeezing the trigger to engage.

What safety precautions should I take?

Always wear safety glasses and ear protection. Avoid loose clothing and tie back long hair. Ensure the drill is unplugged when changing bits.

Is the drill double-insulated?

Yes, the ADC1400 is double-insulated, meaning it does not require a grounding wire. However, always use a grounded outlet for safety.

Can I use an extension cord?

Yes, but use a heavy-duty extension cord (12 AWG or thicker) rated for the tool's amperage. Keep the cord length under 50 ft to avoid voltage drop.

What is the warranty period?

Mac Tools offers a 1-year limited warranty against defects in materials and workmanship. Register your tool online for coverage.

How do I reverse the drill?

Slide the forward/reverse switch located above the trigger. Ensure the drill is at a complete stop before switching directions.

USER MANUAL ADC1400 Mac Tools

INSTRUCTION MANUAL FOR 1/4" REVERSIBLE DRILL - MODEL ADC1400

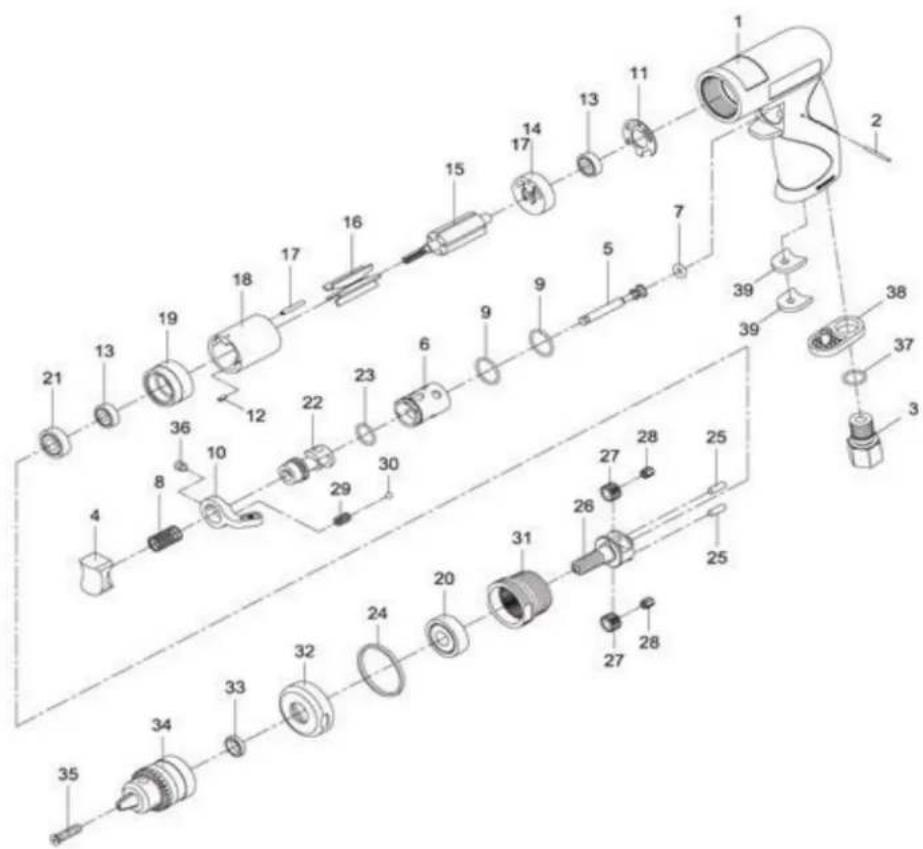

Index No.	Parts No.	Description	Index No.	Parts No.	Description
1	ADC1400-01	Motor Housing	21	AD1400-21	Ball Bearing (698zz)
2	ADC1400-02	Pin (2x22.8)	22	ADC1400-22	Reverse Valve
3	ADC1400-03	Air Inlet	23	ADC1400-23	O-Ring (12x1.5)
4	ADC1400-04	Trigger	24	ADC1400-24	Decoration Ring
5	ADC1400-05	Valve Stem	25	AD1400-25	Pin (2) (3.97x10.8)
6	ADC1400-06	Valve Bushing	26	ADC1400-26	Cage
7	ADC1400-07	O-Ring (4.5x2.5)	27	ADC1400-27	Planet Gear (2)
8	ADC1400-08	Valve Spring	28	ADC1400-28	Needle Bearing (2) (4x5.5x6.5)
9	ADQP380-08	O-Ring (2) (15.5x1.5)	29	ADC1400-29	Spring
10	ADC1400-10	Reverse Lever	30	AGQP50M-30	Steel Ball (3/32")
11	ADC1400-11	Motor Gasket	31	AD1400-31	Internal Gear
12	AWQP120M-27	Spring Pin (1.5x4)	32	AD1400-32	Clamp Nut
13	AGQP50M-13	Ball Bearing (2) (696zz)	33	AD1400-33	Washer
14	ADC1400-14	Rear End Plate	34	AD1400-34	1/4" Key Chuck & Key (1/4")
15	AD1400-15	Rotor	35	ADC1400-35	Screw (L M5x25)
16	AD1400-16	Rotor Blades (5)	36	ADC1400-36	Set Screw (M4x5)
17	AGQP50M-21	Spring Pin (2x15)	37	ARQP380-11	O-Ring (10.7x1.5)
18	ADC1400-18	Cylinder	38	ADC1400-38	Exhaust Diffuser
19	ADC1400-19	Front End Plate	39	ADC1400-39	Damping Material (2)
20	AD1400-20	Ball Bearing (6000zz)
