Bullet 2E 5MP - Camera IMOU - Free user manual and instructions

Product Type	Bullet Camera
Brand	Imou
Model	Bullet 2E 5MP
Resolution	5 Megapixels (2560x1920)
Lens	Fixed focal length, 2.8mm
Field of View	Horizontal: 106°, Vertical: 56°, Diagonal: 126°
Night Vision	Up to 30m
Power Supply	DC 12V or PoE (802.3af)
Power Consumption	< 7.5W
Dimensions	Approx. 175 x 70 x 70 mm
Weight	Approx. 350g
Ingress Protection	IP67 (Weatherproof)
Storage	MicroSD card up to 256GB, Cloud storage, NVR
Audio	Built-in microphone and speaker
Connectivity	Ethernet RJ45, Wi-Fi (optional)
Compatibility	Imou App, ONVIF
Smart Features	Motion detection, human detection, line crossing
Mounting	Wall or ceiling mounting included
Operating Temperature	-30°C to 50°C
Maintenance	Clean lens with soft dry cloth; avoid harsh chemicals
Certification	CE, FCC, RoHS

Frequently Asked Questions - Bullet 2E 5MP IMOU

How do I reset the Imou Bullet 2E 5MP to factory settings?

Press and hold the reset button on the camera for 10 seconds until you hear a voice prompt. The camera will reboot and reset.

Can I use the camera without internet?

Yes, but you will lose remote access and cloud storage. Local recording to a MicroSD card or NVR still works.

What is the maximum SD card capacity supported?

Up to 256GB, microSD card (sold separately). Format in FAT32 or exFAT.

How do I connect the camera to Wi-Fi?

Use the Imou app, scan the QR code on the camera, and follow the in-app instructions to connect to your 2.4GHz Wi-Fi network.

Does the camera support two-way audio?

Yes, it has a built-in microphone and speaker, enabling you to listen and talk through the app.

What is the night vision range?

Up to 30 meters in complete darkness thanks to infrared LEDs.

Is the camera waterproof?

Yes, with an IP67 rating, it is dust-tight and can withstand heavy rain and snow.

How do I update the firmware?

Open the Imou app, go to Device Settings > Firmware Update. If an update is available, follow the prompts to install it.

Can I mount the camera on a ceiling?

Yes, the included bracket allows both wall and ceiling mounting. Ensure the camera is securely fastened.

What power sources can I use?

The camera supports DC 12V (adapter included) or Power over Ethernet (PoE) with a compatible switch.

USER MANUAL Bullet 2E 5MP IMOU

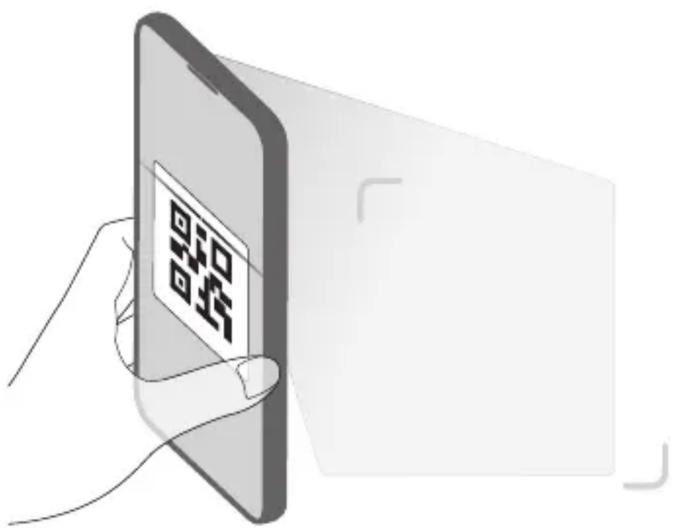

Scan the QR code with the Imou Life App to add the device.

[e-mail]

https://www.imoulife.com

@imouglobal

English Use this QR code or URL to get guidance.
Tiếng Việt Sử dụng mã QR hoặc URL này để nhân hướng dẫn.
ภาษาไทย ใช้รหัส QR นี้หรือ URL เพื่อรับค่าแนะน์
Français Utilisez ce code QR ou cette URL pour obtenir des conseils.
Italiano Utilizzare questo codice QR o l'URL per ricevere aiuto.
हिंदी गाइडेस प्राप्त करने के लिए इस QR कोड या URL का इस्तेमाल करें
বাংলা নির্দেশিকা পাওয়ার জন্য এই QR কোড অথবা URL ব্যবহার করুল।
Español Use el código QR o la URL para obtener instrucciones.
Bahasa Indonesia Gunakan kode QR atau URL ini untuk mendapatkan panduan.
Polski Użyj tego kodu QR lub adresu URL, aby uzyskać wskazówki.
العربية استخدام رمز الاستجابة السérieعة أو عنوان URL هذا لل正常使用 على إرشادات.
Română Utilizați acest cod QR sau URL pentru a vă îndruma,
Українська Використовуйте цей QR-код або URL-адресу, щоб отримати вказівки.
Русский Используйте этот QR-код для получения поддержки.
Deutsch Verwenden Sie diesen QR-Code oder die URL, um eine Anleitung zu erhalten.
Bahasa Melayu
Gunakan kod QR atau URL ini untuk mendapatkan panduan.
Nederlands Gebruik deze Qr-code of URL voor hulp.
Türkçe Yardım almak için bu QR kodunu veya URL'yi kullanın.
Magyar Útmutatóért használja ezt a QR-kódot vagy URL-t.
日本語 このQRコードまたはURLから詳細をご確認ください。
Български Използвайте този QR код или URL адреса, за да полулите насоки.
הכלה. מַרְׁעֹרָה URL-הַרְׁעֹרָה (בִי) QR
한국어 이 QR 코드나 URL을 사용하여 지침을 확인하십시오.
Português Utilize este código QR ou URL para obter orientações.
Svenska Använd denna QR-kod eller URL så får du vägledning.
Dansk Brug QR-koden eller webadressen for at få hjælp.
Norsk Bruk denne QR-koden eller URL-adressen for å få veiledning.
Čeština Pokyny získáte použitím tohoto kódu QR nebo adresy URL
Slovenčina Pokyny získajte použitím tohto kódu QR alebo URL adresy.
Srpski Koristite ovaj QR kõd ili URL da biste preuzeli uputstva.
Latviski Izmantojiet QR kodu vai URL, lai sanemtu norādijumus.
Suomi Hae ohjeet tämän QR-koodin avulla tai verkko-osoitteesta.
Eesti Juhiste saamiseks kasutage seda QR-koodi või URL-i.
Lietuvių Naudokite šj QR kodą ar URL, kad gautumėte pagalbos.
Ελληνικά Χρησιμοποιήστε αυτόν τον κώδικα QR ή τη διεύθυνση URL για να λάβετε καθοδήγηση.
Slovenščina Za navodila uporabite to kodo QR ali URL
Hrvatski Da biste dobili upute, upotrijebite ovaj QR kod.

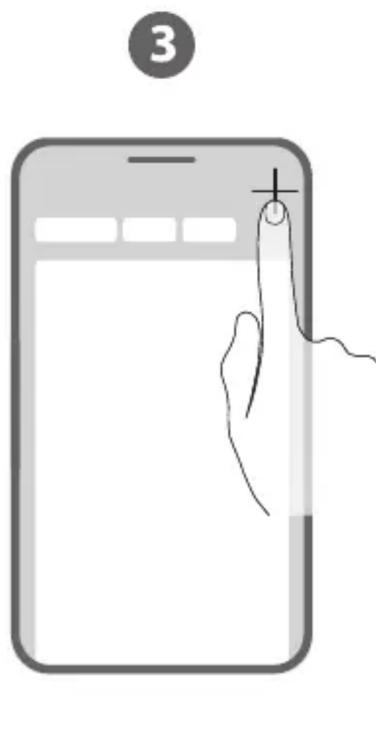

Illustration of a hand interacting with a tablet device (no text or symbols)

