Pro U8 - Video projector Yaber - Free user manual and instructions

Product Type	Video Projector
Brand	Yaber
Model	Pro U8
Resolution	1920 x 1080 (Full HD)
Brightness	2000 ANSI Lumens
Contrast Ratio	10000:1
Lamp Life	Up to 20000 hours
Projection Distance	1.2 - 4.5 m
Image Size	30 - 200 inches
Keystone Correction	±15° Vertical
Connectivity	2x HDMI, 1x USB, 1x AV, 1x 3.5mm Audio Out
Built-in Speakers	2x 3W
Power Consumption	100W
Dimensions (W x D x H)	200 x 150 x 80 mm
Weight	1.5 kg
Input Voltage	AC 100-240V, 50/60Hz
Focus	Manual
Zoom	Fixed
Remote Control	Included
Maintenance	Clean air filter every 500 hours; use soft cloth for lens
Safety	Do not stare into lens; avoid water; ensure ventilation

Frequently Asked Questions - Pro U8 Yaber

How do I connect my laptop to the Yaber Pro U8 projector?

Use an HDMI cable to connect your laptop to the projector's HDMI port. Select the correct input source using the remote or control panel.

Can I use the projector without a screen?

Yes, you can project onto any flat white wall. For best results, use a proper projector screen.

The image is blurry. What should I do?

Adjust the focus ring on the lens until the image becomes sharp. Also check the projection distance and keystone correction.

How do I clean the projector lens?

Use a soft, lint-free cloth slightly dampened with lens cleaner or water. Wipe gently in a circular motion. Avoid using rough materials.

How long does the lamp last?

The lamp is rated for up to 20000 hours, depending on usage and brightness settings.

Can I connect external speakers?

Yes, use the 3.5mm audio out port to connect external speakers or headphones.

The projector does not turn on. What can I check?

Ensure the power cable is securely connected to the projector and outlet. Check if the power outlet is working. If using a remote, replace the batteries.

What is the maximum projection size?

The projector can project images up to 200 inches diagonally, depending on the distance.

How do I replace the lamp?

Unplug the projector, let it cool, then open the lamp compartment on the side. Remove the old lamp and insert a new one. Refer to the manual for exact steps.

Is the Yaber Pro U8 compatible with 4K devices?

The projector supports up to Full HD (1920x1080) resolution. 4K signals will be downscaled to 1080p.

USER MANUAL Pro U8 Yaber

1. Installation Method 07
2. Projection Distance and Size 08
3. Install on the Ceiling 08

STARTING PROJECTOR 09

IMAGE ADJUSTMENT 09

1. Focus Adjustment 09
2. Manual Keystone Correction 10

SETTING UP THE PROJECTOR 11

1. Select The Input Signal Source 11
2. USB Disk Insert Mode 11

2.1.Play Video/Music/Picture/Office in the USB Disk Input Mode 11
2.2.Video Play Interface 12
2.3.Music Play Interface 13
2.4.Picture Play Interface 14

1. WiFi Setting 14

3.1 iOS Cast(for iOS Devices) 15
3.2 Miracast(for Android Devices) 16
3.3 Control your projector from the app"MHshare TV" 17

1. Bluetooth Setting 18
2. Projector Settings 19

5.1 Network Setting 19
5.2 Bluetooth Setting 20
5.3 Projection Setting 21
5.4 System Update 24
5.5 General Setting 24

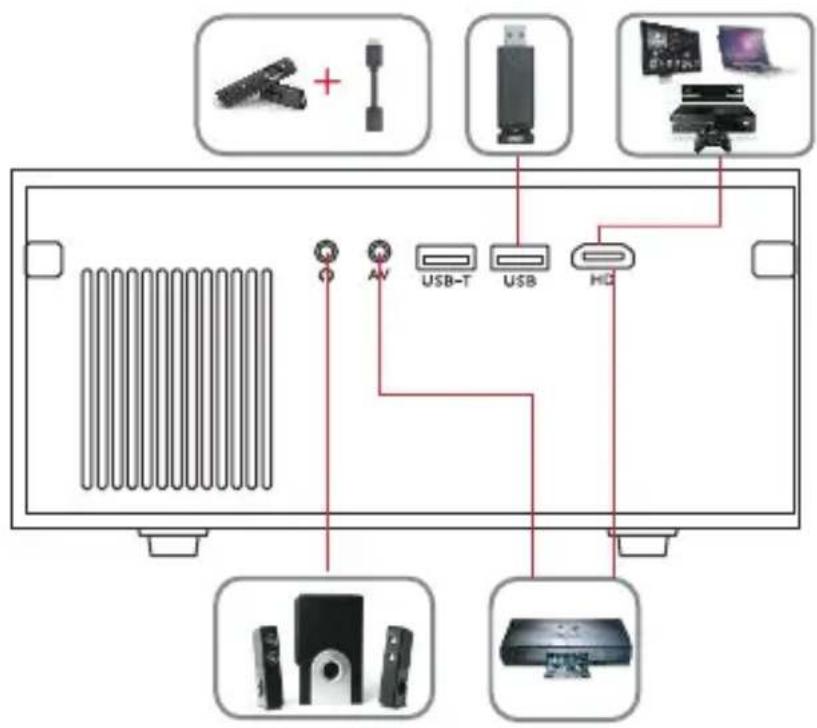

SIGNAL LINES CONNECTION 25

1. Connect USB Disk 25
2. Connect the Devices via the HDMI ports 25
3. Connect to the DVD Player 25
4. Connect to the Soundbar/Speaker 26

SAFE SHUTDOWN 26

WARRANTY 26

TROUBLESHOOTING 27

WARNINGS 28

YABER Lifetime Professional Support

Dear customer,

Thank you very much for supporting YABER!

Please read this manual thoroughly before using the projector. If you have any issues, email your order number and the problem to

[e-mail]. We will provide a fast solution in 24 hours.

Actually, many problems can be easily solved by setting, such as no signal, no sound, bluetooth connection failed, WiFi connection failed, dark spots, choppy animation etc. We promise all the projectors have been 100% carefully checked and packaged before shipping.

If you have any questions, could you please contact us so that the problem can be been solved. And give us an opportunity to improve. We guarantee we will provide you a satisfactory solution.

Thanks for your understanding!

YABER Service Team

TIPS:

1. Do not place projector in too warm or too cold room, because the high temperature or low temperature will shorten lifespan of the device. The working environment would be 5°C\~35°C better.

2. If there are black spots on the projection screen, please don't worry, please contact [e-mail] via email, we can send you a video about how to remove the dust.

3. The ventilation is equipped for the projector to work stably. Don't cover the vent with cloth, blanket or other things. Don't insert anything into the slit of the projector, or it may produce a short circuit or an electric shock to your device and cause damage.

4. The projector shall be strictly protected from strong impact, extrusion and vibration. Do not try to move and on strong impact, extrusion and vibration. Do not try to move and the internal circuit faults.

5. Lens, as the core component of the projector, is directly related to the picture definition and effect. The excessive dust thereon will affect image quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens surface. Hard cloth or abrasives shall not be used.

PACKAGE LIST

Buffalo Pro U8 Projector*1	Remote Control*1	Power Cord*1
HDMI Cable*1	3-in-1 AV Cable	Lens Cover*1
Quick Start Guide*1	Carry Bag*1	Cleaning Kit*1

PROJECTOR SPECIFICATIONS

Model No. Buffalo Pro U8
Native Resolution	1920*1080P	Keystone Correction	Quadrangle/Vertical Trapezoid
Display Technology	LCD	Light Source	LED
Color Temperature	18000-23000K	Aspect Ratio	4:3/16:9
Recommended Projection Distance	3.6-20.3 ft	Minimum Projection Distance	3.6 ft
Power Voltage	AC100-240V	Projector Weight	3.6 lb
Picture File	JPG/JPEG/BMP/PNG	Interfaces	HDMI*1/USB*2/3.5mm Headphone jack/AV
Projection Method	Front/Rear on Desk, Front/ Rear on Ceiling
Video File	3GP/AVI/FLV/MP4/MPG/VOB/TS/MKV
Audio File	MP3/AAC/FLAC/OGG/WAV/MID/M4A

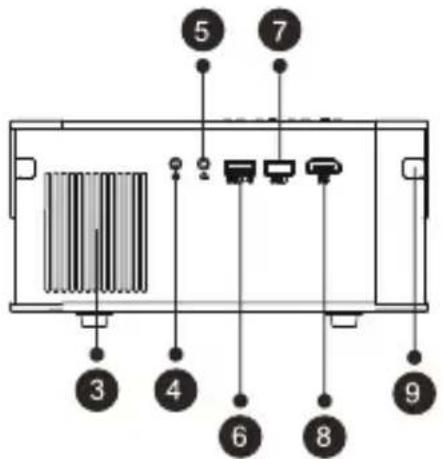

PROJECTOR OVERVIEW

Technical line drawing of a mechanical device with labeled parts (no text or symbols present)

5 7 3 4 6 8 9

9 10 11

12 13 14

15 16 17

1	Projector lens	Optical coated glass lens

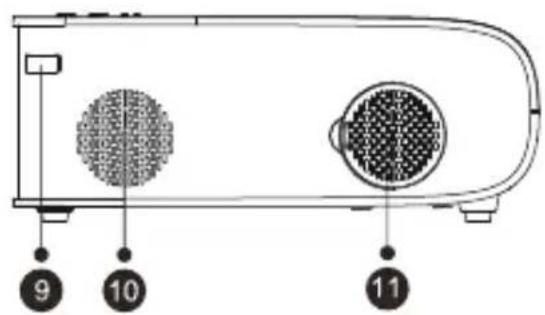

2/9	IR Window	Infrared signal receiver
3	Air Outlet	Prevent the projector from overheating
4	Headphone Jack	3.5mm Headphone Output
5	AV Port	Audio and video input
6/7	USB Port	USB-T Port/USB port
8	HDMI Port	HDMI input
10	Speaker	Stereo 5W
11	Dust Filter Port	Filter dust from the air

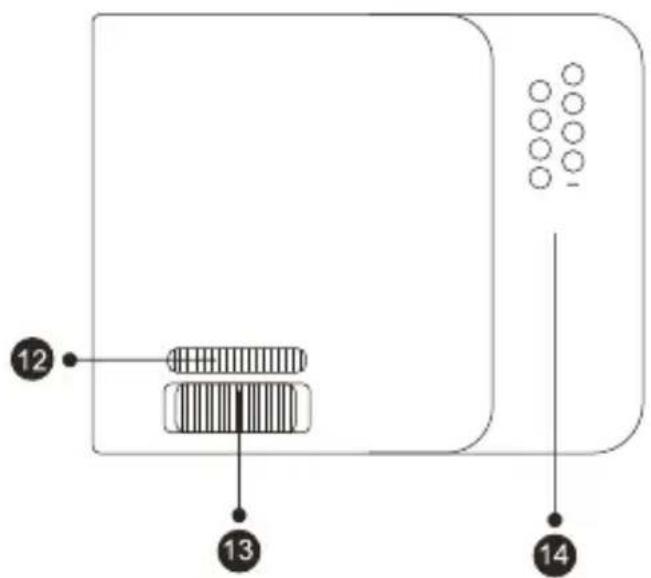

12	Manual Keystone Correction	Adjust the shape of the projector
13	Focus Ring	Adjust the focus ring to get the clearest image
14	Panel key	Control projector
15	Rubber Pads	Protective pade/remove to install mount
16	Height Adjusting Screw	Adjust the height of the projector
17	Dust Cleaning Port	Clean the dust(if the screen has a black spot)

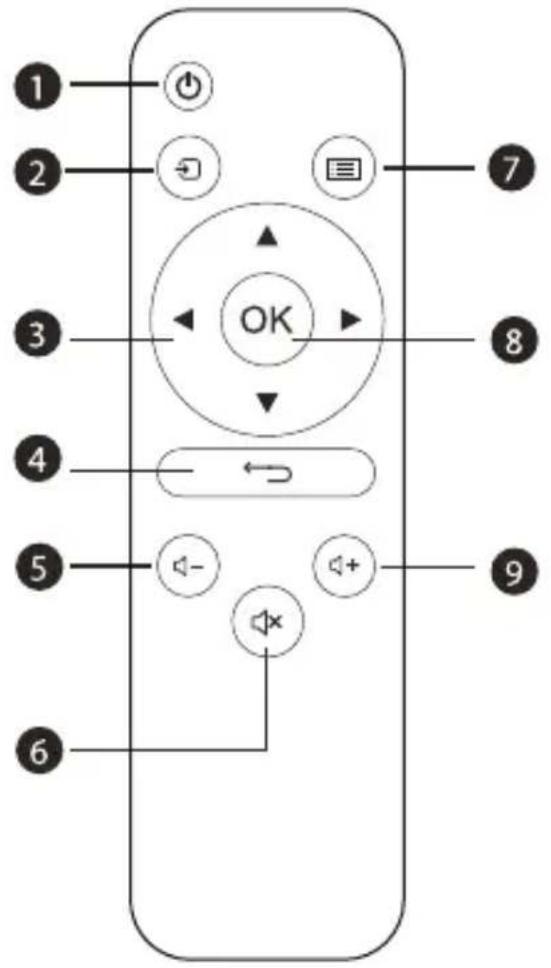

1 2 3 4 5 6 7 8 9

1. Power
2. Source
3. Arrow keys
4. Return
5. Volume -
6. Mute
7. Menu
8. Confirmation Key
9. Volume +

1	[SDZT]	Turn on/off the power
2		Select the input signal source
3		Used to adjust the parameter of the projector in the menu mode
4	[25DT]	Return to the previous menu
5		Volume down
6	[0K07]	Close the sound
7		Operate in AV or HDMI Mode
8		Confirm the option
9	[GC4T]	Volume up

Note:

1). Install 2 pieces of AAA batteries into the remote controller before using it. Do not combine new batteries with old ones in remote controller, which can cause operation failure due to insufficient power supply.
2). When using the remote controller, please make sure that the signal transmitter of the remote controller aims at infrared signal receiver of the projector.
3). If you are not using the remote controller for an extended period, please take out batteries to prevent batteries leakage.

INSTALLATION

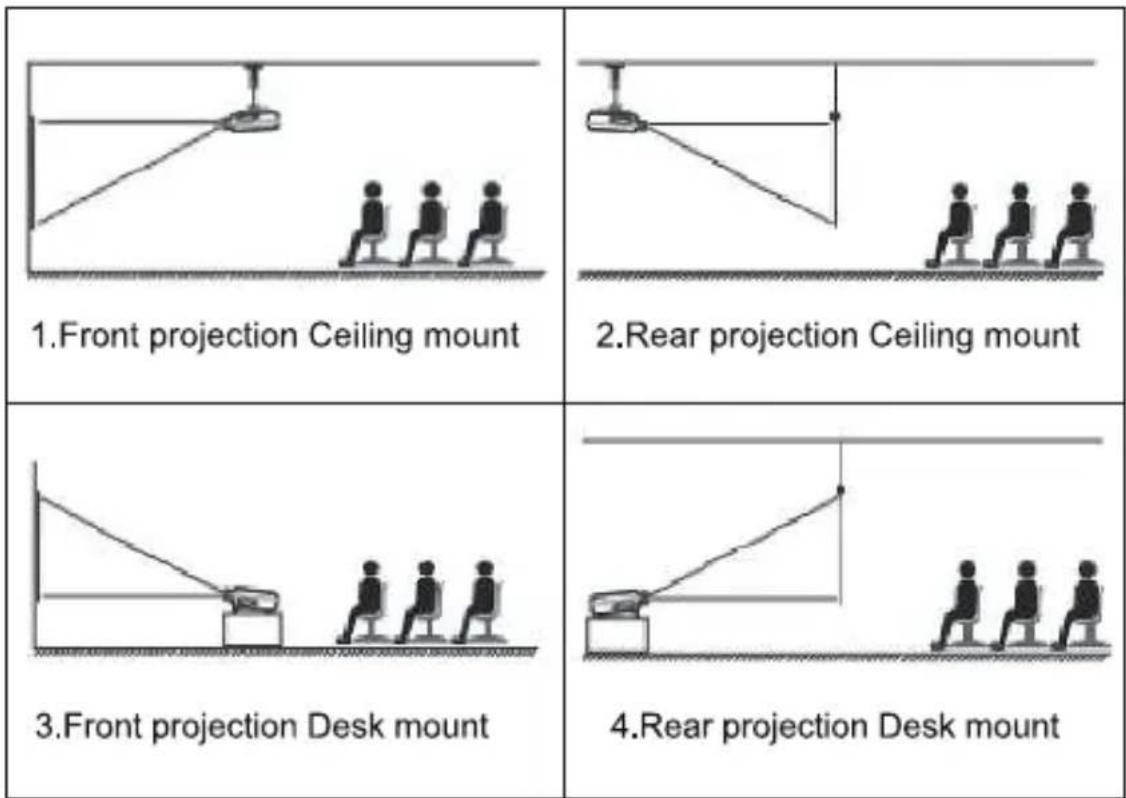

1. Installation Method

The projector can be hanged on the ceiling with special hanger frame, and placed on the stable desk to project the image according to the operating environment and requirements. In addition, the projector can be installed with following methods:

Keep the projector at a height where its lens is axial symmetry to the screen. If this is not possible, use the keystone correction function to adjust the projection image.

If you want to get a free projection screen, please contact us via [e-mail]

2. Projector Distance and Size

Aspect Ratio: 16:9
Distance (ft.)	Screen Size
3.6	35"
5.1	50"
6.6	70"
9.8	100"
11.8	120"
14.4	150"
20.3	200"

The recommended projection distance is about 8ft, the shortest projection distance is 3.6ft.

The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.

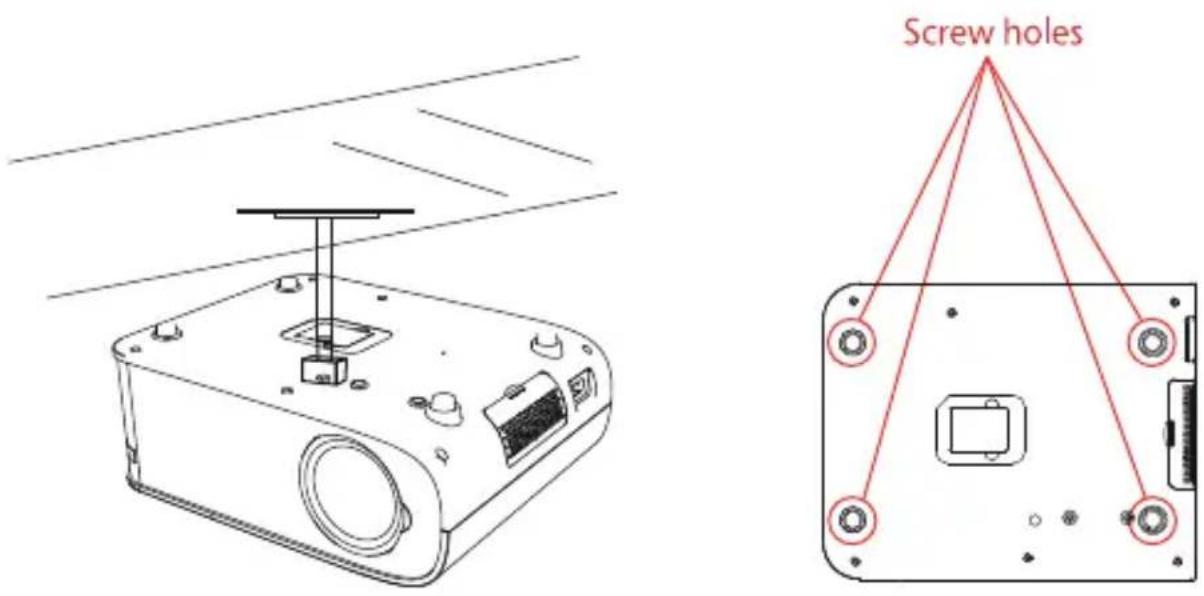

3. Install on the Ceiling

Screw holes

A. Please purchase an universal projector ceiling mount.

B. Remove the four rubber pads on the bottom of the projector, you will see the screw holes and use the M4 screws for installing the ceiling, and then install it.

STARTING PROJECTOR

1) Press the power button on the remote controller until the red light goes off.
2) Adjust the focus ring of the projector to get the best image performance.

(If it is still blurry, please try to adjust the projection distance.)

3) Use the vertical/horizontal Trapezoid of the projector to get a rectangle projection screen.
4) Connect the external device (Smart phone, iPad, Fire TV, TV box, DVD player, Computer, etc.) in the corresponding interfaces of the projector, please be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal.

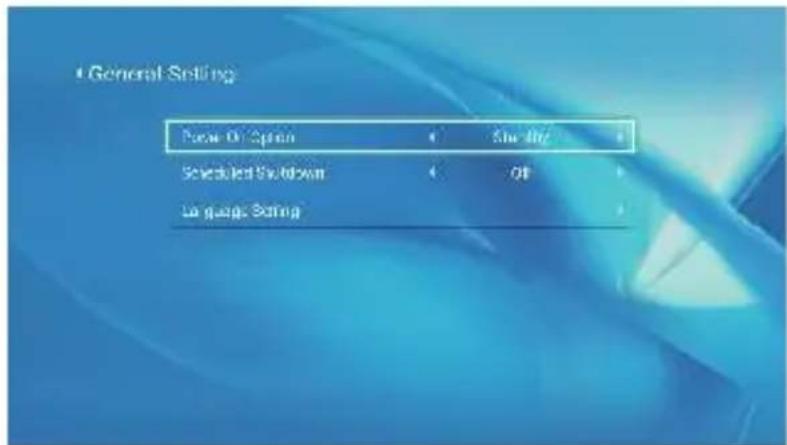

5) Select the [Setting] icon, enter the [General setting] menu, and then you can select the option [Language setting] to set the preferred language of your main system.

IMAGE ADJUSTMENT

When using the projector for the first time, it normally displays an unclear image. This is due to the lens being out of focus or the incorrect trapezoid setting.

Please follow the below steps to correct:

1.Focus Adjustment

Focus Ring

Rotate the focus ring slowly. At the same time, check the focus point carefully.

The best focus point for the lens would be where the image most clear.

Note: If it is still blurry, please try to adjust the projection distance.

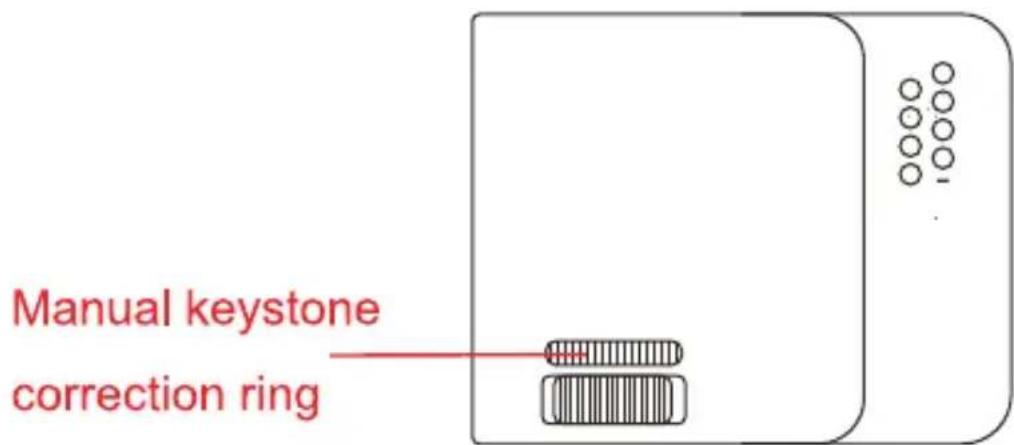

2. Manual Keystone Correction

Manual keystone correction ring

Please follow the below steps to correct:

Adjust the image size to get the best image size by moving the projector back and forth, then rotate the focus ring to get the best focus. Use the manual keystone correction of the projector to get a rectangle projection screen.

SETTING UP THE PROJECTOR

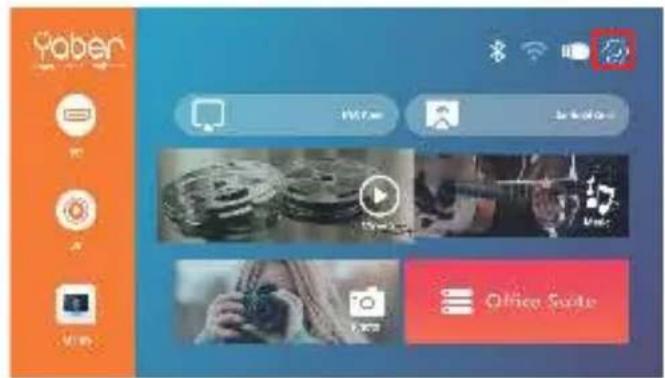

The projector's home page is as follow.

Yaben Enterprise Project Proveitor iOS Cast Android Cast HD AV MHUB Movie Music Photo Office Suite

1. Select The Input Signal Source

Select the desired input signal source (HD/AV) on the home-page.

2. USB Disk Insert Mode

2.1.Play Video/Music/Picture/Office in the USB Disk Insert Mode

1). Insert the USB Disk, Select the option [Movie/Music/Photo/Office Suite].
2). Select the desired file (or folder to enter the subfolder) in the USB disk, then press the [OK] button to play it.

PS:

a. Buffalo Pro U8 upgraded projector supports U disk to directly play PPT, Word, Excel files.
b. If you enter from the [Movie] menu, you can only play the video, The same as other 3 options.

2.2.Video Play Interface

Plant growing from soil with various colored vegetables and root systems, displayed within a video player interface (no text on plants or background)

Menu	Function
	Switch to the previous video.
	Fast Backward, rewinds the video back quickly while playing it.
	Play or pause the current video.
	Fast Fast, pushes the video move forward quickly while playing it.
	Switch to the next video.
	Select the time when the video starts.
	Select the video list.
	Check the format of the video.
	Repeat the video.

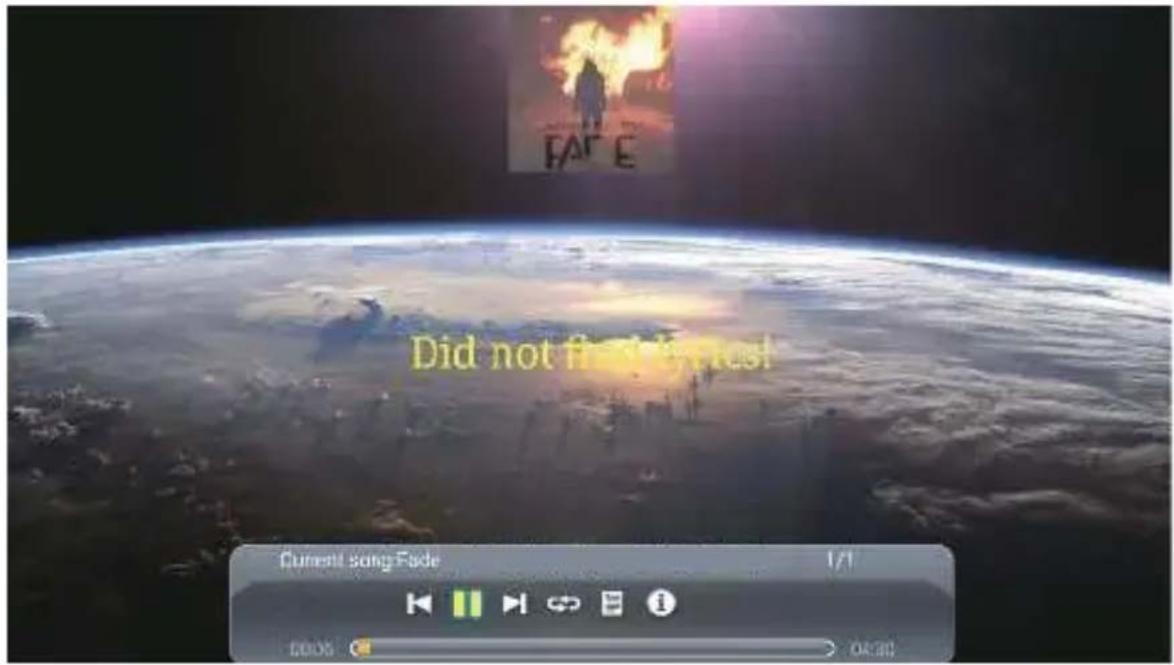

2.3. Music Play Interface

FARE Did not find a best Current song Fade 1/1 6:00 AM > 00:30

Menu	Function
	Switch to the previous music.
	Play or pause the current music.
	Switch to the next music.
	Repeat the music.
	Select the music list.
	Check the format of the music.

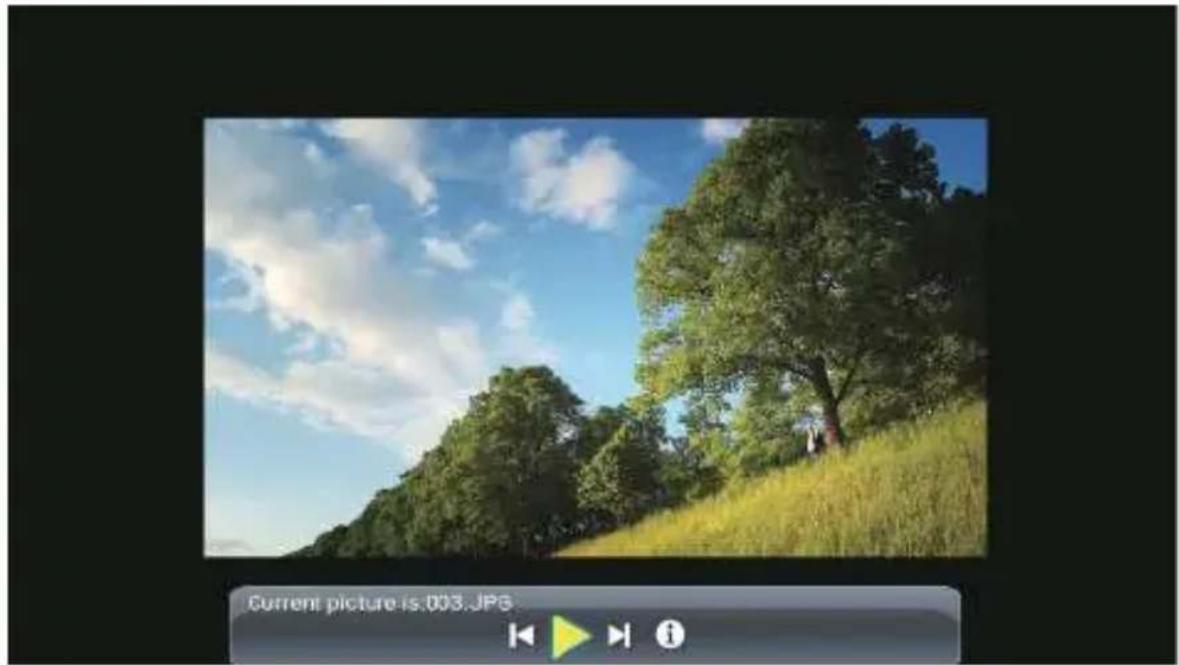

2.4.Picture Play Interface

Landscape photo of a tree on a grassy hill under a blue sky with scattered clouds, no visible text or symbols in the main scene.

Menu	Function
	Switch to the previous picture.
	Pause the auto - play mode of a picture.
	Switch to the next picture.
	Check the format of the picture.

3.WiFi Setting

Wireless Connection

Warming Tips:

①The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
②Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
③Some mobile devices may not support screen mirroring due to the compatibility.
④Any questions, please feel free to email YABER via [e-mail].

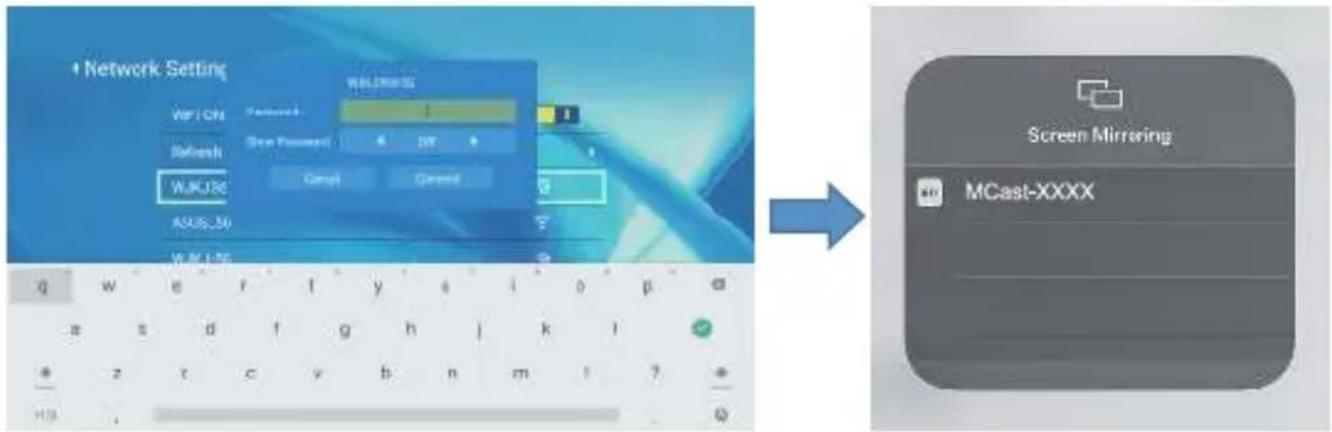

3.1.iOS Cast (for iOS Devices)

1. Turn on the projector, select IOS CAST as the input source to enter the interface of Screen Mirroring for iOS system.

Yaber Office Suite Cast mirror Hotspot name: LANKONWIN After the device far people up, select "MCCom 7025"

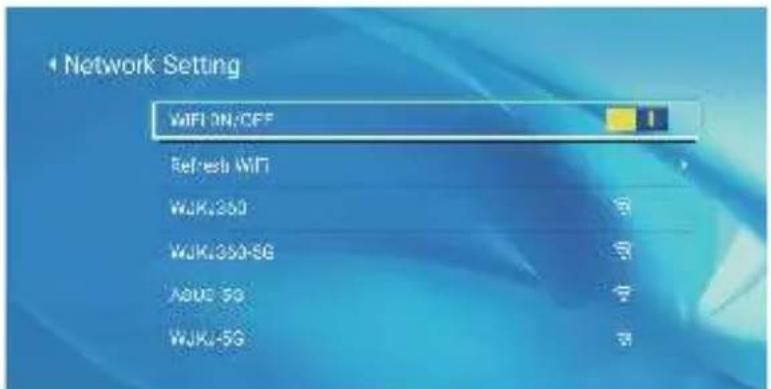

1. Go to the setting of your projector and connect it to your home wifi. Select your home WIFI to make sure that the projector connect to the same wifi to your phone. Press the "^" and "V" on the operation panel or remote controller to select the correct WiFi. Press the "OK" key to enter the password page.

Network Setting WALIMISS VSP / CM Password New Password 2nd Refresh WALJ36 Cnpt Cnpt ASUS_50 WALJ36 Screen Mirroring MCast-XXXX

1. Get back to the Wi-Fi setting of your iOS mobile device, then connect it to the same router's Wi-Fi.
2. Swipe up the screen of your iOS mobile device and tap Screen Mirroring to search for the projector, then select MCast-XXXX from the searching results to connect.
3. The display of your iOS mobile device will be projected to the wall/screen via wifi after a successful connection.

3.2.Miracast (for Android Devices)

To activate this function, your android device must support Multi-Screen/Wire - less display. Names may differ from different devices. (This function is only available for IOS/ANDROID Devices.)

1. On your Android device, tap [ Settings ] -[ WLAN Display ] -Turn [ Wi-Fi ]ON.

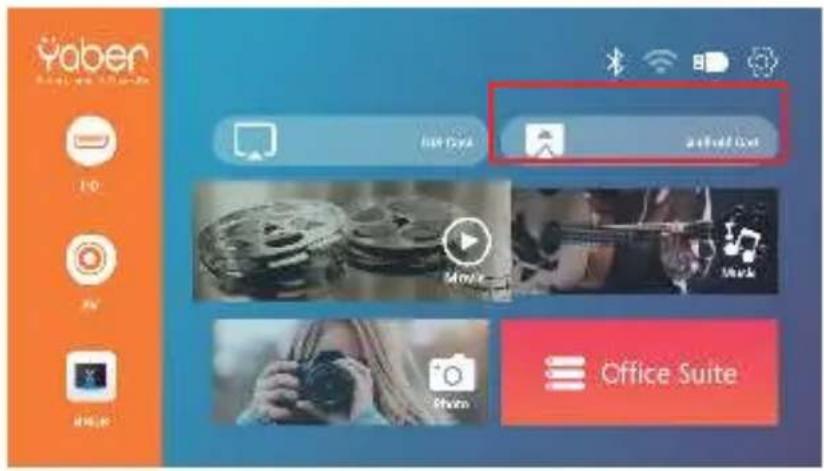

2. Turn on the projector, select Android Cast as the Input Source.

Yaber Hot Topic a Hot Topic Office Suite

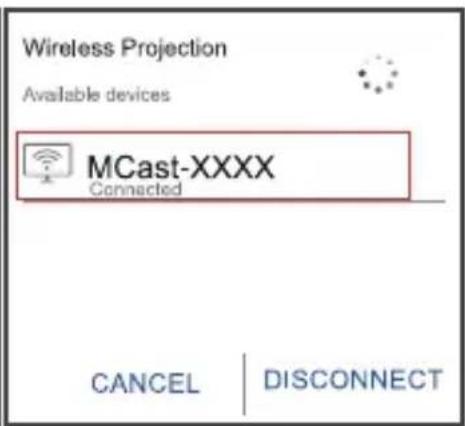

1. Select the [ Settings ] menu on your Android device -- Select the [ Screen mirroring ] function -- Select your Miracast receiver named [ MCast-XXXX ] -- your Android device screen will be displayed on the projection screen after 3 seconds.

8:43 PM Wednesday August 12

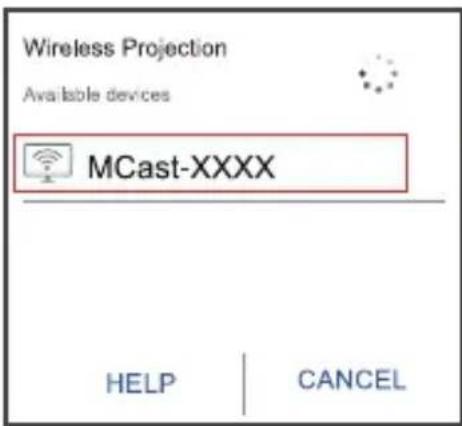

Wireless Projection Available devices MCast-XXXX HELP CANCEL

Wireless Projection Available devices MCast-XXXX Connected CANCEL | DISCONNECT

3.3. Control your projector from the app "MHshare TV"

Scan the QR code or learn more on http://tvweb.cvtColorapi.com/html/tv/maxhub-share-download/ to download the MaxhubShare for your smartphone.

Youbrika screen sharing Mobile screen sharing QR code for sharing M Z W D H M • 100% 200% 300% • 100% 200% 300%

1. Open the app "MHshare TV" and connect to the projector device TV-XXX.
2. The display of your Android mobile device will be projected to the wall/screen via wifi after a successful connection. You can control your projector from the app after the successfully connection.

Note:

1. Different brands of Android phones have different operations for select Screen Mirroring Display, please refer to your phone's manual.

[Multiscreen/Wireless display/WLAN display/Screen mirroring/Wireless projection/Smart view etc.]

1. Not all Android phones support this function. Please make sure it is supported before use.

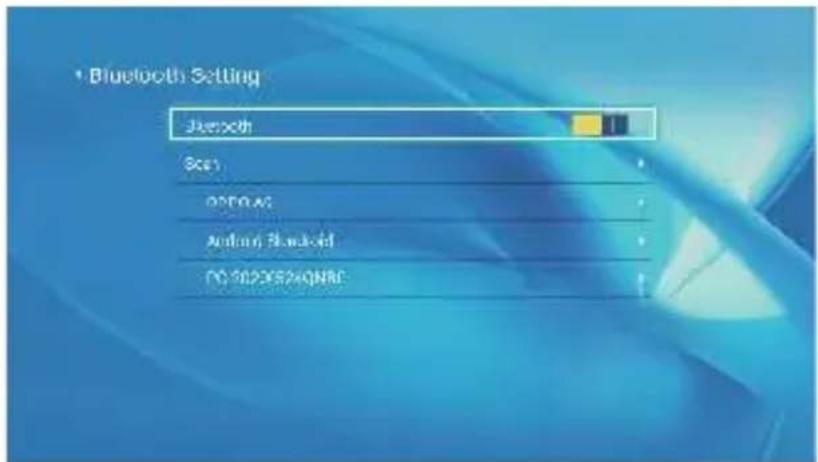

4. Bluetooth Setting

(1)Move the cursor to the "Bluetooth" icon and press OK to enter the Bluetooth setting interface.
(2)Press "OK" on the "Bluetooth ON/OFF" option to turn on and off the Bluetooth function, as shown in the figure below.
(3) After turning on the Bluetooth function, please scan your Bluetooth devices by clicking the scan button.
(4) Scan and Select your Bluetooth devices to connect to the projector. Press the "^" and "V" on the operation panel or remote controller to select the correct Bluetooth device. Press the "OK" key to connect.

Bluetooth Setting Bluetooth Scan OCDRAG Audio Player DC 5000000NRC

Note:

1. Buffalo Pro U8 projector is compatible with the Bluetooth headsets, Bluetooth speakers and airpods, but not the Bluetooth keyboards or Bluetooth phones.
2. If you have any question, please feel free to email YABER via: [e-mail].

5. Projector Settings

Get a better viewing effect with appropriate settings. The main content of the projection can be set in the following steps.

(1) If needs setting, first select "Settings" on the main screen, and then press the "OK" key on the operation panel.

Yaber Office Suite

Wireless Setting Bluetooth Setting Projection System Setup Security Setting System Info

(2) "Network setting", "Bluetooth setting", "Projection", "System Update", "General Setting" can be set. "System Info" can be obtained. Press the "<" and "> " on the operation panel to select the range of settings.

5.1 Network Setting

1. Move the cursor to the "WIFI" icon and press OK to enter the WI-FI setting interface.
2. Press "OK" on the "wifi ON/OFF" option to turn on and off the wifi function, as shown in the figure below.
3. After turning on the wifi function, the projector will search for wifi hotspots automatically.
4. Select your WIFI to make sure that the projector connect to the same wifi to your phone. Press the "^" and "V" on the operation panel to select the correct WiFi. Press the "OK" key to enter the password page.

Network Setting WiFi ON/OFF Refresh WiFi WJK-350 WJK-350-5G ADD-5G WJK-5G

Network Setting VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UN VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UM VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-OP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UT VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP VNT-UP

5.2 Bluetooth Setting

1. Move the cursor to the "Bluetooth" icon and press OK to enter the Bluetooth setting interface.
2. Press "OK" on the "Bluetooth ON/OFF" option to turn on and off the Bluetooth function, as shown in the figure below.

Bluetooth Setting Bluetooth 5cm

1. After turning on the Bluetooth function, please scan your Bluetooth devices by clicking the scan key.
2. Scan and Select your Bluetooth devices to connect to the projector. Press the "^" and "V" on the operation panel to select the correct Bluetooth device. Press the "OK" key to connect.

5.3 Projection Setting

5.3.1. Cast Mode: Front, Rear, Front -Ceiling, Rear-Ceiling

4 Projection Close Now Timeout Cover Vertical Tropness Digital View 120

5.3.2.Trapezoid Correct: Quadrangle, Vertical

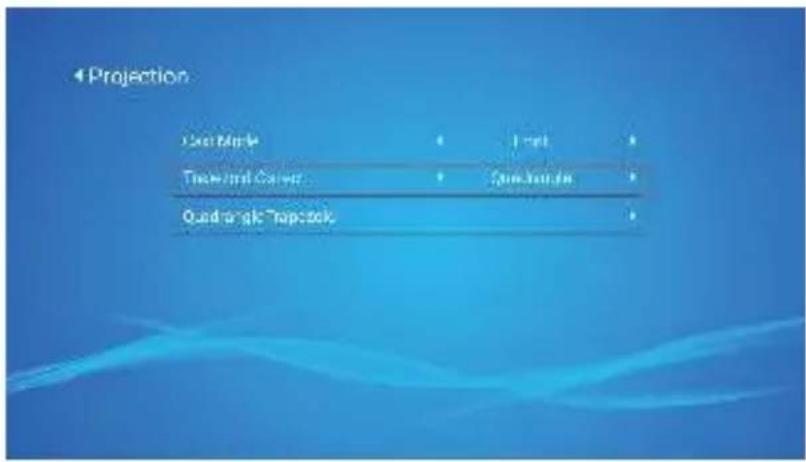

1) Quadrangle Trapezoid: 0\~100

You can enter the setting of Quadrangle Trapezoid to get a better view.

Step 1: Press the button to select the [Quadrangle] menu, then press the [OK] bottom to enter the submenu.

Step 2: Keep pressing the OK button on the remote controller or projector to select the point.

Step 3: Press the arrow keys on the remote controller or projector to adjust the horizontal or vertical parameters, until the projection screen becomes the desired rectangle.

Projection User Map Text/Print Copy Quadrangle Tapebook

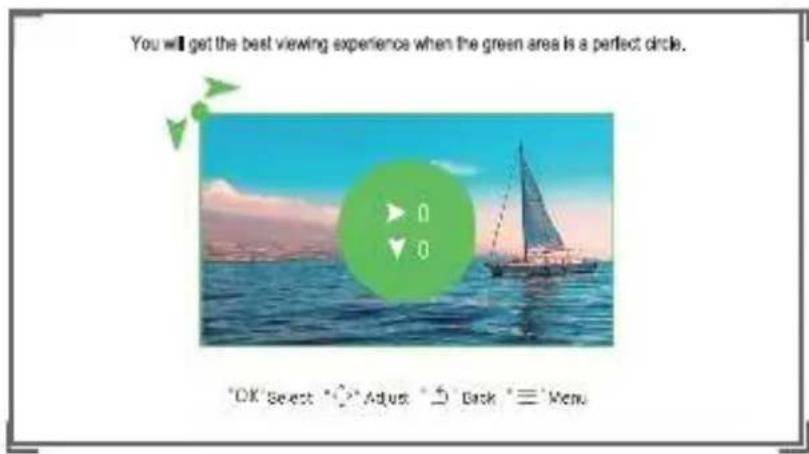

You will get the best viewing experience when the green area is a perfect circle. OK Select Adjust Back Menu

2) Vertical Trapezoid: -50\~50

You can set-up the zoom and vertical trapezoid when you Select the Vertical as the Trapezoid correct mode.

4 Projection Cart Mode Trapezoid Correct Vertical Trapezoid Digital Zuzons From Vertical 0 30

Step 1: Press the button to select the [Vertical] menu, then press the [OK] bottom to enter the submenu.
Step 2: If the projection image shows as (1), press the [Vertical trapezoid] on the remote controller or projector to increase the vertical parameter (-50\~0), until to achieve the projection image (2).
Step 3: If the projection image shows as (3), then press the [Vertical trapezoid] the remote controller or projector, and decrease the vertical parameter (0\~50), until to achieve the projection image (4).

(1)

(2)

(3)

(4)

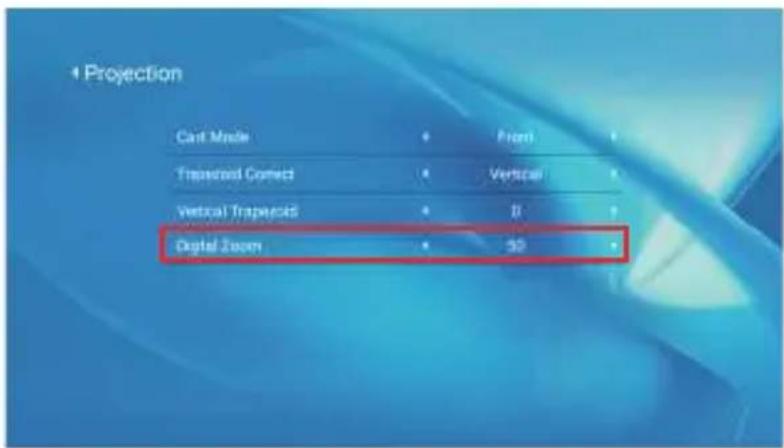

3) Digital zoom: 50% \~100%

4 Projection Cart Mode Transcued Connect Vertical Transcued Digital Zoom From Vertical It 50

Step 1: Press the button to select the [Digital Zoom] menu, then press the [OK] bottom to enter the submenu.

Step 2: Click the "◀", TURN the Scaling function, you can reduce the height and width of projection size up to 50% in the same proportion.

Step 3: Click the "▶", OFF the Scaling, you can reduce the horizontal ZOOM and Vertical zoom of projection size up to 50% apartly.

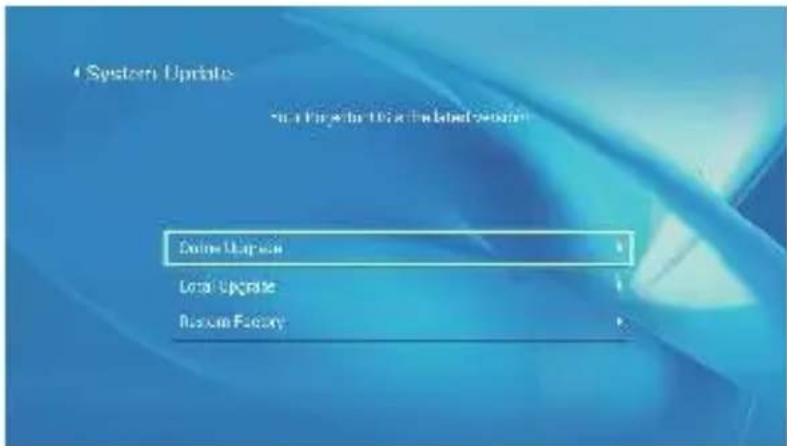

5.4 System Update

1. You can online update the system of the projector when you select the Online Update.
2. You can restore to the factory mode by pressing "Restore Factory" if you need to re-set all settings. Please refrain from doing this since it may damage the system.

Note: During the process of restoring factory settings, the projector cannot be powered off or operated, otherwise the system will crash.

System Update Online Update Local Update Remote Factory

5.5 General Setting

Menu	Function
Power on Option	You can choose to power on standby or direct.
Scheduled Shutdown	You can set the time about the regular shutdown.
Language Setting	You can set the language of the projector, English, Deutsch, France, Italiano, Espano, etc.

General Setting New Dir Spin Show the Scheduled Shift Down Off Language Setting

SIGNAL LINES CONNECTION

YABER Buffalo Pro U8 projector has 5 interfaces, HD port/ USB ports*2/ AV in/ AUDIO output. Please select the correct connecting port to connect your device (PC, Phone, DVD Player, Sound bar, USB, PS4 etc.)

Diagram showing connection between a device panel with labeled ports and connectors, including USB-T, USB, HD, and various devices.

1. Connect USB Disk

1) Insert the USB Disk, Select the option [Movie/Music/Photo/Office Suite].
2) Select the desired file (or enter the subfolder) in the USB disk, then press the [OK] button to play it.

2. Connect the Devices via the HD ports

1) Connect your TV stick or laptop to HD port of the projector.
2) Enter the home page to select the corresponding HD as the signal source.

3. Connect to the DVD Player

Use the 3-in -1 AV cable in the package

Front view of a computer monitor front panel with ventilation grille and ports (no text or symbols visible)

AV port Video Left Right

Or connect to the DVD Player with the HD cable in the package.

Front view of a computer monitor rear panel with ports and connectors (no visible text or symbols)

4. Connect to the Sound bar/Speaker

If your speaker has AUX port, please use your 3.5mm audio cable connect the projector and your speaker as the picture shows.

Diagram of a device panel with labeled ports and a highlighted component, showing internal structure and connection points.

AUX port

SAFE SHUTDOWN

1. Press the ⏻ button on the projector or remote controller, then choose "OK" to power off.
2. Unplug the power cord of the projector.
3. Cover the lens and store the projector in a cool and dry place.

WARRANTY

Thank you so much for your purchase and support! We provide 3-year warranty for Buffalo Pro U8 projector. If you have any questions, please feel free to contact us via [e-mail].

TROUBLESHOOTING

Problems listed below might occur during the operation of your projector. Please refer to the possible factors which might cause the issue to do troubleshooting.

1. When turning on the power switch, the indicator light does not work.

1) The power might not be connected well.
2) Check the over-heat protection system.

1. The remote control does not communicate with the projector.

1) The power switch at the back of the projector is turned on or off?
2) The remote control's batteries are depleted?
3) Something obstructing the signal between the remote and IR.
4) Strong light on IR directly.

1. No image on the screen.

1) Is the channel set-up correct?
2) Is there an input signal?
3) Is the input cable plugged well?
4) Under PC mode, is the refresh rate > 75KHz ?

1. Blue screen, no picture, no sound.

Input cables connected right?

5.Picture right, no sound.

1) Input cables connected right?
2) Volume at min or on Mute.

6.Can't play the movies.

1) The format of the video is right?
2) Files are broken?
3) Device is broken?

1. There is picture, no sound?

The decode system doesn't match.

1. Can't find devices when connected with hard drive or flash drive.

Check if the device is broken.

1. Auto-off after working for a while.

1) The projector ventilation is blocked.
2) The over-heat protection system.

FCC STATEMENT :

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Correct Disposal of this product

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment is necessary.

DECLARATION OF CONFORMITY

We (Manufacturer is responsible for this declaration)

YABER TECHNOLOGIES CO., LIMITED.

(Company name)

Room 406,4 Floor,B Building,BanTian International Center,HuanCheng South Road,Ban-Tian Street, LongGang District,Shenzhen, China (Company address)

declare under our sole responsibility that the product

Trade name: YABER

Equipment: Entertainment Projector

Model No.: Buffalo Pro U8

to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to RED Directive(2014/53/EU) & RoHS(2011/65/EU) product is responsible to affix CE marking, the following standards were applied:

EN 62368-1:2014+A11:2017

EN IEC 62311:2020

ETSI EN 301 489-1 V2.2.3(2019-11)

ETSI EN 301 489-17 V3.2.4(2020-09)

ETSI EN 301 489-3 V2.1.1(2019-03)

EN 55032:2015+A11:2020

EN 55035:2017 +A11:2020

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

ETSI EN 300 328 V2.2.2(2019-07)

ETSI EN 301 893 V2.1.1(2017-05)

Position: Approbation Manager

Place/Date: Shenzhen, China/Jun. 15-2022

Simple smiley face icon with two dots above and a curved line below (no text or symbols)

www.yaberglobal.com

[e-mail]

@Yaber Entertainment Projector

@Yaber Entertainment Projector
