Product Type	Single Glass Door Display Freezer
Model	PFV127DX
Brand	Premium Levella
Capacity	11.6 cu ft
Temperature Range	-0.4°F to -11.2°F
Climate Class	3, 4
Rated Voltage	115 V ~ 60 Hz
Rated Current	5.5 A
Total Power	520 W
Energy Consumption	6.3 kWh/24h
Dimensions (W x D x H)	24.2 x 24.8 x 78.3 inches
Number of Shelves	4 wire shelves
Max Shelf Load	66.1 lb per shelf
Door Type	Single glass door with lock
Lighting	LED (12W + 4W)
Control Type	Electronic controller with digital display
Defrost Method	Automatic defrost with heater (335W)
Refrigerant	Flammable Class A3 (per ASHRAE 34)
Sound Level	< 70 dB(A)
Installation Clearance	Min 10 cm (4 inches) from wall

Frequently Asked Questions - PFV127DX Premium Levella

What does error code E1 mean on my Premium Levella freezer?

Error code E1 indicates an abnormal sensor inside the cabinet. Contact our professional after-sales service technician for diagnosis and repair.

How do I defrost the PFV127DX freezer?

The freezer features automatic defrost with a heater. No manual defrost is needed. If you need to start a defrost cycle manually, press and hold the defrost button for more than 3 seconds.

Why is my freezer making noise?

Common causes include the unit not being leveled, loose screws on the compressor or condenser fan, or a defective fan. First, check if the four wheels are adjusted to the same level and touch the ground. If noise persists, tighten screws or contact a technician.

How do I clean the freezer?

Disconnect the power before cleaning. Use a mild detergent and warm water solution (e.g., 30g detergent to 7.5L water) with a soft sponge, then rinse and dry with a soft cloth. Do not use corrosive cleaners.

What is the temperature range of the PFV127DX?

The showcase temperature range is from -0.4°F to -11.2°F, suitable for storing frozen foods.

Can I store aerosol cans in this freezer?

No, do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as it poses a fire risk.

What should I do if the display panel shows no power?

Check if the power plug is properly inserted and the socket has electricity. If the fuse has blown, replace it. If the issue persists, contact a professional technician.

How much clearance is needed around the freezer?

Maintain a minimum of 10 cm (4 inches) from the wall or side cabinet to ensure proper ventilation. Do not block ventilation openings.

Is the PFV127DX freezer energy efficient?

The freezer consumes 6.3 kWh per 24 hours. To save energy, avoid frequent door openings, do not overload, and keep the condenser clean. Performance is influenced by ambient conditions (climate class 3 or 4).

How do I adjust the temperature setpoint?

Press button 3 (see manual table 2) for 1 second to display or set the set point. Use the buttons to adjust as needed. The current temperature is shown during normal operation.

USER MANUAL PFV127DX Premium Levella

Line drawing of a two-door refrigerator with lid, front panel, and side door (no text or symbols)

USER MANUAL/ MANUAL DE INSTRUCCIONES

Use and care manual. Important safeguards. This I product is for domestic use only. Manual de uso y cuidado. Precauciones importantes. Este producto es para uso domestico unicamente.

Table of Contents

I. Important safety instructions .... 5
II. Transportation and Placement 6
III. Installation Instructions....7
IV. Product Parameter 8
V. Main components 9
VI. Electrical Connection....10
VII. Operation Instructions....10
VIII. Product troubleshooting .... 11
IX. Product Cleaning 13
X. Cautions for Safety 13
XI.Disposal 13

◆This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
◆Children should be supervised to ensure that they do not play with the appliance.
◆Cleaning and user maintenance shall not be made by children without supervision.
◆Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
◆If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
◆Please dispose of according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children from becoming trapped.
◆WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
◆WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
◆WARNING – Do not damage the refrigerant circuit.
◆WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
◆ The appliance shall not be installed in public corridors or lobbies.
◆Warning: the appliance shall be installed in accordance with national wiring regulations.
◆The appliance is to be installed in accordance with the Safety Standard for Refrigeration Systems, ANSI/ASHRAE 15.

Notice: Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

Notice: Servicing shall only be performed as recommended by the equipment manufacturer.

Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

Notice: Component parts shall be replaced with like components so as to minimize the risk of possible ignition due to incorrect parts.

The appliance is to be installed in accordance with the Safety Instructions section of this manual.

◆WARNING

Do not use means to accelerate the defrosting process or to clean the appliance, other than those recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.

Do not pierce or burn.

Be aware that refrigerants may not contain an odor.

◆Warning: The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation;

◆Warning: The appliance shall be installed in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).

◆ Warning: The appliance shall be stored so as to prevent mechanical damage from occurring.

◆Check that the cable will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

◆Before carrying out the decommissioning procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants

are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. It is essential that electrical power is available before the task commences.

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, FLAMMABLE REFRIGERANTS.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

Refrigerant class A3 per ANSI/ASHRAE 34

Warning: Risk of fire / flammable materials, taking care to avoid causing a fire by igniting flammable material.

- All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.

- If any hot work is to be conducted on the refrigerating equipment or any associated parts, appropriate fire extinguishing equipment shall be available on hand. A dry chemical or CO2 fire extinguisher should be adjacent to the charging area.

● Notice: Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

● Notice: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

- No person carrying out work in relation to a REFRIGERATING SYSTEM which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment shall be surveyed to make sure that there are no flammable hazards or ignition risks "No Smoking" signs shall be displayed.

- Checking for presence of refrigerant, the area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with all applicable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

- Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times, the manufacturer's maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer's technical department for assistance.

- Detection of flammable refrigerants: Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

Dear Customer:

Dear users (customer), this manual contains the product's basic knowledge, use instruction, fault diagnosis and basic trouble shooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully.

The products are Single Glass Door Display Freezers. These products are intended solely for the storage and/or display of packaged food products that are not potentially hazardous foods.

I. Important safety instructions

1. The range of operating voltage: 97V\~130V. In order to avoid damaging the electrical performance of the compressor, please install a voltage stabilizer appliance of power not less than 500W, to protect the cooler when the voltage is lower than 97V or higher than 130V.
2. An individual single-phase socket must be used. It should be reliably connected to a grounding wire. Caution: The grounding wire is not allowed to connect to a water pipe or a gas pipe.
3. Strong base, strong acid, organic solvent, and corrosive goods or those that are easy to pollute food are prohibited from storing in the cooler; otherwise, they can cause corrosion or accidents.
4. Do not rinse the cooler or the shell of the electric parts, or it will cause a decline in insulation and cause corrosion.
5. When the cooler will not be used for a long time, disconnect the power and clean it. Please examine the circuit to see whether it is ok before reuse.
6. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
7. The appliance shall be disconnected from its power source during cleaning or maintenance and when replacing parts.
8. The A-weighted emission sound pressure level is below 70Db(A).
9. Do not store explosive substances such as aerosol cans with flammable propellant inside the appliance.
10. Flammable blowing gas of the cooler should be handled according to local regulations. Before you scrap the appliance, please take off the doors to prevent children from being trapped.

Caution:

1. Risk of fire / flammable materials, taking care to avoid causing a fire by igniting flammable material.
2. Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
3. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
4. Do not damage the refrigerant circuit.
5. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
6. The ambient temperature and humidity conditions of the cooler climate class following the tab below:

Test room climate class	Dry bulb temperature (°F)	Relative Humidity (%)	Dew point (°F)	Water vapor mass in dry air (g/kg)
3	77	60	62.1	12.0
4	86	55	68.0	14.8
NOTE: the water vapor mass in dry air is one of the main points influencing the performance and the energy consumption of the coolers. Therefore, the order of the climate class in the table is based on the water vapor mass column.

Warning: Risk of fire / flammable materials

II. Transportation and Placement

Transportation:

1. Don't slant it over more than 45^ , while moving it.
2. The cooler needs to stand upright for 4 hours before it is powered on, while the product is transported upside down.

Two stylized human figures carrying a large rectangular block (no text or symbols)

Choosing the installation location:

1. This unit is for indoor use only.
2. Due to the fact that the unit has a glass door, its performance is highly influenced by environmental conditions. To minimize the environmental effects on the unit's performance, the following are recommended:

● The unit is not to be placed near any kind of heat source.
- The unit is not to be placed near or inside air streams produced by ventilation fans, open doors and/or windows.
● The unit is not to be situated under a roof-mounted ventilation system.
- The unit should have sufficient space to 'breathe' (always use the rear space to ensure minimum clearance).
● The unit should not be placed under direct sunlight.
- Keep all ventilation openings in the appliance enclosure or in the structure clear of obstruction.

- In order to reduce fire hazard, the installation of this appliance must be carried out only by a suitably qualified person.

III. Installation Instructions

1. Unpack all the packages and clean the cabinet using warm water with 5% of neutral soap and then dry it with a soft cloth. For the glass parts only, use glass specific products, avoiding the use of water which can leave limestone residues on the glass.
2. Keep a minimum of 10 cm distance from the wall or side cabinet. Please level the unit settling the adjustable feet.
3. The cabinet must be installed on a perfectly even surface, far away from any heat source included sun rays.
4. Do not install the unit in open places and do not expose it to rain.

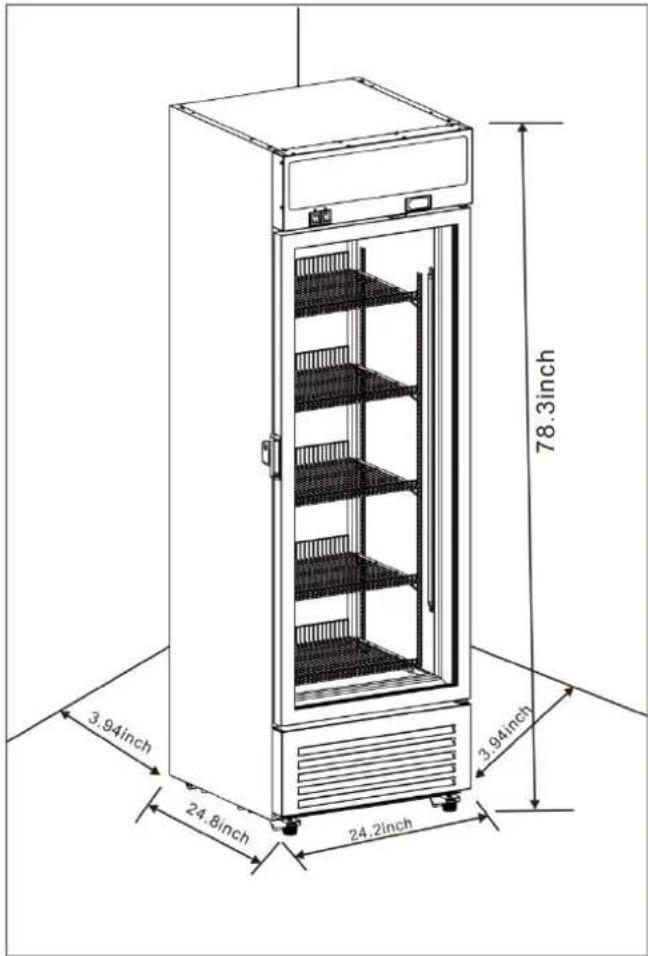

Note: product space demand size schematic diagram

Leveling the unit:

Place the unit at the chosen location. Using a level, check whether the unit is leveled in both directions.

The spirit level can be placed on one of the shelves.

It is essential that the unit is leveled during operation so as to avoid possible ice formation on the evaporator's fins due to insufficient drainage of the condensates.

Tilt unit by 2^ angle for easy closing of door and drain.

• Do not insert cream or spray bottles inside the cooler.
• Do not store explosive substances such as aerosol cans with flammable propellant in the cooler.

IV.Product Parameter

MODEL	PFV126DX-PFV127DX
CLIMATE CLASS	3,4
ELECTRICAL SAFETY (CS)	I
RATED VOLTAGE (V)	115 V
RATED FREQUENCY(Hz)	60 Hz
SHOWCASE VOLUME (CU.FT)	11.6 CU.FT
SHOWCASE TEMP RANGE	-0.4°F ~ -11.2°F
TEMP CONTROL	Electronic control
DEFROST POWER (W)	250 W+30W+5W+50W
LAMP POWER (W)	12W+4W
TOTAL POWER (W)	520W
RATED CURRENT(A)	5.5 A
ENERGY (kW·h/24h)	6.3kW·h/24h
DIMENSION: W×D×H (INCH)	24.2 INCH×24.8 INCH×78.3INCH
MAXIMUM LOADING OF EACH TYPE OF SHELF (LB)	66.1LB

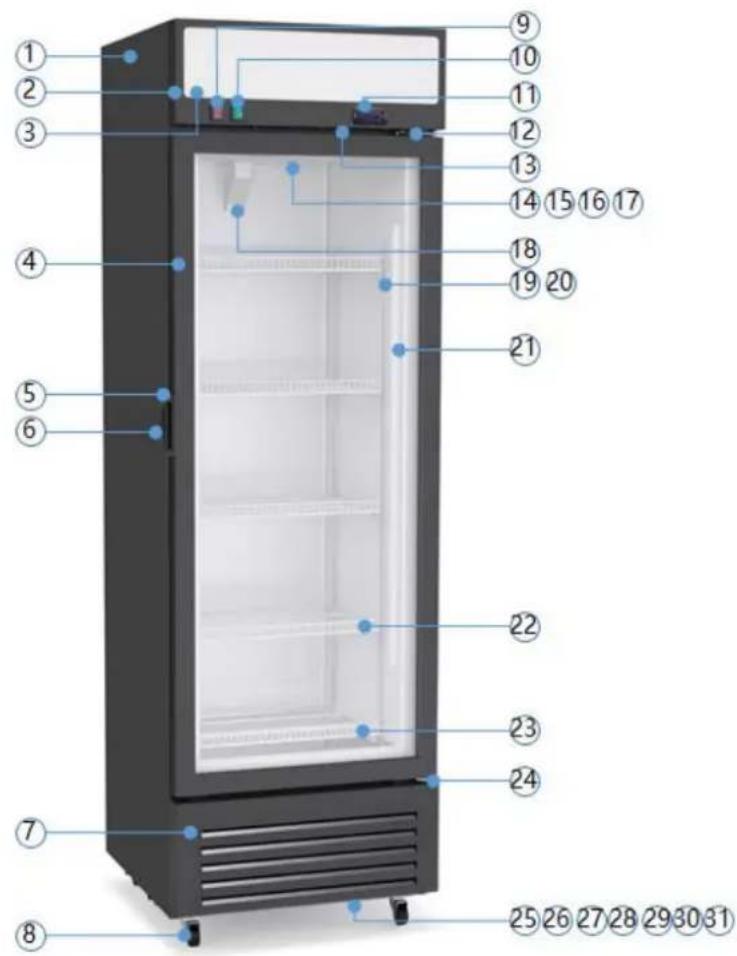

V. Main components

No.	Description	No.	Description	No.	Description
1	Cabinet	12	Top hinge	23	Bottom wire rack
2	Canopy	13	Fan Switch	24	Lower hinge
3	Canopy panel	14	Evaporator	25	Power cord
4	Glass door	15	Evaporation fan	26	Compressor
5	Handle	16	Defrost heater	27	Cooling Fan
6	Lock	17	Wind deflector	28	Condenser
7	Decoration panel	18	Drain pipe cover	29	Dry filter
8	Universal wheel	19	Shelf	30	Water tray
9	Power switch	20	Shelf foot	31	Hose clamp
10	Light switch	21	LED light
11	Electronic controller	22	Wire rack

Please kindly note that the parts may not be exactly the same as the ones in this manual because of improvements.

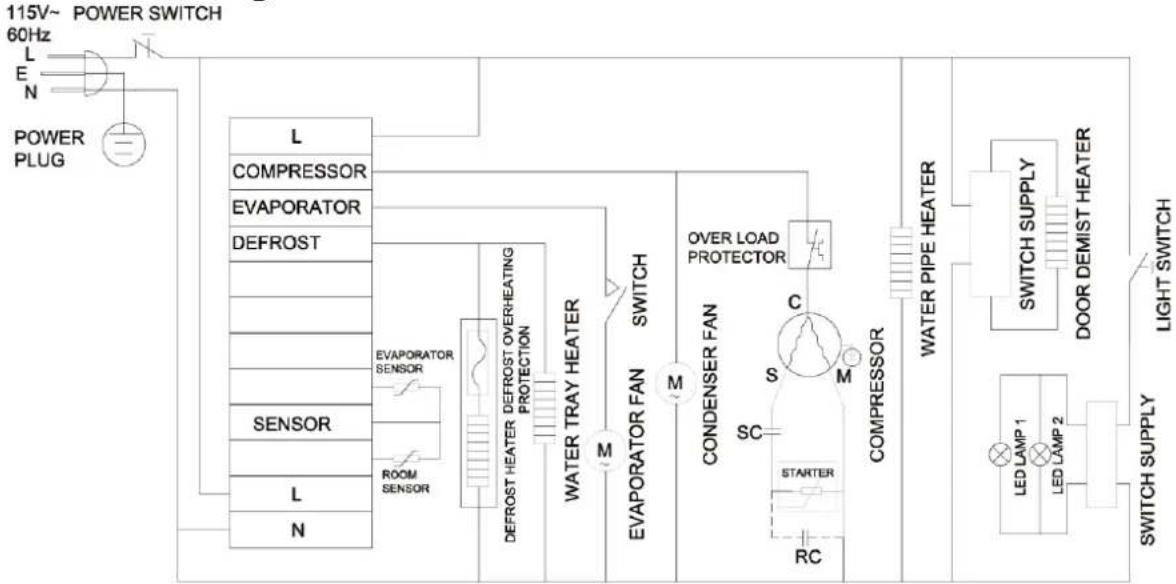

VI. Electrical Connection Electronic diagram

VII. Operation Instructions

Display and functions

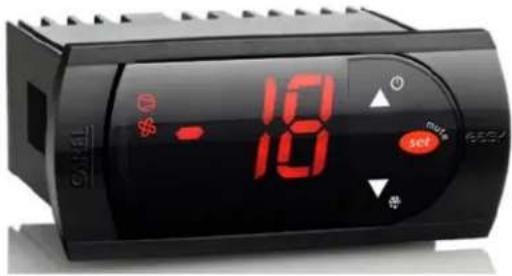

During normal operation, the controller displays the inner temperature. In addition, the display has LEDs that indicate the activation of the control functions (see Table 1), while the 3 buttons can be used to activate/deactivate some of the functions (see Table 2).

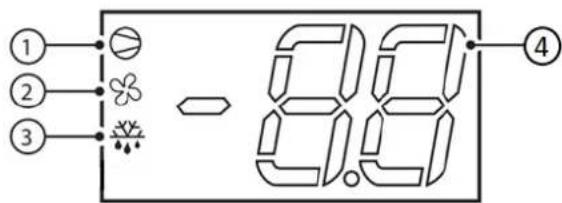

LEDs and associated functions

Index	Function	Normal operation			Start up
		ON	OFF	Blink
1	Compressor	ON	OFF	Request	ON
2	Fan	ON	OFF	Request	ON
3	Defrost	ON	OFF	Request	ON
4	Digit	2 digit LED display with sign (-99 to 99) and decimal point

Table.1

Table of functions activated by the buttons

Index	Button	Normal operation		Start up
		pressing the button alone	pressed together
1		more than 3 s: toggle ON/OFF	pressed togetherdisplay defrostprobe temp.	---
2		more than 3 s: start/stopdefrost		Pressed together startparameter resetprocedure
3		1 s: display/set the set point	---

Table.2

VIII. Product troubleshooting

1. Display area alarm code

When the product component fails, the corresponding fault code will be displayed in the control panel. The general error codes and corresponding faults are as below.

NO	Error Code	Error description	Handling method	Remarks
1 E1		Abnormal sensor in the cabinet	Contact our professional after-sales service technician
2 E2		Abnormal defrosting sensor	Contact our professional after-sales service technician
3 DR		Open the door alarm	Check the door if securely closed
4 HI		high temperature warning	Contact our professional after-sales service technician
5 LO		low temperature warning	Contact our professional after-sales service technician

1. Routine troubleshooting

Trouble	Reason		Check	Solution	Remark
No display on the display panel	The power plug is not properly plugged in		Plug in the power socket	Reconnect the power
	Power Outage		Check if the socket has electricity or not	Reconnect the power
key invalid / /				Contact our professional after-sales service technician
Lamp is not lighting on	No voltage	Fuse breaking off	Check fuse	Change fuse	Contact our professional after-sales service technician
		Poor connection between the plug and socket	Check the socket	Repair or change socket
	Have voltage	lamp has poor contact or worn down	Check the circuit and lamp	Tighten the connection or change a new lamp
		Lamp switch has poor contact	Check the switch	Tighten the connection or change a new switch
Condenser fan not running	Condenser fan is broken down		Check condenser fan resistance	Change condenser fan	Contact our professional after-sales service technician
	Condenser fan is blocked		Check for blockage	Clear the blockage
Condenser fan operates continuously	Temperature is too high inside the cabinet	The door is opened too frequently	/ /		Contact professional after-sales personnel
		Too much storage	Air outlet is blocked	Take out part of the storage
		Leakage of refrigerant /		Contact professional after-sales personnel
Noise	Cooler isn't leveled		Check if the four wheels are adjusted to the same level and touching the ground	Adjust the wheels	Contact professional after-sales personnel
	Fixing screws of compressor or condenser fan are loose		Screws fixed tightly or not	Tighten the screws
	Compressor or fan defective		Check the Compressor or fan	Contact professional after-sales personnel
Condenser fan is working, but the compressor doesn't operate	The terminal of starter or OLP is loose		Check the starter and OLP	Install the starter or OLP	Contact professional after-sales personnel
	Compressor defective		Check the resistance of compressor CSM terminal	Change new compressor
	Voltage is lower than 97V or higher than 130V		Check the input Voltage	Use a voltage stabilizer
Evaporator fan not running	Fan switch defective		Check the switch	Change the switch	Contact professional after-sales personnel
	Fan switch terminal is not connected properly		Check the circuit of the	Connect the switch terminal
		fan switch
Power cord broken down	Not placed in correct position and broken during transportation	N/A	Change the power cord	Contact professional after-sales personnel

Notice: The following are not trouble but common phenomenon:

1. Sound, the refrigerant flows inside the cooler.
2. Compressor and condenser become hot.
3. If the ambient humidity is high, there may be dew drops on the appliance surface, please use a soft and dry cloth to clean it in time.

IX. Product Cleaning

1.1. External cleaning

Doors and freezing chamber should be cleaned with a mild detergent and warm water solution, such as a mixture of 30g detergent to 7.5 liters of hot water, clean with a soft sponge, and then clean again with water. To prevent water residue, wipe again with a soft dry towel.

Warning

1. Make sure the appliance is disconnected from the power supply before performing cleaning and maintenance operations.
2. Do not use corrosive cleaning agents to clean the interior of the freezing chamber and the wire rack

X. Cautions for Safety

Warning! Do not damage the cooling fluid circuit.

Warning! Do not damage walls of the machine: the cooling fluid circuit may damage.

Warning! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Warning! The equipment must not be used by persons (including children) whose physical, sensorial, or mental capacities are reduced, or who lack experience and know-how, unless they have been provided, by means of a person responsible for their safety, with suitable monitoring or instructions about the use of the equipment. Children must be monitored to ensure they do not play with the equipment.

XI.Disposal

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

Contenido

Illustration of a person pushing a wheelbarrow with a 45-degree angle标注 (no text or symbols beyond the angle)

Two stylized human figures carrying a large rectangular block (no text or symbols)
