PFR34400X - Freezer Premium Levella - Free user manual and instructions

Product Type	Chest Freezer
Brand	Premium Levella
Model	PFR34400X
Power Supply	220-240 V ~ 50 Hz
Refrigerant	R600a (flammable)
Temperature Range	-12 °C to -24 °C
Temperature Control	Thermostat dial (positions 0 to 7)
Indicator Lights	Power indicator light, Run indicator light
Defrosting	Manual, with interior drain and exterior drain plug
Cleaning	Baking soda solution or mild detergent
Installation	Freestanding, 12.7 cm (5 in) clearance around
Leveling	Adjustable leveling feet
Included Accessories	Metal basket
Interior Material	Rust-resistant
Safety	Grounding required, do not use extension cord
Reparability	Contact an authorized service

Frequently Asked Questions - PFR34400X Premium Levella

What is the capacity of the freezer?

The capacity is not specified in the manual. For domestic use, an estimated capacity of about 300 litres, but check the rating plate.

How to adjust the temperature?

Use the thermostat dial on the front of the appliance. Positions 1 (warm) to 7 (cold) allow temperature adjustment. Position 4 is suitable for normal use. To stop cooling, turn to 0.

How to defrost the appliance?

Defrost about twice a year or when frost reaches 6 mm. Turn the thermostat to 0, unplug, remove food and leave the lid open. Use the interior drain and exterior drain plug to drain water. Never use sharp objects or electrical appliances.

What to do in case of a power outage?

Most power outages are short. Open the lid as little as possible. If the outage lasts a long time, take measures to protect food. Wait 3 to 5 minutes before restarting after an interruption.

Can I use an extension cord?

No, using an extension cord is not recommended. Plug directly into a grounded wall outlet.

Why is the lid hard to open?

This is normal after closing due to pressure difference. Wait a few minutes for the pressure to equalize, or wait 5 minutes if necessary.

How to clean the interior?

First unplug the appliance. Use a soft cloth with a solution of one tablespoon of baking soda to one quart of water, or mild soap. Avoid ammonia and alcohol. Also clean the lid gasket.

What type of refrigerant is used?

The refrigerant is a flammable liquid, probably R600a. Do not puncture the tubes and follow safety instructions.

What is the power consumption?

The power consumption is not specified in the manual. Check the energy label or the rating plate of the appliance.

What to do if the freezer is not cooling?

First check if the appliance is plugged in and if the fuse or circuit breaker is in good condition. Make sure the temperature setting is not too warm, the lid closes properly, and there is no heat source nearby. If the problem persists, contact an authorized service.

USER MANUAL PFR34400X Premium Levella

Line drawing of a LevelLA air purifier with control panel and lid (no text or symbols on body)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
  • Follow handling instructions carefully.
• Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
  • Bed and breakfast type environments;
  • Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

SAVE THESE INSTRUCTIONS!

INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not place the appliance in direct sunlight or near sources of heat, such as a stove or heater, as this can increase electrical consumption. Extreme cold ambient temperatures may also cause the appliance to perform improperly.
• Do not use the appliance near water, for example, in a wet basement or near a sink.
• This appliance is intended for indoor household and garage use only. Freezers are tested to perform in temperatures ranging from 0°F to 110°F (-17°C to 43°C). It is not designed for outside installation, including anywhere that is not temperature controlled such as porches, vehicles, etc.
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Allow 12.7 cm (5 inches) of space between the back and sides of the appliance and all adjacent walls.
• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.

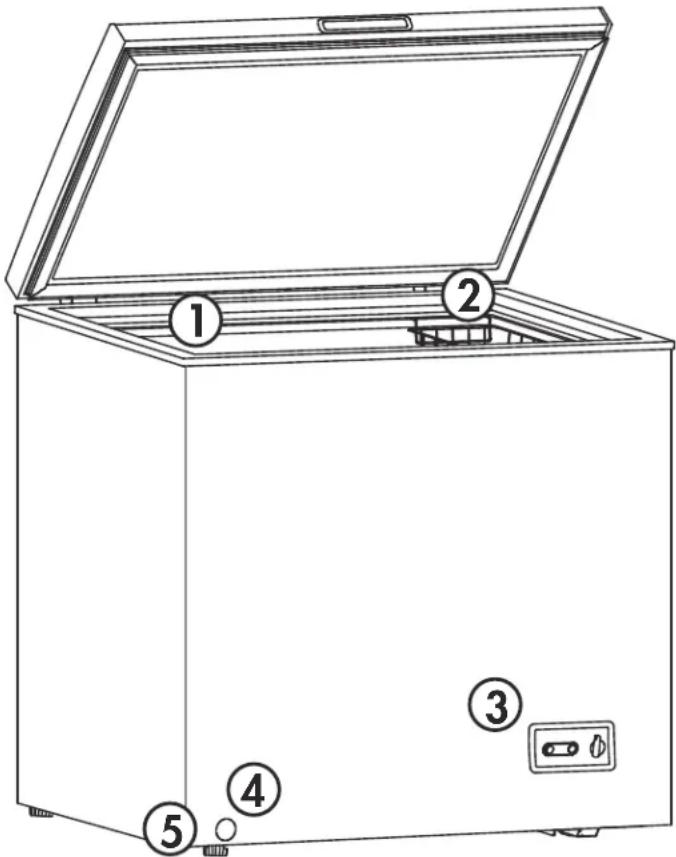

FEATURES

1. Rust Resistant Interior
2. Wire Basket
3. Thermostat Dial
4. Defrost Drain
5. Leveling Legs

Diagram of a refrigerator with numbered parts for identification and assembly reference

IMPORTANT NOTE

The freezer lid may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that has just entered the freezer when the lid was opened. The pressure will equalize within a few minutes.

If the lid is especially difficult to open, wait 5 minutes to allow the pressure to equalize and then try again.

OPERATING INSTRUCTIONS

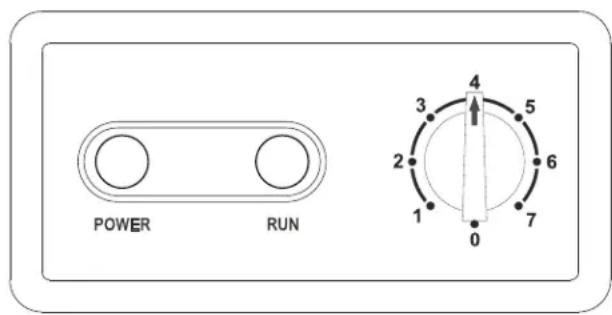

TEMPERATURE CONTROL

1. Power indicator light: Illuminates when the appliance is connected to a working power source.
2. Run indicator light: Illuminates when the compressor is running.

POWER RUN 1 2 3 4 5 6 7 0

The temperature of the appliance is controlled by setting the thermostat dial on the front of the cabinet.

• The number 1 indicates the warmest setting.
• The number 7 indicates the coldest setting.
• The number 4 setting should be sufficient for regular home use.
• The temperature range of the appliance is approximately -12 \~ -24°C (10.4 \~ -11.2°F).
• To stop the cooling function, turn the dial to the "0" position.

Important:

• The temperature inside the appliance can vary based on ambient room temperature, the frequency that the lid is opened and the amount of fresh food that has recently been added to the appliance.
• Do not overload the appliance as this can affect performance.
• Do not freeze large quantities of fresh food at the same time.

LEVELING INSTRUCTIONS

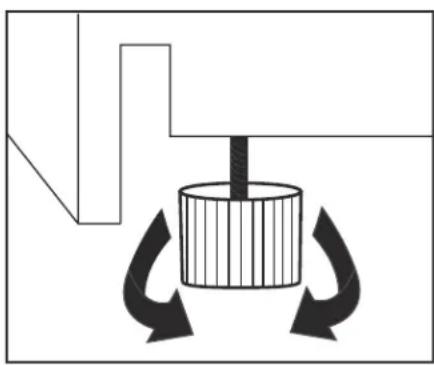

There are two adjustable legs on the bottom of the appliance that can be turned up or down to ensure that the appliance is level. It is important that the appliance is level to minimize noise and vibration. To level the appliance:

1. Move the appliance to its final location.
2. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the chassis.
3. Slowly turn the leveling leg clockwise until the appliance is level.

Pure mechanical diagram showing a cylindrical component with two curved arrows indicating rotational motion (no text or symbols)

Please do not overload your freezer. A freezer is able to freeze approximately 2 1/2 lbs of thawed food per cubic foot space. A 5 cubic foot freezer, for example, can freeze approximately 12-13 lbs of unfrozen food in any 24 hour period. It is best to pre-freeze food prior to putting it in your freezer. Most butchers or providers of bulk food prior to getting it to you. Overloading the freezer may cause it to fail.

OPERATING INSTRUCTIONS

DEFROSTING

This appliance should be defrosted approximately twice a year or when a 6 mm (1/4 inch) layer of frost has formed.

Turn the appliance control knob to the "0" position and unplug the power cord. Remove all contents and leave the lid open. Follow the instructions below:

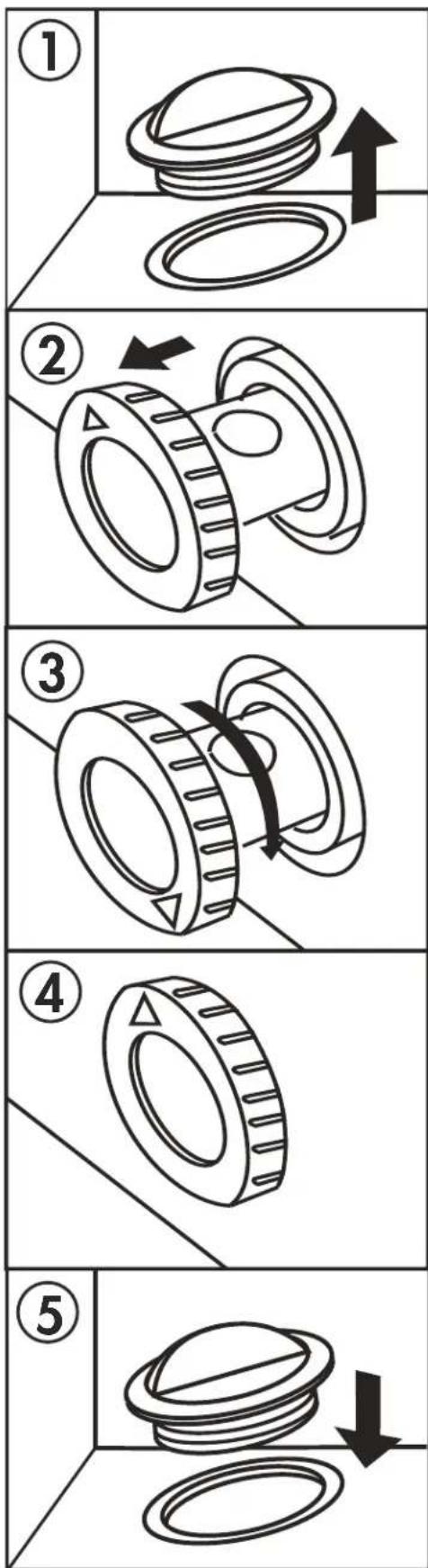

1. The interior defrost drain is located on the inside floor of the cabinet. Remove the cover from the defrost drain. Defrosted water will flow into the hole and out through the exterior defrost drain cap.
2. The exterior defrost drain cap is located on the front of the cabinet. Turn the cap with a coin or fl at-bladed screwdriver and then gently pull out until the water hole is visible.
3. Twist the exterior drain cap so that the arrow points downward. Place a bucket or pan under the drain cap to catch defrosted water. Check the appliance regularly during defrosting to ensure that the water is not overfl owing.
4. When all water has been drained, twist the drain cap until the arrow is pointing upwards and then push inward until it is flush with the cabinet.
5. Replace the cover in the interior defrost drain.

After defrosting is complete, set the temperature control to maximum for 2 to 3 hours before returning to the desired temperature setting.

IMPORTANT

Never use electrical appliances during defrosting. Do not use pointed or sharp objects to remove frost as this can damage the refrigerant lines. If these lines are accidentally pierced it will render the freezer inoperable and void the manufacturer's warranty.

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or a mild soap solution or some mild detergent.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area where the lid seals against the cabinet clean to ensure a tight seal. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the lid is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has been interrupted.

ENERGY SAVING TIP

The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight. Do not overload the unit or block any ventilation openings.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Defrost, clean and dry the interior thoroughly. To prevent odor and mold growth, leave the lid open slightly, blocking it open if necessary.

MOVING

• Remove all items.
• Tape the lid shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a blanket or similar item.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain in its operating position for 6 hours to avoid damage to internal components.

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

Disposal of this appliance should be in accordance with federal and local regulations.

FREQUENTLY ASKED QUESTIONS

What are the standard wattage and amps used?

This information can be found on the rating plate located on the back of the cabinet.

How much does it cost to run the freezer?

Please refer to the energy guide.

Can I use an extension cord?

No, an extension cord may not be used.

I am having trouble opening the door or lid; why?

The freezer door or lid may be difficult to open immediately after closing it. This is normal and is due to the pressure difference between the cold interior of the freezer and the warm air that has just entered the freezer when it was opened. The pressure will equalize within a few minutes.

TROUBLESHOOTING

No power

• A fuse may be blown or the circuit breaker tripped
• Plug not fully inserted into the wall outlet

Internal temperature not cold enough

• Temperature setting is too warm
• The door or lid is not shut properly or opened excessively
• Recently added a large quantity of warm food to the cabinet
- Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high

Freezer runs continuously

• Temperature setting is too cold
• The door or lid is not shut properly or opened excessively
• Recently added a large quantity of warm food to the cabinet
- Close proximity to heat source or direct sunlight
- Ambient temperature or humidity is very high

Freezer makes a gurgling noise when operating

- This noise is completely normal. The refrigerant inside the appliance will make a gurgling noise as it changes from a liquid to a gas and back again.
